TFT LCD Tentative Specification

MODEL NO.: N133B6 - L04

www.panelook.com

Issued Date: Jul. 14, 2009

Model No.: N133B6 -L04

Tentative

Customer :

Approved by :

Note :

2009.07.22

Director Accept

2009-07-22

09:59:04

NB

1 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Jul. 14, 2009

Model No.: N133B6 -L04

Tentative

- CONTENTS -

REVISION HISTORY ------------------------------------------------------- 3

1. GENERAL DESCRIPTION ------------------------------------------------------- 4

1.1 OVERVIEW

1.2 FEATURES

1.3 APPLICATION

1.4 GENERAL SPECIFICATIONS

1.5 MECHANICAL SPECIFICATIONS

2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

2.2.2 BACKLIGHT UNIT

3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7

3.1 TFT LCD MODULE

3.2 BACKLIGHT UNIT

4. BLOCK DIAGRAM ------------------------------------------------------- 10

4.1 TFT LCD MODULE

5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 11

5.1 TFT LCD MODULE

5.2 TIMING DIAGRAM OF LVDS INPUT SIGNAL

5.3 COLOR DATA INPUT ASSIGNMENT

5.4 EDID DATA STRUCTURE

5.5 EDID SIGNAL SPECIFICATION

6. CONVERTER SPECIFICATION ------------------------------------------------------- 17

6.1 ABSOLUTE MAXIMUM RATINGS

6.2 RECOMMENDED OPERATING RATINGS

7. INTERFACE TIMING ------------------------------------------------------- 19

7.1 INPUT SIGNAL TIMING SPECIFICATIONS

7.2 POWER ON/OFF SEQUENCE

8. OPTICAL CHARACTERISTICS ------------------------------------------------------- 21

8.1 TEST CONDITIONS

8.2 OPTICAL SPECIFICATIONS

9. PRECAUTIONS ------------------------------------------------------- 24

9.1 HANDLING PRECAUTIONS

9.2 STORAGE PRECAUTIONS

9.3 OPERATION PRECAUTIONS

10. PACKING ------------------------------------------------------- 25

10.1 CARTON

10.2 PALLET

11. DEFINITION OF LABELS ------------------------------------------------------- 27

11.1 CMO MODULE LABEL

11.2 CARTON LABEL

2 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Jul. 14, 2009

Model No.: N133B6 -L04

Tentative

REVISION HISTORY

Version Date

Ver 0.0

Jul. 14,’09

Page

(New)

All

Section Description

Tentative specification first issued.

All

3 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

1 GENERAL DESCRIPTION

1.1 OVERVIEW

N133B6-L04 is a 13.3” TFT Liquid Crystal Display module with LED Backlight unit and 40 pins LVDS

interface. This module supports 1366 x 768 Wide-XGA mode and can display 262,144 colors. The optimum

viewing angle is at 6 o’clock direction.

1.2 FEATURES

- Aspect ratio 16:9

- WXGA (1366 x 768 pixels) resolution

- 3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock

- Meet RoHS requirement

- LED Backlight

www.panelook.com

Issued Date: Jul. 14, 2009

Model No.: N133B6 -L04

Tentative

1.3 APPLICATION

- TFT LCD Notebook

1.4 GENERAL SPECIFICATI0NS

Item Specification Unit Note
Active Area 293.4168 (H) x 164.9664 (V) (13.3” diagonal) mm
Top Polarizer 296.816(H) x 168.366(V) mm
Driver Element a-si TFT active matrix - ­Pixel Number 1366 x R.G.B. x 768 pixel ­Pixel Pitch 0.2148 (H) x 0.2148 (V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 262,144 color ­Transmissive Mode Normally white - ­Surface Treatment Hard coating (3H), glare type - -

1.5 MECHANICAL SPECIFICATIONS

Item Min. Typ. Max. Unit Note

Horizontal(H) 305.8 306.3 306.8 mm

Module Size

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.

Vertical(V) 177.2 177.7 178.2 mm

Vertical(V)
(w PCB)
Depth(D) 3.3 3.6 mm

Weight - 280 290 g

188.25 188.75 189.25 mm

(1)

(1)

4 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

A

2 ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

Item Symbol

Storage Temperature TST -20 +60 ºC (1)
Operating Ambient Temperature TOP 0 +50 ºC (1), (2)
Shock (Non-Operating) S
Vibration (Non-Operating) V

Note (1) (a) 90 %RH Max. (Ta Љ 40 ºC).

(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).

(c) No condensation.

Note (2) The temperature of panel display surface area should be 0 ºC Min. and 50 ºC Max.

Relative Humidity (%RH)

www.panelook.com

Issued Date: Jul. 14, 2009

Model No.: N133B6 -L04

Tentative

Value

Min. Max.

- 220/2 G/ms (3), (5)

NOP

- 1.5 G (4), (5)

NOP

Unit Note

100

90

80

60

Operating Range

40

20
10

Storage Range

Temperature (ºC)

Note (3) 1 time for ± X, ± Y, ± Z. for Condition (220G / 2ms) is half Sine Wave,.

Note (4) 10 ~ 500 Hz, 30 min/cycle,1cycles for each X, Y, Z axis.

8060-20 40 0 20 -40

Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid

enough so that the module would not be twisted or bent by the fixture.

The fixing condition is shown as below:

t Room Temperature

5 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

Item Symbol

Power Supply Voltage Vcc -0.3 +4.0 V
Logic Input Voltage VIN -0.3 Vcc+0.3 V

2.2.2 BACKLIGHT UNIT

Item Symbol

LED Light Bar Power Supply Voltage VL -40 26.4 V
LED Light Bar Power Supply Current IL 0 125 mA

Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation

www.panelook.com

Value

Min. Max.

Value

Min. Max.

Unit Note

Issued Date: Jul. 14, 2009

Model No.: N133B6 -L04

Tentative

(1)

Unit Note

(1), (2)

should be restricted to the conditions described under Normal Operating Conditions.

Note (2) Specified values are for LED (Refer to Section 3.2 for further information).

6 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

3 ELECTRICAL CHARACTERISTICS

3.1 TFT LCD MODULE

Parameter Symbol

Power Supply Voltage Vcc 3.0 3.3 3.6 V ­Ripple Voltage VRP - 50 mV ­Rush Current I
Initial Stage Current IIS 1.0 A (2)

Power Supply Current

LVDS Differential Input High Threshold V

LVDS Differential Input Low Threshold V

LVDS Common Mode Voltage VCM 1.125 1.375 V (5)
LVDS Differential Input Voltage |VID| 100 600 mV (5)
Terminating Resistor RT - 100 - Ohm ­Power per EBL WG P

Note (1) The ambient temperature is Ta = 25 ± 2 ºC.

White - (175) TBD mA (3)a
Black

www.panelook.com

Min. Typ. Max.

- 1.5 A (2)

RUSH

lcc

TH(LVDS)

TL(LVDS)

- TBD W (4)

EBL

- (270) TBD mA (3)b

+100 mV

-100 mV

Value

Issued Date: Jul. 14, 2009

Model No.: N133B6 -L04

Tentative

Unit Note

(5),

=1.2V

V

CM

(5)

=1.2V

V

CM

Note (2) I

I

: the maximum current when VCC is rising

RUSH

: the maximum current of the first 100ms after power-on

IS

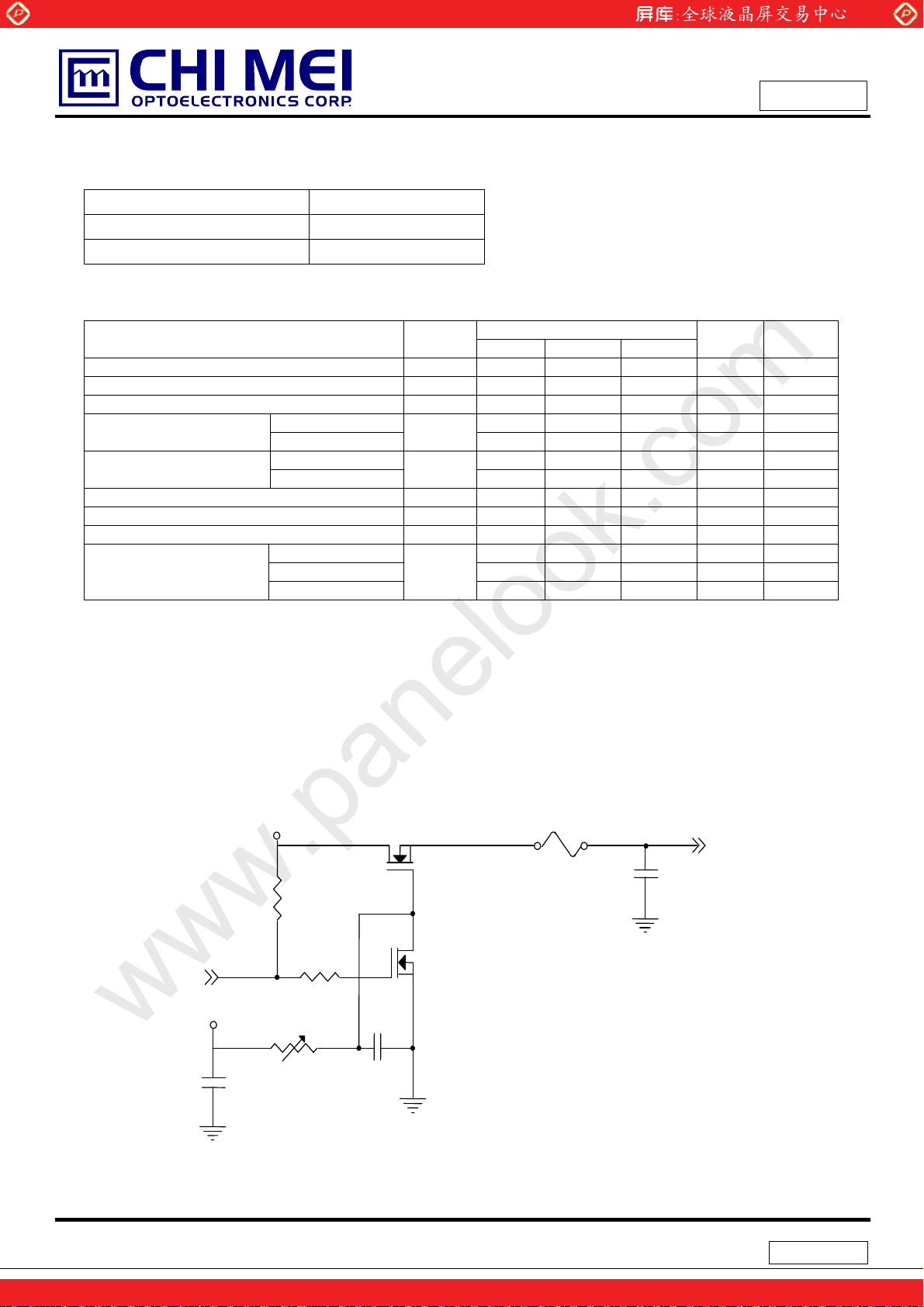

Measurement Conditions: Shown as the following figure. Test pattern: black.

(High to Low)

(Control Signal)

SW

+12V

+3.3V

R1

47K

R2

1K

47K

VR1

C1

1uF

Q1 2SK1475

C2

0.01uF

Q2

2SK1470

FUSE

C3

1uF

Vcc

(LCD Module Input)

VCC

0V

I

RUSH

470us

0.1Vcc

0.9Vcc

+3.3V

100ms

I

IS

ICC

7 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

|

|

|

|

Note (3) The specified power supply current is under the conditions at Vcc = 3.3 V, Ta = 25 ± 2 ºC, fv = 60

Hz, whereas a power dissipation check pattern below is displayed.

www.panelook.com

Issued Date: Jul. 14, 2009

Model No.: N133B6 -L04

Tentative

a. White Pattern

Active Area

Note (4) The specified power are the sum of LCD panel electronics input power and the converter input

power. Test conditions are as follows.

(a) Vcc = 3.3 V, Ta = 25 ± 2 ºC, f

(b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file

“Flat Panel Display Monitor Setup Patterns”, FPDMSU.ppt.

(c) Luminance: 60 nits.

= 60 Hz,

v

b. Black Pattern

Active Area

Note (5) The parameters of LVDS signals are defined as the following figures.

CM

V

Single Ended

0V

V

Differential

0V

V

VID

VID

8 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Jul. 14, 2009

Model No.: N133B6 -L04

Tentative

3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC

Parameter Symbol

LED light bar Power Supply
Voltage

LED light bar Power
Supply Current

V

L

95 100 105 mA

I

L

Min. Typ. Max.

23.2 24.8 26.4 V

LED Life Time LBL 10,000 - - Hrs (4)

Power Consumption PL 2.204 2.48 2.772 W

Note (1) LED light bar configuration is shown as below:

VL,I

Value

Unit Note

dc

(1) Duty 100%

(3)

=120mA,

I

L

Duty=100%

L

LED

Light Bar Feedback

Light Bar

Channels

Note (2) For better LED light bar driving quality, it is recommended to utilize the adaptive boost converter with

current balancing function to drive LED light-bar.

Note (3) P

L

= I

LVL

Note (4) The lifetime of LED is defined as the time when it continues to operate under the conditions at

Ta = 25 2

o

C and IL = 20 mA(Per EA) until the brightness becomes Љ 50% of its original value.

9 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

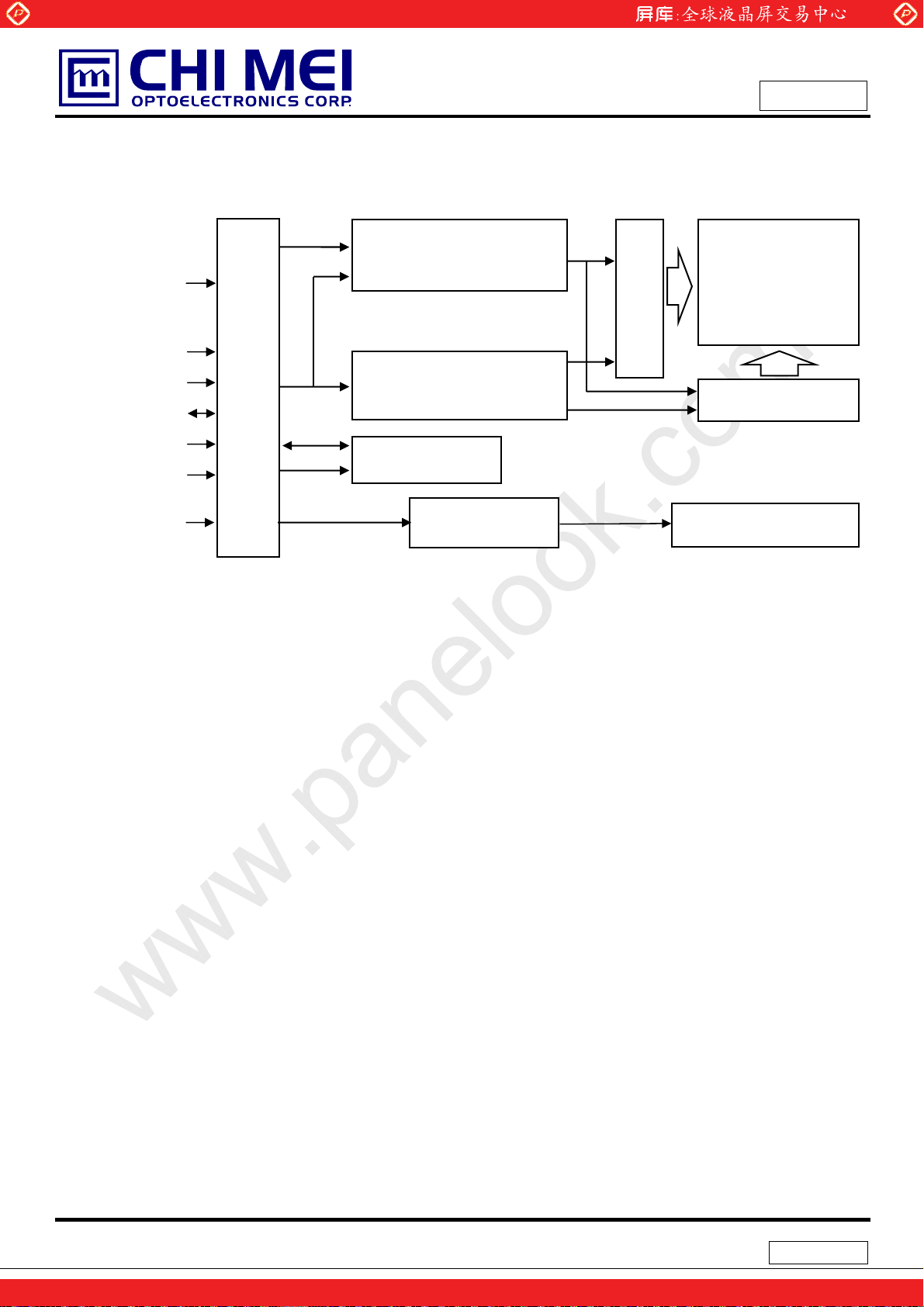

4 BLOCK DIAGRAM

4.1 TFT LCD MODULE

www.panelook.com

Issued Date: Jul. 14, 2009

Model No.: N133B6 -L04

Tentative

LVDS Display

Data & Clock

Vcc

GND

Data

EDID

CLK

EDID

V

EDID

Converter

Input Signals

INPUT CONNECTOR

LVDS INPUT /

TIMING CONTROLLER

DC/DC CONVERTER &

REFERENCE VOLTAGE

GENERATOR

EDID

EEPROM

LED

CONVERTER

SCAN DRIVER IC

TFT LCD PANEL

(1366x3x768)

DATA DRIVER IC

BACKLIGHT UNIT

10 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

5 INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD MODULE

Pin Symbol Description Polarity Remark

1 VSS Ground
2 VCCS Power Supply ( 3.3 V typ)
3 VCCS Power Supply ( 3.3 V typ)
4 EE_VDD DDC ( 3.3 V typ)
5 NC No Connection
6 EE_SC DDC Clock
7 EE_SD DDC Data
8 Rx0- LVDS Differential Data Input Negative

9 Rx0+ LVDS Differential Data Input Positive
10 VSS Ground
11 Rx1- LVDS Differential Data Input Negative
12 Rx1+ LVDS Differential Data Input Positive
13 VSS Ground
14 Rx2- LVDS Differential Data Input Negative
15 Rx2+ LVDS Differential Data Input Positive
16 VSS Ground
17 RXC- LVDS Clock Data Input Negative
18 RXC+ LVDS Clock Data Input Positive
19 Reserved ­20 NC No Connection ­21 NC No Connection
22 VSS Ground
23 NC No Connection
24 NC No Connection
25 VSS Ground
26 NC No Connection
27 NC No Connection
28 VSS Ground
29 NC No Connection
30 NC No Connection
31 VSS Ground
32 VSS Ground
33 VSS Ground
34 NC No Connection
35 LED_PWM PWM brightness control
36 LED_EN LED Enable
37 Reserved
38 LED_VCCS LED Power
39 LED_VCCS LED Power
40 LED_VCCS LED Power

www.panelook.com

Issued Date: Jul. 14, 2009

Model No.: N133B6 -L04

Tentative

R0~R5,G0-

G1~G5,B0,B1

-

B2~B5,Hsync,Vsync,DE

LVDS Level Clock

11 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

Note (1) Connector Part No.: I-PEX 20455-040E-12 or equivalent

Note (2) User’s connector Part No.: I-PEX 20453-040T-11 or equivalent

Note (3) The first pixel is odd as shown in the following figure.

www.panelook.com

Issued Date: Jul. 14, 2009

Model No.: N133B6 -L04

Tentative

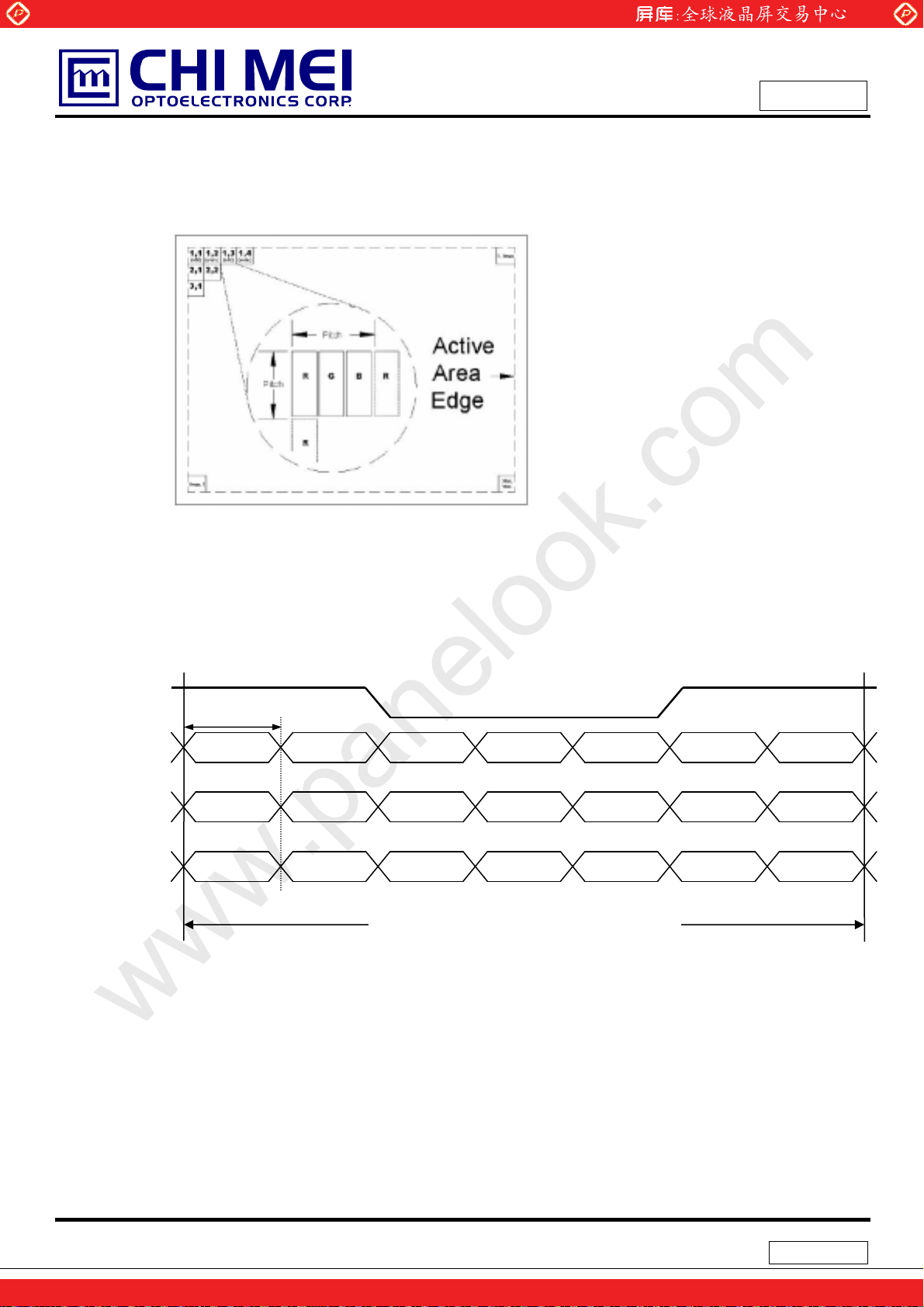

5.2 TIMING DIAGRAM OF LVDS INPUT SIGNAL

CLK+

T/7

Rxin2

Rxin1

Rxin0

IN20 IN19 IN18 IN17 IN16 IN15 IN14

DE B5 B4 B3 B2 Vsync Hsync

IN13 IN12 IN11 IN10 IN9 IN8 IN7

B1 G4 G3 G2 G1 B0 G5

IN6 IN5 IN4 IN3 IN2 IN1 IN0

G0 R3 R2 R1 R0

R5

R4

Signal for 1 DCLK Cycle (T)

12 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

5.3 COLOR DATA INPUT ASSIGNMENT

The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input for

the color. The higher the binary input the brighter the color. The table below provides the assignment of

color versus data input.

Color

R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0
Black
Red
Green

Basic
Colors

Gray
Scale
Of
Red

Gray
Scale
Of
Green

Gray
Scale
Of
Blue

Note (1) 0: Low Level Voltage, 1: High Level Voltage

Blue
Cyan
Magenta
Yellow
White
Red(0)/Dark
Red(1)
Red(2)

:

:
Red(61)
Red(62)
Red(63)
Green(0)/Dark
Green(1)
Green(2)

:

:
Green(61)
Green(62)
Green(63)
Blue(0)/Dark
Blue(1)
Blue(2)

:

:
Blue(61)
Blue(62)
Blue(63)

0

0

1

1

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

:

:

:

:

1

1

1

1

1

1

0

0

0

0

0

0

:

:

:

:

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

0

0

0

0

0

0

www.panelook.com

Issued Date: Jul. 14, 2009

Model No.: N133B6 -L04

Tentative

Data Signal

Red Green Blue

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

1

1

0

1

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

0

0

0

0

1

1

1

1

0

1

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

1

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

13 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

5.4 EDID DATA STRUCTURE

The EDID (Extended Display Identification Data) data formats are to support displays as defined in the

VESA Plug & Display and FPDI standards.

Byte #
(decimal)

0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37

38

39
40
41

Byte #
(hex)

Field Name and Comments

0 Header
1 Header
2 Header
3 Header
4 Header
5 Header
6 Header
7 Header
8 EISA ID manufacturer name (“CMO”)

9 EISA ID manufacturer name (Compressed ASCII)
0A ID product code (N133B6-L04) 22
0B ID product code (hex LSB first; N133B6-L04) 13
0C ID S/N (fixed “0”)
0D ID S/N (fixed “0”)
0E ID S/N (fixed “0”)

0F ID S/N (fixed “0”)
10 Week of manufacture (fixed week code)
11 Year of manufacture (fixed year code)
12 EDID structure version # (“1”)
13 EDID revision # (“3”)
14 Video I/P definition (“digital”)
15 Active area horizontal 29.341cm 1D
16 Active area vertical 16.496cm 10
17 Display Gamma (Gamma = ”2.2”)
18 Feature support (“Active off, RGB Color”)

19 Red/Green (Rx1, Rx0, Ry1, Ry0, Gx1, Gx0, Gy1, Gy0)
1A Blue/White (Bx1, Bx0, By1, By0, Wx1, Wx0, Wy1, Wy0)
1B Red-x (Rx = “0.580”)
1C Red-y (Ry = “0.343”) 57
1D Green-x (Gx = ”0.330”)
1E Green-y (Gy = ”0.568”)

1F Blue-x (Bx = ”0.155”)

20 Blue-y (By = ”0.125”)

21 White-x (Wx = ”0.313”)

22 White-y (Wy = ”0.329”)

23 Established timings 1

24 Established timings 2

25 Manufacturer’s reserved timings

26 Standard timing ID # 1

27 Standard timing ID # 1

28 Standard timing ID # 2

29 Standard timing ID # 2

www.panelook.com

Issued Date: Jul. 14, 2009

Model No.: N133B6 -L04

Tentative

Value
(hex)

Value

(binary)
00 00000000
FF 11111111
FF 11111111
FF 11111111
FF 11111111
FF 11111111
FF 11111111
00 00000000
0D 00001101
AF 10101111

00100010

00010011
00 00000000
00 00000000
00 00000000
00 00000000
35 00110101
13 00010011
01 00000001
03 00000011
80 10000000

00011101

00010000
78 01111000
0A 00001010

BA 10111010
C5 11000101

94 10010100

01010111
54 01010100
91 10010001
27 00100111
20 00100000
50 01010000
54 01010100
00 00000000
00 00000000
00 00000000

01 00000001

01 00000001
01 00000001
01 00000001

14 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Jul. 14, 2009

Model No.: N133B6 -L04

Tentative

42
43
44
45
46
47
48
49
50
51
52
53

54

55
56
57
58
59
60
61
62
63
64

65

66
67
68
69
70

71

72
73
74

75

76
77
78
79
80
81

82 52 # 2 6th character of name (“6”) 36
83
84
85
86

2A Standard timing ID # 3
2B Standard timing ID # 3
2C Standard timing ID # 4
2D Standard timing ID # 4
2E Standard timing ID # 5

2F Standard timing ID # 5
30 Standard timing ID # 6
31 Standard timing ID # 6
32 Standard timing ID # 7
33 Standard timing ID # 7
34 Standard timing ID # 8
35 Standard timing ID # 8

Detailed timing description # 1 Pixel clock (“75.44MHz”,

36

According to VESA CVT Rev1.1)
37 # 1 Pixel clock (hex LSB first)
38 # 1 H active (“1366”)
39 # 1 H blank (“194”)

3A # 1 H active : H blank (“1366 : 194”)
3B # 1 V active (”768”)
3C # 1 V blank (”38”)
3D # 1 V active : V blank (”768 :38”)
3E # 1 H sync offset (”31”)

3F # 1 H sync pulse width ("65”)
40 # 1 V sync offset : V sync pulse width (”4 : 12”)

# 1 H sync offset : H sync pulse width : V sync offset : V sync
41

width (”31: 65 : 4 : 12”)
42 # 1 H image size (”293 mm”) 25
43 # 1 V image size (”164 mm”) A4
44 # 1 H image size : V image size (”293 : 164”)
45 # 1 H boarder (”0”)
46 # 1 V boarder (”0”)

# 1 Non-interlaced, Normal, no stereo, Separate sync, H/V pol
47

Negatives
48 Detailed timing description # 2
49 # 2 Flag

4A # 2 Reserved

# 2 FE (hex) defines ASCII string (Model Name “N133B6-L04”,

4B

ASCII)

4C # 2 Flag
4D # 2 1st character of name (“N”) 4E
4E # 2 2nd character of name (“1”) 31

4F # 2 3rd character of name (“3”) 33
50 # 2 4th character of name (“3”) 33
51 # 2 5th character of name (“B”) 42

53 # 2 7th character of name (“-”) 2D
54 # 2 8th character of name (“L”) 4C
55 # 2 9th character of name (“0”)
56 # 2 9th character of name (“4”)

01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001

78 01111000

1D 00011101

56 01010110

C2 11000010

50 01010000
00 00000000
26 00100110
30 00110000
1F 00011111
41 01000001

4C 01001100

00 00000000

10 00010000
00 00000000
00 00000000

18 00011000

00 00000000
00 00000000
00 00000000

FE 11111110

00 00000000

30 00110000
34 00110100

00100101
10100100

01001110
00110001
00110011
00110011
01000010
00110110
00101101
01001100

15 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Jul. 14, 2009

Model No.: N133B6 -L04

Tentative

87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110

111

112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127

57 # 2 New line character indicates end of ASCII string
58 # 2 Padding with “Blank” character
59 # 2 Padding with “Blank” character

5A Detailed timing description # 3
5B # 3 Flag
5C # 3 Reserved
5D # 3 FE (hex) defines ASCII string (Vendor “CMO”, ASCII)
5E # 3 Flag

5F # 3 1st character of string (“C”)
60 # 3 2nd character of string (“M”)
61 # 3 3rd character of string (“O”)
62 # 3 New line character indicates end of ASCII string
63 # 3 Padding with “Blank” character
64 # 3 Padding with “Blank” character
65 # 3 Padding with “Blank” character
66 # 3 Padding with “Blank” character
67 # 3 Padding with “Blank” character
68 # 3 Padding with “Blank” character
69 # 3 Padding with “Blank” character

6A # 3 Padding with “Blank” character
6B # 3 Padding with “Blank” character
6C Detailed timing description # 4
6D # 4 Flag
6E # 4 Reserved

# 4 FE (hex) defines ASCII string (Model Name“N133B6-L04”,
6F

ASCII)
70 # 4 Flag
71 # 4 1st character of name (“N”) 4E
72 # 4 2nd character of name (“1”) 31
73 # 4 3rd character of name (“3”) 33
74 # 4 4th character of name (“3”) 33
75 # 4 5th character of name (“B”) 42
76 # 4 6th character of name (“6”) 36
77 # 4 7th character of name (“-”) 2D
78 # 4 8th character of name (“L”) 4C
79 # 4 9th character of name (“0”)

7A # 4 9th character of name (“4”)
7B # 4 New line character indicates end of ASCII string
7C # 4 Padding with “Blank” character
7D # 4 Padding with “Blank” character
7E Extension flag

7F Checksum

0A 00001010

20 00100000
20 00100000
00 00000000
00 00000000
00 00000000

FE 11111110

00 00000000
43 01000011

4D 01001101

4F 01001111

0A 00001010

20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
20 00100000
00 00000000
00 00000000
00 00000000

FE 11111110

00 00000000

30 00110000
34 00110100

0A 00001010

20 00100000
20 00100000
00 00000000
55 01010101

01001110
00110001
00110011
00110011
01000010
00110110
00101101
01001100

16 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Jul. 14, 2009

Model No.: N133B6 -L04

6. CONVERTER SPECIFICATION

6.1 ABSOLUTE MAXIMUM RATINGS

Symbol Ratings

LED_VCCS -0.3V ~ 28.0V

LED_PWM, LED_EN -0.3V ~ 5.5V

6.2 RECOMMENDED OPERATING RATINGS

Parameter Symbol

Converter Input power supply voltage
Converter Rush Current
Converter Initial Stage Current

EN Control Level

PWM Control Level

Backlight On (2.3) - (5.5) V
Backlight Off 0 - (0.8) V
PWM High Level (2.3) - (5.5) V
PWM Low Level 0 - (0.15) V

LED_Vccs

ILED

RUSH

ILED

Min. Typ. Max.

7 12 20 V

- - 1.5 A (2)

IS

- - 1.5 A (2)

PWM Control Duty Ratio (10) - (100) %
PWM Control Permissive Ripple Voltage
PWM Control Frequency f

VPWM_pp

(190) (210) (230) Hz

PWM

- - 100 mV

ILED (350) (417) (495) mA (1)

LED Power Current

LED_VCCS =Typ. (204) (243) (289) mA (1)
LED_VCCS =Max.

ILED

(122) (146) (173) mA (1)

Note (1) The specified LED power supply current is under the conditions at “LED_VCCS = Min., Typ., Max.”,

Value

Tentative

Unit Note

Ta = 25 ± 2 ºC, f

Note (2) ILED

ILED

: the maximum current when LED_VCCS is rising,

RUSH

: the maximum current of the first 100ms after power-on,

IS

= 200 Hz, Duty=100%.

PWM

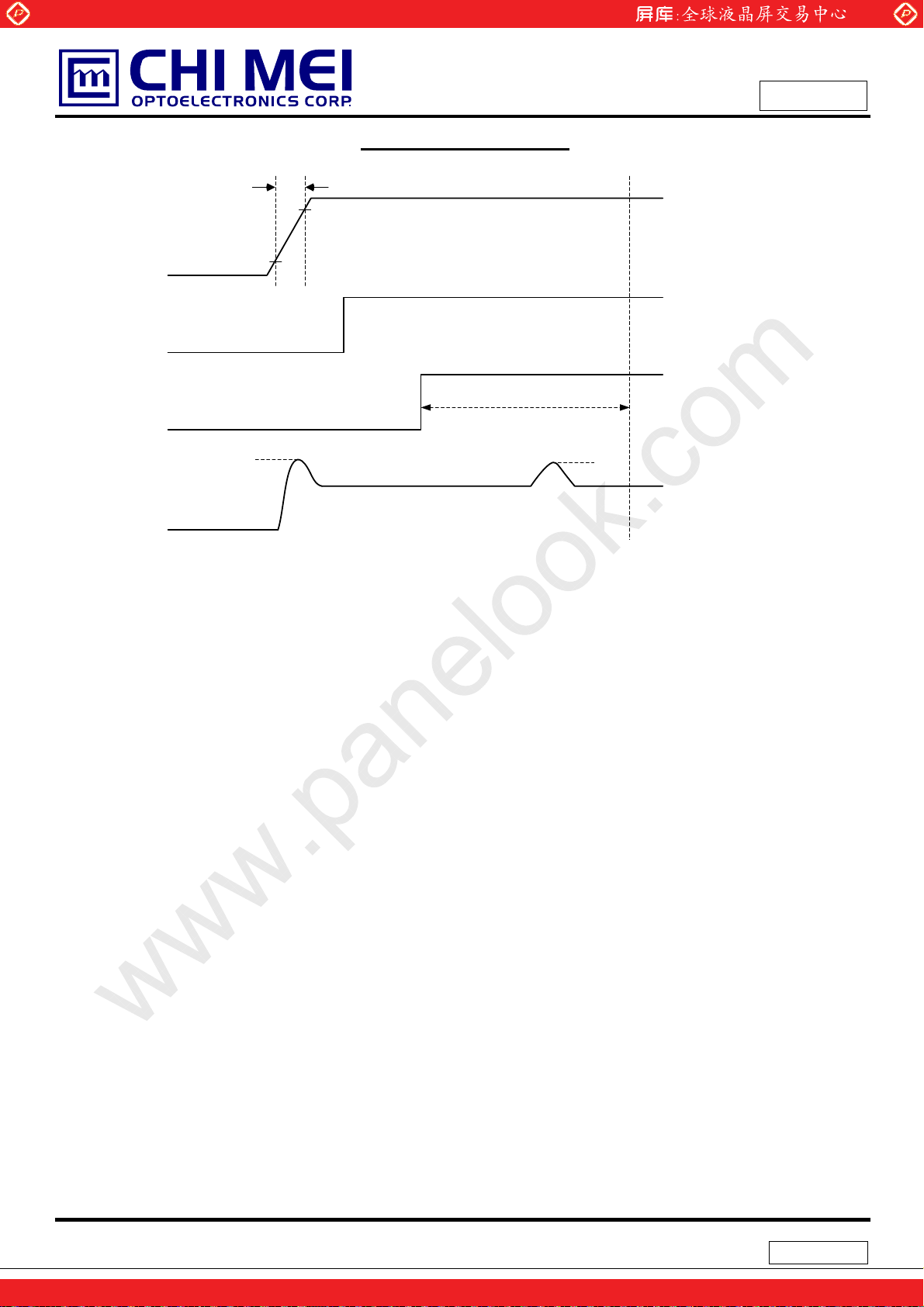

Measurement Conditions: Shown as the following figure. LED_VCCS = Typ, Ta = 25 ± 2 ºC, f

200 Hz, Duty=100%.

(High to Low)

(Control Signal)

SW=24V

LED_VCCS(Typ)

LED_VCCS(Typ)

C1

1uF

VR1

R1

47K

R2

1K

47K

Q1 IRL3303

0.01uF

FUSE

Q2

IRL3303

C2

C3

1uF

(LED Converter Input)

PWM

=

17 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

0.5ms

www.panelook.com

Issued Date: Jul. 14, 2009

Model No.: N133B6 -L04

Tentative

VLED rising time is 0.5ms

90%

LED_VCC

LED_PWM

LED_EN

ILED

0V

0V

0V

ILED

10%

Rush

100ms

ILED

IS

18 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

7 INTERFACE TIMING

7.1 INPUT SIGNAL TIMING SPECIFICATIONS

The input signal timing specifications are shown as the following table and timing diagram.

Signal Item Symbol Min. Typ. Max. Unit Note

DCLK Frequency 1/Tc 50 75.44 85 MHz

Vertical Total Time TV 771 806 1008 TH

Vertical Active Display Period TVD 768 768 768 TH

DE

Note (1) Because this module is operated by DE only mode, Hsync and Vsync are ignored

Vertical Active Blanking Period TVB TV-TVD 38 TV-TVD TH

Horizontal Total Time TH 1448 1560 1950 Tc

Horizontal Active Display Period THD 1366 1366 1366 Tc

Horizontal Active Blanking Period THB

www.panelook.com

TH-THD

194

Issued Date: Jul. 14, 2009

Model No.: N133B6 -L04

Tentative

TH-THD

Tc

DE

DCLK

DE

DATA

INPUT SIGNAL TIMING DIAGRAM

TC

HD

T

19 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

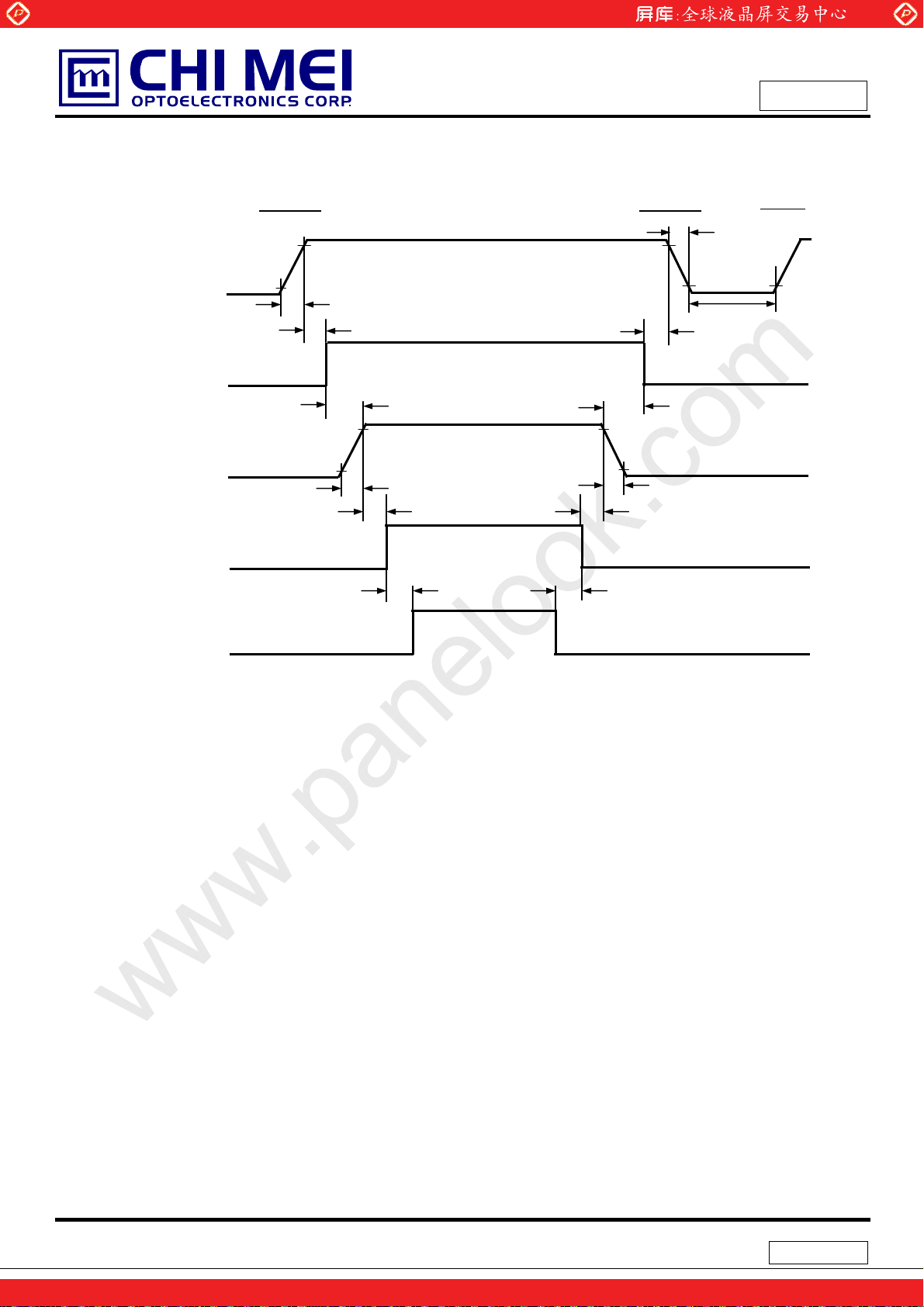

7.2 POWER ON/OFF SEQUENCE

www.panelook.com

Issued Date: Jul. 14, 2009

Model No.: N133B6 -L04

Tentative

- Power Supply

for LCD, VCCS

- Interface Signal

(LVDS Signal of
Transmitter), V

I

- Power Supply for

LED Converter,
LED_VCCS

- LED Converter

Dimming Signal,
LED_PWM

- LED Converter

Enable Signal,
LED_EN

0V

0V

0V

0V

0V

Power On

90%

10%

Power Off

t1

t2

Valid Data

t6t5

10%

90%

t

A

t

C

tE t

90%

t

B

t

D

F

90%

10%

Restart

t7

10%

t3

10%

t4

Timing Specifications:

0.5Љ t1ʳЉ 10 ms

0 Љ t2ʳЉ 50 ms

0 Љ t3ʳЉ 50 ms

t4ʳЊ 500 ms

t5ʳЊ 200 ms

t6ʳЊ 200 ms

0.5Љ t7ʳЉʳ 10 ms

0.5Љ t

0 Љ t

ʳЉʳ 10 ms

A

ʳЉʳ 10 ms

B

t

ʳЊ 10 ms

C

t

ʳЊ 10 ms

D

t

ʳЊ 10 ms

E

t

ʳЊ 10 ms

F

20 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

8 OPTICAL CHARACTERISTICS

8.1 TEST CONDITIONS

Item Symbol Value Unit

Ambient Temperature Ta 25±2
Ambient Humidity Ha 50±10 %RH
Supply Voltage VCC 3.3 V
Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS"
LED Light Bar Input Current I

The measurement methods of optical characteristics are shown in Section 8.2. The following items

should be measured under the test conditions described in Section 8.1 and stable environment shown in

Note (5).

8.2 OPTICAL SPECIFICATIONS

Item Symbol Condition Min. Typ. Max. Unit Note

Contrast Ratio CR 300 500 - - (2), (5)

Response Time

Luminance of White (5P) L
White Variation δW - - 1.25 - (5), (6)

Red

Gx
Gy

Wx (0.313) ­Wy

θx+ 40 45 -

θY+ 15 20 -

θ

Color
Chromaticity

Viewing Angle

Green

Blue

White

Horizontal

Vertical

www.panelook.com

Issued Date: Jul. 14, 2009

Model No.: N133B6 -L04

Tentative

o

C

L

100

TR - 3 8 ms

- 7 12 ms

T

F

180 220 - cd/m2(4), (5)

AVE

Rx
Ry

Bx
By

=0° , θY =0°

θ

x

Viewing Normal Angle

Typ.-

0.03

TBD
TBD
TBD
TBD
TBD
TBD

Typ.+

0.03

(0.329)

- 40 45 -

θ

x

-

Y

CR≥10

40 45 -

mA

-

-

-

-

-

-

-

Deg. (1), (5)

(3)

(1), (5)

21 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

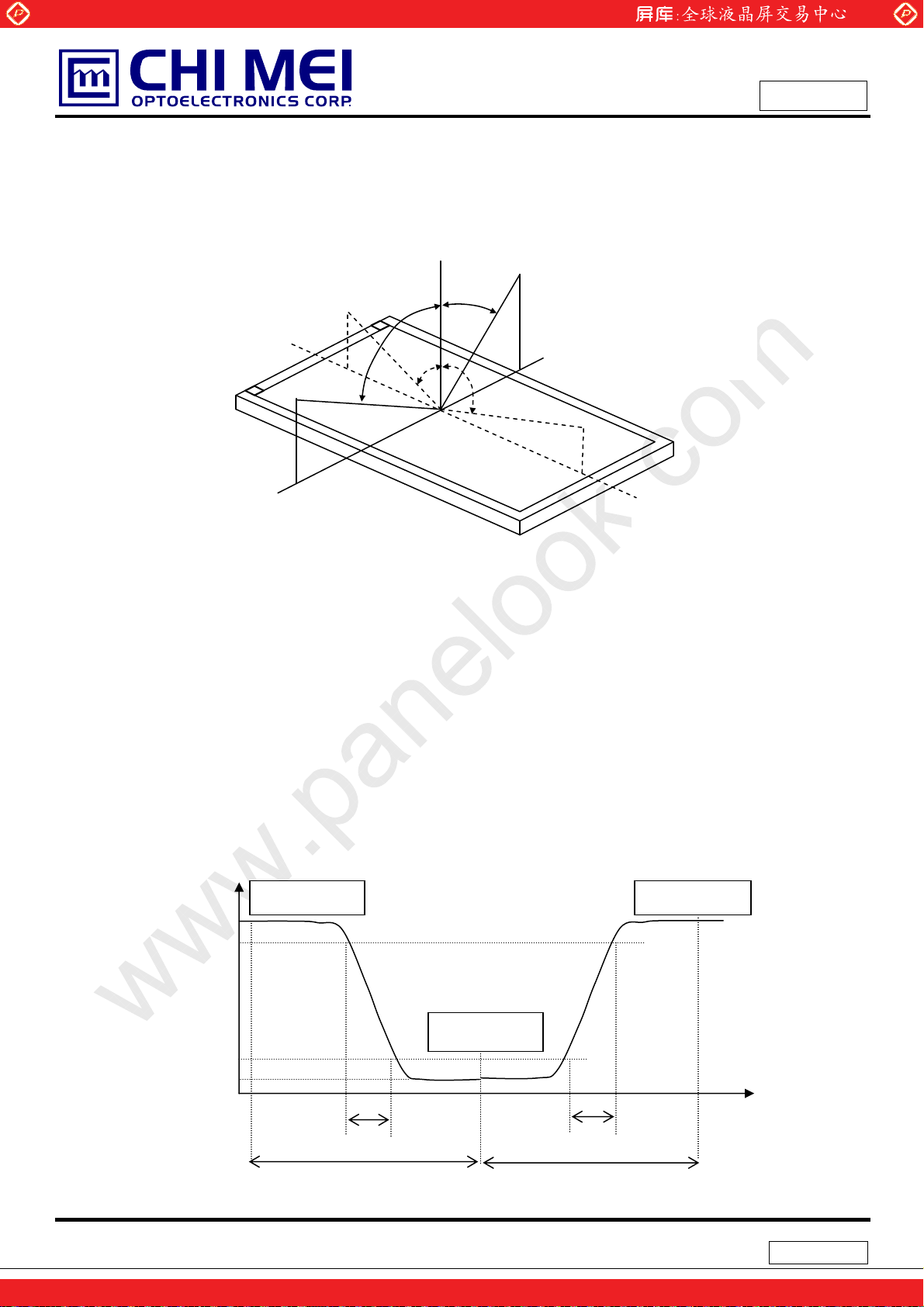

Note (1) Definition of Viewing Angle (θx, θy):

www.panelook.com

Issued Date: Jul. 14, 2009

Model No.: N133B6 -L04

Tentative

Normal

θx = θy = 0º

θy- θy+

θX- = 90º

6 o’clock

θ

y- = 90º

x-

y-

Note (2) Definition of Contrast Ratio (CR):

The contrast ratio can be calculated by the following expression.

Contrast Ratio (CR) = L63 / L0

L63: Luminance of gray level 63

L 0: Luminance of gray level 0

CR = CR (5)

θx-

θx+

y+

12 o’clock direction

θ

y+ = 90º

x+

θX+ = 90º

CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (6).

Note (3) Definition of Response Time (T

Gray Level 63

100%

90%

Optical

Response

10%

0%

66.67ms

T

, TF):

R

R

Gray Level 0

22 / 29

T

F

66.67m

Gray Level 63

Time

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

500

www.panelook.com

Issued Date: Jul. 14, 2009

Model No.: N133B6 -L04

Tentative

Note (4) Definition of Average Luminance of White (L

Measure the luminance of gray level 63 at 5 points

L

= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5

AVE

L (x) is corresponding to the luminance of the point X at Figure in Note (6).

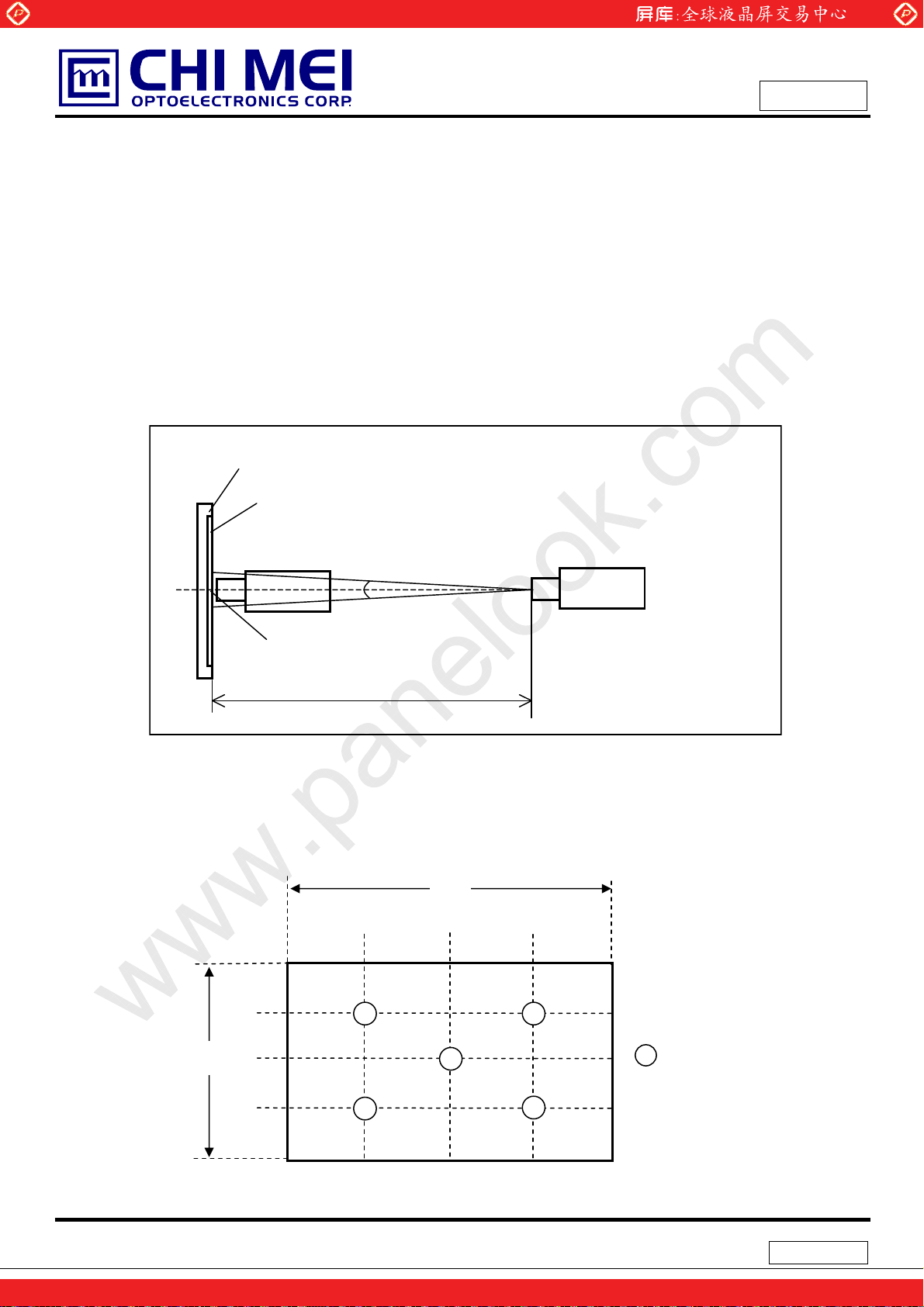

Note (5) Measurement Setup:

The LCD module should be stabilized at given temperature for 15 minutes to avoid abrupt

temperature change during measuring. In order to stabilize the luminance, the measurement

should be executed after lighting Backlight for 15 minutes in a windless room.

LCD Module

LCD Panel

USB2000

AVE

):

CS-1000T

Center of the Screen

mm

Note (6) Definition of White Variation (δW):

Measure the luminance of gray level 63 at 5 points

δW = Maximum [L (1), L (2), L (3), L (4), L (5)] / Minimum [L (1), L (2), L (3), L (4), L (5)]

D/4 D/2 3D/4

W/4

W/2

W

Vertical Line

3W/

1 2

3

Horizontal Line

D

5

Light Shield Room

(Ambient Luminance < 2 lux)

X

: Test Point

X=1 to 5

4

Active Area

23 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

9 PRECAUTIONS

9.1 HANDLING PRECAUTIONS

(1) The module should be assembled into the system firmly by using every mounting hole. Be careful not

to twist or bend the module.

(2) While assembling or installing modules, it can only be in the clean area. The dust and oil may cause

electrical short or damage the polarizer.

(3) Use fingerstalls or soft gloves in order to keep display clean during the incoming inspection and

assembly process.

(4) Do not press or scratch the surface harder than a HB pencil lead on the panel because the polarizer is

very soft and easily scratched.

(5) If the surface of the polarizer is dirty, please clean it by some absorbent cotton or soft cloth. Do not use

Ketone type materials (ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid or Methyl chloride. It might

www.panelook.com

Issued Date: Jul. 14, 2009

Model No.: N133B6 -L04

Tentative

permanently damage the polarizer due to chemical reaction.

(6) Wipe off water droplets or oil immediately. Staining and discoloration may occur if they left on panel for

a long time.

(7) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In

case of contacting with hands, legs or clothes, it must be washed away thoroughly with soap.

(8) Protect the module from static electricity, it may cause damage to the C-MOS Gate Array IC.

(9) Do not disassemble the module.

(10) Do not pull or fold the lamp wire.

(11) Pins of I/F connector should not be touched directly with bare hands.

9.2 STORAGE PRECAUTIONS

(1) High temperature or humidity may reduce the performance of module. Please store LCD module within

the specified storage conditions.

(2) It is dangerous that moisture come into or contacted the LCD module, because the moisture may

damage LCD module when it is operating.

(3) It may reduce the display quality if the ambient temperature is lower than 10 ºC. For example, the

response time will become slowly, and the starting voltage of lamp will be higher than the room

temperature.

9.3 OPERATION PRECAUTIONS

(1) Do not pull the I/F connector in or out while the module is operating.

(2) Always follow the correct power on/off sequence when LCD module is connecting and operating. This

can prevent the CMOS LSI chips from damage during latch-up.

(3) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while

assembling with converter. Do not disassemble the module or insert anything into the Backlight unit.

9.4 OTHER PRECAUTIONS

(1) When fixed patterns are displayed for a long time, remnant image is likely to occur.

24 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

10 PACKING

10.1 CARTON

www.panelook.com

Issued Date: Jul. 14, 2009

Model No.: N133B6 -L04

Tentative

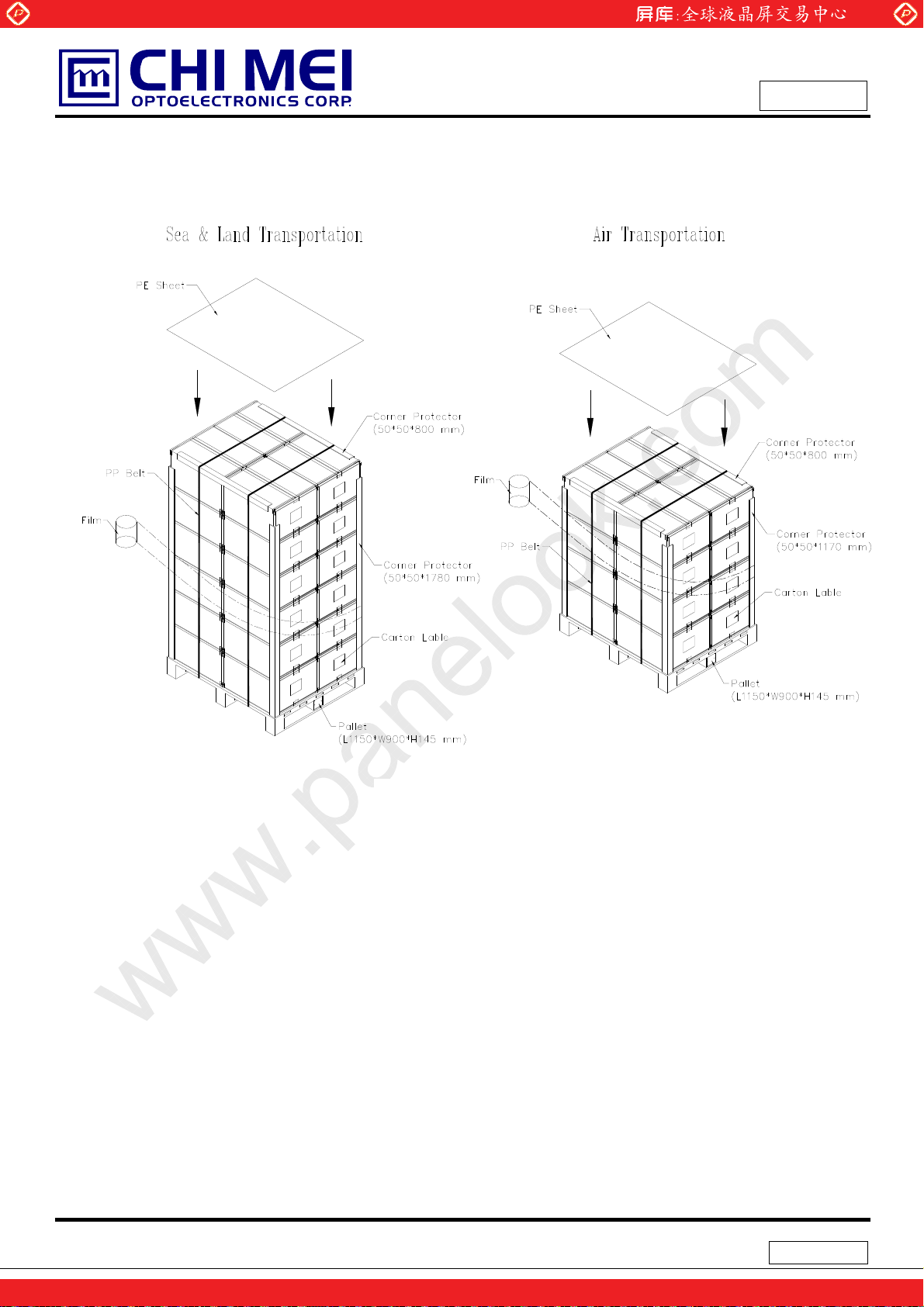

Figure. 10-1 Packing method

25 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

10.2 3$//(7 

www.panelook.com

Issued Date: Jul. 14, 2009

Model No.: N133B6 -L04

Tentative



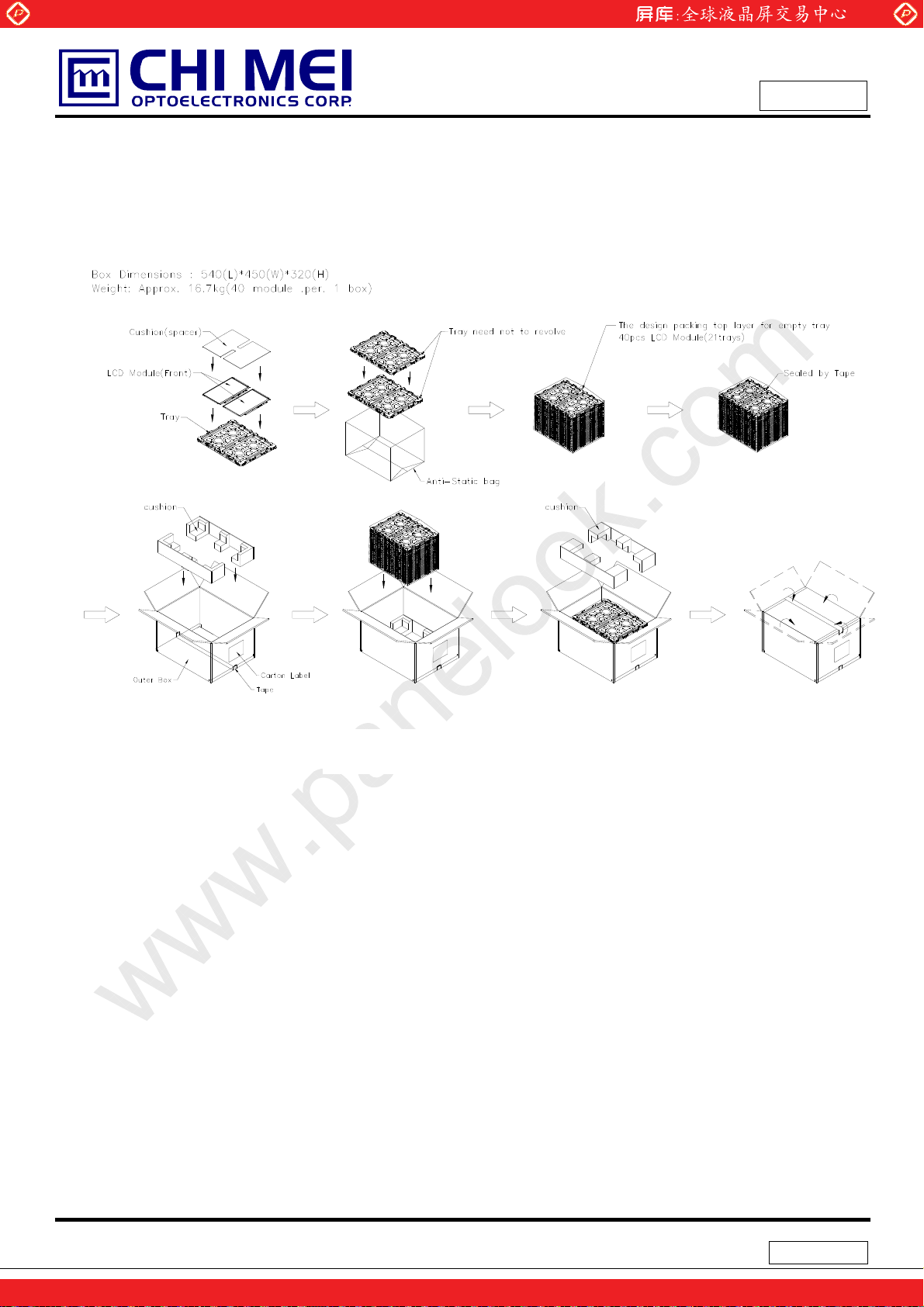

Figure. 10-2 Packing method

26 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

Global LCD Panel Exchange Center

11 DEFINITION OF LABELS

11.1 CMO MODULE LABEL

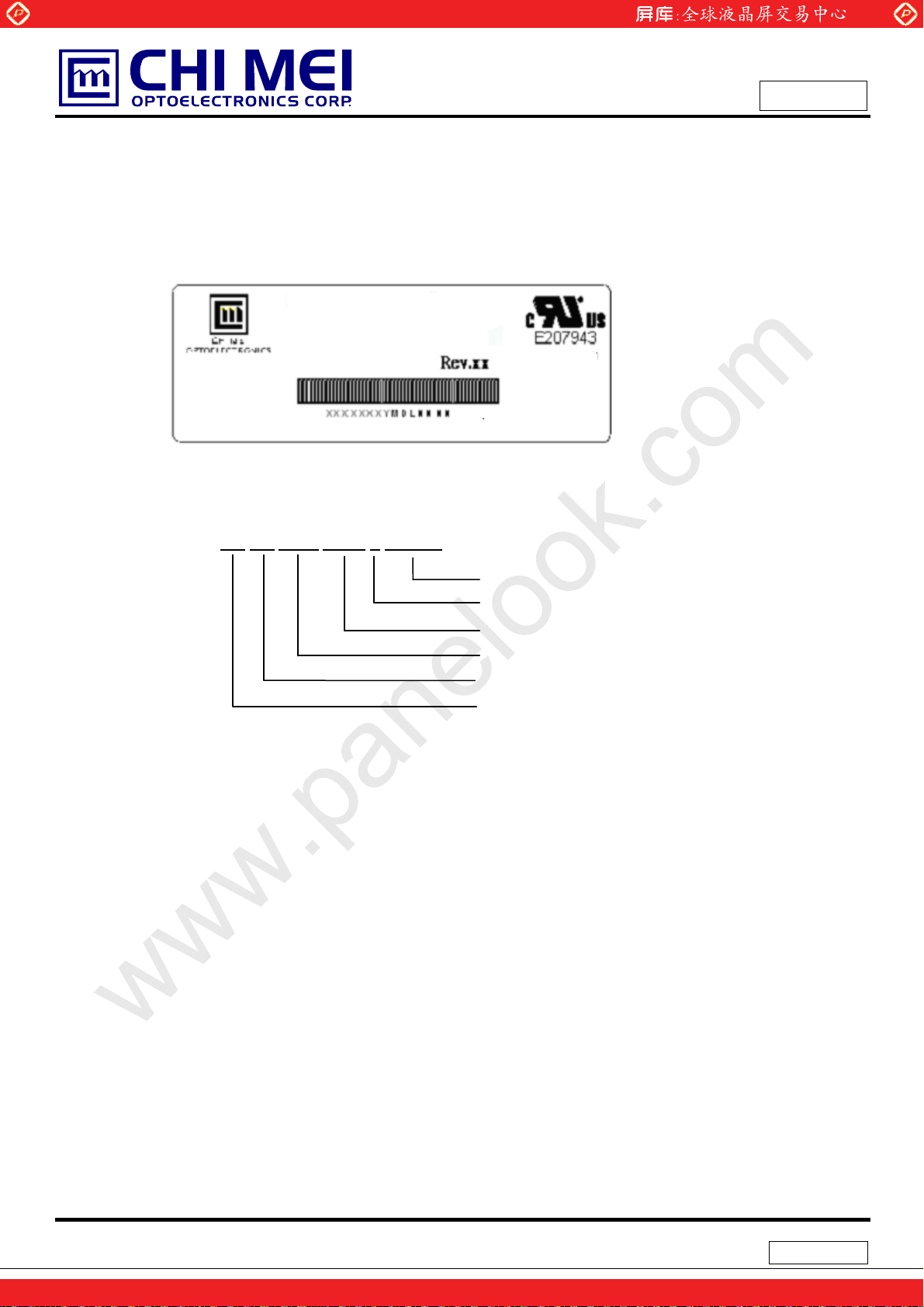

The barcode nameplate is pasted on each module as illustration, and its definitions are as following

explanation.

www.panelook.com

Issued Date: Jul. 14, 2009

Model No.: N133B6 -L04

Tentative

N133B6-L04

(a) Model Name: N133B6 - L04

(b) Revision: Rev. XX, for example: C1, C2 …etc.

(c) Serial ID: X X

(d) Production Location: MADE IN XXXX. XXXX stands for production location.

(e) UL/CB logo: “LEOO” especially stands for panel manufactured by CMO Ningbo satisfying UL/CB

requirement. “LEOO” is the CMO’s UL factory code for Ningbo factory.

X X X X X Y M D X N N N N

MADE IN XXXX

LEOO

Serial No.

CMO Internal Use

Year, Month, Date

CMO Internal Use

Revision

CMO Internal Use

Serial ID includes the information as below:

(a) Manufactured Date: Year: 1~9, for 2001~2009

(b) Revision Code: cover all the change

(c) Serial No.: Manufacturing sequence of production

Month: 1~9, A~C, for Jan. ~ Dec.

Day: 1~9, A~Y, for 1

st

to 31st, exclude I , O and U

27 / 29

Version 0.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

11.2 CARTON LABEL

www.panelook.com

Issued Date: Jul. 14, 2009

Model No.: N133B6 -L04

Tentative

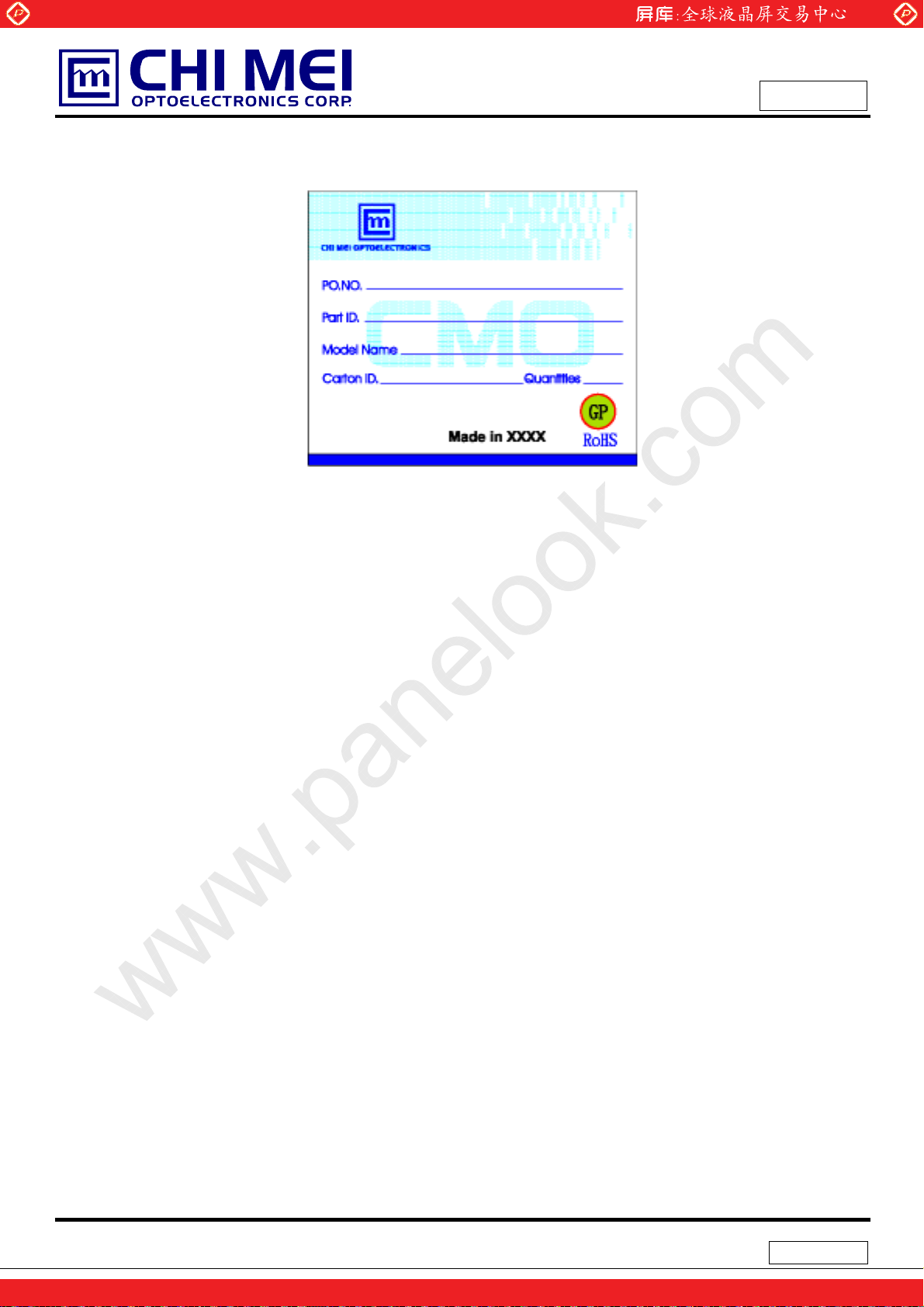

(a) Production location: Made in XXXX. XXXX stands for production location.

28 / 29

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 0.0

www.panelook.com

www.panelook.com

www.panelook.com

Global LCD Panel Exchange Center

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
