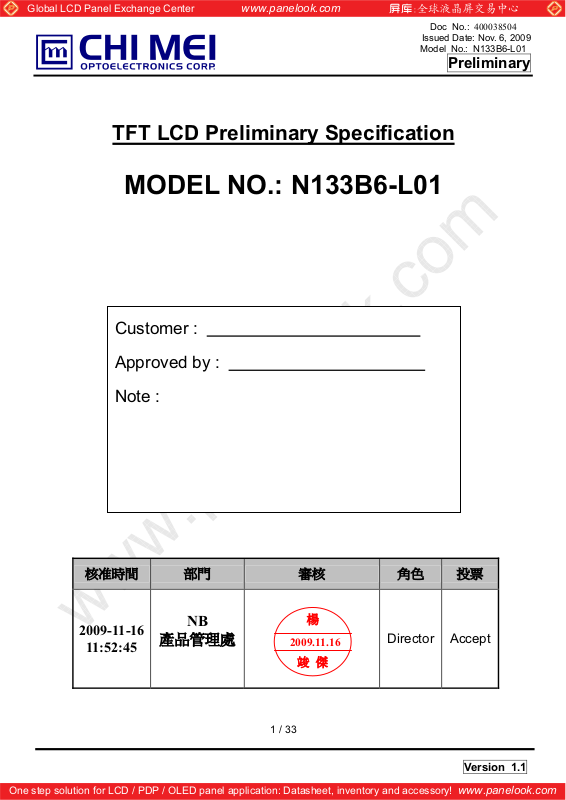

TFT LCD Preliminary Specification

MODEL NO.: N133B6-L01

www.panelook.com

Doc No.: 400038504

Issued Date: Nov. 6, 2009

Model No.: N133B6-L01

Preliminary

Customer :

Approved by :

Note :

NB

2009-11-16

11:52:45

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

2009.11.16

1 / 33

Director Accept

Version 1.1

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400038504

Issued Date: Nov. 6, 2009

Model No.: N133B6-L01

Preliminary

- CONTENTS -

REVISION HISTORY ------------------------------------------------------- 3

1. GENERAL DESCRIPTION

1.1 OVERVIEW

1.2 FEATURES

1.3 APPLICATION

1.4 GENERAL SPECIFICATIONS

1.5 MECHANICAL SPECIFICATIONS

------------------------------------------------------- 4

2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

2.2 ELECTRICAL ABSOLUTE RATINGS

3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7

3.1 TFT LCD MODULE

3.2 BACKLIGHT UNIT

4. BLOCK DIAGRAM ------------------------------------------------------- 11

4.1 TFT LCD MODULE

5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 12

5.1 TFT LCD MODULE

5.2 TIMING DIAGRAM OF LVDS INPUT SIGNAL

5.3 COLOR DATA INPUT ASSIGNMENT

5.4 EDID DATA STRUCTURE

6. CONVERTER ------------------------------------------------------- 19

6.1 ABSOLUTE MAXIMUM RATINGS

6.2 RECOMMENDED OPERATING RATINGS

7. INTERFACE TIMING ------------------------------------------------------- 21

7.1 INPUT SIGNAL TIMING SPECIFICATIONS

7.2 POWER ON/OFF SEQUENCE

8. OPTICAL CHARACTERISTICS ------------------------------------------------------- 24

8.1 TEST CONDITIONS

8.2 OPTICAL SPECIFICATIONS

9. PRECAUTIONS ------------------------------------------------------- 28

9.1 HANDLING PRECAUTIONS

9.2 STORAGE PRECAUTIONS

9.3 OPERATION PRECAUTIONS

10. PACKING ------------------------------------------------------- 29

10.1 CARTON

10.2 PALLET

11. DEFINITION OF LABELS

11.1 CMO MODULE LABEL

11.2 CARTON LABEL

------------------------------------------------------- 31

12. MECHANICAL DRAWING

------------------------------------------------------- 33

2 / 33

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.1

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400038504

Issued Date: Nov. 6, 2009

Model No.: N133B6-L01

Preliminary

REVISION HISTORY

Version Date

Ver. 0.0

Ver. 1.0

Ver.1.1

Jul.24,2009

Oct.17,2009

Nov. 06,2009

Page

(New)

All

All

31

33

Section Description

Tentative spec 0.0 was first issued for N133B6-L01

All

Preliminary spec 1.0 was first issued for N133B6-L01

All

Update module label form.

11

Update module label form.

12

3 / 33

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.1

www.panelook.com

Global LCD Panel Exchange Center

1. GENERAL DESCRIPTION

1.1 OVERVIEW

N133B6-L01 is a 13.3” (13.3” diagonal) TFT Liquid Crystal Display module with LED Backlight unit and 40

pins LVDS interface. This module supports 1366 x 768 HD mode and can display 262,144 colors. The

optimum viewing angle is at 6 o’clock direction.

1.2 FEATURES

- HD (1366 x 768 pixels) resolution

- 3.3V LVDS (Low Voltage Differential Signaling) interface with 1 pixel/clock

- WLED

- LED converter embedded

www.panelook.com

Doc No.: 400038504

Issued Date: Nov. 6, 2009

Model No.: N133B6-L01

Preliminary

1.3 APPLICATION

- TFT LCD Notebook

1.4 GENERAL SPECIFICATI0NS

Item Specification Unit Note
Active Area 293.4168 (H) x 164.9664 (V) (13.3” diagonal) mm
Bezel Opening Area 297.47 (H) x 168.67 (V) mm
Driver Element a-si TFT active matrix - ­Pixel Number 1366 x R.G.B. x 768 pixel ­Pixel Pitch 0.2148 (H) x 0.2148 (V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 262,144 color ­Transmissive Mode Normally white - ­Surface Treatment Anti-Glare - -

1.5 MECHANICAL SPECIFICATIONS

Item Min. Typ. Max. Unit Note

Horizontal(H) 307.1 307.6 308.1 mm

Module Size

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.

Vertical(V) 182.6 183.1 183.6 mm
Thickness(T) - 4.9 5.2 mm

Weight --- 315 330 g -

(1)

(1)

4 / 33

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.1

www.panelook.com

Global LCD Panel Exchange Center

A

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

Item Symbol

Storage Temperature TST -20 +60 ºC (1)
Operating Ambient Temperature TOP 0 +50 ºC (1), (2)
Shock (Non-Operating) S
Vibration (Non-Operating) V

Note (1) (a) 90 %RH Max. (Ta <= 40 ºC).

(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).

(c) No condensation.

Note (2) The temperature of panel surface should be 0 ºC min. and 50 ºC max.

Relative Humidity (%RH)

www.panelook.com

Doc No.: 400038504

Issued Date: Nov. 6, 2009

Model No.: N133B6-L01

Preliminary

Value

Min. Max.

- 220/2 G/ms (3), (5)

NOP

- 1.5 G (4), (5)

NOP

Unit Note

100

90

80

60

Operating Range

40

20
10

Storage Range

8060-20 40 0 20 -40

Temperature (ºC)

Note (3) 1 time for ± X, ± Y, ± Z. for Condition (220G / 2ms) is half Sine Wave,.

Note (4) 10~500 Hz, 0.5hr/cycle 1cycle for X, Y, Z

Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid enough

so that the module would not be twisted or bent by the fixture.

The fixing condition is shown as below:

t Room Temperature

Side Mount Fixing Screw

Gap=2mm

Bracket

LCD Module

Side Mount Fixing Screw

Stage

5 / 33

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.1

www.panelook.com

Global LCD Panel Exchange Center

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

Item Symbol

Power Supply Voltage VCCS -0.3 +4.0 V
Logic Input Voltage VI -0.3 VCCS+0.3 V

Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation

should be restricted to the conditions described under Normal Operating Conditions.

2.2.2 BACKLIGHT UNIT

Item

LED Light Bar Power Supply Voltage -40 28 V
LED Light Bar Power Supply Current 0 100 mA

Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation

www.panelook.com

Value

Min. Max.

Value

Min Max.

Doc No.: 400038504

Issued Date: Nov. 6, 2009

Model No.: N133B6-L01

Preliminary

Unit Note

(1)

Unit Note

DC

DC

(1), (2)

should be restricted to the conditions described under Normal Operating Conditions.

Note (2) Specified values are for LED (Refer to Section 3.2 for further information).

6 / 33

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.1

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400038504

Issued Date: Nov. 6, 2009

Model No.: N133B6-L01

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD MODULE Ta = 25 ± 2 ºC

Parameter Symbol

Min. Typ. Max.
Power Supply Voltage VCCS 3.0 3.3 3.6 V ­Ripple Voltage VRP - 50 - mV ­Inrush Current I

- - 1.5 A (2)

INRUSH

Initial Stage Current IIS - - 1.0 A (2)

Power Supply Current

LVDS Differential Input High Threshold V

LVDS Differential Input Low Threshold V

White - (140) TBD mA (3)a
Black

lcc

TH(LVDS)

-100 - - mV

TL(LVDS)

- (200) TBD mA (3)b

- - +100 mV

LVDS Common Mode Voltage VCM 1.125 - 1.375 V (4)
LVDS Differential Input Voltage |VID| 100 - 600 mV (4)
LVDS Terminating Resistor RT - 100 - Ohm -

CE_EN Input Voltage

CABC_EN Input Voltage

High Level V
Low Level V
High Level V
Low Level V

(2.3) - (3.6) V -

IHCE

(0) - (0.5) V -

ILCE

(2.3) - (3.6) V -

IHCABC

(0) - (0.5) V -

ILCABC

Power per EBL WG PEBL - TBD - W (5)

Note (1) The ambient temperature is Ta = 25 ± 2 ºC.

Value

Unit Note

Preliminary

(4),

=1.2V

V

CM

(4)

=1.2V

V

CM

Note (2) I

: the maximum current when VCCS is rising

RUSH

I

: the maximum current of the first 100ms after power-on

IS

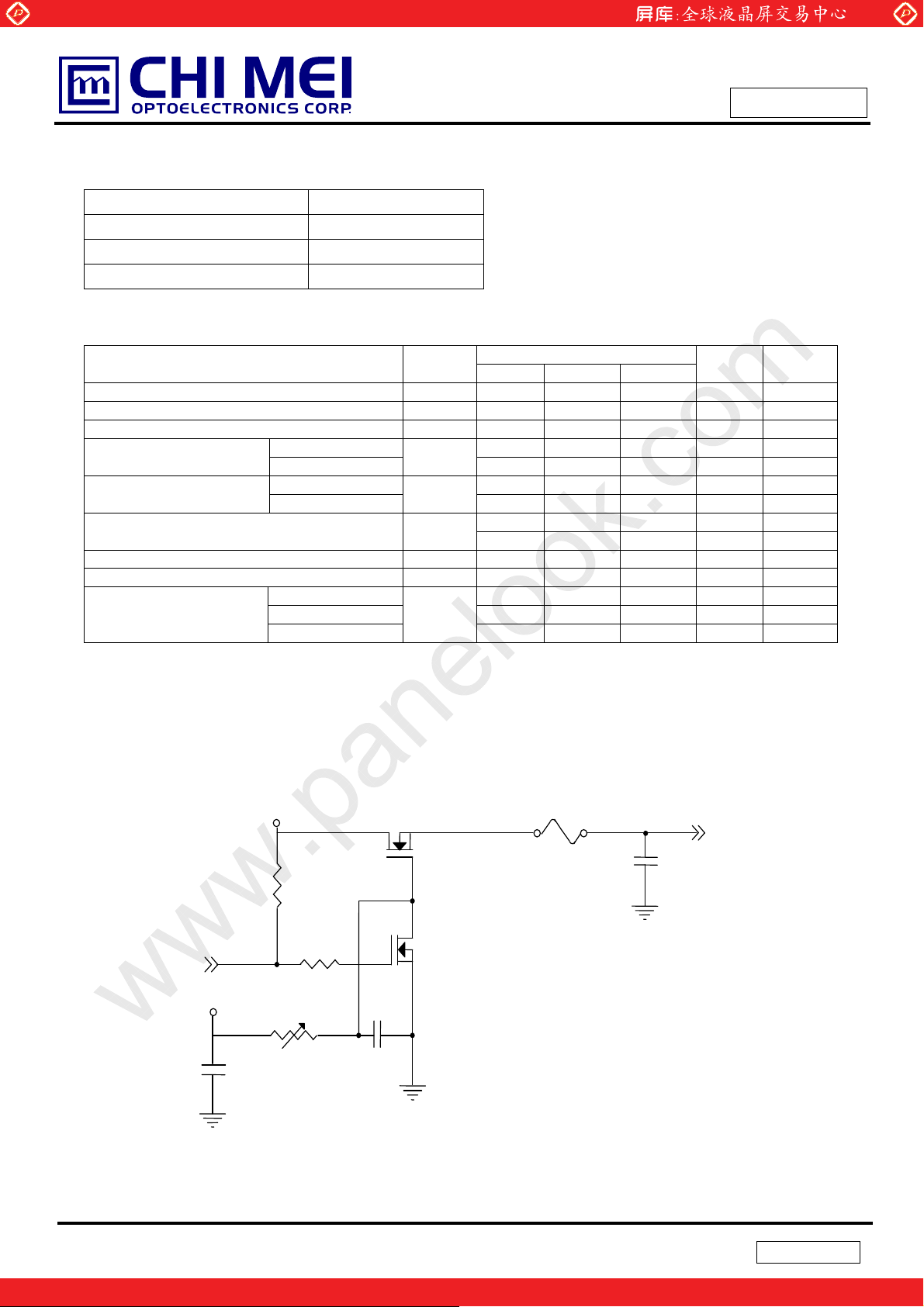

Measurement Conditions: Shown as the following figure. Test pattern: black.

(High to Low)

(Control Signal)

SW

+12V

+3.3V

R1

47K

R2

1K

47K

VR1

C1

1uF

Q1 2SK1475

C2

0.01uF

Q2

2SK1470

FUSE

C3

1uF

VCCS

(LCD Module Input)

7 / 33

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.1

www.panelook.com

Global LCD Panel Exchange Center

|

|

|

|

Note (3) The specified power supply current is under the conditions at VCCS = 3.3 V, Ta = 25 ± 2 ºC, DC

www.panelook.com

Doc No.: 400038504

Issued Date: Nov. 6, 2009

Model No.: N133B6-L01

Preliminary

VCCS rising time is 0.5ms

Current and f

a. White Pattern

Note (4) The parameters of LVDS signals are defined as the following figures.

= 60 Hz, whereas a power dissipation check pattern below is displayed.

v

b. Black Pattern

Active Area

CM

V

Active Area

VID

Single Ended

0V

V

VID

Differential

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

0V

V

8 / 33

Version 1.1

www.panelook.com

Global LCD Panel Exchange Center

Note (5) The specified power are the sum of LCD panel electronics input power and the converter input

power. Test conditions are as follows.

www.panelook.com

Doc No.: 400038504

Issued Date: Nov. 6, 2009

Model No.: N133B6-L01

Preliminary

(a) VCCS = 3.3 V, Ta = 25 ± 2 ºC, f

(b) The pattern used is a black and white 32 x 36 checkerboard, slide #100 from the VESA file

“Flat Panel Display Monitor Setup Patterns”, FPDMSU.ppt.

(c) Luminance: 60 nits.

= 60 Hz,

v

9 / 33

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.1

www.panelook.com

Global LCD Panel Exchange Center

3.2 BACKLIGHT UNIT Ta = 25 ± 2 ºC

Parameter Symbol

LED Light Bar input
Voltage
LED Light Bar input
Current

Power Consumption PL 1.702 2.048 2.352 W

LED Life Time LBL 15000 Hrs (4)

Note (1) LED light bar configuration is shown as below.

VL,I

www.panelook.com

Doc No.: 400038504

Issued Date: Nov. 6, 2009

Model No.: N133B6-L01

Value

Min. Typ. Max.

V

L

76 80 84 mA

I

L

L

22.4 25.6 28 V

Unit Note

(1)(2) Duty 100%

(3)
Duty=100%

Preliminary

LED

Light Bar Feedback

Light Bar

Channels

Note (2) For better LED light bar driving quality, it is recommended to utilize the adaptive boost converter

with current balancing function to drive LED light-bar.

Note (3) P

= IL × V

L

L

Note (4) The lifetime of LED is defined as the time when it continues to operate under the conditions at Ta =

o

25 ± 2

C and IL = 20.0mA (Per EA) until the brightness becomes 50% of its original value.Љ

10 / 33

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.1

www.panelook.com

Global LCD Panel Exchange Center

SC

C

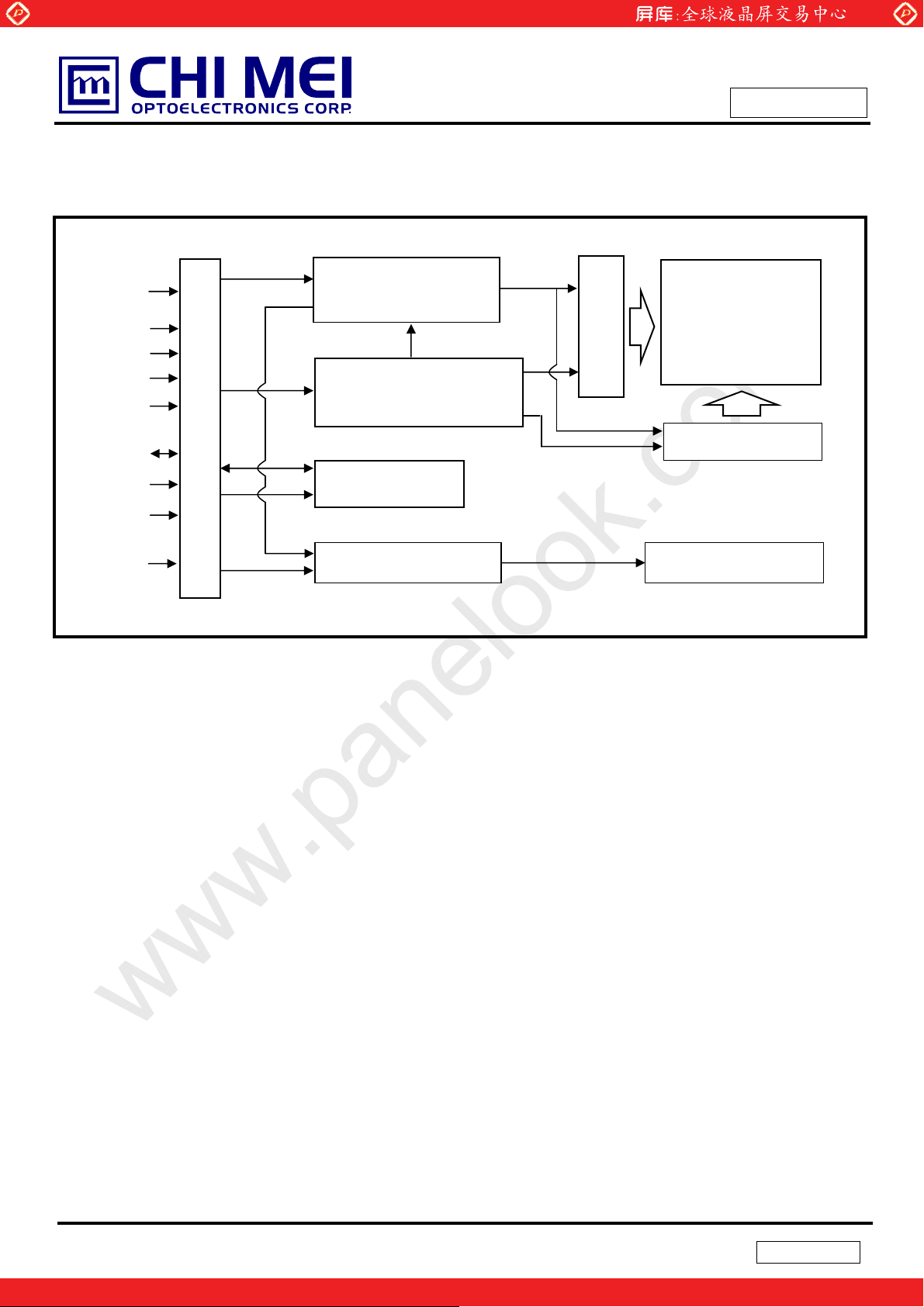

4. BLOCK DIAGRAM

4.1 TFT LCD MODULE

www.panelook.com

Doc No.: 400038504

Issued Date: Nov. 6, 2009

Model No.: N133B6-L01

Preliminary

LVDS Display

Data & Clock

CE_EN

CABC_EN

VCCS

GND

Data

EDID

CLK

EDID

V

EDID

Converter

Input Signals

INPUT CONNECTOR

LVDS INPUT /TIMING

CONTROLLER

AN DRIVER I

TFT LCD PANEL

DC/DC CONVERTER &

REFERENCE VOLTAGE

GENERATOR

DATA DRIVER IC

EDID

EEPROM

LED CONVERTER BACKLIGHT UNIT

11 / 33

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.1

www.panelook.com

Global LCD Panel Exchange Center

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD MODULE

Pin Symbol Description Polarity Remark

1 VSS Ground
2 VCCS Power Supply ( 3.3 V typ)
3 VCCS Power Supply ( 3.3 V typ)
4 EE_VDD DDC ( 3.3 V typ)
5 NC No Connection
6 EE_SC DDC Clock
7 EE_SD DDC Data
8 Rx0- LVDS Differential Data Input Negative

9 Rx0+ LVDS Differential Data Input Positive
10 VSS Ground
11 Rx1- LVDS Differential Data Input Negative
12 Rx1+ LVDS Differential Data Input Positive
13 VSS Ground
14 Rx2- LVDS Differential Data Input Negative
15 Rx2+ LVDS Differential Data Input Positive
16 VSS Ground
17 RXC- LVDS Clock Data Input Negative
18 RXC+ LVDS Clock Data Input Positive
19 CE_EN Color Engine Enable Input -
20 NC No Connection -
21 NC No Connection
22 VSS Ground
23 NC No Connection
24 NC No Connection
25 VSS Ground
26 NC No Connection
27 NC No Connection
28 VSS Ground
29 NC No Connection
30 NC No Connection
31 VSS Ground
32 VSS Ground
33 VSS Ground
34 NC No Connection
35 LED_PWM PWM brightness control
36 LED_EN LED Enable
37 CABC_EN CABC Enable Input
38 LED_VCCS LED Power
39 LED_VCCS LED Power
40 LED_VCCS LED Power

Note (1) Connector Part No.: IPEX-20455-040E-12 or equivalent

www.panelook.com

Doc No.: 400038504

Issued Date: Nov. 6, 2009

Model No.: N133B6-L01

Preliminary

R0~R5,G0-

G1~G5,B0,B1

-

B2~B5,Hsync,Vsync,DE

LVDS Level Clock

Note (2) User’s connector Part No: IPEX-20453-040T-01 or equivalent

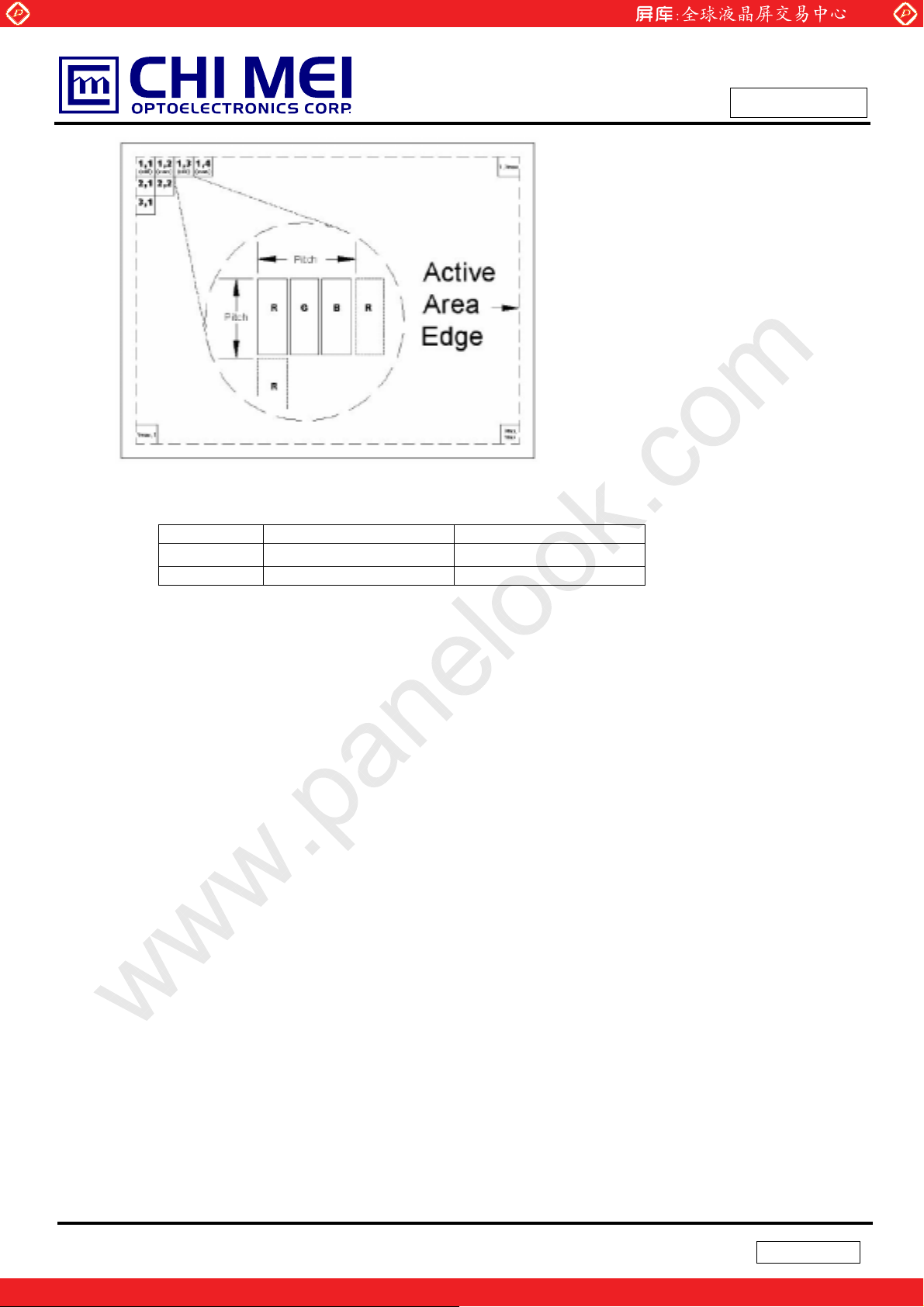

Note (3) The first pixel is odd as shown in the following figure.

12 / 33

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.1

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400038504

Issued Date: Nov. 6, 2009

Model No.: N133B6-L01

Preliminary

Note (4) The setting of Color engine and CABC function are as follows.

Pin Enable Disable

CE_EN Hi Lo or Open

CABC_EN Hi Lo or Open

Hi = High level, Lo = Low level.

13 / 33

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.1

www.panelook.com

Global LCD Panel Exchange Center

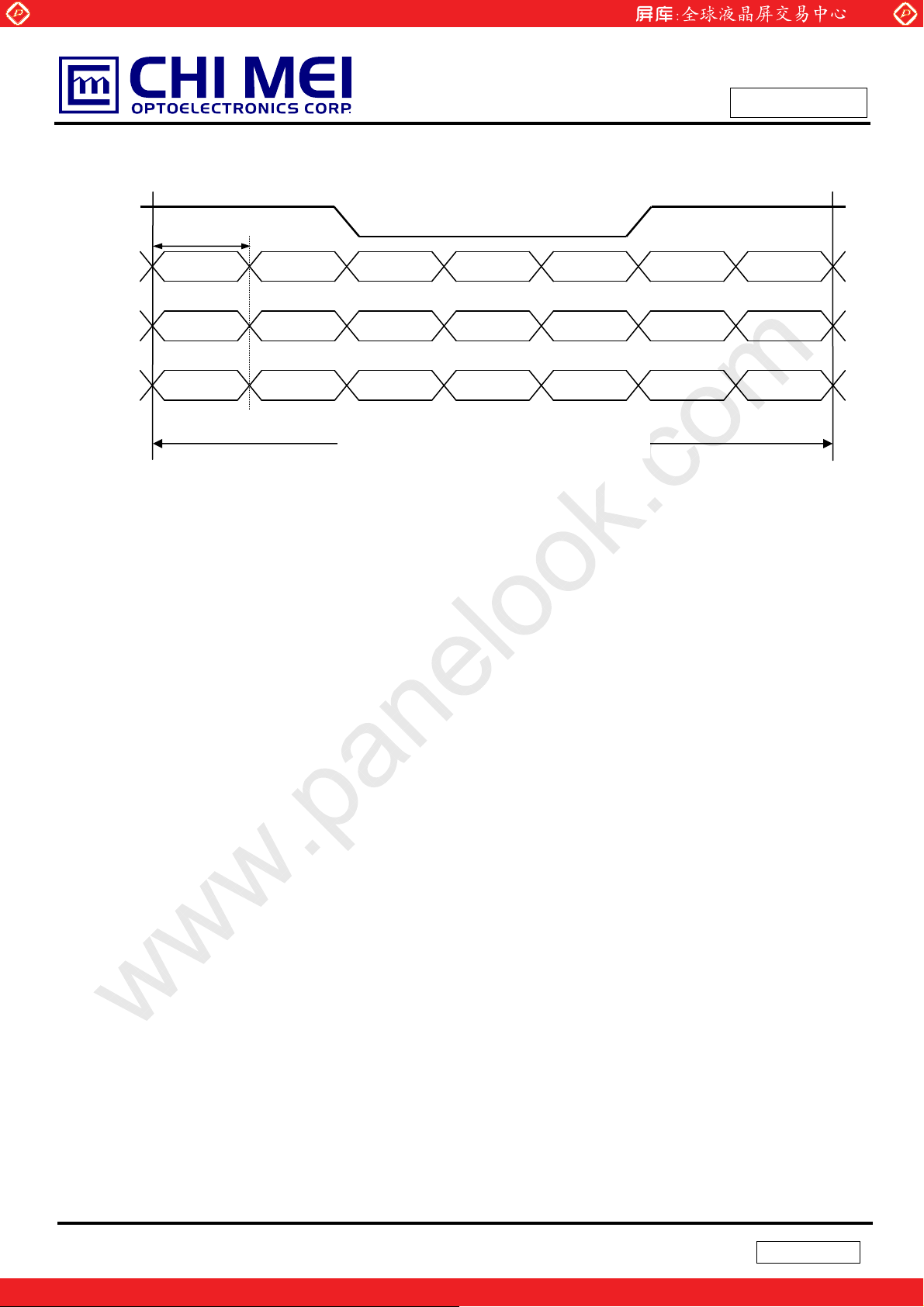

5.2 TIMING DIAGRAM OF LVDS INPUT SIGNAL

CLK+

T/7

Rxin2

IN20 IN19 IN18 IN17 IN16 IN15 IN14

DE B5 B4 B3 B2 Vsync Hsync

www.panelook.com

Doc No.: 400038504

Issued Date: Nov. 6, 2009

Model No.: N133B6-L01

Preliminary

Rxin1

Rxin0

IN13 IN12 IN11 IN10 IN9 IN8 IN7

B1 G4 G3 G2 G1 B0 G5

IN6

G0 R3 R2 R1 R0

IN5 IN4 IN3 IN2 IN1 IN0

R5

R4

Signal for 1 DCLK Cycle (T)

14 / 33

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.1

www.panelook.com

Global LCD Panel Exchange Center

5.3 COLOR DATA INPUT ASSIGNMENT

The brightness of each primary color (red, green and blue) is based on the 6-bit gray scale data input for

the color. The higher the binary input the brighter the color. The table below provides the assignment of

color versus data input.

Color

R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0
Black
Red
Green

Basic
Colors

Gray
Scale
Of
Red

Gray
Scale
Of
Green

Gray
Scale
Of
Blue

Note (1) 0: Low Level Voltage, 1: High Level Voltage

Blue
Cyan
Magenta
Yellow
White
Red(0)/Dark
Red(1)
Red(2)

:

:
Red(61)
Red(62)
Red(63)
Green(0)/Dark
Green(1)
Green(2)

:

:
Green(61)
Green(62)
Green(63)
Blue(0)/Dark
Blue(1)
Blue(2)

:

:
Blue(61)
Blue(62)
Blue(63)

0

0

1

1

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

:

:

:

:

1

1

1

1

1

1

0

0

0

0

0

0

:

:

:

:

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

0

0

0

0

0

0

www.panelook.com

Doc No.: 400038504

Issued Date: Nov. 6, 2009

Model No.: N133B6-L01

Preliminary

Data Signal

Red Green Blue

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

1

1

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

1

1

1

0

0

1

1

1

1

1

1

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

1

1

0

1

0

0

0

0

0

0

0

0

1

1

1

0

0

0

0

0

0

0

0

0

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

1

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

0

0

0

0

1

1

1

1

0

1

0

0

0

0

0

0

1

1

1

1

1

0

0

0

0

0

0

0

1

1

1

1

1

1

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

1

1

0

0

0

0

0

0

0

0

0

0

1

1

0

0

0

0

0

0

0

0

0

0

1

1

0

0
0
0
1
1
1
0
1
0
0
0

:

:
0
0
0
0
0
0

:

:
0
0
0
0
0
0

:

:
1
1
1

0

0

0

0

0

0

0

0

1

1

1

1

1

1

1

1

1

0

0

0

1

1

1

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

:

:

:

:

:

:

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1

0

1

0

:

:

:

:

:

:

1

0

1

1

1

0

1

1

1

15 / 33

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.1

www.panelook.com

Global LCD Panel Exchange Center

5.4 EDID DATA STRUCTURE

The EDID (Extended Display Identification Data) data formats are to support displays as defined in the

VESA Plug & Display and FPDI standards.

Byte #

(decimal)

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37

38

39
40

Byte #

(hex)
0
1
2
3
4
5
6
7
8
9

0 Header
1 Header
2 Header
3 Header
4 Header
5 Header
6 Header
7 Header
8 EISA ID manufacturer name (“CMO”)

9 EISA ID manufacturer name (Compressed ASCII)
0A ID product code (N133B6-L01) 24
0B ID product code (hex LSB first; N133B6-L01) 13
0C ID S/N (fixed “0”)
0D ID S/N (fixed “0”)
0E ID S/N (fixed “0”)
0F ID S/N (fixed “0”)
10 Week of manufacture (fixed week code)

11 Year of manufacture (fixed year code)
12 EDID structure version # (“1”)
13 EDID revision # (“3”)
14 Video I/P definition (“digital”)
15 Active area horizontal 29.341cm 1D
16 Active area vertical 16.496cm 10
17 Display Gamma (Gamma = ”2.2”)
18 Feature support (“Active off, RGB Color”)
19 Rx1, Rx0, Ry1, Ry0, Gx1, Gx0, Gy1, Gy0
1A Bx1, Bx0, By1, By0, Wx1, Wx0, Wy1, Wy0
1B Red-x (Rx = “0.585”)
1C Red-y (Ry = “0.349”) 59
1D Green-x (Gx = ”0.337”)
1E Green-y (Gy = ”0.568”)
1F Blue-x (Bx = ”0.155”)
20 Blue-y (By = ”0.128”)
21 White-x (Wx = ”0.313”)
22 White-y (Wy = ”0.329”)
23 Established timings 1
24 Established timings 2
25 Manufacturer’s reserved timings

26 Standard timing ID # 1
27 Standard timing ID # 1
28 Standard timing ID # 2

www.panelook.com

Field Name and Comments

Doc No.: 400038504

Issued Date: Nov. 6, 2009

Model No.: N133B6-L01

Preliminary

Value

(hex)

00 00000000
FF 11111111
FF 11111111
FF 11111111
FF 11111111
FF 11111111
FF 11111111

00 00000000
0D 00001101
AF 10101111

00 00000000

00 00000000

00 00000000

00 00000000

35 00110101

13 00010011

01 00000001

03 00000011

80 10000000

78 01111000
0A 00001010
D6 11010110
F5 11110 1 0 1

95 10010101

56 01010110

91 10010001

27 00100111

20 00100000

50 01010000

54 01010100

00 00000000

00 00000000

00 00000000

01 00000001

01 00000001

01 00000001

Value

(binary)

00100100
00010011

00011101

00010000

01011001

16 / 33

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.1

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400038504

Issued Date: Nov. 6, 2009

Model No.: N133B6-L01

Preliminary

41
42
43
44
45
46
47
48
49
50
51
52
53

54

55
56
57
58
59
60
61
62
63
64

65

66
67
68
69
70

71

72
73
74
75
76
77
78
79
80
81
82
83
84
85

29 Standard timing ID # 2
2A Standard timing ID # 3
2B Standard timing ID # 3
2C Standard timing ID # 4
2D Standard timing ID # 4
2E Standard timing ID # 5
2F Standard timing ID # 5
30 Standard timing ID # 6
31 Standard timing ID # 6
32 Standard timing ID # 7
33 Standard timing ID # 7
34 Standard timing ID # 8
35 Standard timing ID # 8

Detailed timing description # 1 Pixel clock (“69.3MHz”, According to

36

VESA CVT Rev1.1)
37 # 1 Pixel clock (hex LSB first)
38 # 1 H active (“1366”)
39 # 1 H blank (“108”)
3A # 1 H active : H blank (“1366 : 108”)
3B # 1 V active (”768”)
3C # 1 V blank (”16”)
3D # 1 V active : V blank (”768 :16”)
3E # 1 H sync offset (”32”)
3F # 1 H sync pulse width ("22”)
40 # 1 V sync offset : V sync pulse width (”2 : 4”)

# 1 H sync offset : H sync pulse width : V sync offset : V sync width
41

(”32: 22 : 2 : 4”)
42 # 1 H image size (”293 mm”) 25
43 # 1 V image size (”164 mm”) A4
44 # 1 H image size : V image size (”293 : 164”)
45 # 1 H boarder (”0”)
46 # 1 V boarder (”0”)

# 1 Non-interlaced, Normal, no stereo, Separate sync, H/V pol
47

Negatives
48 Detailed timing description # 2
49 # 2 Flag
4A # 2 Reserved
4B # 2 FE (hex) defines ASCII string (Model Name “N133B6-L01”, ASCII)
4C # 2 Flag
4D # 2 1st character of name (“N”) 4E
4E # 2 2nd character of name (“1”) 31
4F # 2 3rd character of name (“3”) 33
50 # 2 4th character of name (“3”) 33
51 # 2 5th character of name (“B”) 42
52 # 2 6th character of name (“6”) 36
53 # 2 7th character of name (“-”) 2D
54 # 2 8th character of name (“L”) 4C
55 # 2 9th character of name (“0”)

01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001
01 00000001

12 00010010

1B 00011011

56 01010110

6C 01101100

50 01010000
00 00000000
10 00010000
30 00110000
20 00100000
16 00010110
24 00100100

00 00000000

10 00010000
00 00000000
00 00000000

18 00011000

00 00000000
00 00000000
00 00000000

FE 11111110

00 00000000

30 00110000

00100101
10100100

01001110

00110001

00110011
00110011

01000010

00110110
00101101
01001100

17 / 33

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.1

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400038504

Issued Date: Nov. 6, 2009

Model No.: N133B6-L01

Preliminary

86
87
88
89
90
91
92
93
94
95
96
97
98

99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127

56 # 2 9th character of name (“1”)
57 # 2 New line character indicates end of ASCII string
58 # 2 Padding with “Blank” character
59 # 2 Padding with “Blank” character
5A Detailed timing description # 3
5B # 3 Flag
5C # 3 Reserved
5D # 3 FE (hex) defines ASCII string (Vendor “CMO”, ASCII)
5E # 3 Flag
5F # 3 1st character of string (“C”)
60 # 3 2nd character of string (“M”)
61 # 3 3rd character of string (“O”)
62 # 3 New line character indicates end of ASCII string
63 # 3 Padding with “Blank” character
64 # 3 Padding with “Blank” character
65 # 3 Padding with “Blank” character
66 # 3 Padding with “Blank” character
67 # 3 Padding with “Blank” character
68 # 3 Padding with “Blank” character
69 # 3 Padding with “Blank” character
6A # 3 Padding with “Blank” character
6B # 3 Padding with “Blank” character
6C Detailed timing description # 4
6D # 4 Flag
6E # 4 Reserved
6F # 4 FE (hex) defines ASCII string (Model Name“N133B6-L01”, ASCII)
70 # 4 Flag
71 # 4 1st character of name (“N”) 4E
72 # 4 2nd character of name (“1”) 31
73 # 4 3rd character of name (“3”) 33
74 # 4 4th character of name (“3”) 33
75 # 4 5th character of name (“B”) 42
76 # 4 6th character of name (“6”) 36
77 # 4 7th character of name (“-”) 2D
78 # 4 8th character of name (“L”) 4C
79 # 4 9th character of name (“0”)
7A # 4 9th character of name (“1”)
7B # 4 New line character indicates end of ASCII string
7C # 4 Padding with “Blank” character
7D # 4 Padding with “Blank” character
7E Extension flag
7F Checksum

31 00110001

0A 00001010

20 00100000
20 00100000
00 00000000
00 00000000
00 00000000

FE 11111110

00 00000000

43 01000011
4D 01001101
4F 01001111
0A 00001010

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

20 00100000

00 00000000

00 00000000

00 00000000
FE 11111110

00 00000000

30 00110000

31 00110001
0A 00001010

20 00100000

20 00100000

00 00000000
2E 00101110

01001110

00110001

00110011
00110011

01000010

00110110
00101101
01001100

18 / 33

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.1

www.panelook.com

Global LCD Panel Exchange Center

6. CONVERTER SPECIFICATION

6.1 ABSOLUTE MAXIMUM RATINGS

Symbol Ratings

LED_VCCS -0.3V~25V

LED_PWM -0.3V~5.0V

,LED_EN -0.3V~5.0V

6.2 RECOMMENDED OPERATING RATINGS

Parameter Symbol

Converter Input power supply voltage
Converter Rush Current
Converter Initial Stage Current

EN Control Level

PWM Control Level

PWM Control Duty Ratio

PWM Control Permissive Ripple Voltage
PWM Control Frequency f

LED Power Current

Note (1) ILED

ILED

: the maximum current when LED_VCCS is rising,

RUSH

: the maximum current of the first 100ms after power-on,

IS

Measurement Conditions: Shown as the following figure. LED_VCCS = Typ, Ta = 25 ± 2 ºC, f

200 Hz, Duty=100%.

Backlight On 2.3 - 5.0 V
Backlight Off 0 - 0.5 V
PWM High Level 2.3 - 5.0 V
PWM Low Level 0 - 0.5 V

LED_VCCS =Min. (365) (482) (588) mA (4)
LED_VCCS =Typ. (152) (201) (245) mA (4)
LED_VCCS =Max.

www.panelook.com

Min. Typ. Max.

LED_Vccs

ILED

RUSH

ILED

IS

VPWM_pp

PWM

ILED

(5) 12 21 V

- - 1.5 A (1)

- - 1.5 A (1)

(10) - (100) %

(5) - (100) % (2)

- - (100) mV

(190) - (2K) Hz (3)

(87) (115) (140) mA (4)

Value

Doc No.: 400038504

Issued Date: Nov. 6, 2009

Model No.: N133B6-L01

Preliminary

Unit Note

=

PWM

(High to Low)

(Control Signal)

SW=24V

LED_VCCS(Typ)

LED_VCCS(Typ)

C1

1uF

VR1

R1

47K

R2

1K

47K

Q1 IRL3303

0.01uF

FUSE

Q2

IRL3303

C2

C3

1uF

(LED Converter Input)

19 / 33

Version 1.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

≤∗+

+

≤

www.panelook.com

Doc No.: 400038504

Issued Date: Nov. 6, 2009

Model No.: N133B6-L01

Preliminary

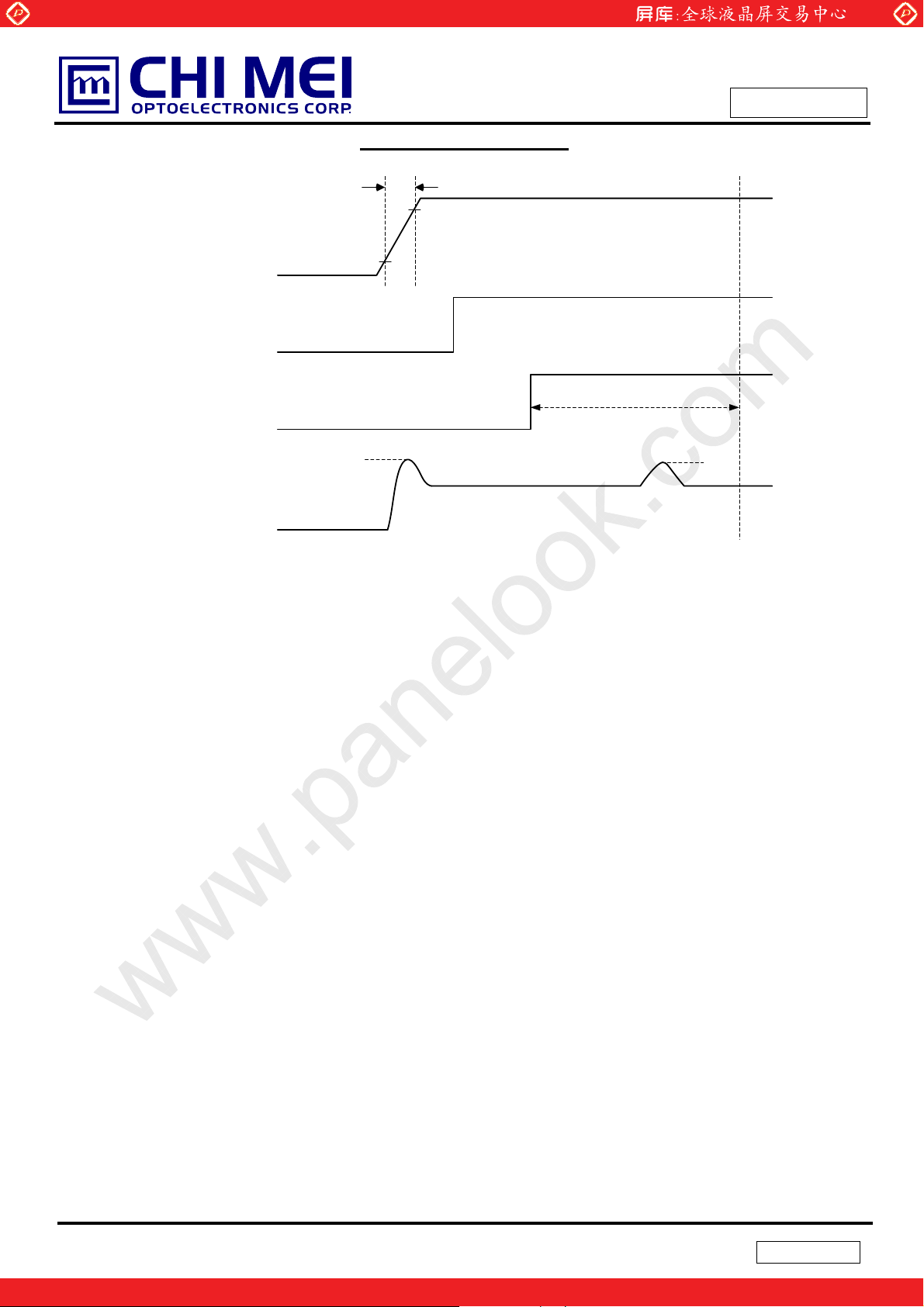

VLED rising time is 0.5ms

0.5ms

90%

ILED

10%

Rush

100ms

ILED

IS

LED_VCC

LED_PWM

LED_EN

ILED

Note (2) If the PWM control duty ratio is less than 10%, there is some possibility that acoustic noise or

backlight flash can be found. And it is also difficult to control the brightness linearity.

Note (3) If PWM control frequency is applied in the range less than 1KHz, the “waterfall” phenomenon on

0V

0V

0V

the screen may be found. To avoid the issue, it’s a suggestion that PWM control frequency should

follow the criterion as below.

PWM control frequency f

fN )33.0( f

N

: Integer )3( ≥N

f

: Frame rate

Note (4) The specified LED power supply current is under the conditions at “LED_VCCS = Min., Typ., Max.”,

Ta = 25 ± 2 ºC, f

= 200 Hz, Duty=100%.

PWM

should be in the range

PWM

PWM

fN ∗

)66.0(

20 / 33

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.1

www.panelook.com

Global LCD Panel Exchange Center

7. INTERFACE TIMING

7.1 INPUT SIGNAL TIMING SPECIFICATIONS

The input signal timing specifications are shown as the following table and timing diagram.

Signal Item Symbol Min. Typ. Max. Unit Note
DCLK Frequency 1/Tc TBD 69.33 TBD MHz -

Vertical Total Time TV TBD 784 TBD TH -

Vertical Active Display Period TVD 768 768 768 TH -

DE

Note (1) Because this module is operated by DE only mode, Hsync and Vsync are ignored.

Vertical Active Blanking Period TVB TV-TVD 16 TV-TVD TH -

Horizontal Total Time TH TBD 1474 TBD Tc -

Horizontal Active Display Period THD 1366 1366 1366 Tc -

Horizontal Active Blanking Period THB

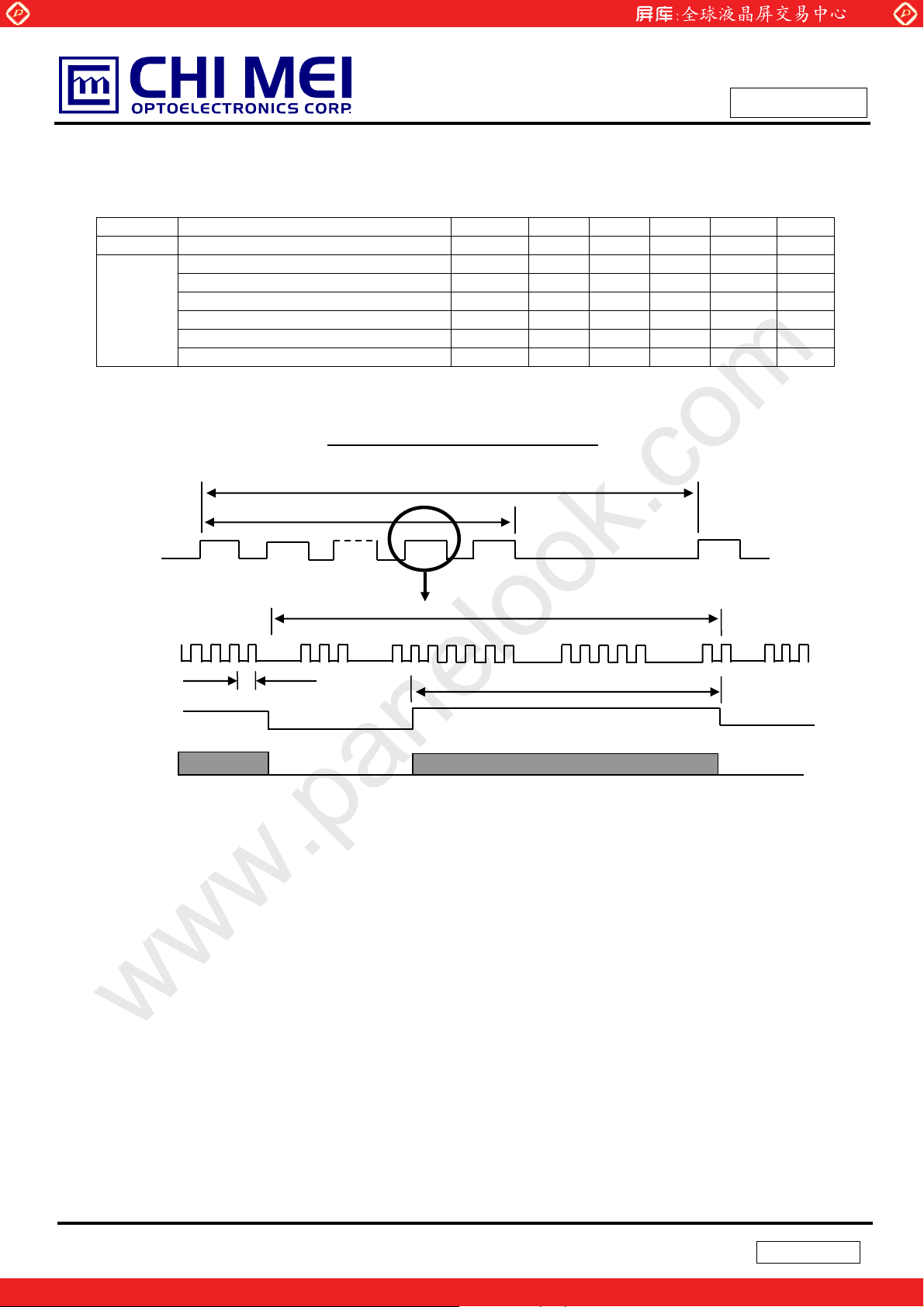

INPUT SIGNAL TIMING DIAGRAM

www.panelook.com

TH-THD

108

Doc No.: 400038504

Issued Date: Nov. 6, 2009

Model No.: N133B6-L01

Preliminary

TH-THD

Tc -

DE

DCLK

DE

DATA

TC

HD

T

21 / 33

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.1

www.panelook.com

Global LCD Panel Exchange Center

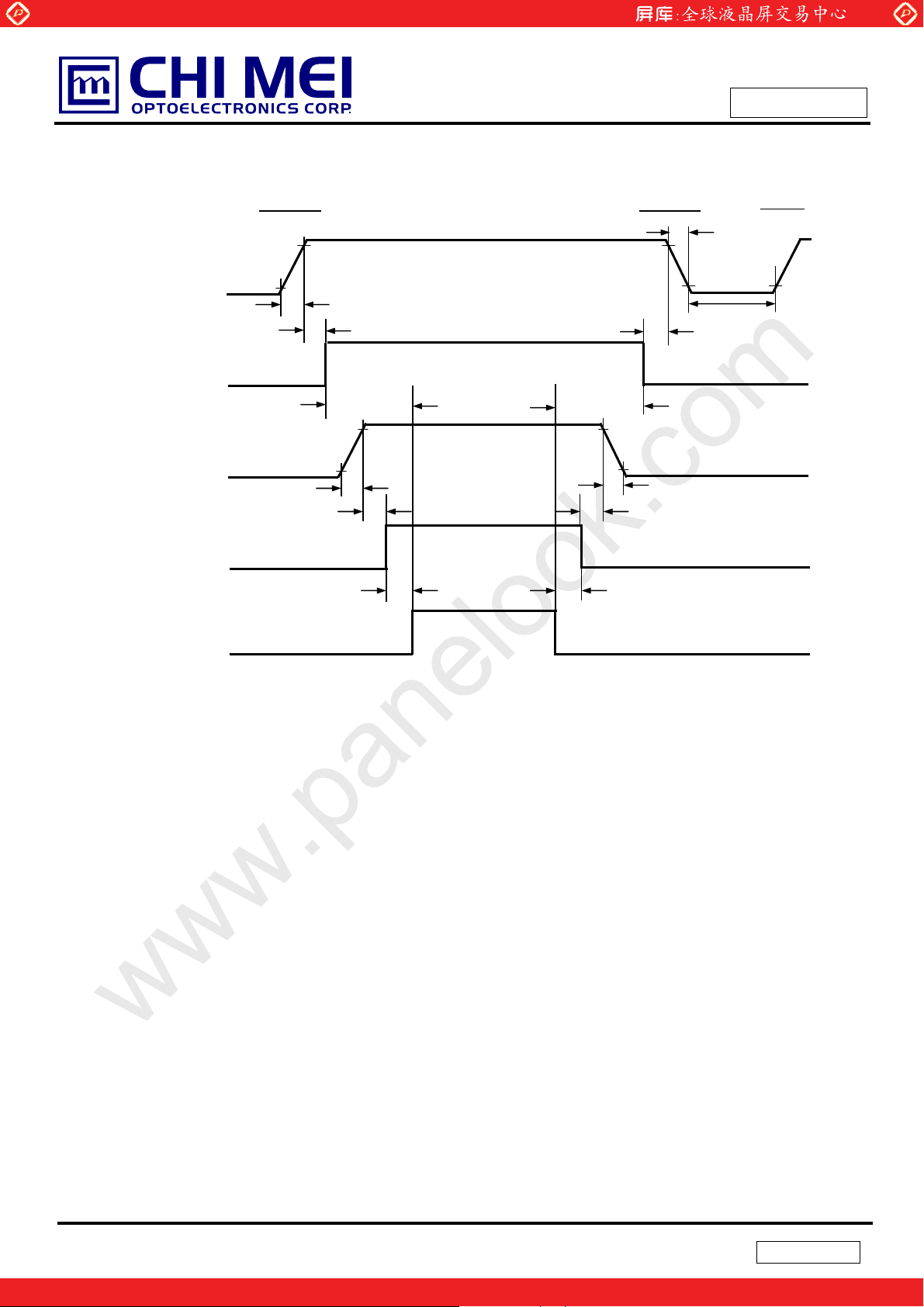

7.2 POWER ON/OFF SEQUENCE

www.panelook.com

Doc No.: 400038504

Issued Date: Nov. 6, 2009

Model No.: N133B6-L01

Preliminary

- Power Supply

for LCD, VCCS

- Interface Signal

(LVDS Signal of
Transmitter), V

I

- Power Supply for

LED Converter,
LED_VCCS

- LED Converter

Dimming Signal,
LED_PWM

- LED Converter

Enable Signal,
LED_EN

0V

0V

Power On

90%

10%

Power Off

t1

t2

Valid Data

t6t5

10%

90%

t

A

t

C

tE t

90%

t

B

t

D

F

90%

10%

Restart

t7

10%

t3

10%

t4

Timing Specifications:

0.5Љ t1 Љ 10 ms

0 Љ t2 Љ 50 ms

0 Љ t3 Љ 50 ms

t4 Њ 500 ms

t5 Њ 200 ms

t6 Њ 200 ms

0.5Љ t7 Љ 10 ms

0.5Љ t

0 І t

Љ 10 ms

A

Љ 10 ms

B

t

Њ 10 ms

C

t

Њ 10 ms

D

t

Њ 10 ms

E

t

Њ 10 ms

F

22 / 33

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.1

www.panelook.com

Global LCD Panel Exchange Center

Note (1) Please follow the power on/off sequence described above. Otherwise, the LCD module might be

damaged.

Note (2) Please avoid floating state of interface signal at invalid period. When the interface signal is invalid, be

sure to pull down the power supply of LCD VCCS to 0 V.

Note (3) The backlight must be turned on after the power supply for the logic and the interface signal is valid.

The backlight must be turned off before the power supply for the logic and the interface signal is invalid.

Note (4) Please follow the LED converter power sequence as above. If the customer could not follow, it might

cause backlight flash issue during display ON/OFF or damage the LED backlight controller

www.panelook.com

Doc No.: 400038504

Issued Date: Nov. 6, 2009

Model No.: N133B6-L01

Preliminary

23 / 33

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.1

www.panelook.com

Global LCD Panel Exchange Center

8. OPTICAL CHARACTERISTICS

8.1 TEST CONDITIONS

Item Symbol Value Unit
Ambient Temperature Ta
Ambient Humidity Ha
Supply Voltage VCC 3.3 V
Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS"
LED Light Bar Input Current IL 80 mA

The measurement methods of optical characteristics are shown in Section 8.2. The following items should

be measured under the test conditions described in Section 8.1 and stable environment shown in Note (5).

8.2 OPTICAL SPECIFICATIONS

Item Symbol Condition Min. Typ. Max. Unit Note

Contrast Ratio CR 300 500 - -

Response Time

Average Luminance of White

Red

Color
Chromaticity

Viewing Angle

White Variation of 5 Points

Green

Blue

White

Horizontal

Vertica l

www.panelook.com

Doc No.: 400038504

Issued Date: Nov. 6, 2009

Model No.: N133B6-L01

Preliminary

o

25±2

50±10

TR (8) TBD ms

- (8) TBD ms

T

F

L

AVE

Rx
Ry
Gx
Gy
Bx
By

=0° , θY =0°

θ

x

Viewing Normal Angle

170 200 - cd/m

0.584

0.350

0.338

Typ –

0.03

0.563

0.155

Typ +

0.03

0.131
Wx 0.313 ­Wy

0.329

θx+ 40 45

- 40 45 -

θ

x

θY+ 15 20 -

-

θ

Y

δW

5p

CR≥10

40 45 -

θx=0° , θY =0° 70 - - %

C

%RH

-

-

-

-

-

-

-

Deg.

(2), (5),

(3), (7)

(4), (6),

2

(1), (7)

(1), (5),

(5), (6),

(7)

(7)

(7)

(7)

24 / 33

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.1

www.panelook.com

Global LCD Panel Exchange Center

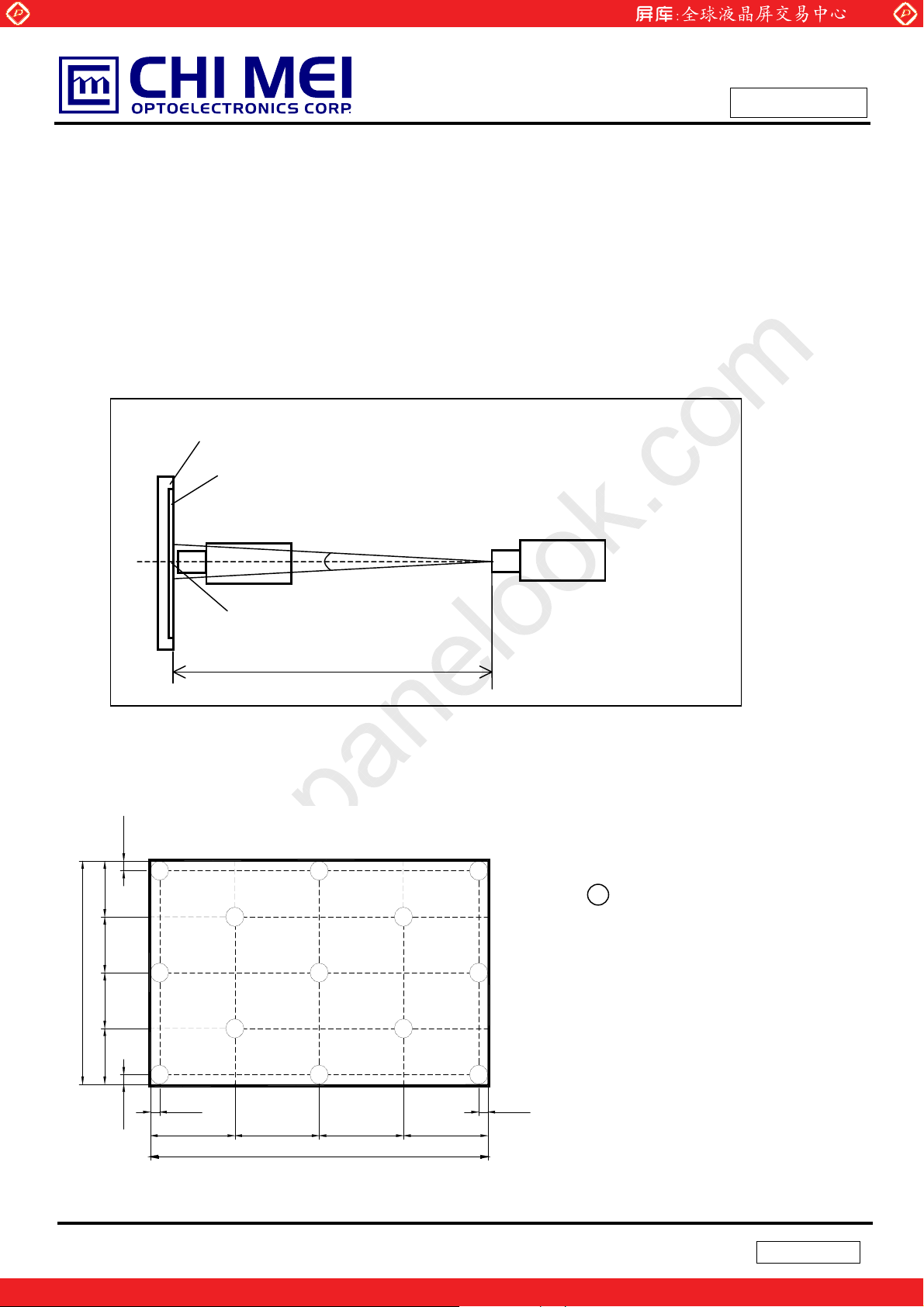

Note (1) Definition of Viewing Angle (θx, θy):

www.panelook.com

Doc No.: 400038504

Issued Date: Nov. 6, 2009

Model No.: N133B6-L01

Preliminary

Normal

θx = θy = 0º

θy- θy+

θX- = 90º

6 o’clock

θ

y- = 90º

x-

y-

Note (2) Definition of Contrast Ratio (CR):

The contrast ratio can be calculated by the following expression.

Contrast Ratio (CR) = L63 / L0

L63: Luminance of gray level 63

L 0: Luminance of gray level 0

CR = CR (1)

CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (6).

θx−

θx+

y+

12 o’clock direction

θ

y+ = 90º

x+

θX+ = 90º

Note (3) Definition of Response Time (T

100%

90%

Optical

Response

10%

0%

T

66.67 ms

, TF):

R

Time

T

R

F

66.67 ms

25 / 33

Version 1.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

(

)

www.panelook.com

Doc No.: 400038504

Issued Date: Nov. 6, 2009

Model No.: N133B6-L01

Preliminary

Note (4) Definition of Average Luminance of White (L

Measure the luminance of gray level 63 at 5 points

L

= [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / 5

AVE

L (x) is corresponding to the luminance of the point X at Figure in Note (6)

Note (5) Measurement Setup:

The LCD module should be stabilized at given temperature for 20 minutes to avoid abrupt

temperature change during measuring. In order to stabilize the luminance, the measurement

should be executed after lighting Backlight for 20 minutes in a windless room.

LCD Module

LCD Panel

USB2000

AVE

):

CS-2000T

Center of the Screen

500 mm

Note (6) Definition of White Variation (δW):

Measure the luminance of gray level 63 at 5 points

δW

= {Minimum [L (1)+ L (2)+ L (3)+ L (4)+ L (5)] / Maximum [L (1)+ L (2)+ L (3)+ L (4)+ L (5)]}*100%

5p

˄˃

ˉ

˛˂ˇ

˅

˛

˛˂ˇ ˛˂ˇ ˛˂ˇ

ˌ ˄˃

ˇˈ

˄˄ ˄˅

ˊ

˄

Light Shield Room

Ambient Luminance < 2 lux

ˋ

X

: Test Point

ˆ

˄ˆ

X=1 to 13

˄˃ ˄˃

˄˃

˪˂ˇ ˪˂ˇ ˪˂ˇ ˪˂ˇ

˪

26 / 33

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.1

www.panelook.com

Global LCD Panel Exchange Center

Note (7) The listed optical specifications refer to the initial value of manufacture, but the condition of the

specifications after long-term operation will not be warranted.

www.panelook.com

Doc No.: 400038504

Issued Date: Nov. 6, 2009

Model No.: N133B6-L01

Preliminary

27 / 33

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.1

www.panelook.com

Global LCD Panel Exchange Center

9. PRECAUTIONS

9.1 HANDLING PRECAUTIONS

(1) The module should be assembled into the system firmly by using every mounting hole. Be careful not

to twist or bend the module.

(2) While assembling or installing modules, it can only be in the clean area. The dust and oil may cause

electrical short or damage the polarizer.

(3) Use fingerstalls or soft gloves in order to keep display clean during the incoming inspection and

assembly process.

(4) Do not press or scratch the surface harder than a HB pencil lead on the panel because the polarizer is

very soft and easily scratched.

(5) If the surface of the polarizer is dirty, please clean it by some absorbent cotton or soft cloth. Do not use

Ketone type materials (ex. Acetone), Ethyl alcohol, Toluene, Ethyl acid or Methyl chloride. It might

www.panelook.com

Doc No.: 400038504

Issued Date: Nov. 6, 2009

Model No.: N133B6-L01

Preliminary

permanently damage the polarizer due to chemical reaction.

(6) Wipe off water droplets or oil immediately. Staining and discoloration may occur if they left on panel for

a long time.

(7) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In

case of contacting with hands, legs or clothes, it must be washed away thoroughly with soap.

(8) Protect the module from static electricity, it may cause damage to the C-MOS Gate Array IC.

(9) Do not disassemble the module.

(10) Do not pull or fold the LED wire.

(11) Pins of I/F connector should not be touched directly with bare hands.

9.2 STORAGE PRECAUTIONS

(1) High temperature or humidity may reduce the performance of module. Please store LCD module within

the specified storage conditions.

(2) It is dangerous that moisture come into or contacted the LCD module, because the moisture may

damage LCD module when it is operating.

(3) It may reduce the display quality if the ambient temperature is lower than 10 ºC. For example, the

response time will become slowly, and the starting voltage of LED will be higher than the room

temperature.

9.3 OPERATION PRECAUTIONS

(1) Do not pull the I/F connector in or out while the module is operating.

(2) Always follow the correct power on/off sequence when LCD module is connecting and operating. This

can prevent the CMOS LSI chips from damage during latch-up.

(3) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while

assembling with converter. Do not disassemble the module or insert anything into the Backlight unit.

28 / 33

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.1

www.panelook.com

Global LCD Panel Exchange Center

10. PACKING

10.1 CARTON

www.panelook.com

Doc No.: 400038504

Issued Date: Nov. 6, 2009

Model No.: N133B6-L01

Preliminary

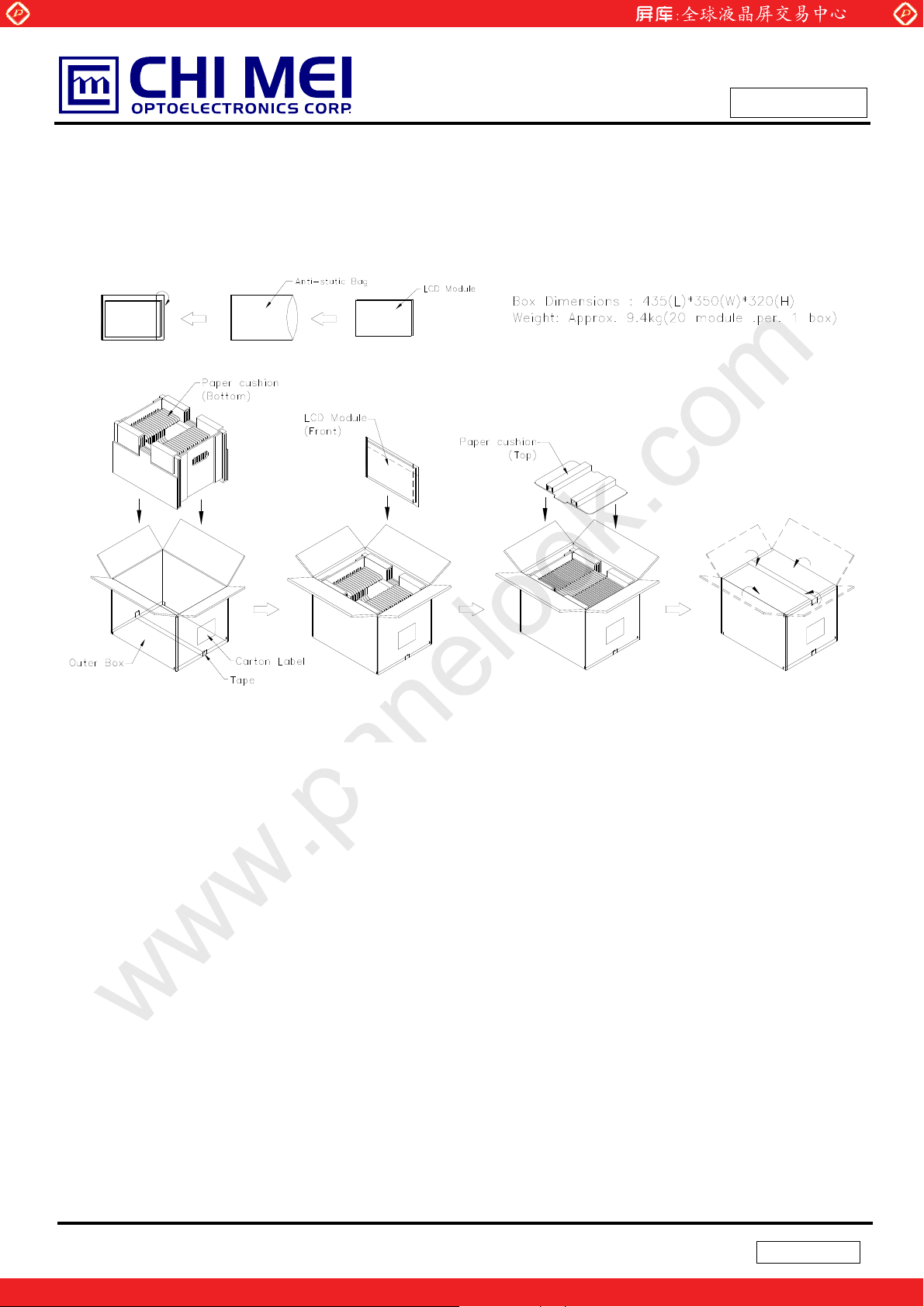

Figure. 10-1 Packing method

29 / 33

Version 1.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

10.2 PALLET

www.panelook.com

Doc No.: 400038504

Issued Date: Nov. 6, 2009

Model No.: N133B6-L01

Preliminary

Figure. 10-2 Packing method

30 / 33

Version 1.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400038504

Issued Date: Nov. 6, 2009

Model No.: N133B6-L01

Preliminary

11. DEFINITION OF LABELS

11.1 CMO MODULE LABEL

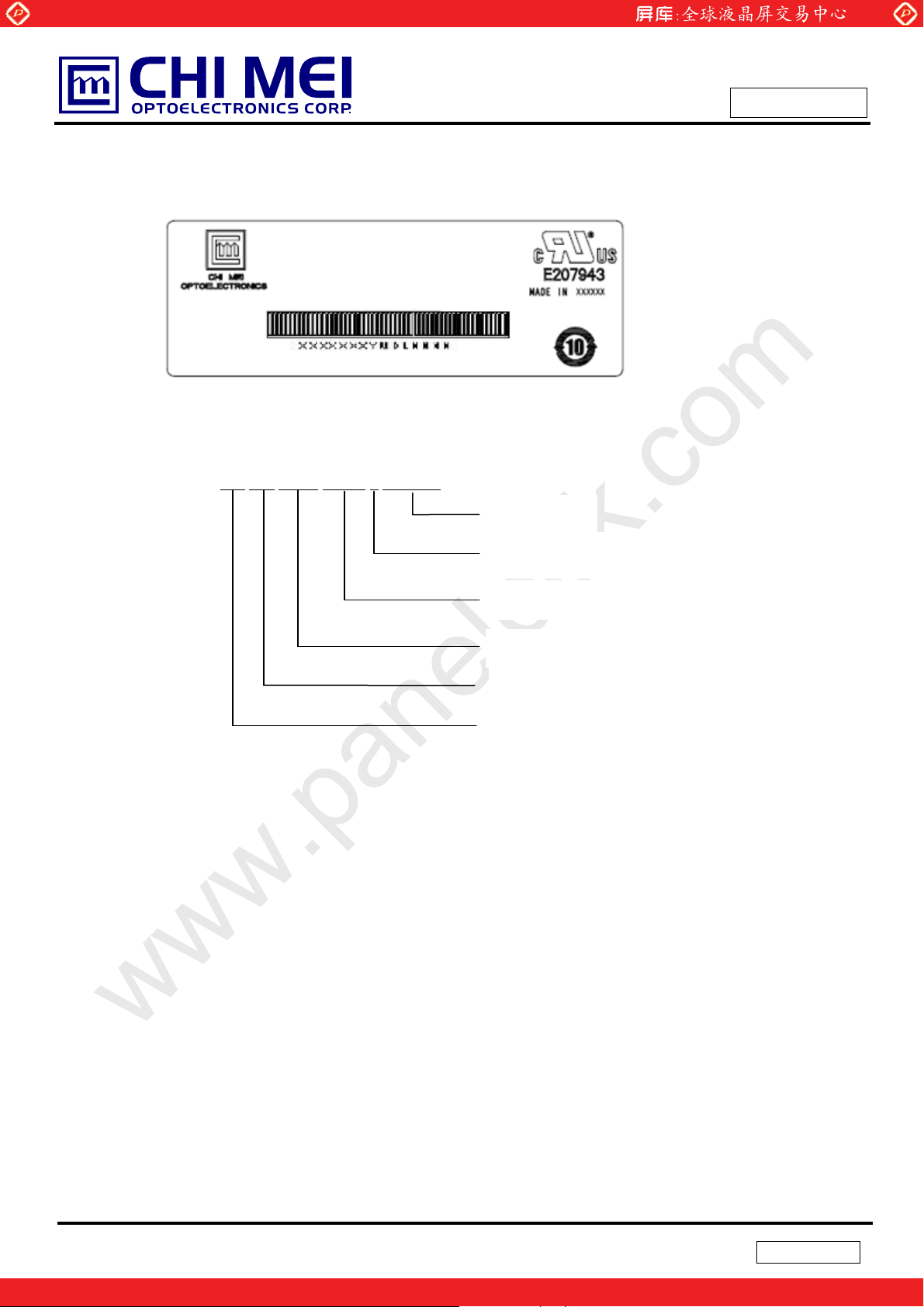

The barcode nameplate is pasted on each module as illustration, and its definitions are as following explanation.

CT: CZZZZXXYYQQRRR

-

(a) Model Name: N133B6 - L01

(b) Revision: Rev. XX, for example: C1, C2 …etc.

(c) Serial ID: X X

X X X X X Y M D L N N N N

Rev. XX

AAAA

Serial No.

Product Line

Year, Month, Date

CMO Internal Use

Revision

CMO Internal Use

(d) Production Location: MADE IN XXXX. XXXX stands for production location.

(e) UL logo: “AAAA” especially stands for panel manufactured by CMO China satisfying UL requirement.

“LEOO” and “COCKN” is the CMO’s UL factory code for Ningbo factory..

Serial ID includes the information as below:

(a) Manufactured Date: Year: 1~9, for 2001~2009

Month: 1~9, A~C, for Jan. ~ Dec.

Day: 1~9, A~Y, for 1

(b) Revision Code: cover all the change

(c) Serial No.: Manufacturing sequence of product

(d) Product Line: 1 -> Line1, 2 -> Line 2, …etc.

(e) Revision Code: cover all the change

(f) Serial No.: Manufacturing sequence of production

st

to 31st, exclude I , O and U

31 / 33

Version 1.1

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

A

CT Label

S/N CT: CZZZZXXYYQQRRR

CT: Title

C LCD Display Module

ZZZZ

XX Revision. A1, A2…..01,02….etc.

YY Supplier /Site of MFG.CMO:VR/K5/K6

QQ Week/Year of MFG

RRR Serial number. From 000000 to 999999

ssembly Code.N133B6-L01:BAMF

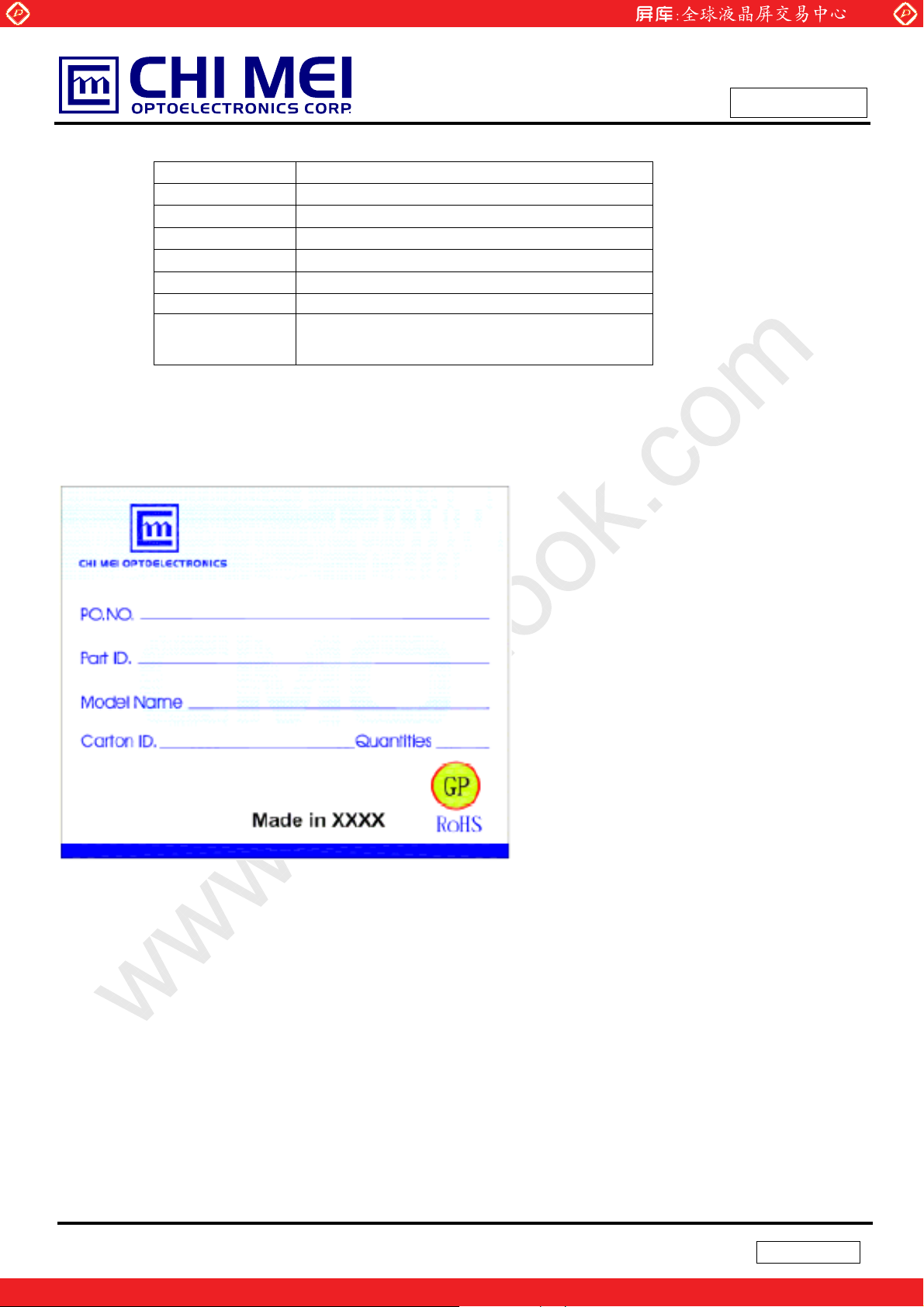

11.2 CARTON LABEL

www.panelook.com

Doc No.: 400038504

Issued Date: Nov. 6, 2009

Model No.: N133B6-L01

Preliminary

N133B6-L01

20

32 / 33

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 1.1

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com
