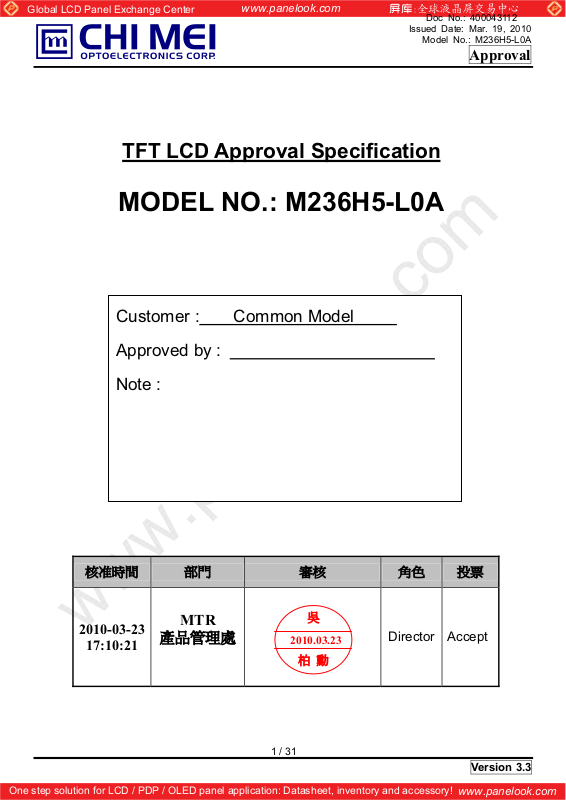

TFT LCD Approval Specification

MODEL NO.: M236H5-L0A

www.panelook.com

Doc No.: 400043112

Issued Date: Mar. 19, 2010

Model No.: M236H5-L0A

Approval

Customer : Common Model

Approved by :

Note :

2010-03-23

17:10:21

MTR

2010.03.23

Director Accept

1 / 31

Version 3.3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400043112

Issued Date: Mar. 19, 2010

Model No.: M236H5-L0A

Approval

- CONTENTS -

REVISION HISTORY

1. GENERAL DESCRIPTION ------------------------------------------------------- 4

1.1 OVERVIEW

1.2 FEATURES

1.3 APPLICATION

1.4 GENERAL SPECIFICATIONS

1.5 MECHANICAL SPECIFICATIONS

2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

2.2.2 BACKLIGHT UNIT

3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 8

3.1 TFT LCD MODULE

3.1.1 TFT LCD MODULE

3.1.2 Vcc POWER DIP CONDITION

3.2 BACKLIGHT UNIT

3.3 LIGHTBAR Connector Pin Assignment

4. BLOCK DIAGRAM ------------------------------------------------------- 13

4.1 TFT LCD MODULE

4.2 BACKLIGHT UNIT

5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 14

5.1 TFT LCD MODULE (INPUT SIGNAL)

5.2 TFT LCD MODULE (POWER)

5.3 LVDS DATA MAPING TABLE

5.4 PIXEL FORMAT IMAGE

5.5 COLOR DATA INPUT ASSIGNMENT

6. INTERFACE TIMING ------------------------------------------------------- 18

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

6.2 POWER ON/OFF SEQUENCE

7. OPTICAL CHARACTERISTICS

7.1 TEST CONDITIONS

7.2 OPTICAL SPECIFICATIONS

8. PACKAGING ------------------------------------------------------- 25

8.1 PACKING SPECIFICATIONS

8.2 PACKING METHOD

9. DEFINITION OF LABELS

9.1 CMO MODULE LABEL

------------------------------------------------------- 27

10. RELIABILITY TEST

11. PRECAUTIONS

12. MECHANICAL CHARACTERISTICS ------------------------------------------------------- 29

------------------------------------------------------- 3

------------------------------------------------------- 21

------------------------------------------------------- 28

2 / 31

Version 3.3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

REVISION HISTORY

Version Date Section Description

Doc No.: 400043112

Issued Date: Mar. 19, 2010

Model No.: M236H5-L0A

Approval

Ver 2.0

Ver 2.1

Ver 3.0

Ver 3.1

Ver 3.2

Dec, 10 ‘09

Dec, 18 ‘09

Jan, 4 ‘10

Jan, 20 ‘10

Mar, 9 ‘10

All

M236H5-L0A Approval specifications was first issued.

7

Add Rush Current Value

10

Mod Supplier of Back-Light Connector

23

Mod Figure. 8-1 Packing method (Delete Weight Remark)

29

Mod CPLD Connector with Lock Design

29

Mod Connector Dimension Tolerance +/- 0.1 to +/- 1.0 mm

16

Add 6.1 frequency specification for 2ch LVDS

17

Add Note(4) for frequency specification of 2ch LVDS

6

Add 2.2.3 Backlight setup for CMO A/D Board (Absolute Maximum Ratings)

11

Add 3.2.2 Backlight setup for CMO A/D Board (Electrical Characteristics)

19

Add Note(5) for frequency setting of 4ch LVDS

29

Mod 11.1 Assembly & Handling Precautions (Delete CCFL Items)

29

Mod 11.2 Safety Precautions (Delete CCFL Items)

6

Mod 2.2.2, 2.2.3 Back Light Unit for 3014 LED

10

Mod 3.2.1 Back Light Unit for 3014 LED

11

Mod 3.2.2 Back Light Unit for 3014 LED

12

Mod 3.3 Pin Assignment of Connector for 3014 LED

Ver 3.3

Mar, 19 ‘10

13

Mod 4.2 Drawing of Back Light Unit for 3014 LED

21

Mod 7.2 Optical Specification

6

Add 2.2.3 Back Light Unit Duty@120Hz

11

Add 3.2.2 Back Light Unit Duty@120Hz

21

Mod 7.1 Optical Characteristics Test Conditions

3 / 31

Version 3.3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

1. GENERAL DESCRIPTION

1.1 OVERVIEW

The M236H5-L0A model is a 23.6” wide TFT-LCD module with a WLED Backlight Unit, a 15-pin power

interface and a 51-pin 4ch-LVDS interface. This module supports 1920 x 1080 Full HD mode and displays

up to 16.7 million colors. The converter module for the Backlight Unit is not built in.

1.2 FEATURES

- Extra-wide viewing angle

- High contrast ratio

- Fast response time

- High color saturation

- Full HD (1920 x 1080 pixels) resolution

www.panelook.com

Doc No.: 400043112

Issued Date: Mar. 19, 2010

Model No.: M236H5-L0A

Approval

- DE (Data Enable) only mode

- LVDS (Low Voltage Differential Signaling) interface

- Double frame rate (120Hz)

- RoHS compliance

1.3 APPLICATION

- TFT LCD Monitor

1.4 GENERAL SPECIFICATI0NS

Item Specification Unit Note

Active Area 521.28(H) x 293.22(V) (23.6” diagonal) mm

Bezel Opening Area 525.22 (H) x 297.22 (V) mm

Driver Element a-Si TFT active matrix - -

Pixel Number 1920 x R.G.B. x 1080 pixel -

Pixel Pitch 0.2715 (H) x 0.2715 (V) mm -

Pixel Arrangement RGB vertical stripe - -

Display Colors 16.7M color -

Transmissive Mode Normally White - -

Surface Treatment AG type, 3H hard coating, Haze 25 - -

Module Power Consumption 20.55 Watt (2)

(1)

1.5 MECHANICAL SPECIFICATIONS

Item Min. Typ. Max. Unit Note

Horizontal(H) 544.3 544.8 545.3 mm

Module Size

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.

Note (2) Please refer to sec.3 for more information of power consumption

Vertical(V) 320.0 320.5 321.0 mm

Depth(D) 12.61 13.11 13.61 mm

Weight - 2450 2500 g -

4 / 31

Version 3.3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

(1)

www.panelook.com

Global LCD Panel Exchange Center

A

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

Item Symbol

Storage Temperature TST -20 60 ºC (1)

Operating Ambient Temperature TOP 0 50 ºC (1), (2)

Shock (Non-Operating) S

Vibration (Non-Operating) V

Note (1) Temperature and relative humidity range is shown in the figure below.

(a) 90 %RH Max. (Ta Љ 40 ºC).

(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).

(c) No condensation.

Note (2) The temperature of panel display surface area should be 0 ºC Min. and 60 ºC Max

www.panelook.com

Doc No.: 400043112

Issued Date: Mar. 19, 2010

Model No.: M236H5-L0A

Approval

Value

Min. Max.

- 50 G (3), (5)

NOP

- 1.5 G (4), (5)

NOP

Unit Note

Relative Humidity (%RH)

100

90

80

60

40

20

10

Temperature (ºC)

Operating Range

Storage Range

8060-20 40020-40

Note (3) 50G, 11ms, half sine wave, 1 time for ± X, ± Y, ± Z.

Note (4) 10 ~ 300 Hz, 10min/cycle, 3 cycles each X, Y, Z.

Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid enough

so that the module would not be twisted or bent by the fixture.

The fixing condition is shown as below:

t Room Temperature

Side Mount Fixing Screw

LCD Module

Side Mount Fixing Screw

Stage

Gap=3~5mm

Bracket

5 / 31

Version 3.3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

Item Symbol

Power Supply Voltage Vcc -0.3 +6.0 V (1)

Logic Input voltage Vlogic -0.3 3.6 V

2.2.2 BACK LIGHT UNIT

Item Symbol

LED Forward Current Per Input Pin

IF

www.panelook.com

Issued Date: Mar. 19, 2010

Value

Min. Max.

Value

Min. Typ. Max.

--- 60 75 mA

Unit Note

Doc No.: 400043112

Model No.: M236H5-L0A

Approval

LED Reverse Voltage Per Input Pin

Power Dissipation Per Input Pin

LED Pulse Forward Current Per Input Pin

Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function

operation should be restricted to the conditions described under Normal Operating Conditions.

Note (2) Specified values are for input pin of LED light bar at Ta=25±2 к (Refer to 3.2 and 3.3 for further

information).

VR

PD

IP

--- --- 60 V

--- 2.22 2.45 W

--- --- 240 mA

Pulse WidthЉ10msec.

(1), (2)

Duty=100%

(1), (2)

and DutyЉ10%

2.2.3 BACK LIGHT UNIT (When applied to A/D Board (M236H5-L0A-S6) designed by CMO)

A. LC_COT=Low level (negative dimming)

Item Symbol

LED Forward Current Per Input Pin

LED Reverse Voltage Per Input Pin

IF

VR

Min. Typ. Max.

--- 60 75 mA

--- --- 60 V

Value

Unit Note

(1), (2)

Duty=0%

Power Dissipation Per Input Pin

LED Pulse Forward Current Per Input Pin

B. LC_COT=High level (negative dimming)

Item Symbol

LED Forward Current Per Input Pin

LED Reverse Voltage Per Input Pin

PD

IP

IF

VR

--- 2.22 2.45 W

--- --- 240 mA

Value

Min. Typ. Max.

--- 120 135 mA

--- --- 60 V

Unit Note

Pulse WidthЉ10msec.

and DutyЉ90%

(1), (2) Duty=70% 100Hz Duty=88% 120Hz

6 / 31

Version 3.3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

(1), (2)

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400043112

Issued Date: Mar. 19, 2010

Model No.: M236H5-L0A

Approval

Power Dissipation Per Input Pin

LED Pulse Forward Current Per Input Pin

Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function

operation should be restricted to the conditions described under Normal Operating Conditions.

Note (2) Specified values are for input pin of LED light bar at Ta=25±2 к (Refer to 3.2 and 3.3 for further

information).

PD

IP

--- 1.32 1.47 W

--- --- 240 mA

Pulse WidthЉ10msec.

(1), (2)

and DutyЉ90%

7 / 31

Version 3.3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD MODULE

www.panelook.com

Doc No.: 400043112

Issued Date: Mar. 19, 2010

Model No.: M236H5-L0A

Approval

3.1.1 TFT LCD MODULE:

Parameter Symbol

Ta = 25 ± 2 ºC

Value

Min. Typ. Max.

Power Supply Voltage Vcc 4.5 5.0 5.5 V -

Ripple Voltage VRP - - 100 mV -

Rush Current I

RUSH

- - 5 A (2)

White - 0.8 1.11 A (3)a

Power Supply Current

Black - 1.22 1.70 A (3)b

Vertical Stripe

-

- 0.98 1.36 A (3)c

Power Consumption PLCD - 6.1 8.5 Watt (4)

LVDS differential input voltage Vid 200 - 600 mV

LVDS common input voltage Vic 1.0 1.2 1.4 V

Logic High Input Voltage VIH 2.64 - 3.6 V Logic Low Input Voltage VIL 0 - 0.66 V -

Note (1) The module should be always operated within above ranges.

Note (2) Power on rush current measurement conditions:

+5.0V

R1

47K

Q1 2SK1475

FUSE

(High to Low)

(Control Signal)

SW

+12V

C1

1uF

VR1

R2

1K

47K

0.01uF

Q2

2SK1470

C2

C3

1uF

Unit Note

Vcc

(LCD Module Input)

Vcc rising time is 470μs

Vcc

0.9Vcc

0.1Vcc

GND

470μs

8 / 31

Version 3.3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Note (3) The specified power supply current is under the conditions at Vcc = 5.0 V, Ta = 25 ± 2 ºC, fv = 120

Hz, whereas a power dissipation check pattern below is displayed.

www.panelook.com

Doc No.: 400043112

Issued Date: Mar. 19, 2010

Model No.: M236H5-L0A

Approval

a. White Pattern

Active Area

c. Vertical Stripe Pattern

b. Black Pattern

Active Area

R

G

R

B

G

R

B

G

R R

G

B

R

G

B

R

Note (4) The power consumption is specified at the pattern with the maximum current.

Note (5) VID waveform condition

Active Area

9 / 31

Version 3.3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

≤≤≤

d

3.1.2 Vcc Power Dip Condition:

www.panelook.com

Doc No.: 400043112

Issued Date: Mar. 19, 2010

Model No.: M236H5-L0A

Approval

Vcc

4.0V

4.5V

T

Dip condition:

3.2.1 BACKLIGHT UNIT (L

Parameter Symbol

LED Light Bar Input Voltage Per Input Pin

LED Light Bar Current Per Input Pin

LED Life Time

Power Consumption

Note (1) LED light bar input voltage and current are measured by utilizing a true RMS multimeter as

ED matrix is 12S6P) Ta = 25 ± 2 ºC

34 38.4 42 V

V

I

L

LED

PBL

msTdVVccV 20,5.40.4

Value

Min. Typ . Max.

0 60 75 mA

30000 ---

--- 13.83 15.2 W

---

Unit Note

Hrs (3)

Duty=100%,

I

Duty=100%

Duty=100%,

I

(1),

=60mA

(1), (2)

(1)

=60mA

shown below:

Note (2) P

Note (3) The lifetime of LED is defined as the time when LED packages continue to operate under the

= I

× V

BL

conditions at Ta = 25 ±2ʳк and I= (20)mA (per chip) until the brightness becomes Љ 50% of its

original value.

× (6) x Duty input pins , LED light bar circuit is (12)Series, (6)Parallel.

10 / 31

Version 3.3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400043112

Issued Date: Mar. 19, 2010

Model No.: M236H5-L0A

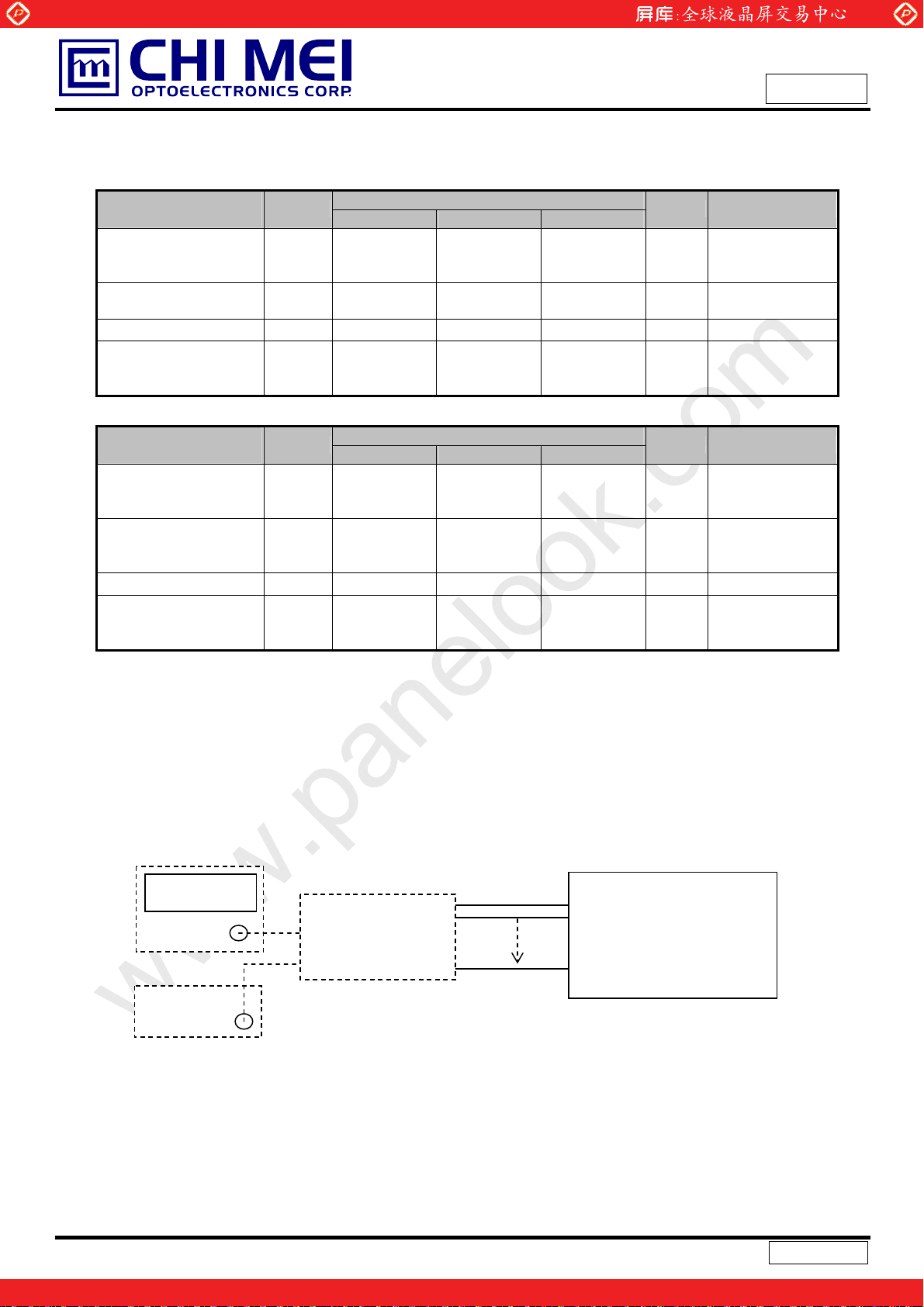

3.2.2 BACK LIGHT UNIT (When applied to A/D Board (M236H5-L0A-S6) designed by CMO) 25 ± 2 ºC

A. LC_COT=Low level (negative dimming)

Parameter

LED Light Bar Input Voltage Per Input Pin

LED Light Bar Current Per Input Pin

LED Life Time

Power Consumption

Symbol

34 38.4 42 V

V

I

L

LED

PBL

Min. Typ . Max.

0 60 75 mA

30000 ---

--- 13.83 15.2 W

B. LC_COT=High level (negative dimming)

Parameter

LED Light Bar Input Voltage Per Input Pin

LED Light Bar Current Per Input Pin

LED Life Time

Power Consumption

Symbol

--- -- 49 V

V

I

L

LED

PBL

Min. Typ . Max.

--- 120 135 mA

30000 ---

--- 8.04 8.82 W

Note (1) LED light bar input voltage and current are measured by utilizing a true RMS multimeter as

Value

Unit Note

Duty=0%,

I

---

Hrs (3)

Duty=0%,

I

Value

Unit Note

Duty=0%,

I

Duty=70% 100Hz Duty=88% 120Hz

Hrs (3)

Duty=70%,

I

Approval

(1),

=60mA

(1), (2)

Duty=0%

=120mA

(1), (2)

=120mA

(1)

=60mA

(1),

(1)

shown below:

Note (2) P

= I

× V

BL

× (6) x Duty input pins , LED light bar circuit is (12)Series, (6)Parallel.

Note (3) The lifetime of LED is defined as the time when LED packages continue to operate under the

conditions at Ta = 25 ±2ʳк and I= (20)mA (per chip) until the brightness becomes Љ 50% of its

original value.

Power supply

CMO Converter

With PWM

Function

V

PIN(1), IPIN(1)

V

PIN(6) , IPIN(6)

LED Backlight Module

Series:(12)

Parallel:(6)

Function generator

11 / 31

Version 3.3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

3.3 LIGHTBAR Connector Pin Assignment

Connector: 7083K-F12N-00L ஑൓ܓ(Entery)

CN1

Pin number Description

1 NC 2 Cathode of LED string 3 Cathode of LED string 4 Cathode of LED string 5 NC 6 VLED 7 VLED 8 NC

9 Cathode of LED string 10 Cathode of LED string 11 Cathode of LED string 12 NC

www.panelook.com

Doc No.: 400043112

Issued Date: Mar. 19, 2010

Model No.: M236H5-L0A

Approval

12 / 31

Version 3.3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

(

)

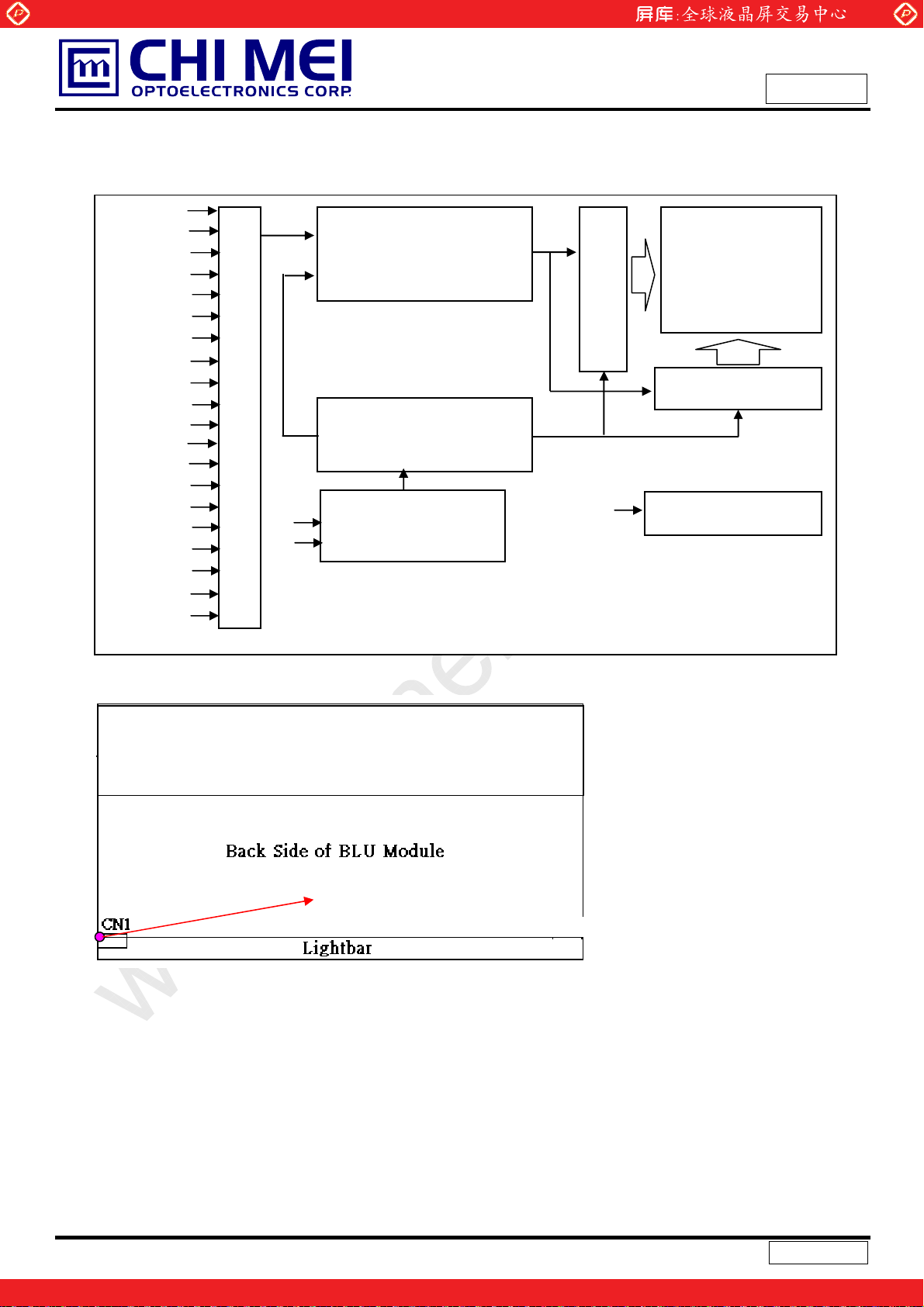

4. BLOCK DIAGRAM

4.1 TFT LCD MODULE

www.panelook.com

Doc No.: 400043112

Issued Date: Mar. 19, 2010

Model No.: M236H5-L0A

Approval

F_RXO0(+/-)

F_RXO1(+/-)

F_RXO2(+/-)

F_RXO3(+/-)

F_RXOC(+/-)

F_RXE0(+/-)

F_RXE1(+/-)

F_RXE2(+/-)

F_RXE3(+/-)

F_RXEC(+/-)

B_RXO0(+/-)

B_RXO1(+/-)

B_RXO2(+/-)

B_RXO3(+/-)

B_RXOC(+/-)

B_RXE0(+/-)

B_RXE1(+/-)

B_RXE2(+/-)

B_RXE3(+/-)

B_RXEC(+/-)

INPUT DATA CONNECTOR

51pin

Vcc

GND

LVDS INPUT /

TIMING CONTROLLER

DC/DC CONVERTER &

REFERENCE VOLTAGE

POWER

CONNECTOR (15pin)

SCAN DRIVER IC

VLED

ILED

TFT LCD PANEL

(1920x3x1080)

DATA DRIVER IC

BACKLIGHT UNIT

4.2 BACKLIGHT

Pin 1 define

13 / 31

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

Version 3.3

www.panelook.com

Global LCD Panel Exchange Center

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD MODULE (INPUT SIGNAL)

Pin Name Description

1 B_RXO0- B_ Negative LVDS differential data input. Channel O0 (odd) 2 B_RXO0+ B_ Positive LVDS differential data input. Channel O0 (odd) 3 B_RXO1- B_ Negative LVDS differential data input. Channel O1 (odd) 4 B_RXO1+ B_ Positive LVDS differential data input. Channel O1 (odd) 5 B_RXO2- B_ Negative LVDS differential data input. Channel O2 (odd) 6 B_RXO2+ B_ Positive LVDS differential data input. Channel O2 (odd) 7 GND Ground 8 B_RXOC- B_ Negative LVDS differential clock input. (odd)

9 B_RXOC+ B_ Positive LVDS differential clock input. (odd) 10 GND Ground 11 B_RXO3- B_ Negative LVDS differential data input. Channel O3(odd) 12 B_RXO3+ B_ Positive LVDS differential data input. Channel O3 (odd) 13 GND Ground 14 B_RXE0- B_ Negative LVDS differential data input. Channel E0 (even) 15 B_RXE0+ B_ Positive LVDS differential data input. Channel E0 (even) 16 B_RXE1- B_ Negative LVDS differential data input. Channel E1 (even) 17 B_RXE1+ B_ Positive LVDS differential data input. Channel E1 (even) 18 B_RXE2- B_ Negative LVDS differential data input. Channel E2 (even) 19 B_RXE2+ B_ Positive LVDS differential data input. Channel E2 (even) 20 GND Ground 21 B_RXEC- B_ Negative LVDS differential clock input. (even) 22 B_RXEC+ B_ Positive LVDS differential clock input. (even) 23 GND Ground 24 B_RXE3- B_ Negative LVDS differential data input. Channel E3 (even) 25 B_RXE3+ B_ Positive LVDS differential data input. Channel E3 (even) 26 GND Ground 27 F_RXO0- F_ Negative LVDS differential data input. Channel O0 (odd) 28 F_RXO0+ F_ Positive LVDS differential data input. Channel O0 (odd) 29 F_RXO1- F_ Negative LVDS differential data input. Channel O1 (odd) 30 F_RXO1+ F_ Positive LVDS differential data input. Channel O1 (odd) 31 F_RXO2- F_ Negative LVDS differential data input. Channel O2 (odd) 32 F_RXO2+ F_ Positive LVDS differential data input. Channel O2 (odd) 33 GND Ground 34 F_RXOC- F_ Negative LVDS differential clock input. (odd) 35 F_RXOC+ F_ Positive LVDS differential clock input. (odd) 36 GND Ground 37 F_RXO3- F_ Negative LVDS differential data input. Channel O3(odd) 38 F_RXO3+ F_ Positive LVDS differential data input. Channel O3 (odd) 39 GND Ground 40 F_RXE0- F_ Negative LVDS differential data input. Channel E0 (even) 41 F_RXE0+ F_ Positive LVDS differential data input. Channel E0 (even) 42 F_RXE1- F_ Negative LVDS differential data input. Channel E1 (even) 43 F_RXE1+ F_ Positive LVDS differential data input. Channel E1 (even) 44 F_RXE2- F_ Negative LVDS differential data input. Channel E2 (even) 45 F_RXE2+ F_ Positive LVDS differential data input. Channel E2 (even) 46 GND Ground 47 F_RXEC- F_ Negative LVDS differential clock input. (even)

www.panelook.com

Doc No.: 400043112

Issued Date: Mar. 19, 2010

Model No.: M236H5-L0A

Approval

14 / 31

Version 3.3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

48 F_RXEC+ F_ Positive LVDS differential clock input. (even) 49 GND Ground 50 F_RXE3- F_ Negative LVDS differential data input. Channel E3 (even) 51 F_RXE3+ F_ Positive LVDS differential data input. Channel E3 (even)

Note (1) Connector Part No.: JAE FI-RE51S-HF or Compatible.

Note (2) The first pixel is odd.

Note (3) Input signal of even and odd clock should be the same timing.

5.2 TFT LCD MODULE (POWER)

Pin Name Description

1 NC Not connection, this pin should be open.

2 NC Not connection, this pin should be open.

3 NC Not connection, this pin should be open.

4 GND Ground

5 GND Ground

6 GND Ground

7 GND Ground

8 NC Not connection, this pin should be open.

9 NC Not connection, this pin should be open. 10 GND Ground

11 Vcc +5.0V power supply 12 Vcc +5.0V power supply 13 Vcc +5.0V power supply 14 Vcc +5.0V power supply 15 Vcc +5.0V power supply

Note (1) Connector Part No.: Yeonho 12507WR-H15L or Compatible.

www.panelook.com

Doc No.: 400043112

Issued Date: Mar. 19, 2010

Model No.: M236H5-L0A

Approval

5.3 LVDS DATA MAPPING TABLE

LVDS Channel O0

LVDS Channel O1

LVDS Channel O2

LVDS Channel O3

LVDS Channel E0

LVDS Channel E1

LVDS Channel E2

LVDS Channel E3

LVDS output D7 D6 D4 D3 D2 D1 D0 Data order OG0 OR5 OR4 OR3 OR2 OR1 OR0 LVDS output D18 D15 D14 D13 D12 D9 D8 Data order OB1 OB0 OG5 OG4 OG3 OG2 OG1 LVDS output D26 D25 D24 D22 D21 D20 D19 Data order DE NA NA OB5 OB4 OB3 OB2 LVDS output D23 D17 D16 D11 D10 D5 D27 Data order NA OB7 OB6 OG7 OG6 OR7 OR6 LVDS output D7 D6 D4 D3 D2 D1 D0 Data order EG0 ER5 ER4 ER3 ER2 ER1 ER0 LVDS output D18 D15 D14 D13 D12 D9 D8 Data order EB1 EB0 EG5 EG4 EG3 EG2 EG1 LVDS output D26 D25 D24 D22 D21 D20 D19 Data order DE NA NA EB5 EB4 EB3 EB2 LVDS output D23 D17 D16 D11 D10 D5 D27 Data order NA EB7 EB6 EG7 EG6 ER7 ER6

15 / 31

Version 3.3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

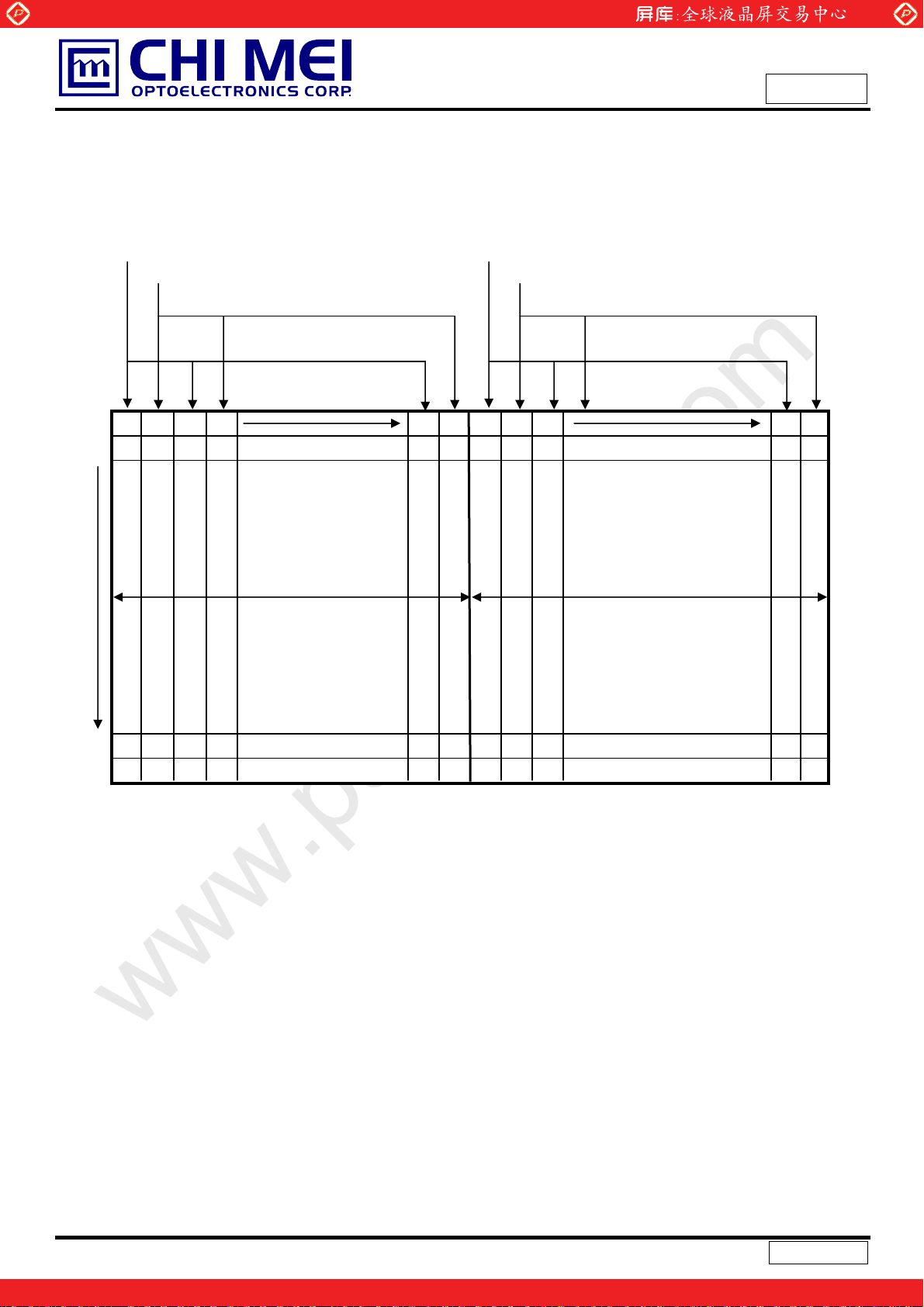

5.4 PIXEL FORMAT IMAGE

Screen Format

www.panelook.com

Doc No.: 400043112

Issued Date: Mar. 19, 2010

Model No.: M236H5-L0A

Approval

LVDS-FO

LVDS-FE

1

2

2 3

LVDS-BO

LVDS-BE

4

959 960 961 962

Left Screen

963

Right Screen

1919

1920

1079

1080

16 / 31

Version 3.3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

5.5 COLOR DATA INPUT ASSIGNMENT

The brightness of each primary color (red, green and blue) is based on the 8-bit gray scale data input for

the color. The higher the binary input, the brighter the color. The table below provides the assignment of

color versus data input.

Color

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

Basic

Colors

Gray

Scale

Of

Red

Black

Green

Magenta

Yellow

White

Red(0) / Dark

Red(1) Red(2)

Red(253) Red(254) Red(255)

Red

Blue

Cyan

0

1

0

1

0

:

1

www.panelook.com

Doc No.: 400043112

Issued Date: Mar. 19, 2010

Model No.: M236H5-L0A

Data Signal

Red Green Blue

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

:

1

0

1

0

1

0

1

0

Approval

0

1

0

1

0

:

0

1

0

1

0

:

0

Green(0) / Dark

Gray

Scale

Of

Green

Gray

Scale

Of

Blue

Note (1) 0: Low Level Voltage, 1: High Level Voltage

Green(1) Green(2)

Green(253) Green(254) Green(255)

Blue(0) / Dark

Blue(1) Blue(2)

Blue(253) Blue(254) Blue(255)

0

:

0

:

0

1

0

1

0

:

0

1

0

1

0

1

0

1

0

1

0

1

0

:

0

1

0

1

0

1

0

1

17 / 31

Version 3.3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

6. INTERFACE TIMING

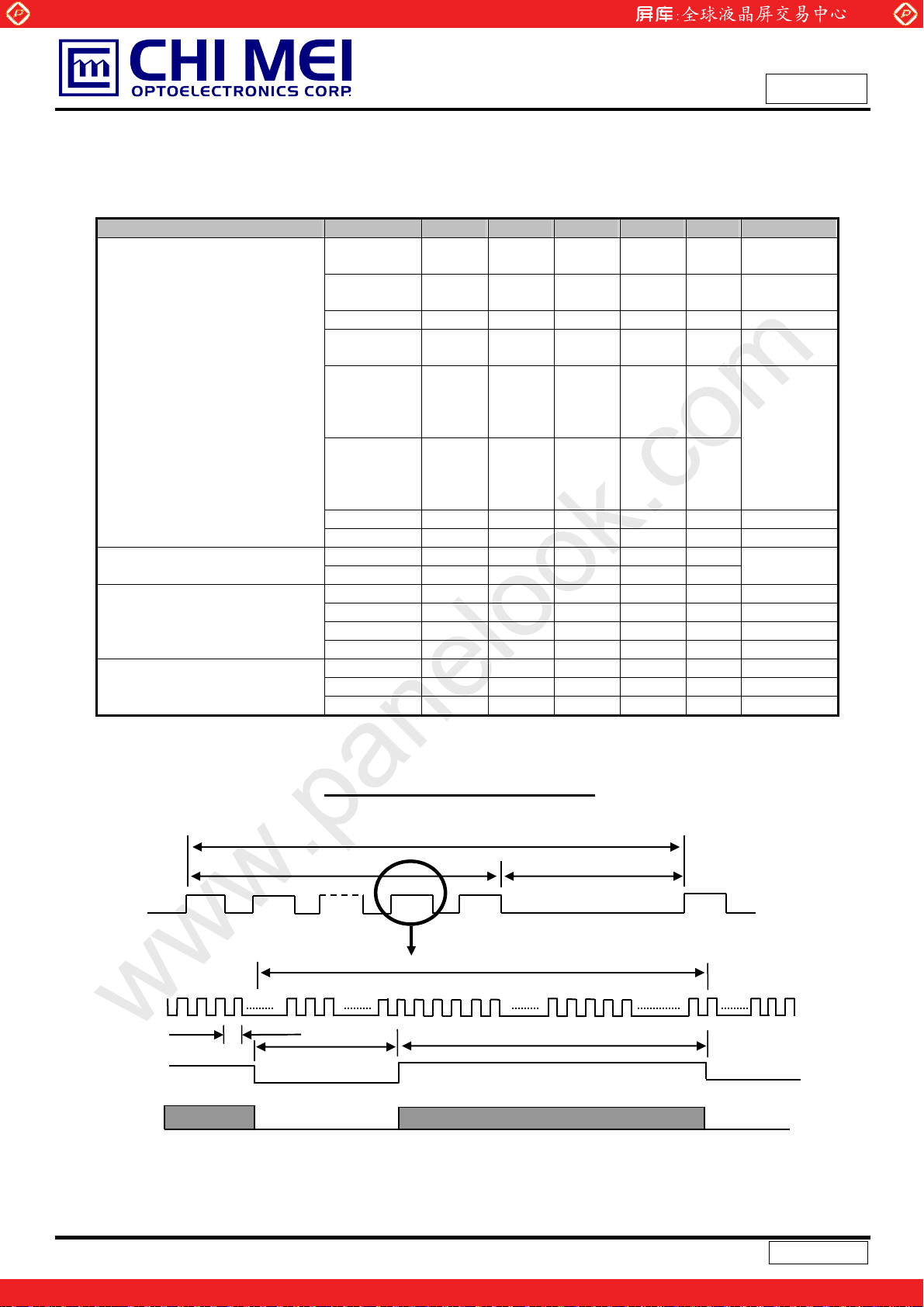

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

The input signal timing specifications are shown as the following table and timing diagram.

Signal Item Symbol Min. Typ. Max. Unit Note

Frequency for 2ch LVDS Frequency for 4ch LVDS Period Tc 12.4 16.7 31.3 ns Input cycle to cycle jitter Spread

LVDS Clock

LVDS Data

Vertical Active Display Term

Horizontal Active Display Term

Note: Because this module is operated by DE only mode, Hsync and Vsync input signals are ignored.

spectrum modulation range Spread spectrum modulation frequency High Time Tch - 4/7 - Tc Low Time Tcl - 3/7 - Tc Setup Time Tlvs 600 - - ps Hold Time Tlvh 600 - - ps Frame Rate Fr 50 120 122 Hz Tv=Tvd+Tvb Total Tv 1100 1125 118 0 Th Display Tvd 1080 1080 1080 Th Blank Tvb Tv-Tvd 45 Tv-Tvd Th Total Th 500 550 562 Tc Th=Thd+Thb Display Thd 480 480 480 Tc Blank Thb Th-Thd 70 Th-Thd Tc -

www.panelook.com

Fc2 31.9 74.25 105 MHz (4)

Fc 31.9 74.25 80.9 MHz (5)

-100 - 100 ps (1)

T

rcl

clkin_mod

F

0.98*Fc - 1.02*Fc MHz

50 - 300 KHz

SSM

Doc No.: 400043112

Issued Date: Mar. 19, 2010

Model No.: M236H5-L0A

Approval

(2)

(3)

INPUT SIGNAL TIMING DIAGRAM

DE

Th

DCLK

T

C

DE

DATA

Thb

hd

T

18 / 31

Version 3.3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

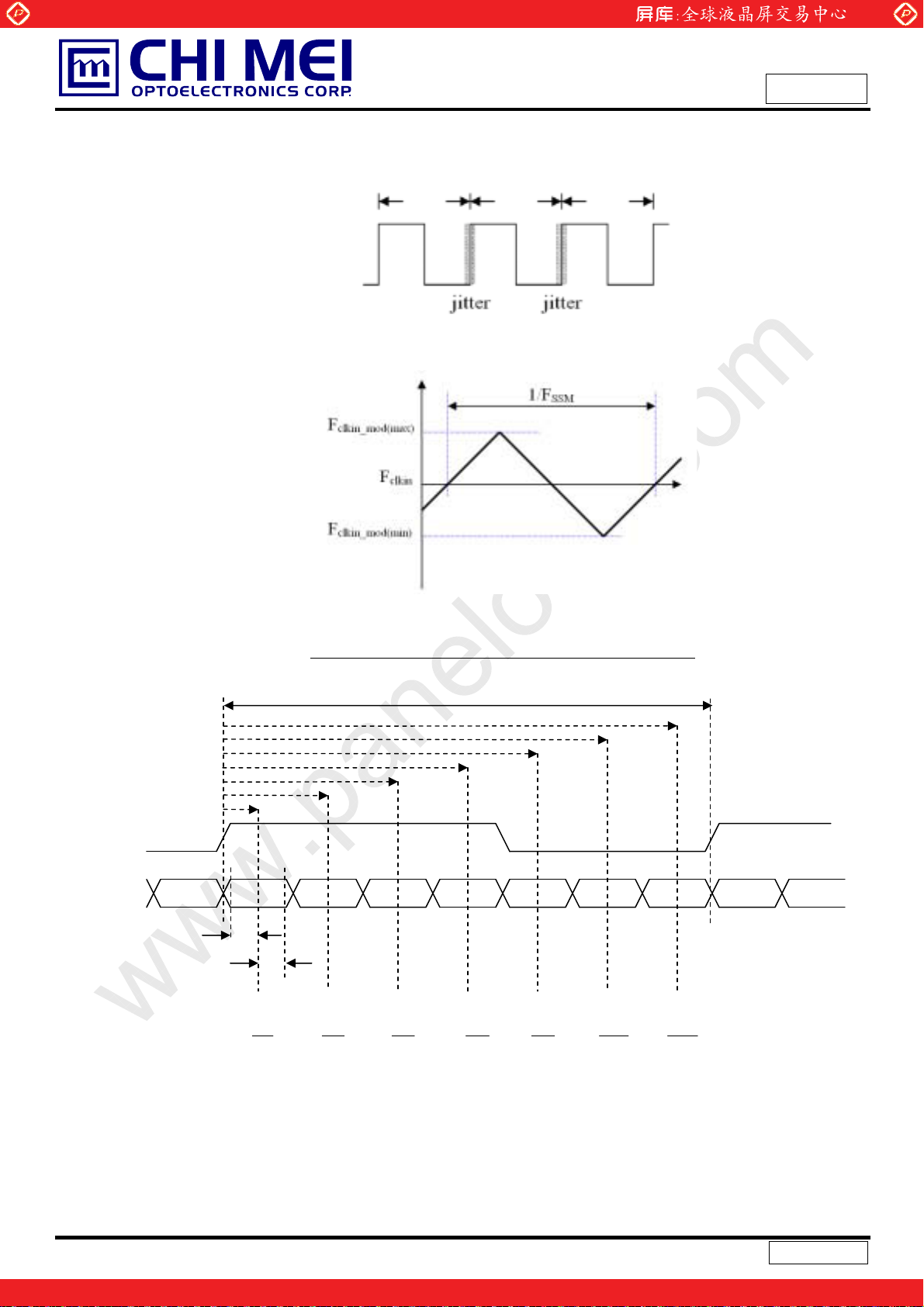

Note (1) The input clock cycle-to-cycle jitter is defined as below figures. Trcl = I T1 – TI

Note (2) The SSCG (Spread spectrum clock generator) is defined as below figures.

www.panelook.com

Doc No.: 400043112

Issued Date: Mar. 19, 2010

Model No.: M236H5-L0A

Approval

T T1

Note (3) The LVDS timing diagram and setup/hold time is defined and showing as the following figures.

LVDS RECEIVER INTERFACE TIMING DIAGRAM

Tc

RXCLK+/-

RXn+/-

Tlvs

Tlvh

Note (4) 2ch. LVDS application is only applied for A/D Board (M236H5-L0A-S6) designed internally by CMO

1T

14

3T

14

5T

14

7T

14

9T

14

11T

14

13T

14

Note (5) The Max. Frequency in 4ch. LVDS application can be set to 90MHz when applied for A/D Board

(M236H5-L0A-S6) designed internally by CMO.

19 / 31

Version 3.3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

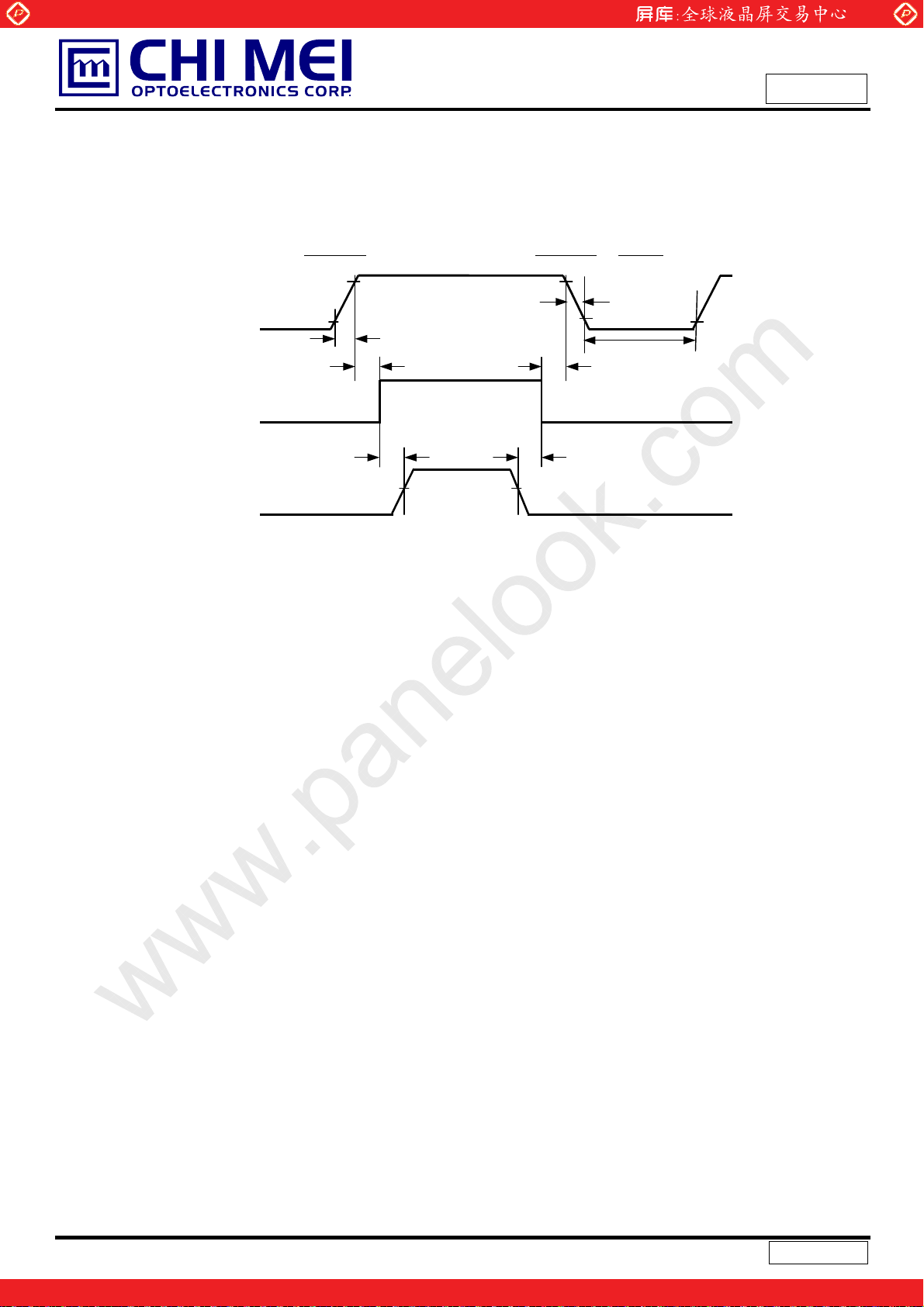

6.2 POWER ON/OFF SEQUENCE

To prevent a latch-up or DC operation of LCD module, the power on/off sequence should follow the

conditions shown in the following diagram.

Power On

www.panelook.com

Power Off

Doc No.: 400043112

Issued Date: Mar. 19, 2010

Model No.: M236H5-L0A

Approval

Restart

Power Supply

for LCD, Vcc

-

Interface Signal (LVDS Signal of Transmitter), V

-

Power for Lamp

I

Timing Specifications:

0.5< t1 Љ 10 msec

0 < t2 Љ 50 msec

0 < t3 Љ 50 msec

t4 Њ 500 msec

t5 Њ 450 msec

0V

90%

10%

t1

t2

Valid Data

90%

t3

t7

10%

t4

t6 t5

50%50%

ONOFF OFF

t6 Њ 90 msec

5 Љ t7 Љ 100 msec

Note:

(1) The supply voltage of the external system for the module input should be the same as the definition of Vcc.

(2) Please apply the lamp voltage within the LCD operation range. When the backlight turns on before the LCD

operation of the LCD turns off, the display may, instantly, function abnormally.

(3) In case of V

(4) T4 should be measured after the module has been fully discharged between power on/off periods.

(5) Interface signal shall not be kept at high impedance when the power is on.

(6) It is not guaranteed that products are damaged which is caused by not following the Power Sequence.

(7) It is suggested that Vcc falling time follows t7 specification, else slight noise is likely to occur when LCD is

turned off (even backlight is already off).

CC = off level, please keep the level of input signals on the low or keep a high impedance.

20 / 31

Version 3.3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Њ

7. OPTICAL CHARACTERISTICS

7.1 TEST CONDITIONS

Item Symbol Value Unit

Ambient Temperature Ta 25±2

Ambient Humidity Ha 50±10 %RH

Supply Voltage VCC 12V V

Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS"

Light Bar Input Voltage V Light Bar Input Current I

Duty D 100 %

7.2 OPTICAL SPECIFICATIONS

The relative measurement methods of optical characteristics are shown in 7.2. The following items should

www.panelook.com

Doc No.: 400043112

Issued Date: Mar. 19, 2010

Model No.: M236H5-L0A

38.4 VDC

LED

60

LED

mA

Approval

o

C

DC (per string)

be measured under the test conditions described in 7.1 and stable environment shown in Note (5).

Item Symbol Condition Min. Typ. Max. Unit Note

Red

Color

Green

Chromaticity

(CIE 1931)

Blue

White

Center Luminance of White

(Center of Screen)

Contrast Ratio CR

Response Time

Rx

Ry

Gx Gy

Bx

By

=0° , θY =0°

θ

x

CS-1000T

Typ –

0.03

Wx

Wy

L

C

240 300 - cd/m2(4), (5)

700 1000 - - (2), (5)

TR - 1.5 2.5 T

F

θ

=0° , θY =0°

x

(0.641)

(0.338)

(0.315) (0.629) (0.159)

Typ +

0.03

(0.059)

(0.313)

(0.329)

- 3.5 5.5

ms (3)

- (1), (5)

White Variation δW θx=0° , θY =0° - - 1.33 - (5), (6)

+

-

+ θ

150 170 -

x

+

-

+ θ

Y

+

-

+ θ

160 178 -

x

+

-

+ θ

Y

CR

10

5

140 160 -

150 170 -

Deg. (1), (5)

Viewing Angle

Horizontal θ

Vertical θ

Horizontal θ

Vertical θ

21 / 31

Version 3.3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

y

−θx+

y

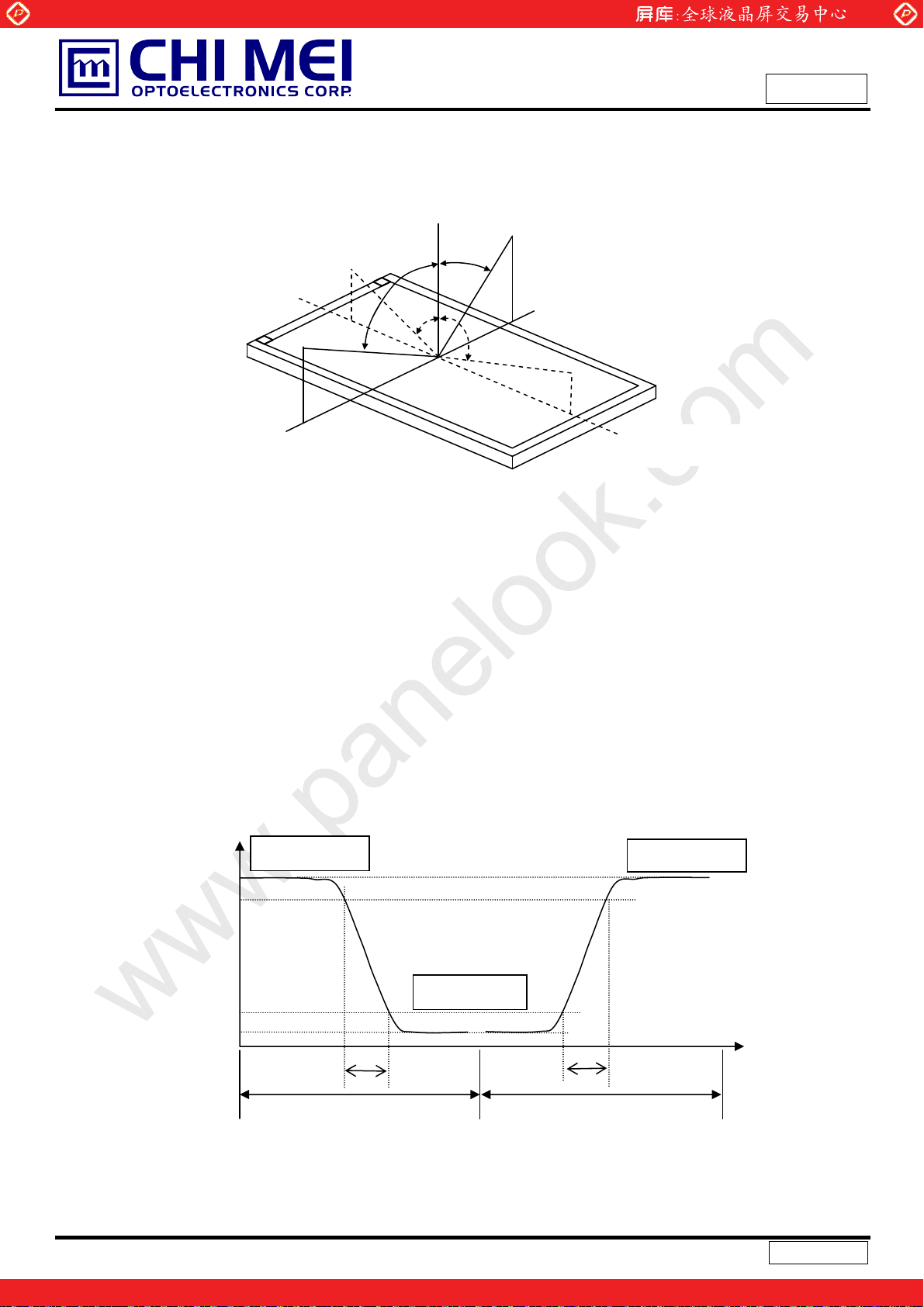

Note (1) Definition of Viewing Angle (θx, θy):

www.panelook.com

Doc No.: 400043112

Issued Date: Mar. 19, 2010

Model No.: M236H5-L0A

Approval

Normal

θX- = 90º

6 o’clock

θ

- = 90º

x-

y-

Note (2) Definition of Contrast Ratio (CR):

The contrast ratio can be calculated by the following expression.

Contrast Ratio (CR) = L255 / L0

L255: Luminance of gray level 255

L 0: Luminance of gray level 0

θx = θ

= 0º

θy- θy+

θx

12 o’clock direction

y+

θ

+ = 90º

x+

θX+ = 90º

CR = CR (5)

CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (6).

Note (3) Definition of Response Time (T

100%

90%

Optical

Response

10%

0%

Gray Level 255

, TF):

R

Gray Level 255

Gray Level 0

T

R

F

66.67ms 66.67ms

22 / 31

Version 3.3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

500

Note (4) Definition of Luminance of White (LC):

www.panelook.com

Doc No.: 400043112

Issued Date: Mar. 19, 2010

Model No.: M236H5-L0A

Approval

Measure the luminance of gray level 255 at center point

LC = L (5)

L (x) is corresponding to the luminance of the point X at Figure in Note (6).

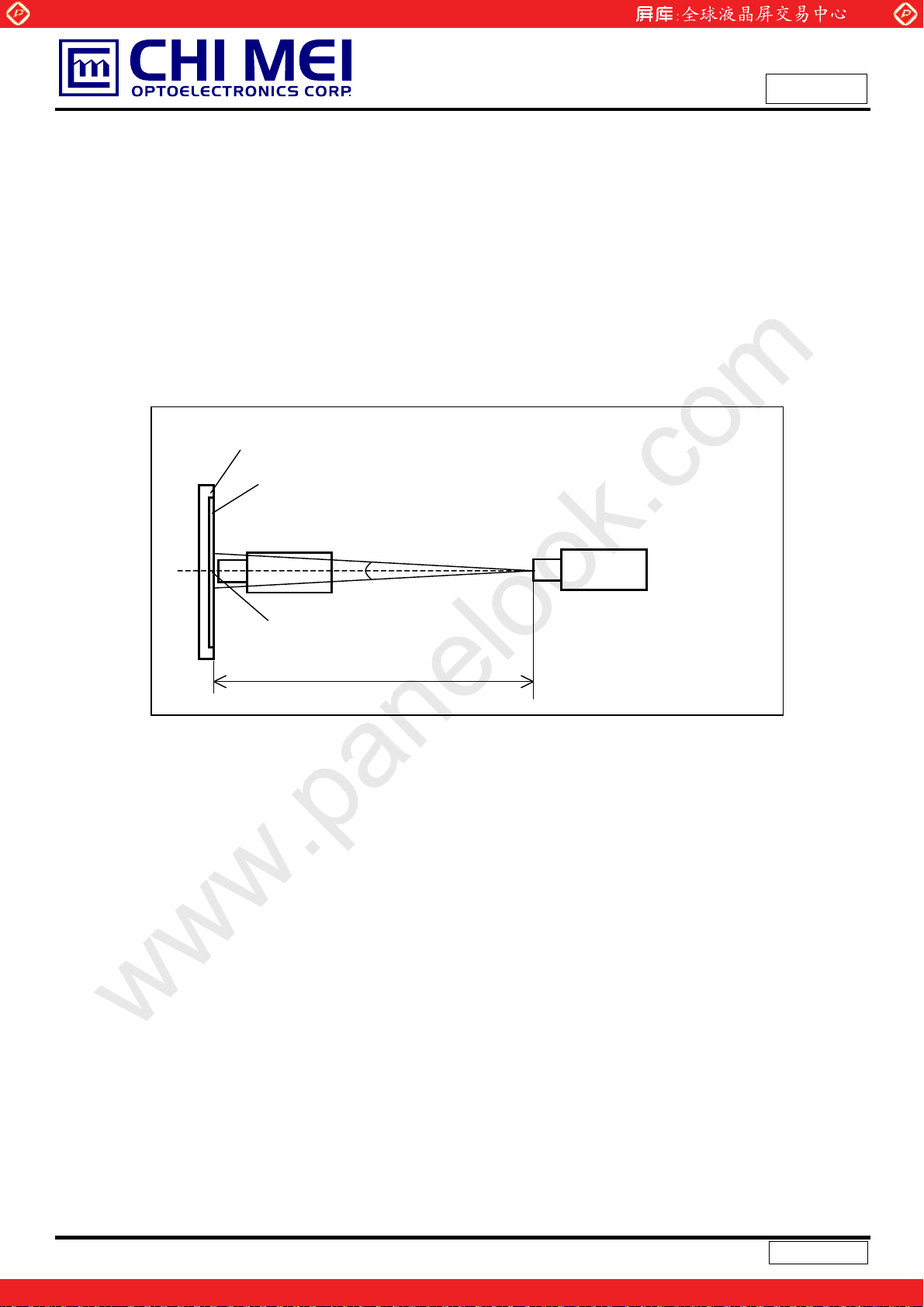

Note (5) Measurement Setup:

The LCD module should be stabilized at given temperature for 40 minutes to avoid abrupt

temperature change during measuring. In order to stabilize the luminance, the measurement

should be executed after lighting Backlight for 40 minutes in a windless room.

LCD Module

LCD Panel

USB2000

Center of the Screen

CS-1000T

Light Shield Room

mm

(Ambient Luminance < 2 lux)

23 / 31

Version 3.3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

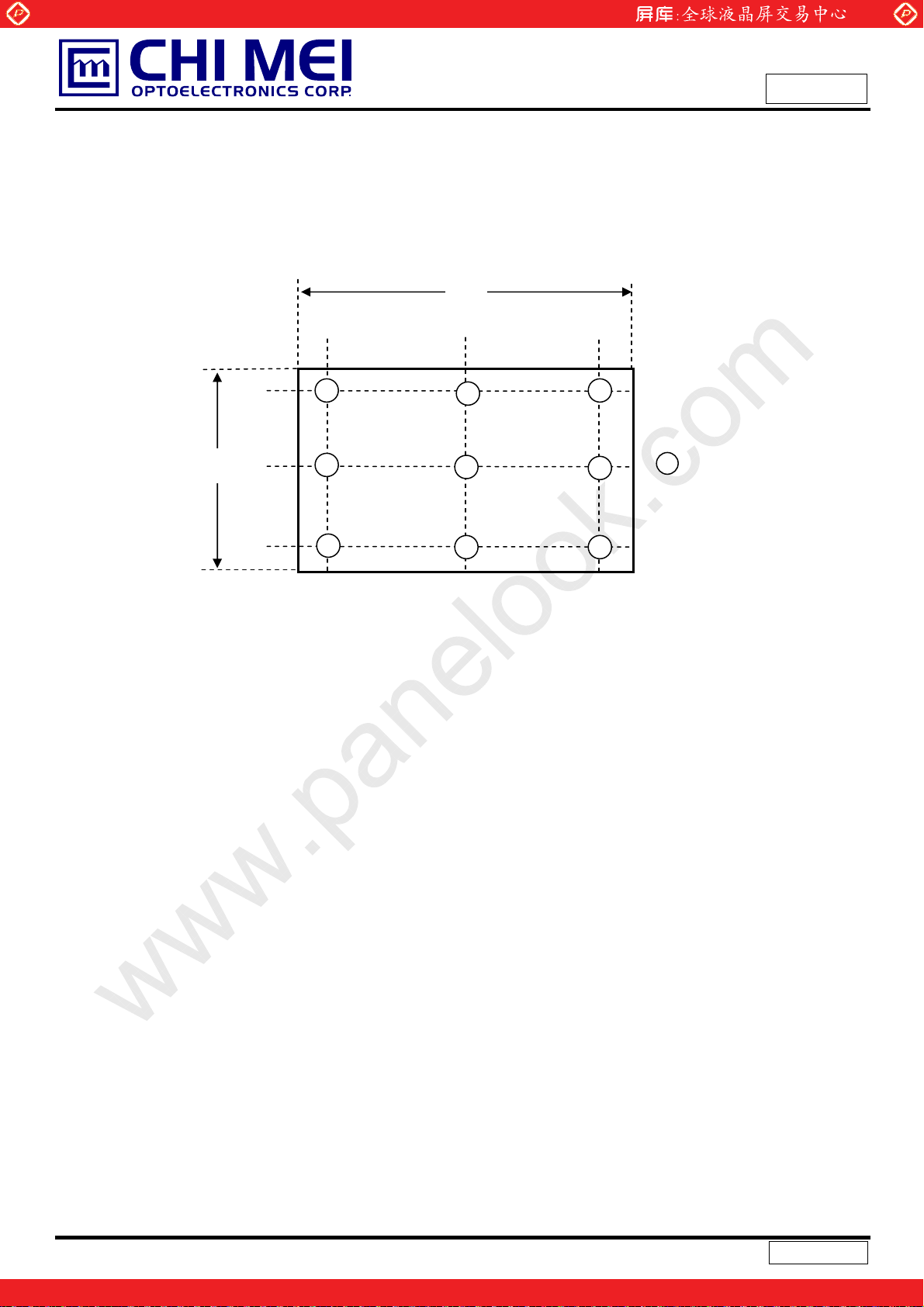

Note (6) Definition of White Variation (δW):Measure the luminance of gray level 255 at 9 points

δW = Maximum [L (1) ~ L (9)] / Minimum [L (1) ~ L (9)]

www.panelook.com

Doc No.: 400043112

Issued Date: Mar. 19, 2010

Model No.: M236H5-L0A

Approval

Horizontal Line

D

W/10

W/2

W

Vertical Line

W/10

D/10 D/2

1 3

4

7

2

5

8

D/10

6

9

X

: Test Point

X=1 to 9

Active Area

24 / 31

Version 3.3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

8. PACKAGING

8.1 PACKING SPECIFICATIONS

(1) 11 LCD modules / 1 Box

(2) Box dimensions: 620(L) X 348(W) X 430(H) mm

(3) Weight: approximately: 30.5 (11 modules per box)

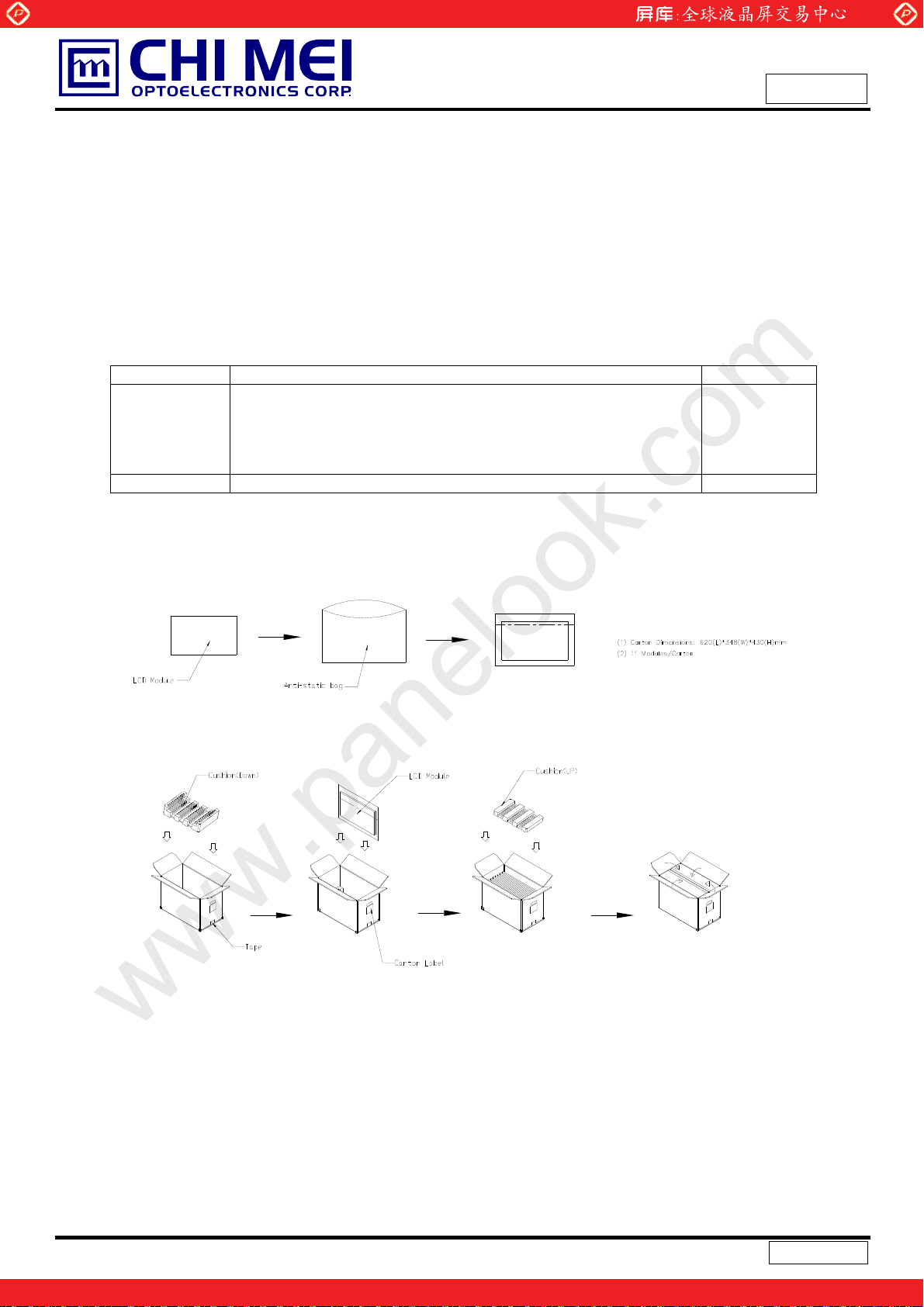

8.2 PACKING METHOD

(1) Carton Packing should have no failure in the following reliability test items.

Test Item Test Conditions Note

ISTA STANDARD Random, Frequency Range: 1 – 200 Hz

Vibration

Dropping Test 1 Angle, 3 Edge, 6 Face, 45.7cm Non Operation

Top & Bottom: 30 minutes (+Z), 10 min (-Z), Right & Left: 10 minutes (X) Back & Forth 10 minutes (Y)

www.panelook.com

Doc No.: 400043112

Issued Date: Mar. 19, 2010

Model No.: M236H5-L0A

Approval

Non Operation

Figure. 8-1 Packing method

25 / 31

Version 3.3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

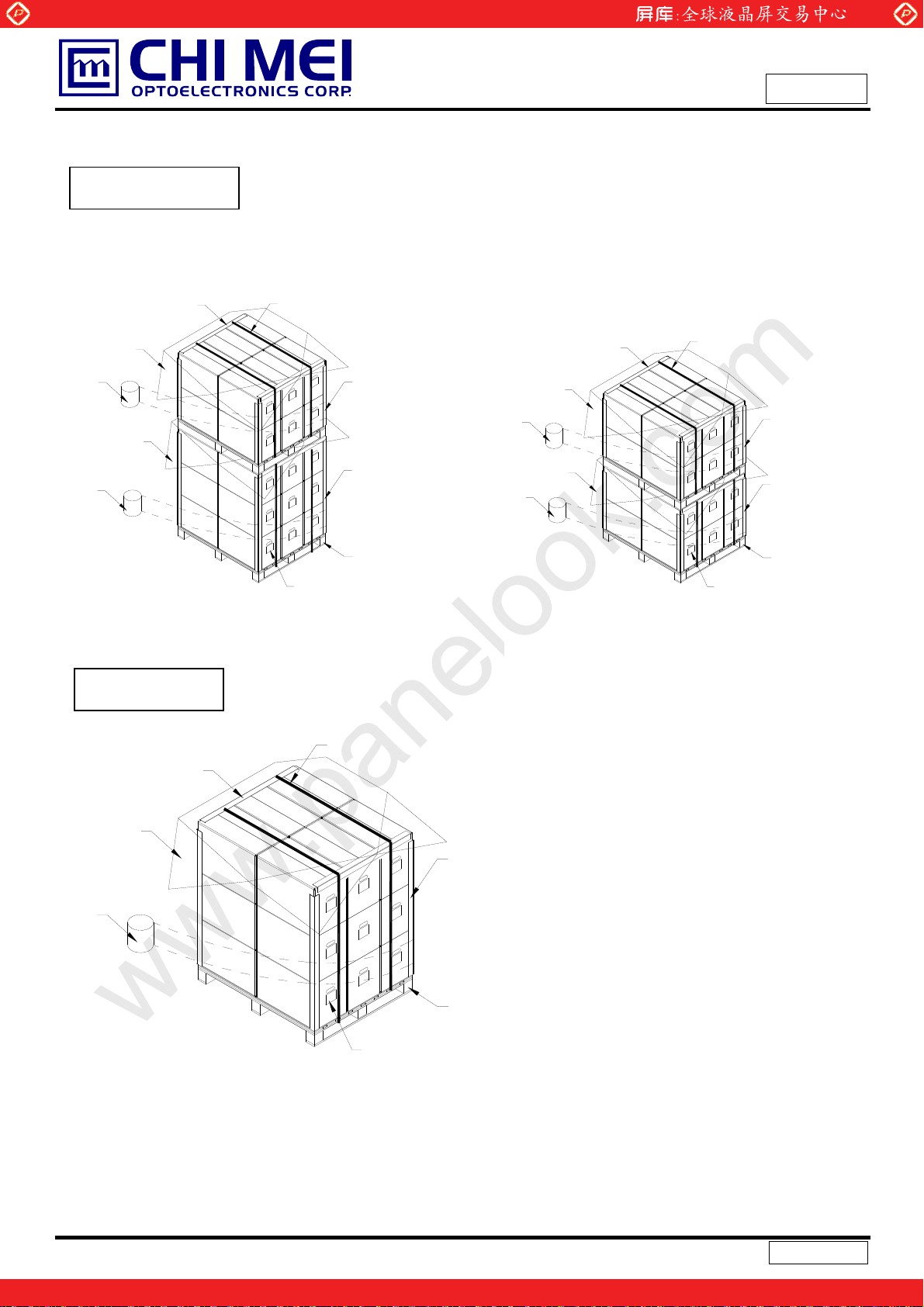

For ocean shipping

www.panelook.com

Doc No.: 400043112

Issued Date: Mar. 19, 2010

Model No.: M236H5-L0A

Approval

Sea / Land Transportation (40ft HQ Container)

Film

PE Sheet

Corner Protector (50*50*1000mm)

PP Belt

Carton label

Corner Protector (50*50*800mm)

Corner Protector (50*50*1250mm)

Pallet (1250*1050*143mm)

For air transport

Sea / Land Transportation (40ft Container)

PP Belt

Carton label

Film

PE Sheet

Corner Protector (50*50*1000mm)

Figure. 8-2 Packing method

Corner Protector (50*50*800mm)

Pallet (1250*1050*143mm)

PE Sheet

Film

Corner Protector (50*50*1000mm)

PP Belt

Carton label

Corner Protector (50*50*1250mm)

Pallet (1250*1050*143mm)

Figure. 8-3 Packing method

26 / 31

Version 3.3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

9. DEFINITION OF LABELS

9.1 CMO MODULE LABEL

The barcode nameplate is pasted on each module as illustration, and its definitions are as following explanation.

(a) Model Name: M236H5-L0A

(b) Revision: Rev. XX, for example: A0, A1… B1, B2… or C1, C2…etc.

(c) CMO barcode definition:

www.panelook.com

Doc No.: 400043112

Issued Date: Mar. 19, 2010

Model No.: M236H5-L0A

Approval

Serial ID: XX

-XX-X-XX-YMD-L-NNNN

Code Meaning Description

XX CMO internal use -

XX Revision Cover all the change

X CMO internal use -

XX CMO internal use -

Year: 2001=1, 2002=2, 2003=3, 2004=4…

YMD Year, month, day

Month: 1~12=1, 2, 3, ~, 9, A, B, C Day: 1~31=1, 2, 3, ~, 9, A, B, C, ~, W, X, Y, exclude I, O, and U.

L Product line # Line 1=1, Line 2=2, Line 3=3, …

NNNN Serial number Manufacturing sequence of product

(d) Customer’s barcode definition:

Serial ID: CM

-23H52-X-X-X-XX-L-XX-L-YMD-NNNN

Code Meaning Description

CM Supplier code CMO=CM

23H5A Model number M236H5-L0A= 23H5A

X Revision code Non ZBD: 1,2,~,8,9 / ZBD: A~Z

X Source driver IC code

X Gate driver IC code

Century=1, CLL=2, Demos=3, Epson=4, Fujitsu=5, Himax=6, Hitachi=7, Hynix=8, LDI=9, Matsushita=A, NEC=B, Novatec=C, OKI=D, Philips=E, Renasas=F, Samsung=G, Sanyo=H, Sharp=I, TI=J, Topro=K, Toshiba=L, Windbond=M

XX Cell location Tainan, Taiwan=TN ; Ningbo, China=CN

L Cell line #

XX Module location

L Module line #

YMD Year, month, day

1,2,~,9,A,B,~,Y,Z

Tainan, Taiwan=TN ; Ningbo, China=NP

1,2,~,9,A,B,~,Y,Z

Year: 2001=1, 2002=2, 2003=3, 2004=4… Month: 1~12=1, 2, 3, ~, 9, A, B, C Day: 1~31=1, 2, 3, ~, 9, A, B, C, ~, T, U, V

NNNN Serial number By LCD supplier

(e) FAB ID(UL Factory ID):

Region Factory ID

TWCMO GEMN

NBCMO LEOO

NBCME CANO

NHCMO CAPG

27 / 31

Version 3.3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

10. RELIABILITY TEST

Environment test conditions are listed as following table.

Items Required Condition Note

www.panelook.com

Doc No.: 400043112

Issued Date: Mar. 19, 2010

Model No.: M236H5-L0A

Approval

Temperature Humidity Bias (THB)

High Temperature Operation (HTO)

Low Temperature Operation (LTO)

High Temperature Storage (HTS)

Low Temperature Storage (LTS)

Vibration Test (Non-operation)

Shock Test (Non-operation)

Thermal Shock Test (TST)

On/Off Test

ESD (Electro Static Discharge)

Altitude Test

Ta= 50 к , 80%RH, 240hours

Ta= 50 к , 50%RH , 240hours

Ta= 0к , 240hours

Ta= 60 к , 240hours

Ta= -2 0к , 240hours Acceleration: 1.5 Grms

Wave: Half-sine Frequency: 10 - 300 Hz Sweep: 30 Minutes each Axis (X, Y, Z)

Acceleration: 50 G Wave: Half-sine Active Time: 11 ms Direction : ± X, ± Y, ± Z.(one time for each Axis)

-20к/30min , 60к / 30min , 100 cycles

25к ,On/10sec , Off /10sec , 30,000 cycles

Contact Discharge: ± 8KV, 150pF(330)

Air Discharge: ± 15KV, 150pF(330) Operation:10,000 ft / 24hours

Non-Operation:30,000 ft / 24hours

-

11. PRECAUTIONS

11.1 ASSEMBLY AND HANDLING PRECAUTIONS

(1) Do not apply rough force such as bending or twisting to the module during assembly.

(2) To assemble or install module into user’s system can be only in clean working areas. The dust and oil

may cause electrical short or worsen the polarizer.

(3) It’s not permitted to have pressure or impulse on the module because the LCD panel and Backlight

will be damaged.

(4) Always follow the correct power sequence when LCD module is connecting and operating. This can

prevent damage to the CMOS LSI chips during latch-up.

(5) Do not pull the I/F connector in or out while the module is operating.

(6) Do not disassemble the module.

(7) Use a soft dry cloth without chemicals for cleaning, because the surface of polarizer is very soft and

easily scratched.

(8) It is dangerous that moisture come into or contacted the LCD module, because moisture may damage

LCD module when it is operating.

(9) High temperature or humidity may reduce the performance of module. Please store LCD module

28 / 31

Version 3.3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Doc No.: 400043112

Issued Date: Mar. 19, 2010

Model No.: M236H5-L0A

Approval

within the specified storage conditions.

(10) When ambient temperature is lower than 10ºC may reduce the display quality. For example, the

response time will become slowly.

11.2 SAFETY PRECAUTIONS

(1) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In

case of contact with hands, skin or clothes, it has to be washed away thoroughly with soap.

(2) After the module’s end of life, it is not harmful in case of normal operation and storage.

11.3 SAFETY STANDARDS

The LCD module should be certified with safety regulations as follows:

(1) UL60950-1 or updated standard.

(2) IEC60950-1 or updated standard.

11.4 STORAGE

(1) Do not leave the module in high temperature, and high humidity for a long time.

It is highly recommended to store the module with temperature from 0к to 35к

And relative humidity of less than 70%

(2) Do not store the TFT – LCD module in direct sunlight.

(3) The module should be stored in dark place. It is prohibited to apply sunlight or fluorescent light in storing

11.5 OPERATION CONDITION GUIDE

(1) The LCD product should be operated under normal condition.

Normal condition is defined as below:

Temperature: 20±15к

Humidity: 65±20%

Display pattern: continually changing pattern (Not stationary)

(2) If the product will be used in extreme conditions such as high temperature, high humidity, high altitude,

display pattern or operation time etc…It is strongly recommended to contact CMO for application

engineering advice. Otherwise, its reliability and function may not be guaranteed.

11.6 OTHER

When fixed patterns are displayed for a long time, remnant image is likely to occur.

29 / 31

Version 3.3

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
