CMO M220Z1-P06 Specification
Global LCD Panel Exchange Center

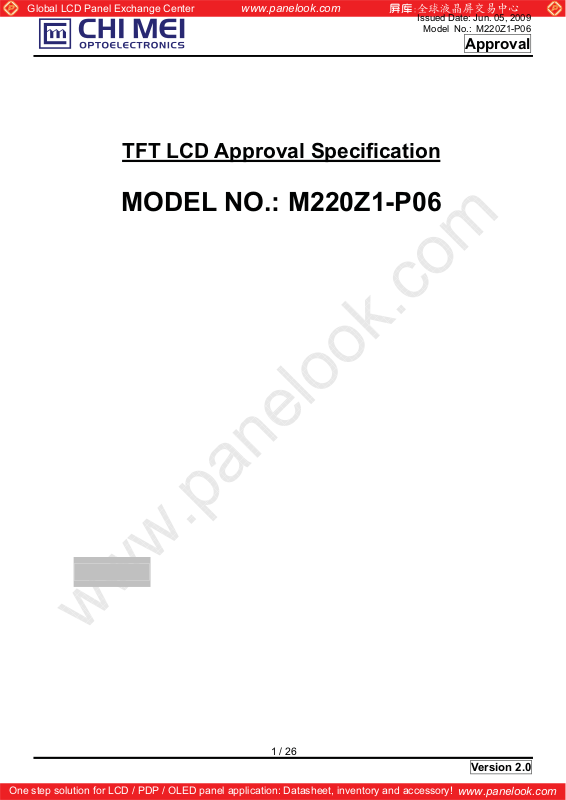

TFT LCD Approval Specification
MODEL NO.: M220Z1-P06
www.panelook.com
Issued Date: Jun. 05, 2009
Model No.: M220Z1-P06
Approval
1 / 26
Version 2.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Issued Date: Jun. 05, 2009
Model No.: M220Z1-P06
Approval
- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
------------------------------------------------------- 4
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5
2.1 ABSOLUTE RATINGS OF ENVIRONMENT (BASED ON CMO MODULE M220Z1-L06)
2.2 ABSOLUTE RATINGS OF ENVIRONMENT (OPEN CELL)
2.3 ELECTRICAL ABSOLUTE RATINGS (OPEN CELL)
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7
3.1 TFT LCD OPEN CELL
3.2 Vcc POWER DIP CONDITION

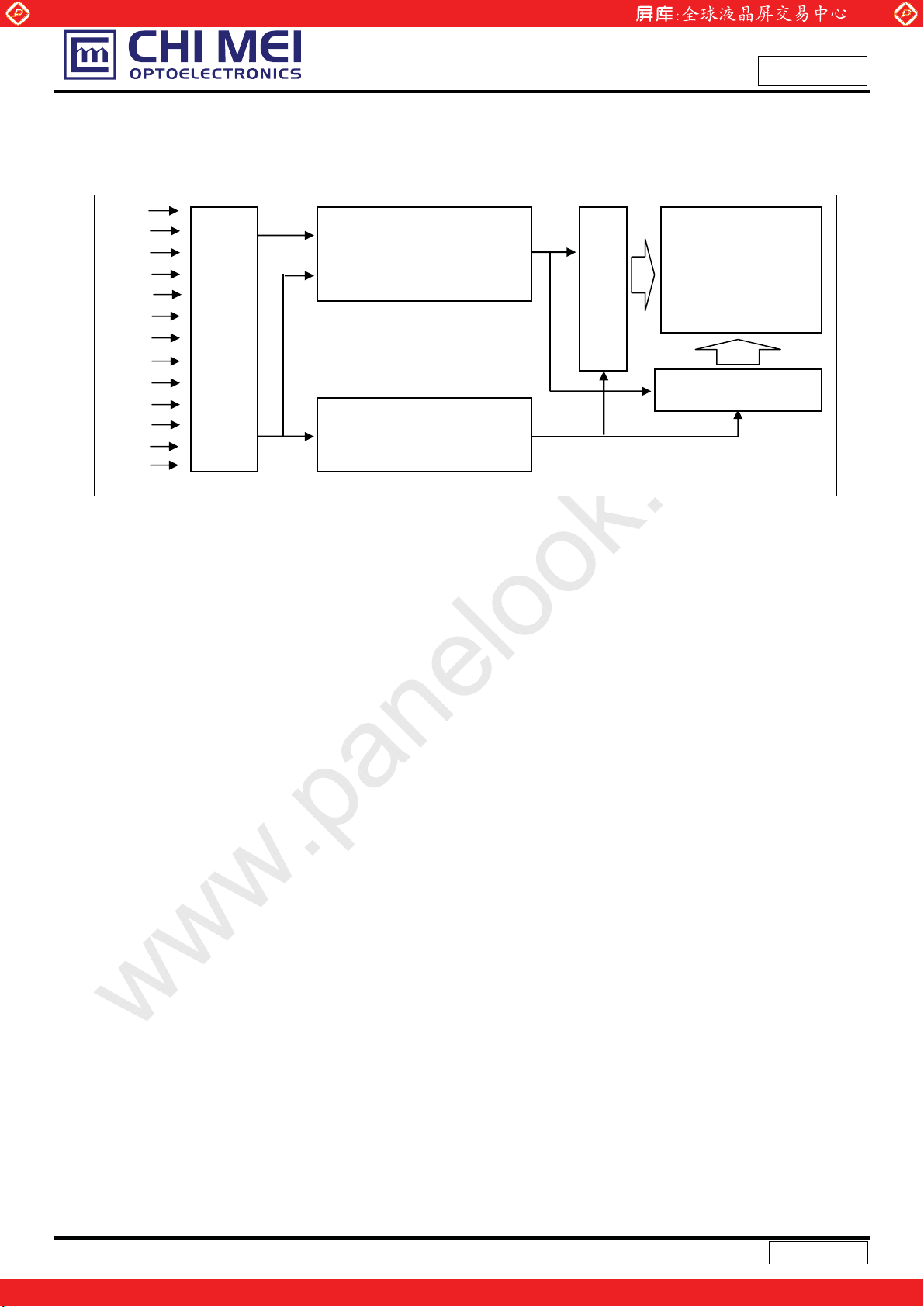

4. BLOCK DIAGRAM ------------------------------------------------------- 9
4.1 TFT LCD OPEN CELL
5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 10
5.1 TFT LCD MODULE
5.2 LVDS DATA MAPPING TABLE
5.3 COLOR DATA INPUT ASSIGNMENT
6. INTERFACE TIMING ------------------------------------------------------- 13
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 15
7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
7.3 FLICKER ADJUSTMENT
8. PACKAGING ------------------------------------------------------- 21
8.1 PACKING SPECIFICATIONS
8.2 PACKING METHOD
9. DEFINITION OF LABELS ------------------------------------------------------- 23

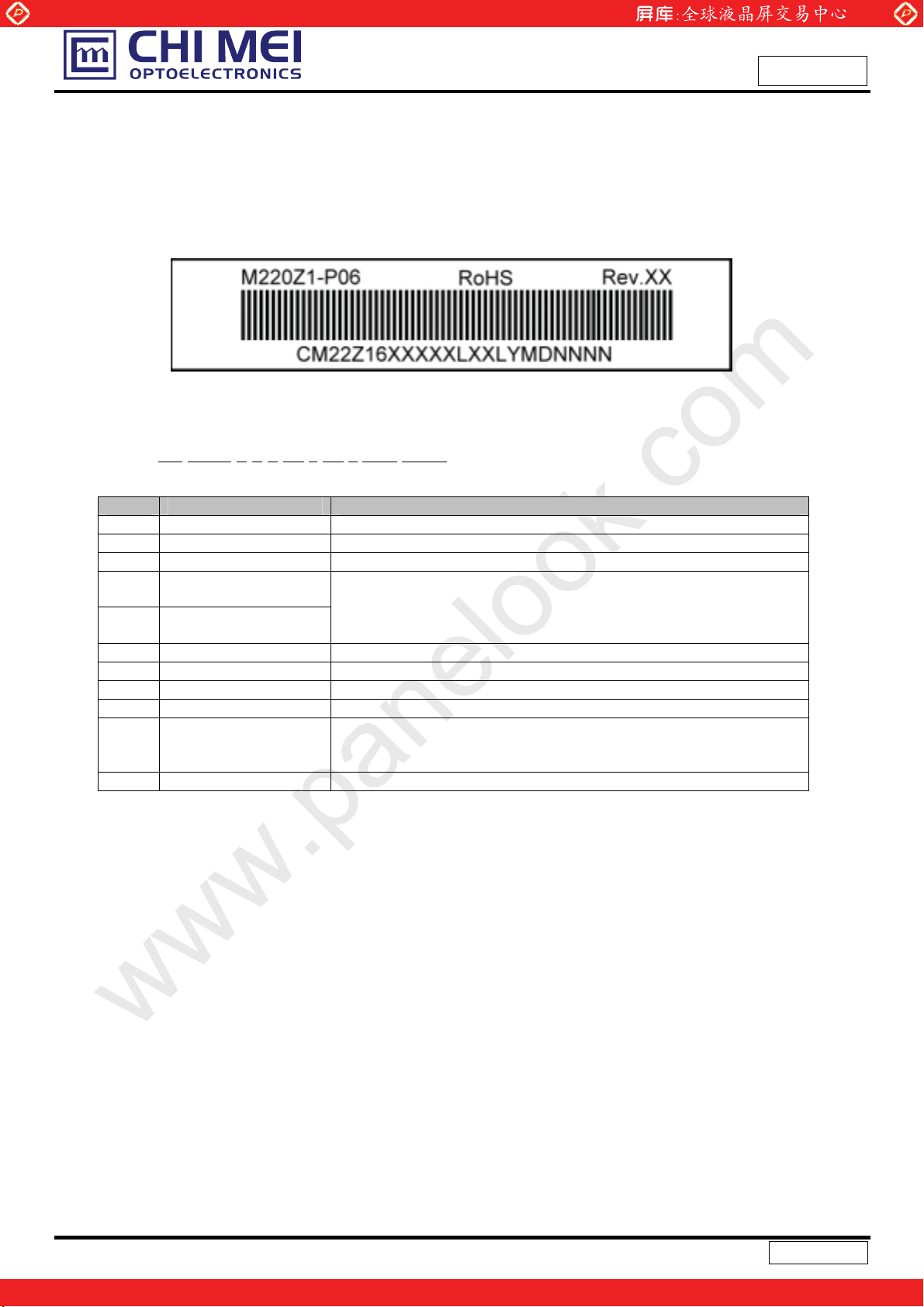

9.1 OPEN CELL LABEL
9.2 CARTON LABEL
10. PRECAUTIONS
10.1 ASSEMBLY AND HANDLING PRECAUTIONS
10.2 SAFETY PRECAUTIONS

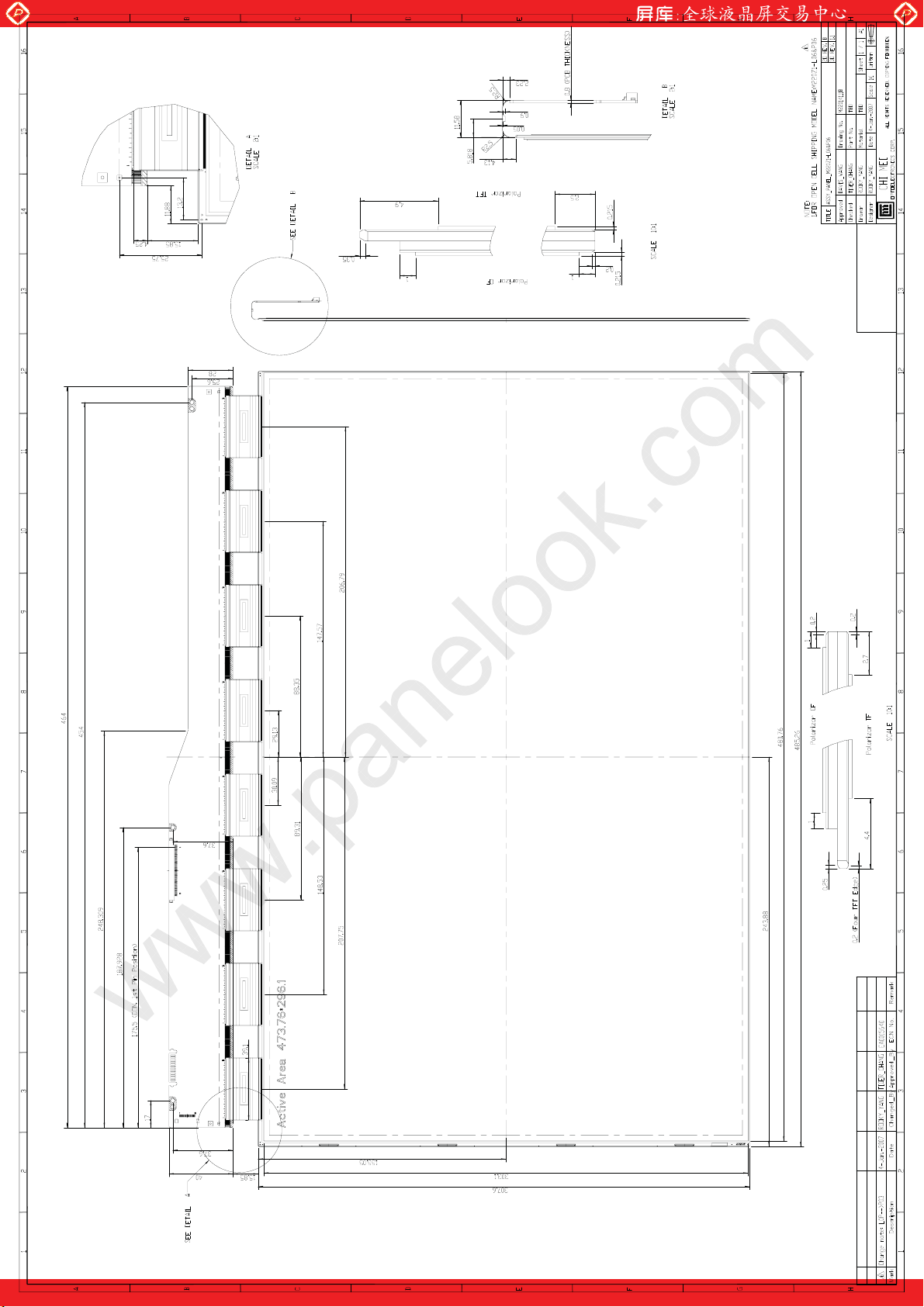

11. MECHANICAL DRAWING
------------------------------------------------------- 25
------------------------------------------------------- 26
2 / 26
Version 2.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
REVISION HISTORY
Version Date Section Description
Ver. 2.0 Jun, 06 ’09 - M220Z1-P06 Approval Specifications was first issued.
Issued Date: Jun. 05, 2009
Model No.: M220Z1-P06
Approval
3 / 26
Version 2.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
1. GENERAL DESCRIPTION
1.1 OVERVIEW
The M220Z1-P06 is a 22-inch wide TFT LCD cell with driver ICs and a 30-pins-2ch-LVDS circuit board.
The product supports 1680 x 1050 WSXGA+ (16:10 wide screen) mode and can display up to 16.7M
colors. The backlight unit is not built in.
1.2 FEATURES
- Super wide viewing angle
- High contrast ratio
- Fast response time
- High color saturation
- WSXGA+ (1680 x 1050 pixels) resolution
www.panelook.com
Issued Date: Jun. 05, 2009
Model No.: M220Z1-P06
Approval
- DE (Data Enable) only mode
- LVDS (Low Voltage Differential Signaling) interface
- RoHS Compliance
1.3 APPLICATION
- TFT LCD Monitor
- TFT LCD TV
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note
Diagonal Size 22.0 inch
Active Area 473.76 (H) x 296.10 (V) mm (1)
Driver Element a-si TFT active matrix - Pixel Number 1680 x R.G.B. x 1050 pixel Pixel Pitch 0.282 (H) x 0.282 (V) mm Pixel Arrangement RGB vertical stripe - Display Colors 16.7M color Transmissive Mode Normally White - Surface Treatment Hard coating (2H), Glare (LR<3%) - Power Consumption 5.85 Watt (3)
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Weight
I/F connector mounting
position
Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
(2) Connector mounting position
(3) Please refer to sec.3.1 for more information of power consumption.
The mounting inclination of the connector makes
the screen center within ±0.5mm as the horizontal.
- -
615 g -
- (2)
+/- 0.5mm
4 / 26
Version 2.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Issued Date: Jun. 05, 2009
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT (BASED ON CMO MODULE M220Z1-L06)
Item Symbol
Storage Temperature TST -20 +60 ºC (1)
Operating Ambient Temperature TOP 0 +50 ºC (1), (2)
Min. Max.
Value
Model No.: M220Z1-P06
Approval
Unit Note
5 / 26
Version 2.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
2.2 ABSOLUTE RATINGS OF ENVIRONMENT (OPEN CELL)
High temperature or humidity may reduce the performance of panel. Please store LCD panel within
the specified storage conditions.
Storage Condition: With packing.
Storage temperature range: 25±5 ºC.
Storage humidity range: 50±10%RH.
Shelf life: 30days
2.3 ELECTRICAL ABSOLUTE RATINGS (OPEN CELL)
Issued Date: Jun. 05, 2009
Model No.: M220Z1-P06
Approval
Item Symbol
Power Supply Voltage VCC -0.3 +5.5 V (1)
Note (1) Permanent damage might occur if the module is operated at conditions exceeding the maximum
values.
Value
Min Max
Unit Note
6 / 26
Version 2.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Issued Date: Jun. 05, 2009
Model No.: M220Z1-P06
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD OPEN CELL Ta = 25 ± 2 ºC
Parameter Symbol
Min. Typ. Max.
Power Supply Voltage Vcc 4.5 5.0 5.5 V Ripple Voltage VRP - - 250 mV Rush Current I
- - 3 A (2)
RUSH
White - 630 819 mA (3)a
Power Supply Current
Power Consumption P
Black - 1170 1521 mA (3)b
= 75Hz,
F
V
Vcc=4.5V
lcc
- 1330 1729 mA (4)
- 5.85 7.605 Watt -
LCD
LVDS differential input voltage Vid 200 - 600 mV LVDS common input voltage Vic - 1.2 - V -
Note (1) The module is recommended to operate within specification ranges listed above for normal
Value
Unit Note
Approval
function.
Note (2) Measurement Conditions:
+5.0V
R1
47K
(High to Low)
(Control Signal)
SW
+12V
C1
1uF
VR1
R2
47K
Q1 2SK1475
FUSE
Q2
2SK1470
1K
C2
0.01uF
C3
1uF
Vcc
(LCD Module Input)
Vcc rising time is 470μs
+5.0V
0.9Vcc
0.1Vcc
GND
470μs
7 / 26
Version 2.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
≤≤≤
Note (3) The specified power supply current is under the conditions at Vcc = 5.0 V, Ta = 25 ± 2 ºC, Fv = 75
Hz, whereas a power dissipation check pattern below is displayed.
www.panelook.com
Issued Date: Jun. 05, 2009
Model No.: M220Z1-P06
Approval
a. White Pattern
Active Area
Note (4) The specified power supply current is under the conditions at Vcc = 4.5 V, Ta = 25 ± 2 ºC, f
Hz, whereas a power dissipation check pattern (Black Pattern) below is displayed.
Black Pattern
b. Black Pattern
Active Area
= 75
v
Active Area
3.2 Vcc Power Dip Condition:
Vcc
4.5V
4.0V
Td
Dip condition:
Version 2.0
msTdVVccV 20,5.40.4
8 / 26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
