CMO M220Z1-P01 Specification

Global LCD Panel Exchange Center
TFT LCD Approval Specification
MODEL NO.: M220Z1-P01
www.panelook.com
Doc No.: 14068306
Issued Date: Nov. 28, 2006
Model No.: M220Z1-P01
Approval
1 / 25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Doc No.: 14068306
Issued Date: Nov. 28, 2006
Model No.: M220Z1-P01
Approval
- CONTENTS -
REVISION HISTORY ------------------------------------------------------- 3
1. GENERAL DESCRIPTION
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
------------------------------------------------------- 4
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5
2.1 ABSOLUTE RATINGS OF ENVIRONMENT (BASED ON CMO MODULE M220Z1-L01)
2.2 ABSOLUTE RATINGS OF ENVIRONMENT (OPEN CELL)
2.3 ELECTRICAL ABSOLUTE RATINGS (OPEN CELL)
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7
3.1 TFT LCD OPEN CELL

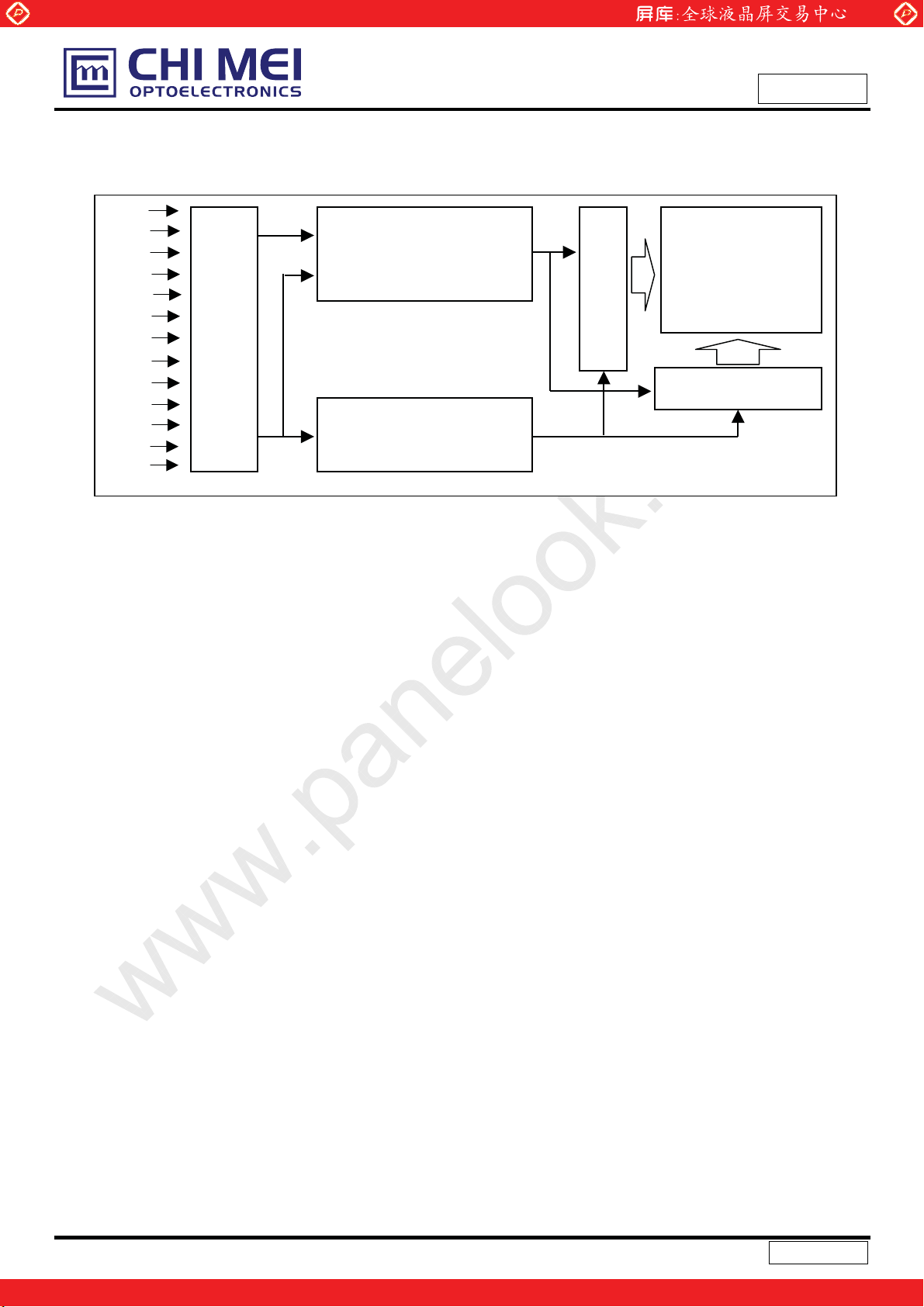

4. BLOCK DIAGRAM ------------------------------------------------------- 9
4.1 TFT LCD OPEN CELL
5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 10
5.1 TFT LCD MODULE
5.2 TIMING DIAGRAM OF LVDS INPUT SIGNAL
5.3 COLOR DATA INPUT ASSIGNMENT
6. INTERFACE TIMING ------------------------------------------------------- 13
6.1 INPUT SIGNAL TIMING SPECIFICATIONS

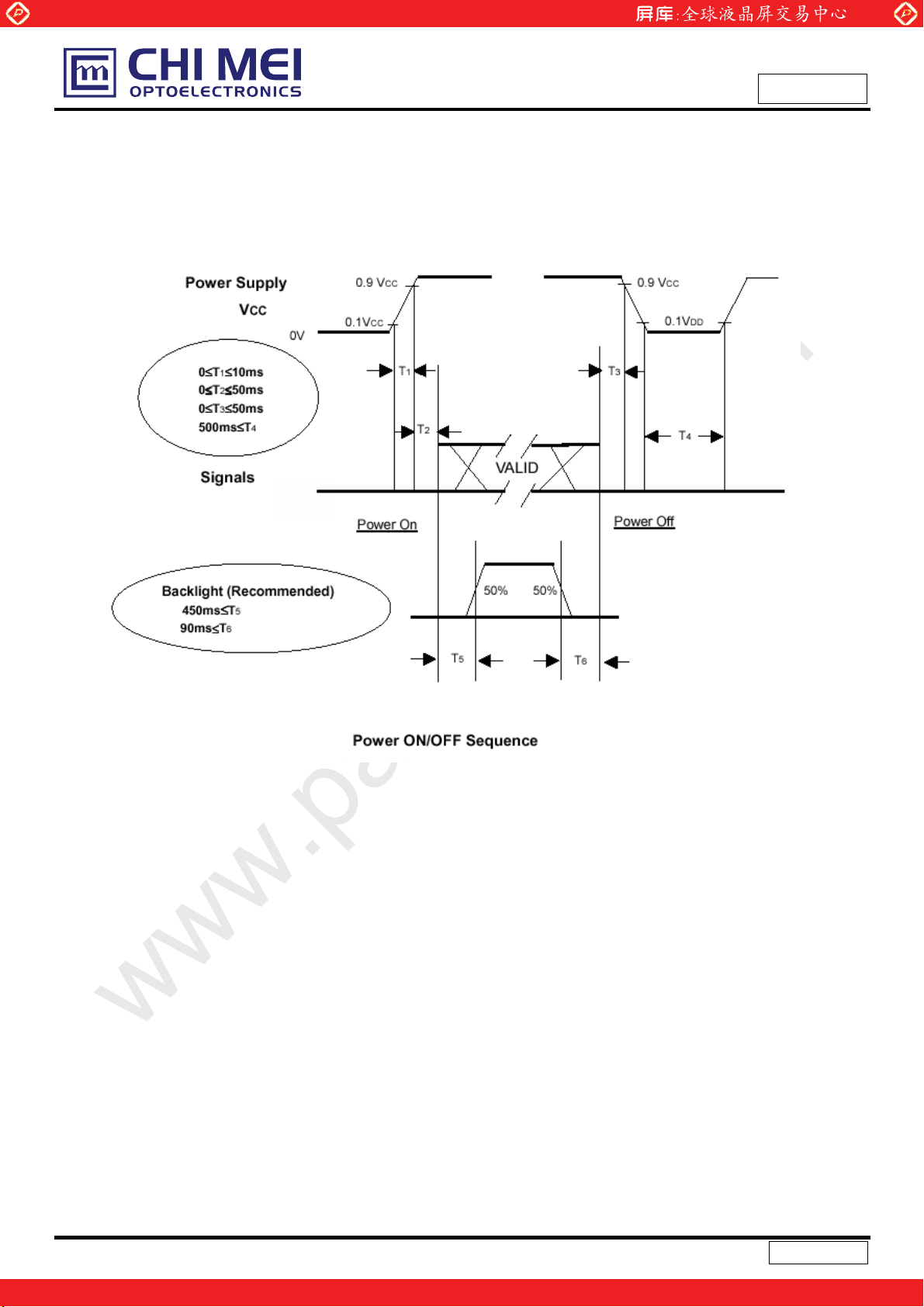

6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 15

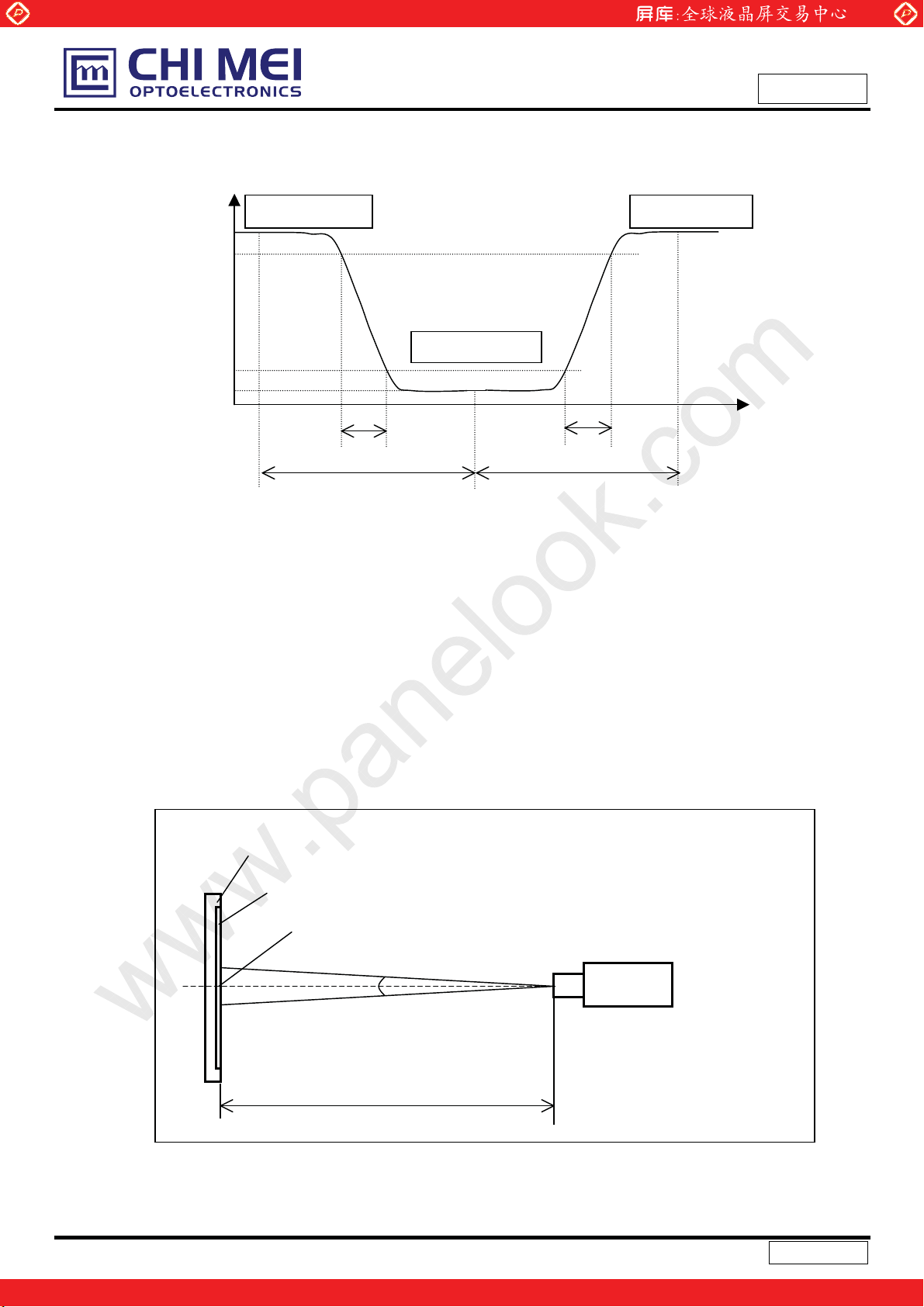

7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS

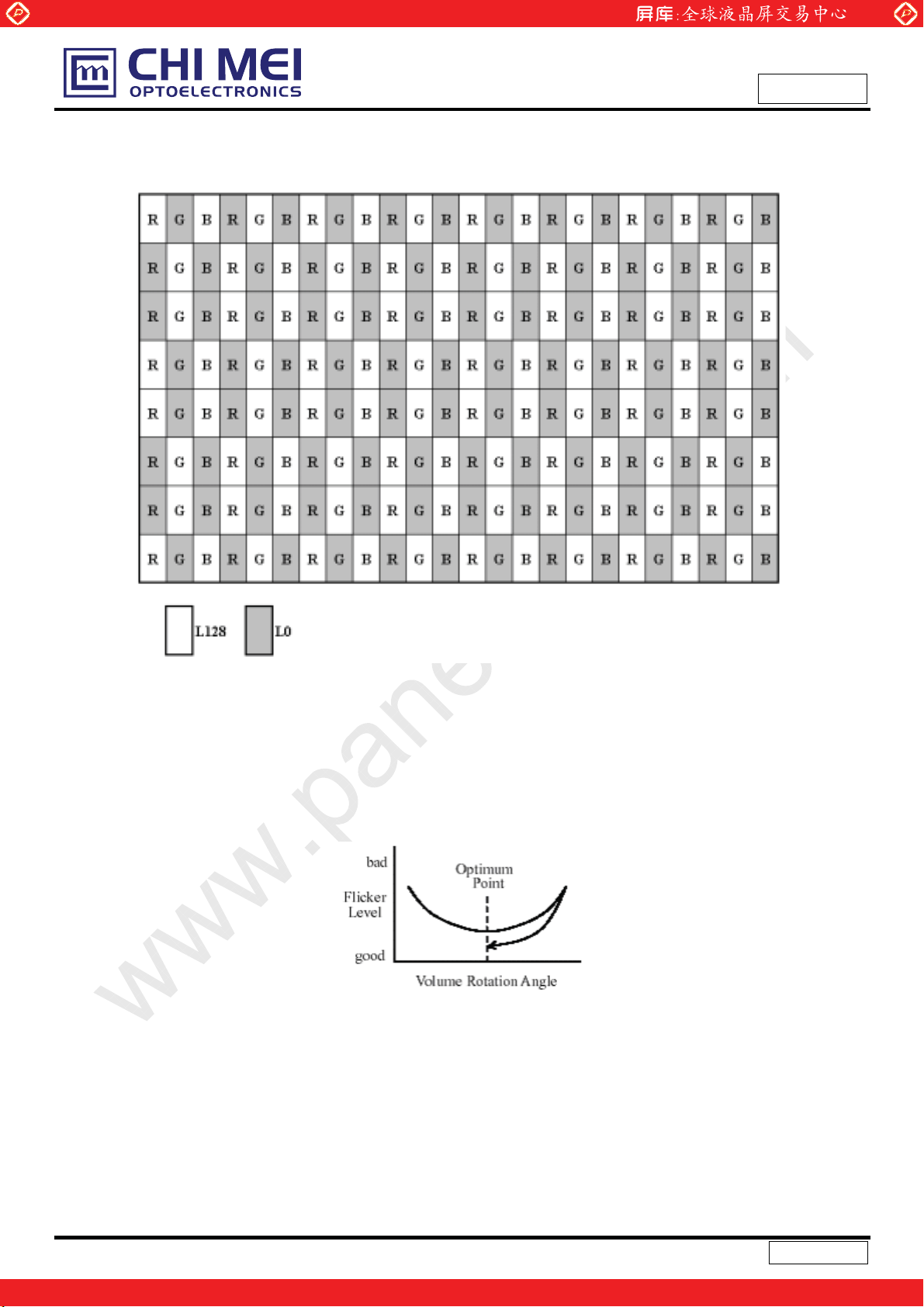

7.3 FLICKER ADJUSTMENT
8. PACKAGING ------------------------------------------------------- 20
8.1 PACKING SPECIFICATIONS

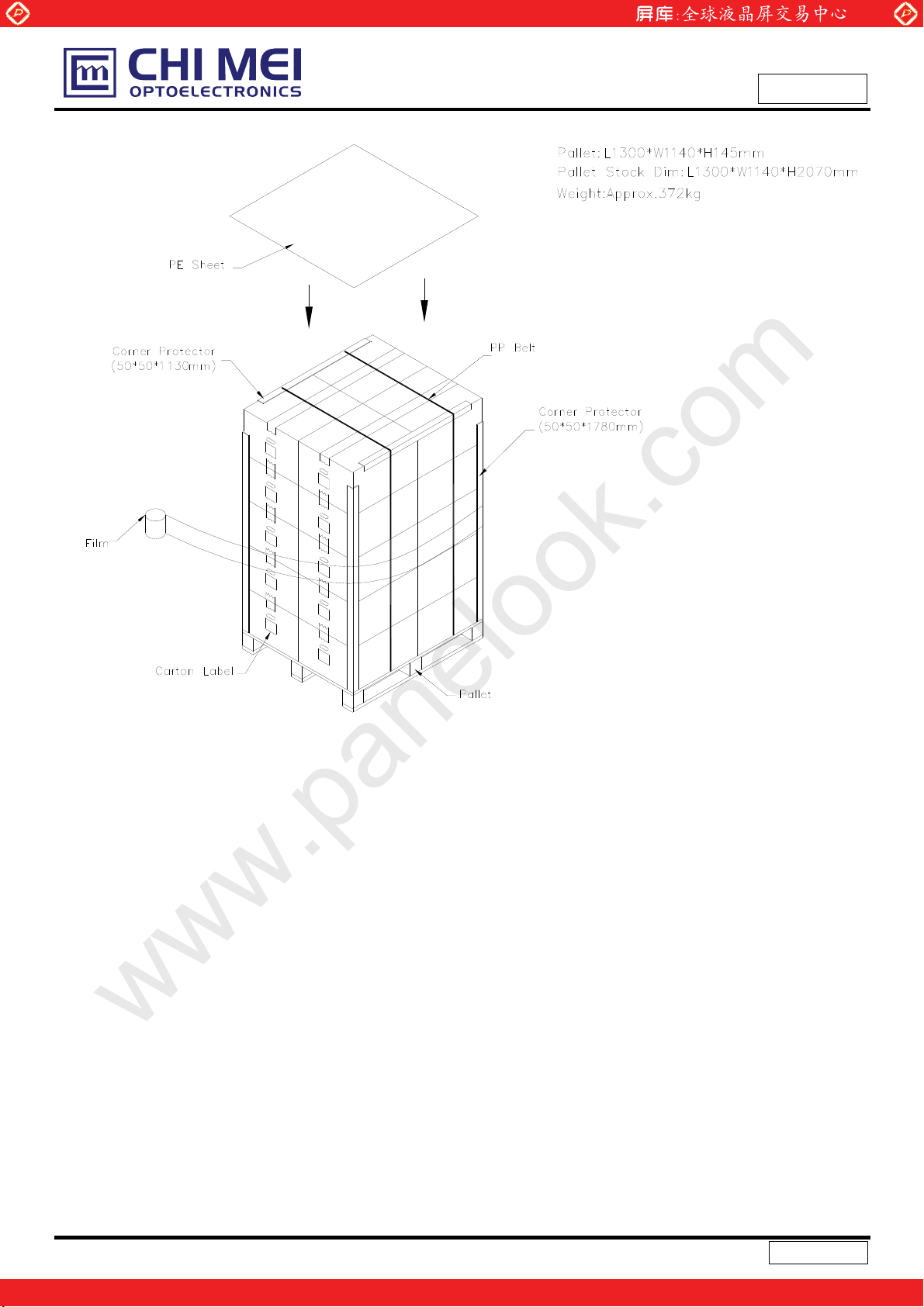

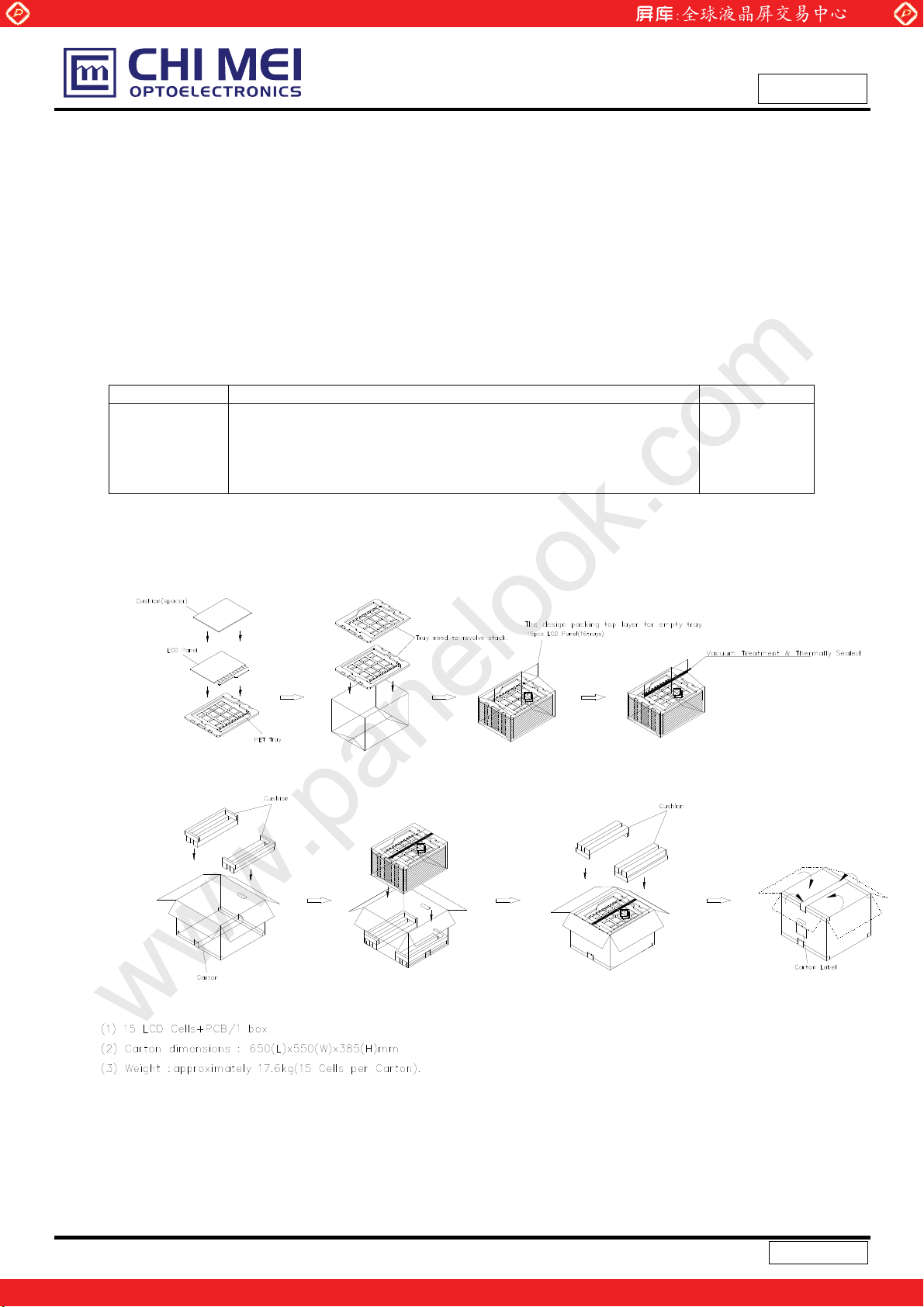

8.2 PACKING METHOD
9. DEFINITION OF LABELS ------------------------------------------------------- 22

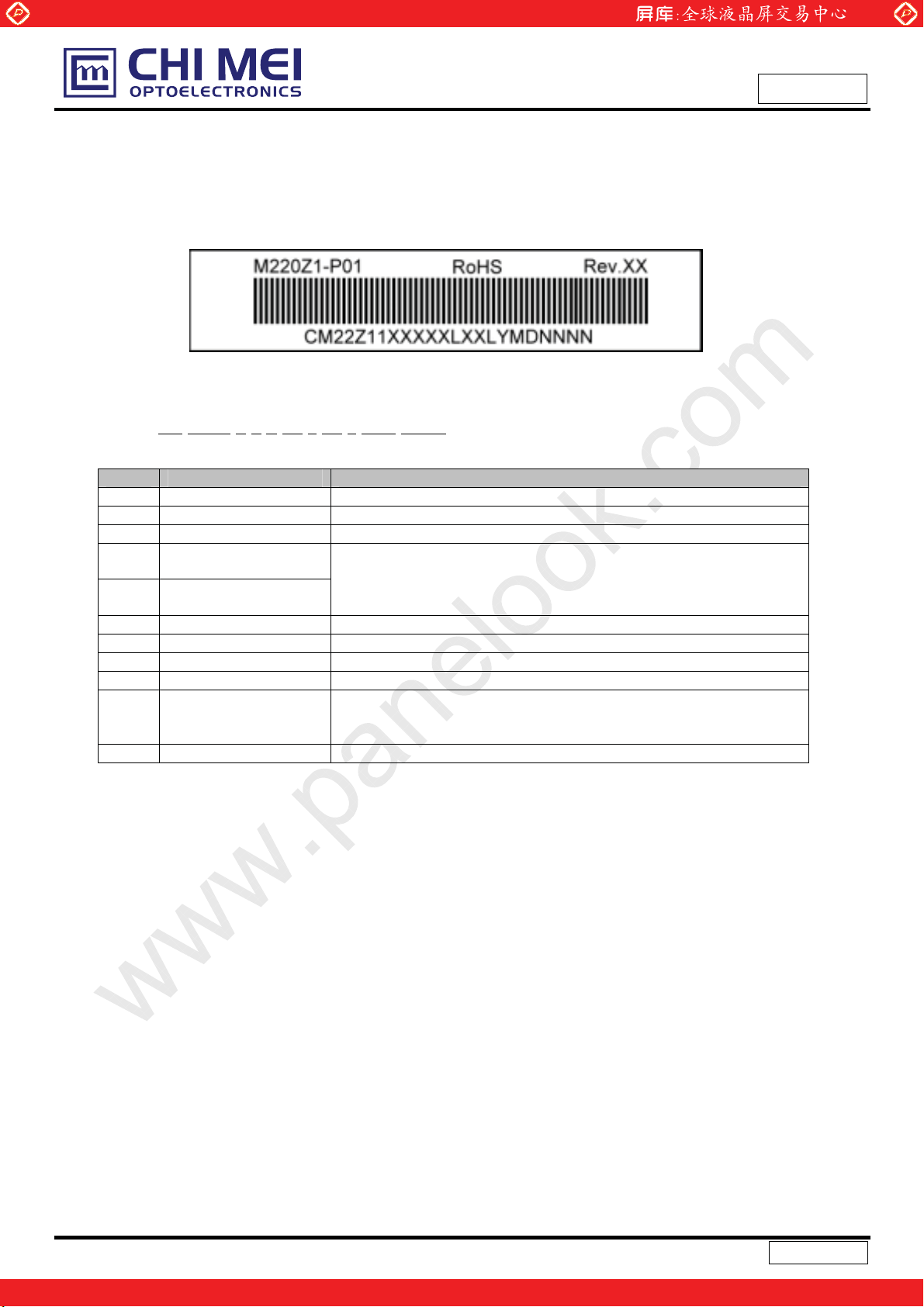

9.1 OPEN CELL LABEL

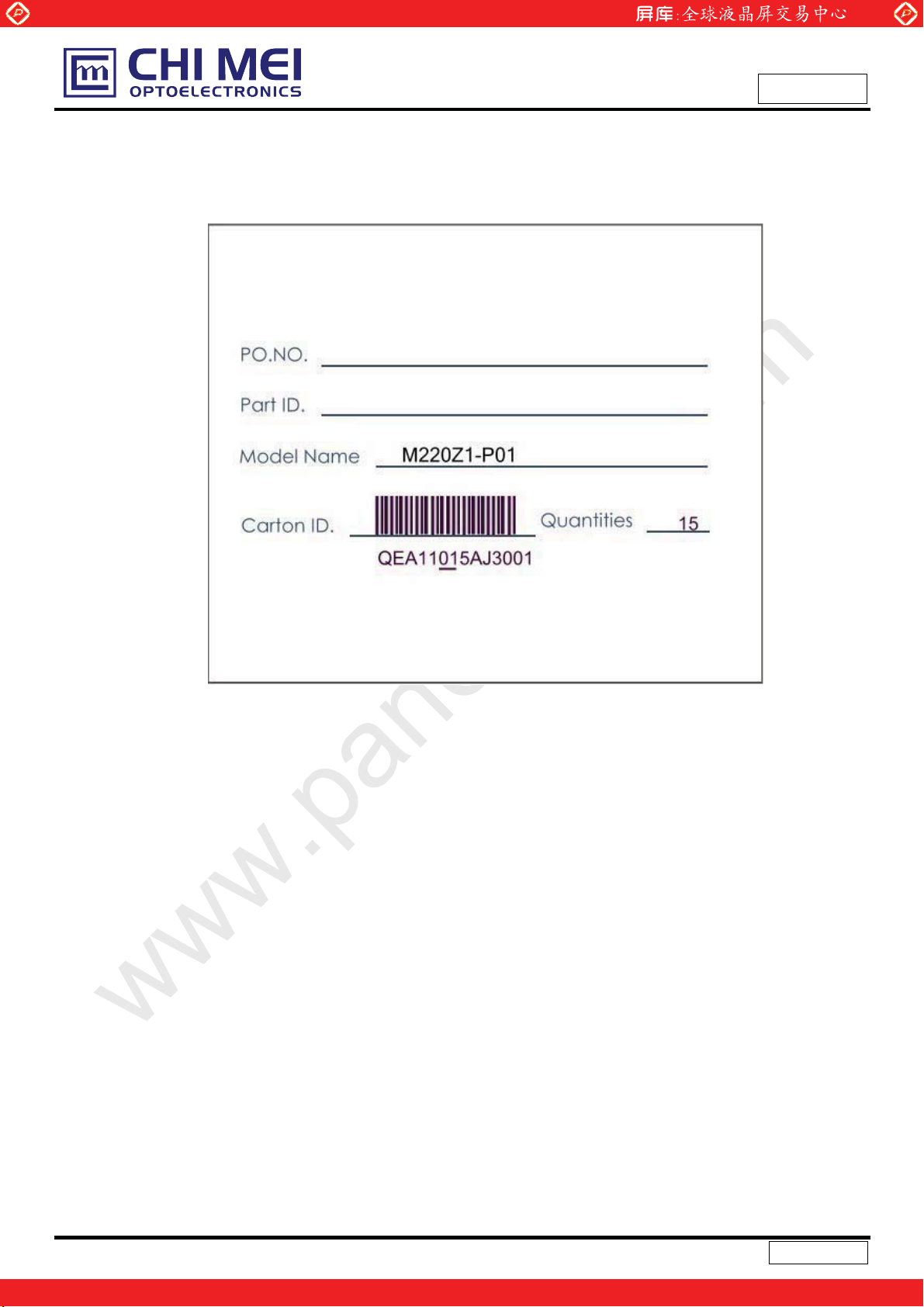

9.2 CARTON LABEL
10. PRECAUTIONS
10.1 ASSEMBLY AND HANDLING PRECAUTIONS
10.2 SAFETY PRECAUTIONS
------------------------------------------------------- 24

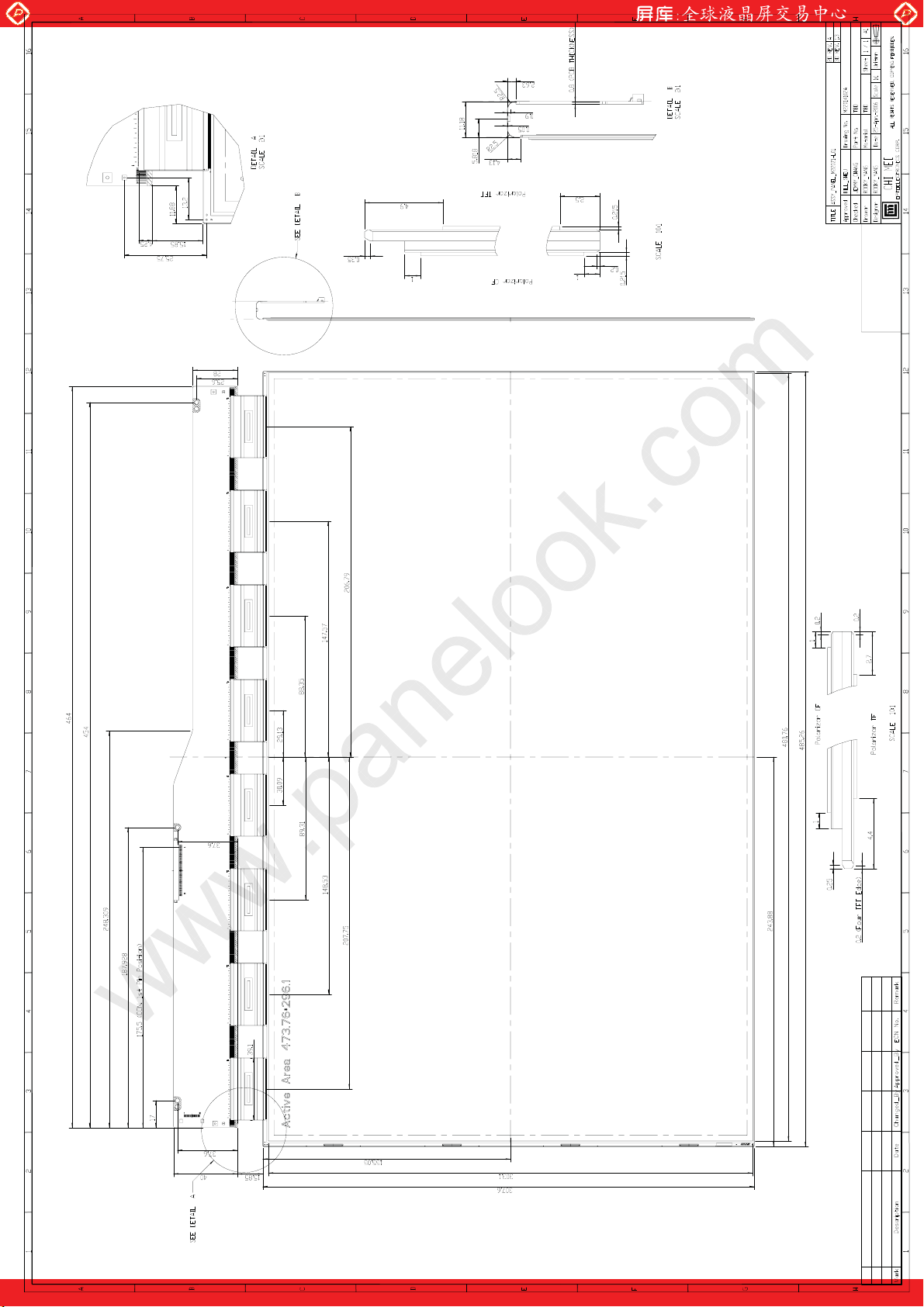

11. MECHANICAL DRAWING ------------------------------------------------------- 25
2 / 25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
REVISION HISTORY
Version Date Section Description
Doc No.: 14068306
Issued Date: Nov. 28, 2006
Model No.: M220Z1-P01
Approval
Ver. 1.0
Ver. 2.0
Ver. 2.1
Jun, 06 ’06
July, 31 ’06
Nov, 28 ‘06
-
-
9.1
M220Z1-P01 Preliminary Specifications was first issued.
1.4 GENERAL SPECIFICATI0NS adding Diagonal Size item
M220Z1-P01 Approval Specifications was first issued.
Modified CMO OPEN CELL LABEL.
3 / 25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
1. GENERAL DESCRIPTION
1.1 OVERVIEW
The M220Z1-P01 is a 22-inch wide TFT LCD cell with driver ICs and a 30-pins-2ch-LVDS circuit board.
The product supports 1680 x 1050 WSXGA+ (16:10 wide screen) mode and can display up to 16.7M
colors. The backlight unit is not built in.
1.2 FEATURES
- Super wide viewing angle
- High contrast ratio
- Fast response time
- High color saturation
- WSXGA+ (1680 x 1050 pixels) resolution
www.panelook.com
Doc No.: 14068306
Issued Date: Nov. 28, 2006
Model No.: M220Z1-P01
Approval
- DE (Data Enable) only mode
- LVDS (Low Voltage Differential Signaling) interface
- RoHS Compliance
1.3 APPLICATION
- TFT LCD Monitor
- TFT LCD TV
- Workstation & desktop monitor
- Display terminals for AV application
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note Diagonal Size 22.0 inch Active Area 473.76 (H) x 296.10 (V) mm (1) Driver Element a-si TFT active matrix - ­Pixel Number 1680 x R.G.B. x 1050 pixel ­Pixel Pitch 0.282 (H) x 0.282 (V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 16.7M color ­Transmissive Mode Normally White - ­Surface Treatment Hard coating (3H), Anti-glare (Haze 25%) - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note Weight I/F connector mounting position
Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
(2) Connector mounting position
The mounting inclination of the connector makes the screen center within ±0.5mm as the horizontal.
- -
615 g -
(2)
+/- 0.5mm
4 / 25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Issued Date: Nov. 28, 2006
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT (BASED ON CMO MODULE M220Z1-L01)
Item Symbol
Storage Temperature TST -20 +60 ºC (1) Operating Ambient Temperature TOP 0 +50 ºC (1), (2)
Min. Max.
Value
Doc No.: 14068306
Model No.: M220Z1-P01
Approval
Unit Note
5 / 25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
2.2 ABSOLUTE RATINGS OF ENVIRONMENT (OPEN CELL)
High temperature or humidity may reduce the performance of panel. Please store LCD panel within
the specified storage conditions.
Storage Condition: With packing.
Storage temperature range: 25±5 ºC.
Storage humidity range: 50±10%RH.
Shelf life: 30days
2.3 ELECTRICAL ABSOLUTE RATINGS (OPEN CELL)
Doc No.: 14068306
Issued Date: Nov. 28, 2006
Model No.: M220Z1-P01
Approval
Item Symbol
Power Supply Voltage VCC -0.3 +5.5 V
Logic Input Voltage VIN -0.3 4.3 V
Note (1) Permanent damage might occur if the module is operated at conditions exceeding the maximum
values.
Value
Min Max
Unit Note
(1)
6 / 25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Doc No.: 14068306
Issued Date: Nov. 28, 2006
Model No.: M220Z1-P01
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE Ta = 25 ± 2 ºC
Parameter Symbol
Min. Typ. Max. Power Supply Voltage Vcc 4.5 5.0 5.5 V ­Ripple Voltage VRP - -- 100 mV ­Rush Current I
- -- 3 A (2)
RUSH
White - 580 mA (3)a
Power Supply Current
Black - 1100 mA (3)b
= 75Hz,
f
V
Vcc=4.5V
lcc
- - 1230 mA (4)
LVDS differential input voltage Vid -100 - +100 mV LVDS common input voltage Vic -- 1.2 -- V
Note (1) The module is recommended to operate within specification ranges listed above for normal
function.
Note (2) Measurement Conditions:
Value
Unit Note
Approval
(High to Low)
(Control Signal)
SW
+12V
+5.0V
R1
47K
R2
1K
47K
VR1
C1
1uF
Q1 2SK1475
C2
0.01uF
Q2
2SK1470
FUSE
C3
1uF
Vcc
(LCD Module Input)
Vcc rising time is 470Ps
+5.0V
0.9Vcc
0.1Vcc
GND
470Ps
7 / 25
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Note (3) The specified power supply current is under the conditions at Vcc = 5.0 V, Ta = 25 ± 2 ºC, fv = 60
Hz, whereas a power dissipation check pattern below is displayed.
www.panelook.com
Doc No.: 14068306
Issued Date: Nov. 28, 2006
Model No.: M220Z1-P01
Approval
a. White Pattern
Active Area
Note (4) The specified power supply current is under the conditions at Vcc = 4.5 V, Ta = 25 ± 2 ºC, f
Hz, whereas a power dissipation check pattern (Black Pattern) below is displayed.
Black Pattern
b. Black Pattern
Active Area
= 75
v
Active Area
8 / 25
