TFT LCD Preliminary Specification
MODEL NO.: M220Z1-L07
Doc No.: 1406Y147
Issued Date: Nov. 20, 2006
Model No.: M220Z1-L07
Preliminary
Customer :
pproved by :
Note :
記錄 工作 審核 角色 投票
2006-11-23
14:55:22 CST
2006-11-21
17:07:31 CST
Approve by Dept.
Mgr.(QA RA)
Approve by
Director
tomy_chen(陳永一
/52720/54140/43150)
teren_lin(林添仁
/56910/36064)
Department
Manager(QA RA)
Director Accept
1 / 26
Version 1.0
Accept
Page 2
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Doc No.: 1406Y147
Issued Date: Nov. 20, 2006
Model No.: M220Z1-L07
Preliminary
- CONTENTS -
REVISION HISTORY
1. GENERAL DESCRIPTION
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT
4. BLOCK DIAGRAM
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT
5.3 COLOR DATA INPUT ASSIGNMENT
6. INTERFACE TIMING
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS
7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
8. PACKAGING ------------------------------------------------------- 20
8.1 PACKING SPECIFICATIONS
------------------------------------------------------- 3
------------------------------------------------------- 4
------------------------------------------------------- 5
------------------------------------------------------- 7
------------------------------------------------------- 11
------------------------------------------------------- 12
------------------------------------------------------- 15
------------------------------------------------------- 17
8.2 PACKING METHOD
9. DEFINITION OF LABELS
9.1 CMO MODULE LABEL
------------------------------------------------------- 23
10. PRECAUTIONS
10.1 ASSEMBL Y AND HANDLING PRECAUTIONS
10.2 SAFETY PRECAUTIONS
------------------------------------------------------- 24
11. MECHANICAL CHARACTERISTICS
------------------------------------------------------- 25
2 / 26
Version 1.0
Page 3
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Doc No.: 1406Y147
Issued Date: Nov. 20, 2006
Model No.: M220Z1-L07
Preliminary
REVISION HISTORY
Version Date Section Description
Ver 1.0 Nov,20 ‘06
All M220Z1-L07 Specifications was first issued。
3 / 26
Version 1.0
Page 4
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
1. GENERAL DESCRIPTION
1.1 OVERVIEW
The M220Z1-L07 model is a 22 inch wide TFT-LCD module with a 4-CCFL Backlight Unit and a 30-pin
2ch-LVDS interface. This module supports 1680 x 1050 WSXGA
up to 16.7 millions colors. The inverter module for the Backlight Unit is not built in.
1.2 FEATURES
- Super wide viewing angle
- High contrast ratio
- Fast response time
- High color saturation (EBU Like Specifications)
- WSXGA
+
(1680 x 1050 pixels) resolution
+
Doc No.: 1406Y147
Issued Date: Nov. 20, 2006
Model No.: M220Z1-L07
Preliminary
(16:10 wide screen) mode and displays
- DE (Data Enable) only mode
- LVDS (Low Voltage Differential Signaling) interface
1.3 APPLICA TION
- Workstation & desktop monitor
- Display terminals for AV application
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note
Diagonal size 558.68 mm
Active Area 473.76x296.1 mm
Bezel Opening Area 477.7 (H) x 300.1 (V) mm
Driver Element a-Si TFT active matrix - Pixel Number 1680 x R.G.B. x 1050 pixel Pixel Pitch 0.282(H) x 0.282(V) mm Pixel Arrangement RGB vertical stripe - Display Colors 16.7 millions color Transmissive Mode Normally White - Color saturation 90% NTSC - Surface Treat ment Hard coating (2H), Glare (LR< 3%) - -
(1)
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 493.2 493.7 494.2 mm
Module Size
I/F connector mounting
Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Vertical(V) 319.6 320.1 320.6 mm
Depth(D) 16 16.5 17 mm
Weight 2900 g
position
The mounting inclination of the connector makes
the screen center within ±0.5 mm as the horizontal.
4 / 26
Version 1.0
(1)
Page 5
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com

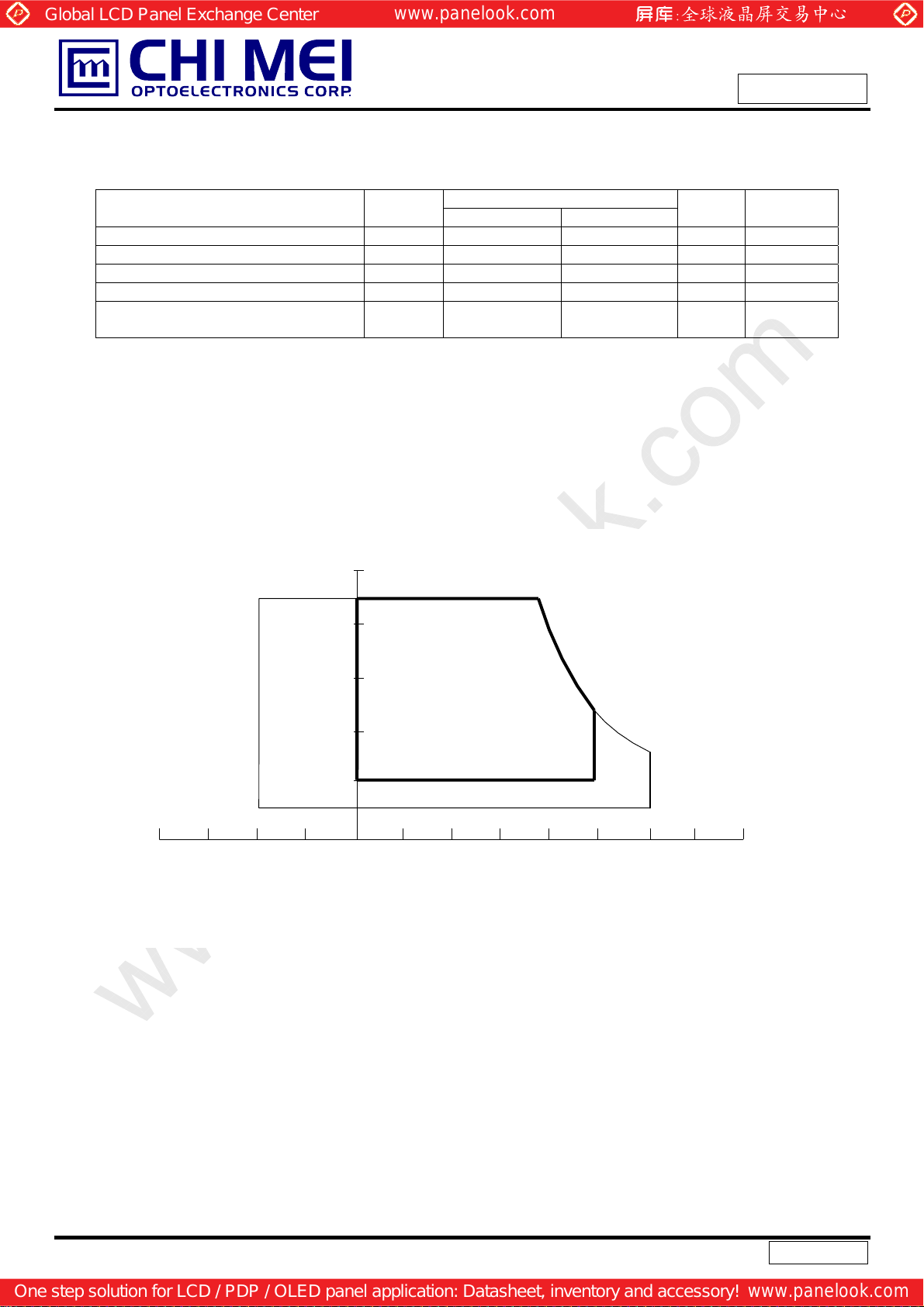

2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Item Symbol
Storage Temperature TST -20 +60 ºC (1)
Operating Ambient T emperature TOP 0 +50 ºC (1), (2)
Shock (Non-Operating) S
Vibration (Non-Operating) V
LCD Cell Life Time L
Note (1) Temperature and relative humidity range is shown in the figure below.
(a) 90% RH Max. (Ta ≦ 40 ºC).
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation.
Doc No.: 1406Y147
Issued Date: Nov. 20, 2006
Model No.: M220Z1-L07
Preliminary
Value
Min. Max.
- 50 G (3), (5)
NOP
- 1 G (4), (5)
NOP
50,000 - Hrs
CELL
Unit Note
MTBF
based
Note (2) The temperature of panel surface should be 0 ºC Min. and 60 ºC Max.
Relative Humidity (%RH)
100
90
80
60
Operating Range
40
20
10
Storage Range
Temperature (ºC)
80 60 -20 400 20-40
Note (3) 11 ms, half-sine wave, 1 time for ± X, ± Y, ± Z.
Note (4) 10 ~ 300 Hz, sweep rate 10 min / cycle , 30 min for X,Y,Z axis
Note (5) Upon the Vibration and Shock tests, the fixture used to hold the module must be firm and rigid
enough to prevent the module from twisting or bending by the fixture.
5 / 26
Version 1.0
Page 6
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
Item Symbol
Power Supply Voltage Vcc -0.3 +5.5 V
Logic Input Voltage VIN -0.3 +4.3 V
2.2.2 BACKLIGHT UNIT
Item Symbol
Lamp Voltage VL - 2.5K V
Lamp Current IL 3.0 8.0 mA
Lamp Frequency FL 40 80 KHz
Note (1) Permanent damage might occur if the module is operated at conditions exceeding the maximum
values.
Value
Min. Max.
Value
Min. Max.
Unit Note
Unit Note
Doc No.: 1406Y147
Issued Date: Nov. 20, 2006
Model No.: M220Z1-L07
Preliminary
(1)
(1), (2), IL = 7.0 mA
RMS
RMS
(1), (2)
Note (2) Specified values are for lam p (Refer to 3.2 for further information).
6 / 26
Version 1.0
Page 7
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Doc No.: 1406Y147
Issued Date: Nov. 20, 2006
Model No.: M220Z1-L07
Preliminary
3. ELECTRICAL CHARACTERISTICS
3.1.1 TFT LCD MODULE Ta = 25 ± 2 ºC
Parameter Symbol
Min. Typ. Max.
Power Supply Voltage Vcc 4.5 5.0 5.5 V Ripple Voltage VRP - -- 100 mV Rush Current I
- -- 3 A (2)
RUSH
White - 630 819 mA (3)a
Power Supply Current
Black - 1170 1521 mA (3)b
= 75Hz,
f
V
Vcc=4.5V
lcc
- - 1330 mA (4)
LVDS differential input voltage Vid -100 - +100 mV
LVDS common input voltage Vic -- 1.2 -- V
Note (1) The module is recommended to operate within specification ranges listed above for normal
function.

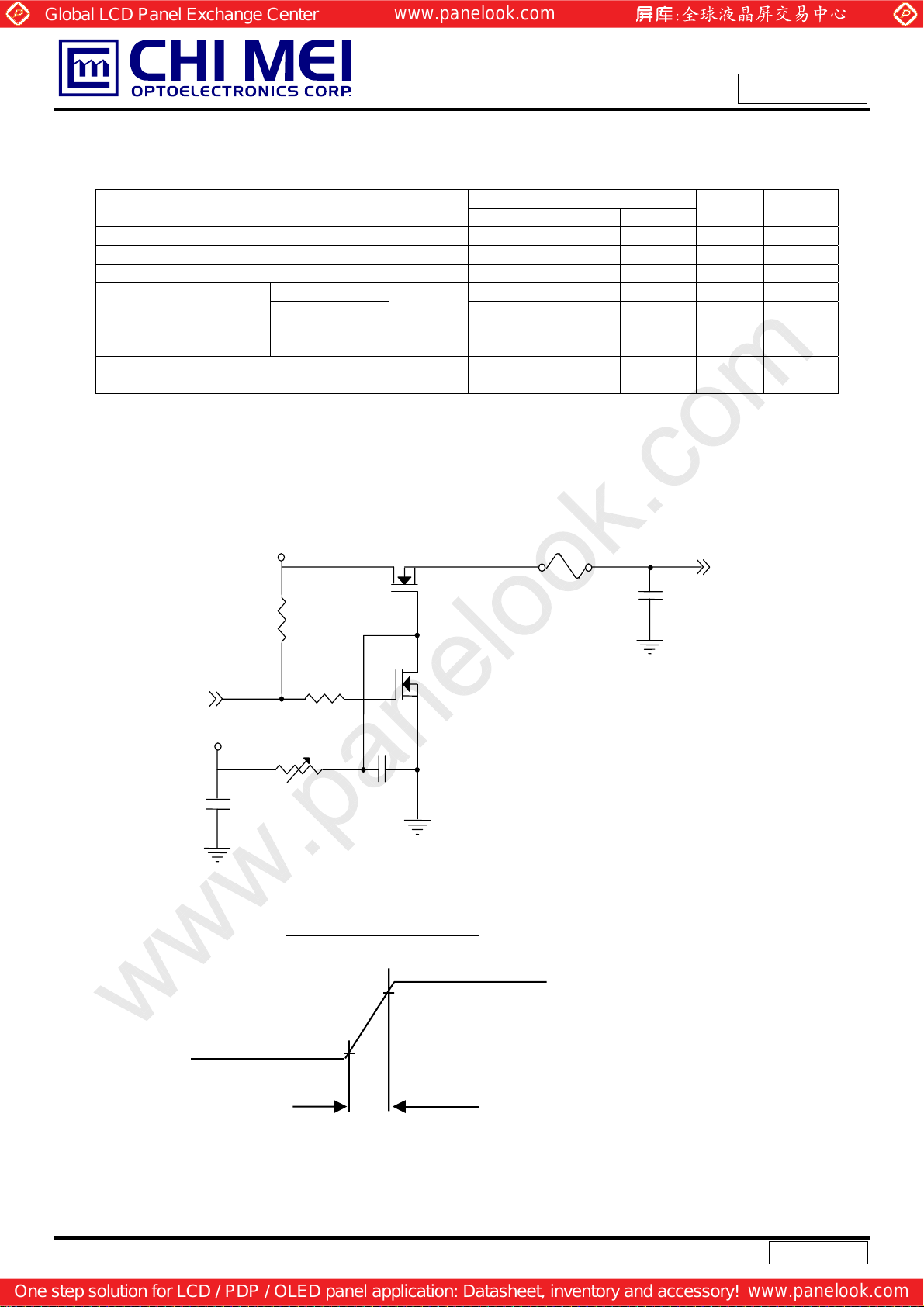

Note (2) Measurement Conditions:
Value
Unit Note
+5.0V
R1
47K
Q1 2SK1475
FUSE
C3
1uF
Vcc
(LCD Module Input)
(High to Low)
(Control Signal)
SW
+12V
C1
1uF
VR1
R2
1K
47K
0.01uF
Q2
2SK1470
C2
Vcc rising time is 470µs
+5.0V
0.9Vcc
0.1Vcc
GND
470µs
7 / 26
Version 1.0
Page 8
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
≤

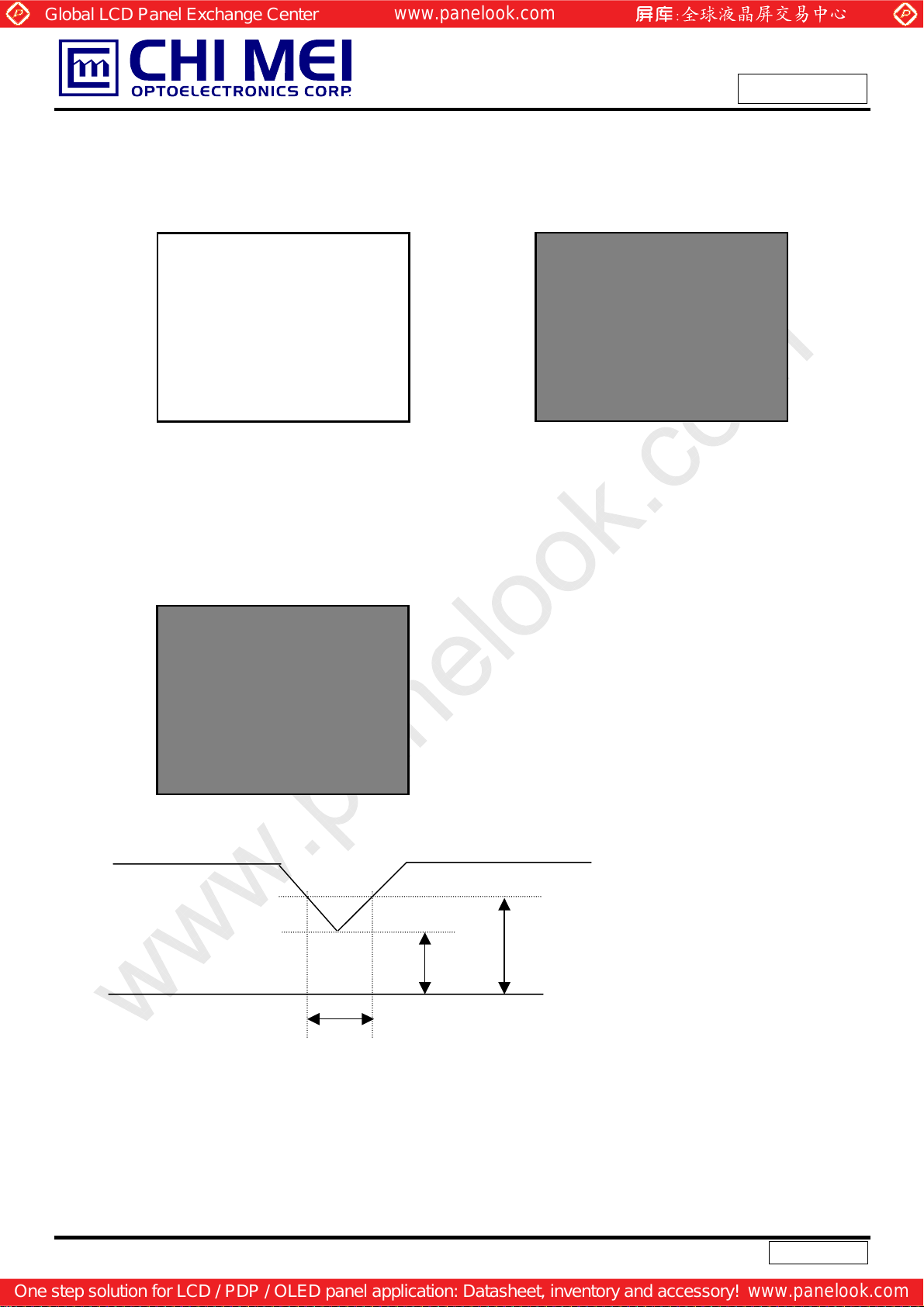

Note (3) The specified power supply current is under the conditions at Vcc = 5.0 V, Ta = 25 ± 2 ºC, fv = 60
Hz, whereas a power dissipation check pattern belo w is displayed.
Doc No.: 1406Y147
Issued Date: Nov. 20, 2006
Model No.: M220Z1-L07
Preliminary
Note (4) The specified power supply current is under the conditions at Vcc = 4.5 V, Ta = 25 ± 2 ºC, f
a. White Pattern
Active Area
Hz, whereas a power dissipation check p attern (Black Pattern ) below is displayed.
Black Pattern
b. Black Pattern
Active Area
= 75
v
3.1.2 Vlcd Power Dip Condition:
Dip condition:
Active Area
Td
Vlcd
4.5V
4.0V
≤≤
ms20Td,V5.4VlcdV0.4
8 / 26
Version 1.0
Page 9
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com

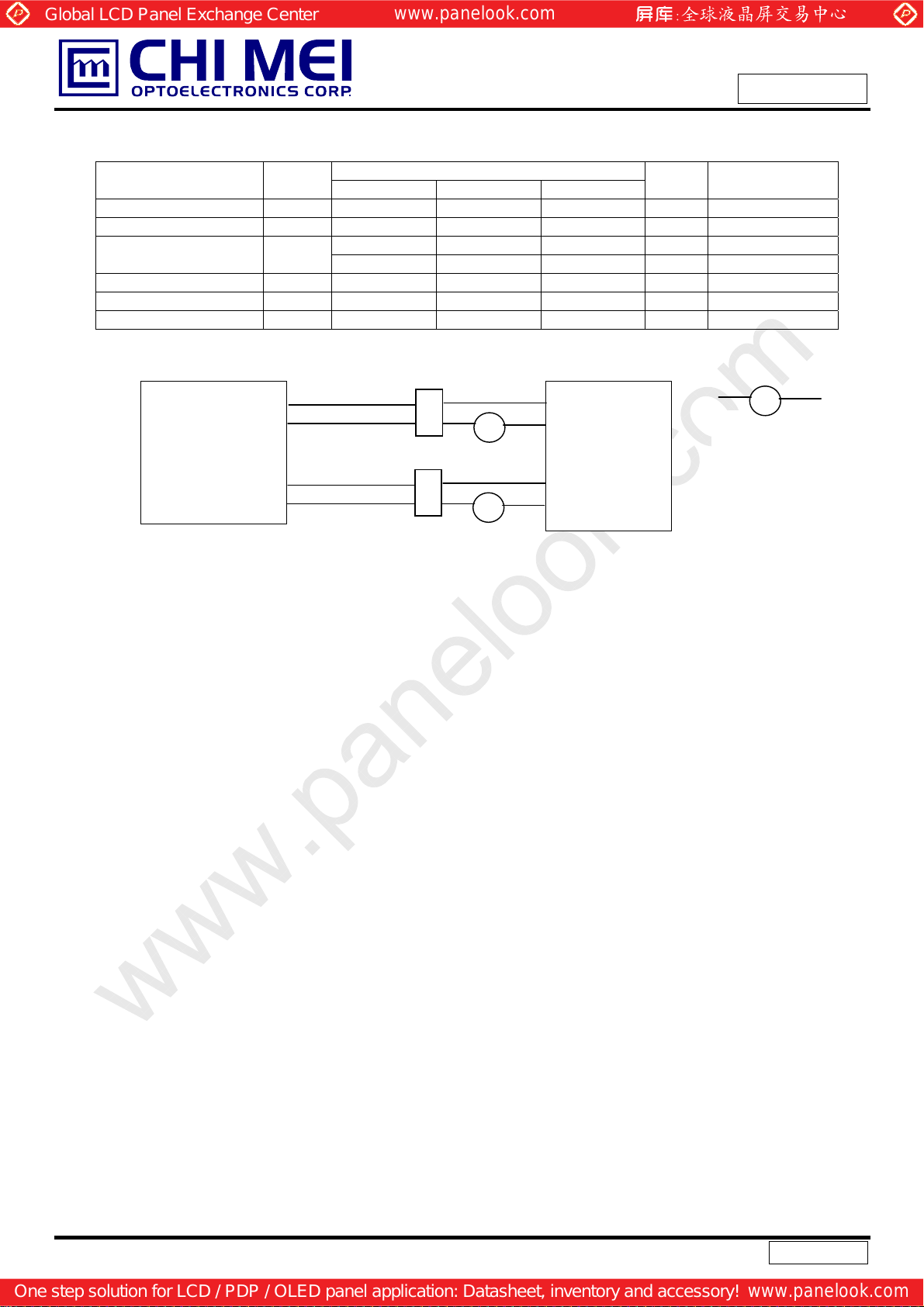

3.2 BACKLIGHT UNIT
Parameter Symbol
Lamp Input Voltage VL 765 850 935 V
Lamp Current IL 3 7.0 8 mA
Lamp Turn On Voltage VS
Operating Frequency FL 40 60 80 KHz (3)
Lamp Life Time LBL 30000 - Hrs (5) IL = (7.0) mA
Power Consumption PL - 22.96 - W (4), IL = (7.0) mA
Note (1) Lamp current is measured by utilizing high-frequency current meters as shown below:
LCD
Module
Min. Typ. Max.
HV (Pink)
LV (White)
HV (Blue)
LV (Black)
Value
- - 1560(25°C) V
- - 1800(0°C) V
1
2
A
Inverter
1
2
A
Doc No.: 1406Y147
Issued Date: Nov. 20, 2006
Model No.: M220Z1-L07
Preliminary
Unit Note
IL = (7.0) mA
RMS
(1)
RMS
(2)
RMS
(2)
RMS
A
Current Meter
YOKOGAWA 2016
Ta = 25 ± 2 ºC
Note (2) The voltage that must be larger than Vs should be applied to the lamp for more than 1 second
after startup. Otherwise, the lamp may not be turned on normally.
Note (3) The lamp frequency may produce interference with horizontal synchronization frequency from the
display, which might cause line flow on the display. In order to avoid interference, the lamp
frequency should be detached from the horizontal synchronization frequency and its harmonics
as far as possible.
Note (4) P
Note (5) The lifetime of lamp can be defined as the time in which it continues to operate under the
Note (6) The waveform of the voltage output of inverter must be area-symmetric and the design of the
= IL ×VL X 4CCFLs
L
condition Ta = 25 ±2
(a) When the brightness becomes or lower than 50% of its original value.
(b) When the effective ignition length becomes or lower than 80% of its original value. (Effective
ignition length is defined as an area that has less than 70% brightness compared to the
brightness in the center point.)
inverter must have specifications for the modularized lamp. The performance of the Backlight,
such as lifetime or brightness, is greatly influenced by the characteristics of the DC-AC inverter
o
C and IL = 7 mArms until one of the following events occurs:
for the lamp. All the parameters of an inverter should be carefully designed to avoid producing too
much current leakage from high voltage output of the inverter. When designing or ordering the
inverter please make sure that a poor lighting caused by the mismatch of the Backlight and the
inverter (miss-lighting, flicker, etc.) never occurs. If the above situation is confirmed, the module
should be operated in the same manners when it is installed in your instrument.
9 / 26
Version 1.0
Page 10
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com

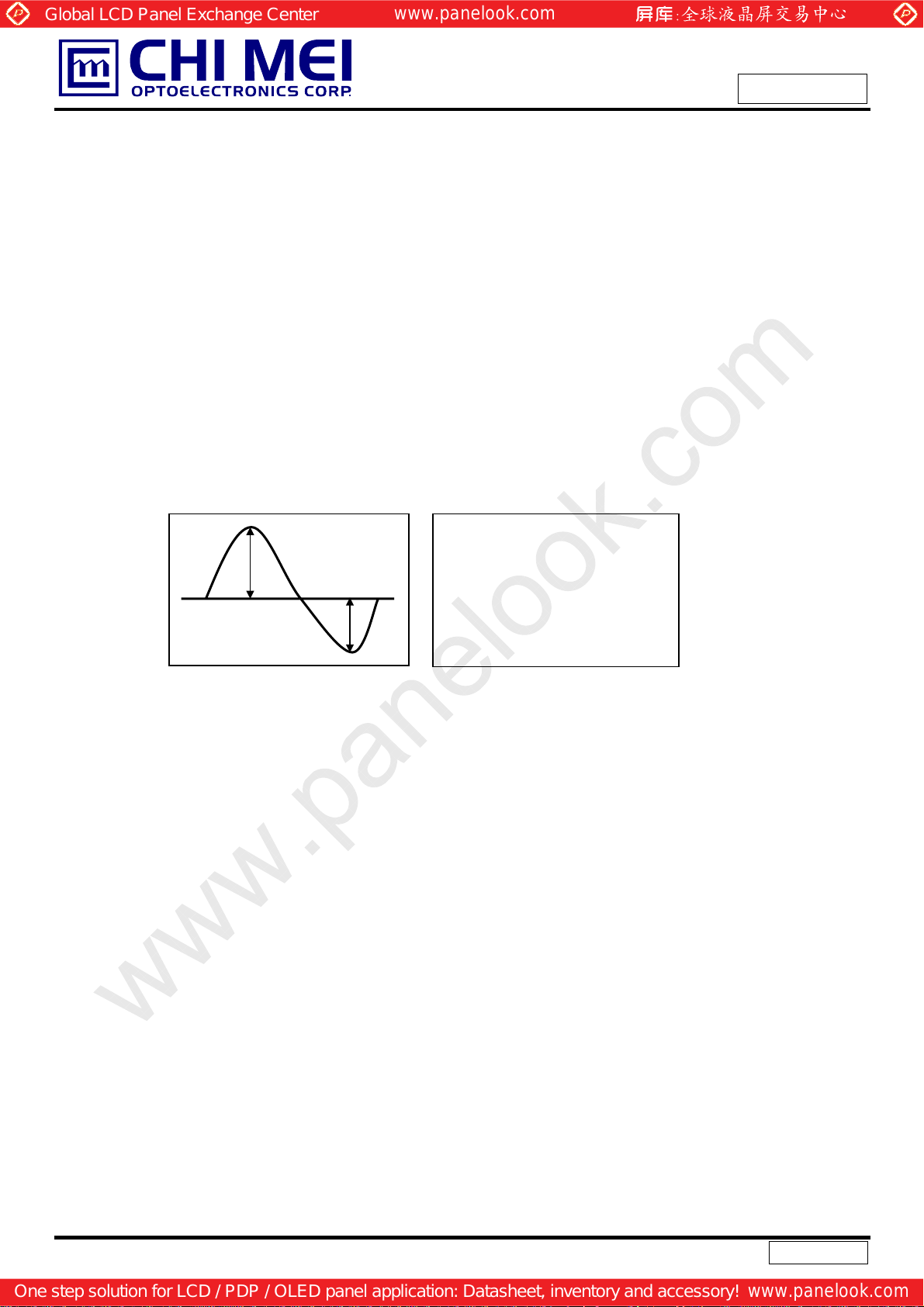

The output of the inverter must have symmetrical (negative and positive) voltage waveform and
symmetrical current waveform.(Unsymmetrical ratio is less than 10%) Please do not use the inverter
which has unsymmetrical voltage and unsymmetrical current and spike wave. Lamp frequency may
produce interface with horizontal synchronous frequency and as a result this may cause beat on the
display. Therefore lamp frequency shall be as away possible from the horizontal synchronous
frequency and from its harmonics in order to prevent interference.
Requirements for a system inverter design, which is intended to have a better display performance, a
better power efficiency and a more reliable lamp. It shall help increase the lamp lifetime and redu ce its
leakage current.
a. The asymmetry rate of the inverter waveform should be 10% below;
b. The distortion rate of the waveform should be within √2 ± 10%;
Doc No.: 1406Y147
Issued Date: Nov. 20, 2006
Model No.: M220Z1-L07
Preliminary
c. The ideal sine wave form shall be symmetric in positive and negative polarities.
* Asymmetry rate:
I p
I -p
| I
* Distortion rate
I
– I –p | / I
p
(or I –p) / I
p
rms
rms
* 100%
10 / 26
Version 1.0
Page 11
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
4. BLOCK DIAGRAM
4.1 TFT LCD MODULE
RXO0(+/-)
RXO1(+/-)
RXO2(+/-)
RXO3(+/-)
RXOC(+/-)
RXE0(+/-)
RXE1(+/-)
RXE2(+/-)
RXE3(+/-)
RXEC(+/-)
SELLVDS
Vcc
GND
(STARCONN 093G30-B0001A)
INPUT CONNECTOR
VL
LAMP CONNECTOR
(JST-BHSR-02VS-1)
LVDS INPUT /
TIMING CONTROLLER
DC/DC CONVERTER &
REFERENCE VOLTAGE
Doc No.: 1406Y147
Issued Date: Nov. 20, 2006
Model No.: M220Z1-L07
SCAN DRIVER IC
TFT LCD PANEL
(1680x3x1050)
DA TA DRIVER IC
BACKLIGHT UNIT
Preliminary
4.2 BACKLIGHT UNIT
1 HV(Pink)
2 LV(White)
1 HV(Blue)
2 LV(Black)
1 HV(Pink)
2 LV(White)
1 HV(Blue)
2 LV(Black)
11 / 26
Version 1.0
Page 12
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
5. INPUT TERMINAL PIN ASSIGNMENT
5.1 TFT LCD MODULE
Pin Name Description
1 RXO0- Negative LVDS diff erential data input. Channel O0 (odd)
2 RXO0+ Positive LVDS differential data input. Channel O0 (odd)
3 RXO1- Negative LVDS diff erential data input. Channel O1 (odd)
4 RXO1+ Positive LVDS differential data input. Channel O1 (odd)
5 RXO2- Negative LVDS diff erential data input. Channel O2 (odd)
6 RXO2+ Positive LVDS differential data input. Channel O2 (odd)
7 GND Ground
8 RXOC- Negative LVDS differential clock input. (odd)
9 RXOC+ Positive LVDS differential clock input. (odd)
10 RXO3- Negative LVDS differential data input. Channel O3(odd)
11 RXO3+ Positive LVDS differential data input. Channel O3 (odd)
12 RXE0- Negative LVDS differential data input. Channel E0 (even)
13 RXE0+ Positive LVDS differential data input. Channel E0 (even)
14 GND Ground
15 RXE1- Negative LVDS differential data input. Channel E1 (even)
16 RXE1+ Positive LVDS differential data input. Channel E1 (even)
17 GND Ground
18 RXE2- Negative LVDS differential data input. Channel E2 (even)
19 RXE2+ Positive LVDS differential data input. Channel E2 (even)
20 RXEC- Negative LVDS differential clock input. (even)
21 RXEC+ Positive LVDS differential clock input. (even)
22 RXE3- Negative LVDS differential data input. Channel E3 (even)
23 RXE3+ Positive LVDS differential data input. Channel E3 (even)
24 GND Ground
25 TEST Test pin should be tied to ground or op en.
26 NC Not connection.
27 SELLVDS SELLVDS pin should be tied to ground or open.
28 VCC +5.0V power supply
29 VCC +5.0V power supply
30 VCC +5.0V power supply
Note (1) Connector Part No.: 093G30-B0001A(STARCONN) or FI-XB30SSL-HF(JAE) or EQUIVALENT.
Doc No.: 1406Y147
Issued Date: Nov. 20, 2006
Model No.: M220Z1-L07
Preliminary
Note (2) Mating Connector Part No.:FI-X30H ; FI-X30C* ; FI-X30M* ; FI-X30HL(-T),FI-X30C*L(-T) [JAE]
Note (3) The first pixel is odd.
Note (4) Input signal of even and odd clock should be the same timing.
12 / 26
Version 1.0
Page 13
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
SELLVDS = Low or Open
L VDS Channel E0
L VDS Channel E1
L VDS Channel E2
L VDS Channel E3
L VDS Channel O0
L VDS Channel O1
L VDS Channel O2
L VDS Channel O3
LVDS output D7 D6 D4 D3 D2 D1 D0
Data order EG0 ER5 ER4 ER3 ER2 ER1 ER0
LVDS output D18 D15 D14 D13 D12 D9 D8
Data order EB1 EB0 EG5 EG4 EG3 EG2 EG1
LVDS output D26 D25 D24 D22 D21 D20 D19
Data order DE NA NA EB5 EB4 EB3 EB2
LVDS output D23 D17 D16 D11 D10 D5 D27
Data order NA EB7 EB6 EG7 EG6 ER7 ER6
LVDS output D7 D6 D4 D3 D2 D1 D0
Data order OG0 OR5 OR4 OR3 OR2 OR1 OR0
LVDS output D18 D15 D14 D13 D12 D9 D8
Data order OB1 OB0 OG5 OG4 OG3 OG2 OG1
LVDS output D26 D25 D24 D22 D21 D20 D19
Data order DE NA NA OB5 OB4 OB3 OB2
LVDS output D23 D17 D16 D11 D10 D5 D27
Data order NA OB7 OB6 OG7 OG6 OR7 OR6
Doc No.: 1406Y147
Issued Date: Nov. 20, 2006
Model No.: M220Z1-L07
Preliminary
13 / 26
Version 1.0
Page 14
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
5.2 BACKLIGHT UNIT
Pin Symbol Description Remark
1 HV High Voltage Pink
2 LV Low Voltage White
1 HV High Voltage Blue
2 LV Low Voltage Black
Note (1) Connector Part No.: JST-BHSR-02VS-1 or equivalent
Note (2) User’s connector Part No.: JST-SM02B-BHSS-1-TB (JST) or equivalent
5.3 COLOR DATA INPUT ASSIGNMENT
The brightness of each primary color (red, green and blue) is based on the 8-bit gray scale data input for
the color. The higher the binary input, the brighter the color. The table below provides the assignment of
color versus data input.
Color
R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0
Basic
Colors
Gray
Scale
Of
Red
Black
Red
Green
Blue
Cyan
Magenta
Yellow
White
Red(0) / Dark
Red(1)
Red(2)
:
:
Red(253)
Red(254)
Red(255)
0
0
1
1
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
:
:
:
:
1
1
1
1
1
1
Doc No.: 1406Y147
Issued Date: Nov. 20, 2006
Model No.: M220Z1-L07
Preliminary
Data Signal
Red Green Blue
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
Green(0) / Dark
Gray
Scale
Of
Green
Gray
Scale
Of
Blue
Note (1) 0: Low Level Voltage, 1: High Level Voltage
Green(1)
Green(2)
:
:
Green(253)
Green(254)
Green(255)
Blue(0) / Dark
Blue(1)
Blue(2)
:
:
Blue(253)
Blue(254)
Blue(255)
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
14 / 26
Version 1.0
Page 15
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
6. INTERFACE TIMING
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
The input signal timing specifications are shown as the following table and timing diagram.
Signal Item Symbol Min. Typ. Max. Unit Note
Frequency Fc 50 59.5 82 MHz -
LVDS Clock
LVDS Data
Vertical Active Display Term
Horizontal Active Display Term
Note：(1) Because this module is operated by DE only mode, Hsync and Vsync input signals should be
Period Tc 13.4 16.8 - ns
High Time Tch - 4/7 - Tc Low Time Tcl - 3/7 - Tc Setup Time Tlvs 600 - - ps Hold Time Tlvh 600 - - ps Frame Rate Fr 50 60 76 Hz Tv=Tvd+Tvb
Total Tv 1060 1080 1195 Th Display Tvd 1050 1050 1050 Th Blank Tvb Tv-Tvd 30 Tv-Tvd Th Total Th 890 920 1000 Tc Th=Thd+Thb
Display Thd 840 840 840 Tc Blank Thb Th-Thd 80 Th-Thd Tc -
Doc No.: 1406Y147
Issued Date: Nov. 20, 2006
Model No.: M220Z1-L07
Preliminary
set to low logic level or ground. Otherwise, this module would operate abnormally.

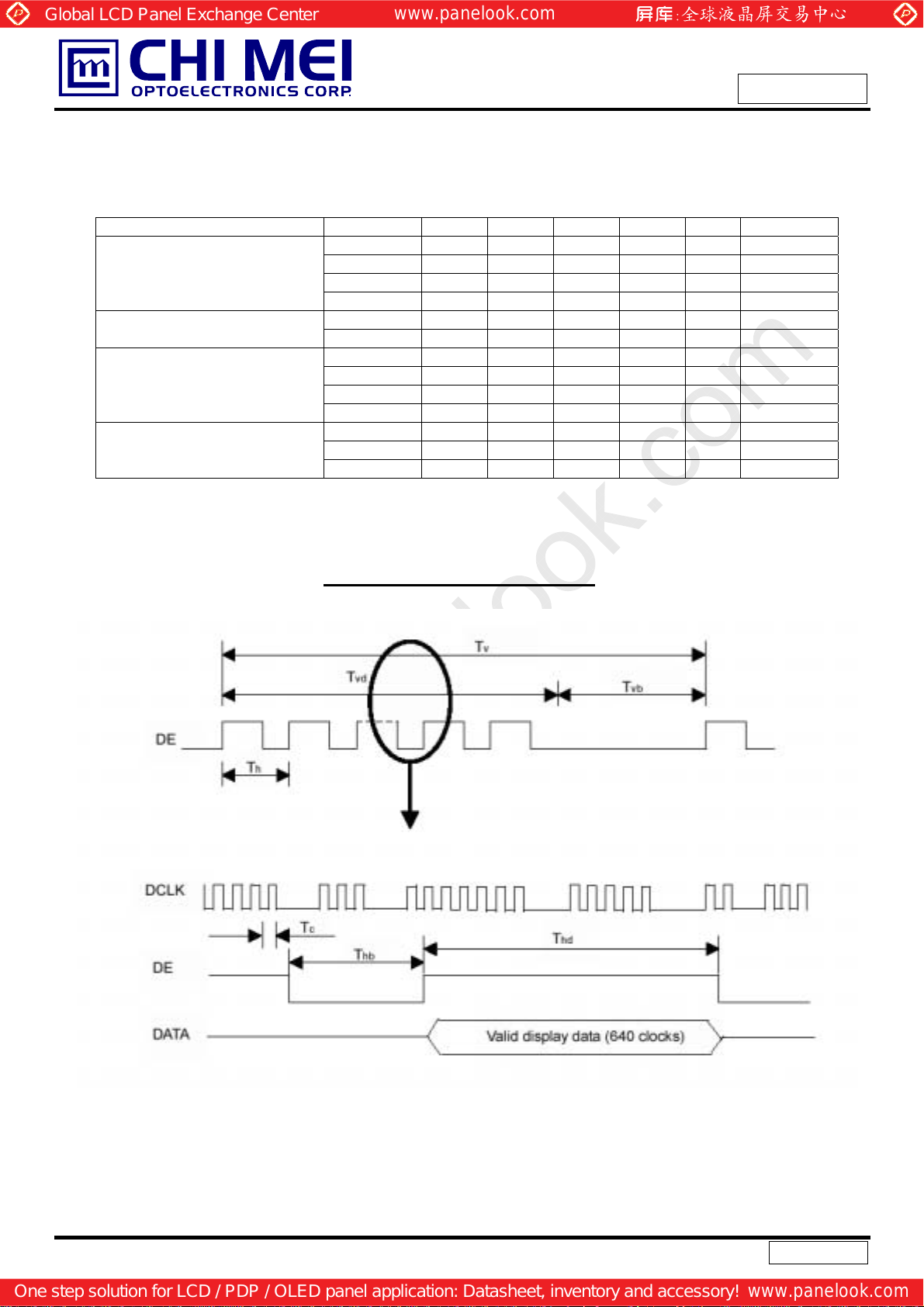

INPUT SIGNAL TIMING DIAGRAM
15 / 26
Version 1.0
Page 16
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Doc No.: 1406Y147
Issued Date: Nov. 20, 2006
Model No.: M220Z1-L07
Preliminary

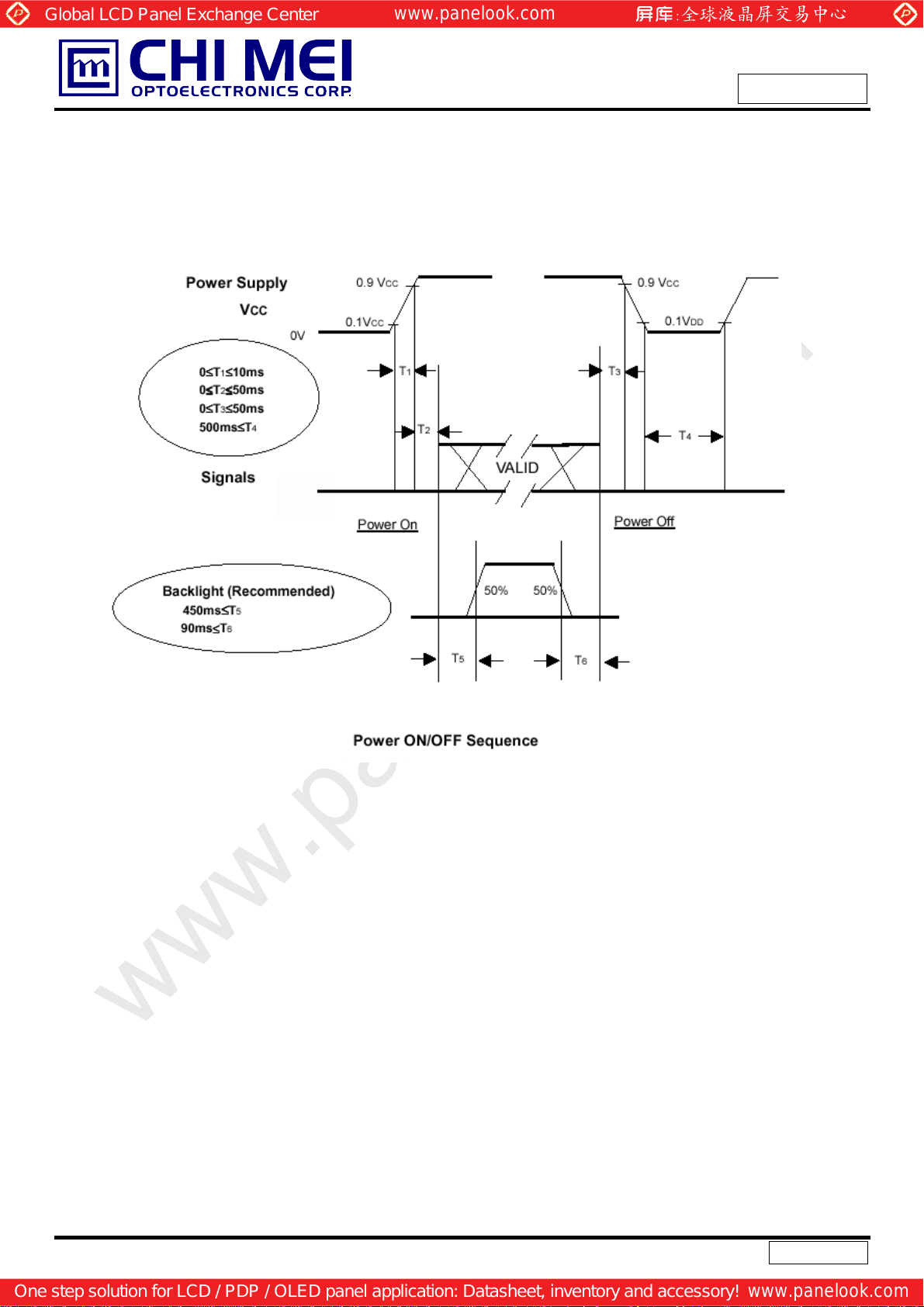

6.2 POWER ON/OFF SEQUENCE
To prevent a latch-up or DC operation of LCD module, the power on/off sequence should follow the
conditions shown in the following diagram.
Note.
(1) The supply voltage of the external system for the module input should be the same as the definition of Vcc.
(2) Please apply the lamp voltage within the LCD operation range. When the backlight turns on before the LCD
operation of the LCD turns off, the display may, instantly, function abnormally.
(3) In case of
(4) T4 should be measured after the module has been fully discharged between power on/off periods.
(5) Interface signal shall not be kept at high impedance when the power is on.
VCC = off level, please keep the level of input signals on the low or keep a high impedance.
16 / 26
Version 1.0
Page 17
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
7. OPTICAL CHARACTERISTICS
7.1 TEST CONDITIONS
Item Symbol Value Unit
Ambient Temperature Ta
Ambient Humidity Ha
Supply Voltage VCC 5.0 V
Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS"
Inverter Current IL 7.0 mA
Inverter Driving Frequency FL 61 KHz
Inverter SUMIDA H05 5307
7.2 OPTICAL SPECIFICATIONS
The relative measurement methods of optical characteristics are shown in 7.2. The following items should
be measured under the test conditions described in 7.1 and stable environment shown in Note (6).
Item Symbol Condition Min. Typ. Max. Unit Note
Red
Green
Color
Chromaticity
Blue
White
Rx
Ry
Gx
Gy
Bx
By
Wx
Wy
θ
=0°, θY =0°
x
CS-1000T
R=G=B=255
Grayscale
25±2
50±10
Typ –
0.03
0.666
0.318
0.196
0.674
0.151
0.080
0.313
0.329
Doc No.: 1406Y147
Issued Date: Nov. 20, 2006
Model No.: M220Z1-L07
Preliminary
o
C
%RH
Typ +
0.03
(1), (5)
Center Luminance of White L
C
Contrast Ratio CR
Response Time
White Variation
Horizontal
Viewing Angle
Vertical
TR --- 1.3 2.2 ms
T
F
δW θ
θ
+
x
-
θ
x
θ
+
Y
θ
-
Y

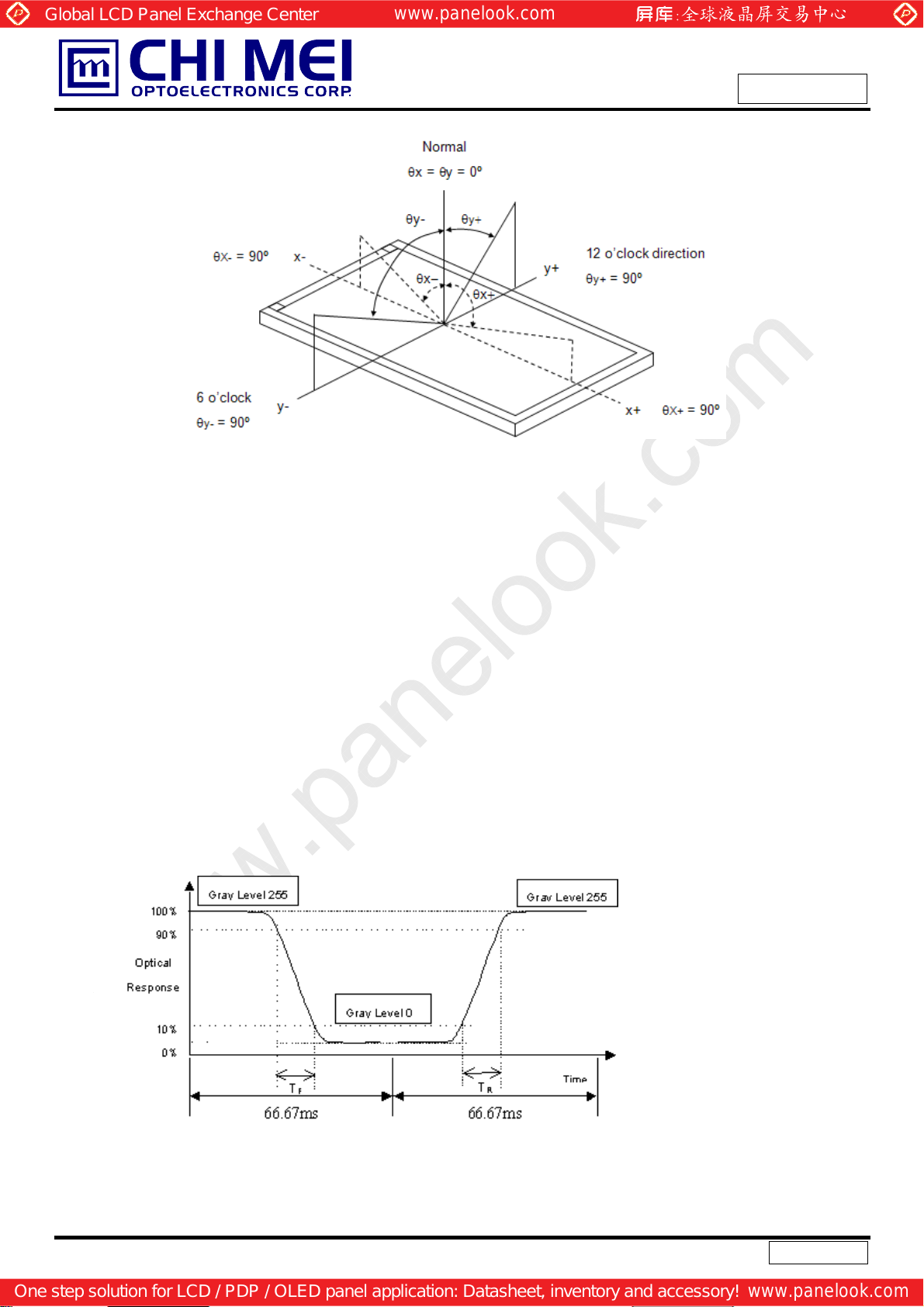

Note (1) Definition of Viewing Angle (θx, θy):
θ
=0°, θY =0°
x
=0°, θY =0°
x
CR>10
250 300 --- cd/m2(4), (5)
700 1000 --- - (2), (6)
--- 3.7 5.8 ms
(3)
--- 1.3 1.42 - (5), (6)
75
75
70
70
85 --85
80
80
---
---
---
Deg. (1), (5)
17 / 26
Version 1.0
Page 18
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Doc No.: 1406Y147
Issued Date: Nov. 20, 2006
Model No.: M220Z1-L07
Preliminary
Note (2) Definition of Contrast Ratio (CR):
The contrast ratio can be calculated by the following expression.
Contrast Ratio (CR) = L255 / L0
L255: Luminance of gray level 255
L 0: Luminance of gray level 0
CR = CR (7)
CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (6).
Note (3) Definition of Response Time (T
, TF):
R
18 / 26
Version 1.0
Page 19
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Note (4) Definition of Luminance of White (LC):
Measure the luminance of gray level 255 at center point
L
= L (7)
C
L (x) is corresponding to the luminance of the point X at Figure in Note (6).
Doc No.: 1406Y147
Issued Date: Nov. 20, 2006
Model No.: M220Z1-L07
Preliminary

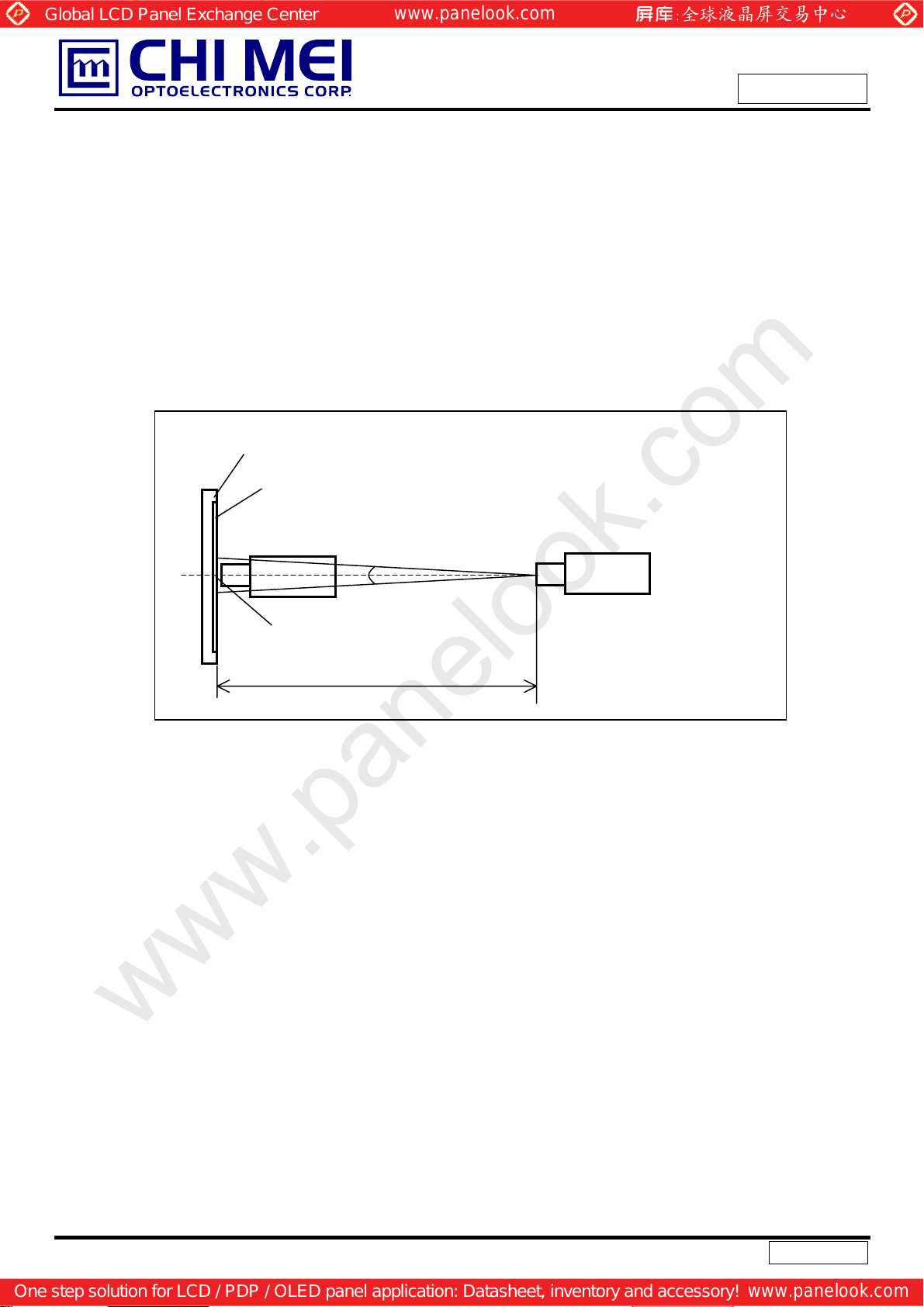

Note (5) Measurement Setup:
The LCD module should be stabilized at given temperature for 20 minutes to avoid abrupt
temperature change during measuring. In order to stabilize the luminance, the measurement
should be executed after lighting Backlight for 20 minutes in a windless room.
LCD Module
LCD Panel
USB2000
Field of View = 2º
Center of the Screen
Gray 0
CS-1000T
Light Shield Room
(Ambient Luminance < 2 lux)

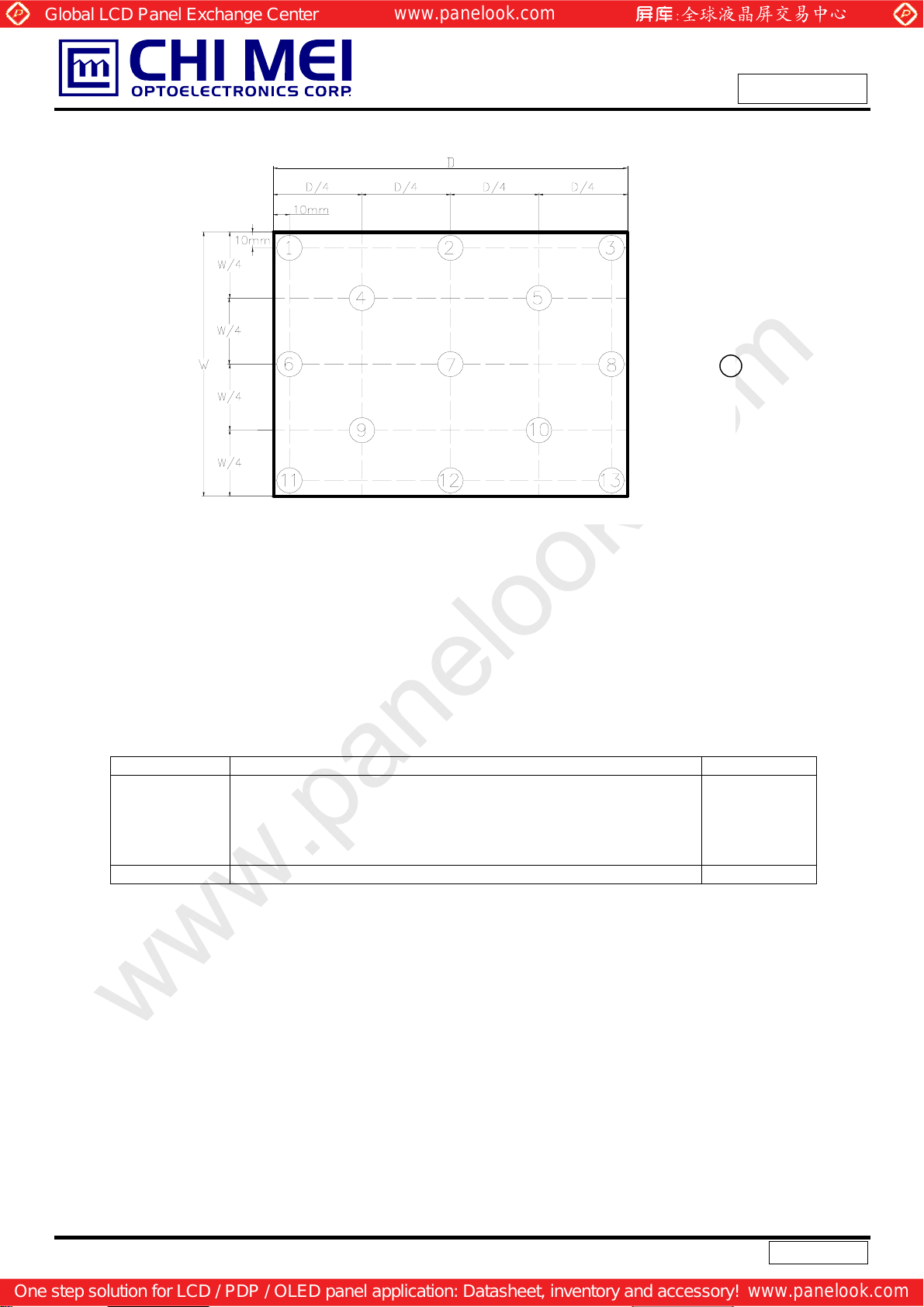

Note (6) Definition of White Variation (δW):
Measure the luminance of gray level 255 at 13 points
δW = Maximum [L (1) ~ L (13)] / Minimum [L (1) ~ L (13)]
19 / 26
Version 1.0
Page 20
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Vertical Line
Horizontal Line
Doc No.: 1406Y147
Issued Date: Nov. 20, 2006
Model No.: M220Z1-L07
Preliminary
: Test Point
X
X=1 to 13
Active Area
8. PACKAGING
8.1 PACKING SPECIFICATIONS
(1) 5 LCD modules / 1 Box
(2) Box dimensions: 595(L) X 330 (W) X 440 (H) mm
(3) Weight: 16.5 Kg (5 modules per box)
8.2 PACKING METHOD
(1) Carton Packing should have no failure in the following reliability test items.
Test Item Test Conditions Note
ISTA STANDARD
Random, Frequency Range: 1 – 200 Hz
Vibration
Dropping Test 1 Angle, 3 Edge, 6 Face, 60cm Non Operation
Top & Bottom: 30 minutes (+Z), 10 min (-Z),
Right & Left: 10 minutes (X)
Back & Forth 10 minutes (Y)
Non Operation
20 / 26
Version 1.0
Page 21
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Doc No.: 1406Y147
Issued Date: Nov. 20, 2006
Model No.: M220Z1-L07
Preliminary

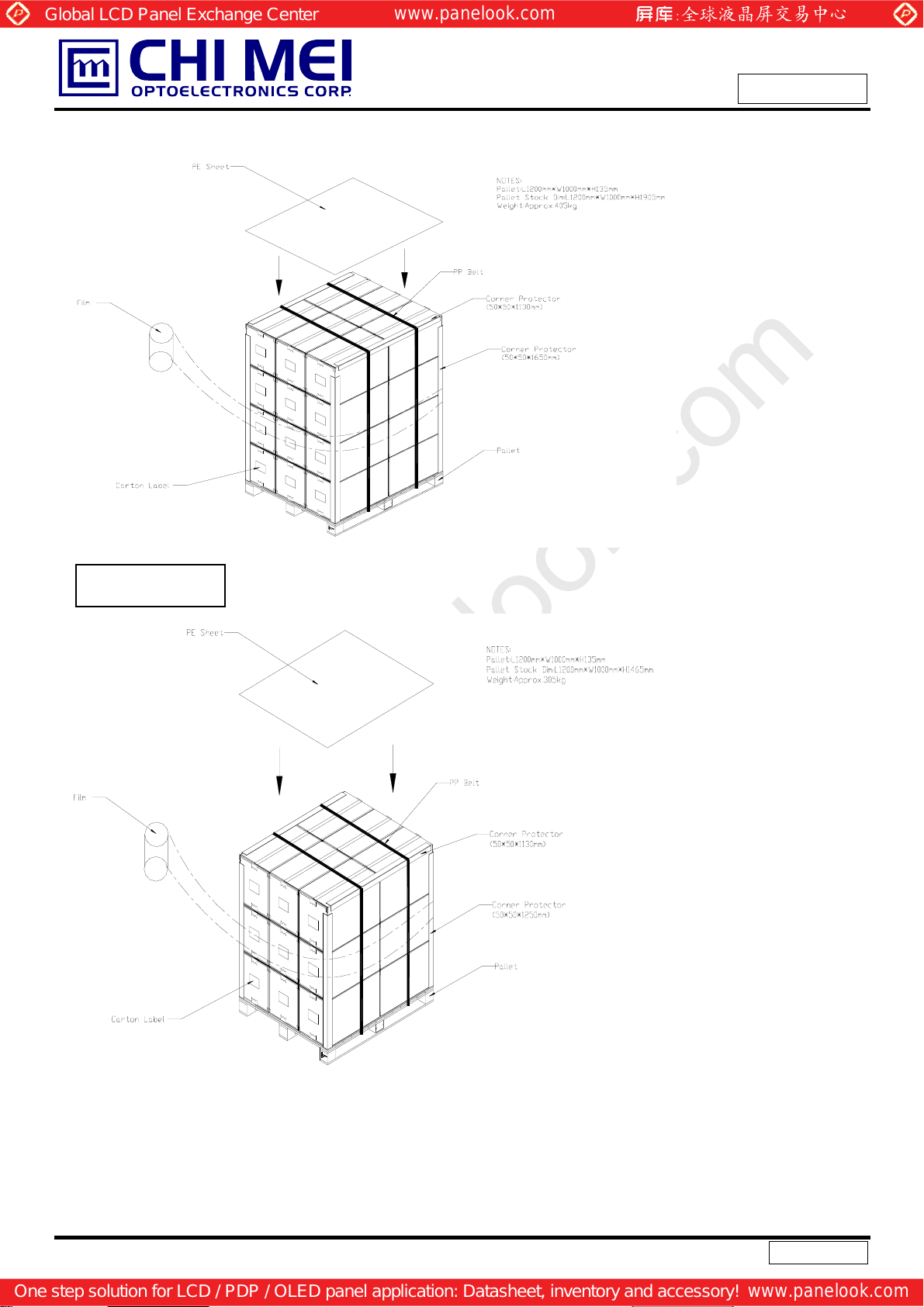

For ocean shipping

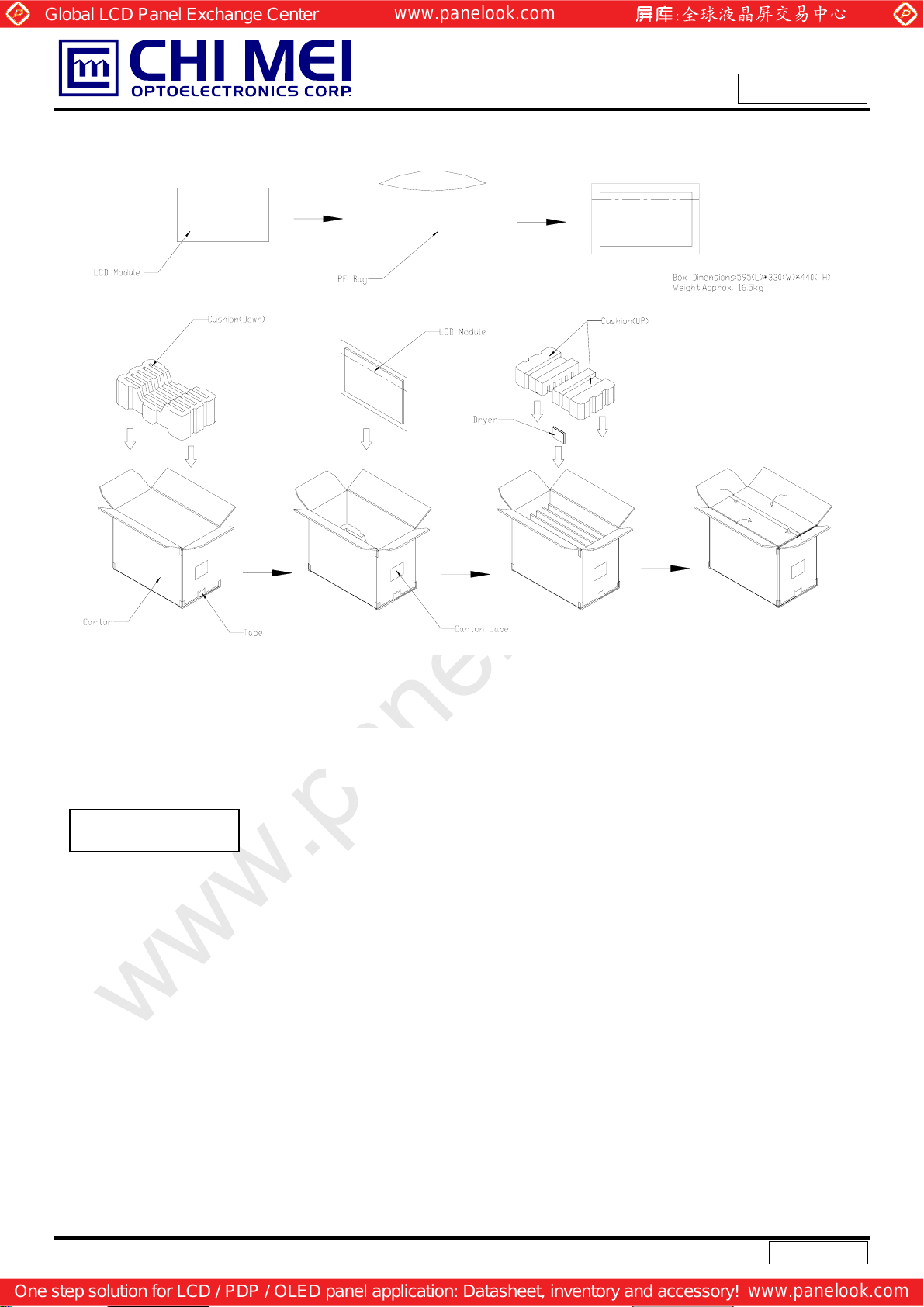

Figure. 8-1 Packing method
21 / 26
Version 1.0
Page 22
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Doc No.: 1406Y147
Issued Date: Nov. 20, 2006
Model No.: M220Z1-L07
Preliminary
For air transport
Figure. 8-2 Packing method
Figure. 8-3 Packing method
22 / 26
Version 1.0
Page 23
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com

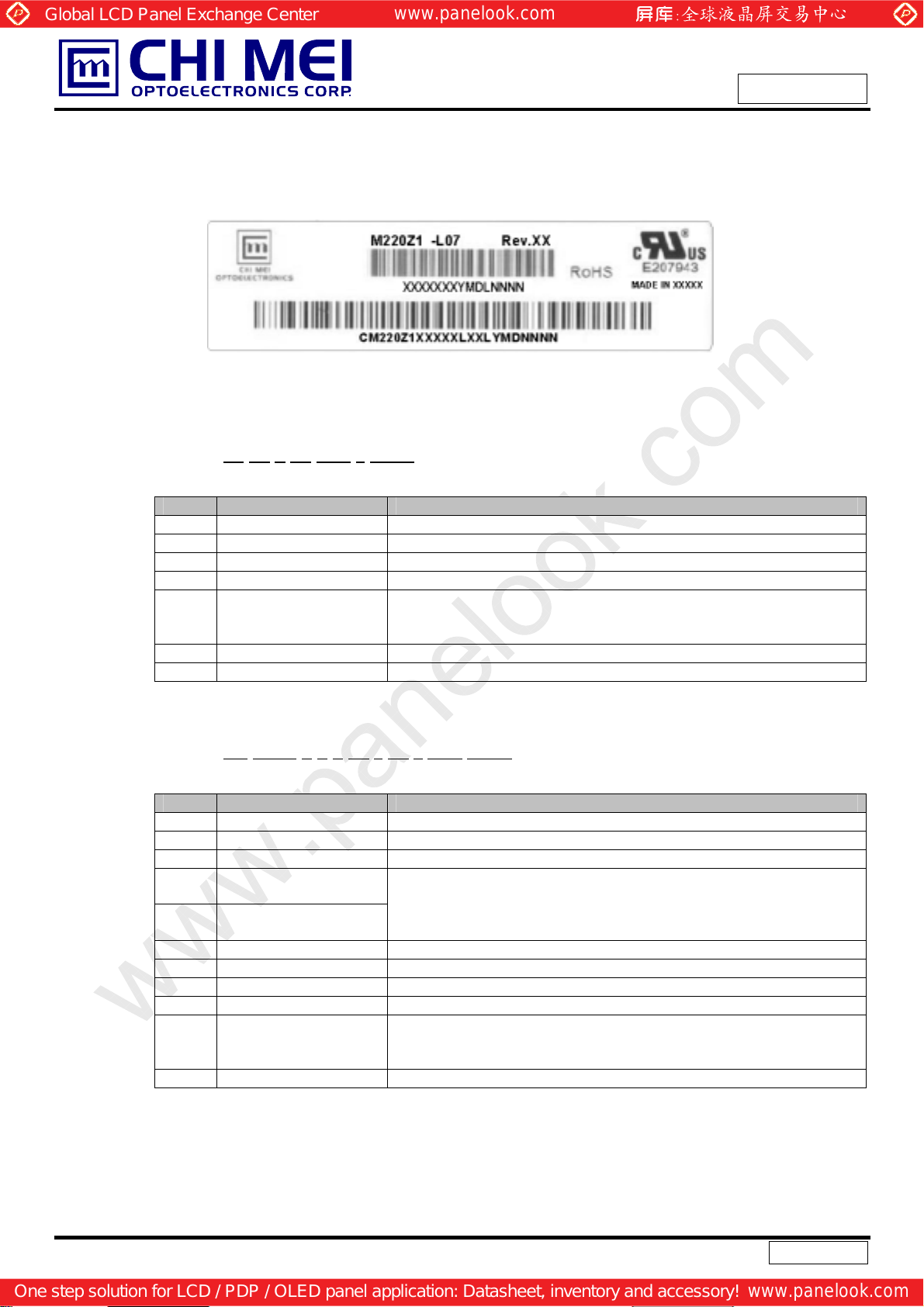

9. DEFINITION OF LABELS
9.1 CMO MODULE LABEL
The barcode nameplate is pasted on each module as illustration, and it s definitions are as following explanation.
(a) Model Name: M220Z1-L07
(b) Revision: Rev. XX, for example: A0, A1… B1, B2… or C1, C2…etc.
(c) CMO barcode definition:
Doc No.: 1406Y147
Issued Date: Nov. 20, 2006
Model No.: M220Z1-L07
Preliminary
Serial ID: XX
Code Meaning Description
XX CMO internal use XX Revision Cover all the change
X CMO internal use -
XX CMO internal use -
YMD
L Product line # Line 1=1, Line 2=2, Line 3=3, …
NNNN Serial number Manufacturing sequence of product
(d) Customer’s barcode definition:
Serial ID: CM
Code Meaning Description
CM Supplier code CMO=CM
22Z17 Model number M220Z1-L07=22Z17
X Revision code C1=1, C2=2, ….
X Source driver IC code
X Gate driver IC code
XX Cell location Tainan, Taiwan=TN
L Cell line # 1~12=0~C
XX Module location Tainan, Taiwan=TN; Ningbo China=CN
L Module line # 1~12=0~C
YMD
NNNN Serial number By LCD supplier
-XX-X-XX-YMD-L-NNNN
Year, month, day Year: 2001=1, 2002=2, 2003=3, 2004=4…
Month: 1~12=1, 2, 3, ~, 9, A, B, C
Day: 1~31=1, 2, 3, ~, 9, A, B, C, ~, W, X, Y, exclude I, O, and U.
-22Z17-X-X-X-XX-L-XX-L-YMD-NNNN
Century=1, CLL=2, Demos=3, Epson=4, Fujitsu=5, Himax=6,
Hitachi=7, Hynix=8, LDI=9, Matsushita=A, NEC=B, Novatec=C,
OKI=D, Philips=E, Renasas=F, Samsung=G, Sanyo=H, Sharp=I,
TI=J, Topro=K, T oshiba=L, Windbond=M
Year, month, day Year: 2001=1, 2002=2, 2003=3, 2004=4…
Month: 1~12=1, 2, 3, ~, 9, A, B, C
Day: 1~31=1, 2, 3, ~, 9, A, B, C, ~, T, U, V
23 / 26
Version 1.0
Page 24
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Doc No.: 1406Y147
Issued Date: Nov. 20, 2006
Model No.: M220Z1-L07
Preliminary
10. PRECAUTIONS
10.1 ASSEMBL Y AND HANDLING PRECAUTIONS
(1) Do not apply rough force such as bending or twisting to the module during assembly.
(2) To assemble or install module into user’s system can be only in clean working areas. The dust and oil
may cause electrical short or worsen the polarizer.
(3) It’s not permitted to have pressure or impulse on the module because the LCD panel and Backlight
will be damaged.
(4) Always follow the correct power sequence when LCD module is connecting and operating. This can
prevent damage to the CMOS LSI chips during latch-up.
(5) Do not pull the I/F connector in or out while the module is operating.
(6) Do not disassemble the module.
(7) Use a soft dry cloth without chemicals for cleaning, because the surface of polarizer is very soft and
easily scratched.
(8) It is dangerous that moisture come into or contacted the LCD module, because moisture may damage
LCD module when it is operating.
(9) High temperature or humidity may reduce the performance of module. Please store LCD module
within the specified storage conditions.
(10) When ambient temperature is lower than 10ºC may reduce the display quality. For example, the
response time will become slowly, and the starting voltage of CCFL will be higher than room
temperature.
10.2 SAFETY PRECAUTIONS
(1) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while
assembling with inverter. Do not disa ssemble the module or insert anything into the Backlight unit.
(2) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In
case of contact with hands, skin or clothes, it has to be washe d away thoroughly with soap.
(3) After the module’s end of life, it is not harmful in case of normal operation and storage.
24 / 26
Version 1.0
Page 25
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com

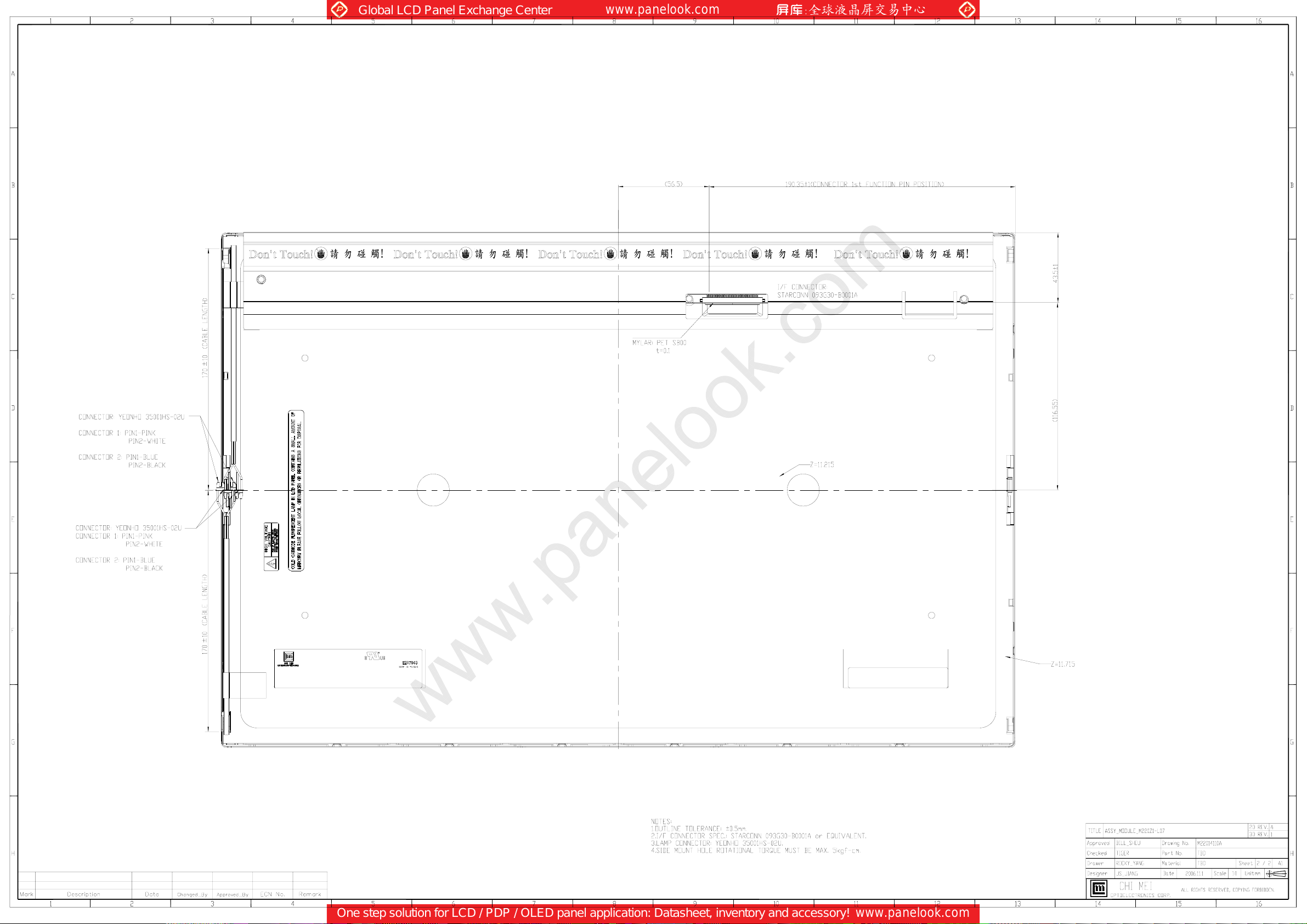

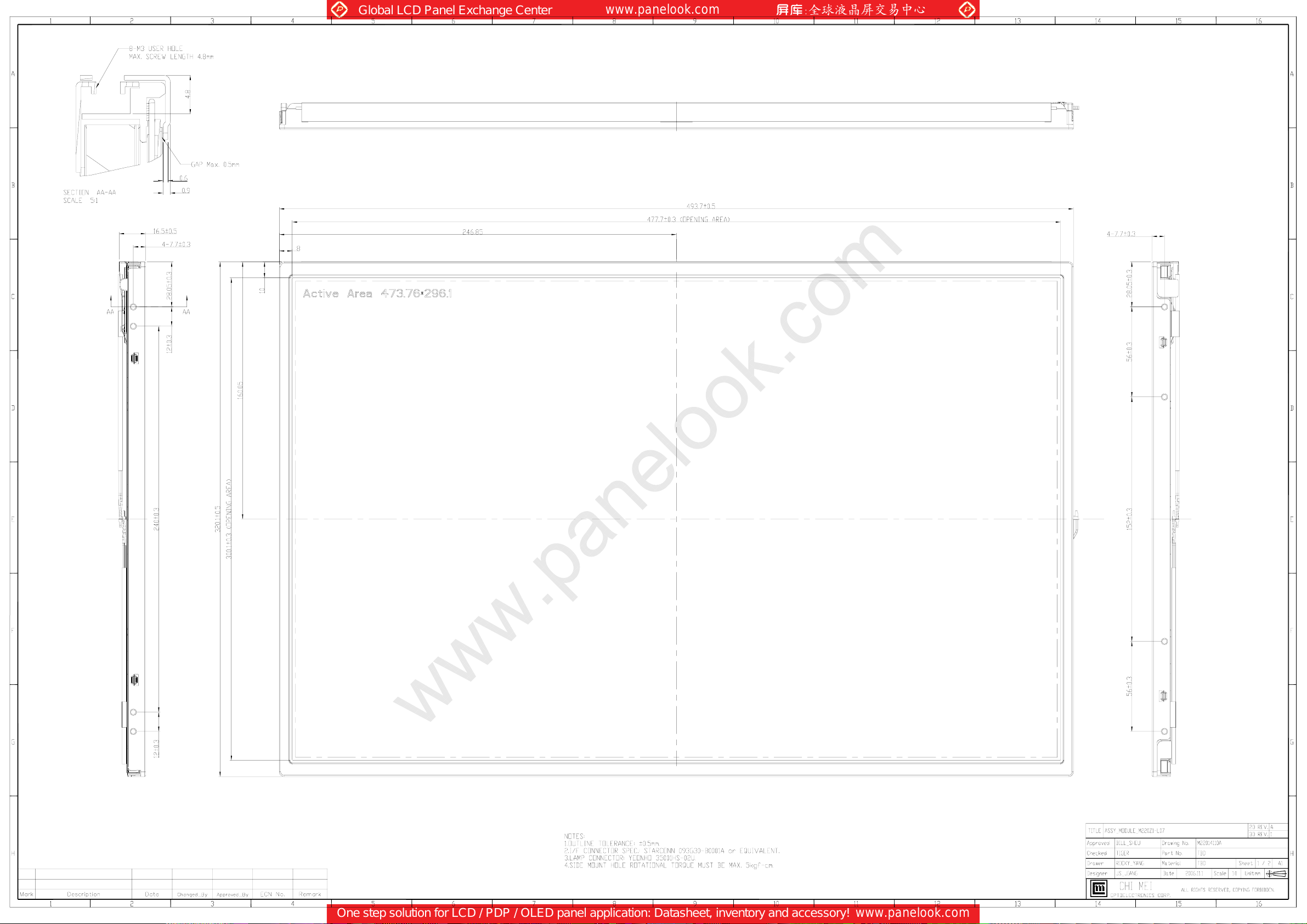

Page 26
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
