CMO M220Z1-L05 Specification

Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com

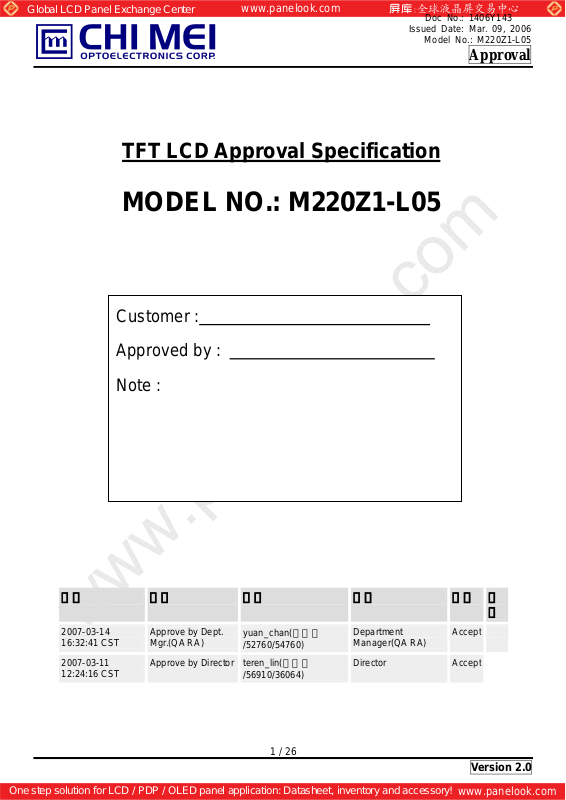

A
TFT LCD Approval Specification
MODEL NO.: M220Z1-L05
Doc No.: 1406Y143
Issued Date: Mar. 09, 2006
Model No.: M220Z1-L05
Approval
Customer :
pproved by :
Note :
記錄 工作 審核 角色 投票 註
2007-03-14 16:32:41 CST
2007-03-11 12:24:16 CST
Approve by Dept. Mgr.(QA RA)
Approve by Director
yuan_chan(趙俊淵 /52760/54760)
teren_lin(林添仁 /56910/36064)
Department Manager(QA RA)
Director Accept
1 / 26
解
Accept
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Doc No.: 1406Y143
Issued Date: Mar. 09, 2006
Model No.: M220Z1-L05
Approval
- CONTENTS -
REVISION HISTORY
1. GENERAL DESCRIPTION
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATI NGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE
3.2 BACKLIGHT UNIT

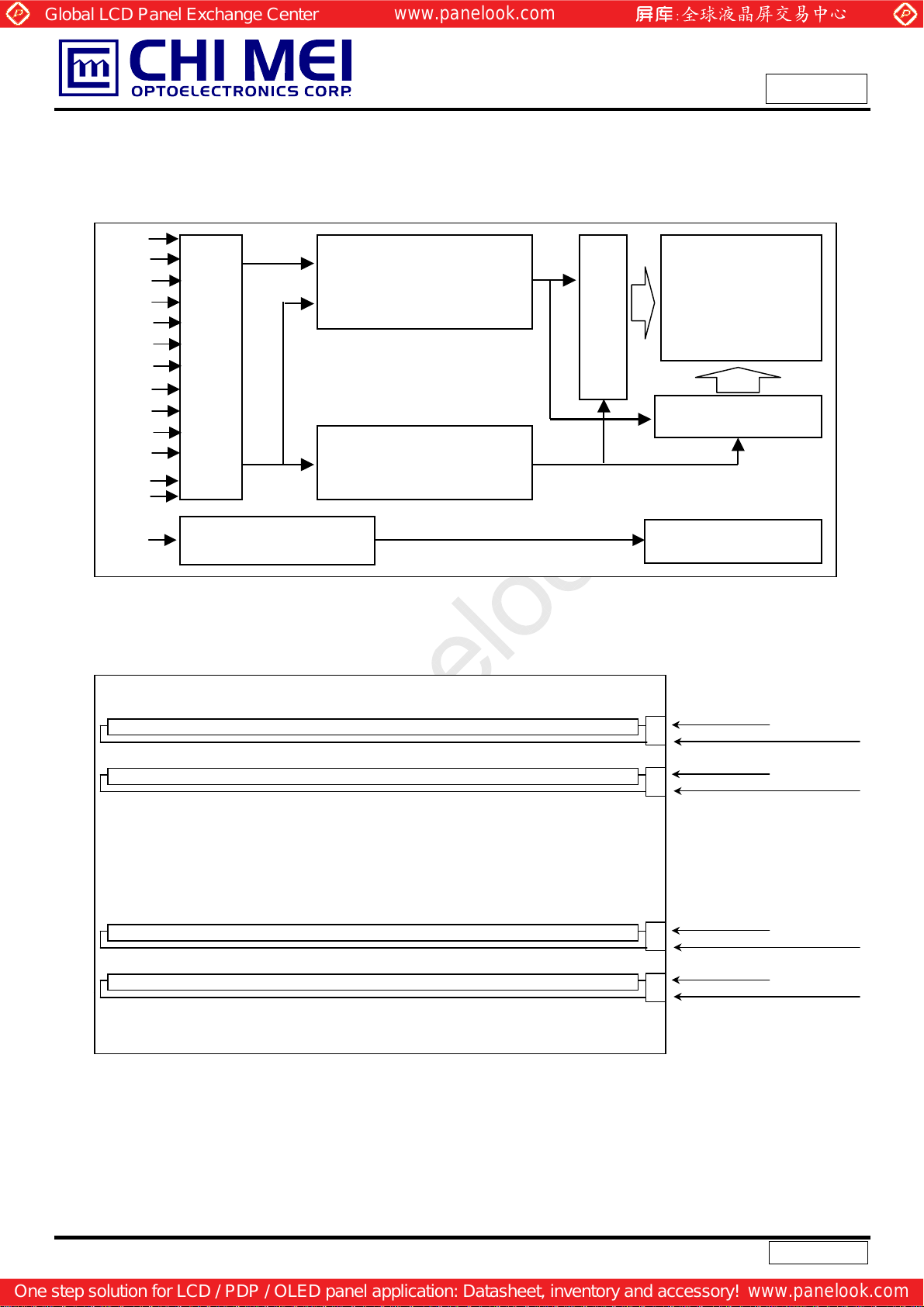

4. BLOCK DIAGRAM
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT
5.1 TFT LCD MODULE
5.2 BACKLIGHT UNIT
5.3 COLOR DATA INPUT ASSIGNMENT
6. INTERFACE TIMING

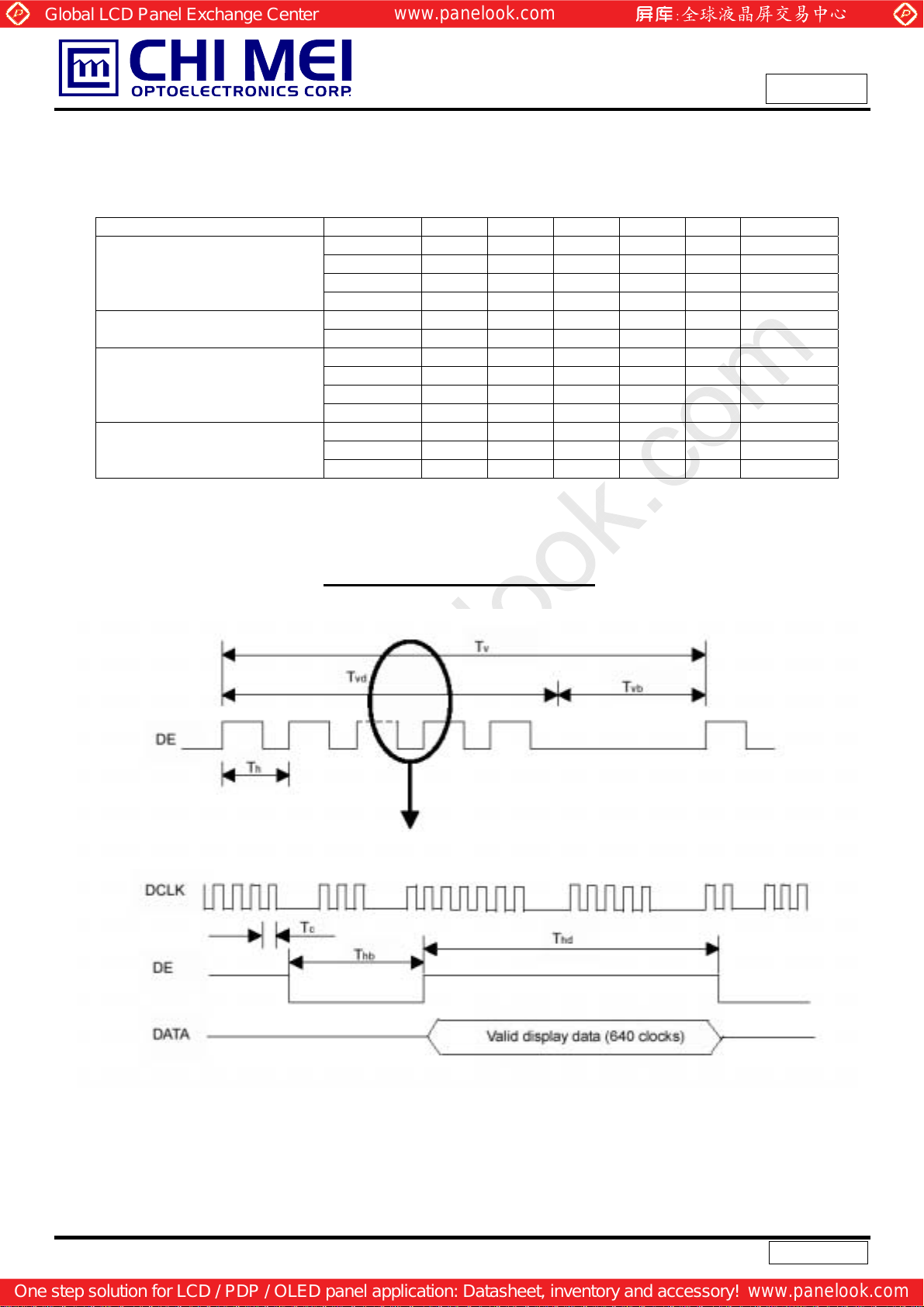

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

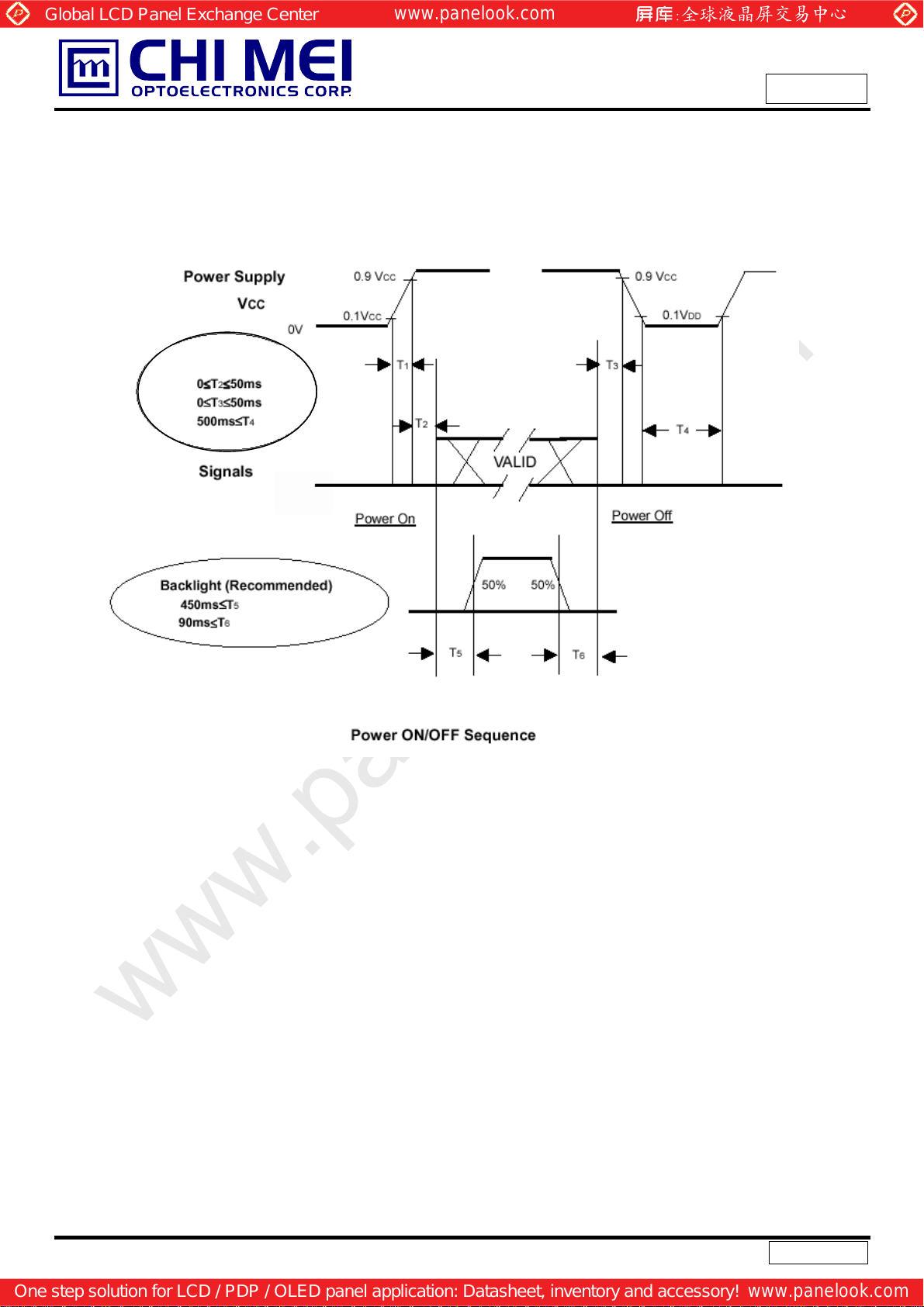

6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS
7.1 TEST CONDITIONS
7.2 OPTICAL SPECIFICATIONS
8. PACKAGING ------------------------------------------------------- 20
8.1 PACKING SPECIFICATIONS
------------------------------------------------------- 3
------------------------------------------------------- 4
------------------------------------------------------- 5
------------------------------------------------------- 7
------------------------------------------------------- 11
------------------------------------------------------- 12
------------------------------------------------------- 15
------------------------------------------------------- 17
8.2 PACKING METHOD
9. DEFINITION OF LABELS
9.1 CMO MODULE LABEL
------------------------------------------------------- 23
10. PRECAUTIONS
10.1 ASSEMBL Y AND HANDLING PRECAUTIONS
10.2 SAFETY PRECAUTIONS
------------------------------------------------------- 24
11. MECHANICAL CHARACTERISTICS
------------------------------------------------------- 25
2 / 26
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Doc No.: 1406Y143
Issued Date: Mar. 09, 2006
Model No.: M220Z1-L05
Approval
REVISION HISTORY
Version Date Section Description
Ver 2.0 Mar, 09 ‘07
All M220Z1-L05 Specifications was first issued。
3 / 26
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
1. GENERAL DESCRIPTION
1.1 OVERVIEW
The M220Z1-L05 model is a 22 inch wide TFT-LCD module with a 4-CCFL Backlight Unit and a 30-pin 2ch-LVDS interface. This module supports 1680 x 1050 WSXGA up to 16.7 millions colors. The inverter module for the Backlight Unit is not built in.
1.2 FEATURES
- Super wide viewing angle
- High contrast ratio
- Fast response time
- High color saturation (EBU Like Specifications)
- WSXGA
+
(1680 x 1050 pixels) resolution
+
Doc No.: 1406Y143
Issued Date: Mar. 09, 2006
Model No.: M220Z1-L05
Approval
(16:10 wide screen) mode and displays
- DE (Data Enable) only mode
- LVDS (Low Voltage Differential Signaling) interface
1.3 APPLICA TION
- Workstation & desktop monitor
- Display terminals for AV application
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note Diagonal size 558.68 mm Active Area 473.76x296.1 mm Bezel Opening Area 477.7 (H) x 300.1 (V) mm Driver Element a-Si TFT active matrix - ­Pixel Number 1680 x R.G.B. x 1050 pixel ­Pixel Pitch 0.282(H) x 0.282(V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 16.7 millions color ­Transmissive Mode Normally White - ­Color saturation 92% NTSC - ­Surface Treat ment Hard coating (3H), AG (Haze 25%) - -
(1)
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 493.2 493.7 494.2 mm
Module Size
I/F connector mounting

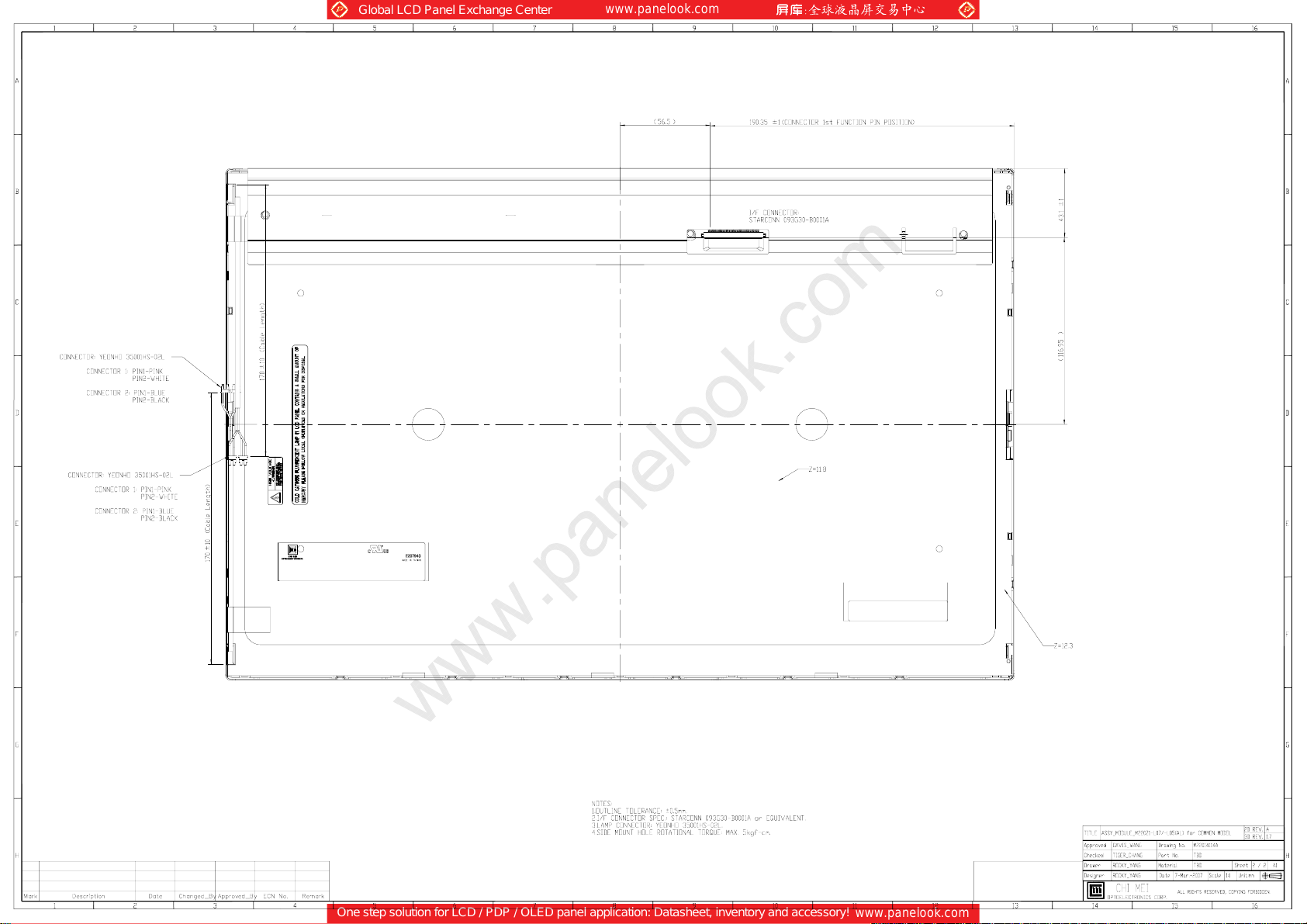

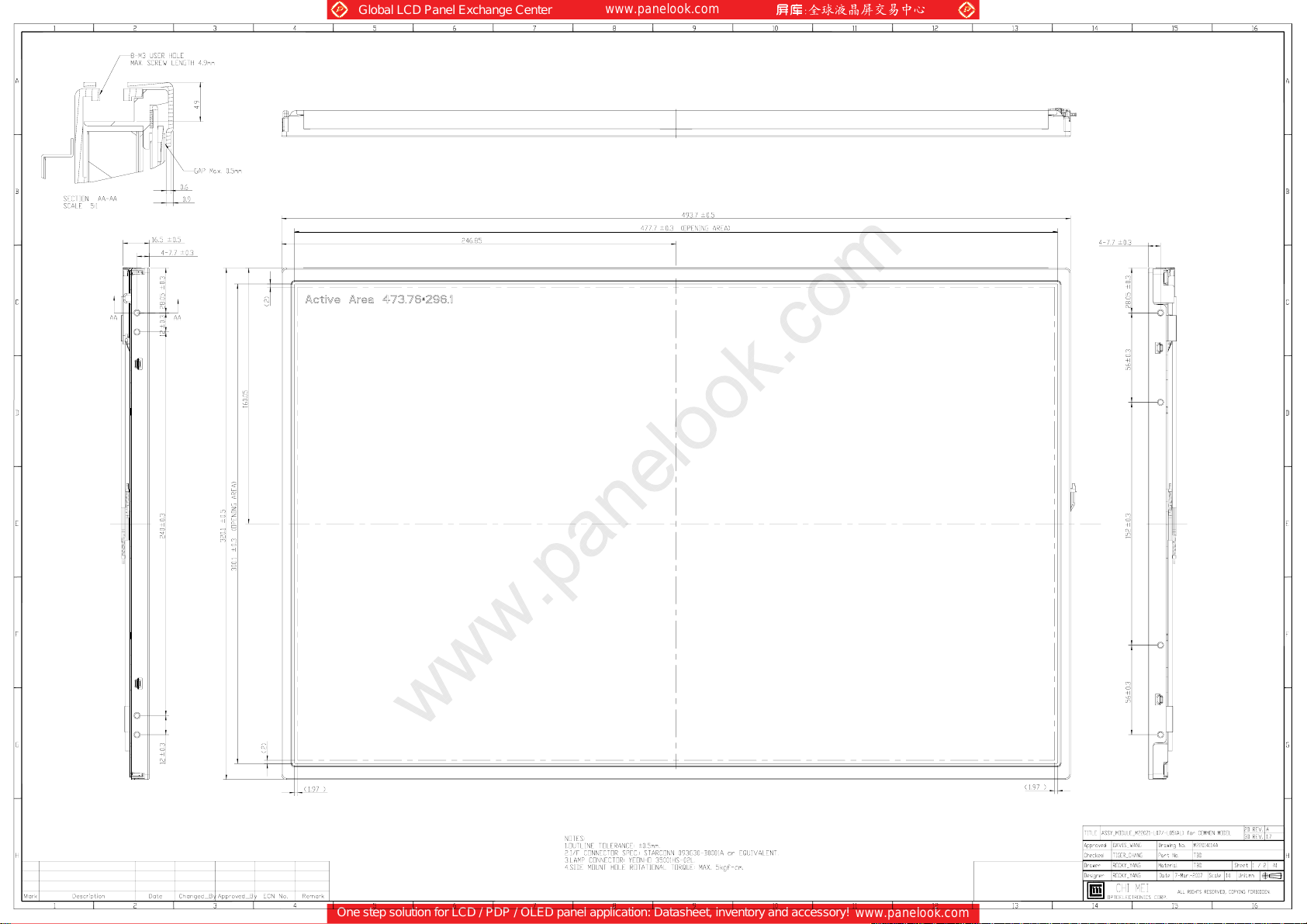

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Vertical(V) 319.6 320.1 320.6 mm Depth(D) 16 16.5 17 mm
Weight 2550 g
position
The mounting inclination of the connector makes
the screen center within ±0.5 mm as the horizontal.
4 / 26
(1)
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Item Symbol
Storage Temperature TST -20 +60 ºC (1) Operating Ambient T emperature TOP 0 +50 ºC (1), (2) Shock (Non-Operating) S Vibration (Non-Operating) V
LCD Cell Life Time L
Note (1) Temperature and relative humidity range is shown in the figure below. (a) 90% RH Max. (Ta ≦ 40 ºC). (b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC). (c) No condensation.
Doc No.: 1406Y143
Issued Date: Mar. 09, 2006
Model No.: M220Z1-L05
Approval
Value
Min. Max.
- 50 G (3), (5)
NOP
- 1 G (4), (5)
NOP
50,000 - Hrs
CELL
Unit Note
MTBF based
Note (2) The temperature of panel surface should be 0 ºC Min. and 60 ºC Max.
Relative Humidit
100
90
80
60
Operating Range
40
20
10
Storage Range
Temperature (ºC)
80 60 -20 400 20-40
Note (3) 11 ms, half-sine wave, 1 time for ± X, ± Y, ± Z. Note (4) 10 ~ 300 Hz, sweep rate 10 min / cycle , 30 min for X,Y,Z axis Note (5) Upon the Vibration and Shock tests, the fixture used to hold the module must be firm and rigid
enough to prevent the module from twisting or bending by the fixture.
5 / 26
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
Item Symbol
Power Supply Voltage Vcc -0.3 +5.5 V Logic Input Voltage VIN -0.3 +4.3 V
2.2.2 BACKLIGHT UNIT
Item Symbol
Lamp Voltage VL - 2.5K V Lamp Current IL 3.0 8.0 mA Lamp Frequency FL 40 80 KHz
Note (1) Permanent damage might occur if the module is operated at conditions exceeding the maximum
values.
Value
Min. Max.
Value
Min. Max.
Unit Note
Unit Note
Doc No.: 1406Y143
Issued Date: Mar. 09, 2006
Model No.: M220Z1-L05
Approval
(1)
(1), (2), IL = 7.0 mA
RMS
RMS
(1), (2)
Note (2) Specified values are for lam p (Refer to 3.2 for further information).
6 / 26
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Doc No.: 1406Y143
Issued Date: Mar. 09, 2006
Model No.: M220Z1-L05
3. ELECTRICAL CHARACTERISTICS
3.1.1 TFT LCD MODULE Ta = 25 ± 2 ºC
Parameter Symbol
Min. Typ. Max. Power Supply Voltage Vcc 4.5 5.0 5.5 V ­Ripple Voltage VRP - -- 250 mV ­Rush Current I
- -- 3 A (2)
RUSH
White - 630 819 mA (3)a
Power Supply Current
Black - 1170 1521 mA (3)b
= 75Hz,
f
V
Vcc=4.5V
lcc
- 1330 1729 mA (4)
LVDS differential input voltage Vid 200 - 600 mV LVDS common input voltage Vic -- 1.2 -- V
Above all conditions are VDD=5.0V, all black pattern at 75HZ. Note (1) The module is recommended to operate within specification ranges listed above for normal
function.
Value
Unit Note
Approval
Note (2) Measurement Conditions:
+5.0V
R1
47K
(High to Low)
(Control Signal)
SW
+12V
C1
1uF
VR1
R2
1K
47K
Q1 2SK1475
C2
0.01uF
Q2
2SK1470
FUSE
C3 1uF
Vcc
(LCD Module Input)
Vcc rising time is 470µs
+5.0V
0.9Vcc
0.1Vcc
GND
470µs
7 / 26
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Doc No.: 1406Y143
Issued Date: Mar. 09, 2006
Model No.: M220Z1-L05
Approval
Note (3) The specified power supply current is under the conditions at Vcc = 5.0 V, Ta = 25 ± 2 ºC, f
Hz, whereas a power dissipation check pattern belo w is displayed.
Note (4) The specified power supply current is under the conditions at Vcc = 4.5 V, Ta = 25 ± 2 ºC, f
a. White Pattern
Active Area
Hz, whereas a power dissipation check p attern (Black Pattern ) below is displayed.
Black Pattern
b. Black Pattern
Active Area
= 60
v
= 75
v
Active Area
3.1.2 Vcc Power Dip Condition:
Dip condition:
Td
msTdVVccV 20,5.40.4 ≤≤≤
Vcc
4.5V
4.0V
8 / 26
