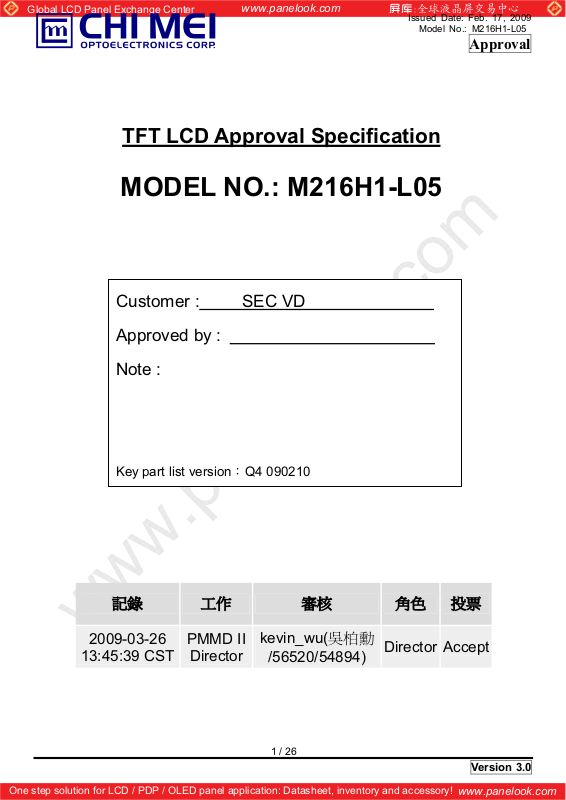

TFT LCD Approval Specification

MODEL NO.: M216H1-L05

www.panelook.com

Issued Date: Feb. 17, 2009

Model No.: M216H1-L05

Approval

Customer : SEC VD

Approved by :

Note :

Key part list versionΚQ4 090210



2009-03-26

13:45:39 CST

PMMD II

Director

kevin_wu(ܦᕬ

Director Accept

/56520/54894)

1 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!



www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Feb. 17, 2009

Model No.: M216H1-L05

Approval

- CONTENTS -

REVISION HISTORY

1. GENERAL DESCRIPTION

1.1 OVERVIEW

1.2 FEATURES

1.3 APPLICATION

1.4 GENERAL SPECIFICATIONS

1.5 MECHANICAL SPECIFICATIONS

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

2.2.2 BACKLIGHT UNIT

3. ELECTRICAL CHARACTERISTICS

3.1 .1 TFT LCD MODULE

3.1. 2 Vcc POWER DIP CONDITION

3.2 BACKLIGHT UNIT

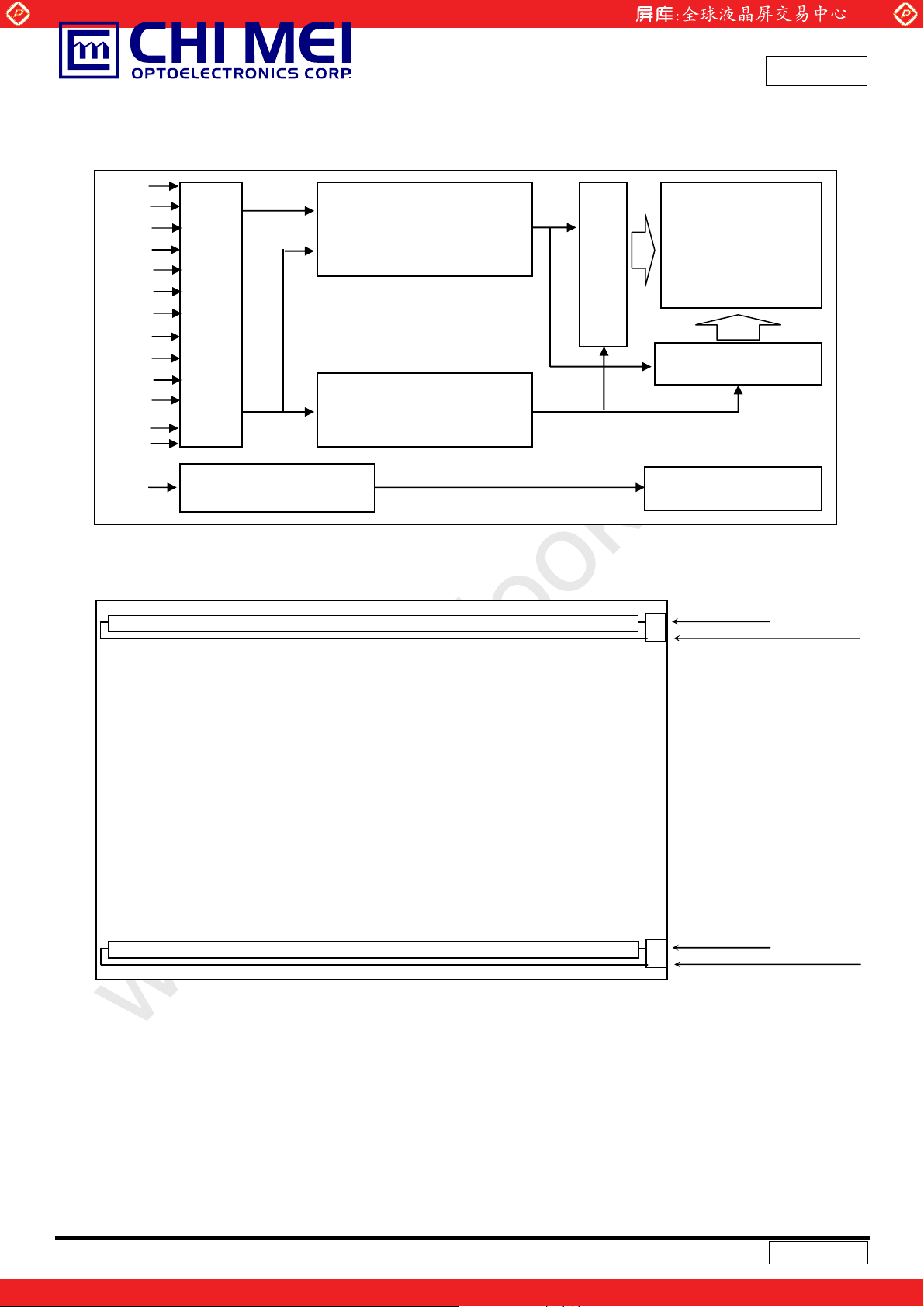

4. BLOCK DIAGRAM

4.1 TFT LCD MODULE

4.2 BACKLIGHT UNIT

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD MODULE

5.2 LVDS DATA MAPPING TABLE

5.3 BACKLIGHT UNIT

5.4 COLOR DATA INPUT ASSIGNMENT

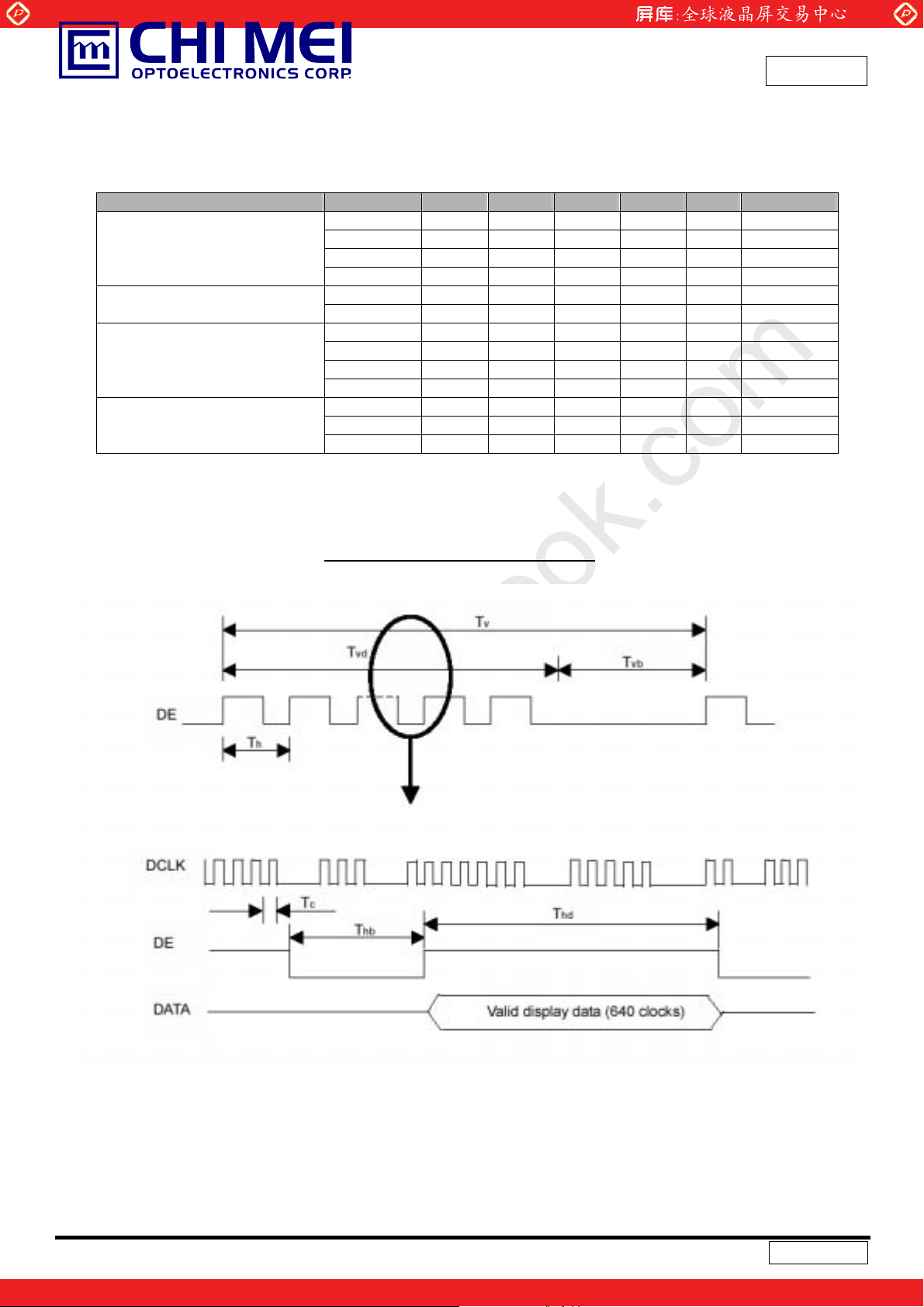

6. INTERFACE TIMING

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

6.2 POWER ON/OFF SEQUENCE

7. OPTICAL CHARACTERISTICS

7.1 TEST CONDITIONS

7.2 OPTICAL SPECIFICATIONS

8. PACKAGING ------------------------------------------------------- 20

8.1 PACKING SPECIFICATIONS

------------------------------------------------------- 3

------------------------------------------------------- 4

------------------------------------------------------- 5

------------------------------------------------------- 7

------------------------------------------------------- 11

------------------------------------------------------- 12

------------------------------------------------------- 15

------------------------------------------------------- 17

8.2 PACKING METHOD

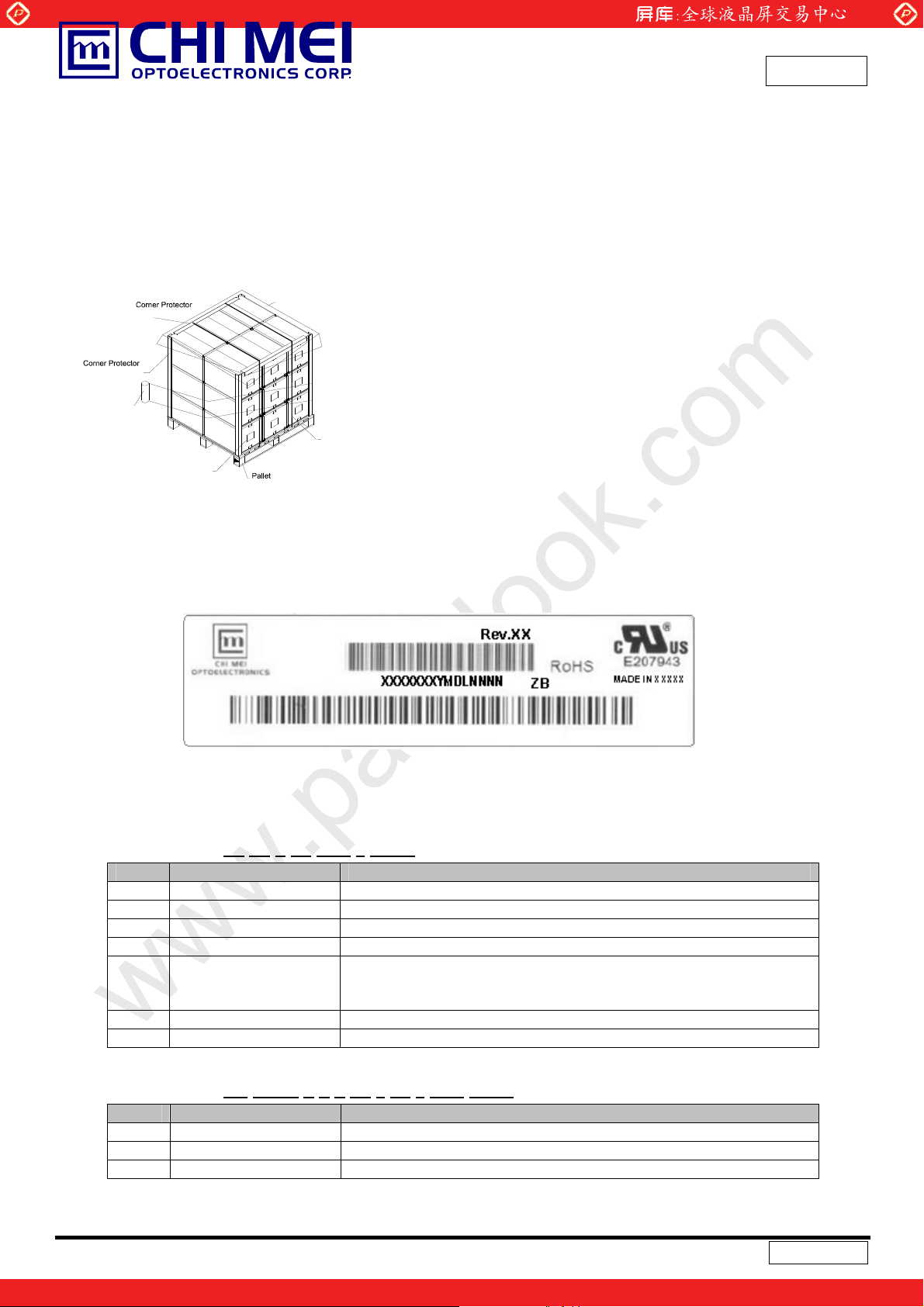

9. DEFINITION OF LABELS

9.1 CMO MODULE LABEL

------------------------------------------------------- 22

10. PRECAUTIONS

10.1 ASSEMBLY AND HANDLING PRECAUTIONS

10.2 SAFETY PRECAUTIONS

10.3 SAFETY STANDARDS

10.4 OTHERS

------------------------------------------------------- 23

11. MECHANICAL CHARACTERISTICS

------------------------------------------------------- 24

2 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

REVISION HISTORY

Version Date Section Description

Issued Date: Feb. 17, 2009

Model No.: M216H1-L05

Approval

Ver 3.0 Feb, 17‘ 09

All M216H1-L05 Specifications was first issuedΖ

3 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

1. GENERAL DESCRIPTION

1.1 OVERVIEW

The M216H1-L05 model is a 21.6 inch wide TFT-LCD module with a 2-CCFL Backlight Unit and a 30-pin 2ch-LVDS interface. This module supports 1920 x 1080 Full HD (16:9 wide screen) mode and displays up to 16.7 millions colors. The inverter module for the Backlight Unit is not built in.

1.2 FEATURES

- Super wide viewing angle

- High contrast ratio

- Fast response time

- Low power consumption

- High color saturation (EBU Like Specifications)

- FULL HD(1920 x 1080 pixels) resolution

www.panelook.com

Issued Date: Feb. 17, 2009

Model No.: M216H1-L05

Approval

- DE (Data Enable) only mode

- LVDS (Low Voltage Differential Signaling) interface

- RoHS compliance.

1.3 APPLICATION

- Workstation & desktop monitor

- Display terminals for AV application

1.4 GENERAL SPECIFICATI0NS

Item Specification Unit Note Diagonal size 547.863 mm Active Area 477.504 x 268.596 mm Bezel Opening Area 481.5 (H) x 272.6 (V) mm Driver Element a-Si TFT active matrix - Pixel Number 1920 x R.G.B. x 1080 pixel Pixel Pitch 0.248(H) x 0.248(V) mm Pixel Arrangement RGB vertical stripe - Display Colors 16.7 millions color Transmissive Mode Normally White - Surface Treatment Hard coating (3H), Glare (R 4~5%) - Module Power Consumption 18.05 Watt (2)

(1)

1.5 MECHANICAL SPECIFICATIONS

Item Min. Typ. Max. Unit Note

Horizontal(H) 499 499.5 500 mm

Module Size

I/F connector mounting

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions. Note (2) Please refer to sec. 3.1 & 3.2 in this document for more information of power consumption

Vertical(V) 292.1 292.6 293.1 mm Depth(D) 12.5 13 13.5 mm

Weight -- 1980 2030 g

position

The mounting inclination of the connector makes

the screen center within ±0.5 mm as the horizontal.

4 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

(1)

www.panelook.com

Global LCD Panel Exchange Center



A

2. ABSOLUTE MAXIMUM RATINGS

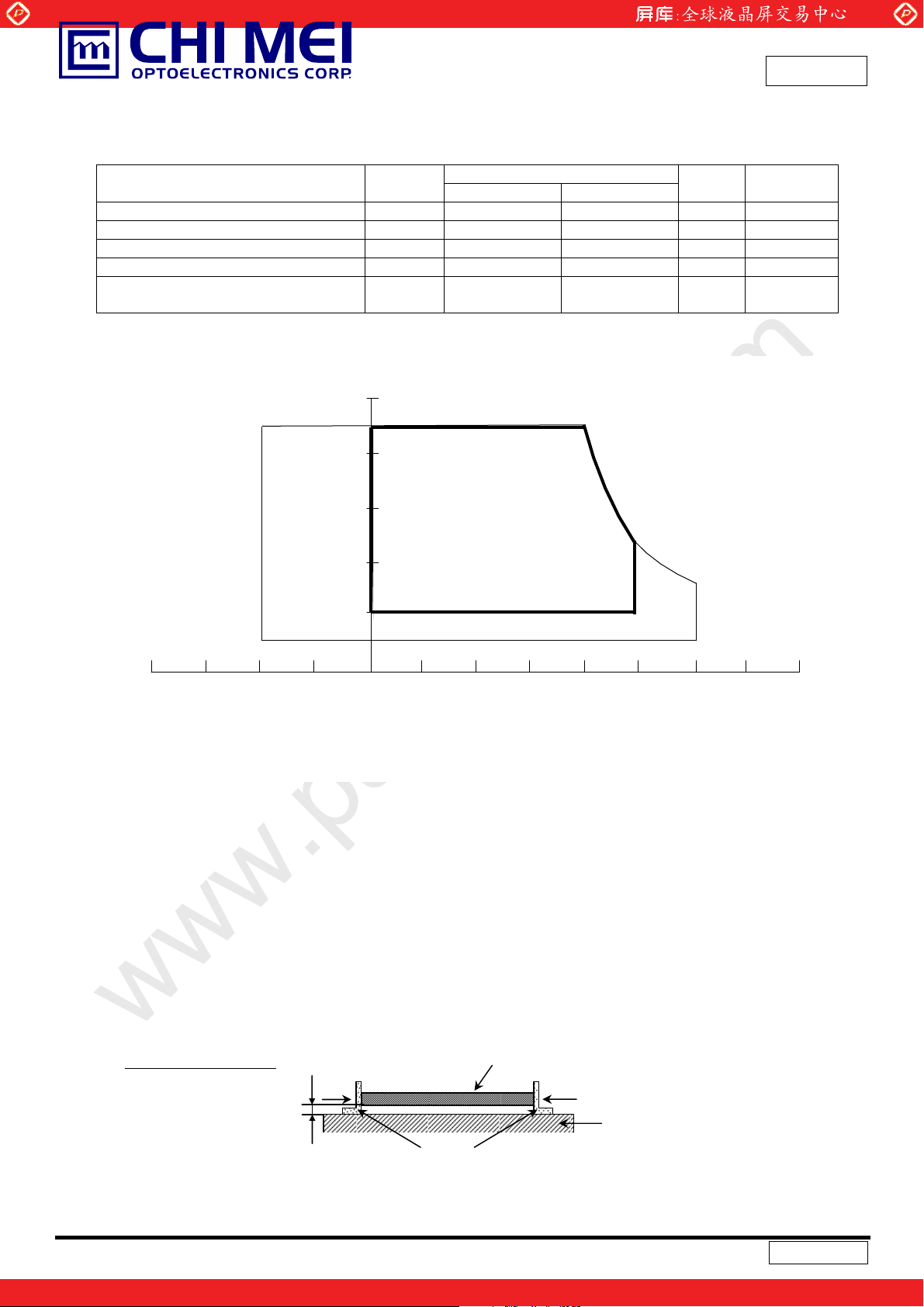

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

Item Symbol

Storage Temperature TST -20 +60 ºC (1) Operating Ambient Temperature TOP 0 +50 ºC (1), (2) Shock (Non-Operating) S Vibration (Non-Operating) V

LCD Cell Life Time L

Relative Humidity (%RH)

100

90

80

www.panelook.com

Issued Date: Feb. 17, 2009

Model No.: M216H1-L05

Approval

Value

Min. Max.

- 50 G (3), (5)

NOP

- 1.5 G (4), (5)

NOP

50,000 - Hrs

CELL

Unit Note

MTBF based

60

Operating Range

40

20

10

Storage Range

-20 40 0 20 -40

Temperature (

Note (1) Temperature and relative humidity range is shown in the figure below.

(a) 90% RH Max. (Ta 40 ºC).Љ (b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC). (c) No condensation. Note (2) The temperature of panel surface should be 0 ºC Min. and 60 ºC Max. Note (3) 50G,11 ms, half-sine wave, 1 time for ± X, ± Y, ± Z.

C)

60

80

Note (4) 10 ~ 300 Hz, sweep rate 10 min / cycle , 30 min for X,Y,Z axis Note (5) Upon the Vibration and Shock tests, the fixture used to hold the module must be firm and rigid

enough to prevent the module from twisting or bending by the fixture.

t Room Temperature

Side Mount Fixing Screw

Gap=3~5mm

Bracket

LCD Module

Side Mount Fixing Screw

Stage

5 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

Item Symbol

Power Supply Voltage Vcc -0.3 +6 V (1)

2.2.2 BACKLIGHT UNIT

Item Symbol

Lamp Voltage VL - 2500 V Lamp Current IL 3.0 8.0 mA Lamp Frequency FL 40 80 KHz (1), (2)

Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function

operation should be restricted to the conditions described under Normal Operating Conditions.

Note (2) Specified values are for lamp (Refer to 3.2 for further information).

www.panelook.com

Value

Min. Max.

Value

Min. Max.

Issued Date: Feb. 17, 2009

Model No.: M216H1-L05

Unit Note

(1), (2), IL = 7.5 mA

RMS

(1), (2)

Approval

6 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Feb. 17, 2009

Model No.: M216H1-L05

Approval

3. ELECTRICAL CHARACTERISTICS

3.1.1 TFT LCD MODULE Ta = 25 ± 2 ºC

Parameter Symbol

Min. Typ. Max. Power Supply Voltage Vcc 4.5 5.0 5.5 V Ripple Voltage VRP - -- 100 mV Rush Current I

- -- 3 A (2)

RUSH

White - 630 820 mA (3)a

Power Supply Current

Black - 1010 1450 mA (3)b Vertical Stripe

lcc

- 1030 1500 mA (3)c Power consumption (without Backlight Unit) Plcd 5.15 7.5 Watt (4) LVDS differential input voltage Vid 100 - 600 mV LVDS common input voltage Vic -- 1.2 -- V

Note (1) The module should be always operated within above ranges. Note (2) Measurement Conditions:

Value

Unit Note

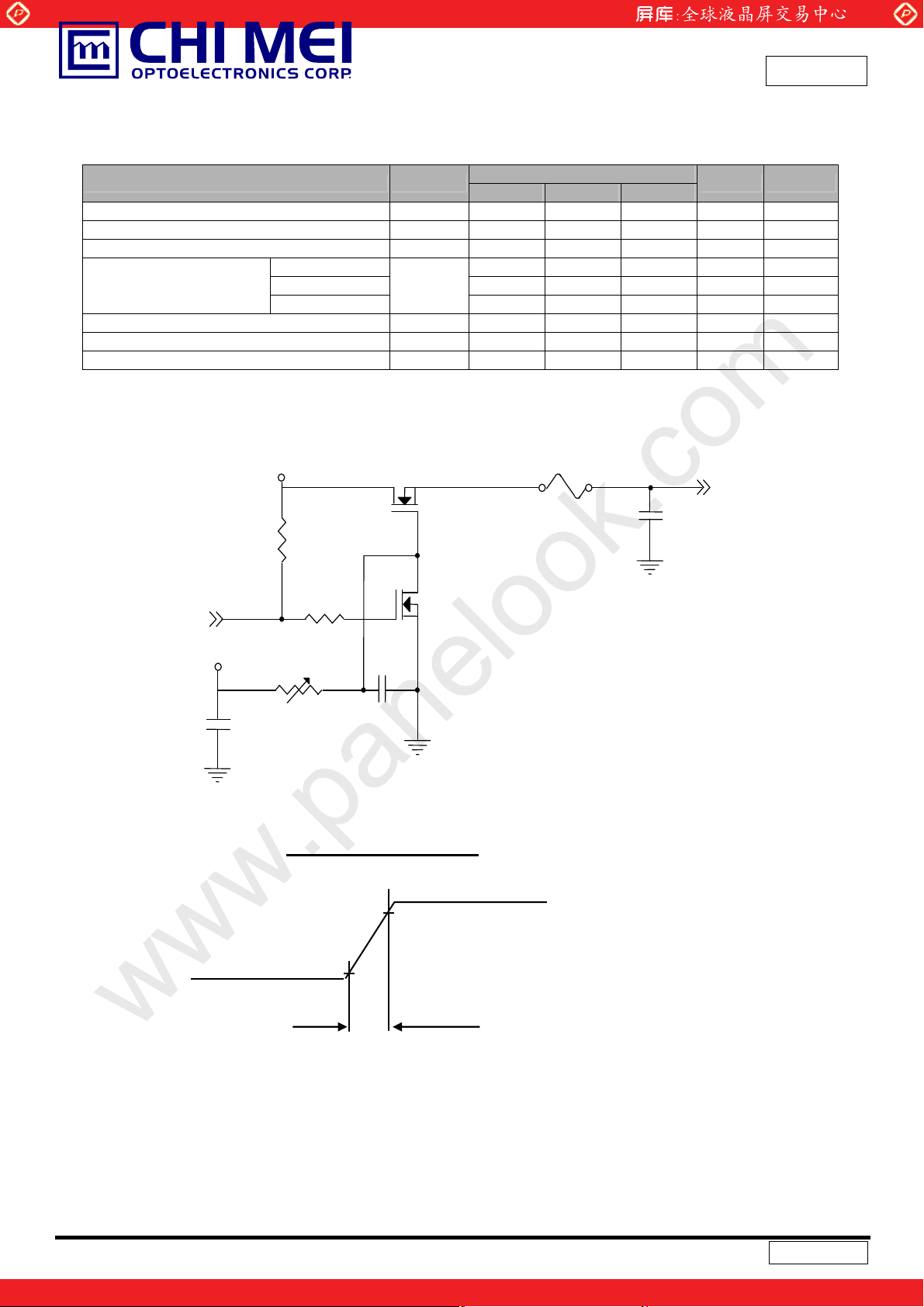

+5.0V

R1

47K

Q1 2SK1475

FUSE

C3

1uF

Vcc

(LCD Module Input)

(High to Low)

(Control Signal)

SW

+12V

C1

1uF

VR1

R2

1K

47K

0.01uF

Q2

2SK1470

C2

Vcc rising time is 470μs

Vcc

0.9Vcc

0.1Vcc

GND

470μs

7 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

≤≤≤

Note (3) The specified power supply current is under the conditions at Vcc = 5.0 V, Ta = 25 ± 2 ºC, fv = 60

Hz, whereas a power dissipation check pattern below is displayed.

www.panelook.com

Issued Date: Feb. 17, 2009

Model No.: M216H1-L05

Approval

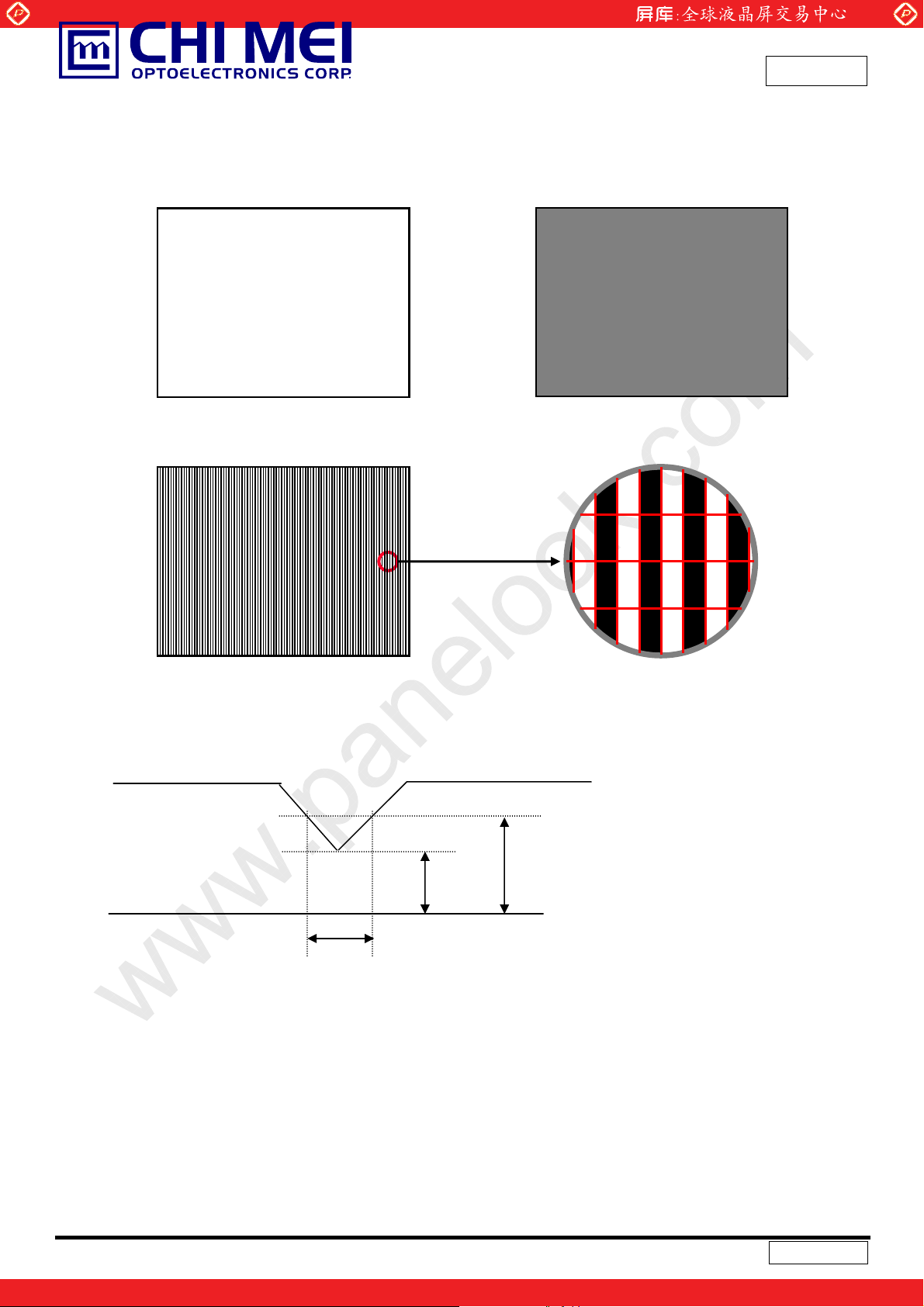

a. White Pattern

Active Area

c. Vertical Stripe Pattern

b. Black Pattern

Active Area

R

G

R

B

G

R

B

G

R R

G

B

R

G

B

R

Note (4)The power consumption is specified at the pattern with the maximum current

3.1.2 Vcc Power Dip Condition:

Active Area

Vcc

4.5V

Dip condition:

Td

msTdVVccV 20,5.40.4

4.0V

8 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

3.2 BACKLIGHT UNIT

Parameter Symbol Lamp Input Voltage VL 774 860 946 V

Lamp Current IL 3 7.5 8 mA Lamp Turn On Voltage VS Operating Frequency FL 40 55 80 KHz (3)

Lamp Life Time LBL 40000 50000 - Hrs (5) IL = 7.5 mA Power Consumption PL - 12.9 - W (4), IL =7.5 mA

Note (1) Lamp current is measured by utilizing high-frequency current meters as shown below:

www.panelook.com

Value

Min. Typ. Max.

- - 1370(25°C) V

- - 1770(0°C) V

Issued Date: Feb. 17, 2009

Model No.: M216H1-L05

Approval

Unit Note

I

RMS

(2)

RMS

(2)

RMS

= 7.5 mA

L

(1)

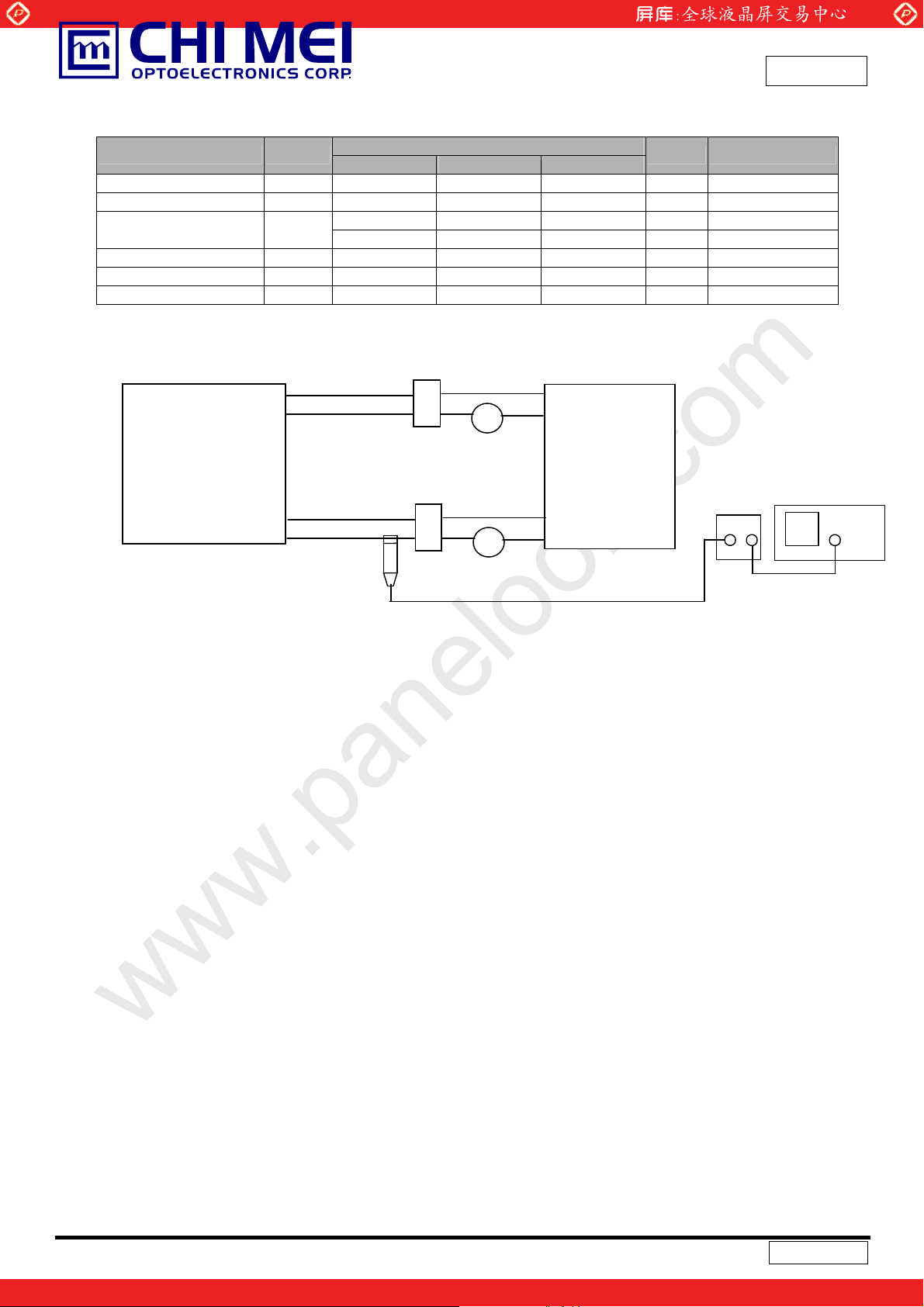

LCD Module

HV+ (Pink) LV (White)

HV- (Pink) LV (White)

Current Probe

1 2

A

Inverter

Current Amplify

1

2

A

Measure equipment: Current Amplify: TektronixTCPA300 Current probe: Tektronix TCP312 Oscilloscope: TDS3054B

Note (2) The voltage that must be larger than Vs should be applied to the lamp for more than 1 second

after startup. Otherwise, the lamp may not be turned on normally. It is the value output voltage of NF circuit.

Note (3) The lamp frequency may produce interference with horizontal synchronization frequency from the

Oscilloscope

display, which might cause line flow on the display. In order to avoid interference, the lamp frequency should be detached from the horizontal synchronization frequency and its harmonics as far as possible.

Note (4) P

= IL ×VL X 2CCFLs

L

Note (5) The lifetime of lamp can be defined as the time in which it continues to operate under the

condition Ta = 25 ±2

o

C and IL = 7.5 mA until one of the following events occurs: (a) When the brightness becomes Љ 50% of its original value. (b) When the effective ignition length becomes Љ 80% of its original value.

(The effective ignition length is a scope that luminance is over 80% of that at the center point.)

Note (6) The waveform of the voltage output of inverter must be area-symmetric and the design of the

inverter must have specifications for the modularized lamp. The performance of the Backlight, such as lifetime or brightness, is greatly influenced by the characteristics of the DC-AC inverter for the lamp. All the parameters of an inverter should be carefully designed to avoid producing too

9 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

much current leakage from high voltage output of the inverter. When designing or ordering the inverter please make sure that a poor lighting caused by the mismatch of the Backlight and the inverter (miss-lighting, flicker, etc.) never occurs. If the above situation is confirmed, the module should be operated in the same manners when it is installed in your instrument.

The output of the inverter must have symmetrical (negative and positive) voltage waveform and symmetrical current waveform.(Unsymmetrical ratio is less than 10%) Please do not use the inverter which has unsymmetrical voltage and unsymmetrical current and spike wave. Lamp frequency may produce interface with horizontal synchronous frequency and as a result this may cause beat on the display. Therefore lamp frequency shall be as away possible from the horizontal synchronous frequency and from its harmonics in order to prevent interference.

Requirements for a system inverter design, which is intended to have a better display performance, a

www.panelook.com

Issued Date: Feb. 17, 2009

Model No.: M216H1-L05

Approval

better power efficiency and a more reliable lamp. It shall help increase the lamp lifetime and reduce its leakage current.

a. The asymmetry rate of the inverter waveform should be 10% below; b. The distortion rate of the waveform should be within 2 ± 10%; c. The ideal sine wave form shall be symmetric in positive and negative polarities.

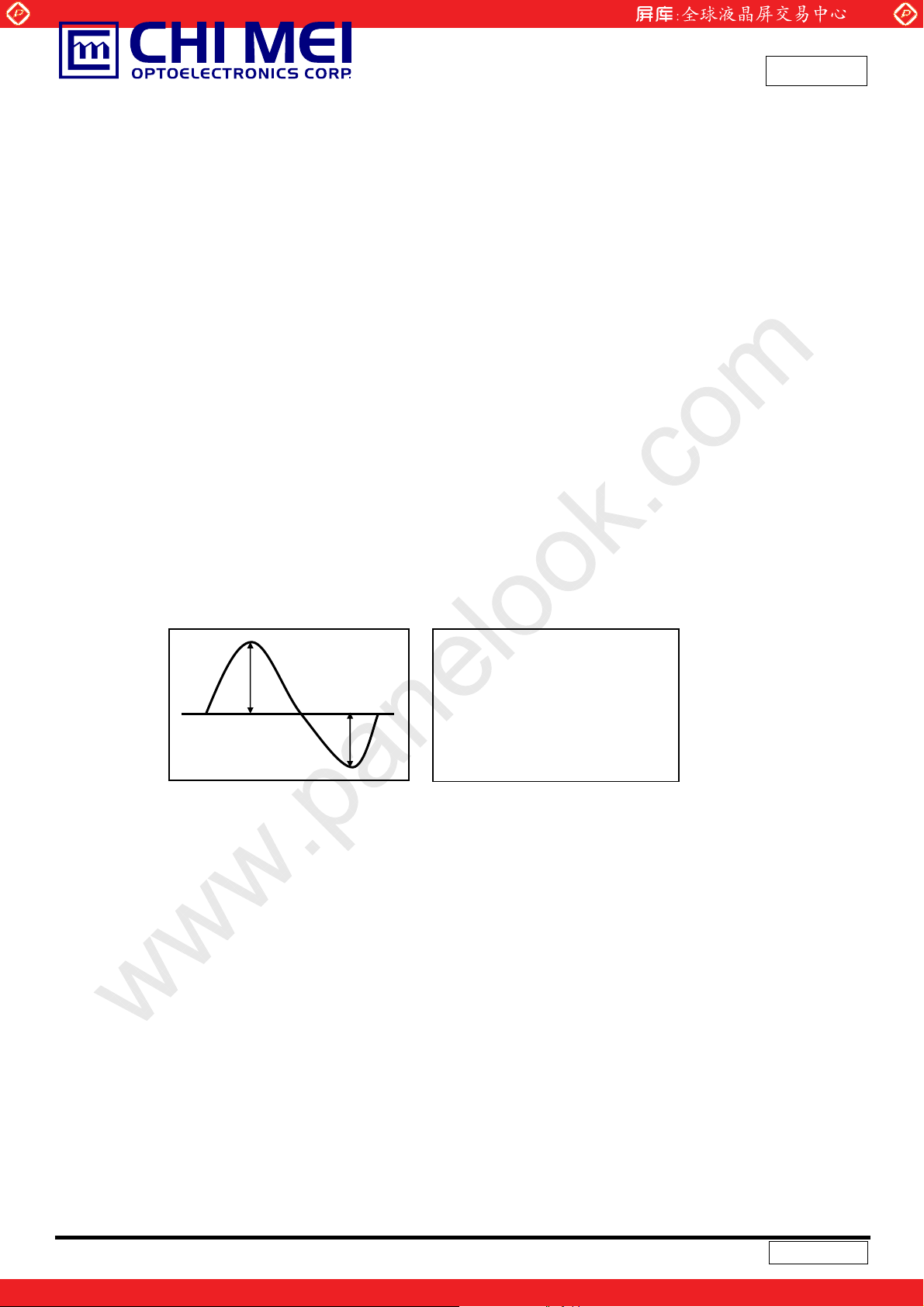

* Asymmetry rate:

I p

I -p

| I

* Distortion rate I

– I –p | / I

p

(or I –p) / I

p

rms

* 100%

10 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

4. BLOCK DIAGRAM

4.1 TFT LCD MODULE

RXO0(+/-)

RXO1(+/-)

RXO2(+/-)

RXO3(+/-)

RXOC(+/-)

RXE0(+/-)

RXE1(+/-)

RXE2(+/-)

RXE3(+/-)

RXEC(+/-)

AGMODE

Vcc

GND

INPUT CONNECTOR

(093G30-B0001A)

www.panelook.com

LVDS INPUT /

TIMING CONTROLLER

DC/DC CONVERTER &

REFERENCE VOLTAGE

Issued Date: Feb. 17, 2009

Model No.: M216H1-L05

Approval

SCAN DRIVER IC

TFT LCD PANEL

(1920x3x1080)

DATA DRIVER IC

VL

LAMP CONNECTOR

4.2 BACKLIGHT UNIT

(YEONHO 35001HS-02L)

BACKLIGHT UNIT

1 HV(Pink)

2 LV(White)

1 HV(Pink)

11 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

2 LV(White)

www.panelook.com

Global LCD Panel Exchange Center

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD MODULE

Pin Name Description

1 RXO0- Negative LVDS differential data input. Channel O0 (odd) 2 RXO0+ Positive LVDS differential data input. Channel O0 (odd) 3 RXO1- Negative LVDS differential data input. Channel O1 (odd) 4 RXO1+ Positive LVDS differential data input. Channel O1 (odd) 5 RXO2- Negative LVDS differential data input. Channel O2 (odd) 6 RXO2+ Positive LVDS differential data input. Channel O2 (odd) 7 GND Ground 8 RXOC- Negative LVDS differential clock input. (odd)

9 RXOC+ Positive LVDS differential clock input. (odd) 10 RXO3- Negative LVDS differential data input. Channel O3(odd) 11 RXO3+ Positive LVDS differential data input. Channel O3 (odd) 12 RXE0- Negative LVDS differential data input. Channel E0 (even) 13 RXE0+ Positive LVDS differential data input. Channel E0 (even) 14 GND Ground 15 RXE1- Negative LVDS differential data input. Channel E1 (even) 16 RXE1+ Positive LVDS differential data input. Channel E1 (even) 17 GND Ground 18 RXE2- Negative LVDS differential data input. Channel E2 (even) 19 RXE2+ Positive LVDS differential data input. Channel E2 (even) 20 RXEC- Negative LVDS differential clock input. (even) 21 RXEC+ Positive LVDS differential clock input. (even) 22 RXE3- Negative LVDS differential data input. Channel E3 (even) 23 RXE3+ Positive LVDS differential data input. Channel E3 (even) 24 GND Ground 25 NC Not connection, this pin should be open. 26 NC Not connection, this pin should be open. 27 AGMODE AGMODE should be tied to ground or open. 28 VCC +5.0V power supply 29 VCC +5.0V power supply 30 VCC +5.0V power supply

Note (1) Connector Part No.: 093G30-B0001A(STARCONN) or EQUIVALENT.

www.panelook.com

Issued Date: Feb. 17, 2009

Model No.: M216H1-L05

Approval

Note (2) The first pixel is odd. Note (3) Input signal of even and odd clock should be the same timing.

12 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

5.2 LVDS DATA MAPPING TABLE

LVDS Channel O0

LVDS Channel O1

LVDS Channel O2

LVDS Channel O3

LVDS Channel E0

LVDS Channel E1

LVDS Channel E2

LVDS Channel E3

LVDS output D7 D6 D4 D3 D2 D1 D0 Data order OG0 OR5 OR4 OR3 OR2 OR1 OR0 LVDS output D18 D15 D14 D13 D12 D9 D8 Data order OB1 OB0 OG5 OG4 OG3 OG2 OG1 LVDS output D26 D25 D24 D22 D21 D20 D19 Data order DE NA NA OB5 OB4 OB3 OB2 LVDS output D23 D17 D16 D11 D10 D5 D27 Data order NA OB7 OB6 OG7 OG6 OR7 OR6 LVDS output D7 D6 D4 D3 D2 D1 D0 Data order EG0 ER5 ER4 ER3 ER2 ER1 ER0 LVDS output D18 D15 D14 D13 D12 D9 D8 Data order EB1 EB0 EG5 EG4 EG3 EG2 EG1 LVDS output D26 D25 D24 D22 D21 D20 D19 Data order DE NA NA EB5 EB4 EB3 EB2 LVDS output D23 D17 D16 D11 D10 D5 D27 Data order NA EB7 EB6 EG7 EG6 ER7 ER6

www.panelook.com

Issued Date: Feb. 17, 2009

Model No.: M216H1-L05

Approval

5.3 BACKLIGHT UNIT

Pin Symbol Description Remark

1 HV High Voltage Pink 2 LV Low Voltage White 1 HV High Voltage Pink 2 LV Low Voltage White

Note (1) Connector Part No.: YEONHO 35001HS-02L or equivalent

Note (2) User’s connector Part No.: YEONHO 35001WR-02L or equivalent

13 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

5.4 COLOR DATA INPUT ASSIGNMENT

The brightness of each primary color (red, green and blue) is based on the 8-bit gray scale data input for the color. The higher the binary input, the brighter the color. The table below provides the assignment of color versus data input.

Color

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0

Basic Colors

Gray Scale Of Red

Black Red Green Blue Cyan Magenta Yellow White Red(0) / Dark Red(1) Red(2)

:

: Red(253) Red(254) Red(255)

0

1

0

1

0

:

1

www.panelook.com

Issued Date: Feb. 17, 2009

Model No.: M216H1-L05

Data Signal

Red Green Blue

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

1

0

:

1

0

1

0

1

0

1

0

Approval

0

1

0

1

0

:

0

1

0

1

0

:

0

Green(0) / Dark

Gray Scale Of Green

Gray Scale Of Blue

Note (1) 0: Low Level Voltage, 1: High Level Voltage

Green(1) Green(2)

:

: Green(253) Green(254) Green(255) Blue(0) / Dark Blue(1) Blue(2)

:

: Blue(253) Blue(254) Blue(255)

0

:

0

:

0

1

0

1

0

:

0

1

0

1

0

1

0

1

0

1

0

1

0

:

0

1

0

1

0

1

0

1

14 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

6. INTERFACE TIMING

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

The input signal timing specifications are shown as the following table and timing diagram.

Signal Item Symbol Min. Typ. Max. Unit Note

Frequency Fc 58.54 74.25 98 MHz -

LVDS Clock

LVDS Data

Vertical Active Display Term

Horizontal Active Display Term

NoteΚ(1) Because this module is operated by DE only mode, Hsync and Vsync input signals should be

Period Tc - 13.47 - ns High Time Tch - 4/7 - Tc Low Time Tcl - 3/7 - Tc Setup Time Tlvs 600 - - ps Hold Time Tlvh 600 - - ps Frame Rate Fr 50 60 75 Hz Tv=Tvd+Tvb Total Tv 1115 1125 1136 Th Display Tvd 1080 1080 1080 Th Blank Tvb 35 45 56 Th Total Th 1050 1100 1150 Tc Th=Thd+Thb Display Thd 960 960 960 Tc Blank Thb 90 140 190 Tc -

www.panelook.com

Issued Date: Feb. 17, 2009

Model No.: M216H1-L05

Approval

set to low logic level or ground. Otherwise, this module would operate abnormally.

INPUT SIGNAL TIMING DIAGRAM

15 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Feb. 17, 2009

Model No.: M216H1-L05

Approval

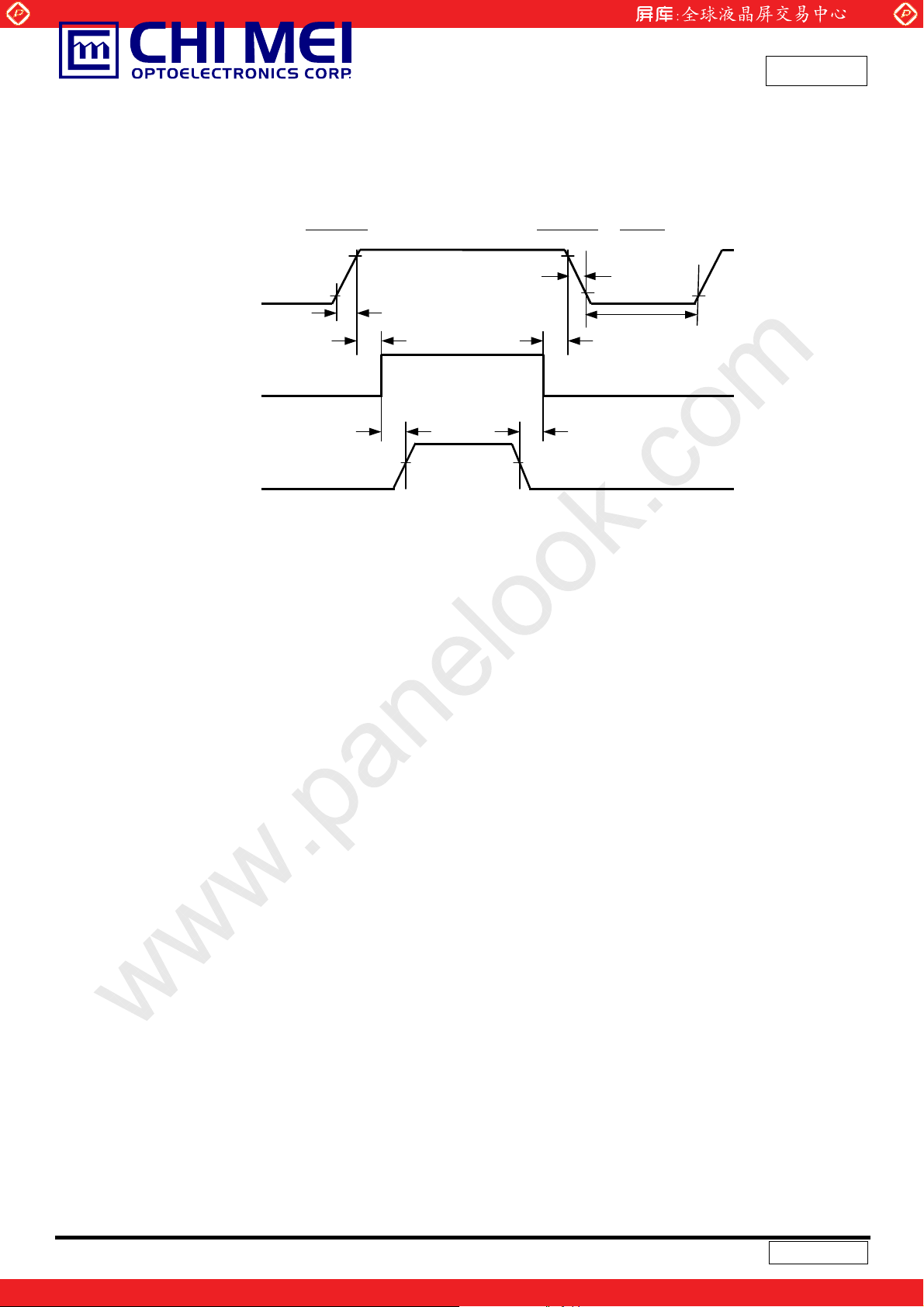

6.2 POWER ON/OFF SEQUENCE To prevent a latch-up or DC operation of LCD module, the power on/off sequence should be as the diagram below.

Restart

Power On

Power Off

Power Supply

for LCD, Vcc

-

Interface Signal (LVDS Signal of Transmitter), V

-

Power for Lamp

Timing Specifications:

0.5< t1 Љ 10 msec 0 < t2 Љ 50 msec 0 < t3 Љ 50 msec

0V

I

10%

t4 Њ 500 msec t5 Њ 450 msec

90%

t1

t2

90%

Valid Data

t6 t5

50%50%

ONOFF OFF

t3

t7

10%

t4

t6 Њ 90 msec

5 t7Љ 100 msecЉ

Note.

(1) The supply voltage of the external system for the module input should be the same as the definition of Vcc. (2) Apply the lamp voltage within the LCD operation range. When the backlight turns on before the LCD

operation of the LCD turns off before the backlight turns off, the display may momentarily become abnormal

screen. (3) In case of VCC = off level, please keep the level of input signals on the low or keep a high impedance. (4) T4 should be measured after the module has been fully discharged between power off and on period. (5) Interface signal shall not be kept at high impedance when the power is on. (6) CMO won’t take any responsibility for the products which are damaged by the customers not following the Power Sequence. (7) There might be slight electronic noise when LCD is turned off (even backlight unit is also off). To avoid this symptom, we suggest "Vcc falling timing" to follow "t7 spec"

16 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

7. OPTICAL CHARACTERISTICS

7.1 TEST CONDITIONS

Item Symbol Value Unit Ambient Temperature Ta Ambient Humidity Ha Supply Voltage VCC 5.0 V Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS" Inverter Current IL 7.5±0.5 mA Inverter Driving Frequency FL 55±5 KHz Inverter

7.2 OPTICAL SPECIFICATIONS

The relative measurement methods of optical characteristics are shown in 7.2. The following items should

be measured under the test conditions described in 7.1 and stable environment shown in Note (6).

Item Symbol Condition Min. Typ. Max. Unit Note

Red

Color Chromaticity (CIE 1931)

Center Luminance of White

(Center of Screen)

Contrast Ratio CR

Response Time

White Variation δW

Viewing Angle

Green

Blue

White

Horizontal

Vertical

Horizontal

Vertical

www.panelook.com

Issued Date: Feb. 17, 2009

Model No.: M216H1-L05

Approval

o

25±2

50±10

Logah MIT70070.50

Rx Ry Gx Gy

Bx By

Wx Wy

L

C

TR --- 1.3 2.2 ms T

F

θx+

-

θ

x

θY+

-

θ

Y

θx+

-

θ

x

θY+

-

θ

Y

=0° , θY =0°

θ

x

CS-1000T

R=G=B=255

Grayscale

θ

=0° , θY =0°

x

θ

=0° , θY =0°

x

USB2000

CR>10

USB2000

CR 5Њ

USB2000

Typ –

0.03

200 250 --- cd/m2(4), (5)

700 1000 --- - (2), (6)

--- 3.7 5.8 ms

--- ---- 1.33 - (5), (6)

75 75 70

70 80

80 80

80

0.651

0.334

0.286

0.600

0.152

0.075

0.313

0.329

85 --85 80 80

89 89 89 89

Typ +

0.03

---

-

C

%RH

(1), (5)

(3)

Deg. (1), (5)

17 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

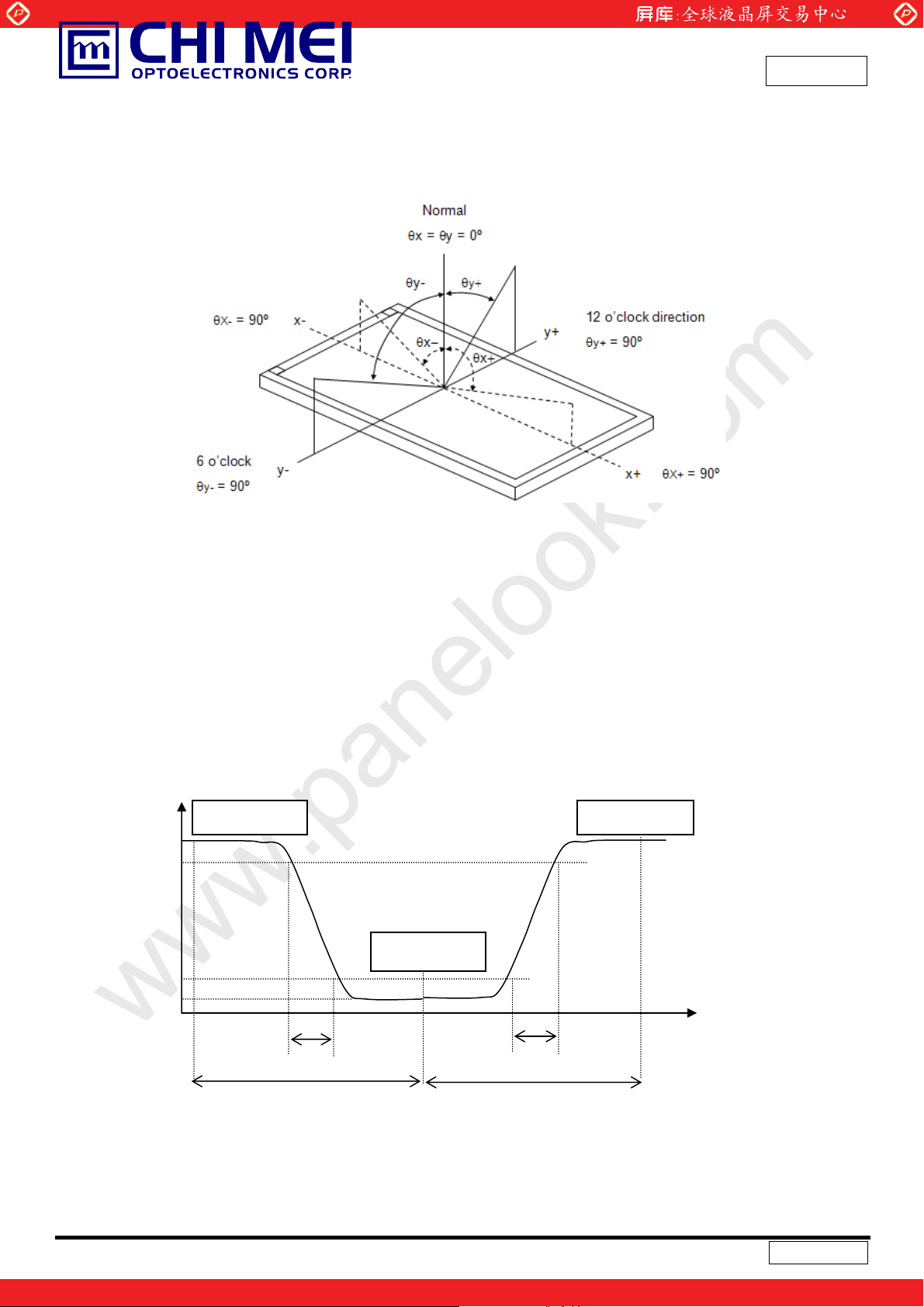

Note (1) Definition of Viewing Angle (θx, θy):

www.panelook.com

Issued Date: Feb. 17, 2009

Model No.: M216H1-L05

Approval

Note (2) Definition of Contrast Ratio (CR):

The contrast ratio can be calculated by the following expression.

Contrast Ratio (CR) = L255 / L0 L255: Luminance of gray level 255 L 0: Luminance of gray level 0

CR = CR (5) CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (6).

Note (3) Definition of Response Time (T

Optical

Response

100%

90%

10%

0%

Gray Level 255

T

66.67ms

, TF):

R

Gray Level 255

Gray Level 0

Time

T

R

F

66.67ms

18 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Feb. 17, 2009

Model No.: M216H1-L05

Approval

Note (4) Definition of Luminance of White (L

Measure the luminance of gray level 255 at center point L

= L (5)

C

L (x) is corresponding to the luminance of the point X at Figure in Note (6).

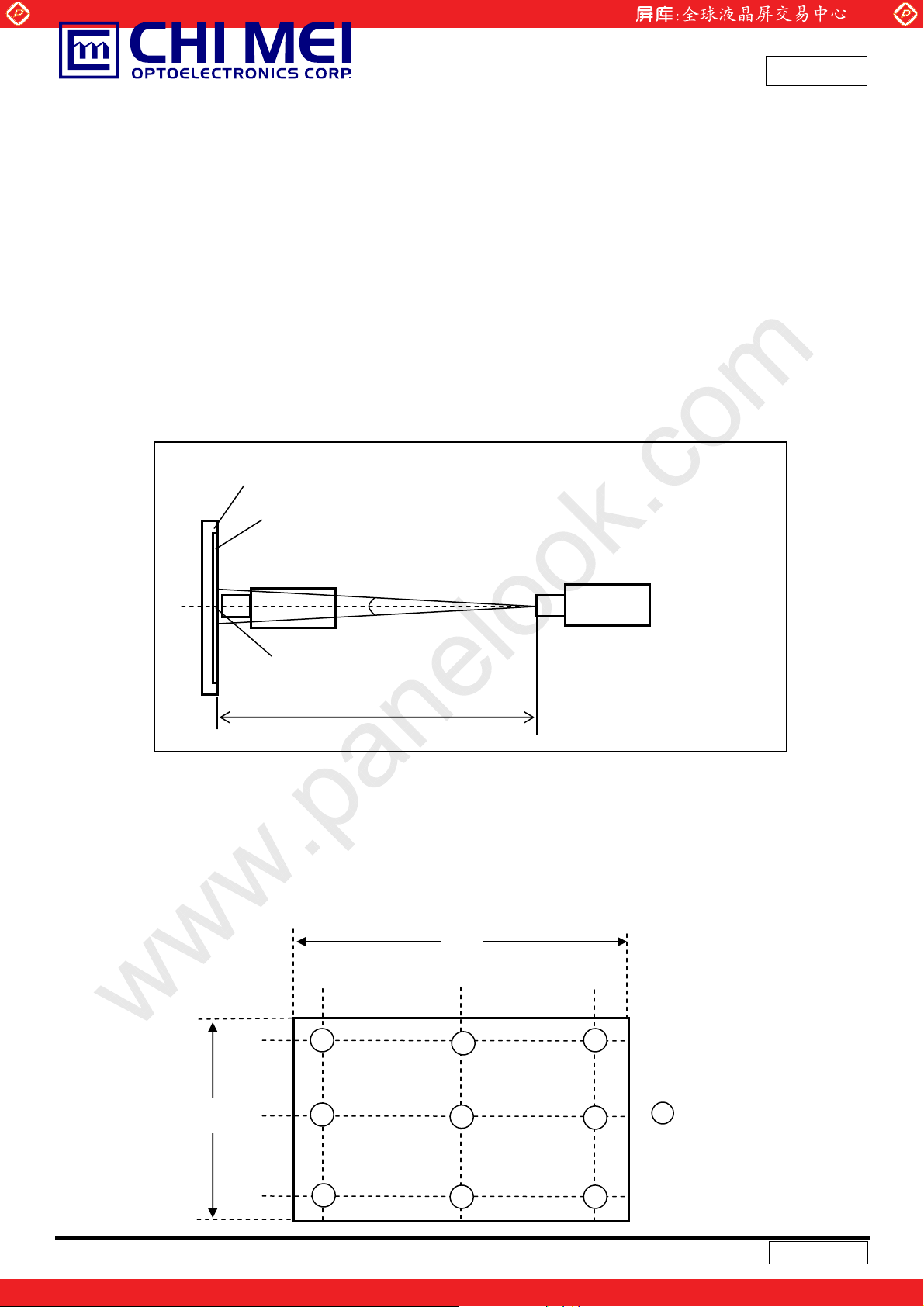

Note (5) Measurement Setup:

The LCD module should be stabilized at given temperature for (30 minutes) to avoid abrupt temperature change during measuring. In order to stabilize the luminance, the measurement should be executed after lighting Backlight for (30 minutes) in a windless room.

LCD Module

LCD Panel

USB2000

):

C

Gray 0

CS-1000T

Field of View = 2º

Center of the Screen

Light Shield Room

(Ambient Luminance < 2 lux)

Note (6) Definition of White Variation (δW):

Measure the luminance of gray level 255 at 9 points

δW = Maximum [L (1) ~ L (9)] / Minimum [L (1) ~ L (9)]

D/10 D/2

W/10

1 3

Horizontal Line

D

D/10

2

X

W/2

W

Vertical Line

W/10

4

7

5

8

6

9

: Test Point

X=1 to 9

19 / 26

Version 3.0

Active Area

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

8. PACKAGING

8.1 PACKING SPECIFICATIONS

(1) 11 LCD modules / 1 Box (2) Box dimensions: 563(L) X 390 (W) X 375 (H) mm (3) Weight: 23.48 Kg (11 modules per box)

8.2 PACKING METHOD

(1) Carton Packing should have no failure in the following reliability test items.

Test Item Test Conditions Note

ISTA STANDARD Random, Frequency Range: 1 – 200 Hz

Vibration

Dropping Test 1 Corner, 3 Edge, 6 Face, ISTA STANDARD Non Operation

Top & Bottom: 30 minutes (+Z), 10 min (-Z), Right & Left: 10 minutes (X) Back & Forth 10 minutes (Y)

www.panelook.com

Issued Date: Feb. 17, 2009

Model No.: M216H1-L05

Approval

Non Operation

LCD Module

Anti-static Bag

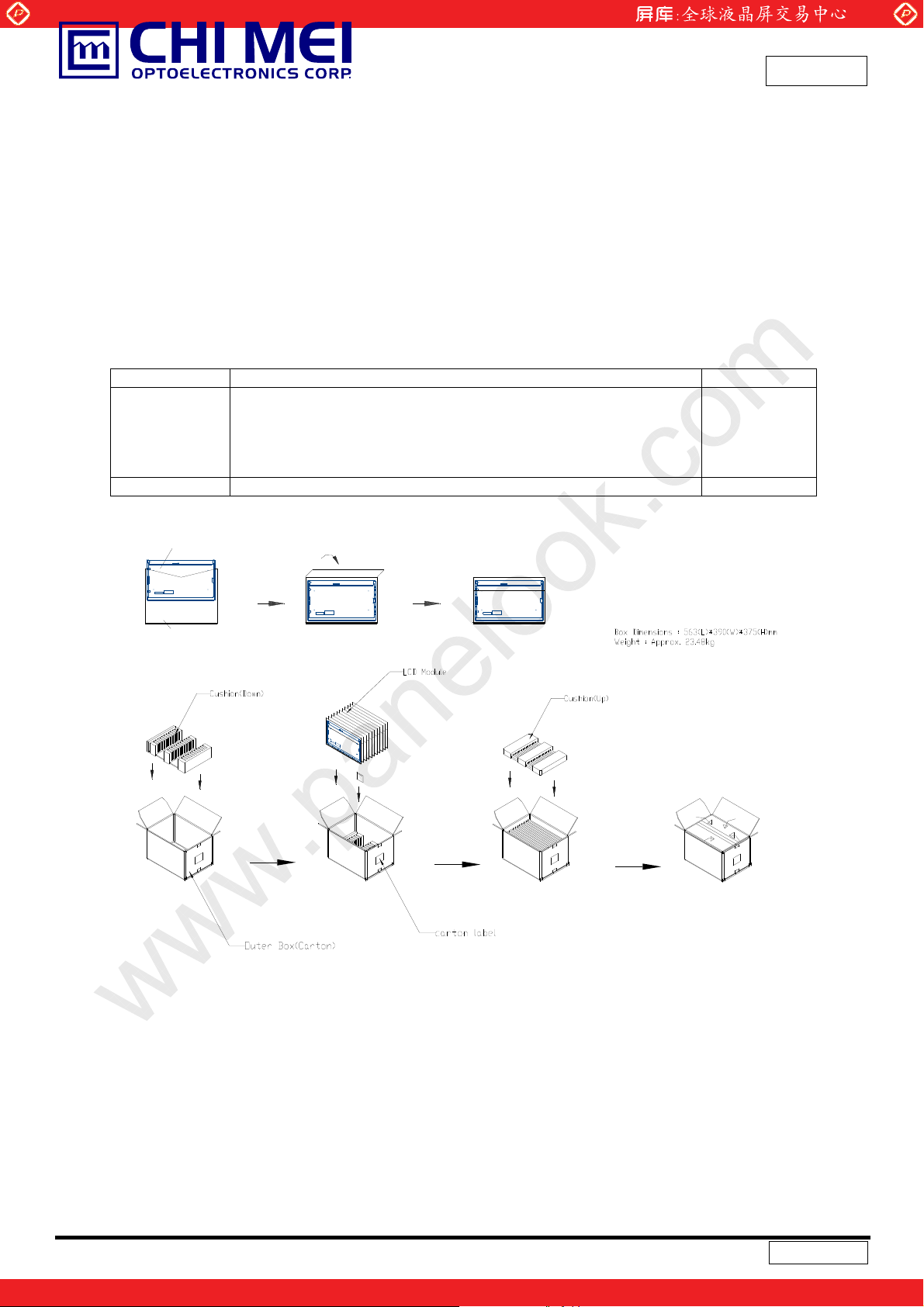

Figure. 8-1 Packing method

20 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

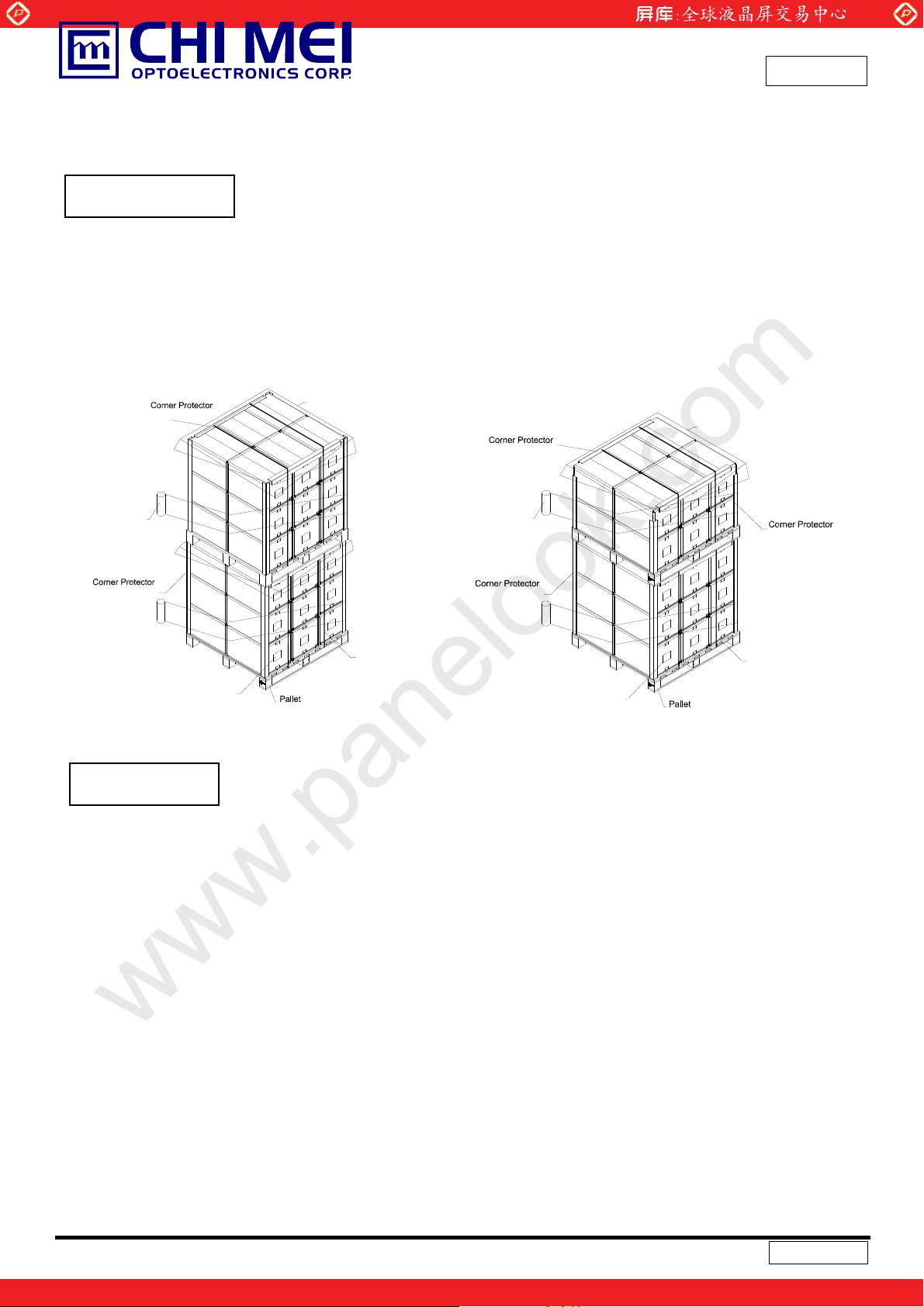

For ocean shipping

www.panelook.com

Issued Date: Feb. 17, 2009

Model No.: M216H1-L05

Approval

Sea / Land Transportation

(40ft HQ Container)

(L1000mm,t=3mm)

Film

(L1130mm,t=5mm)

For air transport

Carton Label

PE Sheet

(L1150*W1190*H143mm)

PP Belt

Sea / Land Transportation

(40ft Container)

PE Sheet

(L1000mm,t=3mm)

Film

(L625mm,t=5mm)

(L1130mm,t=5mm)

PP Belt

Carton Label

(L1150*W1190*H143mm)

Figure. 8-2 Packing method

21 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

Air Transportation

www.panelook.com

Issued Date: Feb. 17, 2009

Model No.: M216H1-L05

Approval

(L1000mm,t=3mm)

(L1130mm,t=5mm)

Film

Carton Label

(L1150*W1190*H143mm)

PE Sheet

PP Belt

Figure. 8-3 Packing method

9. DEFINITION OF LABELS

9.1 CMO MODULE LABEL

The barcode nameplate is pasted on each module as illustration, and its definitions are as following explanation.

M216H1-L05

CM21H15XXXXXLXXLYMDNNNN

(a) Model Name: M216H1-L05

(Fab ID)

(b) Revision: Rev. XX, for example: A0, A1… B1, B2… or C1, C2…etc. (c) CMO barcode definition:

Serial ID: XX

-XX-X-XX-YMD-L-NNNN

Code Meaning Description

XX CMO internal use XX Revision Cover all the change

X CMO internal use -

XX CMO internal use -

Year: 2001=1, 2002=2, 2003=3, 2004=4…

YMD Year, month, day

Month: 1~12=1, 2, 3, ~, 9, A, B, C Day: 1~31=1, 2, 3, ~, 9, A, B, C, ~, W, X, Y, exclude I, O, and U.

L Product line # Line 1=1, Line 2=2, Line 3=3, …

NNNN Serial number Manufacturing sequence of product

(d) Customer’s barcode definition:

Serial ID: CM

-21H15-X-X-X-XX-L-XX-L-YMD-NNNN

Code Meaning Description

CM Supplier code CMO=CM

21H15 Model number M216H1-L05=21H15

X Revision code ZBD, C1=A, C2=B, ….

22 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

X Source driver IC code

X Gate driver IC code

XX Cell location Tainan, Taiwan=TN

L Cell line # 1~Z

XX Module location Tainan, Taiwan=TN ; NB, China=NP ; NH, China=NH

L Module line # 1~Z

YMD Year, month, day

NNNN Serial number Manufacturing sequence of product

(e) UL Factory ID:

Region Factory ID

TWCMO GEMN

NBCMO LEOO

NBCME CANO

NHCMO CAPG

www.panelook.com

Issued Date: Feb. 17, 2009

Model No.: M216H1-L05

Approval

Non ZBD, C1=1, C2=2, …. Century=1, CLL=2, Demos=3, Epson=4, Fujitsu=5, Himax=6, Hitachi=7, Hynix=8, LDI=9, Matsushita=A, NEC=B, Novatec=C, OKI=D, Philips=E, Renasas=F, Samsung=G, Sanyo=H, Sharp=I, TI=J, Topro=K, Toshiba=L, Windbond=M

Year: 2001=1, 2002=2, 2003=3, 2004=4… Month: 1~12=1, 2, 3, ~, 9, A, B, C Day: 1~31=1, 2, 3, ~, 9, A, B, C, ~, T, U, V

10. PRECAUTIONS

10.1 ASSEMBLY AND HANDLING PRECAUTIONS

(1) Do not apply rough force such as bending or twisting to the module during assembly. (2) To assemble or install module into user’s system can be only in clean working areas. The dust and oil

may cause electrical short or worsen the polarizer.

(3) It’s not permitted to have pressure or impulse on the module because the LCD panel and Backlight

will be damaged.

(4) Always follow the correct power sequence when LCD module is connecting and operating. This can

prevent damage to the CMOS LSI chips during latch-up. (5) Do not pull the I/F connector in or out while the module is operating. (6) Do not disassemble the module. (7) Use a soft dry cloth without chemicals for cleaning, because the surface of polarizer is very soft and

easily scratched. (8) It is dangerous that moisture come into or contacted the LCD module, because moisture may damage

LCD module when it is operating. (9) High temperature or humidity may reduce the performance of module. Please store LCD module

within the specified storage conditions. (10) When ambient temperature is lower than 10ºC may reduce the display quality. For example, the

response time will become slowly, and the starting voltage of CCFL will be higher than room

temperature.

23 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

www.panelook.com

Issued Date: Feb. 17, 2009

Model No.: M216H1-L05

Approval

10.2 SAFETY PRECAUTIONS

(1) The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while

assembling with inverter. Do not disassemble the module or insert anything into the Backlight unit. (2) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In

case of contact with hands, skin or clothes, it has to be washed away thoroughly with soap. (3) After the module’s end of life, it is not harmful in case of normal operation and storage.

10.3 SAFETY STANDARDS

The LCD module should be certified with safety regulations as follows: (1) UL60950-1 or updated standard. (2) IEC60950-1 or updated standard.

10.4 OTHER

When fixed patterns are displayed for a long time ,remnant image is likely to occur.

24 / 26

Version 3.0

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Global LCD Panel Exchange Center

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
