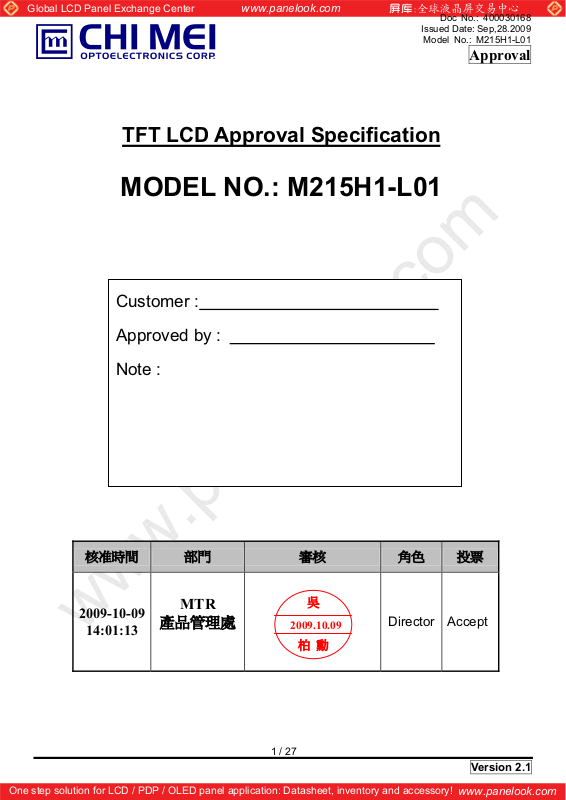

TFT LCD Approval Specification
MODEL NO.: M215H1-L01
www.panelook.com
Doc No.: 400030168
Issued Date: Sep,28.2009
Model No.: M215H1-L01
Approval
Customer :
Approved by :
Note :
2009-10-09
14:01:13
MTR
2009.10.09
Director Accept
1 / 27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Doc No.: 400030168
Issued Date: Sep,28.2009
Model No.: M215H1-L01
Approval
- CONTENTS -
REVISION HISTORY
1. GENERAL DESCRIPTION
1.1 OVERVIEW
1.2 FEATURES
1.3 APPLICATION
1.4 GENERAL SPECIFICATIONS
1.5 MECHANICAL SPECIFICATIONS
2. ABSOLUTE MAXIMUM RATINGS ------------------------------------------------------- 5
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
2.2.2 BACKLIGHT UNIT
3. ELECTRICAL CHARACTERISTICS ------------------------------------------------------- 7
3.1 .1 TFT LCD MODULE
3.1. 2 Vcc POWER DIP CONDITION
3.2 BACKLIGHT UNIT
4. BLOCK DIAGRAM ------------------------------------------------------- 11
4.1 TFT LCD MODULE
4.2 BACKLIGHT UNIT
5. INPUT TERMINAL PIN ASSIGNMENT ------------------------------------------------------- 12
5.1 TFT LCD MODULE
5.2 LVDS DATA MAPPING TABLE
5.3 BACKLIGHT UNIT
5.4 COLOR DATA INPUT ASSIGNMENT
6. INTERFACE TIMING ------------------------------------------------------- 15
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
6.2 POWER ON/OFF SEQUENCE
7. OPTICAL CHARACTERISTICS ------------------------------------------------------- 18
7.1 TEST CONDITIONS
------------------------------------------------------- 3
------------------------------------------------------- 4
7.2 OPTICAL SPECIFICATIONS
8. PACKAGING ------------------------------------------------------- 21
8.1 PACKING SPECIFICATIONS
8.2 PACKING METHOD
9. DEFINITION OF LABELS ------------------------------------------------------- 23
9.1 CMO MODULE LABEL
10.RELIABILITY TEST ------------------------------------------------------- 24
11. PRECAUTIONS -
11.1 ASSEMBLY AND HANDLING PRECAUTIONS
11.2 SAFETY PRECAUTIONS
11.3 SAFETY STANDARDS
11.4 STORAGE
11.5 OPERATION CONDITION GUIDE
11.6 OTHER
------------------------------------------------------ 25
12. MECHANICAL CHARACTERISTICS ------------------------------------------------------- 26
2 / 27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
REVISION HISTORY
Version Date Section Description
Doc No.: 400030168
Issued Date: Sep,28.2009
Model No.: M215H1-L01
Approval
Ver 1.0
Ver 2.0
Ver 2.1
Mar,09,09’
May,13,09’
Sep,28,09’
All
All
1.5
3.1.1
3.2
5.3
6.1
7.1
7.2
8.1
12
H1-L01 Specifications was first issuedΖ
M215 M215H1-L01 Approval specification was first issued.
MECHANICAL SPECIFICATIONS
Weight 1915g Æ1920g
TFT LCD MODULE:
Modify Power Supply Current spec (Orange)
Parameter Symbol
Power Supply Current
Power consumption (without Backlight Unit)
White - (0.48) (0.58) A
Black - (1.05) (1.26) A
Vertical Stripe
lcc
Plcd ʳ (5.25) (6.3) Watt
Value
Unit
Min. Typ. Max.
- (1.10) (1.32) A
(New)
Parameter Symbol
Power Supply Current
Power consumption (without Backlight Unit)
White - 0.51 0.61 A
Black - 1.05 1.26 A
Vertical Stripe
lcc
Plcd ʳ 5.25 6.3 Watt
Value
Unit
Min. Typ. Max.
- 1.06 1.26 A
BACKLIGHT UNIT:
Lamp input voltage : Min 740 Æ (---) Lamp Current(typ) :7.0mA Æ 7.5mA
BACKLIGHT UNIT:
High Voltage lamp tube color: Red Æ Pink

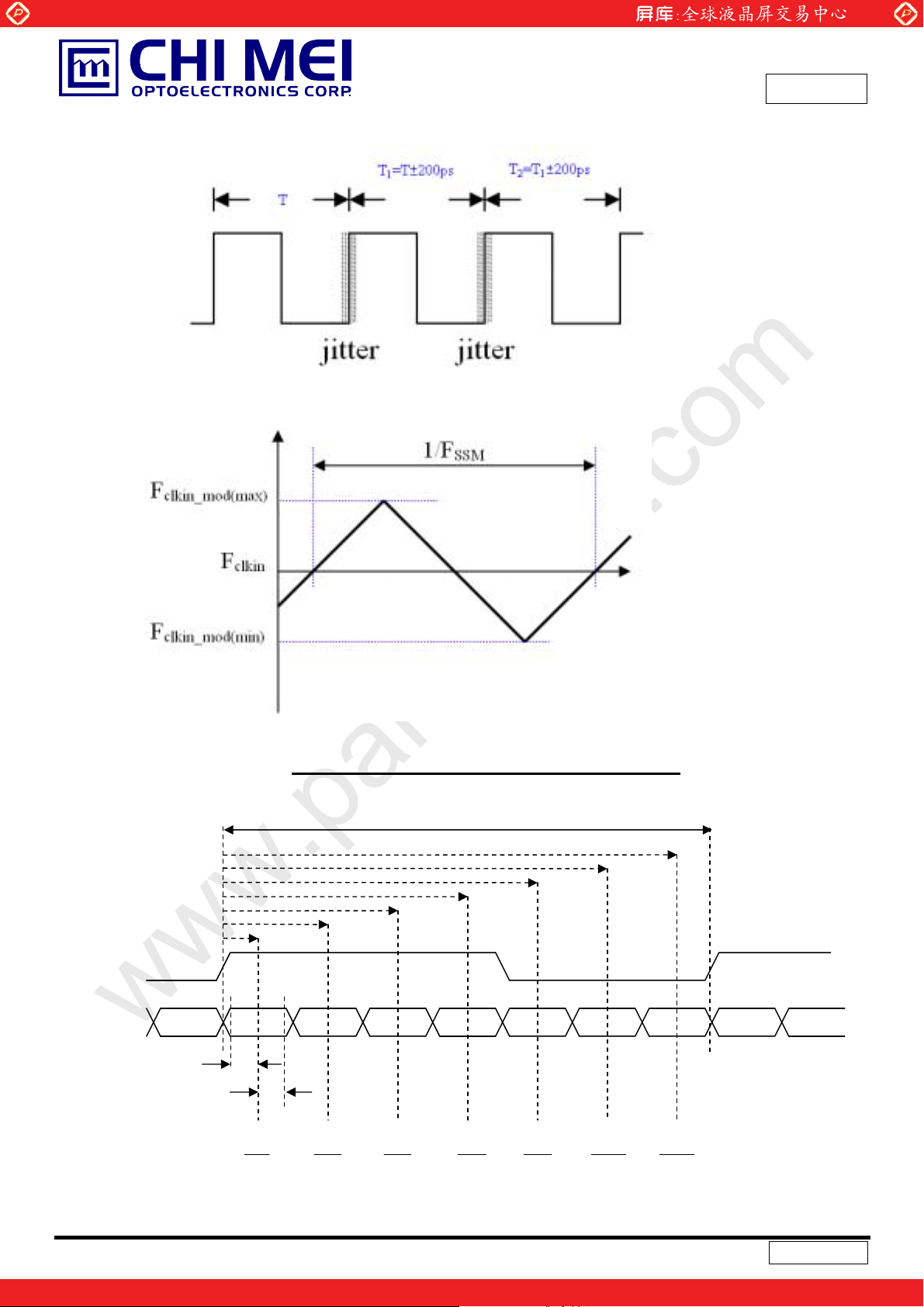

INPUT SIGNAL TIMING SPECIFICATIONS
Add LVDS clock item:
Item Symbol Min. Typ. Max. Unit
Input cycle to
cycle jitter
Spread spectrum modulation range
Spread spectrum modulation frequency
T
rcl
F
clkin_modFclkin
F
SSM
Ё Ё
-2%
ʳʳ200 KHz
Ё
200 ps
+2
F
clkin
%
MHz
Test Conditions:
Inverter Current : 7.5 ± 0.5 mA Æ 7.0 ± 0.5 mA
Optical specifications:
Note(5) Measurement setup: Field of View = 2 º Æ 1 º
Packing specifications:
(2) Box dimensions: 565(L) X 295 (W) X 375 (H) mm --Orange
563(L) X 390 (W) X 375 (H) mm -- New
(3) Weight: 26.29 Kg (12 modules per box) --Orange
26.28 Kg (12 modules per box) -- New
12. MECHANICAL CHARACTERISTICS a. Modify BLU lamp wire length from 160 mm to 170 mm
3 / 27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
1. GENERAL DESCRIPTION
1.1 OVERVIEW
The M215H1-L01 model is a 21.5 inch wide TFT-LCD module with a 2-CCFL Backlight Unit and a 30-pin 2ch-LVDS interface. This module supports 1920 x 1080 Full HD (16:9 wide screen) mode and displays up to 16.7 millions colors. The inverter module for the Backlight Unit is not built in.
1.2 FEATURES
- Super wide viewing angle
- High contrast ratio
- Fast response time
- Low power consumption
- FULL HD(1920 x 1080 pixels) resolution
- DE (Data Enable) only mode
www.panelook.com
Doc No.: 400030168
Issued Date: Sep,28.2009
Model No.: M215H1-L01
Approval
- LVDS (Low Voltage Differential Signaling) interface
- RoHS compliance.
- TCO 03 compliance.
1.3 APPLICATION
- Workstation & desktop monitor
- Display terminals for AV application
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note Diagonal size Active Area Bezel Opening Area 479.8 (H) x 271.3 (V) mm Driver Element a-Si TFT active matrix - ­Pixel Number 1920 x R.G.B. x 1080 pixel ­Pixel Pitch 0.248(H) x 0.248(V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 16.7 millions color ­Transmissive Mode Normally White - ­Surface Treatment Hard coating (3H), AG (Haze 25%) - ­Module Power Consumption 18.15 Watt (2)
546.86 (21.53”)
476.64 x 268.11
mm mm
(1)
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 495.1 495.6 496.1 mm
Module Size
I/F connector mounting
Note (1) Please refer to the attached drawings for more information of front and back outline dimensions. Note (2) Please refer to sec. 3.1 & 3.2 in this document for more information of power consumption
Vertical(V) 291.7 292.2 292.7 mm Depth(D) 11 11.5 12 mm
Weight -- 1920 1950 g
position
The mounting inclination of the connector makes
the screen center within ±0.5 mm as the horizontal.
4 / 27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
(1)
www.panelook.com
Global LCD Panel Exchange Center
A
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Item Symbol
Storage Temperature TST -20 +60 ºC (1) Operating Ambient Temperature TOP 0 +50 ºC (1), (2) Shock (Non-Operating) S Vibration (Non-Operating) V
LCD Cell Life Time L
Relative Humidity (%RH)
100
90
80
www.panelook.com
Doc No.: 400030168
Issued Date: Sep,28.2009
Model No.: M215H1-L01
Approval
Value
Min. Max.
- 50 G (3), (5)
NOP
- 1.5 G (4), (5)
NOP
50,000 - Hrs
CELL
Unit Note
MTBF based
60
Operating Range
40
20
10
Storage Range
-20 40 0 20 -40
Temperature (
Note (1) Temperature and relative humidity range is shown in the figure below.
(a) 90% RH Max. (Ta 40 ºC).Љ (b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC). (c) No condensation. Note (2) The temperature of panel surface should be 0 ºC Min. and 60 ºC Max. Note (3) 50G,11 ms, half-sine wave, 1 time for ± X, ± Y, ± Z.
C)
60
80
Note (4) 10 ~ 300 Hz, sweep rate 10 min / cycle , 30 min for X,Y,Z axis Note (5) Upon the Vibration and Shock tests, the fixture used to hold the module must be firm and rigid
enough to prevent the module from twisting or bending by the fixture.
t Room Temperature
Side Mount Fixing Screw
Gap=3~5mm
Bracket
LCD Module
Side Mount Fixing Screw
Stage
5 / 27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
Item Symbol
Power Supply Voltage Vcc -0.3 +6 V (1)
2.2.2 BACKLIGHT UNIT
Item Symbol
Lamp Voltage VL - 2500 V Lamp Current IL 3.0 8.0 mA Lamp Frequency FL 40 80 KHz (1), (2)
Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function
operation should be restricted to the conditions described under Normal Operating Conditions.
www.panelook.com
Value
Min. Max.
Value
Min. Max.
Doc No.: 400030168
Issued Date: Sep,28.2009
Model No.: M215H1-L01
Approval
Unit Note
Unit Note
(1), (2), IL = 7 mA
RMS
RMS
(1), (2)
Note (2) Specified values are for lamp (Refer to 3.2 for further information).
6 / 27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Doc No.: 400030168
Issued Date: Sep,28.2009
Model No.: M215H1-L01
Approval
3. ELECTRICAL CHARACTERISTICS
3.1.1 TFT LCD MODULE Ta = 25 ± 2 ºC
Parameter Symbol
Min. Typ. Max. Power Supply Voltage Vcc 4.5 5.0 5.5 V ­Ripple Voltage VRP - -- 100 mV ­Power on Rush Current I
- -- 3 A (2)
RUSH
White - 0.51 0.61 A (3)a
Power Supply Current
Black - 1.05 1.26 A (3)b Vertical Stripe
Power consumption (without Backlight Unit)
lcc
- 1.06 1.26 A (3)c
Plcd 5.25 6.3 Watt (4)
LVDS differential input voltage Vid 100 - 600 mV LVDS common input voltage Vic -- 1.2 -- V
Note (1) The module should be always operated within above ranges. Note (2) Power on rush current measurement conditions:
Value
Unit Note
+5.0V
R1
47K
Q1 2SK1475
FUSE
C3
1uF
Vcc
(LCD Module Input)
(High to Low)
(Control Signal)
SW
+12V
C1
1uF
VR1
R2
1K
47K
0.01uF
Q2
2SK1470
C2
Vcc rising time is 470μs
Vcc
0.9Vcc
0.1Vcc
GND
470μs
7 / 27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
≤≤≤
Note (3) The specified power supply current is under the conditions at Vcc = 5.0 V, Ta = 25 ± 2 ºC, fv = 60
Hz, whereas a power dissipation check pattern below is displayed.
www.panelook.com
Doc No.: 400030168
Issued Date: Sep,28.2009
Model No.: M215H1-L01
Approval
a. White Pattern
Active Area
c. Vertical Stripe Pattern
b. Black Pattern
Active Area
R
G
R
B
G
R
B
G
R R
G
B
B
B
B
R
R
R
G
G
G
G
B
B
B
B
R
R
Note (4)The power consumption is specified at the pattern with the maximum current
3.1.2 Vcc Power Dip Condition:
Active Area
Vcc
4.5V
Dip condition:
Td
msTdVVccV 20,5.40.4
4.0V
8 / 27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
3.2 BACKLIGHT UNIT
Parameter Symbol Lamp Input Voltage VL -- 860 946 V
Lamp Current IL 3 7.5 8 mA Lamp Turn On Voltage VS Operating Frequency FL 40 55 80 KHz (3)
Lamp Life Time LBL 40000 50000 - Hrs (5) IL = 7.5 mA Power Consumption PL - 12.9 - W (4), IL = 7.5 mA
Note (1) Lamp current is measured by current amplify & oscilloscope as shown below:
www.panelook.com
Issued Date: Sep,28.2009
Value
Min. Typ. Max.
- - 1370(25°C) V
- - 1770(0°C) V
Doc No.: 400030168
Model No.: M215H1-L01
Approval
Unit Note
I
RMS
(1)
RMS
(2)
RMS
(2)
RMS
= 7.5mA
L
LCD Module
HV (Pink) LV (White)
LV (White)
HV (Pink)
LV (White)
Current Probe
1
1 2
2
1
1
2
2
A
A
Inverter
A
A
Current Amplify
Oscilloscope
Measure equipment:
Current Amplify: Tektronix TCPA300
Current probe: Tektronix TCP312
Oscilloscope: TDS3054B
Ta = 25 ± 2 ºC
Note (2) The voltage that must be larger than Vs should be applied to the lamp for more than 1 second
after startup. Otherwise, the lamp may not be turned on normally. It is the value output voltage of NF circuit.
Note (3) The lamp frequency may produce interference with horizontal synchronization frequency from the
display, which might cause line flow on the display. In order to avoid interference, the lamp frequency should be detached from the horizontal synchronization frequency and its harmonics as far as possible.
Note (4) P
= IL ×VL X 2
L
Note (5) The lifetime of lamp can be defined as the time in which it continues to operate under the
condition Ta = 25 ±2
o
C and IL = 7.5 mA until one of the following events occurs:
(a) When the brightness becomes or lower than 50% of its original value.
(b) When the effective ignition length becomes Љ 80% of its original value.
(The effective ignition length is a scope that luminance is over 80% of that at the center point.)
Note (6) The waveform of the voltage output of inverter must be area-symmetric and the design of the
inverter must have specifications for the modularized lamp. The performance of the Backlight, such as lifetime or brightness, is greatly influenced by the characteristics of the DC-AC inverter for the lamp. All the parameters of an inverter should be carefully designed to avoid producing too much current leakage from high voltage output of the inverter. When designing or ordering the inverter please make sure that a poor lighting caused by the mismatch of the Backlight and the
9 / 27
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
+ 18 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
