CMO M200O1-L01 Specification

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Issued Date:.17,Mar,2009

Doc No.: 400018393

Model No.: M200O1-L01

Approval

TFT LCD Approval Specification

MODEL NO.: M200O1- L01

Customer:

Approved by:

Note:

記錄 工作 審核 角色 投票

2009-03-26

13:48:34 CST

PMMD II

Director

kevin_wu(吳柏勳

Director Accept

/56520/54894)

1 / 26

Version 2.2

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Issued Date:.17,Mar,2009

Doc No.: 400018393

Model No.: M200O1-L01

Approval

- CONTENTS -

REVISION HISTORY...............................................................................................................................3

1. GENERAL DESCRIPTION ..................................................................................................................4

1.1 OVERVIEW

1.2 FEATURES

1.3 APPLICATION

1.4 GENERAL SPECIFICATIONS

1.5 MECHANICAL SPECIFICATIONS

2. ABSOLUTE MAXIMUM RATINGS.......................................................................................................5

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

2.2.2 BACKLIGHT UNIT

3. ELECTRICAL CHARACTERISTICS....................................................................................................7

3. 1.1 TFT LCD MODULE

3.1.2 Vcc Power Dip Condition

3.2 BACKLIGHT UNIT

4. BLOCK DIAGRAM...............................................................................................................................11

4.1 TFT LCD MODULE

4.2 BACKLIGHT UNIT

5. INPUT TERMINAL PIN ASSIGNMENT................................................................................................12

5.1 TFT LCD MODULE

5.2 LVDS DATA MAPPING TABLE

5.3 BACKLIGHT UNIT

5.4 COLOR DATA INPUT ASSIGNMENT

6. INTERFACE TIMING ...........................................................................................................................15

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

6.2 POWER ON/OFF SEQUENCE

7. OPTICAL CHARACTERISTICS...........................................................................................................17

7.1 TEST CONDITIONS

7.2 OPTICAL SPECIFICATIONS

8. PACKAGING........................................................................................................................................21

8.1 PACKING SPECIFICATIONS

8.2 PACKING METHOD

9. DEFINITION OF LABELS................................................................................................................ 23~24

10. PRECAUTIONS..............................................................................................................................24~25

10.1 ASSEMBLY AND HANDLING PRECAUTIONS

10.2 SAFETY PRECAUTIONS

10.3 SAFETY STANDARDS

10.4 OTHERS

11. MECHANICAL CHARACTERISTICS.................................................................................................26

2 / 26

Version 2.2

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Issued Date:.17,Mar,2009

Doc No.: 400018393

Model No.: M200O1-L01

Approval

REVISION HISTORY

Version Date Section Description

Ver 2.0
Ver 2.1
Ver 2.2

10,Feb, 09’
2,Mar, 09
17,Mar,09

-

6

2.2.2

3.2

6.1

M200O1 -L05 Approval specification was first issued.
Revise POWER ON/OFF SEQUENCE Note(6) & Note(7)
Revise BACKLIGHT UNIT, Lamp Current max 8.0Æ7.5 mA
BACKLIGHT UNIT , Lamp Current max 8.0Æ7.5 mA

ReviseINPUT SIGNAL TIMING SPECIFICATIONS

3 / 26

Version 2.2

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Issued Date:.17,Mar,2009

Doc No.: 400018393

Model No.: M200O1-L01

Approval

1. GENERAL DESCRIPTION

1.1 OVERVIEW

M200O1-L01 is a 20.0” TFT Liquid Crystal Display module with 4 CCFL Backlight unit and 30 pins
2ch-LVDS interface. This module supports 1600 x 900 HD+ mode and can display up to 16.7M colors. The
inverter module for Backlight is not built in.

1.2 FEATURES

- Extra-wide viewing angle.

- High contrast ratio.

- Fast response time.

- High color saturation.

- HD+ (1600 x 900 pixels) resolution.

- DE (Data Enable) only mode.

- LVDS (Low Voltage Differential Signaling) interface.

- RoHS compliance.

- TCO03 compliance

1.3 APPLICA TION

- TFT LCD Monitor

1.4 GENERAL SPECIFICATI0NS

Item Specification Unit Note

Active Area 442.8(H) x 249.075(V) (20.0” diagonal) mm

Bezel Opening Area 446.8 (H) x 253.2 (V) mm

Driver Element a-Si TFT active matrix - -

Pixel Number 1600 x R.G.B. x 900 pixel -

Pixel Pitch 0.2768(H) x 0.2768 (V) mm -

Pixel Arrangement RGB vertical stripe - -

Display Colors 16.7M color -

Transmissive Mode Normally White - -

Surface Treatment AG type, 3H hard coating, Haze 25 - -

Module Power Consumption 27.58 Watt (2)

(1)

1.5 MECHANICAL SPECIFICATIONS

Item Min. Typ. Max. Unit Note

Horizontal(H) 462.3 462.8 463.3 mm

Module Size

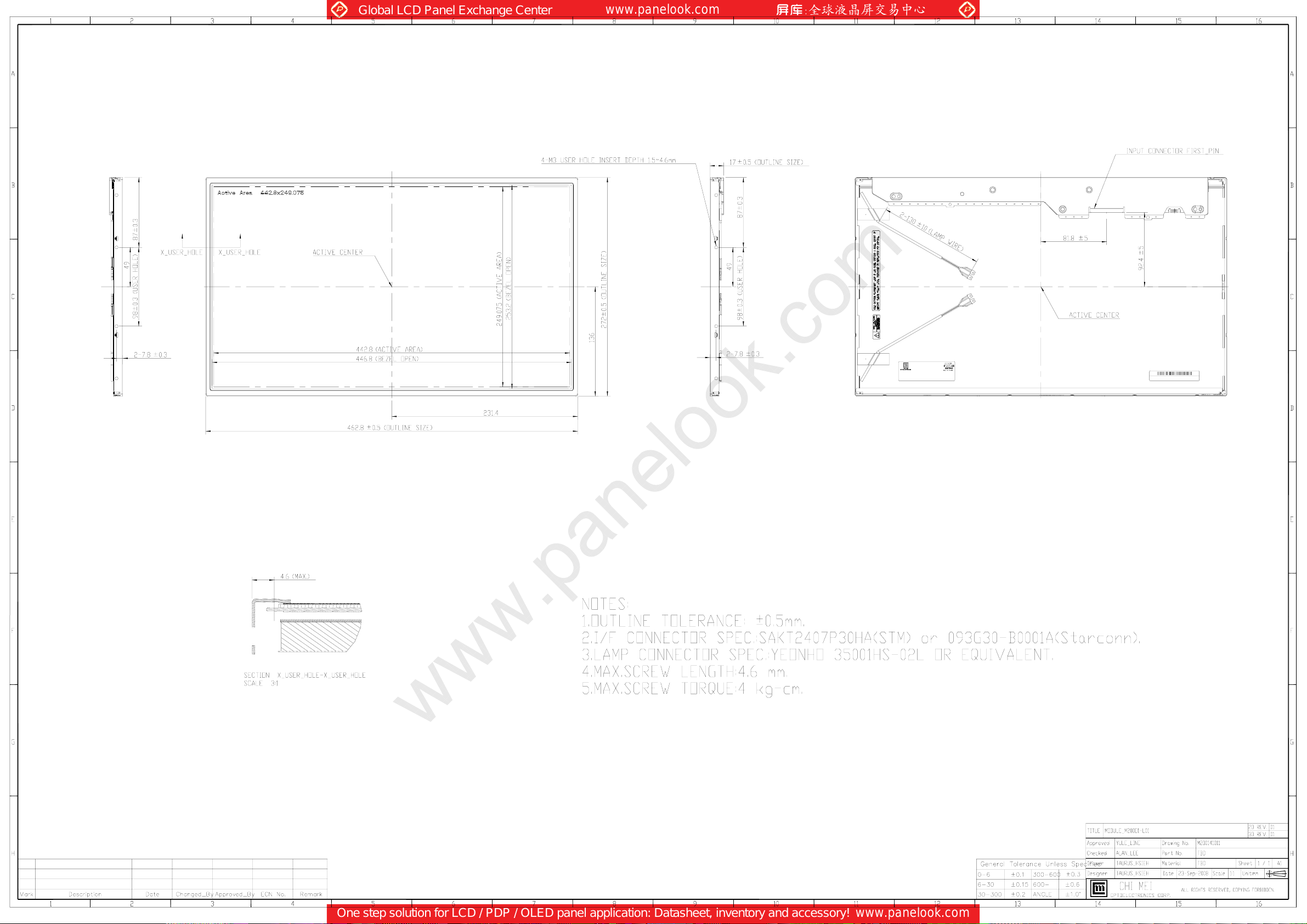

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Note (2) Please refer to sec.3.1 & 3.2 for more information of power consumption

Vertical(V) 271.5 272.0 272.5 mm

Depth(D) 16.5 17 17.5 mm

Weight - 2300 2350 g -

4 / 26

(1)

Version 2.2

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Doc No.: 400018393

Issued Date:.17,Mar,2009

Model No.: M200O1-L01

Approval

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

Item Symbol

Min. Max.

Storage Temperature TST -20 60 ºC (1)

Operating Ambient T emperature TOP 0 50 ºC (1), (2)

Shock (Non-Operating) S

Vibration (Non-Operating) V

- 50 G (3), (5)

NOP

- 1.5 G (4), (5)

NOP

Note (1) Temperature and relative humidity range is shown in the figure below.
(a) 90 %RH Max. (Ta ≦ 40 ºC).
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation.
Note (2) The temperature of panel display surface area should be 0 ºC Min. and 60 ºC Max

Value

Unit Note

Relative Humidity (%RH)

100

90

80

60

40

20

10

Temperature (ºC)

Operating Range

Stor age Range

8060-20 40020-40

Note (3) 11ms, half sine wave, 1 time for ± X, ± Y , ± Z.
Note (4) 10 ~ 300 Hz, 10min/cycle, 3 cycles each X, Y, Z.
Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid enough

so that the module would not be twisted or bent by the fixture.

The fixing condition is shown as below:

5 / 26

Version 2.2

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Issued Date:.17,Mar,2009

Doc No.: 400018393

Model No.: M200O1-L01

Approval

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

Item Symbol

Power Supply Voltage Vcc -0.3 +6.0 V (1)

Min. Max.

2.2.2 BACKLIGHT UNIT

Item Symbol

Lamp Voltage VL - 2.5K V
Lamp Current IL 3.0 7.5 mA

Lamp Frequency FL 40 80 KHz

Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation

should be restricted to the conditions described under Normal Operating Conditions.

Min. Max.

Value

Value

Unit Note

Unit Note

(1), (2)

RMS

RMS

(1), (2)

Note (2) Specified values are for lamp (Refer to 3.2 for further information).

6 / 26

Version 2.2

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Doc No.: 400018393

Issued Date:.17,Mar,2009

Model No.: M200O1-L01

Approval

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD MODULE Ta = 25 ± 2 ºC

Parameter Symbol

Min. Typ. Max.

Power Supply Voltage Vcc 4.5 5.0 5.5 V -

Ripple Voltage VRP - - 250 mV -

Rush Current I

Power Supply Current

RUSH

White 0.5 0.6 A (3)a
Black 0.9 1.1 A (3)b

Vertical Stripe

3.0 A (2)

0.94 1.15 A (3)c

Power Consumption PLCD 6 7.5 Watt (4)

LVDS differential input voltage Vid 200 - 600 mV

LVDS common input voltage Vic 0.7 1.2 1.6 V

Note (1) The module should be always operated within above ranges.
Note (2) Measurement Conditions:

Value

Unit Note

+5.0V

R1

47K

Q1 2SK1475

FUSE

C3
1uF

Vcc

(LCD Module Input)

(High to Low)

(Control Signal)

SW

+12V

C1

1uF

VR1

R2

1K

47K

0.01uF

Q2

2SK1470

C2

Vcc rising time is 470µs

Vcc

0.9Vcc

0.1Vcc

GND

470µs

7 / 26

Version 2.2

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

≤≤≤

Issued Date:.17,Mar,2009

Doc No.: 400018393

Model No.: M200O1-L01

Approval

Note (3) The specified power supply current is under the conditions at Vcc = 5.0 V, Ta = 25 ± 2 ºC, f

Hz, whereas a power dissipation check pattern belo w is displayed.
a. White Pattern

Active Area

c. Vertical Stripe Pattern

b. Black Pattern

Active Area

R

G

R

B

G

R

B

G

B
B

B

R
R

R

G
G

G

B
B

B

R

R

= 60

v

Note (4)The power consumption is specified at the pattern with the maximum current

Active Area

R R

3.1.2 Vcc Power Dip Condition:

Vcc

4.0V

4.5V

Td

Dip condition:

msTdVVccV 20,5.40.4

G

B

G

B

8 / 26
