1. GENERAL DESCRIPTION
1.1 OVERVIEW
M190Z3-L06 is a 19” wide TFT Liquid Crystal Display module with white LED Backlight unit and 30 pins
2ch-LVDS interface. This module supports 1680 x 1050 WSXGA+ mode and can display 16.7M colors. The
converter module for Backlight is not built in.
1.2 FEATURES
- Super Wide viewing angle.
- Super High contrast ratio
- Super fast response time
- High color saturation
- WSXGA+ (1680 x 1050 pixels) resolution
- DE (Data Enable) only mode
- LVDS (Low Voltage Differential Signaling) interface
- RoHS Compliance
1.3 APPLICATION
- TFT LCD Monitor
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note
Diagonal Size 481.4 (18.95” diagonal) mm
Active Area 408.24 (H) x 255.15 (V) mm
Bezel Opening Area 412.24 (H) x 259.15 (V) mm
Driver Element a-si TFT active matrix - Pixel Number 1680 x R.G.B. x 1050 pixel Pixel Pitch 0.243 (H) x 0.243 (V) mm Pixel Arrangement RGB vertical stripe - Display Colors 16.7M color Transmissive Mode Normally White - Color saturation 68%NTSC (typ.) - Surface Treatment Hard coating (3H), Anti-glare (Haze 25) - Module Power Consumption 12.55 Watt (2)
(1)
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 427.5 428 428.5 mm
Module Size
Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Note (2) Please refer to sec.3.1 & 3.2 for more information of power consumption
Vertical(V) 277.5 278 278.5 mm
Depth(D) 12.81 12.84 12.87 mm
Weight - 1415 1450 g -
4 / 24
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
(1)
Version 2.0
www.panelook.com
Page 5
Global LCD Panel Exchange Center
A
www.panelook.com
Doc. No.: 400030161
Issued Date: May. 05, 2009
Model No.: M190Z3-L06
Approval
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Item Symbol
Min. Max.
Storage Temperature TST -20 +60 ºC (1)
Operating Ambient Temperature TOP 0 +50 ºC (1), (2)
Shock (Non-Operating) S
Vibration (Non-Operating) V
- 50 G (3), (5)
NOP
- 1.5 G (4), (5)
NOP
Note (1) Temperature and relative humidity range is shown in the figure below.
Relative Humidity (%RH)
100
90
80
Va l ue
Unit Note
60
40
20
10
Temperature (ºC)
Operating Range
Storage Range
8060-20 40020-40
(a) 90 %RH Max. (Ta Љ 40 ºC).
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation.
Note (2) The temperature of panel display surface area should be 0 ºC Min. and 60 ºC Max.
Note (3) 50G,11ms, half sine wave, 1 time for ± X, ± Y, ± Z.
Note (4) 10 ~ 300 Hz, sweep rate 10 min / cycle , 30 min for X,Y,Z axis.
Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid enough so that the
module would not be twisted or bent by the fixture.
t Room Temperature
Side Mount Fixing Screw
LCD Module
Side Mount Fixing Screw
Stage
Gap=3~5mm
Bracket
5 / 24
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 6
Global LCD Panel Exchange Center
Issued Date: May. 05, 2009
www.panelook.com
Doc. No.: 400030161
Model No.: M190Z3-L06
Approval
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
Item Symbol
Power Supply Voltage Vcc -0.3 +6.0 V (1)
Min. Max.
2.2.2 BACK LIGHT UNIT
Item Symbol
LED DC forward current If --- 60 65
LED Peak pulse current Ip --- --- 100
LED Reverse voltage Vr --- --- 5.0 V
Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation should be
Min. Typ. Max.
Va l ue
Va l ue
Unit Note
Unit Note
mA
(1)
restricted to the conditions described under Normal Operating Conditions.
6 / 24
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 7
Global LCD Panel Exchange Center
www.panelook.com
Doc. No.: 400030161
Issued Date: May. 05, 2009
Model No.: M190Z3-L06
Approval
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE Ta = 25 ± 2 ºC
Parameter Symbol
Min. Typ. Max.
Power Supply Voltage Vcc 4.5 5.0 5.5 V Ripple Voltage VRP - - 100 mV Rush Current I
RUSH
- - 3 A (2)
White - 0.52 0.728 A (3)a
Power Supply Current
Black - 0.77 1.078 A (3)b
Vertical Stripe
Power Consumption P
lcc
- 0.77 1.078 A (3)c
- 3.85 5.39 watt (4)
LCD
LVDS differential input voltage Vid 100 - 600 mV
LVDS common input voltage Vic - 1.2 - V
Note (1) The module should be always operated within above ranges.
Note (2) Measurement Conditions:
Va l ue
Unit Note
(High to Low)
(Control Signal)
SW
+12V
+5.0V
R1
47K
R2
1K
47K
VR1
C1
1uF
Q1 2SK1475
C2
0.01uF
Q2
2SK1470
FUSE
C3
1uF
Vcc
(LCD Module Input)
Vcc rising time is 470μs
Vcc
0.9Vcc
0.1Vcc
GND
470μs
7 / 24
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 8
Global LCD Panel Exchange Center
≤≤≤
Issued Date: May. 05, 2009
www.panelook.com
Doc. No.: 400030161
Model No.: M190Z3-L06
Approval
Note (3) The specified power supply current is under the conditions at Vcc = 5.0 V, Ta = 25 ± 2 ºC, fv = 60 Hz,
whereas a power dissipation check pattern below is displayed.
Note (4) The power consumption is specified at the pattern with the maximum current.
a. White Pattern
Active Area
c. Vertical Stripe Pattern
b. Black Pattern
Active Area
R
G
R
B
G
R
B
G
R R
G
B
B
B
B
R
R
R
G
G
G
G
B
B
B
B
R
R
Active Area
3.2 Vcc Power Dip Condition:
Dip condition:
Vcc
4.5V
4.0V
Td
msTdVVccV 20,5.40.4
8 / 24
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 9
Global LCD Panel Exchange Center
www.panelook.com
Doc. No.: 400030161
Issued Date: May. 05, 2009
Model No.: M190Z3-L06
Approval

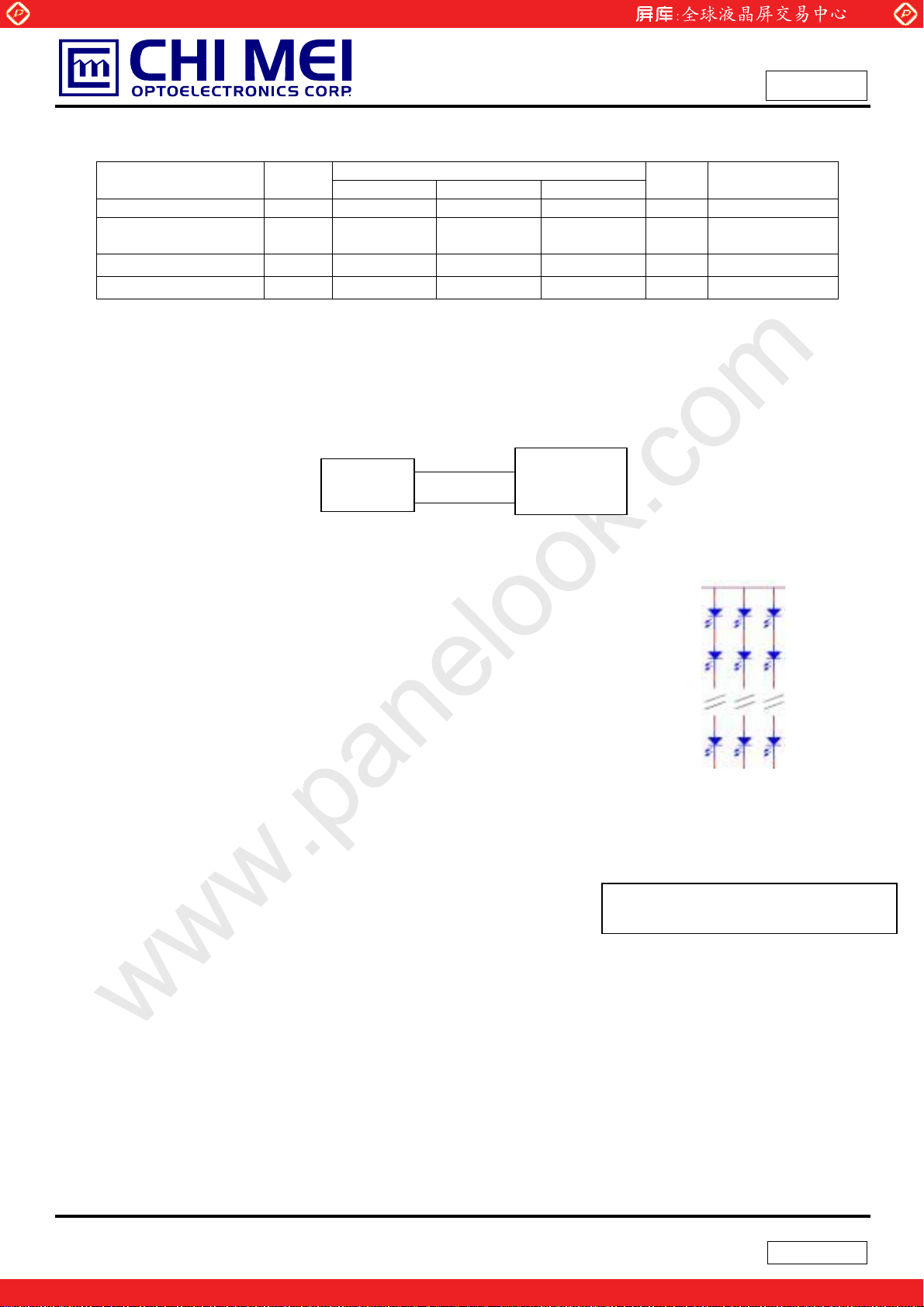

3.3 BACKLIGHT UNIT Ta = 25 ± 2 ºC
Parameter Symbol
Light Bar Input Voltage V
Light Bar Input Current I
Power Consumption P
31.9 36.3 41.8 VDC (Duty 100%)
LED
58.2 60 61.8 mA
LED
--- 8.71 --- W (1)
LED
Min. Typ. Max.
LED Life Time LBL 20000 --- --- Hrs (2)
Note (1) P
LED
= (I
4 ) V
LED
, LED matrix is 11S4P.
LED
Note (2) The lifetime of LED is defined as the time when it continues to operate under the conditions at Ta = 25
2 oC and I = 60 mA(Per EA) until the brightness becomes Љ 50% of its original value.
Va l ue
Unit Note
DC
(Duty 100%)
per string
LED
Converter
3.4 LIGHTBAR Connector Pin Assignment
Connector: 91500-00801-H ݛી(Aces)
CN1
Pin1,2: VLED
Pin3,4: OPEN
Pin5,6: Channel 2 (11 LEDs Series)
Pin7,8: Channel 1 (11 LEDs Series)
CN2
Pin1,2 : Channel 4 (11 LEDs Series)
Pin3,4: Channel 3 (11 LEDs Series)
V
LED ILED
LED
Backlight
Module
60mA for each channel
Pin5,6: OPEN
Pin7,8: VLED
9 / 24
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 10
Global LCD Panel Exchange Center
www.panelook.com
Doc. No.: 400030161
Issued Date: May. 05, 2009
Model No.: M190Z3-L06
Approval

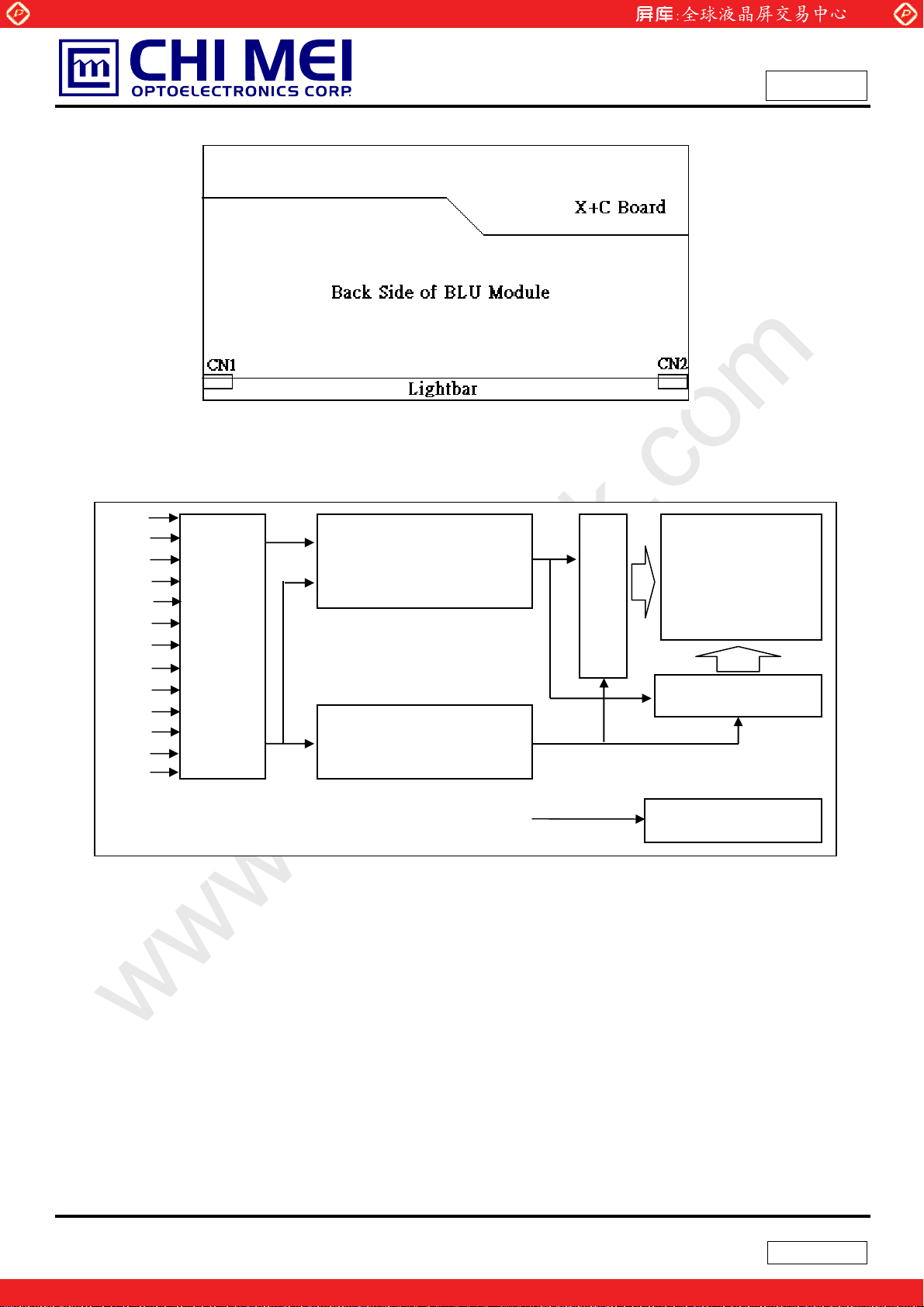

4. BLOCK DIAGRAM
4.1 TFT LCD MODULE
RXO0(+/-)
RXO1(+/-)
RXO2(+/-)
RXO3(+/-)
RXOC(+/-)
RXE0(+/-)
RXE1(+/-)
RXE2(+/-)
RXE3(+/-)
RXEC(+/-)
NC
Vcc
GND
STARCONN 093G30-B001A or
(JAE- FI-X30SSL-HF or
STM
INPUT CONNECTOR
LVDS INPUT /
TIMING CONTROLLER
DC/DC CONVERTER &
REFERENCE VOLTAGE
LED
V
I
LED
SCAN DRIVER IC
TFT LCD PANEL
(1680x3x1050)
DATA DRIVER IC
BACKLIGHT UNIT
10 / 24
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 11
Global LCD Panel Exchange Center
Issued Date: May. 05, 2009
www.panelook.com
Doc. No.: 400030161
Model No.: M190Z3-L06
Approval
5. INPUT TERMINAL PIN ASSIGNMENT
5.1 TFT LCD MODULE
Pin Name Description
1 RXO0- Negative LVDS differential data input. Channel O0 (odd)
2 RXO0+ Positive LVDS differential data input. Channel O0 (odd)
3 RXO1- Negative LVDS differential data input. Channel O1 (odd)
4 RXO1+ Positive LVDS differential data input. Channel O1 (odd)
5 RXO2- Negative LVDS differential data input. Channel O2 (odd)
6 RXO2+ Positive LVDS differential data input. Channel O2 (odd)
7 GND Ground
8 RXOC- Negative LVDS differential clock input. (odd)
9 RXOC+ Positive LVDS differential clock input. (odd)
10 RXO3- Negative LVDS differential data input. Channel O3(odd)
11 RXO3+ Positive LVDS differential data input. Channel O3 (odd)
12 RXE0- Negative LVDS differential data input. Channel E0 (even)
13 RXE0+ Positive LVDS differential data input. Channel E0 (even)
14 GND Ground
15 RXE1- Negative LVDS differential data input. Channel E1 (even)
16 RXE1+ Positive LVDS differential data input. Channel E1 (even)
17 GND Ground
18 RXE2- Negative LVDS differential data input. Channel E2 (even)
19 RXE2+ Positive LVDS differential data input. Channel E2 (even)
20 RXEC- Negative LVDS differential clock input. (even)
21 RXEC+ Positive LVDS differential clock input. (even)
22 RXE3- Negative LVDS differential data input. Channel E3 (even)
23 RXE3+ Positive LVDS differential data input. Channel E3 (even)
24 GND Ground
25 NC Not connection, this pin should be open.
26 NC Not connection, this pin should be open.
27 NC Not connection, this pin should be open.
28 Vcc +5.0V power supply
29 Vcc +5.0V power supply
30 Vcc +5.0V power supply
Note (1) Connector Part No.: 093G30-B001A (STARCONN) or FI-X30SSL-HF (JAE) or MSAKT2407P30A(STM) or
equivalent.
Note (2) The first pixel is odd.
Note (3) Input signal of even and odd clock should be the same timing.
11 / 24
Version 2.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Page 12
Global LCD Panel Exchange Center
Issued Date: May. 05, 2009
www.panelook.com
Doc. No.: 400030161
Model No.: M190Z3-L06
Approval
5.2 LVDS DATA MAPPING TABLE
LVDS Channel O0
LVDS Channel O1
LVDS Channel O2
LVDS Channel O3
LVDS Channel E0
LVDS Channel E1
LVDS Channel E2
LVDS Channel E3
LVDS output D7 D6 D4 D3 D2 D1 D0
Data order OG0 OR5 OR4 OR3 OR2 OR1 OR0
LVDS output D18 D15 D14 D13 D12 D9 D8
Data order OB1 OB0 OG5 OG4 OG3 OG2 OG1
LVDS output D26 D25 D24 D22 D21 D20 D19
Data order DE NA NA OB5 OB4 OB3 OB2
LVDS output D23 D17 D16 D11 D10 D5 D27
Data order NA OB7 OB6 OG7 OG6 OR7 OR6
LVDS output D7 D6 D4 D3 D2 D1 D0
Data order EG0 ER5 ER4 ER3 ER2 ER1 ER0
LVDS output D18 D15 D14 D13 D12 D9 D8
Data order EB1 EB0 EG5 EG4 EG3 EG2 EG1
LVDS output D26 D25 D24 D22 D21 D20 D19
Data order DE NA NA EB5 EB4 EB3 EB2
LVDS output D23 D17 D16 D11 D10 D5 D27
Data order NA EB7 EB6 EG7 EG6 ER7 ER6
12 / 24
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 13
Global LCD Panel Exchange Center
Issued Date: May. 05, 2009
www.panelook.com
Doc. No.: 400030161
Model No.: M190Z3-L06
Approval
5.3 COLOR DATA INPUT ASSIGNMENT
The brightness of each primary color (red, green and blue) is based on the 8-bit gray scale data input for the color. The
higher the binary input, the brighter the color. The table below provides the assignment of color versus data input.
Data Signal
Basic
Colors
Gray
Scale
Of
Red
Color
Black
Red
Green
Blue
Cyan
Magenta
Yellow
White
Red(0) / Dark
Red(1)
Red(2)
:
:
Red(253)
Red(254)
Red(255)
R7 R6 R5 R4 R3 R2 R1 R0 R7 R6 G5 G4 G3 G2 G1 G0 R7 R6 B5 B4 B3 B2 B1 B0
0
0
1
1
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
:
:
:
:
1
1
1
1
1
1
Red Green Blue
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
0
1
1
0
0
0
0
0
0
:
:
:
:
0
0
0
0
0
0
Green(0) / Dark
Green(1)
Gray
Scale
Of
Green
Gray
Scale
Of
Blue
Note (1) 0: Low Level Voltage, 1: High Level Voltage
Green(2)
:
:
Green(253)
Green(254)
Green(255)
Blue(0) / Dark
Blue(1)
Blue(2)
:
:
Blue(253)
Blue(254)
Blue(255)
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
1
1
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
0
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
0
1
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
13 / 24
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 14
Global LCD Panel Exchange Center
Issued Date: May. 05, 2009
www.panelook.com
Doc. No.: 400030161
Model No.: M190Z3-L06
Approval
6. INTERFACE TIMING
6.1 INPUT SIGNAL TIMING SPECIFICATIONS
The input signal timing specifications are shown as the following table and timing diagram.
Signal Item Symbol Min. Typ. Max. Unit Note
Frequency Fc 49 60 76 MHz -
LVDS Clock
LVDS Data
Vertical Active Display Term
Horizontal Active Display Term
Note: Because this module is operated by DE only mode, Hsync and Vsync input signals should be set to low logic
Period Tc 13 16.7 20 ns
High Time Tch - 4/7 - Tc Low Time Tcl - 3/7 - Tc Setup Time Tlvs 600 - - ps Hold Time Tlvh 600 - - ps Frame Rate Fr - 60 75 Hz Tv=Tvd+Tvb
Total Tv 1066 1080 1137 Th Display Tvd 1050 1050 1050 Th Blank Tvb Tv-Tvd 30 Tv-Tvd Th Total Th 910 920 970 Tc Th=Thd+Thb
Display Thd 840 840 840 Tc Blank Thb Th-Thd 80 Th-Thd Tc -
level or ground. Otherwise, this module would operate abnormally.

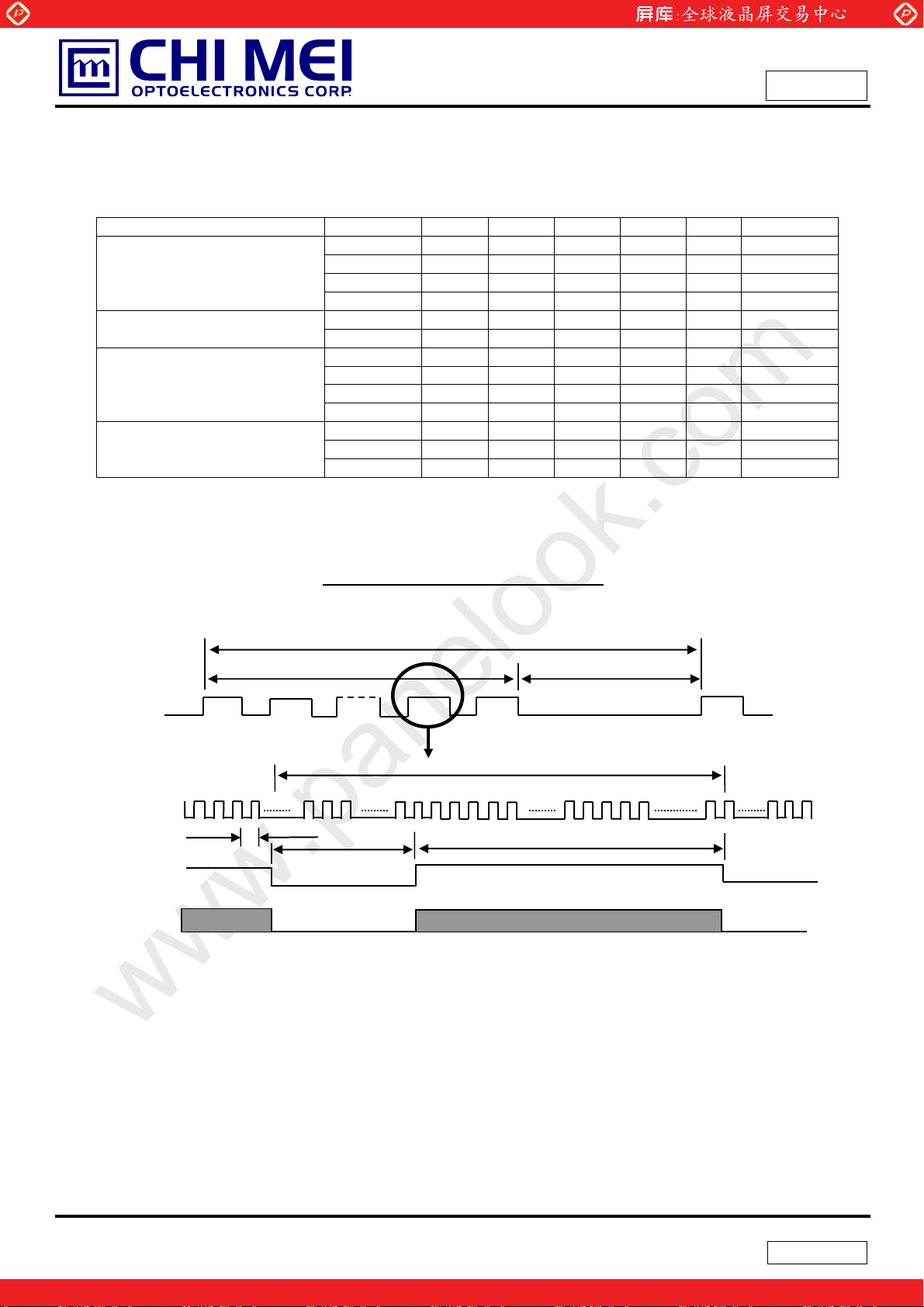

INPUT SIGNAL TIMING DIAGRAM
DE
DCLK
T
C
DE
DATA
Thb
Th
hd
T
14 / 24
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 15
Global LCD Panel Exchange Center
www.panelook.com
Doc. No.: 400030161
Issued Date: May. 05, 2009
Model No.: M190Z3-L06
Approval

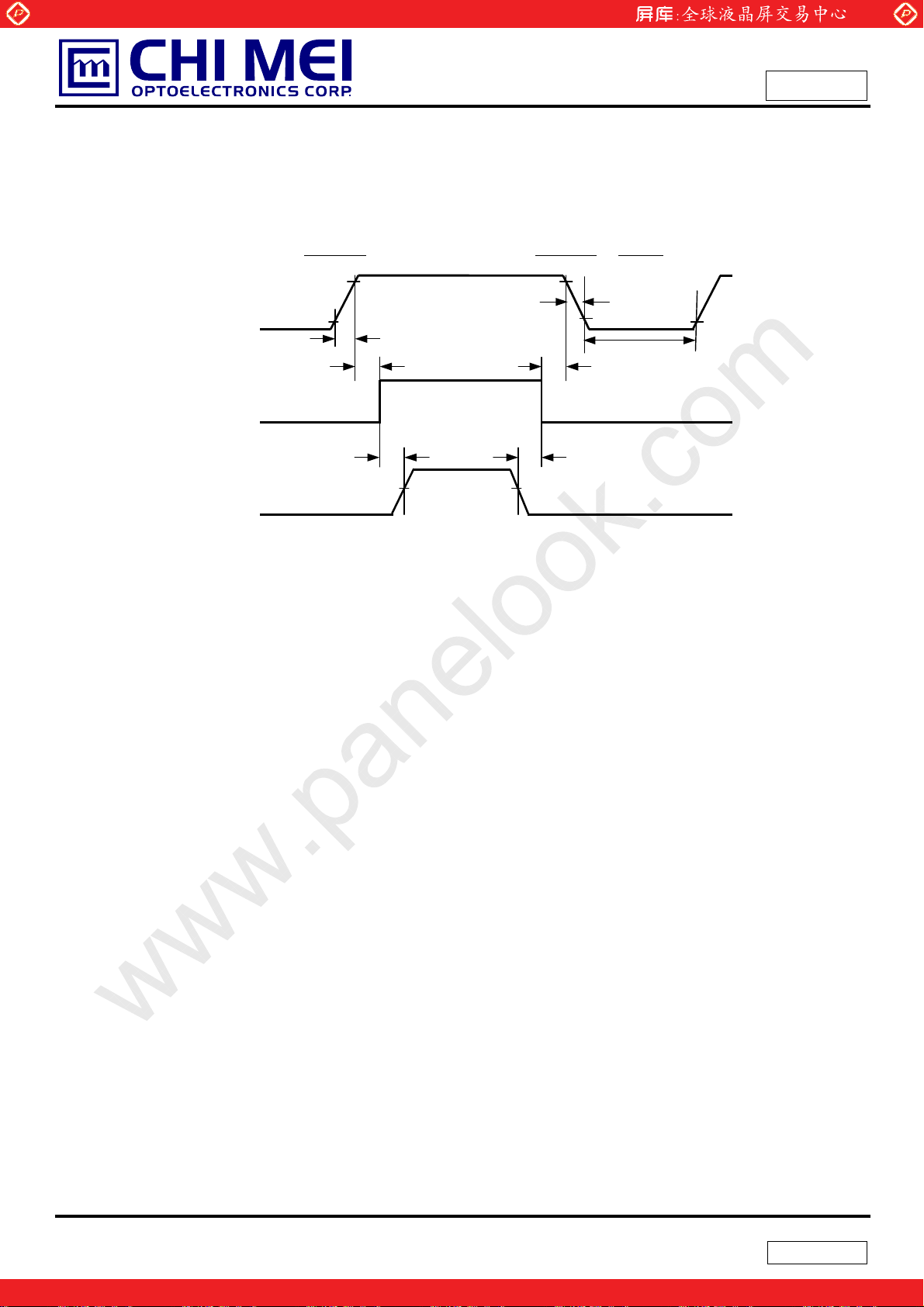

6.2 POWER ON/OFF SEQUENCE
To prevent a latch-up or DC operation of LCD module, the power on/off sequence should be as the
diagram below.
Power Supply
for LCD, Vcc
-
Interface Signal
(LVDS Signal of
Transmitter), V
-
Power for Lamp
I
Timing Specifications:
0.5< t1 Љ 10 msec
0 < t2 Љ 50 msec
0 < t3 Љ 50 msec
t4 Њ 500 msec
0V
0V
Power On
90%
10%
t1
t7
10%
Restart
10%
t4
Power Off
90%
t2
Valid Data
ONOFF OFF
t3
t6 t5
50%50%
t5 Њ 450 msec
t6 Њ 90 msec
5 Љt7 Љ 100 msec
Note.
(1) The supply voltage of the external system for the module input should be the same as the definition of Vcc.
(2) Apply the light bar voltage within the LCD operation range. When the backlight turns on before the LCD operation of
the LCD turns off before the backlight turns off, the display may momentarily become abnormal screen.
(3) In case of Vcc = off level, please keep the level of input signals on the low or keep a high impedance.
(4) t4 should be measured after the module has been fully discharged between power of and on period.
(5) Interface signal shall not be kept at high impedance when the power is on.
(6)
CMO won’t take any responsibility for the products which are damaged by the customers not following the Power
Sequence.
(7)
There might be slight electronic noise when LCD is turned off (even backlight unit is also off). To avoid this symptom,
we suggest "Vcc falling timing" to follow "t7 spec".
15 / 24
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 16
Global LCD Panel Exchange Center
www.panelook.com
Doc. No.: 400030161
Issued Date: May. 05, 2009
Model No.: M190Z3-L06
Approval
7. OPTICAL CHARACTERISTICS
7.1 TEST CONDITIONS
Item Symbol Value Unit
Ambient Temperature Ta
Ambient Humidity Ha
25±2
50±10
Supply Voltage VCC 5.0 V
Input Signal According to typical value in "3. ELECTRICAL CHARACTERISTICS"
Light Bar Input Voltage V
Light Bar Input Current I
36.3 V
LED
LED
601.8
Duty D 100 %
7.2 OPTICAL SPECIFICATIONS
The relative measurement methods of optical characteristics are shown in 7.2. The following items should be
o
%RH
mA
DC (per string)
C
DC
measured under the test conditions described in 7.1 and stable environment shown in Note (5).
Item Symbol Condition Min. Typ. Max. Unit Note
Red
Green
Color
Chromaticity
Blue
White
Rx
Ry
Gx
Gy
Bx
By
Wx
Wy
Center Luminance of White L
Contrast Ratio CR
Response Time
White Variation
Horizontal
Viewing Angle
Vertical
TR --- 1.5 2.5 ms
T
δW θ
θx+
θ
θY+
θ
Horizontal
Viewing Angle
Vertica l
θx+
θ
θY+
θ
-0.05
=0° , θY =0°
θ
x
CS-1000T
C
200 250 --- cd/m2(4), (5)
700 1000 --- - (2), (5)
θ
=0° , θY =0°
F
x
=0° , θY =0°
x
--- 3.5 5.5 ms
---
75 85 ---
-
x
-
Y
CR Њ 10
75
70
70
80
-
x
-
Y
CR Њ 5
80
75
75
0.634
0.346
0.329
0.614
0.158
0.060
0.313
0.329
1.25 1.33
85 ---
80 ---
80 ---
89
89
85
85
+0.05
---
---
---
---
(1), (5)
(3)
- (5), (6)
Deg. (1), (5)
Deg. (1), (5)
16 / 24
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 17
Global LCD Panel Exchange Center
www.panelook.com
Doc. No.: 400030161
Issued Date: May. 05, 2009
Model No.: M190Z3-L06
Approval

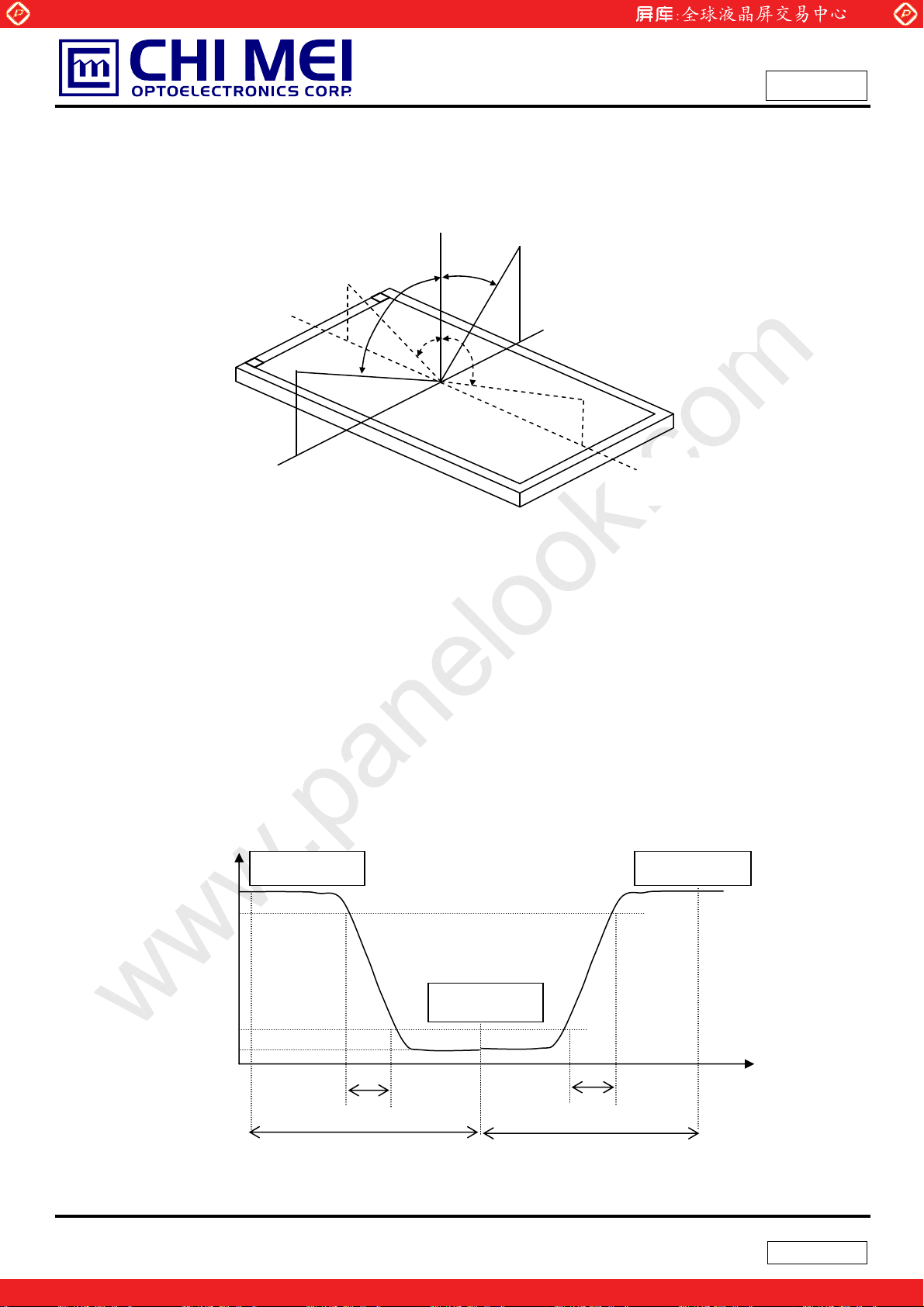

Note (1) Definition of Viewing Angle (θx, θy):
Normal
θx = θy = 0º
θy- θy+
θX- = 90º
6 o’clock
θ
y- = 90º
x-
y-
Note (2) Definition of Contrast Ratio (CR):
The contrast ratio can be calculated by the following expression.
Contrast Ratio (CR) = L255 / L0
L255: Luminance of gray level 255
L 0: Luminance of gray level 0
CR = CR (5)
θx−
θx+
y+
12 o’clock direction
θ
y+ = 90º
x+
θX+ = 90º
CR (X) is corresponding to the Contrast Ratio of the point X at Figure in Note (6).
Note (3) Definition of Response Time (T
Gray Level 255
100%
90%
Optical
Response
10%
0%
, TF):
R
T
R
66.67ms
Gray Level 0
17 / 24
T
F
66.67ms
Gray Level 255
Time
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 18
Global LCD Panel Exchange Center
Issued Date: May. 05, 2009
www.panelook.com
Doc. No.: 400030161
Model No.: M190Z3-L06
Approval
Note (4) Definition of Luminance of White (LC):
Measure the luminance of gray level 255 at center point
L
= L (5)
C
L (x) is corresponding to the luminance of the point X at Figure in Note (6).

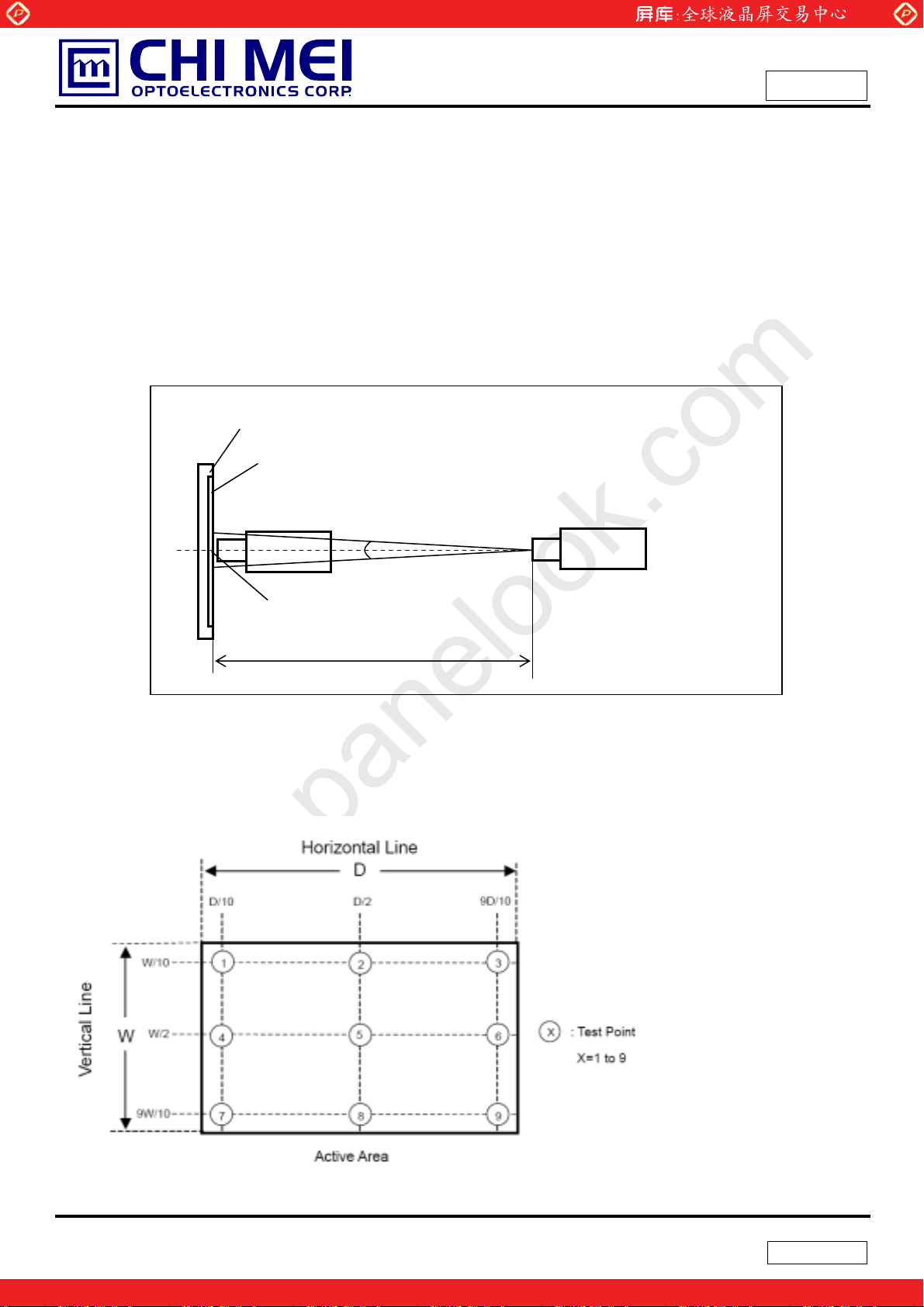

Note (5) Measurement Setup:
The LCD module should be stabilized at given temperature for 40 minutes to avoid abrupt temperature
change during measuring. In order to stabilize the luminance, the measurement should be executed after
lighting Backlight for 40 minutes in a windless room.
LCD Module
LCD Panel
USB2000
Center of the Screen
Note (6) Definition of White Variation (δW):
Measure the luminance of gray level 255 at 9 points
δW = Maximum [L (1), L (2) ……L (4), L (9)] / Minimum [L (1), L (2) …… L (4), L (9)]
CS-1000T
Field of View = 2º
Light Shield Room
(Ambient Luminance < 2 lux)
18 / 24
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 19
Global LCD Panel Exchange Center
Issued Date: May. 05, 2009
www.panelook.com
Doc. No.: 400030161
Model No.: M190Z3-L06
Approval
8. PACKAGING
8.1 PACKING SPECIFICATIONS
(1) 7 LCD modules / 1 Box
(2) Box dimensions: 525(L) X 300 (W) X 360 (H) mm
(3) Weight: approximately 12.0 Kg (7 modules per box)
8.2 PACKING METHOD
(1) Carton Packing should have no failure in the following reliability test items.
Test Item Test Conditions Note
ISTA STANDARD
Random, Frequency Range: 1 – 200 Hz
Vibration
Dropping Test 1 Corner, 3 Edge, 6 Face, ISTA STANDARD Non Operation
Top & Bottom: 30 minutes (+Z), 10 min (-Z),
Right & Left: 10 minutes (X)
Back & Forth 10 minutes (Y)
Non Operation

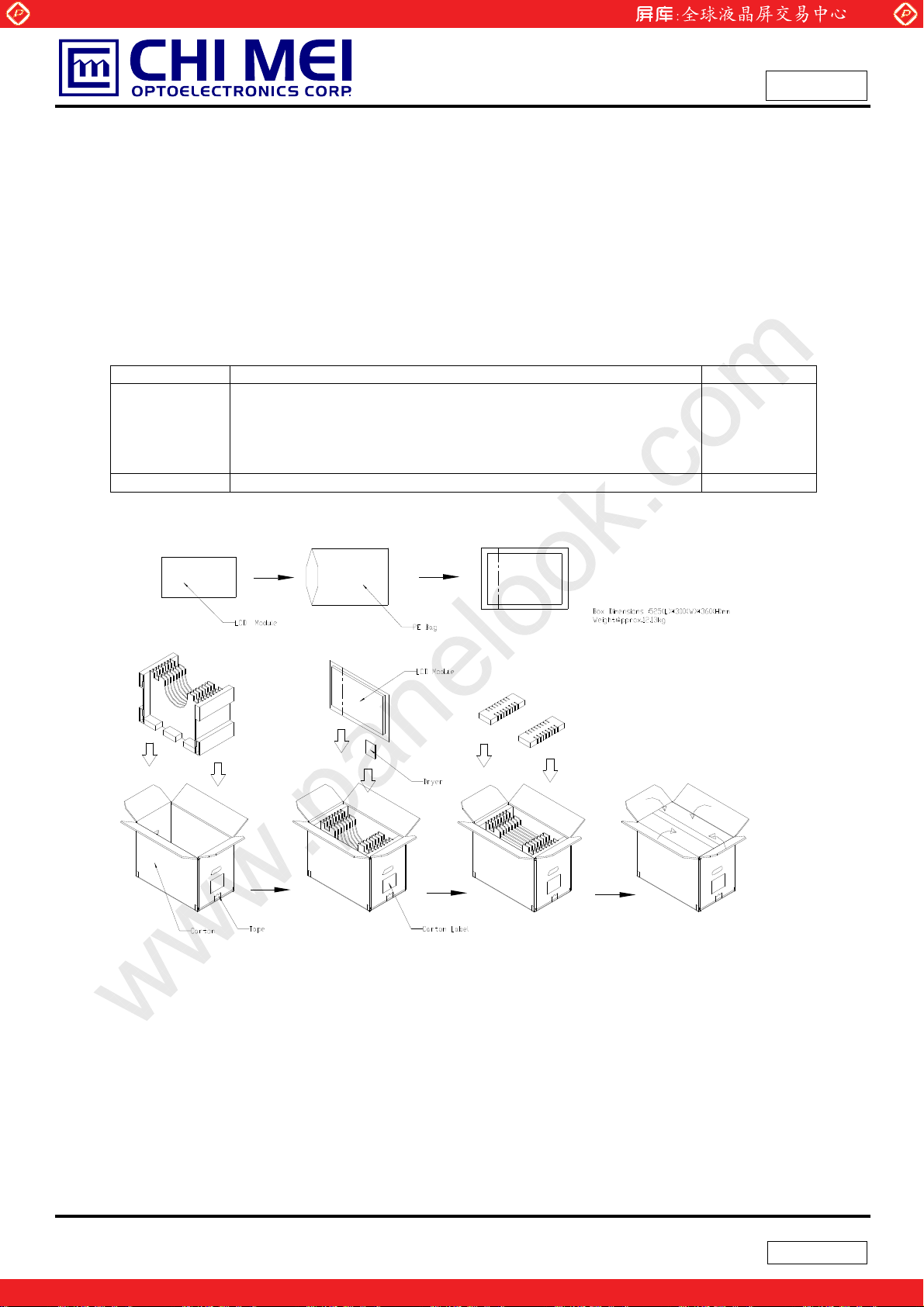

Figure. 8-1 Packing method
19 / 24
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 20
Global LCD Panel Exchange Center
www.panelook.com
Doc. No.: 400030161
Issued Date: May. 05, 2009
Model No.: M190Z3-L06
Approval

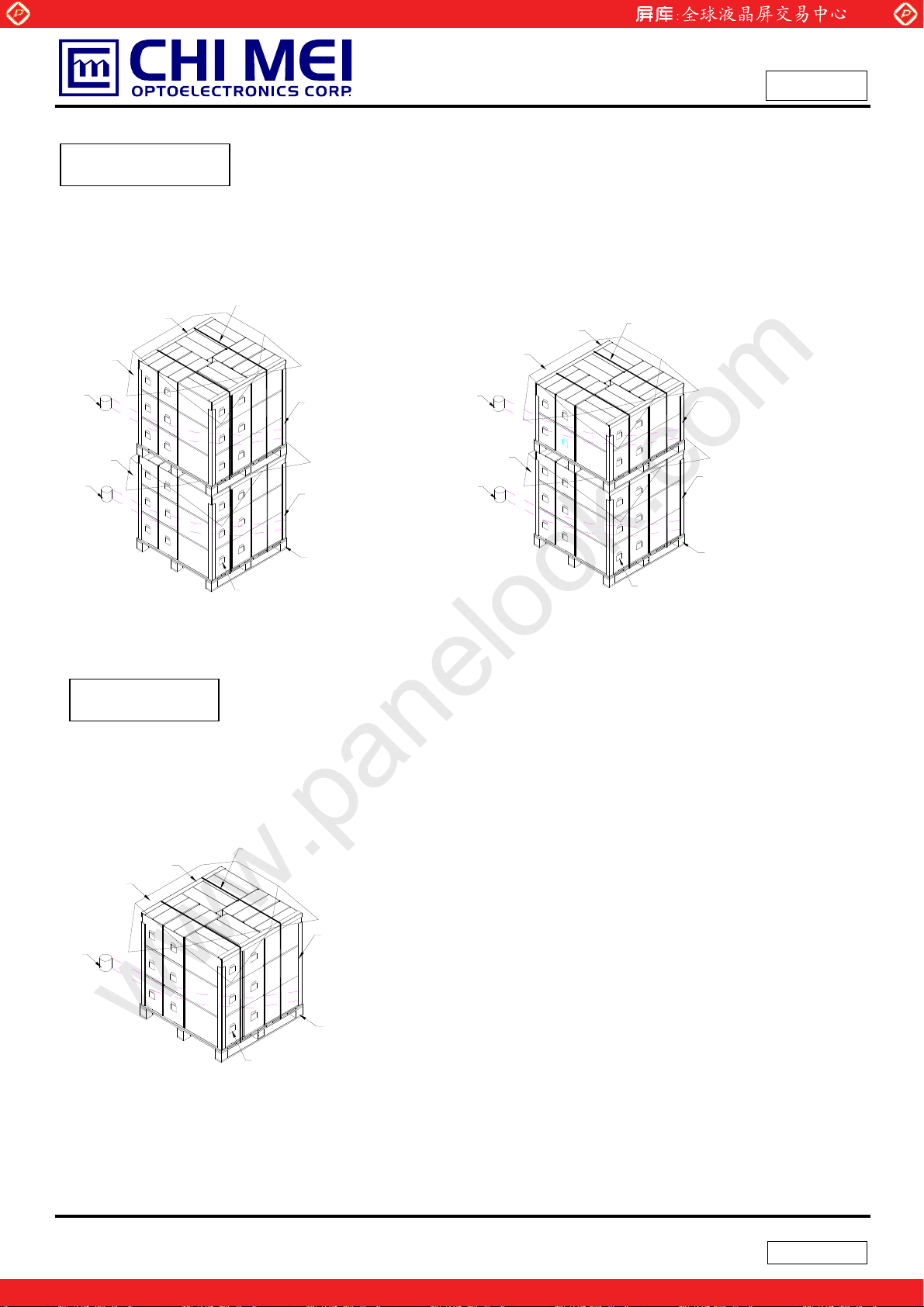

For ocean shipping
Sea / Land Transportation (40ft HQ Container)
PP Belt
Carton label
Corner Protector
(50*50*1000mm)
Corner Protector
(50*50*1000mm)
Film
Film
PE Sheet
PE Sheet
Corner Protector
(50*50*1130mm)
Pallet
(1150*1150*143mm)
Sea / Land Transportation (40ft Container)
Corner Protector
(50*50*1130mm)
PE Sheet
Film
PE Sheet
Film
PP Belt
Carton label
Figure. 8-2 Packing method
Corner Protector
(50*50*600mm)
Corner Protector
(50*50*1000mm)
Pallet
(1150*1150*143mm)
For air transport
Air Transportation
Corner Protector
(50*50*1130mm)
PE Sheet
Film
PP Belt
Carton label
Corner Protector
(50*50*1000mm)
Pallet
(1150*1150*143mm)
Figure. 8-3 Packing method
20 / 24
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 21
Global LCD Panel Exchange Center
Issued Date: May. 05, 2009
www.panelook.com
Doc. No.: 400030161
Model No.: M190Z3-L06
Approval
9. DEFINITION OF LABELS
9.1 CMO MODULE LABEL

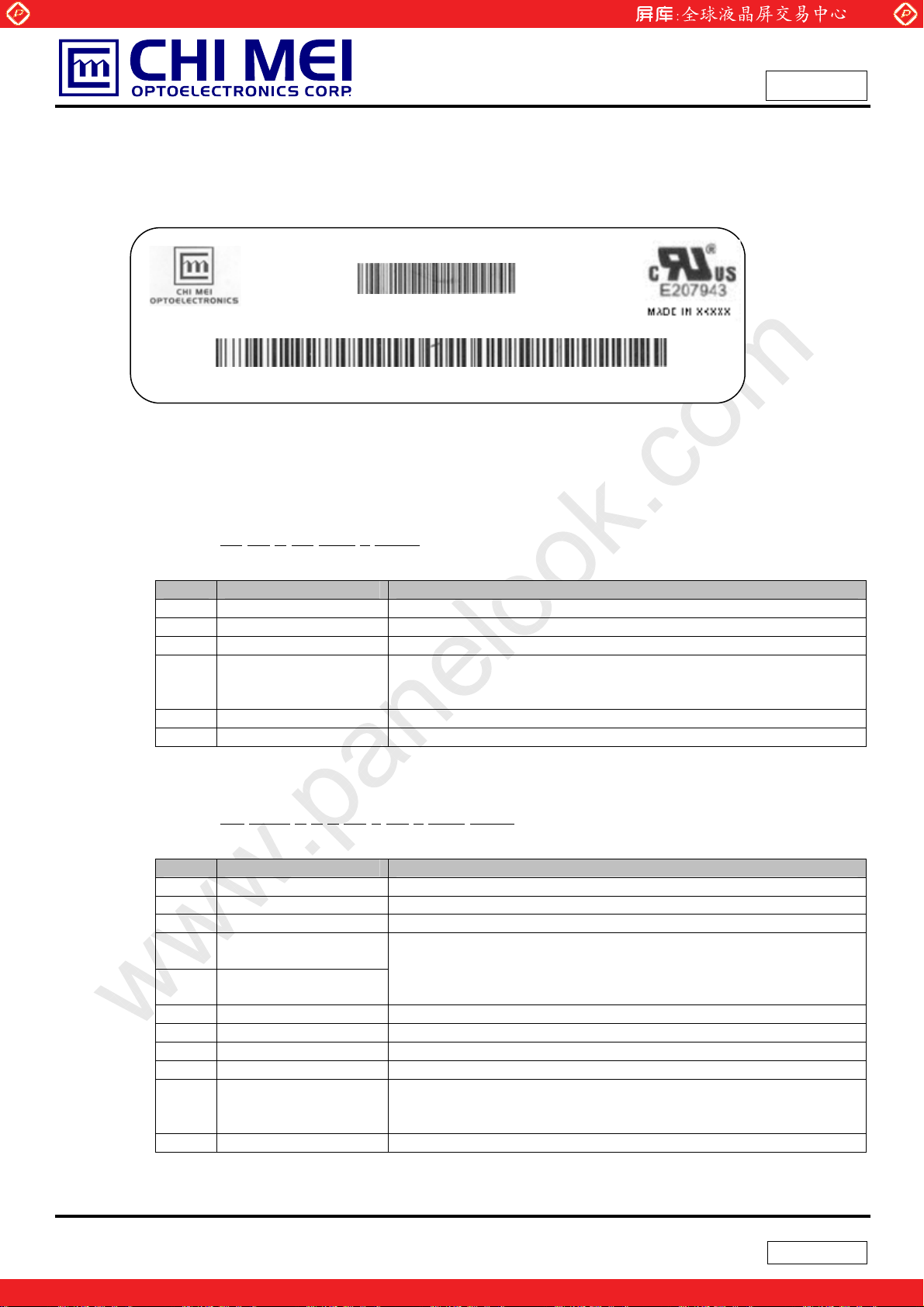

The barcode nameplate is pasted on each module as illustration, and its definitions are as following explanation.
M190Z3-L06 Rev. XX
(Fab ID)
XXXXXXXYMDLNNNN
CM19Z36XXXXXLXXLYM DNNNN
(a) Model Name: M190Z3-L06
RoHS
(b) Revision: Rev. XX, for example: A0, A1… B1, B2… or C1, C2…etc.
(c) CMO barcode definition:
Serial ID: XX
Code Meaning Description
XX CMO internal use XX Revision Cover all the change
X CMO internal use -
YMD
L Product line # Line 1=1, Line 2=2, Line 3=3, …
NNNN Serial number Manufacturing sequence of product
(d) Customer’s barcode definition:
Serial ID: CM
Code Meaning Description
CM Supplier code CMO=CM
19Z36 Model number M190Z3-L06=19Z36
X Revision code Non ZBD: 1,2,~,8,9 / ZBD: A~Z
X Source driver IC code
X Gate driver IC code
XX Cell location Tainan, Taiwan=TN
L Cell line # 1,2,~,9,A,B,~,Y,Z
XX Module location Tainan, Taiwan=TN ; Ningbo China=NP
L Module line # 1,2,~,9,A,B,~,Y,Z
YMD
NNNN Serial number Manufacturing sequence of product
-XX-X-XX-YMD-L-NNNN
Year, month, day Year: 2001=1, 2002=2, 2003=3, 2004=4…
Month: 1~12=1, 2, 3, ~, 9, A, B, C
Day: 1~31=1, 2, 3, ~, 9, A, B, C, ~, W, X, Y, exclude I, O, and U.
-19Z36-X-X-X-XX-L-XX-L-YMD-NNNN
Century=1, CLL=2, Demos=3, Epson=4, Fujitsu=5, Himax=6, Hitachi=7,
Hynix=8, LDI=9, Matsushita=A, NEC=B, Novatec=C, OKI=D,
Philips=E, Renasas=F, Samsung=G, Sanyo=H, Sharp=I, TI=J, Topro=K,
Toshiba=L, Windbond=M
Year, month, day Year: 2001=1, 2002=2, 2003=3, 2004=4…
Month: 1~12=1, 2, 3, ~, 9, A, B, C
Day: 1~31= 1, 2, 3, ~, 9, A, B, C, ~, T, U, V
21 / 24
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com
Page 22
Global LCD Panel Exchange Center
Issued Date: May. 05, 2009
www.panelook.com
Doc. No.: 400030161
Model No.: M190Z3-L06
Approval
(e) UL Factory ID:
Region Factory ID
TWCMO GEMN
NBCMO LEOO
NBCME CANO
NHCMO CAPG
10. PRECAUTIONS
10.1 ASSEMBLY AND HANDLING PRECAUTIONS
(1) Do not apply rough force such as bending or twisting to the module during assembly.
(2) To assemble or install module into user’s system can be only in clean working areas. The dust and oil may cause
electrical short or worsen the polarizer.
(3) It’s not permitted to have pressure or impulse on the module because the LCD panel and Backlight will be
damaged.
(4) Always follow the correct power sequence when LCD module is connecting and operating. This can prevent
damage to the CMOS LSI chips during latch-up.
(5) Do not pull the I/F connector in or out while the module is operating.
(6) Do not disassemble the module.
(7) Use a soft dry cloth without chemicals for cleaning, because the surface of polarizer is very soft and easily
scratched.
(8) It is dangerous that moisture come into or contacted the LCD module, because moisture may damage LCD
module when it is operating.
(9) High temperature or humidity may reduce the performance of module. Please store LCD module within the
specified storage conditions.
(10) When ambient temperature is lower than 10ºC may reduce the display quality.
10.2 SAFETY PRECAUTIONS
(1) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In case of
contact with hands, skin or clothes, it has to be washed away thoroughly with soap
(2)After the module’s end of life, it is not harmful in case of normal operation and storage.
10.3 SAFETY STANDARDS
The LCD module should be certified with safety regulations as follows:
(1) UL60950-1 or updated standard.
(2) IEC60950-1 or updated standard.
10.4 OTHER
When fixed patterns are displayed for a long time, remnant image is likely to occur.
22 / 24
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.0
www.panelook.com

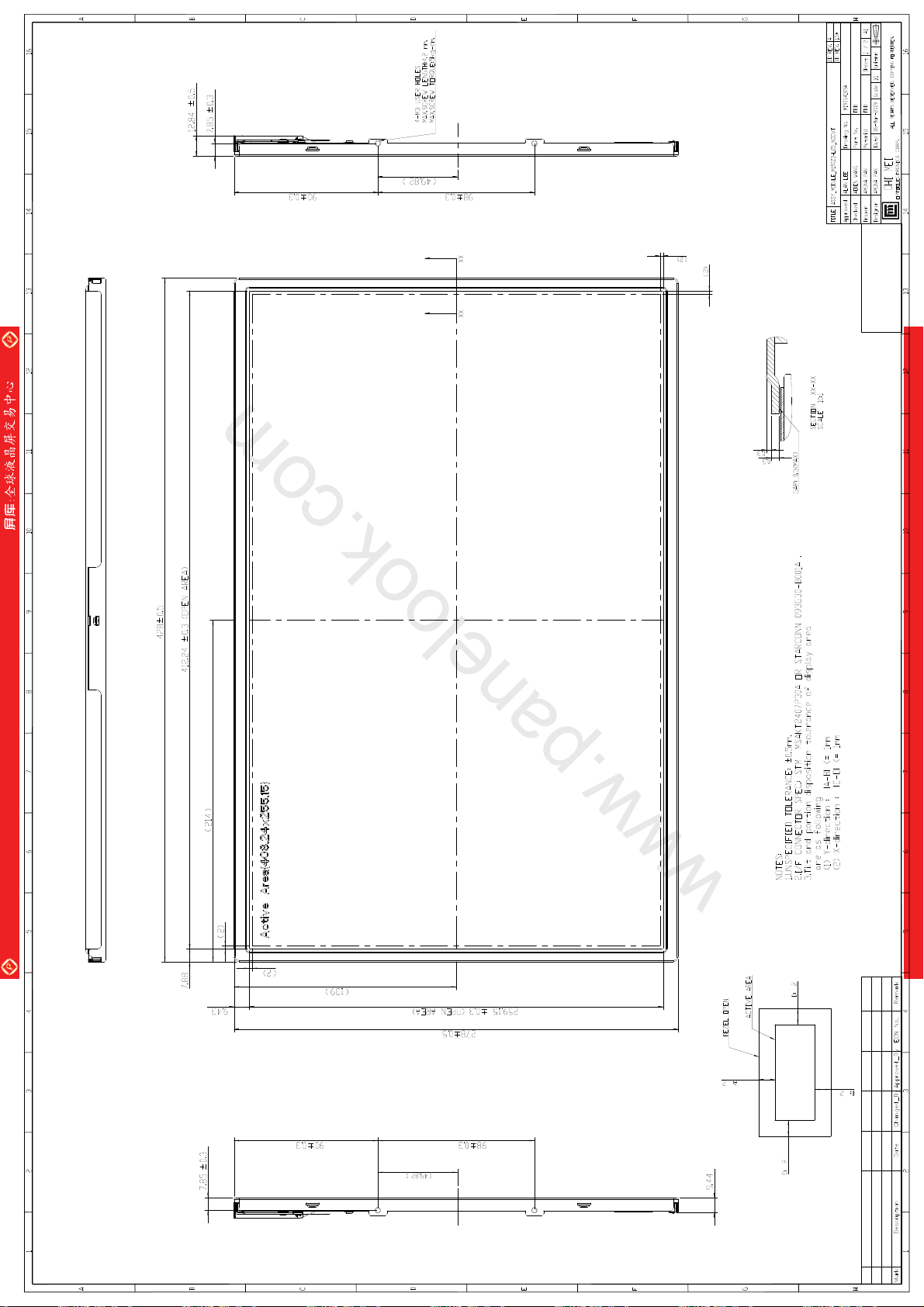

Page 23
www.panelook.com
www.panelook.com
Global LCD Panel Exchange Center
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

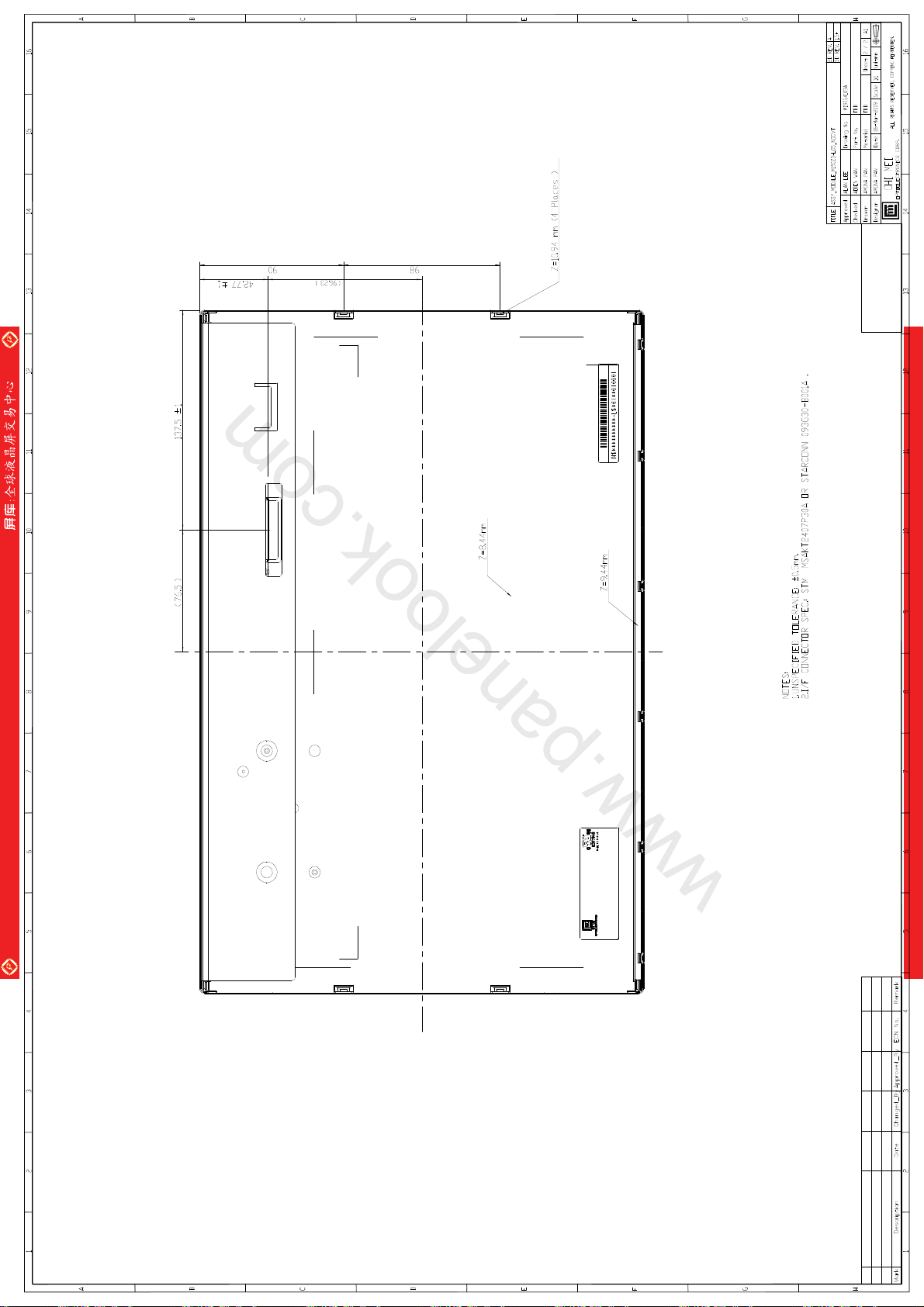

Page 24
www.panelook.com
www.panelook.com
Global LCD Panel Exchange Center
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Loading...
