Issued Date: Feb. 09, 2009

Doc. No.: 400003812

Model No.: M190A1-L10

Approval

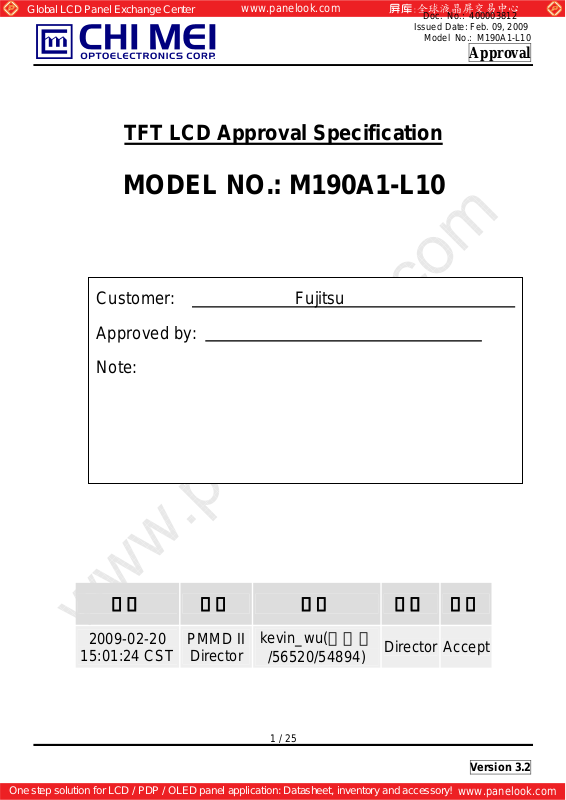

TFT LCD Approval Specification

MODEL NO.: M190A1-L10

Customer: Fujitsu
Approved by:
Note:

記錄 工作 審核 角色 投票

2009-02-20

15:01:24 CST

PMMD II

Director

kevin_wu(吳柏勳

Director Accept

/56520/54894)

1 / 25

Version 3.2

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Issued Date: Feb. 09, 2009

Doc. No.: 400003812

Model No.: M190A1-L10

Approval

- CONTENTS -

1. GENERAL DESCRIPTION

1.1 OVERVIEW

1.2 FEATURES

1.3 APPLICATION

1.4 GENERAL SPECIFICATIONS

1.5 MECHANICAL SPECIFICATIONS

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATI NGS OF ENVIRONMENT

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

2.2.2 BACKLIGHT UNIT

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD MODULE

3.2 BACKLIGHT UNIT

4. BLOCK DIAGRAM

4.1 TFT LCD MODULE

4.2 BACKLIGHT UNIT

5. INPUT TERMINAL PIN ASSIGNMENT

5.1 TFT LCD MODULE

5.2 BACKLIGHT UNIT

5.3 COLOR DATA INPUT ASSIGNMENT

6. INTERFACE TIMING

6.1 INPUT SIGNAL TIMING SPECIFICATIONS

6.2 POWER ON/OFF SEQUENCE

7. OPTICAL CHARACTERISTICS

7.1 TEST CONDITIONS

7.2 OPTICAL SPECIFICATIONS

8. PACKAGING

8.1 PACKING SPECIFICATIONS

8.2 PACKING METHOD

9. DEFINITION OF LABELS

10. PRECAUTIONS

10.1 ASSEMBLY AND HANDLING PRECAUTIONS

10.2 SAFETY PRECAUTIONS

10.3 SAFETY STANDARDS

10.4 OTHER

11. MECHANICAL CHARACTERISTICS

2 / 25

Version 3.2

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

≤<≤

Issued Date: Feb. 09, 2009

Doc. No.: 400003812

Model No.: M190A1-L10

Approval

REVISION HISTORY

Date Section Description

2.0

3.0

3.1

3.2

Apr, 25, 07’
Jun, 15, 07’

Oct, 8, 07’

Feb.09, ’09

All

1.5

2.1

3.2

6.1

6.2

9.1

2.22

3.2

8.

10.3

10.4

M190A1-L10 Specifications was first issued.
MECHANICAL SPECIFICATIONS
Add I/F connector mounting position
Æ The mounting inclination of the connector makes the screen center
within ±0.5mm as the horizontal
ABSOLUTE RATINGS OF ENVIRONMENT
Relative humidity min:10%Æ5%
BACKLIGHT UNIT
Lamp Turn On Voltage: 1300Vrms(25℃)/ 1400 Vrms (0℃)

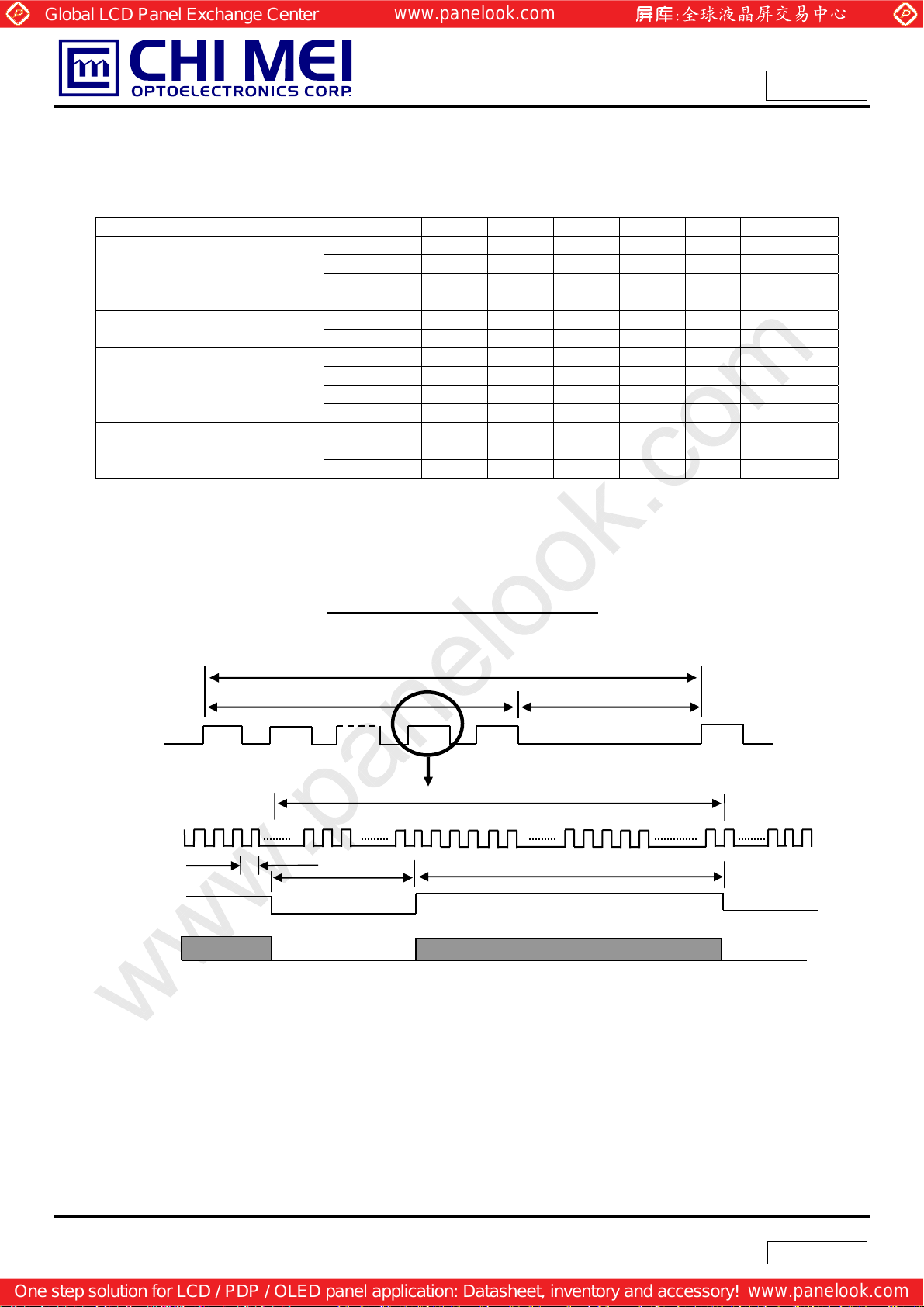

INPUT SIGNAL TIMING SPECIFICATIONS
Vertical Active Display Term: frame rate Max:75HzÆ77Hz

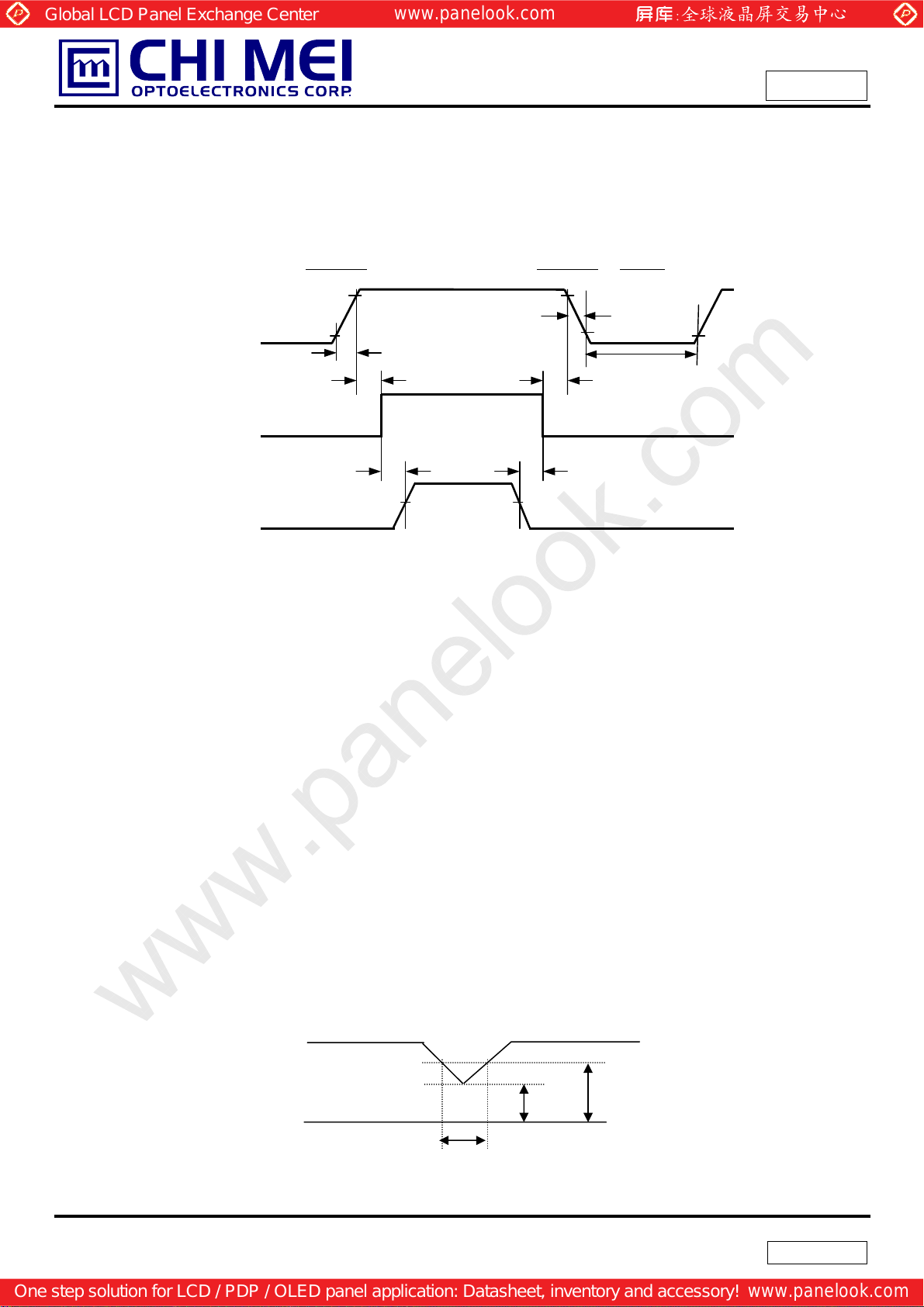

POWER ON/OFF SEQUENCE

Vcc Power Dip Condition:

msTdVccVccVcc 20,9.08.0

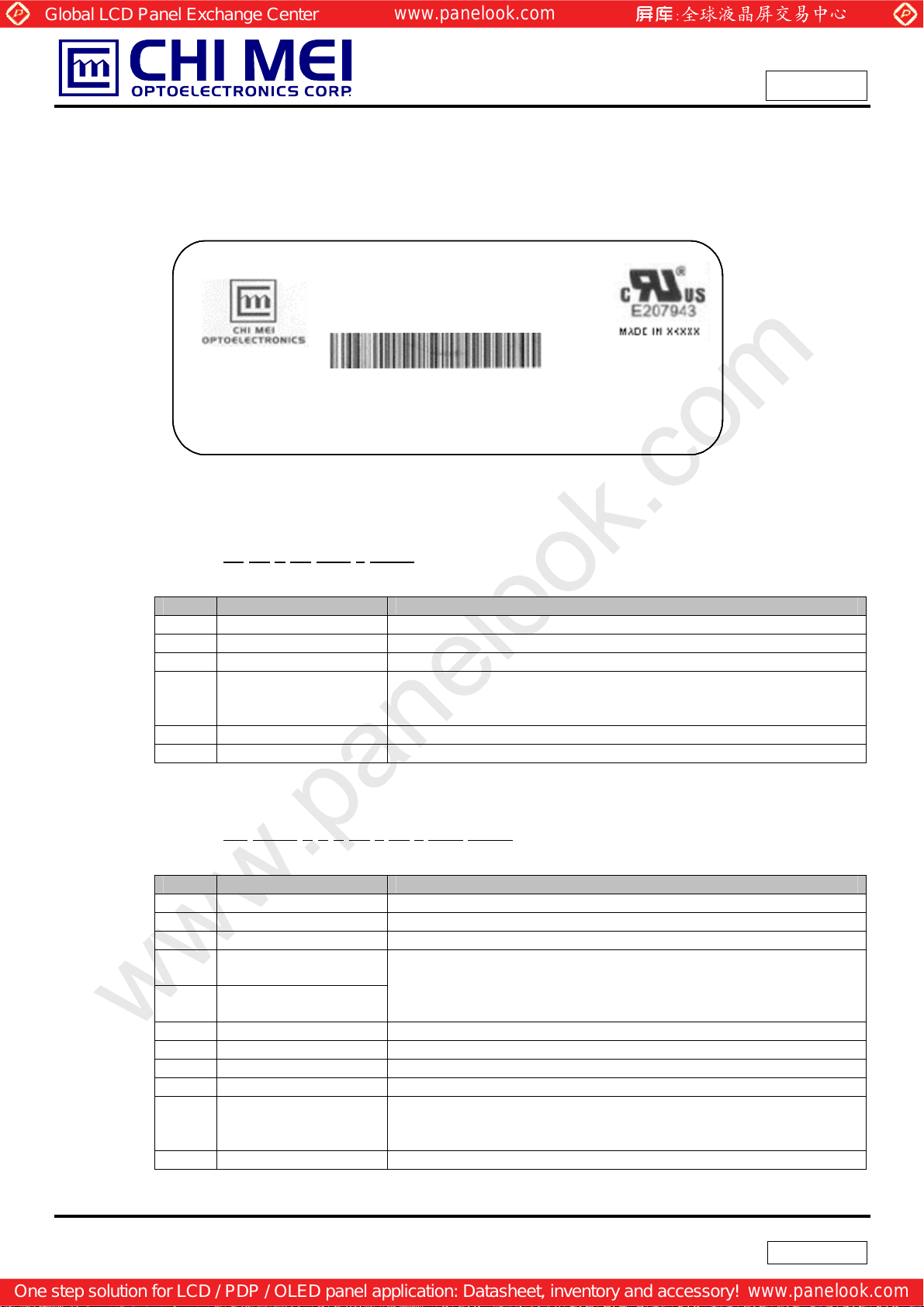

CMO module label
From

M190A 1-L10 Rev. XX

M190A 1-L10 Rev. XX

(LEOO)

(LEOO)
(Ro H S)

(Ro H S)

XXXXXXXYMDLNNNN

0XA

0XA

XXXXXXXYMDLNNNN

CM19A16XXXXXLXXLYM DNNNN

CM19A16XXXXXLXXLYM DNNNN

CP355561-01

CP355561-01

change to

M190A1-L Rev. XX

M190A1-L1 0 Rev. XX

M190A1-L Rev. XX

M190A1-L1 0 Rev. XX

0XA

0XA

0XA

0XA

XXXXXXXYMDLNNNN

XXXXXXXYMDLNNNN

XXXXXXXYMDLNNNN

XXXXXXXYMDLNNNN

CP355561-01

CP355561-01

(LEOO)

(LEOO)

(LEOO)

(LEOO)

(RoHS)

(RoHS)

(RoHS)

(RoHS)

Add lamp frequency minimum value “40”.
Modify the graphic of note(1)

Modify the description of note (2), adding “It is the value output voltage
of NF circuit.”

Change package from 5pcs/box to 7pcs/box.
Add “Safety Standards”

Add “Other”

3 / 25

Version 3.2

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Issued Date: Feb. 09, 2009

Doc. No.: 400003812

Model No.: M190A1-L10

Approval

1. GENERAL DESCRIPTION

1.1 OVERVIEW

M190A1-L10 is a 19” wide TFT Liquid Crystal Display module with 4 CCFL Backlight unit and 30 pins

2ch-LVDS interface. This module supports 1440 x 900 WXGA+ mode and can display 16.7M colors. The
inverter module for Backlight is not built in.

1.2 FEATURES

- Super Wide viewing angle.

- Super High contrast ratio

- Super fast response time

- High color saturation

- WXGA+ (1440 x 900 pixels) resolution

- DE (Data Enable) only mode

- LVDS (Low Voltage Differential Signaling) interface

- RoHS Compliance

1.3 APPLICA TION

- TFT LCD Monitor

1.4 GENERAL SPECIFICATI0NS

Item Specification Unit Note
Diagonal Size 483.96 (19.05” diagonal) mm
Active Area 410.4 (H) x 256.5 (V) mm
Bezel Opening Area 414.36 x 260.45 mm
Driver Element a-si TFT active matrix - ­Pixel Number 1440 x R.G.B. x 900 pixel ­Pixel Pitch 0.285 (H) x 0.285 (V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 16.7M color ­Transmissive Mode Normally White - ­Color saturation 72%NTSC (typ.) - ­Surface Treatment Hard coating (3H),Glare - -

Module Power Consumption 25.2 Watt (2)

(1)

1.5 MECHANICAL SPECIFICATIONS

Item Min. Typ. Max. Unit Note

Horizontal(H) 426.7 427.2 427.7 mm

Module Size

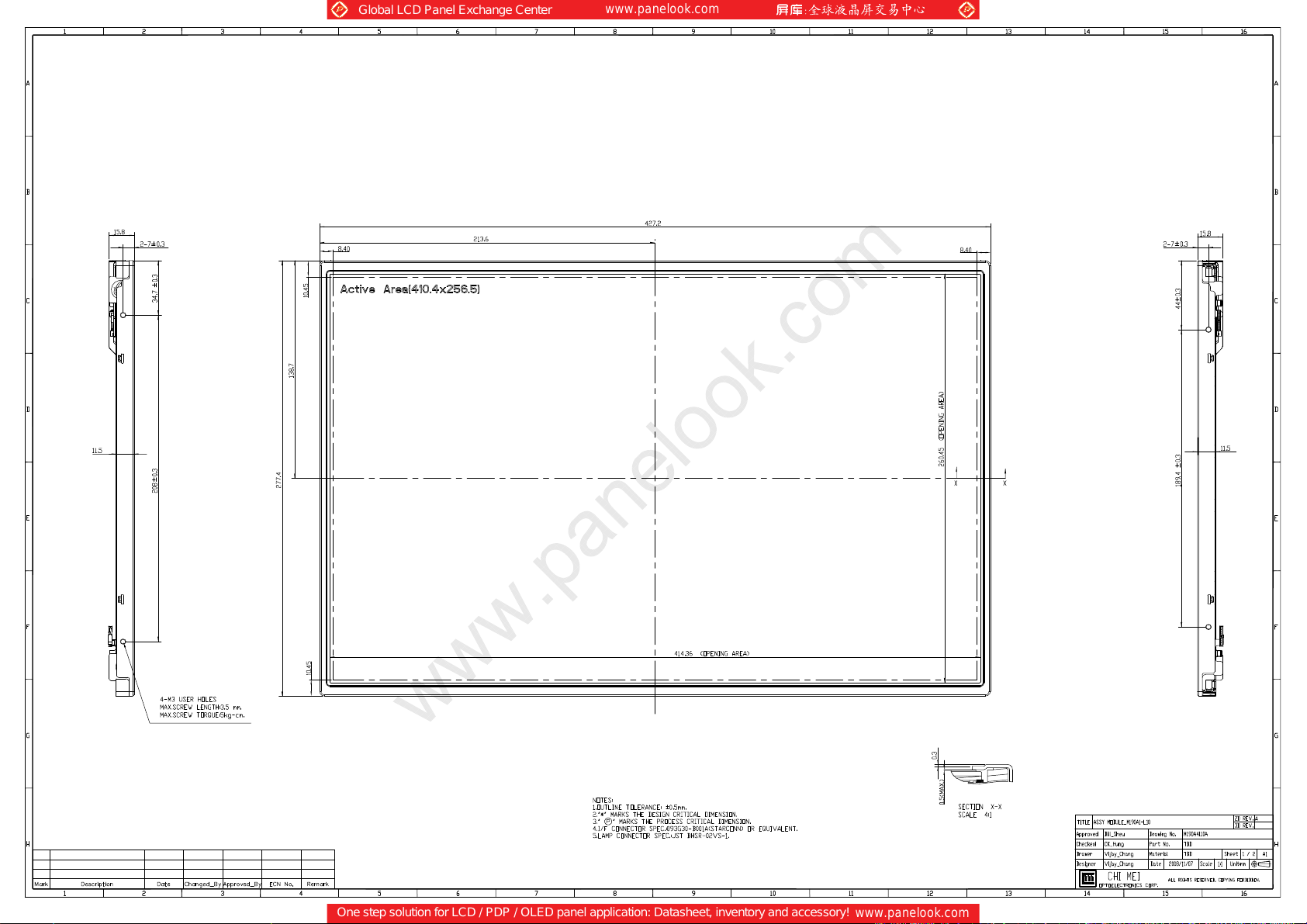

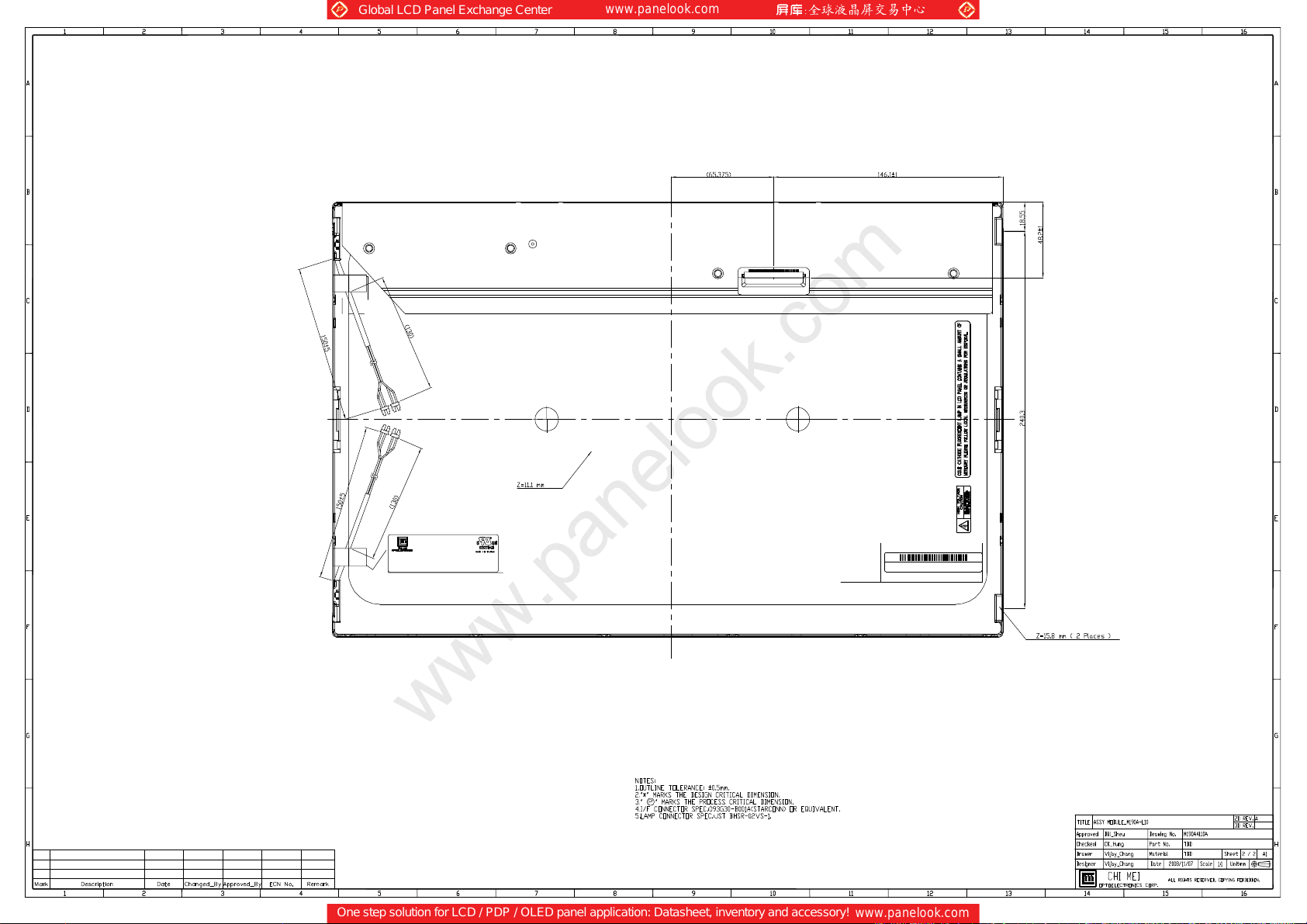

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Note (2) Please refer to sec.3.1 & 3.2 for more information of power consumption.

Vertical(V) 276.9 277.4 277.9 mm
Depth(D) - 16.0 16.5 mm

Weight - 1780 1800 g -

4 / 25

(1)

Version 3.2

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

A

Doc. No.: 400003812

Issued Date: Feb. 09, 2009

Model No.: M190A1-L10

Approval

2. ABSOLUTE MAXIMUM RATINGS

2.1 ABSOLUTE RATINGS OF ENVIRONMENT

Item Symbol

Min. Max.
Storage Temperature TST -20 +60 ºC (1)
Operating Ambient T emperature TOP 0 +50 ºC (1), (2)
Shock (Non-Operating) S
Vibration (Non-Operating) V

- 50 G (3), (5)

NOP

- 1.5 G (4), (5)

NOP

Note (1) Temperature and relative humidity range is shown in the figure below.

Relative Humidity (%RH)

100

90

80

Value

Unit Note

60

40

20

10

Temperature (ºC)

Operating Range

Stor age Range

8060-20 40020-40

(a) 90 %RH Max. (Ta ≦ 40 ºC).
(b) Wet-bulb temperature should be 39 º C Max. (Ta > 40 ºC).
(c) No condensation.

Note (2) The temperature of panel display surface area should be 0 ºC Min. and 60 ºC Max.
Note (3) 50G,11ms, half sine wave, 1 time for ± X, ± Y, ± Z.
Note (4) 10 ~ 300 Hz, 10min/cycle, 3 cycles each X, Y, Z.
Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid enough

so that the module would not be twisted or bent by the fixture.

t Room Temperature

Side Mount Fixing Screw

LCD Module

Side Mount Fixing Screw

Stage

Gap=2mm

Bracket

5 / 25

Version 3.2

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Issued Date: Feb. 09, 2009

Doc. No.: 400003812

Model No.: M190A1-L10

Approval

2.2 ELECTRICAL ABSOLUTE RATINGS

2.2.1 TFT LCD MODULE

Item Symbol

Power Supply Voltage Vcc -0.3 +6.0 V
Logic Input Voltage VIN -0.3 4.3 V

Min. Max.

2.2.2 BACKLIGHT UNIT

Item Symbol

Lamp Voltage VL - 2.0K V
Lamp Current IL - 7.5 mA
Lamp Frequency FL 40 80 KHz

Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function operation

should be restricted to the conditions described under Normal Operating Conditions.

Min. Max.

Value

Value

Unit Note

(1)

Unit Note

(1), (2), IL = 7.0mA

RMS

RMS

(1), (2)

Note (2) Specified values are for lamp (Refer to 3.2 for further information).

6 / 25

Version 3.2

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Doc. No.: 400003812

Issued Date: Feb. 09, 2009

Model No.: M190A1-L10

Approval

3. ELECTRICAL CHARACTERISTICS

3.1 TFT LCD MODULE

Parameter Symbol

Ta = 25 ± 2 ºC

Value

Min. Typ. Max.

Unit Note

Power Supply Voltage Vcc 4.5 5.0 5.5 V ­Ripple Voltage VRP - - 100 mV ­Rush Current I

White - 0.5 0.7 A (3)a

Power Supply Current

Black - 0.7 1.0 A (3)b
Vertical Stripe

RUSH

lcc

- 1.6 3 A (2)

- 0.7 1.0 A (3)c

Power Consumption PLCD 3.5 5.5 Watt (4)
LVDS differential input voltage Vid 100 - 600 mV
LVDS common input voltage Vic - 1.2 - V
Logic “L” input voltage Vil Vss - 0.8 V

Note (1) The module should be always operated within above ranges.
Note (2) Measurement Conditions:

+5.0V

R1

47K

Q1 2SK1475

FUSE

C3
1uF

Vcc

(LCD Module Input)

(High to Low)

(Control Signal)

SW

+12V

C1

1uF

VR1

R2

1K

47K

0.01uF

Q2

2SK1470

C2

Vcc rising time is 470µs

+5.0V

0.9Vcc

0.1Vcc

GND

470µs

7 / 25

Version 3.2

Global LCD Panel Exchange Center

www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

www.panelook.com

Issued Date: Feb. 09, 2009

Doc. No.: 400003812

Model No.: M190A1-L10

Approval

Note (3) The specified power supply current is under the conditions at Vcc = 5.0 V, Ta = 25 ± 2 ºC, fv = 60

Hz, whereas a power dissipation check pattern belo w is displayed.

a. White Pattern

Active Area

c. Vertical Stripe Pattern

b. Black Pattern

Active Area

R

G

R

B

G

R

B

G

R R

G

B
B

B
B

R
R

R

G
G

G
G

B
B

B
B

R

R

Note (4)The power consumption is specified at the pattern with the maximum current.

Active Area
