M170E6-L01
Specification
25 pgs1.55 Mb0

CMO M170E6-L01 Specification

Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
DCC No.:14029063
Issued Date: Dec.,17, 2003
Model No.: M170E6 -L01
Approval
- CONTENTS -
REVISION HISTORY--------------------------------------------------------------------------------------------------- 3
1. GENERAL DESCRIPTION ----------------------------------------------------------------------------------------4
1.1 OVERVIEW----------------------------------------------------------------------------------------------------- 4
1.2 FEATURES------------------------------------------------------------------------------------------------------ 4
1.3 APPLICATION-------------------------------------------------------------------------------------------------- 4
1.4 GENERAL SPECIFICATI0NS ------------------------------------------------------------------------------- 4
1.5 MECHANICAL SPECIFICATIONS------------------------------------------------------------------------- 4
2. ABSOLUTE MAXIMUM RATINGS------------------------------------------------------------------------------- 5
2.1 ABSOLUTE RATINGS OF ENVIRONMENT------------------------------------------------------------- 5
2.2 ELECTRICAL ABSOLUTE RATINGS --------------------------------------------------------------------- 6
3. ELECTRICAL CHARACTERISTICS ---------------------------------------------------------------------------- 7
3.1 TFT LCD MODULE ------------------------------------------------------------------------------------------- 7
3.2 BACKLIGHT UNIT-------------------------------------------------------------------------------------------- 8

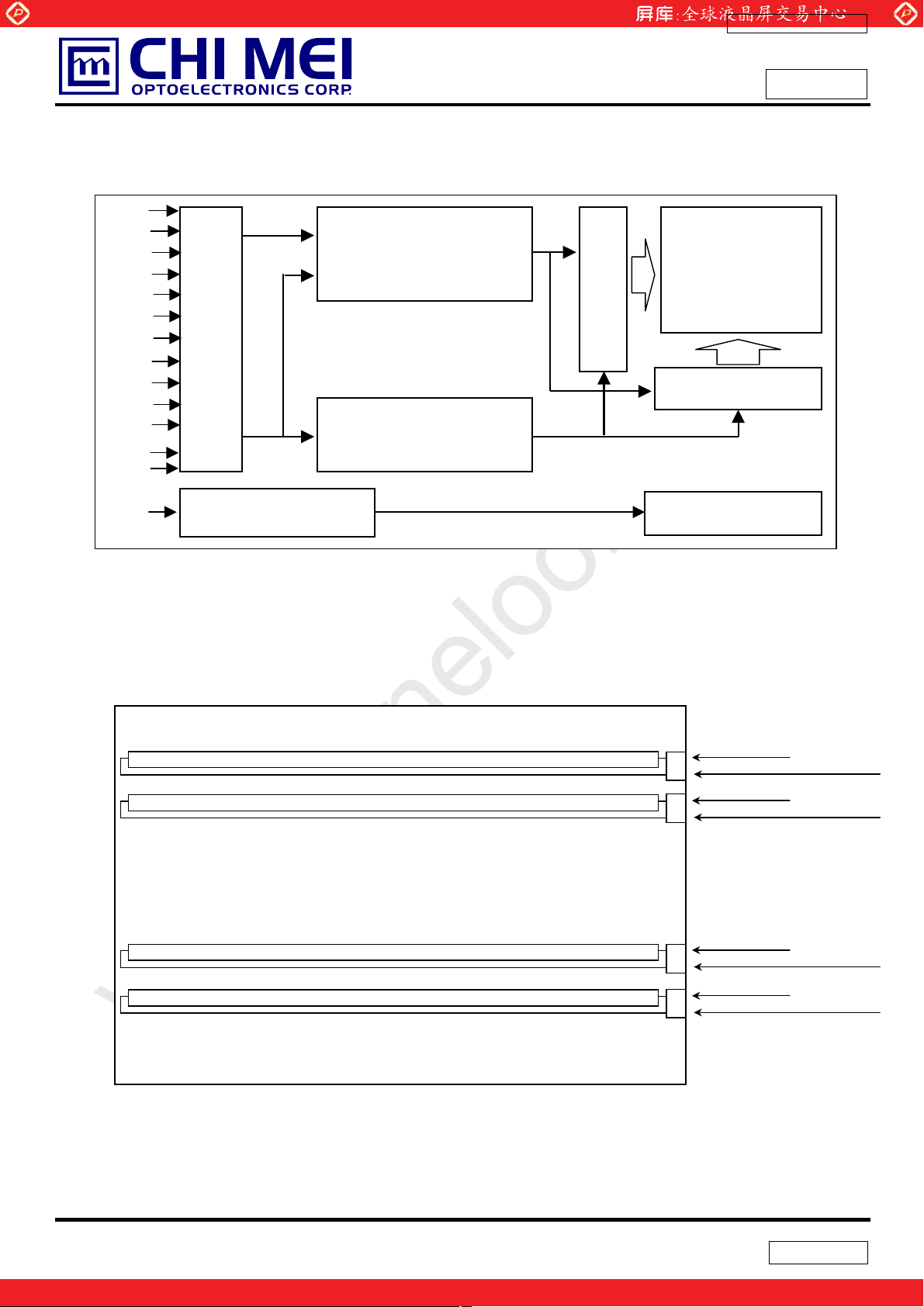

4. BLOCK DIAGRAM ------------------------------------------------------------------------------------------------- 10
4.1 TFT LCD MODULE ----------------------------------------------------------------------------------------- 10
4.2 BACKLIGHT UNIT------------------------------------------------------------------------------------------ 10
5. INPUT TERMINAL PIN ASSIGNMENT------------------------------------------------------------------------11
5.1 TFT LCD MODULE ------------------------------------------------------------------------------------------11
5.2 BACKLIGHT UNIT------------------------------------------------------------------------------------------ 12
5.3 COLOR DATA INPUT ASSIGNMENT------------------------------------------------------------------- 13
6. INTERFACE TIMING ---------------------------------------------------------------------------------------------- 14
6.1 INPUT SIGNAL TIMING SPECIFICATIONS----------------------------------------------------------- 14

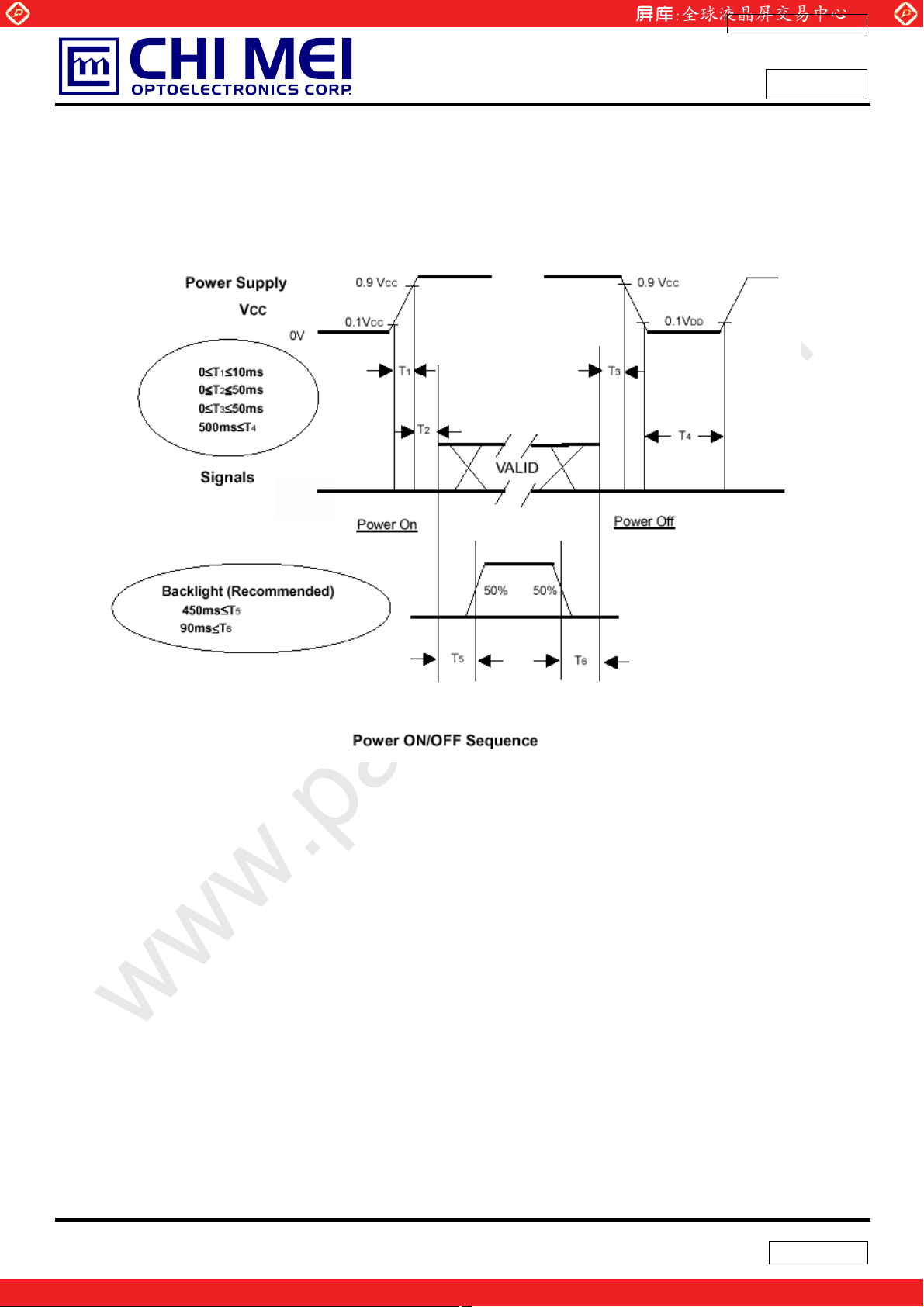

6.2 POWER ON/OFF SEQUENCE ---------------------------------------------------------------------------- 15
7. OPTICAL CHARACTERISTICS -------------------------------------------------------------------------------- 16

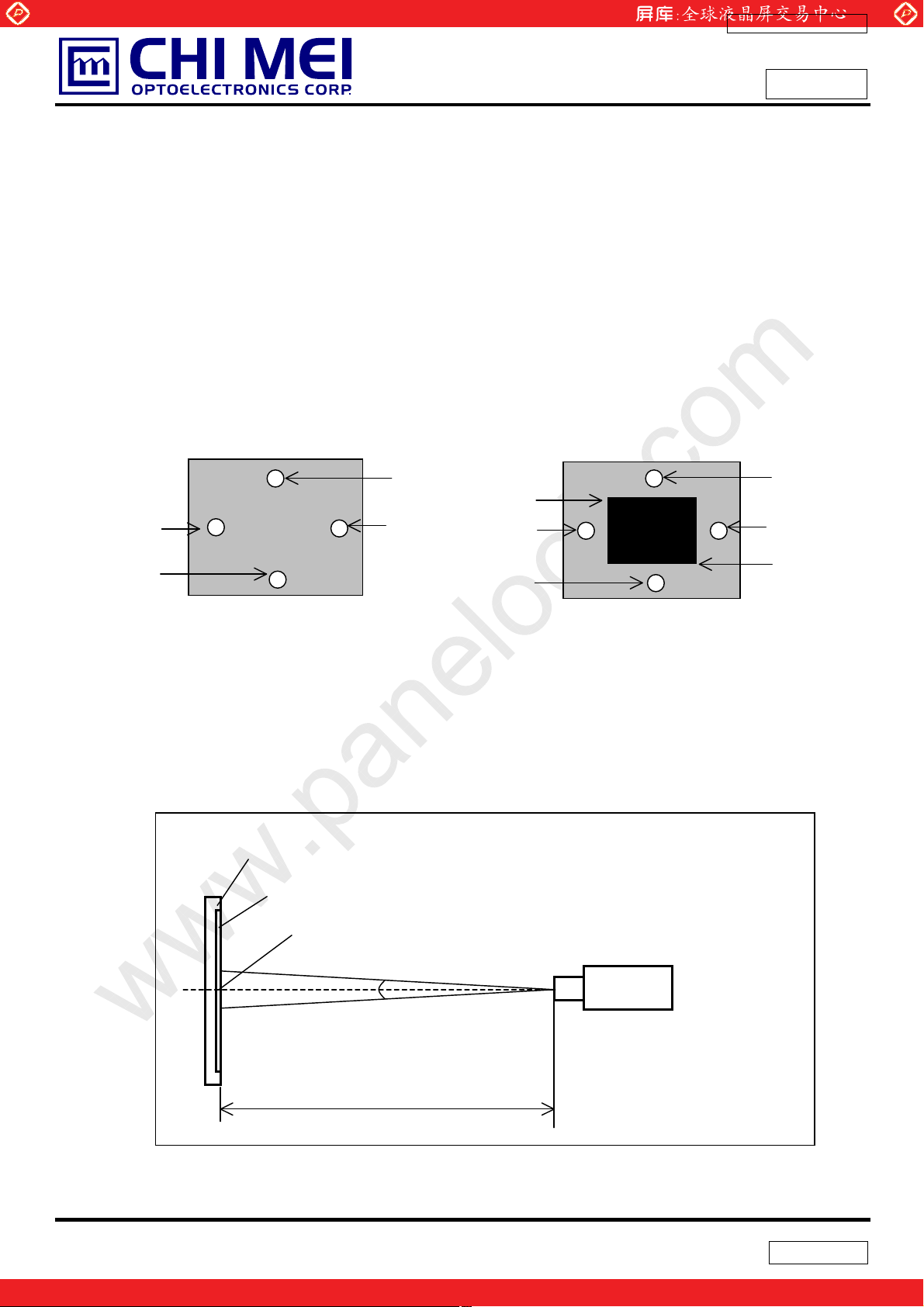

7.1 TEST CONDITIONS----------------------------------------------------------------------------------------- 16

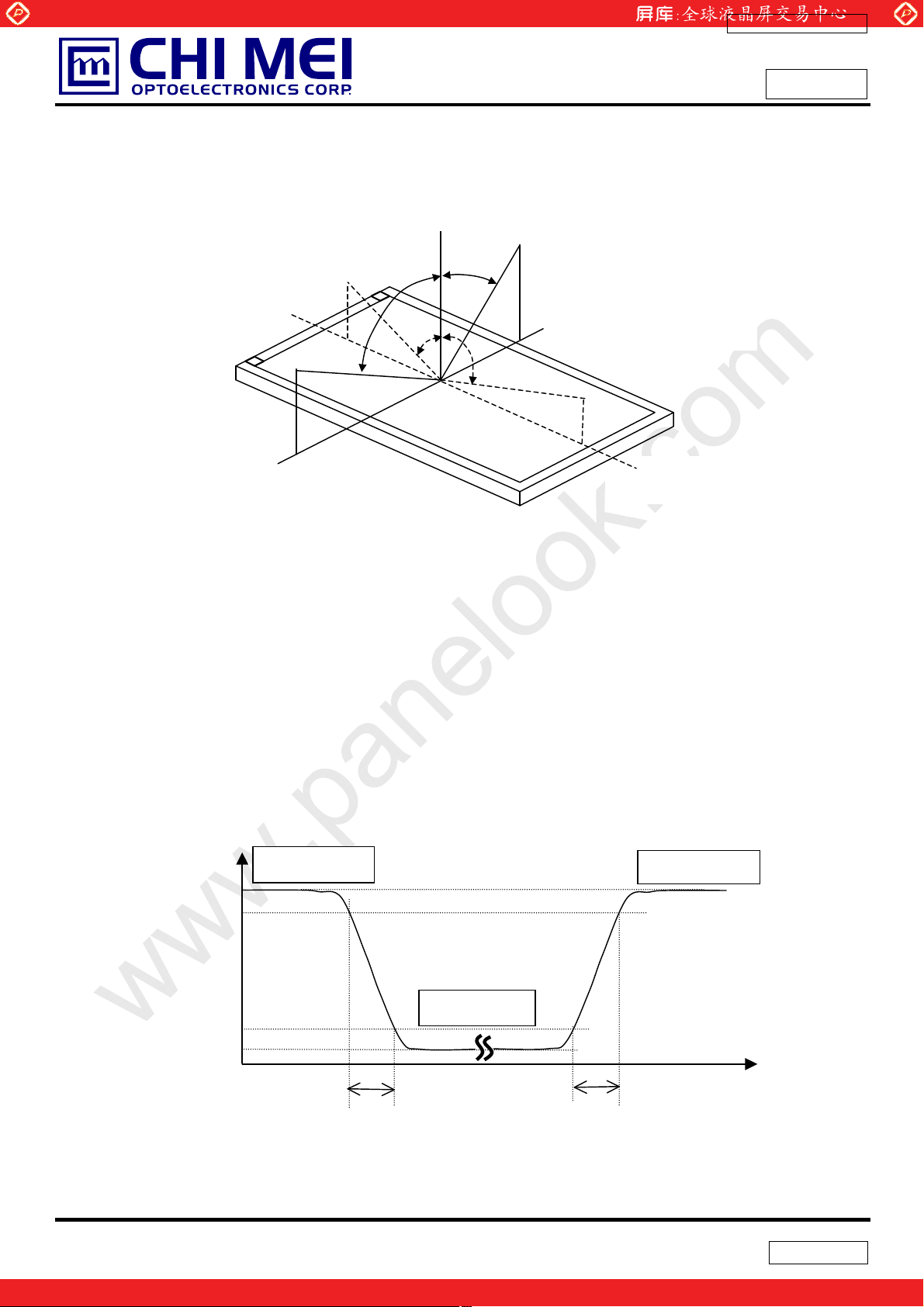

7.2 OPTICAL SPECIFICATIONS ------------------------------------------------------------------------------ 16
8. PRECAUTIONS ---------------------------------------------------------------------------------------------------- 20
8.1 ASSEMBLY AND HANDLING PRECAUTIONS ------------------------------------------------------ 20
8.2 SAFETY PRECAUTIONS ---------------------------------------------------------------------------------- 20
9. DEFINITION OF LABELS---------------------------------------------------------------------------------------- 21

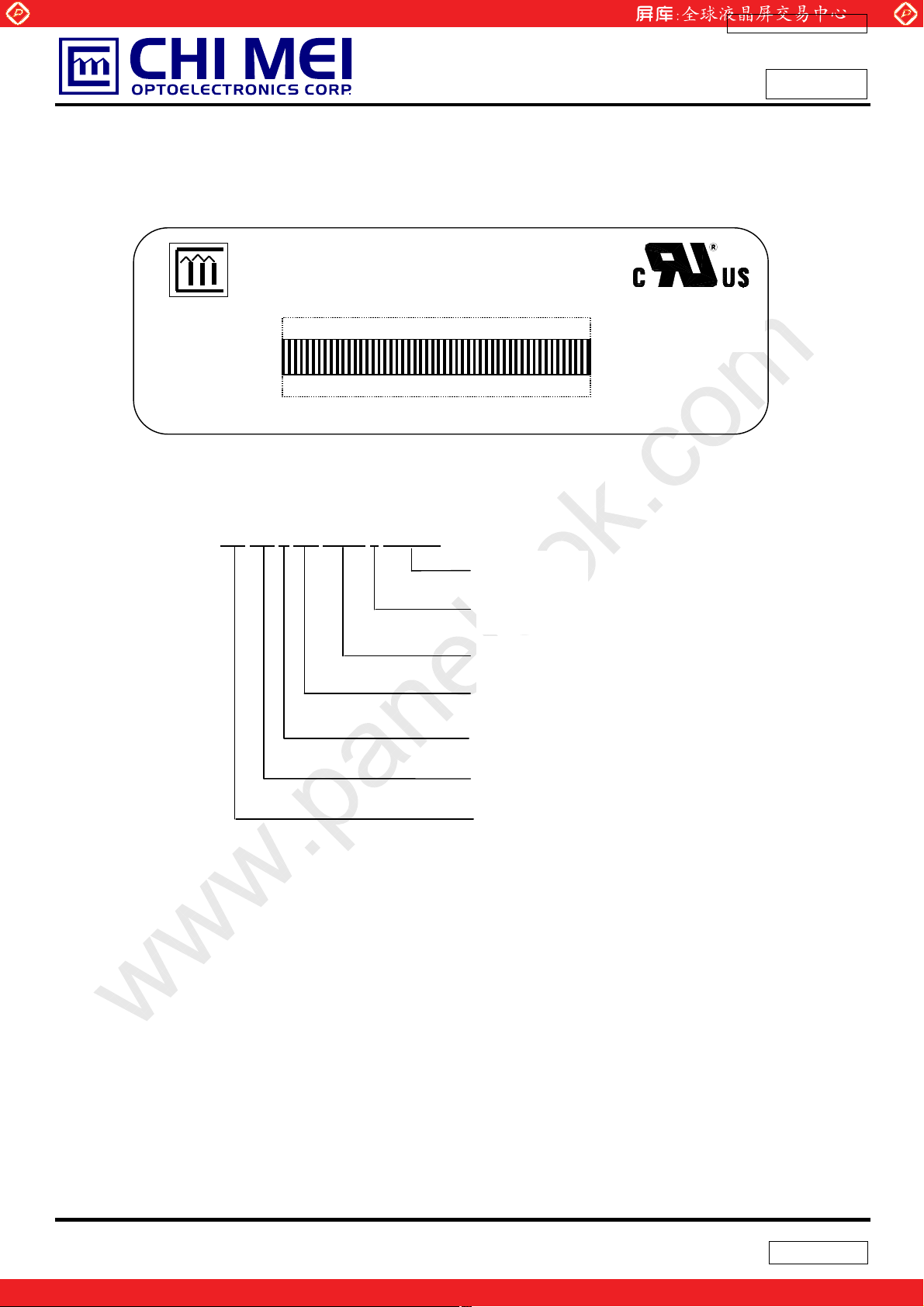

9.1 CMO MODULE LABEL ------------------------------------------------------------------------------------ 21
10. PACKAGING------------------------------------------------------------------------------------------------------- 22
10.1 PACKING SPECIFICATIONS ---------------------------------------------------------------------------- 22

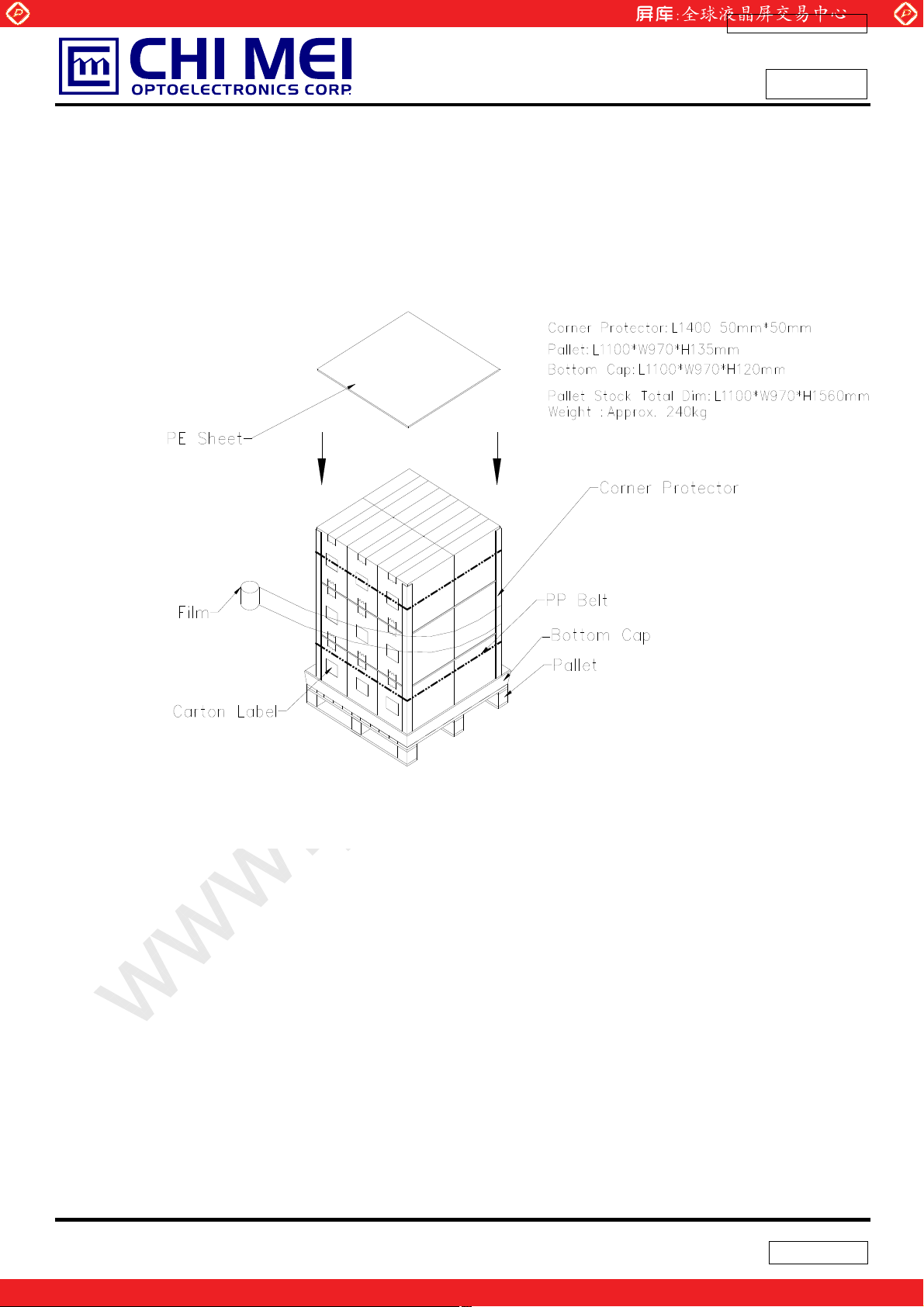

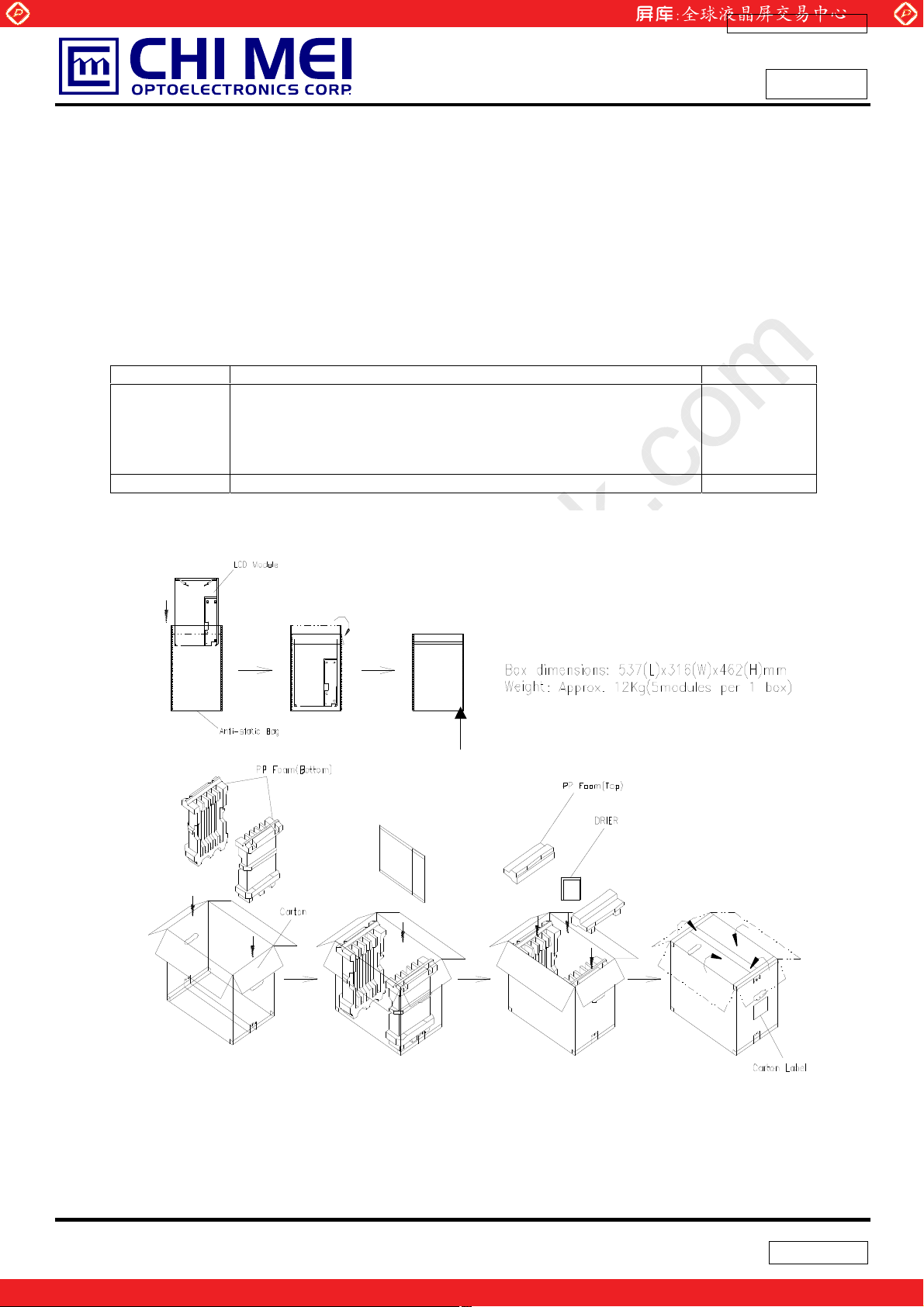

10.2 PACKING METHOD--------------------------------------------------------------------------------------- 22
2 / 23
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.1
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
REVISION HISTORY
Version Date Section Description
DCC No.:14029063
Issued Date: Dec.,17, 2003
Model No.: M170E6 -L01
Approval
Ver 0.0
Ver 0.1
Ver 1.0
Ver 1.1
Ver 2.0
Ver 2.1
Aug.,07 ’02
Sep.,24 ’02
Dec.,23 ’02
Dec.,30 ’02
Mar.,12 ‘03
Dec. 17 ‘03
-
9
1.5
3.2
4.1
4.2
5.1
5.2
7.2
9
9
3.2
7.1
6.1
9.0
10.0
M170E6-L01 Specifications was first issued.
Modify MECHANICAL CHARACTERISTICS. Modify Weight ΚTBD(Max.)Æ2045(Max.)
Modify Note (1) Modify LCMP CONNECTORΚJST-BHR-04VS-1ÆJST-BHR-02VS-1
Modify Backlight Unit Lamp Drawing Modify Note (1) Connector Part No.ΚTBDÆFI-XB30SR-HF11(JAE)
Modify Backlight Unit Statement White Variation GWΚ(1.18)(Typ.)/(1.25)(Max.)Æ (1.25)(Typ.)/(1.40)(Max.)Ζ Color Chromaticity Red RxΚ(0.616)(Min.)/(0.646)(Typ.)/(0.676)(Max.) Æ(0.617)(Min.)/(0.647)(Typ.)/(0.677)(Max.)Ζ Color Chromaticity Red RyΚ(0.329)(Min.)/(0.359)(Typ.)/(0.389)(Max.) Æ(0.321)(Min.)/(0.351)(Typ.)/(0.381)(Max.)Ζ Color Chromaticity Green GxΚ(0.248)(Min.)/(0.278)(Typ.)/(0.308)(Max.) Æ(0.259)(Min.)/(0.289)(Typ.)/(0.319)(Max.)Ζ Color Chromaticity Green GyΚ(0.582)(Min.)/(0.612)(Typ.)/(0.642)(Max.) Æ(0.571)(Min.)/(0.601)(Typ.)/(0.631)(Max.)Ζ Color Chromaticity Blue BxΚ(0.115)(Min.)/(0.145)(Typ.)/(0.175)(Max.) Æ(0.116)(Min.)/(0.146)(Typ.)/(0.176)(Max.)Ζ Color Chromaticity Blue ByΚ(0.087)(Min.)/(0.117)(Typ.)/(0.147)(Max.) Æ(0.083)(Min.)/(0.113)(Typ.)/(0.143)(Max.)Ζ Color Chromaticity White WxΚ(0.280)(Min.)/(0.310)(Typ.)/(0.340)(Max.) Æ(0.283)(Min.)/(0.313)(Typ.)/(0.343)(Max.)Ζ Color Chromaticity White WyΚ(0.300)(Min.)/(0.330)(Typ.)/(0.360)(Max.) Æ(0.299)(Min.)/(0.329)(Typ.)/(0.359)(Max.)Ζ Revised Note (7)Κ

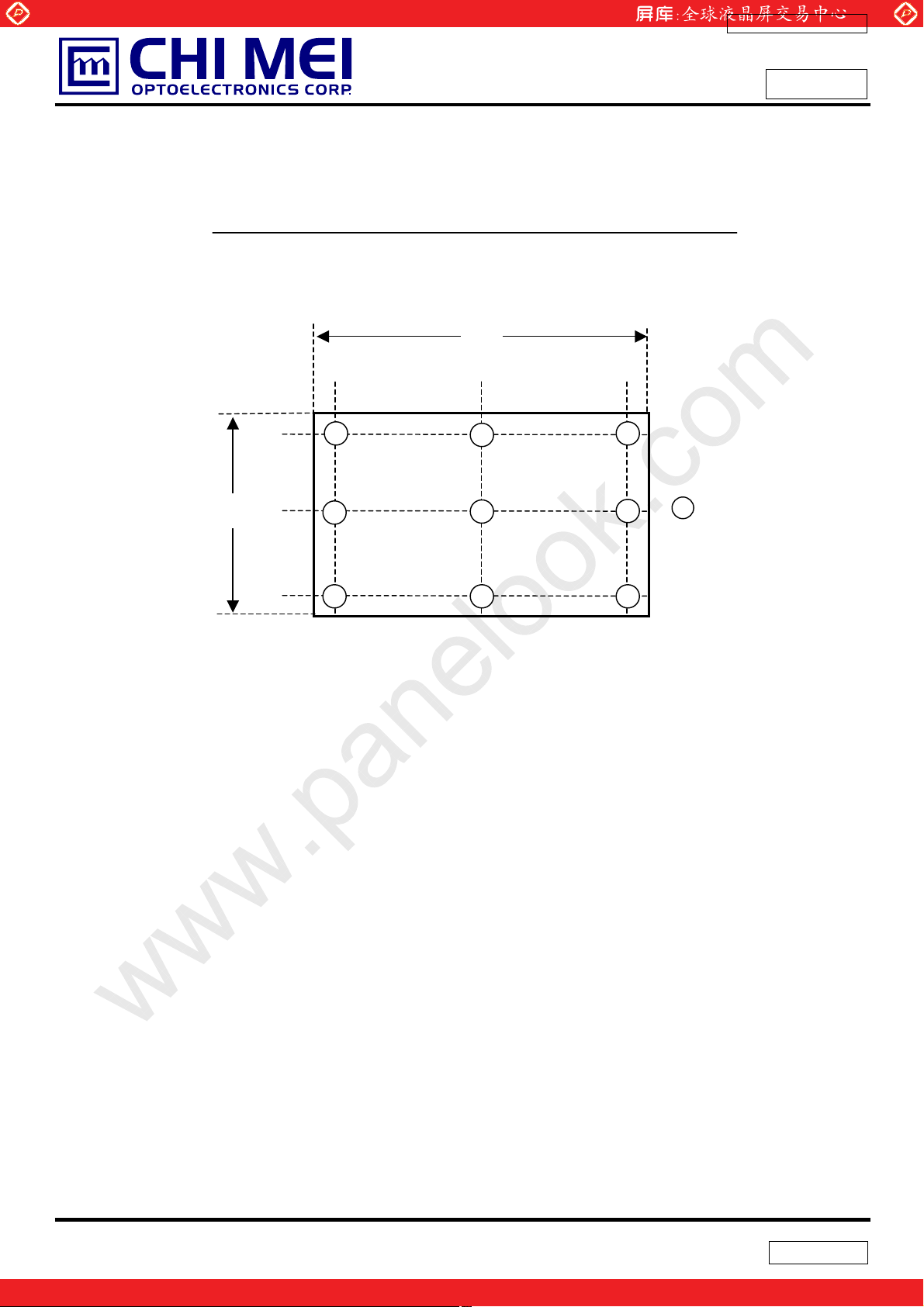

1. Measure the luminance of gray level 63 at 9 pointΖ
2. Test Point X=1 to 9Ζ
Modify MECHANICAL CHARACTERISTICS. Modify MECHANICAL CHARACTERISTICS.
Lamp Input VoltageΚ
(616)(Min.)/(685)(Typ.)/(754)(Max.)Æ585(Min.)/650(Typ.)/715(Max.) Lamp Turn On VoltageΚ(1056)(25к)/(1674)(0к)Æ 1290(25к)/1500(0к) Operating FrequencyΚ(45)(Min.)/(50)(Typ.)Æ40(Min.)/55(Typ.) Power ConsumptionΚ(17.8)(Typ.)Æ16.9(Typ.) Inverter Driving FrequencyΚ50(Value)Æ55(Value)
Input Signal Timing Specifications update
Definition of Labels added
Packaging added
3 / 23
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.1
www.panelook.com
Global LCD Panel Exchange Center
1. GENERAL DESCRIPTION
1.1 OVERVIEW
M170E6 -L01 is a 17.0” TFT Liquid Crystal Display module with 4 CCFL Backlight unit and 30 pins
2ch-LVDS interface. This module supports 1280 x 1024 SXGA mode and can display 16M colors. The
inverter module for Backlight is not built in.
1.2 FEATURES
- Wide viewing angle
- High contrast ratio
- Fast response time
- High color saturation (EBU Like Specifications)
- SXGA (1280 x 1024 pixels) resolution
www.panelook.com
DCC No.:14029063
Issued Date: Dec.,17, 2003
Model No.: M170E6 -L01
Approval
- DE (Data Enable) only mode
- LVDS (Low Voltage Differential Signaling) interface
1.3 APPLICATION
- TFT LCD Monitor
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note Active Area 337.92 (H) x 270.34 (V) (17.0” diagonal) mm Bezel Opening Area 341.9 (H) x 274.4 (V) mm Driver Element a-si TFT active matrix - ­Pixel Number 1280 x R.G.B. x 1024 pixel ­Pixel Pitch 0.264 (H) x 0.264 (V) mm ­Pixel Arrangement RGB vertical stripe - ­Display Colors 16M color ­Transmissive Mode Normally black - ­Surface Treatment Hard coating (3H), Anti-glare (Haze 25) - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 358.0 358.5 359.0 mm
Module Size

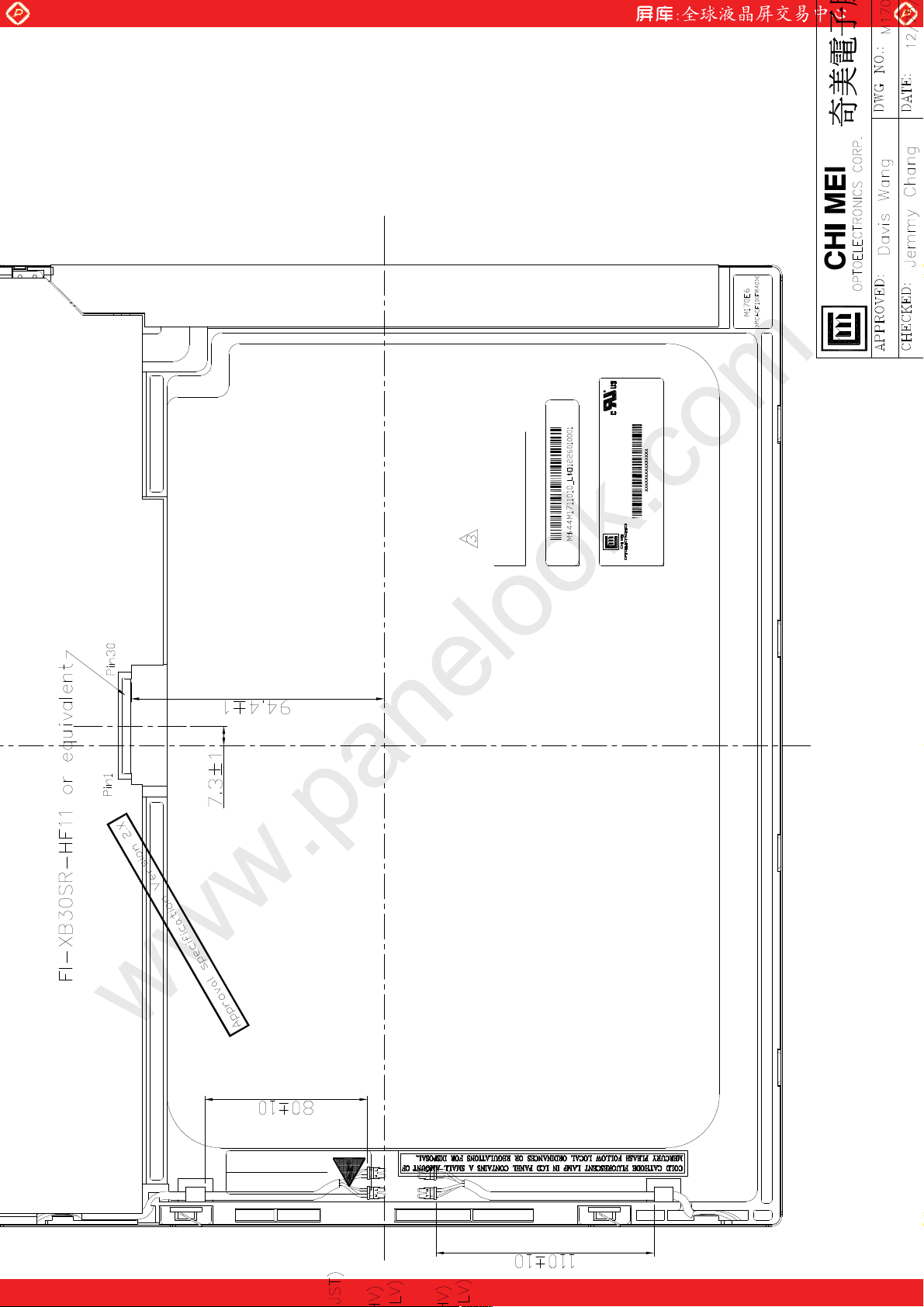

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Vertical(V) 296.0 296.5 297.0 mm Depth(D) - 17.0 17.5 mm
Weight - 1995 2045 g -
(1)
(1)
4 / 23
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.1
www.panelook.com
Global LCD Panel Exchange Center
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Item Symbol
Storage Temperature TST -20 +60 ºC (1) Operating Ambient Temperature TOP 0 +50 ºC (1), (2) Shock (Non-Operating) S Vibration (Non-Operating) V
Note (1) Temperature and relative humidity range is shown in the figure below.
(a) 90 %RH Max. (Ta Љ 40 ºC).
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation.
Note (2) The temperature of panel surface should be 0 ºC Min. and 60 ºC Max.
Note (3) 11ms, half sine wave, 1 time for ± X, ± Y, ± Z.
www.panelook.com
Issued Date: Dec.,17, 2003
Model No.: M170E6 -L01
DCC No.:14029063
Approval
Value
Min. Max.
- 50 G (3), (5)
NOP
- 1.5 G (4), (5)
NOP
Unit Note
Note (4) 10 ~ 300 Hz, sweep rate 10 min, 30 min for X,Y,Z axis
Note (5) At testing Vibration and Shock, the fixture in holding the module has to be hard and rigid enough so
that the module would not be twisted or bent by the fixture.
Relative Humidity (%RH)
100
90
80
60
Operating Range
40
20
Storage Range
5
Temperature (ºC)
5 / 23
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
8060 -20 400 20-40
Version 2.1
www.panelook.com
Global LCD Panel Exchange Center
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
Item Symbol
Power Supply Voltage Vcc -0.3 +6.0 V Logic Input Voltage VIN -0.3 4.3 V
2.2.2 BACKLIGHT UNIT
Item Symbol
Lamp Voltage VL - 2.5K V Lamp Current IL - 7.0 mA Lamp Frequency FL - 80 KHz
Note (1) Permanent damage to the device may occur if maximum values are exceeded. Function
operation should be restricted to the conditions described under Normal Operating Conditions.
www.panelook.com
Value
Min. Max.
Value
Min. Max.
Unit Note
Unit Note
DCC No.:14029063
Issued Date: Dec.,17, 2003
Model No.: M170E6 -L01
(1)
(1), (2), IL = 6.5 mA
RMS
RMS
(1), (2)
Approval
Note (2) Specified values are for lamp (Refer to 3.2 for further information).
6 / 23
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.1
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Issued Date: Dec.,17, 2003
Model No.: M170E6 -L01
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE
Parameter Symbol
Min. Typ. Max. Power Supply Voltage Vcc 4.5 5.0 5.5 V ­Ripple Voltage VRP - - 100 mV ­Rush Current I
- - 3.8 A (2)
RUSH
White - 1030 1350 mA (3)a
Power Supply Current
Black - 520 700 mA (3)b Vertical Stripe
lcc
- 930 1250 mA (3)c LVDS differential input voltage Vid 100 - 600 mV LVDS common input voltage Vic - 1.2 - V Logic “L” input voltage (SELLVDS) Vil Vss - 0.8 V
Note (1) The module should be always operated within above ranges.
Value
DCC No.:14029063
Approval
Ta = 25 ± 2 ºC
Unit Note
Note (2) Measurement Conditions:
+5.0V
R1
47K
(High to Low)
(Control Signal)
SW
+12V
C1
1uF
VR1
R2
1K
47K
Q1 2SK1475
C2
0.01uF
Q2
2SK1470
FUSE
C3
1uF
Vcc
(LCD Module Input)
Vcc rising time is 470Ps
+5.0V
0.9Vcc
0.1Vcc
GND
470Ps
7 / 23
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.1
www.panelook.com
Global LCD Panel Exchange Center
Note (3) The specified power supply current is under the conditions at Vcc = 5.0 V, Ta = 25 ± 2 ºC, fv = 60
Hz, whereas a power dissipation check pattern below is displayed.
www.panelook.com
DCC No.:14029063
Issued Date: Dec.,17, 2003
Model No.: M170E6 -L01
Approval
a. White Pattern
Active Area
c. Vertical Stripe Pattern
b. Black Pattern
Active Area
R
G
R
B
G
R
B
G
R R
G
B
B
B
B
R
R
R
G
G
G
G
B
B
B
B
R
R
Active Area
3.2 BACKLIGHT UNIT
Parameter Symbol
Lamp Input Voltage VL 585 650 715 V Lamp Current IL 2.0 6.5 7.0 mA
Lamp Turn On Voltage VS
Operating Frequency FL 40 55 80 KHz (3) Lamp Life Time LBL 50,000 - - Hrs (5) Power Consumption PL - 16.9 - W (4), IL = 6.5 mA
Note (1) Lamp current is measured by utilizing high frequency current meters as shown below:
LCD
Ta = 25 ± 2 ºC
HV (Pink) LV (White)
HV (Blue) LV (Black)
Min. Typ. Max.
- - 1290 (25
- - 1500 (0
1 2
1 2
Value
A
A
Inverter
o
C) V
o
C) V
Unit Note
I
RMS
RMS
(2)
RMS
(2)
RMS
Current Meter YOKOGAWA 2016
= 6.5 mA
L
(1)
A
8 / 23
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
Version 2.1
www.panelook.com
