1. GENERAL DESCRIPTION
1.1 OVERVIEW
The M170E5-L08 model is a 17.0” TFT-LCD module with a 4-CCFL Backlight Unit and a 30-pin
2ch-LVDS interface. This module supports 1280 x 1024 SXGA mode and displays 16.2M colors. The
inverter module for the Backlight Unit is not built in.
1.2 FEATURES
- Wide viewing angle
- High contrast ratio
- Fast response time
- High color saturation (EBU Like Specifications)
- SXGA (1280 x 1024 pixels) resolution
www.panelook.com
Issued Date: Dec. 7, 2004
Model No.: M170E5-L08
Approval
- DE (Data Enable) only mode
- LVDS (Low Voltage Differential Signaling) interface
1.3 APPLICATION
- TFT LCD Monitor
1.4 GENERAL SPECIFICATI0NS
Item Specification Unit Note
Active Area 337.92 (H) x 270.34 (V) (17.0” diagonal) mm
Bezel Opening Area 341.9 (H) x 274.4 (V) mm
Driver Element a-si TFT active matrix - Pixel Number 1280 x R.G.B. x 1024 pixel Pixel Pitch 0.264 (H) x 0.264 (V) mm Pixel Arrangement RGB vertical stripe - Display Colors 16.2M color Transmissive Mode Normally white - Surface Treatment Hard coating (3H), AG (Haze 25%) - -
1.5 MECHANICAL SPECIFICATIONS
Item Min. Typ. Max. Unit Note
Horizontal(H) 358.0 358.5 359.0 mm
Module Size
I/F connector mounting

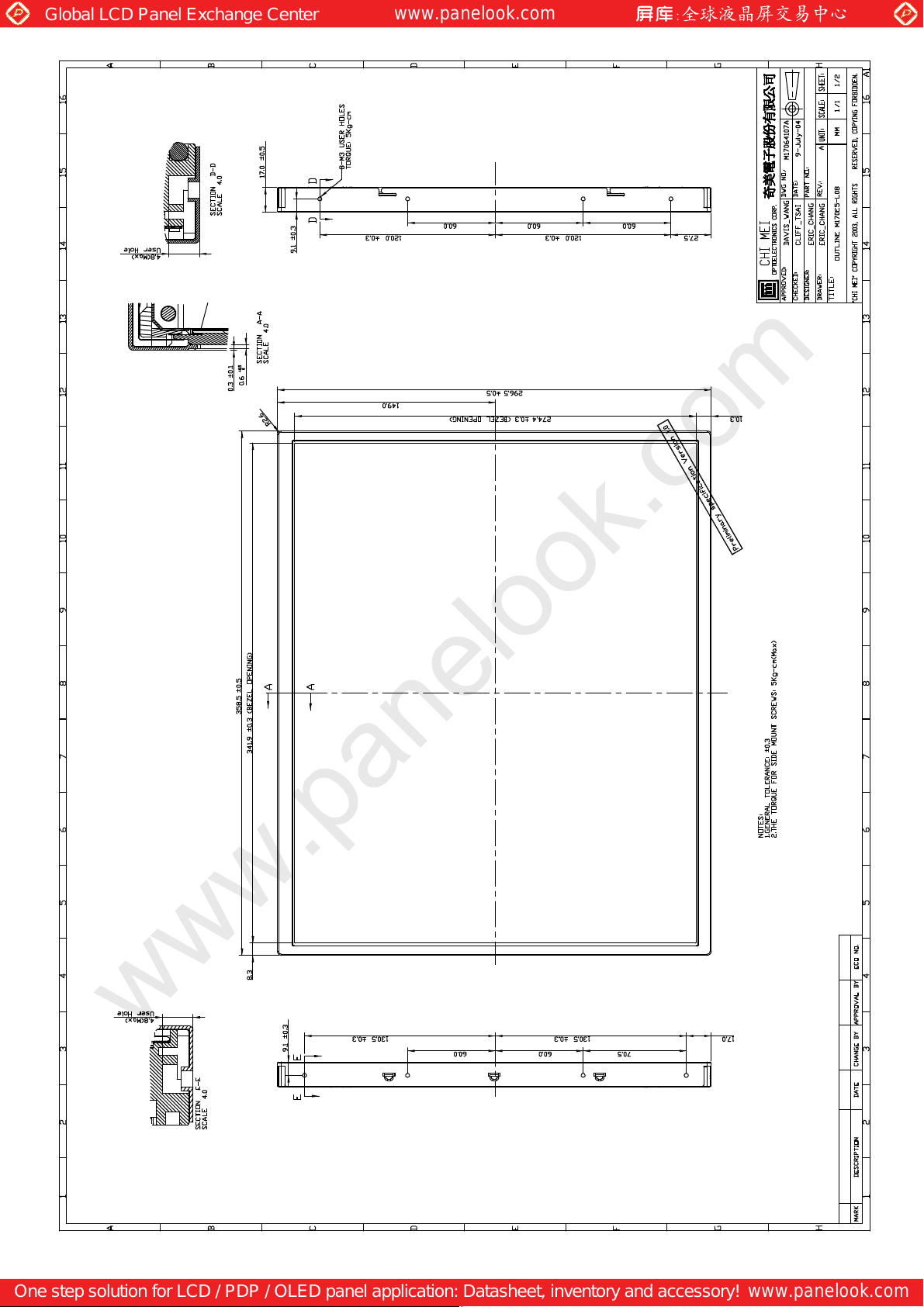

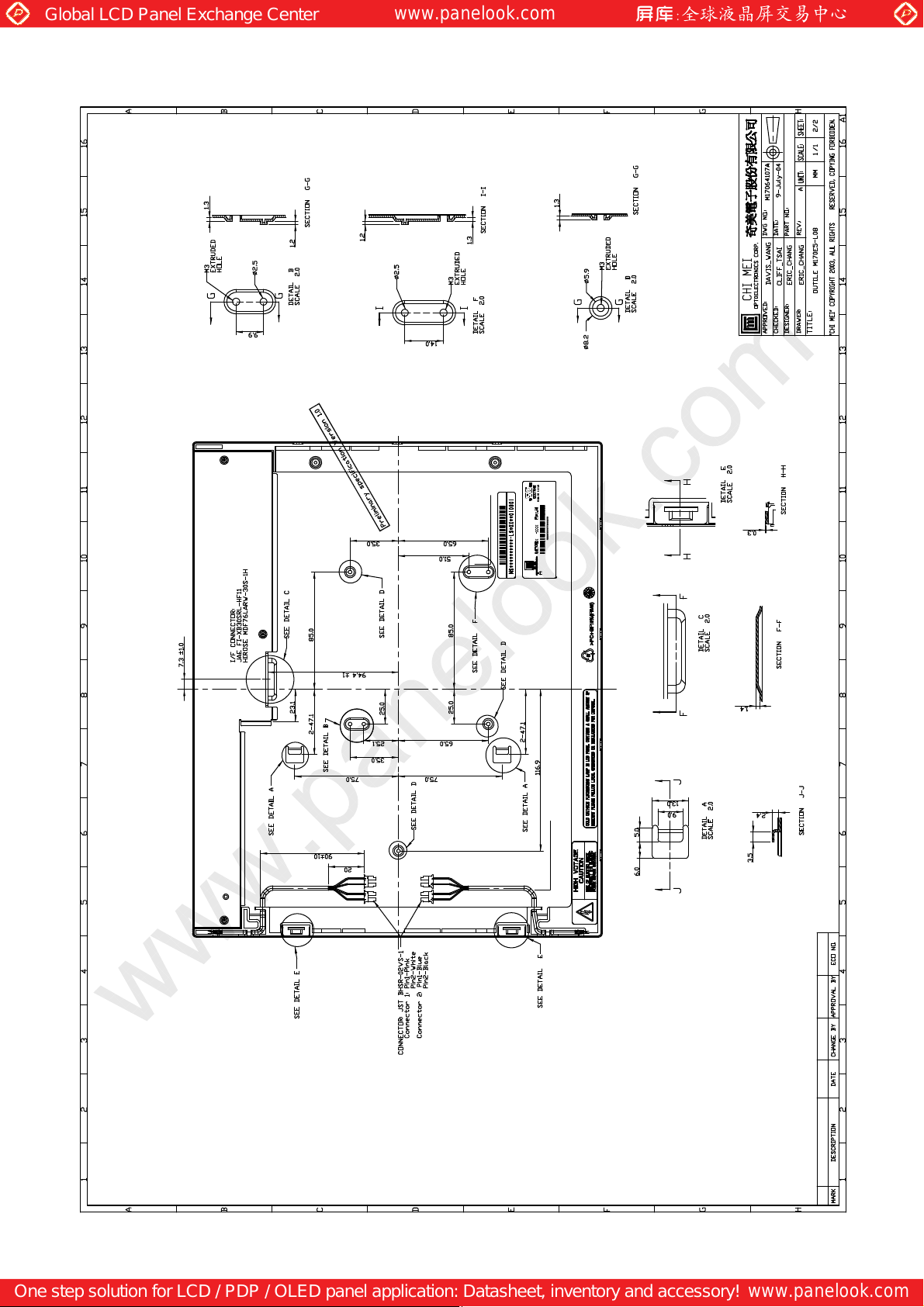

Note (1) Please refer to the attached drawings for more information of front and back outline dimensions.
Vertical(V) 296.0 296.5 297.0 mm
Depth(D) - 17.0 17.5 mm
Weight - 1980 2050 g -
position
The mounting inclination of the connector makes
the screen center within ±0.5mm as the horizontal.
(2)
(1)
(1)
(2) Connector mounting position
+/- 0.5mm
4 / 28
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
2. ABSOLUTE MAXIMUM RATINGS
2.1 ABSOLUTE RATINGS OF ENVIRONMENT
Item Symbol
Storage Temperature TST -20 +60 ºC (1)
Operating Ambient Temperature TOP 0 +50 ºC (1), (2)
Shock (Non-Operating) S
Vibration (Non-Operating) V
LCD Cell Life Time L
Note (1) Temperature and relative humidity range is shown in the figure below.
(a) 90 %RH Max. (Ta Љ 40 ºC).
(b) Wet-bulb temperature should be 39 ºC Max. (Ta > 40 ºC).
(c) No condensation.
Note (2) The temperature of panel surface should be 0 ºC Min. and 60 ºC Max.
www.panelook.com
Issued Date: Dec. 7, 2004
Model No.: M170E5-L08
Approval
Value
Min. Max.
- 50 G (3), (5)
NOP
- 1.5 G (4), (5)
NOP
50,000 - Hrs
CELL
Unit Note
MTBF
based
Note (3) 11ms, half-sine wave, 1 time for ± X, ± Y, ± Z.
Note (4) 10 ~ 300 Hz, sweep rate 10 min / cycle , 30 min for X,Y,Z axis
Note (5) Upon the Vibration and Shock tests, the fixture used to hold the module must be firm and rigid
enough to prevent the module from twisting or bending by the fixture.
Relative Humidity (%RH)
100
90
80
60
Operating Range
40
20
Storage Range
5
Temperature (ºC)
5 / 28
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
8060 -20 400 20-40
www.panelook.com
Global LCD Panel Exchange Center
2.2 ELECTRICAL ABSOLUTE RATINGS
2.2.1 TFT LCD MODULE
Item Symbol
Power Supply Voltage Vcc -0.3 +6.0 V
Logic Input Voltage VIN -0.3 4.3 V
2.2.2 BACKLIGHT UNIT
Item Symbol
Lamp Voltage VL - 2.5K V
Lamp Current IL - 7.5 mA
Lamp Frequency FL - 80 KHz
Note (1) Permanent damage might occur if the module is operated at conditions exceeding the maximum
values.
www.panelook.com
Value
Min. Max.
Value
Min. Max.
Unit Note
Unit Note
Issued Date: Dec. 7, 2004
Model No.: M170E5-L08
Approval
(1)
(1), (2), IL = 6.5 mA
RMS
RMS
(1), (2)
Note (2) Specified values are for lamp (Refer to 3.2 for further information).
6 / 28
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
Issued Date: Dec. 7, 2004
Model No.: M170E5-L08
3. ELECTRICAL CHARACTERISTICS
3.1 TFT LCD MODULE Ta = 25 ± 2 ºC
Parameter Symbol
Min. Typ. Max.
Power Supply Voltage Vcc 4.5 5.0 5.5 V Ripple Voltage VRP - -- 100 mV Rush Current I
- -- 3.8 A (2)
RUSH
White - 420 590 mA (3)a
Power Supply Current
Black - 570 800 mA (3)b
= 75Hz,
f
V
Vcc=4.5V
lcc
- - 1200 mA (4)
LVDS differential input voltage Vid -100 - +100 mV
LVDS common input voltage Vic -- 1.2 -- V
Logic “L” input voltage (SELLVDS) Vil Vss - 0.8 V
Note (1) The module is recommended to operate within specification ranges listed above for normal
function.
Value
Unit Note
Approval
Note (2) Measurement Conditions:
+5.0V
R1
47K
(High to Low)
(Control Signal)
SW
+12V
C1
1uF
VR1
R2
1K
47K
Q1 2SK1475
C2
0.01uF
Q2
2SK1470
FUSE
C3
1uF
Vcc
(LCD Module Input)
Vcc rising time is 470Ps
+5.0V
0.9Vcc
0.1Vcc
GND
470Ps
7 / 28
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Note (3) The specified power supply current is under the conditions at Vcc = 5.0 V, Ta = 25 ± 2 ºC, fv = 60
Hz, whereas a power dissipation check pattern below is displayed.
www.panelook.com
Issued Date: Dec. 7, 2004
Model No.: M170E5-L08
Approval
Note (4) The specified power supply current is under the conditions at Vcc = 4.5 V, Ta = 25 ± 2 ºC, f
a. White Pattern
Active Area
Hz, whereas a power dissipation check pattern (Black Pattern) below is displayed.
Black Pattern
b. Black Pattern
Active Area
= 75
v
Active Area
8 / 28
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
3.2 BACKLIGHT UNIT
Parameter Symbol
Lamp Input Voltage VL 585 650 715 V
Lamp Current IL 2.0 6.5 7.0 mA
Lamp Turn On Voltage VS
Operating Frequency FL 40 55 80 KHz (3)
Lamp Life Time LBL 40,000 50,000 - Hrs (5) IL = 6.5 mA
Power Consumption PL - 16.9 - W (4), IL = 6.5 mA
Note (1) Lamp current is measured by utilizing high-frequency current meters as shown below:
LCD
Module
Min. Typ. Max.
HV (Pink)
LV (White)
HV (Blue)
LV (Black)
www.panelook.com
Issued Date: Dec. 7, 2004
Model No.: M170E5-L08
Value
- - 1260(25
- - 1500 (0
o
o
Unit Note
I
RMS
RMS
C) V
C) V
(2)
RMS
(2)
RMS
1
2
A
Inverter
1
2
A
Approval
= 6.5 mA
L
(1)
A
Current Meter
YOKOGAWA 2016
Ta = 25 ± 2 ºC
Note (2) The voltage shown above should be applied to the lamp for more than 1 second after startup.
Otherwise, the lamp may not be turned on normally.
Note (3) The lamp frequency may produce interference with horizontal synchronization frequency from the
display, which might cause line flow on the display. In order to avoid interference, the lamp
frequency should be detached from the horizontal synchronization frequency and its harmonics
as far as possible.
Note (4) P
Note (5) The lifetime of lamp can be defined as the time in which it continues to operate under the
Note (6) The waveform of the voltage output of inverter must be area-symmetric and the design of the
= IL VL
L
condition Ta = 25 2
o
C and IL = 2.0 ~ 6.5 mArms until one of the following events occurs:
(a) When the brightness becomes or lower than 50% of its original value.
(b) When the effective ignition length becomes or lower than 80% of its original value. (Effective
ignition length is defined as an area that has less than 70% brightness compared to the
brightness in the center point.)
inverter must have specifications for the modularized lamp. The performance of the Backlight,
such as lifetime or brightness, is greatly influenced by the characteristics of the DC-AC inverter
for the lamp. All the parameters of an inverter should be carefully designed to avoid producing too
much current leakage from high voltage output of the inverter. When designing or ordering the
inverter please make sure that a poor lighting caused by the mismatch of the Backlight and the
inverter (miss-lighting, flicker, etc.) never occurs. If the above situation is confirmed, the module
should be operated in the same manners when it is installed in your instrument.
9 / 28
Version 3.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
