Intoxilyzer 9000
Operator Guide
For Law Enforcement
Version 1.1
September 2013
Colorado Department
of Public Health
and Environment
© Copyright 2012 - Colorado Department of Public Hea lth and
Environment (CD PH E). Booklet content may not be reproduced or
distributed without pr ior w ritten consent of the CDPHE.
Table of Contents
Page
Performing an Evidential Breath
Alcohol Test (EBAT) ............................................. 1
OPERATORS
Options .............................................................. 8
Re-certification Requirements ........................... 10
INSTRUCTORS
Options ............................................................. 13
Re-certification Requirements ........................... 16
Changing the Standard Simulator
Solution ............................................................. 17
Setting up the I-9000 Instrument
and Peripherals .................................................. 19
EBAT Program Contact Information ................... 21
1
Performing an Evidential Breath
Alcohol Test (EBAT)
1. Press the screen to initiate the 2-minute warm-up
period, bringing the instrument out of the screen
saver mode.
During the 2-minute warm-up period, the instrument
displays “NOT READY” and the button will be red
with an “X”.
2. Press the start button to begin the EBAT sequence.
2
3. OPERATOR INFORMATION:
Enter your unique ID number by swiping your access
card or using the keyboard. For operators using the
keyboard, the PIN box will display but it may not be
necessary to enter a PIN if one was not assigned.
4. ARRESTING OFFICER INFORMATION: If you are the
arresting officer, answer Yes and continue to step 5.
If you are NOT the arresting officer, answer No.
Enter the arresting officer’s information on the
screens that follow.
3
5. SUBJECT INFORMATION:
Enter Subject information via swiping the subject’s
driver’s license or the keyboard. NOTE: If the DL is
swiped, confirm information with subject.
6. INCIDENT INFORMATION: Enter incident
information.
4
7. Check the 20-minute deprivation period
acknowledgements. Affirm that each checklist item
has been performed by touching the screen next to
items 1-4 causing a checkmark to appear in the blue
box.
Touch each blue box to
affirm that the 20-minute
deprivation period was
completed as specified.
5
8. Enter the start time of the 20-minute deprivation
period using a 24-hour format. The I-9000 may be
used to count down the 20-minute deprivation
period and will start the test sequence once
completed.
9. Perform EBAT sequence following the I-9000
prompts.
6
10. Enter any comments necessary that are specific to
the EBAT test
11. Sign your name using the signature pad.
The signature may be cleared by double tapping
the Clear button.
7
12. Select the number of copies desired and print the
report.
NOTE:
All printouts generated from the I-9000
MUST be included in the DUI packet to
include any Exception Message reports if
applicable.
8

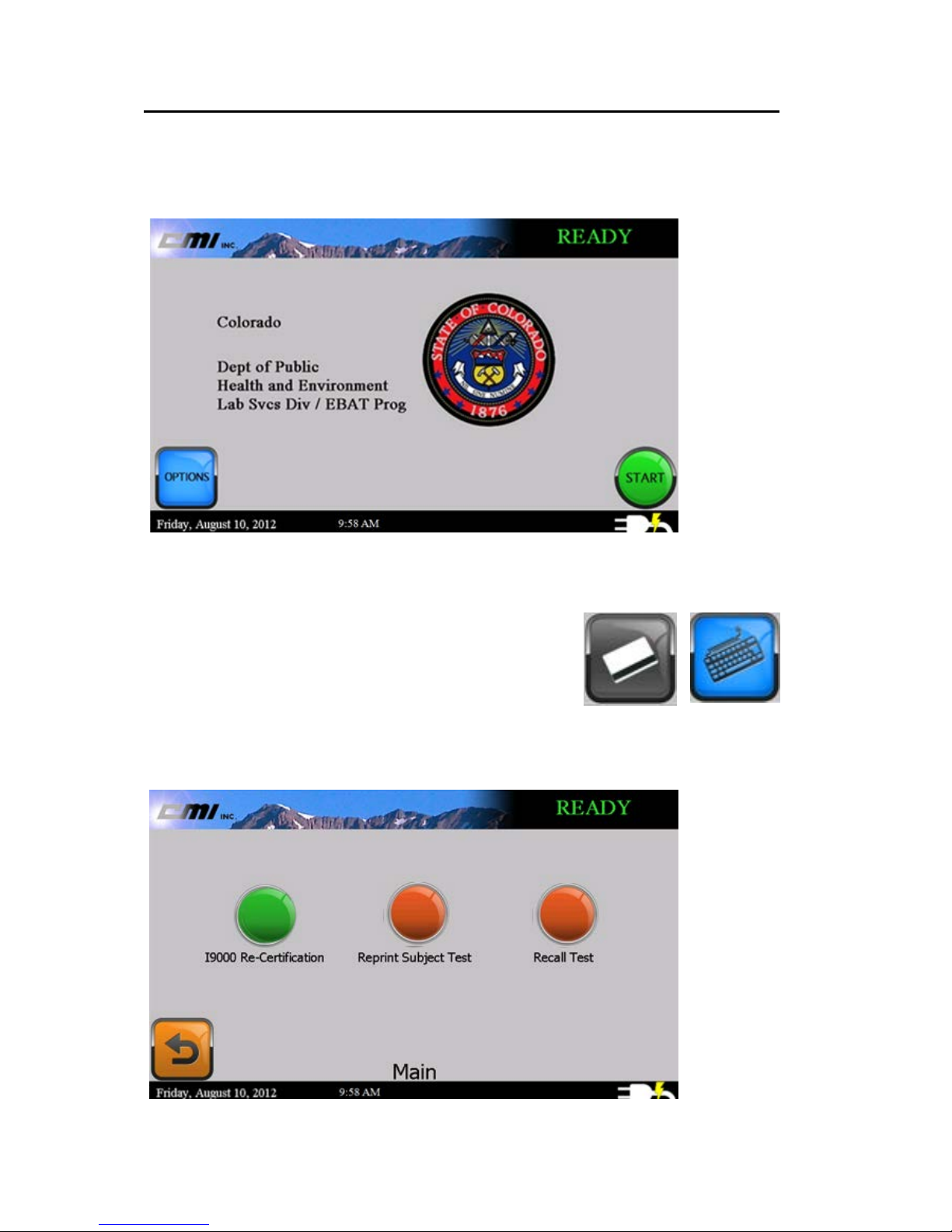

Operator Options
Press the blue OPTIONS button from the main screen.
Swipe your access card or enter your User ID number to
proceed to the options menu.
Operators have three options:
9
I -9000 Re-certification
This option is for updating officer information,
when necessary, and for operators to re-certify
WITHIN the 180-day period.
Reprint Subject Test
Reprints the last Subject’s Evidential Breath
Alcohol Test (EBAT) performed.
Recall Test
Contains a searchable field to retrieve a
previously run EBAT. Any two of these three
fields—first name, last name and event date-must be provided to perform the search.
10
Operator
Re-certification Requirements
Annual Online Refresher Course
Annually the EBAT Operator refresher course must
complete to maintain certification. The course may be
found online at
www.co.train.org.
Re-certification EBAT
WITHIN 180 days, the EBAT Operator must complete a
re-certification EBAT to remain certified or when an
operator needs to update their information.
To perform a re-certification EBAT, enter the OPTIONS
menu and choose I-9000 Re-certification.
If you have changed employers or your name has
changed, make those changes in the Operator
Information screen.
11
When prompted, you will need to re-enter your email
and direct phone number each time a 180-day recertification is performed.
Operators DO-NOT enter a PIN.
Follow the remaining steps to complete the recertification EBAT.
Once completed, the printout will indicate “Intoxilyzer
9000 Re-Certification Test Report” Retain this printout
for your records.
Operators may perform a re-certification EBAT anytime
within the 180-day certification period. A new 180-day
period is calculated whenever this is performed.
12
Certified EBAT Instructors
13
Instructor Options
Press the blue OPTIONS button from the main screen.
Swipe your access card or enter your User ID number
and PIN to proceed to the instructor menu.
Instructors have four menu options:
14
Control Testing
Calibration Check – Allows the instructor to perform a
calibration check. (Test sequence: ACA)
Stability Test – Allows the instructor to perform a series of
calibration checks in succession to determine the instrument’s
accuracy and precision. The instrument prompts the user to
enter the number of calibration checks desired (minimum of
3) for the stability test. (Example: Test sequence for 5 checks
is ACACACACACA.)
Breath Test – Allows the instructor to perform a single breath
test. (Test sequence: ABA)
Diagnostics – Allows the instructor to perform a diagnostic
check. (Test sequence: AD)
Configuration
General Settings – Allows instructors to set the default
number of copies to print with each subject test.
Standard Change – Allows the instructors to change the
standard simulator solution in the Guth 12V500 simulator
used to perform the calibration checks on the I-9000.
15
I-9000 Re-certification
This option is for updating officer information, when
necessary, and for instructors to re-certify within the 365-day
period.
Utility
Monitors – Displays the current status of the I-9000 and can
be used to activate the pump, fan, sounds, and solenoids.
Simulator Monitor – Displays the current status of the Guth
Laboratories 12V500 simulator.
Printer Test – Checks the communication with the printer.
Reprint Test – Reprints the last test performed for the
selected option: Subject, Calibration, Diagnostic, or Stability.
Recall Test – Contains a searchable field to retrieve a
previously run EBAT. Any two of these three fields—first
name, last name and event date--must be provided to
perform the search.
16
Instructor
Re-certification Requirements
Annual Online Refresher Course
Annually the EBAT instructor refresher course must be
completed to maintain certification. The course may be
found at
www.co.train.org. In addition, the EBAT
instructor should complete a re-certification EBAT using
the I-9000 Re-certification menu option. To complete
this step follow the instructions under the “Operator Re-
certification Requirements” on page 10 of this manual.
Biennial Operator Class
At minimum, once every two years, the EBAT instructor
must assist in facilitating one 8-hour EBAT operator
certification course taught by the EBAT Program.
EBAT Operator certification courses will be held
regionally statewide in addition to being held at the
Laboratory Services Division. Dates and locations of the
EBAT operator certification courses will be posted at
www.coloradoebat.us.
17
Changing the
Standard Simulator Solution
Press the blue OPTIONS button from the main screen.
Swipe your access card or enter your User ID number to
proceed to the Instructor menus.
Select the CONFIGURATION button from the Main
Options screen.
Select the STANDARD CHANGE button from the
Configuration screen.
18
5. Using the information from the label on the solution
bottle, enter the following fields on the Standard
Change screen:
a. The Lot #.
b. The Bottle #.
c. The Expiration Date.
6. Select the check button to begin the I-9000 solution
change stability test.
The I-9000 will include the solution change record as
part of the Intoxilyzer Performance Report (IPR)
printed with each subject’s EBAT.
7. Review the stability test results for acceptability.
NOTE: All 10 calibration checks performed must fall
within the 0.095 to 0.105 g/210L in order to pass.
Any result outside of the acceptable range requires
the solution change to be repeated.
8. Once completed, select the BACK button until the
I-9000 returns to the main screen.
19
Setting Up the I-9000
Instrument and Peripherals
Ethernet
cable
Plug signature pad USB
into bottom USB port.
Rear panel of the I-9000
Analog
Phone
Line
Electrical
power
Power pack
for simulator
Plug keyboard into
top USB port.
20
Plug printer into
bottom USB port.
Right side panel of the I-9000
21
Contact Information
Operators should contact their agency’s
certified EBAT instructor(s).
Jeff Groff, Program Manager
jeff.groff@state.co.us
303-692-3681
Andrea Dakan, EBAT Electronics Specialist
andrea.dakan@state.co.us
303-692-3292
Anthony Mistich, EBAT Electronics Specialist
anthony.mistich@state.co.us
303-692-3488
Mark Minton, EBAT Electronics Specialist
mark.minton@state.co.us
303-692-3293
Roxanne Cuellar, EBAT Program Assistant
roxanne.cuellar@state.co.us
303-692-3295
Evidential Breath Alcohol Testing (EBAT) Program
Laboratory Services Division
8100 Lowry Boulevard
Denver, CO 80230
303-344-9965 (fax)
www.coloradoebat.us
