CM HU1000PA30, HU10000GB15, HU3000PA20, HU5000GA10, HU2000PA30 User Manual

COLUMBUS McKINNON CORPORATION

LIFT AND POSITION

FROM VIRTUALLY ANY ANGLE.

Because of its unique design, the versatility and safety
benefits of the CM Hurricane 360° beats the competition.
This one-of-a-kind hand chain hoist is ideal for use in the
following applications:

TIGHT SPACES

where the rigid handle of a lever hoist would be difficult to
maneuver and operate. The Hurricane 360° allows you
to easily work around obstructions.

ABOVE THE LOAD

where traditional hoists cannot be used. The Hurricane 360°’s
rotating hand chain guide allows for operation from virtually
any angle.

DRIFTING APPLICATIONS

when the hand chain angle needs to adjust throughout
the operation. Using two Hurricane 360° hoists in tandem,
operators can easily drift loads from one location to another.

TO MAINTAIN SAFE DISTANCE

while handling a load. The rotating chain guide on the
Hurricane 360° lets you conveniently maneuver a load
without standing under or near it.

TABLE OF CONTENTS

CM HURRICANE 360°

4

Hook-mounted hoist models

CM HURRICANE 360°

8

Army-type, integrated trolley hoist models

YALELIFT 360° ATEX

14

Hook-mounted and army-type,
integrated trolley hoist models
with explosion protection, spark
resistance and corrosion resistance

The CM Hurricane 360˚ is unlike any other hand chain
hoist on the market today. Featuring a one-of-a-kind
hand chain cover, the CM Hurricane 360˚ provides
flexibility and versatility for challenging applications.

The Hurricane’s patented hand chain cover rotates a full
360 degrees, allowing loads to be lifted, positioned or
pulled from virtually any angle – even in confined spaces.
It also permits the operator to stand safely away from
the load, helping to prevent accidents and injuries.

HOOK-MOUNTED HOISTS

1/2 TO 20 TON CAPACITIES
STANDARD LIFTS UP TO 30 FT.

BENEFITS & FEATURES

PATENTED HAND CHAIN COVER

Unique rotating hand chain cover
allows the chain to rotate a full
360 degrees for safe and efficient
operation from any direction.
Cover design promotes smooth
movement of the chain.

TRUSTED RELIABILITY & SAFETY

The Weston-style braking system
provides positive load control and
reliable performance. Standard load
limiter provides simple, automatic
overload protection to prevent injuries.

RUGGED & DURABLE
FOR LONG LIFE

Internal gears and pinions are made
of heat-treated steel for high strength
and long life. Powder-coated finish
provides protection against corrosion.
Precision 4-pocket liftwheel and
chain guide provide better chain fit
and alignment to reduce wear.

EASE OF MAINTENANCE

Hoist requires minimal maintenance
and can be easily disassembled
with standard tools.

FAST & EASY PARTS ACCESS

Genuine CM Hurricane 360° parts
are available in Total Repair Kits
and convenient bulk packaging
through CM Parts Star™.

MEETS ASME B30.16 &
EUROPEAN CE STANDARD

ADDITIONAL OPTIONS AVAILABLE

Units are available with a variety
of options to suit your application,
including:

 Chain containers
 Zinc-plated load and hand chain
 Latchlok hooks
 Without standard load limiter

4

CM Hurricane 360° Hook-Mounted Hoist 20-TON CAPACITY

HOOK-MOUNTED HOISTS

5

The CM Hurricane 360˚ is available as a hook-mounted hoist
in capacities from 1/2 to 20 tons, with standard lifts
up to 30 feet.

6

1/2-TON

CAPACITY

1-TON

CAPACITY

2-TON

CAPACITY

3-TON

CAPACITY

5-TON

CAPACITY

HOOK-MOUNTED HOISTS

10-TON

CAPACITY

15-TON

CAPACITY

20-TON

CAPACITY

7

HOOK-MOUNTED HOISTS

A

H

G

D

E F

I

M

B

N

L K

C

A

H

G

D

E

M

B

C

F

N

L K

A

H

G

D

E

I

F

M

B

N

L K

C

A

H

G

M

B

E F

I

C

G

H

D

A

M

B

L K

H

A

M

N

HOOK-MOUNTED HOIST

1/2 TO 3 TON

E

I

G

C

H

D

F

L K

G

H

E F

I

G

C

D

B

HOOK-MOUNTED HOIST

5 TON

E

C

D

L K

N

F

L K

A

M

B

N

A

HOOK-MOUNTED HOIST

10 TON

The CM Hurricane 360°’s unique rotating hand chain cover allows the chain to rotate a full 360
degrees for safe and efficient operation from almost any angle or direction.

M

B

HOOK-MOUNTED HOIST

15 & 20 TON

N

8

SPECIFICATIONS & DIMENSIONS

Lift

Code

Capacity

Ton
(kg)

1/2

(500)

1

(1,000)

2

(2000)

3

(3,000)

5

(5,000)

10

(10,000)

15

(15,000)

20

(20,000)

ft. m A B C D E F G H I K L M N

10 3 21 (9)

10 3 28 (13)

10 3 47 (21)

10 3 75 (34)

10 3 106 (48)

10 3 217 (98)

10 3 455 (206)

10 3 455 (206)

Product

5623A
5624A 15 4.5 23 (10)
5625A 20 6 25 (11)
5651A 30 9 29 (13)
5632A Less Chain 17 (8)
5626A
5627A 15 4.5 31 (14)
5628A 20 6 34 (15)
5653A 30 9 40 (18)
5633A Less Chain 23 (10)
5629A
5630A 15 4.5 52 (24)
5631A 20 6 57 (26)
5634A Less Chain 36 (16)
5635A
5636A 15 4.5 82 (37)
5637A 20 6 89 (40)
5638A Less Chain 52 (24)
5639A
5640A 15 4.5 121 (55)
5641A 20 6 136 (62)
5642A Less Chain 74 (34)
5643A
5644A 15 4.5 240 (109)
5645A 20 6 261 (118)

5646A Less Chain 168 (76)
HU15000H10
HU15000H15 15 4.5 508 (230)
HU15000H20 20 6 554 (251)
HU15000H30 30 9 653 (296)
HU20000H10
HU20000H15 15 4.5 508 (230)
HU20000H20 20 6 554 (251)
HU20000H30 30 9 653 (296)

Other lifts available. Contact factory.
Standard Hand Chain drop 2 ft. less than Lift.

Weight

lbs.

(kg)

Reeving

1

1

1

1

2

3

6

6

Hand Chain

Pull to

Lift Rated

Load

lbs.
(kg)

44

(20)

54

(24)

74

(34)

92

(42)

76

(34)

102
(46)

2 x 76

(2 x 34)

2 x 102
(2 x 46)

Hand Chain
Overhauled
to Lift Load

One Foot

ft.

(m)

30

(9.1)

49

(14.9)

71

(21.6)

87

(26)

174
(53)

261

(79.3)

522 (2 x 261)

(159.1 (2 x 79.3))

522 (2 x 261)

(159.1 (2 x 79.3))

11.811
(300)

13.189
(335)

15.551
(395)

20.472
(520)

25.748
(654)

32.480
(825)

43.543

(1106)

43.543

(1106)

0.669
(17)

0.866
(22)

1.181
(30)

1.496
(38)

1.772
(45)

2.677
(68)

3.386
(86)

3.386
(86)

0.945
(24)

1.142
(29)

1.378
(35)

1.575
(40)

1.850
(47)

2.677
(68)

3.150
(80)

3.150
(80)

Dimensions in inches (mm)

5.236

5.827
(148)

6.890
(175)

7.992
(203)

9.843
(250)

9.843
(250)

15.079
(383)

23.071
(586)

23.071
(586)

5.827
(148)

6.575
(167)

7.638
(194)

8.622
(219)

8.622
(219)

8.622
(219)

9.843
(250)

9.843
(250)

(133)

6.142
(156)

7.165
(182)

8.661
(220)

8.661
(220)

8.661
(220)

8.661
(220)

8.661
(220)

5.472
(139)

6.457
(164)

7.559
(192)

8.858
(225)

9.528
(242)

12.835
(326)

16.181
(411)

16.181
(411)

8.110
(206)

9.528
(242)

11.142
(283)

13.189
(335)

13.858
(352)

17.165
(436)

20.512
(521)

20.512
(521)

0.945
(24)

0.945
(24)

1.220
(31)

1.339
(34)

0.827
(21)

5.354

(136)

–

–

2.402
(61)

2.756
(70)

3.268
(83)

3.740
(95)

3.740
(95)

3.740
(95)

4.921

(125)

4.921

(125)

3.425
(87)

3.819
(97)

4.370

(111)

4.882

(124)

4.882

(124)

4.882

(124)

4.921

(125)

4.921

(125)

4.331
(110)

4.921
(125)

6.142
(156)

7.008
(178)

11.220
(285)

15.787
(401)

23.740
(603)

23.740
(603)

0.551
(14)

0.748
(19)

0.866
(22)

1.181
(30)

1.457
(37)

1.969
(50)

2.480
(63)

2.480
(63)

HOOK-MOUNTED HOISTS

DEMAND

GENUINE PARTS

When you choose Parts Star™ by Columbus McKinnon,
you’ll be purchasing genuine Columbus McKinnon
parts designed to fit the Hurricane 360° hoist’s exact
specifications, maintaining warranty requirements and the
integrity of the unit’s superior design and safety features.

Get everything you need for a complete and professional
repair with Parts Star Total Repair Kits. Popular Hurricane
360° repair parts are also available in easy-to-order bulk
packaging so the parts you need are always on hand.

PROTECT

AGAINST UNSAFE
LIFTING CONDITIONS

All CM Hurricane 360° units feature the
Tri-Point Hook Inspection™ system to
help protect the operator against unsafe
lifting conditions. Hurricane 360° load
hooks come with 3 distinct raised points
the operator can use to measure the
hook to detect any indication of overload
or deformation.

9

The CM Hurricane 360˚ is available as an army-type,
integrated trolley hoist, uniquely and smartly designed
for a variety of applications. With all of the same great
general features as the hook-mounted version, these
compact units feature a low-headroom design for use
in even the tightest spaces.

ARMY-TYPE, INTEGRATED
TROLLEY HOIST

1/2 TO 20 TON CAPACITIES
STANDARD LIFTS UP TO 30 FT.

ADDITIONAL FEATURES

LOW HEADROOM DESIGN

The combination of the versatile CM
Hurricane 360 with a low-headroom
trolley provides even more flexibility in
applications with low ceilings or limited
space. Trolleys have reduced side
clearances and end approach to aid in
maneuvering heavy loads in tight spaces.

ADJUSTABLE & VERSATILE

Choose from plain or geared versions.
These manual trolleys can be easily
adjusted to fit to a wide range of beam
widths and profiles due to threaded
spindles (e.g. INP, IPE, IPB). Depending
on the beam flange width, an adjustment
up to 300 mm can be made easily.

SMOOTH OPERATION

Trolley wheels are designed for smooth
rolling with pre-lubricated encapsulated
ball bearings. Wheels manufactured
from fracture-proof steel. Cambered
profile suitable for flat and inclined
beam profiles. Note: Trolley wheels are
designed for a max. beam profile incline
of 14% (DIN 1025 - part 1).

BEST-IN-CLASS SAFETY
FEATURES

Standard anti-tilt and anti-drop
features. Load limiter also comes
standard to protect against dangerous
overloads. Rubber bumpers optional
for added safety.

RUGGED & DURABLE

Steel load bars are connected directly
to the hoist frame for added strength
and durability.

ADDITIONAL OPTIONS AVAILABLE

Units are available with a variety of
options to suit your application, including:

 Chain containers
 Zinc-plated load and hand chain
 Latchlok hooks
 Without standard load limiter
 Trolley guards
 Larger beam trolleys
 Track clamps
 Rubber bumpers

PLAIN

MODEL

10

GEARED

MODEL

CM Hurricane 360°
Army-Type, Integrated Trolley Hoist

1-TON CAPACITY

HOOK-MOUNTED HOISTS

ARMY-TYPE, INTEGRATED TROLLEY HOISTS

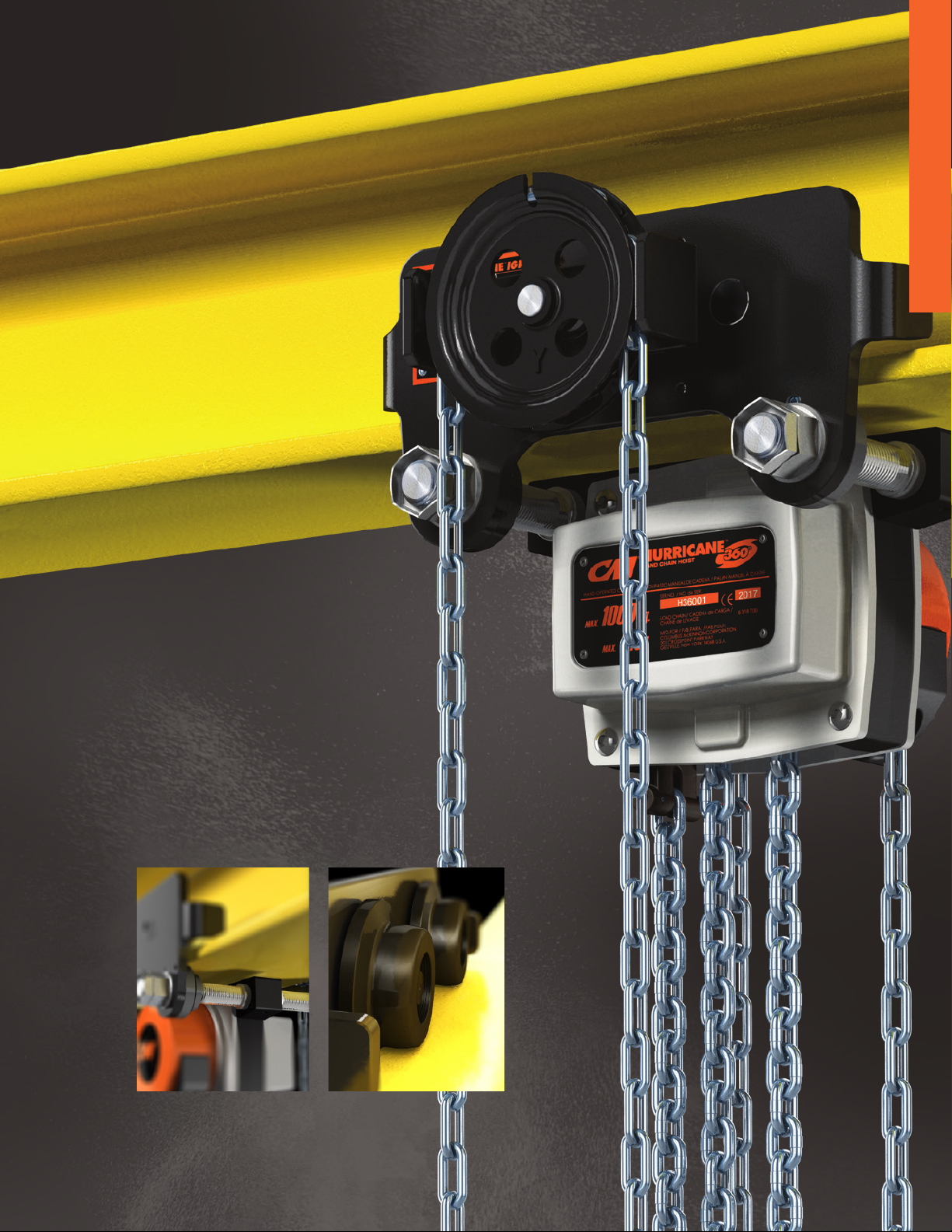

THREADED SPINDLE TROLLEY WHEEL WITH

CAMBERED PROFILE

11

The CM Hurricane 360˚ is available as an army-type,

integrated trolley hoist with standard lifts up to 30 feet.

Plain trolley hoists are available in capacities from
1/2 to 5 tons. Geared trolley hoists (pictured below)
are available in capacities from 1/2 to 20 tons.

12

1/2 TON

1/2-TON

CAPACITY

CAPACITY

1-TON

CAPACITY

2-TON

CAPACITY

3-TON

CAPACITY

5-TON

CAPACITY

ARMY-TYPE, INTEGRATED TROLLEY HOISTS

10-TON

CAPACITY

15-TON

CAPACITY

20 TON

20-TON

CAPACITY

CAPACITY

13

L2

ARMY-TYPE, INTEGRATED TROLLEY HOISTS

L

L1

A1

A

C

L2

B

PLAIN TROLLEY HOIST

1/2 TO 3 TON

L

L1

A1

A

C

T

b

t

I

O

H1

M

L

L1

A1

T

b

t

I

O

H1

M

A

C

D

L2

B

D

PLAIN TROLLEY HOIST

5 TON

P

F

T

b

t

I

O

H1

M

L

L1

F

A1

A

C

T

b

P

t

I

O

H1

M

B

GEARED TROLLEY HOIST

1/2 TO 3 TON

L

L1

A1

A

C

B

L2

GEARED TROLLEY HOIST

10 TON

D

L2

B

D

GEARED TROLLEY HOIST

5 TON

b

P

F

t

I

O

D

H1

M

T

L

L1

H1

A1

A

C

B

L2

b

t

M

T

P

I

O

D

F

GEARED TROLLEY HOIST

15 & 20 TON

SPECIFICATIONS

Product Code

Plain

Trolley

HU500PA10 HU500GA10
HU500PA15 HU500GA15 15 4.5 45 54 48 57
HU500PA20 HU500GA20 20 6 47 56 51 60

HU500PA30 HU500GA30 30 9 50 59 56 65
HU1000PA10 HU1000GA10
HU1000PA15 HU1000GA15 15 4.5 62 73 66 75
HU1000PA20 HU1000GA20 20 6 65 76 69 78
HU1000PA30 HU1000GA30 30 9 70 81 74 83
HU2000PA10 HU2000GA10
HU2000PA15 HU2000GA15 15 4.5 102 113 106 115
HU2000PA20 HU2000GA20 20 6 106 117 110 119
HU2000PA30 HU2000GA30 30 9 115 126 119 128
HU3000PA10 HU3000GA10
HU3000PA15 HU3000GA15 15 4.5 177 188 181 192
HU3000PA20 HU3000GA20 20 6 184 195 188 199
HU3000PA30 HU3000GA30 30 9 198 209 202 213
HU5000PA10 HU5000GA10
HU5000PA15 HU5000GA15 15 4.5 289 300 298 309
HU5000PA20 HU5000GA20 20 6 304 315 313 324
HU5000PA30 HU5000GA30 30 9 333 344 342 353

– HU10000GB10
– HU10000GB15 15 4.5 – – – 466
– HU10000GB20 20 6 – – – 488
– HU10000GB30 30 9 – – – 531
– HU15000GB10
– HU15000GB15 15 4.5 – – – 936
– HU15000GB20 20 6 – – – 978
– HU15000GB30 30 9 – – – 1062
– HU20000GB10
– HU20000GB15 15 4.5 – – – 936
– HU20000GB20 20 6 – – – 978
– HU20000GB30 30 9 – – – 1062

Other lifts available. Contact factory.
Standard hand chain drop 2 ft. less than lift.
* 1/2 to 5 ton units also available with an optional "B size" flange adjustment range of 7.09 to 11.81 inches.

Geared

Trolley

Capacity

(kg)

(500)

(1,000)

(2000)

(3,000)

(5,000)

(10,000)

(15,000)

(20,000)

Lift Weight (lbs.)

Plain

Ton

ft. m

10 3 44 53 46 55

1/2

10 3 60 71 64 73

1

10 3 97 108 101 110

2

10 3 170 181 174 185

3

10 3 275 286 284 295

5

10 3 – – – 445

10

10 3 – – – 894

15

10 3 – – – 894

20

Trolley

A

Geared
Trolley

A

Plain

Trolley

B

Geared

Trolley

B

Reeving

1

1

1

1

2

3

6

6

Lift Rated Load

Hand Chain

Pull to

lbs. (kg)

44

(20)

54

(24)

74

(34)

92

(42)

76

(34)

102
(46)

2 x 76

(2 x 34)

2 x 102
(2 x 46)

Hand Chain

Overhauled to Lift

Load One Foot

ft. (m)

30

(9.1)

49

(14.9)

71

(21.6)

87

(26)

174
(53)

261

(79.3)

522 (2 x 261)

(159.1 (2 x 79.3))

522 (2 x 261)

(159.1 (2 x 79.3))

Beam Flange

Thickness

in. (mm)

0.74
(19)

0.74
(19)

0.74
(19)

1.06
(27)

1.06
(27)

1.57
(40)

1.57
(40)

1.57
(40)

Standard

Flange

Adjustment

Range

in. (mm)

“A” Size*

3.94 to 7.09
(100 to 180)

“A” Size*

3.94 to 7.09
(100 to 180)

“A” Size*

3.94 to 7.09
(100 to 180)

“A” Size*

3.94 to 7.09
(100 to 180)

“A” Size*

3.94 to 7.09
(100 to 180)

“B” Size

7.09 to 11.81
(180 to 300)

“B” Size

7.09 to 11.81
(180 to 300)

“B” Size

7.09 to 11.81
(180 to 300)

Minimum

Radius Curve

in. (mm)

35

(889)

35

(889)

45

(1,143)

A=59

B=55
(A=1,499)
(B=1,397)

A=78

B=70
(A=1,981)
(B=1,778)

70

(1,778)

37.5

(952.5)

37.5

(952.5)

ARMY-TYPE, INTEGRATED TROLLEY HOISTS

DIMENSIONS

Product Code

Plain

Trolley

HU500PA10 HU500GA10
HU500PA15 HU500GA15
HU500PA20 HU500GA20

HU500PA30 HU500GA30
HU1000PA10 HU1000GA10
HU1000PA15 HU1000GA15
HU1000PA20 HU1000GA20
HU1000PA30 HU1000GA30
HU2000PA10 HU2000GA10
HU2000PA15 HU2000GA15
HU2000PA20 HU2000GA20
HU2000PA30 HU2000GA30
HU3000PA10 HU3000GA10
HU3000PA15 HU3000GA15
HU3000PA20 HU3000GA20
HU3000PA30 HU3000GA30
HU5000PA10 HU5000GA10
HU5000PA15 HU5000GA15
HU5000PA20 HU5000GA20
HU5000PA30 HU5000GA30

– HU10000GB10
– HU10000GB15
– HU10000GB20
– HU10000GB30
– HU15000GB10
– HU15000GB15
– HU15000GB20
– HU15000GB30
– HU20000GB10
– HU20000GB15
– HU20000GB20
– HU20000GB30

Geared

Trolley

Dimensions in inches (mm)

Capacity

Ton

A A1 B C D

(kg)

1/2

9.65 6.22 0.67 0.94 0.55 3.62 0.96 2.81 3.01 10.63 5.12 6.26 M18 2.36 4.25 11.02 15.75

(500)

(245) (158) (17) (24) (14) (92) (24.5) (71.5) (76.5) (270) (130) (159) (60) (108) (280) (400)

1

10.71 7.01 0.87 1.14 0.75 3.62 0.94 2.81 3.01 12.2 5.12 6.89 M22 2.36 4.33 11.42 16.14
(272) (178) (22) (29) (19) (92) (24) (71.5) (76.5) (310) (130) (175) (60) (110) (290) (410)

(1,000)

2

12.72 8.09 1.18 1.38 0.87 3.58 0.93 3.76 3.86 14.17 5.91 8.15 M27 3.15 4.41 12.01 16.73
(323) (205.5) (30) (35) (22) (91) (23.5) (95.5) (98) (360) (150) (207) (80) (112) (305) (425)

(2000)

3

15.04 9.92 1.5 1.57 1.18 4.21 1.26 5.16 5.22 17.52 7.09 10.08 M30 4.41 4.41 12.6 17.32
(382) (252) (38) (40) (30) (107) (32) (131) (132.5) (445) (180) (256) (112) (112) (320) (440)

(3,000)

5

21.65 10.26 1.77 1.85 1.46 5.89 1.2 5.61 5.85 20.67 8.23 11.14 M42 4.92 4.61 14.33 19.06
(550) (260.5) (45) (47) (37) (149.5) (30.5) (142.5) (148.5) (525) (209) (283) (125) (117) (364) (484)

(5,000)

10

30.87 14.96 2.68 2.68 1.97 4.45 2.17 – 6.65 16.93 7.87 10.28 M48 5.91 6.22 – 21.26
(784) (380) (68) (68) (50) (113) (55) (169) (430) (200) (261) (150) (158) (540)

(10,000)

15

45.47 17.83 3.39 2.52 2.2 4.45 2.17 – 6.65 34.25 17.32 17.13 M48 5.91 6.22 – 21.26

(15,000)

(1155) (453) (86) (64) (56) (113) (55) (169) (870) (440) (435) (150) (158) (540)

20

45.47 17.83 3.39 2.52 2.2 4.45 2.17 – 6.65 34.25 17.32 17.13 M48 5.91 6.22 – 21.26

(1155) (453) (86) (64) (56) (113) (55) (169) (870) (440) (435) (150) (158) (540)

(20,000)

F

(Geared)

H1

I

PlainIGeared

L L1 L2 M O

P

(Geared)

T

(A

Size)

T

(B

Size)

15

YALELIFT 360™ ATEX

HAND CHAIN HOIST

The Yalelift 360™ ATEX hand chain hoist is the ideal manual
hoist for harsh environments. Exceeding requirements for a
classic hand chain hoist, the Yalelift 360 ATEX is built for
use in explosive atmospheres and features a unique
patented hand chain cover that rotates a full 360 degrees
to lift loads from virtually any angle.

YALELIFT 360™ ATEX
HAND CHAIN HOIST

1/4 TO 12 TON CAPACITIES
STANDARD LIFTS UP TO 10 FT.
OTHER LIFTS AVAILABLE UPON REQUEST.

FEATURES & BENEFITS

EXPLOSION PROTECTION &
SPARK RESISTANCE

Designed for explosive environments
with spark-resistant, copper-coated
suspension and load hooks; stainless
steel load chain and hand chain; and
bronze trolley wheels.

CORROSION RESISTANT

Enclosed robust stamped steel housing
protects internal components, even in
the toughest conditions. Chain guide and
internal gearbox are partially enclosed for
protection in harsh environments.

For maximum corrosion protection, we
use the MKS micro corrosion protection
system consisting of Delta-Protekt®
KL100 basecoat and Delta Seal® topcoat.

Delta Protekt® is an inorganic, micro­porous, layer-forming basecoat barrier
with overlapping zinc and aluminum
flakes that result in high anti-corrosion
silver metallic properties. This basecoat
layer helps ensure electrical conductivity
so that the desired cathodic protection
of the iron is present.

Delta Seal® is an organic, highly cross­linked microcrystalline,layer-forming
topcoat that provides a firm chemical­resistant coating.

This two-coat system guarantees
high-level protection against corrosion.

MEETS ATEX REQUIREMENTS

Hoist meets EU standards 2014/34/EU
and 99/92/EC.

ULTIMATE VERSATILITY

Patented hand chain cover rotates a full
360 degrees to allow loads to be lifted,
pulled or positioned from virtually any
angle. In addition to providing maximum
versatility, this unit offers a convenient way
to maneuver loads without standing under
the load.

LOW HEADROOM

Extremely low headroom allows for
maximum use of the lifting height.

16

FEATURES & BENEFITS CONT.

TRUSTED RELIABILITY

 Braking power of our Weston-style

braking system provides positive load
control and reliable performance. Zinc
plated or yellow chromated to protect
against corrosion.

 Minimal maintenance and easily

disassembled with no special tools.

BUILT TO LAST

 All internal gears and pinions are made

of heat-treated steel for high strength
and long life.

 Precision 4-pocket liftwheel and chain

guide provide better chain fit and alignment,
reducing wear and increasing chain life.

SUPERIOR HOOK DESIGN

Drop-forged load and suspension hooks made of
high-tensile steel yield under overload instead of
breaking. Hooks rotate 360° and are fitted with
robust safety latches.

OPTIONAL OVERLOAD PROTECTION

Load Limiter™ offers simple, automatic
overload protection.

MEETS ASME B30.16
& EUROPEAN CE STANDARD

YALELIFT 360 ATEX HOISTS

THE YALELIFT 360™ ATEX

HAND CHAIN HOIST

With the Yalelift hoist’s patented 360˚ rotating chain cover, operators are able to lift loads from any angle.

17

18

YALELIFT 360 ATEX II 2 GD C IIC T4

Model

Number

YL ATEX 250 192021793 10 1/4

YL ATEX 500 192021796 10 1/2

YL ATEX 1000 192021797 10 1

YL ATEX 1500 192021798 10 1-1/2
YL ATEX 2000 192021799 10 2

YL ATEX 3000 192021800 10 3
YL ATEX 4000 192021801 10 4

YL ATEX 5000 192021802 10 5
YL ATEX 6000 192021803 10 6

YL ATEX 8000 192021804 10 8
YL ATEX 10000 192021805 10 10
YL ATEX 12000 192021806 10 12

Product

Code

Standard Lift

(ft.)

Capacity

(tons)

Chain

Dimensions

d x p

(mm)

.24 x .71

(6 x 18)

.39 x 1.18

(10 x 30)

YALELIFT ITP ATEX WITH INTEGRATED PUSH-TYPE TROLLEY II 2 GD C IIC T4

Beam Flange

Model

Number

YLITP ATEX 250 192021814 10 1/4 A

YLITP ATEX 500 192021815 10 1/2 A
YLITP ATEX 1000 192021816 10 1 A

YLITP ATEX 1500 192021817 10 1 1/2 A
YLITP ATEX 2000 192021818 10 2 A

*Size B on request.

Product

Code

Standard Lift

(ft.)

Capacity

(tons)

Size*

Width

b

inches

(mm)

1.97 - 7.08
(50 - 180)

2.91 - 7.08
(74 - 180)

t max.
inches

(mm)

.75
(19)

10.67
(27)

Hand Chain

Over-Hauled

to Lift

One Meter

49 30

87 38

Curve

Radius min.

ft.

(m)

29.52
(0.9)

4.92
(1.5)

Hand Chain

Chain

Falls

1

2 174 34

3 261 44

6 552 2 x 44

Beam Flange

Thickness

Pull on

at WLL

daN

Weight

(kg)

59.5
(27)

169.7
(77)

lb.

Weight

lb.

(kg)

28.6
(13)

63.9
(29)

83.7
(38)

156.5
(71)

432.1

(196)

Weight

with Locking

Device

lb.

(kg)

77.1
(35)

189.5
(86)

YALELIFT 360 ATEX HOISTS

YALELIFT ITG ATEX WITH INTEGRATED GEARED-TYPE TROLLEY II 2 GD C IIC T4

Beam Flange

Model

Number

YLITG ATEX 250 192021819 10 1/4 A

YLITG ATEX 500 192021821 10 1/2 A
YLITG ATEX 1000 192021822 10 1 A

YLITG ATEX 1500 192021823 10 1 1/2 A
YLITG ATEX 2000 192021824 10 2 A

YLITG ATEX 3000 192021825 10 3 A
YLITG ATEX 4000 192021826 10 4 A

YLITG ATEX 5000 192021827 10 5 B
YLITG ATEX 6000 192021828 10 6 B

YLITG ATEX 8000 192021829 10 8 B

YLITG ATEX 12000 192021831 10 12 B

*Size B on request.

Product

Code

Standard Lift

(ft.)

Capacity

(tons)

Size*

Width

b

inches

(mm)

1.97 - 7.09
(50 - 180)

2.91 - 7.09
(74 - 180)

3.85 - 7.09
(98 - 180)

4.92 - 12.20
(125 - 310)

7.09 - 12.20
(180 - 310)

Beam Flange

Thickness

t max.
inches

(mm)

0.75
(19)

1.06
(27)

1.06
(27)

1.57
(40)

1.57
(40)

Curve

Radius Min.

ft.

(m)

29.52
(0.9)

4.92
(1.5)

6.56
(2.0)

5.9

(1.8)

16.4
(5.0)

Weight

lb.

(kg)

70.5
(32)

180.7
(82)

286.6

(130)

on request on request

on request on requestYLITG ATEX 10000 192021830 10 10 B

Weight

with Locking

Device

lb.

(kg)

88.1
(40)

200.6
(91)

308.6

(140)

19

DIMENSIONS YALELIFT 360 ATEX

Capacity

(ton)

¼, ½ & 1

1½ & 2

3 & 4

5 & 6

8, 10 & 12

Dimensions

in. (mm)

A B C D E F G H I K L M N

13.19 0.87 1.14 6.14 6.89 6.58 6.46 9.53 0.95 2.76 3.82 4.92 0.75
(335) (22) (29) (156) (175) (167) (164) (242) (24) (70) (97) (125) (19)

20.47 1.50 1.58 8.66 9.84 8.62 8.86 13.19 1.34 3.74 4.88 7.01 1.18
(520) (38) (40) (220) (250) (219) (225) (335) (34) (95) (124) (178) (30)

25.75 1.77 1.85 8.66 9.84 8.62 9.53 13.86 0.83 3.74 4.88 11.22 1.46
(654) (45) (47) (220) (250) (219) (242) (352) (21) (95) (124) (285) (37)

32.48 2.68 2.68 8.66 15.08 8.62 12.84 17.17 5.35 3.74 4.88 15.79 1.97
(825) (68) (68) (220) (383) (219) (326) (436) (136) (95) (124) (401) (50)

39.76 3.35 2.52 11.93 21.85 9.84 15.39 19.72

(1010) (85) (64) (303) (555) (250) (391) (501) (396) (125) (471) (56)

15.59 4.92 18.54 2.21

–

YALELIFT 360 ATEX, SINGLE FALL

1/4 TO 2 TON

YALELIFT 360 ATEX, THREE FALL

5 TO 6 TON

YALELIFT 360 ATEX, DOUBLE FALL

3 TO 4 TON

YALELIFT 360 ATEX, SIX FALL

8 TO 12 TON

20

DIMENSIONS YALELIFT IT ATEX

A

Capacity

(ton)

1/4, 1/2

& 1

1-1/2

& 2

3 & 4

5 & 6

Dimensions for 8, 10 & 12-ton capacities available upon request.

A1 A2 B C D F

min.

10.71
(272)

15.04
(382)

21.65
(550)

30.87
(784)

7.01

(178)

9.92

(252)

10.26

(260.5)

14.96
(380)

0.87

–

(22)

1.50

–

(38)

1.77

–

(45)

2.68

–

(68)

1.14
(29)

1.57
(40)

1.85
(47)

2.68
(68)

0.75
(19)

1.18
(30)

1.46
(37)

1.97
(50)

Geared

trolley

3.62
(92)

4.21

(107)

5.89

(149.5)

4.45

(113)

Dimensions

H1 I

0.94
(24)

1.26
(32)

1.20

(30.5)

2.17
(55)

in. (mm)

Pushed

trolley

2.81

(71.5)

5.16

(131)

5.61

(142.5)

6.65

(169)

I

Geared

trolley

3.01

(76.5)

5.22

(132.5)

5.85

(148.5)

6.65

(169)

L L1 L2 M O P

12.20

5.12

(310)

17.52
(445)

20.67
(525)

16.93
(430)

(130)

7.09

(180)

8.23

(209)

7.87

(200)

6.89

(175)

10.08
(256)

11.14
(283)

10.28
(261)

M 22

M 30

M 42

M 48

2.36
(60)

4.41

(112)

4.92

(125)

5.91

(150)

Geared

trolley

4.33

(110)

4.41

(112)

4.61

(117)

6.22

(158)

T

(Area A)T(Area B)

11.42

16.14

(290)

(410)

12.60

17.32

(320)

(440)

14.33

19.06

(364)

(484)

21.26
(540)

–

YALELIFT 360 ATEX HOISTS

YALELIFT ITP ATEX, SINGLE FALL

1/4 TO 2 TON

YALELIFT ITG ATEX, SINGLE FALL

1/4 TO 2 TON

YALELIFT ITG ATEX, DOUBLE FALL

3 TO 4 TON

YALELIFT ITG ATEX, THREE FALL

5 TO 6 TON

21

LIFT AND POSITION

FROM VIRTUALLY ANY ANGLE.

YOUR ONE SOURCE FOR
FLOOR-TO-CEILING SYSTEMS

Since 1875, Columbus McKinnon has helped to make material handling
easier and safer, and, today, is your single source for complete floor-to­ceiling lifting systems.

From below-the-hook attachments, chain, rigging products, manual
and powered chain hoists to electric wire rope hoists, cranes, enclosed
track systems and specially engineered products, Columbus McKinnon
has the engineering expertise to meet the most demanding applications.

KNOW HOW. KNOW WHY.

Columbus McKinnon is committed to providing expert safety training on the proper use and inspection
of rigging and overhead lifting equipment. Our company offers comprehensive programs at our national
training centers as well as on-site at your facility. Courses include:

 Hoist Maintenance  Crane & Hoist Inspection  Crane Operator Training
 Safe Hoisting  Load Securement  Rigging
 Rigging Gear Inspection

Win in the marketplace with CMCO University.™ This three-day program is designed
to give Channel Partners intimate product and application knowledge that they can use
to advise their end-user customers during the product selection and sales processes.

Columbus McKinnon’s corporate headquarters in Getzville, New York, is home to our state-of-the-art

Niagara Training Center. The 3,000-square-foot facility is dedicated to training Channel Partners

and end users on the safe and proper use of hoist and rigging products. The Center offers a one-of-a-kind
training experience on chain and rigging equipment with more than 75 manual and powered hoists,
enclosed track systems and our 50-foot-wide crane system with 3-ton Yale Global King wire rope hoist.

USA 800.888.0985
CDN 877.264.6478

•

716.689.5400 • fax: [phone]

•

fax: [phone]

www.cmworks.com

© 2018 Columbus McKinnon Corporation. All Rights Reserved.

Stock # CMH360-B-US
3500 EP 01/18 BB
