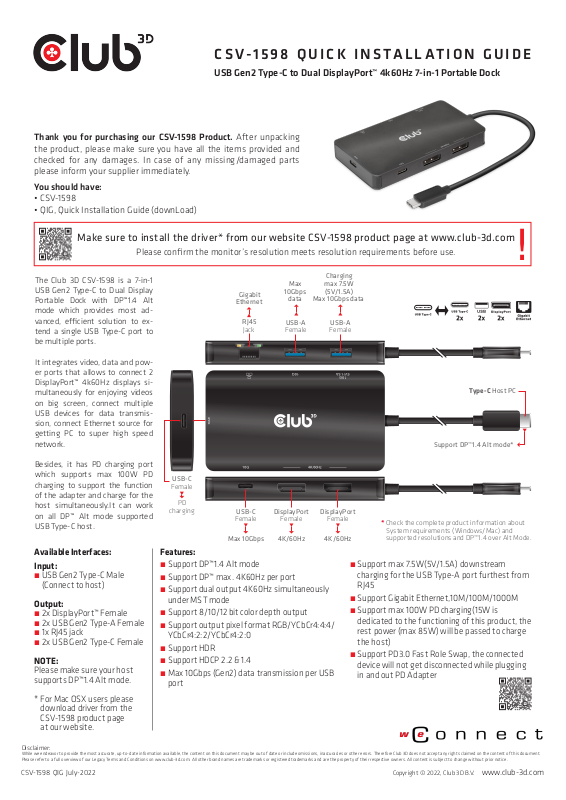

CSV-1598 QUICK INSTALLATION GUIDE
Charging
USB Gen2 Type-C to Dual DisplayPort™ 4k60Hz 7-in-1 Portable Dock
Thank you for purchasing our CSV-1598 Product. After unpacking
the product, please make sure you have all the items provided and
checked for any damages. In case of any missing/damaged parts
please inform your supplier immediately.
You should have:
• CSV-1598
• QIG, Quick Installation Guide (downLoad)
Make sure to install the driver* from our website CSV-1598 product page at www.club-3d.com
Please confirm the monitor’s resolution meets resolution requirements before use.
!
The Club 3D CSV-1598 is a 7-in-1
USB Gen2 Type-C to Dual Display
Portable Dock with DP™1.4 Alt
mode which provides most advanced, ecient solution to extend a single USB Type-C port to
be multiple ports.
It integrates video, data and power ports that allows to connect 2
DisplayPort™ 4k60Hz displays simultaneously for enjoying videos
on big screen, connect multiple
USB devices for data transmission, connect Ethernet source for
getting PC to super high speed
network.
Besides, it has PD charging port
which supports max 100W PD
charging to support the function
of the adapter and charge for the
host simultaneously.It can work
on all DP™ Alt mode supported
USB Type-C host.
Available Interfaces:
Input:
• USB Gen2 Type-C Male
(Connect to host)
Output:
• 2x DisplayPort™ Female
• 2x USB Gen2 Type-A Female
• 1x RJ45 jack
• 2x USB Gen2 Type-C Female
NOTE:
Please make sure your host
supports DP™1.4 Alt mode.
* For Mac OSX users please
download driver from the
CSV-1598 product page
at our website.

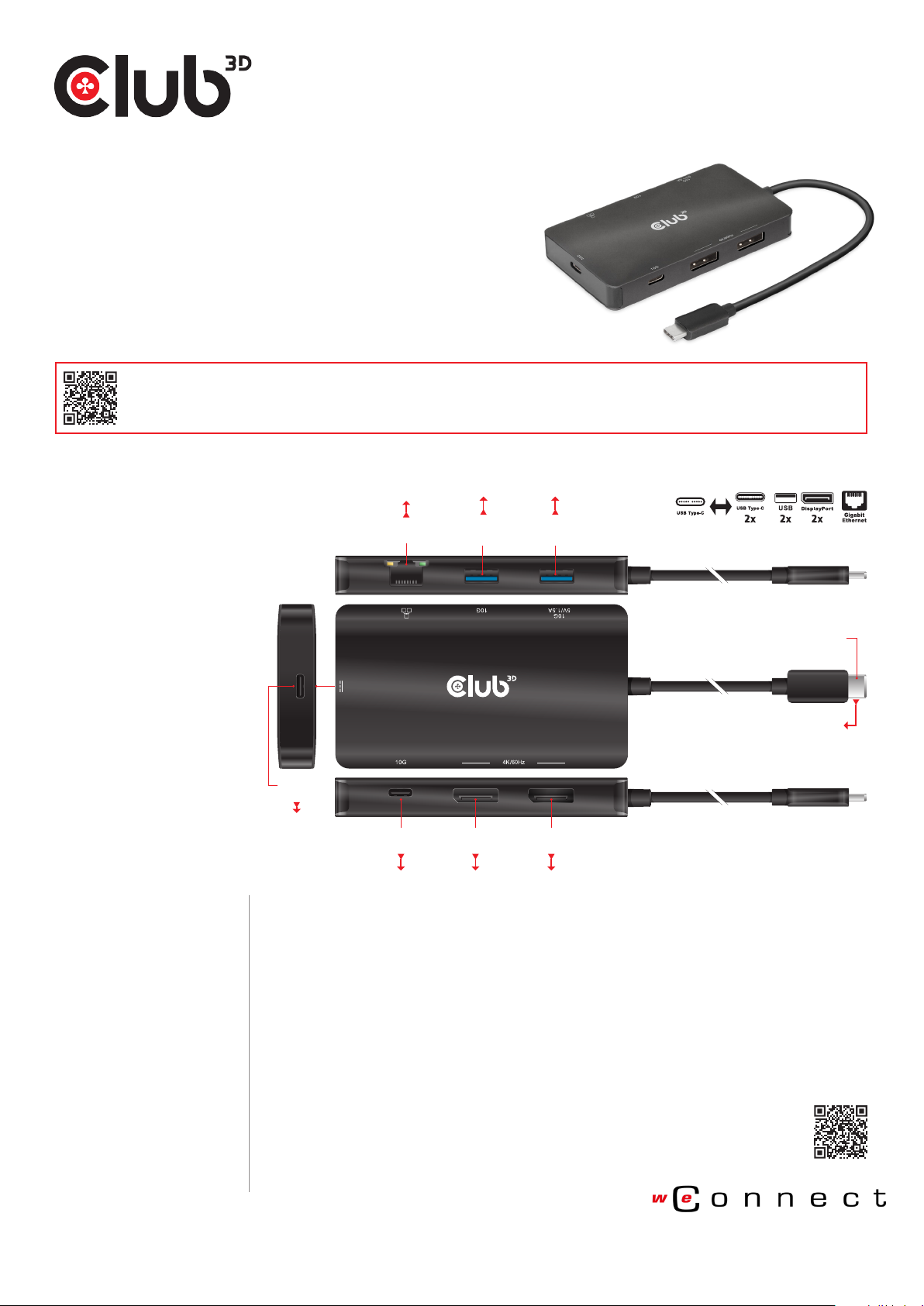

USB-C
Female
PD
charging
Gigabit
Ethernet
USB-C
Female
Max 10Gbps
RJ45
Jack
Max
10Gbps
data
USB-A
Female
DisplayPort
Female
4K/60Hz
ma x 7.5 W
(5V/1.5A)
Max 10Gbps data
DisplayPort
Female
4K/60Hz
Features:
• Support DP™1.4 Alt mode
• Support DP™ max. 4K60Hz per port
• Support dual output 4K60Hz simultaneously
under MST mode
• Support 8/10/12 bit color depth output
• Support output pixel format RGB/YCbCr4:4:4/
YCbCr4:2:2/YCbCr4:2:0
• Support HDR
• Support HDCP 2.2 & 1.4
• Max 10Gbps (Gen2) data transmission per USB
port
USB-A
Female
Type- C Host PC
Support DP™1.4 Alt mode*
* Check the complete product information about
System requirements (Windows/Mac) and
supported resolutions and DP™1.4 over Alt Mode.
• Support max 7.5W(5V/1.5A) downstream
charging for the USB Type-A port furthest from
RJ45
• Support Gigabit Ethernet,10M/100M/1000M
• Support max 100W PD charging(15W is
dedicated to the functioning of this product, the
rest power (max 85W) will be passed to charge
the host)
• Support PD3.0 Fast Role Swap, the connected
device will not get disconnected while plugging
in and out PD Adapter
Disclaimer:
While we endeavor to provide the most accurate, up-to-date information available, the content on this document may be out of date or include omissions, inaccuracies or other errors. Therefore Club 3D does not accept any rights claimed on the content of this document.
Please refer to a full overview of our Legacy Terms and Conditions on www.club-3d.com. All other brand names are trademarks or registered trademarks and are the property of their respective owners. All content is subject to change without prior notice.
CSV-1598 QIG July-2022
Copyright © 2022, Club 3D B.V. www.club-3d.com
