CSV-1595 QUICK INSTALLATION GUIDE

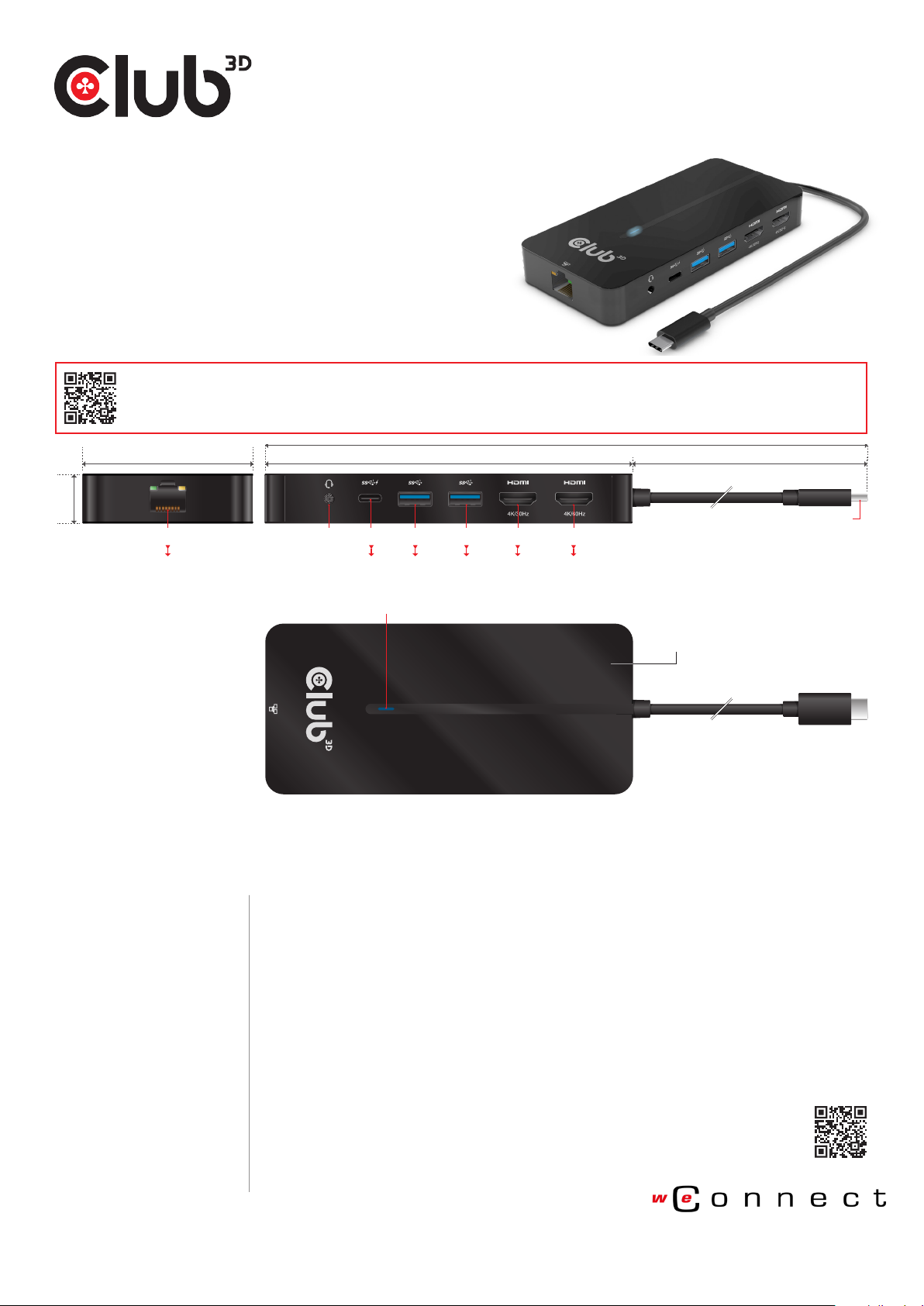

Total length ± 39 cm / 15.35"
USB Gen1 Type-C 7-in-1 hub with 2x HDMI™, 2x USB Gen1 Type-A, 1x RJ45,
1x 3.5mm Audio, 1x USB Gen1 Type-C 100W Female port
Thank you for purchasing our CSV-1595 Product. After unpacking
the product, please make sure you have all the items provided and
checked for any damages. In case of any missing/damaged parts
please inform your supplier immediately.
You should have:
• CSV-1595
• QIG, Quick Installation Guide
Make sure to install the driver* from our website CSV-1595 product page at www.club-3d.com
Please confirm the monitor’s resolution meets resolution requirements before use.
!
Cable length ± 25 cm / 9.84"6.5cm / 2.56"
Type -C Host P C
1.9cm / 0.75"
* Check the complete p roduct information
a bout System requirement s (Windows/Mac)
RJ45
Jack
3.5 mm
Audio jack
PD3.0(100W)
Blue Led indicator
USB-C
Female
5Gbps +
USB-A
Female
USB3.0A
5Gbps
BC1.2
14cm / 5.51"
USB-A
Female
USB3.0A
5Gbps
BC1.2
4K/60Hz
simutaneously
HDMI
Female
HDMI
Female
4K/30HzEthernet Rout er up to 1000MB/s
Support di erent displays
4K/60Hz+4K/30Hz)
Aluminum housing
The Club 3D CSV-1595 USB Gen1 Type-C 7-in-1 hub with with 2x HDMI™, 2x USB Gen1 Type-A, 1x RJ45, 1x 3.5mm Audio, 1x USB Gen1
Type-C 100W Female port, provides a very advanced, ecient solution to extend a single USB Gen1 Type-C port to multiple ports.
Supports HDMI™ max. 4K@30Hz and HDMI max. 4K@60Hz driver installation needed for MacOSX*
Available Interfaces:
Input:
• USB Gen1 Type-C Male
(Connect to host)
Output:
• 2x HDMI™ Female
• 2x USB Gen1 Type-A Female
• 1x RJ45
• 1x 3.5mm jack Audio
• 1x USB Gen1 Type-C Female
NOTE:
Please make sure your host
supports DP™1.4 Alt mode.
* For Mac OSX users please
download driver from the
CSV-1595 product page
Features:
• Support DP™1.4 Alt mode
• Support HDMI™ max 4K@60Hz from the USB
Type-C Display Alternate Mode function
• Support HDMI™ max 4K@30Hz from the
integrated chipset in the dock - make sure to
install the driver from our website at www.
club-3d.com
• Support HDCP1.4, HDCP 2.2
(on the HDMI with AltMode Function only)
• Support dual displays for Mac M1 / M2 users.
• Max 5Gbps data transmission per USB Gen1
Type-A port
• Support max 7.5W(5V/1.5A) downstream
charging, 2 USB Gen1 Type-A BC 1.2
• Support Gigabit Ethernet 10M/100M/1000M,
RJ45
• Support Audio output
• Support 1x USB Type C Female PD3.0 with max
100W PD charging and Gen1 5Gbps of data
transfer
at our website.
