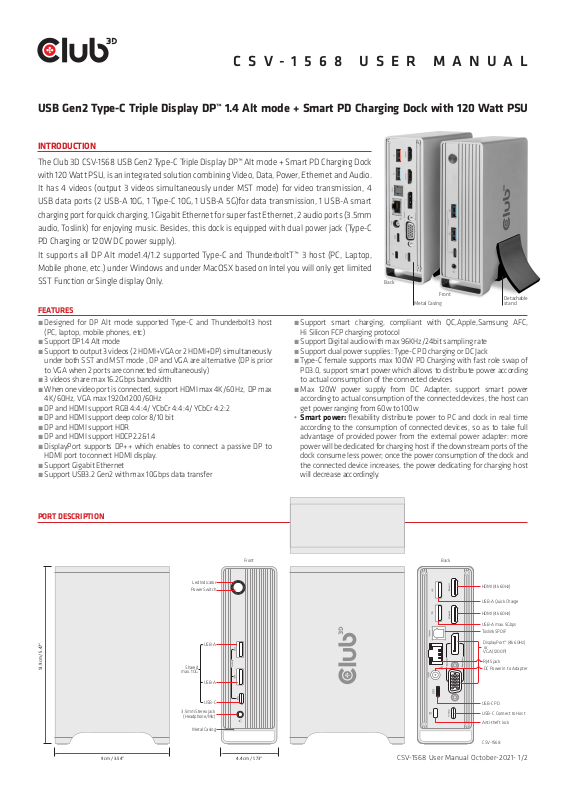

CSV-1568 USER MANUAL
USB Gen2 Type-C Triple Display DP™ 1.4 Alt mode + Smart PD Charging Dock with 120 Watt PSU
INTRODUCTION
The Club 3D CSV-1568 USB Gen2 Type-C Triple Display DP™ Alt mode + Smart PD Charging Dock
with 120 Watt PSU, is an integrated solution combining Video, Data, Power, Ethernet and Audio.
It has 4 videos (output 3 videos simultaneously under MST mode) for video transmission, 4
USB data ports (2 USB-A 10G, 1 Type-C 10G, 1 USB-A 5G)for data transmission, 1 USB-A smart
charging port for quick charging, 1 Gigabit Ethernet for super fast Ethernet, 2 audio ports (3.5mm
audio, Toslink) for enjoying music. Besides, this dock is equipped with dual power jack (Type-C
PD Charging or 120W DC power supply).
It supports all DP Alt mode1.4/1.2 supported Type-C and ThunderboltT™ 3 host (PC, Laptop,
Mobile phone, etc.) under Windows and under MacOSX based on Intel you will only get limited
SST Function or Single display Only.
FEATURES
Designed for DP Alt mode supported Type-C and Thunderbolt3 host
(PC, laptop, mobile phones, etc)
Support DP1.4 Alt mode
Support to output 3 videos (2 HDMI+VGA or 2 HDMI+DP) simultaneously
under both SST and MST mode , DP and VGA are alternative (DP is prior
to VGA when 2 ports are connected simultaneously)
3 videos share max 16.2Gbps bandwidth
When one video port is connected, support HDMI max 4K/60Hz, DP max
4K/60Hz, VGA max 1920x1200/60Hz
DP and HDMI support RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2
DP and HDMI support deep color 8/10 bit
DP and HDMI support HDR
DP and HDMI support HDCP2.2&1.4
DisplayPort supports DP++ which enables to connect a passive DP to
HDMI port to connect HDMI display.
Support Gigabit Ethernet
Support USB3.2 Gen2 with max 10Gbps data transfer
Support smart charging, compliant with QC,Apple,Samsung AFC,
Hi Silicon FCP charging protocol
Support Digital audio with max 96KHz/24bit sampling rate
Support dual power supplies: Type-C PD charging or DC Jack
Type-C female supports max 100W PD Charging with fast role swap of
PD3.0, support smart power which allows to distribute power according
to actual consumption of the connected devices
Max 120W power supply from DC Adapter, support smart power
according to actual consumption of the connected devices, the host can
get power ranging from 60w to 100w
• Smart power: flexability distribute power to PC and dock in real time
according to the consumption of connected devices, so as to take full
advantage of provided power from the external power adapter: more
power will be dedicated for charging host if the downstream ports of the
dock consume less power; once the power consumption of the dock and
the connected device increases, the power dedicating for charging host
will decrease accordingly.
Back
Front
Detachable
stand Metal Casing
PORT DESCRIPTION
13.9 cm / 5.47"
Led Indicator
Power Switch
USB-A
Shared
max. 10G
USB-A
USB-C
3.5mm Stereo jack
(Headphone/Mic)
Metal Casing
Front Back
4.4 cm / 1.73"9 cm / 3.54"
CSV-1568 User Manual October-2021- 1/2
HDMI (4k 60Hz)
USB-A Quick Charge
HDMI (4k 60Hz)
USB-A max. 5Gbps
Toslink SPDIF
DisplayPort™ (4k 60Hz)
or
VGA (1200P)
RJ45 jac k
DC Power in to Adapter
USB-C PD
USB- C Connect to Host
Anti-theft lock
CSV-15 68
Page 2
CSV-1568 USER MANUAL
SPECIFICATIONS
Input/Output Connector
Upstream
USB-C Female(Connect to Type-C Host) x1
Downstream
HDMI x2, VGA x1, DP x1
USB-C Gen 2 10G x1
USB-A Gen 2 10G X2
USB-A Gen1 5G x1
3.5mm Audio x1
Toslink SPDIF x1
RJ45 x1
USB Quick Charging x1
PD Charging x1
DC Jack x1
Type-C Female x1 (to host)
• Support DP1.4 Alt mode
USB-A 10G x2
• Max 10Gbps per port, 2 ports share max 10Gbps with Type-C data port
• Max 900mA downstream charging per port
USB-C 10G x1
• Max 10Gbps data transmission, shares max 10Gbps with 2 blue core
USB-A ports
• Max 1.5A downstream charging
USB-A 5G x1
• Max 5Gbps data transmission
• Max 900mA downstream charging
USB-A Quick Charging Port x1 (red core)
• USB Quick Charging can work only when the DC or PD power supplies
more than 15V.
• This port is for smart charging, not for data transmission
• Support the following charging protocol
• 1) Support QC3.0 and QC2.0 5V/9V/12V
• 2 Support Apple 2.4A
• 3) Support Samsung AFC 5V/9V
• 4) Support Hi Silicon FCP 5V/9V
RJ45
• Support Gigabit Ethernet,10M/100M/1000M
• Support Wake-On-LAN
• Support full duplex flow control
• Light indicator indicates the state, no light when no Internet connected,
orange light turns on when network connection is established, green
light flashes when transmitting data.
3.5mm audio port x1
• Support phone out with digital audio max 96KHz/24bit sampling rate
• Support Mic in with digital audio max 96KHz/24bit sampling rate
• Support CTIA&OMTP auto detection
Toslink SPDIF portx1
• Support digital audio max 96KHz/24bit sampling rate
Power (dual power supplies)
Power source 1: Type-C PD Charging
• Support max 100W PD charging
• Support PD3.0 Fast Role Swap, the connected device will not get
disconnected while plugging in and out PD Adapter
• Support smart power which allows to distribute power according
to actual consumption of the connected devices, making full use of
supplied power
Power source 2: DC Jack
• Support max 120W(20.5v/5.85A) power in
• Support smart power which allows to distribute power according to
actual consumption of the connected devices, the host can get power
ranging from 60w to 100w
Video: HDMI x2, DP x1, VGA x1
• Support to output 3 videos ( 2 HDMI+VGA or 2 HDMI+DP) simultaneously
under both SST and MST mode , DP and VGA are alternative (DP is prior
to VGA when 2 ports are connected simultaneously)
• 3 videos share max 16.2Gbps bandwidth
• DP and HDMI support RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2
• DP and HDMI support deep color 8bit, 10bit
• DP and HDMI support HDR
• DP and HDMI support HDCP2.2&1.4
• DisplayPort supports DP++ which enables to connect a passive DP to
HDMI port to connect HDMI display.
• When one video port is connected, support HDMI max 4K/60Hz, DP
max 4K/60Hz, VGA max 1920x1200/60Hz
Working on Windows system:
• Support to output dual videos (max 2x4k/30Hz) or triple displays(max
4K/30Hz+2x1080P/60Hz) simultaneously under MST mode (output
dierent pictures)
Working on Mac System:
• Support dual max 4K/60Hz or triple max 4K/60Hz under SST mode
(output the same picture)
Note:
1) To achieve the above max resolution of each port, the connected host
should support DP1.4 Alt mode. The above resolution will be decreased if
the host only support DP1.2 due to bandwidth limitation
2) The above resolution combination is for reference, the actual video
output resolution depends on the connected host and displays
Warranty
Warranty 2 Year
Mechanical
Weight 558g
Size 13,9 x 9 x 4.4 cm / 5.47 x 3.54 x 1.73“
Environmental
Operating Temperature 0 °C to +45 °C
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature -10 °C to +70 °C
Storage Humidity 5% to 90 % RH (no condensation)
Regulatory Approvals
Certifications FCC,CE
Power
Standby Power Consumption ≤3 W
PD Charging Up to 100W
DC Jack Max 120W (60-100w for host)
OPERATION NOTE
• After connecting to the host, the product and the white light will turn
on by default.Press the power button,the product and the white light
will be turn o.The keystroke interval should be greater than 2 seconds.
• Audio Graphics card can be switched among PC, DP Alt mode port
connected display and the DOCK. If Audio Graphics card is switched
to the docking, no audio will be output from display when headset is
connected.
PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make
sure the following items are contained in the shipping carton:
• CSV-1568 Docking Station
• PowerSupply. Input: 100-110/240VAC. Output: up to 120W
• 1x USB Type-C cable connection to Host 1m / 3.28ft
• Detachable stand
• Quick Install Guide
For any Questions please check our forum section on our website www.club-3d.com
