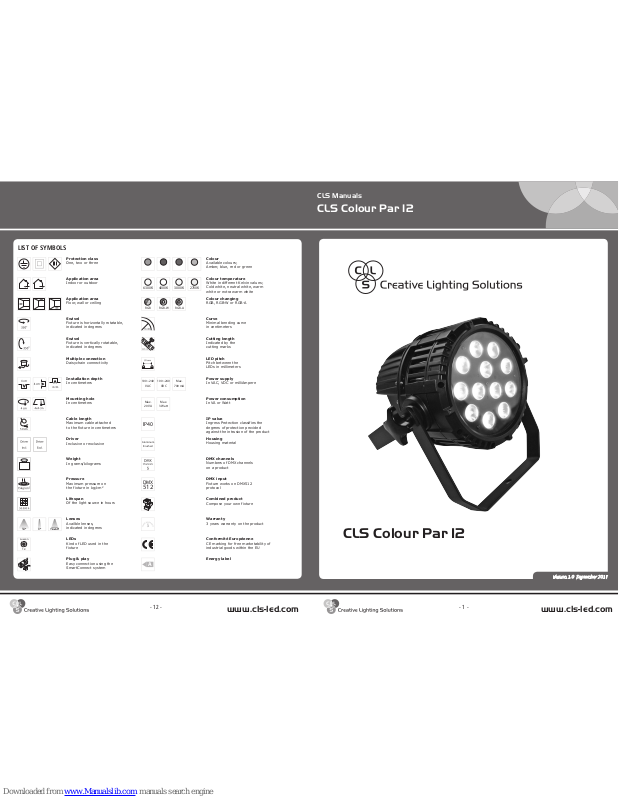

CLS COLOUR PAR 12 User Manual

CLS Manuals

CLS Atmosphere LED-panel

CLS Manuals

CLS Colour Par 12

www.cls-led.com

Version 1.0 September 2011

www.cls-led.com

- 12 -

- 1 -

CLS Colour Par 12

Multiple connection

Daisychain connectivity

Installation depth

In centimeters

Swivel

Fixture is horizontally rotatable,
indicated in degrees

Swivel

Fixture is vertically rotatable,
indicated in degrees

Mounting hole

In centimeters

Application area

Indoor or outdoor

Application area

Floor, wall or ceiling

Protection class

One, two or three

Cable length

Maximum cable attached
to the fixture in centimeters

Lifespan

Of the light source in hours

Driver

Inclusive or exclusive

Pressure

Maximum pressure on
the fixture in kg/cm

2

Weight

In grams/kilograms

Curve

Minimal bending curve
in centimeters

LED pitch

Pitch between the
LEDs in millimeters

Power supply

In VAC, VDC or milliAmpere

Power consumption

In VA or Watt

IP value

Ingress Protection classifies the
degrees of protection provided
against the intrusion of the product

Housing

Housing material

Cutting length

Indicated by the
cutting marks

DMX channels

Numbers of DMX channels
on a product

LEDs

Kind of LED used in the
fixture

50 cm

Lenses

Availble lenses,
indicated in degrees

Plug & play

Easy connection using the
SmartConnect system

Colour temperature

White in different Kelvin values;
Cold white, neutral white, warm
white or extra warm white

Colour

Available colours;
Amber, blue, red or green

Colour changing

RGB, RGB-W or RGB-A

DMX input

Fixture works on DMX512
protocol

Combined product

Compose your own fixture

Warranty

3 years warranty on the product

Energy label

Conformité Européenne

CE marking for free marketability of
industrial goods within the EU

54º 8º

12 x 50º

Luxeon

1 x

3000K 2700K

6300K

4000K

DMX

512

A

Max.

700 mA

Max.

3 Watt

100~240

VAC

100~240

VDC

Max.

20 VA

IP40

Aluminum

Brushed

RGB-W

RGB

RGB-A

LIST OF SYMBOLS

www.cls-led.com

CLS Colour Par 12

- 2 -

- 11 -

INDEX

Index 2

Introduction 3

Available Colour Par 12 3

Features 3

Included items 3

Optional accessories 3

Safety information 3

Setup and operation modes 4

Control panel menu 4

Control panel menu table 5

DMX-512 control 6

DMX data connection 6

Data terminator 6

DMX start address 6

DMX Channel Assignments 7

Channel values and functions - 6 Channel mode 8

Colour macro/scroll mode 9

Maintenance 10

Troubleshouting 10

Specifications 11

List of symbols 12

TECHNICAL SPECIFICATIONS

LEDs: Tricolor RGB
Colour: RGB
Lenses: 25º
Power supply: Voltage: 100 ~ 240 VAC
Power consumption: Max. 50 Watt
Primary fuse: 2 amp
Weight: 3,5 kg
Measurements: 258 x 293 x 194 mm (hxwxd)
Control in & output: XLR 3 pole male-female
Channels: 3, 4, 5 or 6 maximum
Control signal: DMX 512/1990
Modes: DMX512 or Stand-Alone
IP value: IP20
Housing: Aluminum
Ambient temperature: Max. 40 ºC

2007 CLS-LED BV. All rights reserved. Information subject to change without notice, CLS-LED BV and all affiliated companies disclaim liability for
injury, damage direct or indirect loss, consequential or economic loss or any other loss occasioned by the use of, inability to use or reliance on the
information contained in this manual. No part of this manual may be reproduced, in any form or by any means, without permission in writing from
CLS-LED BV. Other legal information can be found in our General conditions to be found on the back of your CLS-LED BV invoice or on our website
www.cls-led.com/Conditions.pdf

25º

Max.

50 Watt

IP20

Aluminum

Tricolor

12 x

100~240

VAC

DMX

512

3,5 kg

RGB
