Clover Electronics TFT7001 User Manual

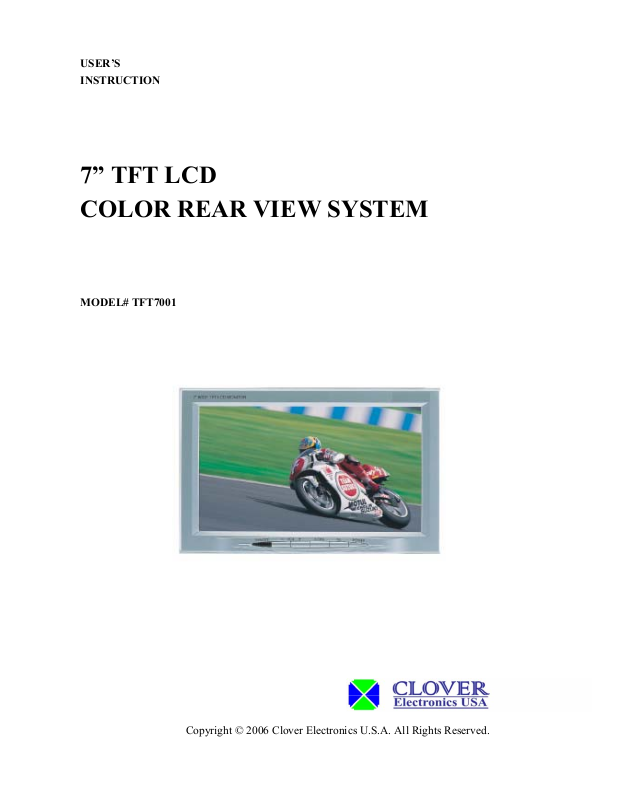

USER’S

INSTRUCTION

7” TFT LCD

COLOR REAR VIEW SYSTEM

MODEL# TFT7001

Copyright © 2006 Clover Electronics U.S.A. All Rights Reserved.

Contents

● Instructions ---------------------------------------------------- 3

1. Front Panel of the Monitor ------------------------------------ 4

2. Remote Control ----------------------------------------------- 4

3. SETUP Menu ---------------------------------------------------- 5

3-1 Picture ----------------------------------------------------- 5
3-2 Function --------------------------------------------------- 5

4. Installation ----------------------------------------------------- 6

4.1Installation of the Camera -------------------------------- 6

4.2 Specification ---------------------------------------------- 7

● LIMITED 2 YEAR WARRANTY ---------------------------------- 8

● HOW TO OBTAIN FACTORY SERVICE ------------------------- 8

2

Important safety precautions

● Do not watch and operate the monitor while driving. It may cause a car accident because of the

distraction.

● Do not install the monitor on a place where obstruct the driver’s viewing or near and airbag device.

● Prevent any foreign objects or liquid from entering into the product. In case of that, turn the power

off immediately, and contact an authorized dealer to inspect and test the product.

● Place the product away from direct sunlight or hot sources.

● To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.

● Refer servicing to qualified personnel only.

● Do not change or modify this product, the warranty terms will be voided.

Features

● 7” TFT LCD Wide Screen

• Water proof & Rugged Steel Construction

• High resolution

• Switch-able Normal/Mirror image

• 2 camera inputs

• 1 Audio input

• Adjustable mounting bracket

• Operating temperature -12ºF to 120ºF

•

On Screen Display (OSD)

•

IR Remote Controller

3
