INSTRUCTION MANUAL
22” Wide LCD Screen
All in One System Built-in 16Ch DVR
MODEL: LCD22164, LCD22168, LCD221616
Ver. 020309, 041309, 042909,102609
Copyright © 2009 Clover Electronics U.S.A. All Rights Reserved.
1
2
Contents
CONTENTS
ABOUT THIS MANUAL............................................................................................................. .......... 9
1.UNPACKING................................................................................................................... ................ 11
1-1.
22” WIDE LCD PANEL BUILT-IN 16 CH DIGITAL VIDEO RECORDER ........................................... 12
2.FEATURES..................................................................................................................................... 13
3.WHAT TO DO AT THE TIME OF INSTALLATION......................................................................... 15
4.SPECIFICATIONS........................................................................................................................... 17
5.INSTALLATION.............................................................................................................................. 19
5-1.
CONTROLS AND CONNECTORS.............................................................................................. 20
5-2.
NOTE FOR INSTALLATION ...................................................................................................... 23
5-3.
SYSTEM CONNECTION ......................................................................................................... 24
5-4.
INSTALLATION ...................................................................................................................... 25
5-4.1. Camera Connection .......................................................................................................................25
5-4.2. Installation of the Monitor...............................................................................................................25
5-4.2.1. Connection of Composite Monitor ..........................................................................................26
5-4.3. Sensor Connection and RELAY IN &OUT .....................................................................................26
5-4.4. RS485 / RS232C Connection ........................................................................................................27
5-4.5 Connection to an Ethernet Network (Optional)...............................................................................27
5-4.6. POWER CABLE CONNECTION ...................................................................................................28
6.HOW TO OPERATE ...................................................................................................................... 29
6-1.
GENERAL INFORMATION ....................................................................................................... 31
6-2.
OPERATING INTERFACE ........................................................................................................ 32
6-3.
IR REMOTE CONTROLLER .................................................................................................... 33
POWER ON/OFF .................................................................................................................. 34
6-4.
6-4.1. POWER ON ...................................................................................................................................34
6-4.2. STAND-BY POWER MODE BUTTON...........................................................................................34
6-4.3 POWER OFF ..................................................................................................................................34
6-4.4 APPEARANCE OR DISAPPEARANCE OF POWER BUTTON ....................................................35
6-5.
MENU BAR ON/OFF ............................................................................................................. 36
3
Stand-alone DVR Instruction Manual
6-6. DISPLAY SCREEN................................................................................................................. 37
6-6.1. FULL SCREEN...............................................................................................................................37
6-6.2. SPLIT SCREENS ...........................................................................................................................38
6-7.
LIVE .................................................................................................................................. 39
6-7.1. FULL SCREEN...............................................................................................................................39
6-7.2. SPLIT SCREEN .............................................................................................................................39
6-7.3. SEQUENCING SCREENS ............................................................................................................ 40
6-7.4. LIVE AUDIO ...................................................................................................................................41
6-7.4.1. COMMUNICATION BETWEEN MONITOR AND CLIENT COMPUTER VIA INTERNET .....41
6-7.4.2. COMMUNICATION BETWEEN MONITOR AND CAMERAS ................................................41

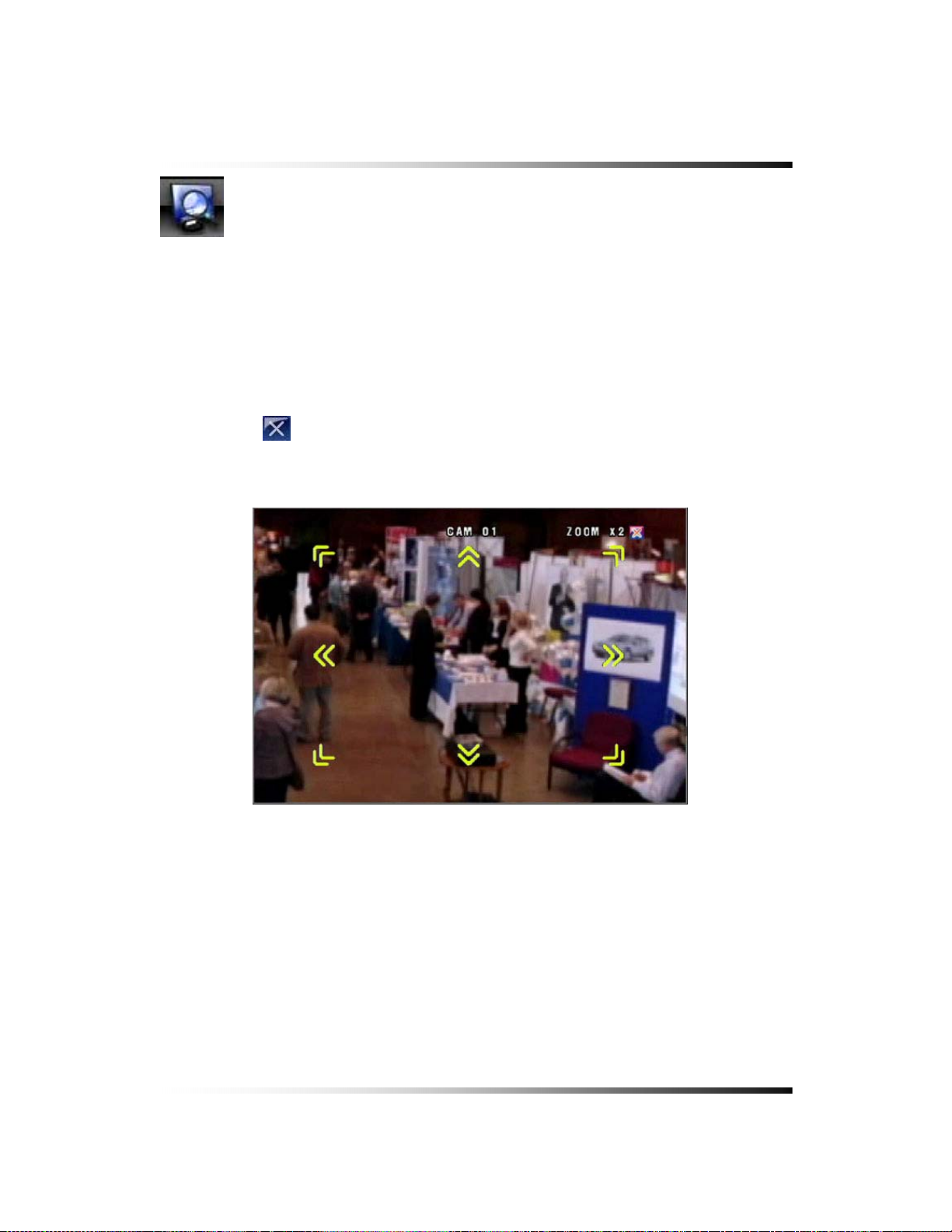

6-7.5. ZOOM.............................................................................................................................................43
6-7.6. OSD ON / OFF ...............................................................................................................................44
6-7.7. PAN / TILT ......................................................................................................................................45

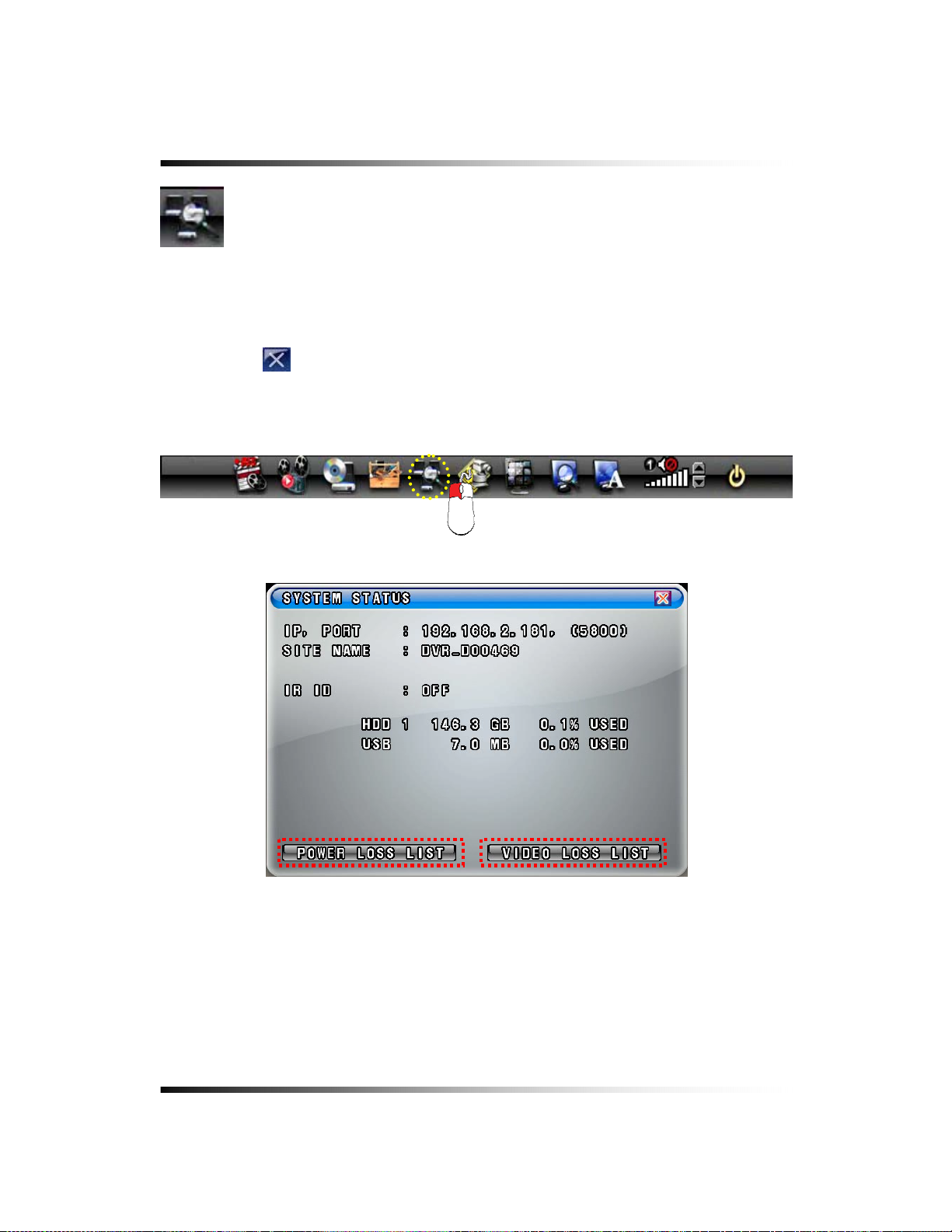

6-7.8. SYSTEM STATUS..........................................................................................................................48
6-7.9. POWER LOSS LISTS ....................................................................................................................49
6-7.10. VIDEO LOSS LIST.......................................................................................................................51
6-8.
RECORD ............................................................................................................................. 53
6-8.1. Manual (Continuous) recording .....................................................................................................53
6-8.2. Manual Event Recording................................................................................................................53

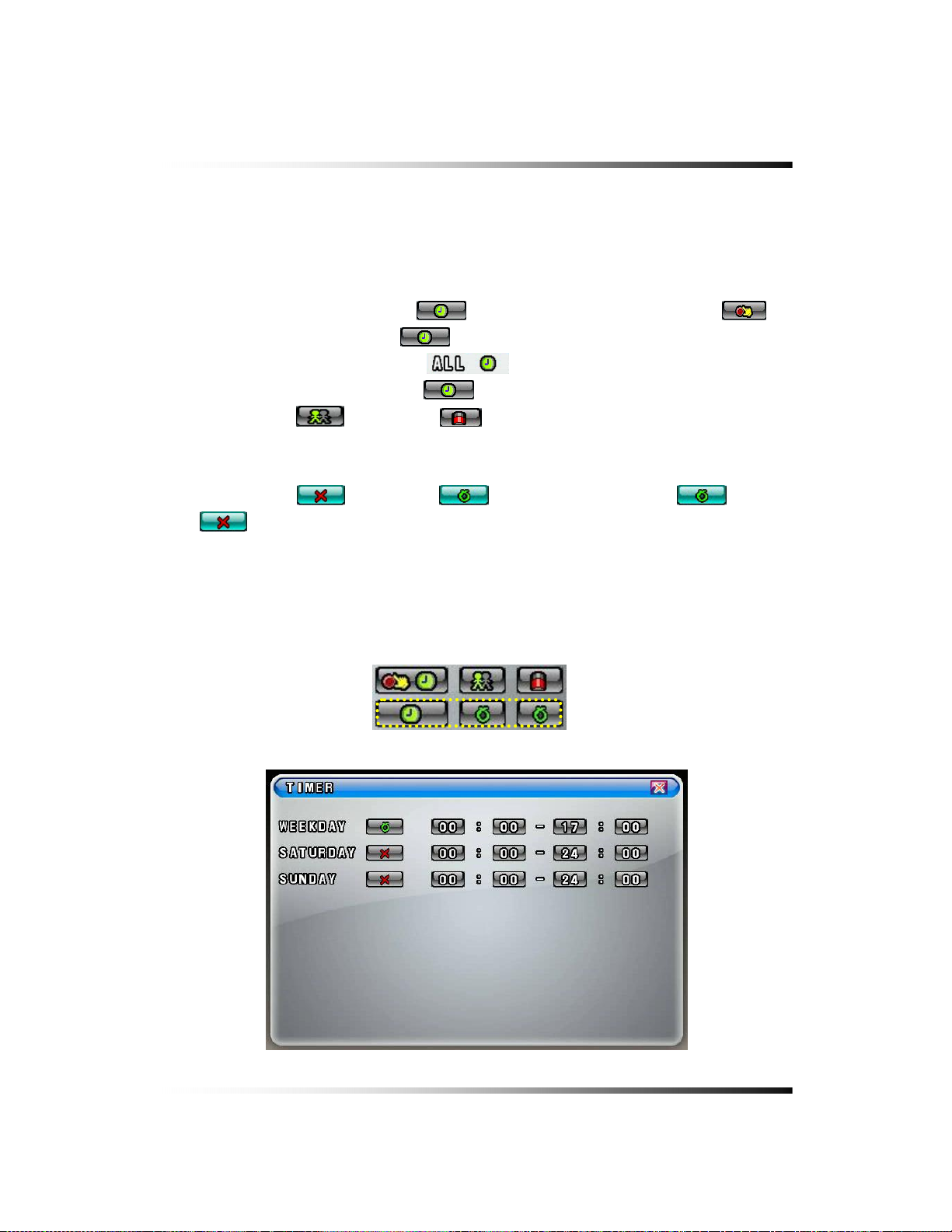

6-8.3. Timer Recording.............................................................................................................................54
6-8.4. Timer Event Recording ..................................................................................................................55
6-8.5. Recording Icons ............................................................................................................................. 56
6-9.
REPLAY ............................................................................................................................ 57
6-9.1. QUICK REPLAY.............................................................................................................................57
6-9.2. REPLAY .........................................................................................................................................57
6-9.2.1. Playback Devices....................................................................................................................58
6-9.2.2. Set the Start Time ...................................................................................................................58
6-9.2.3. Replaying ................................................................................................................................60
6-9.2.4. Disappearance of Replay control buttons ..............................................................................62
6-10.
COPY.............................................................................................................................. 64
6-10.1. Copying devices...........................................................................................................................64
6-10.2. Set the Copy Start Time (Copying extent) ...................................................................................65
6-10.3. Set the Copy End Time (Copying extent) ....................................................................................67
4
Contents
6-10.4. Copying the recorded data during replaying ...............................................................................68
7.SETUP............................................................................................................................................ 71
7-1.

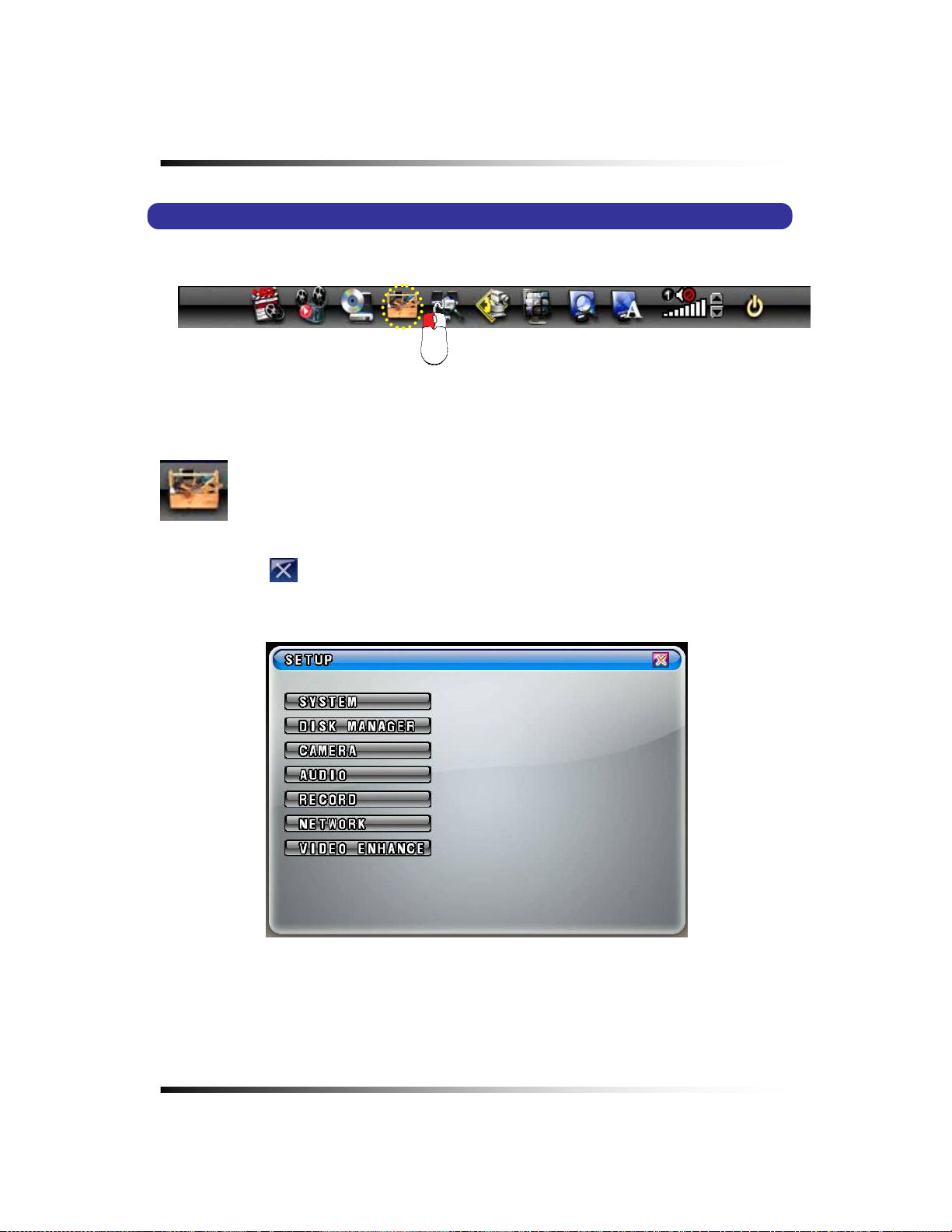

SETUP .............................................................................................................................. 74
7-2.

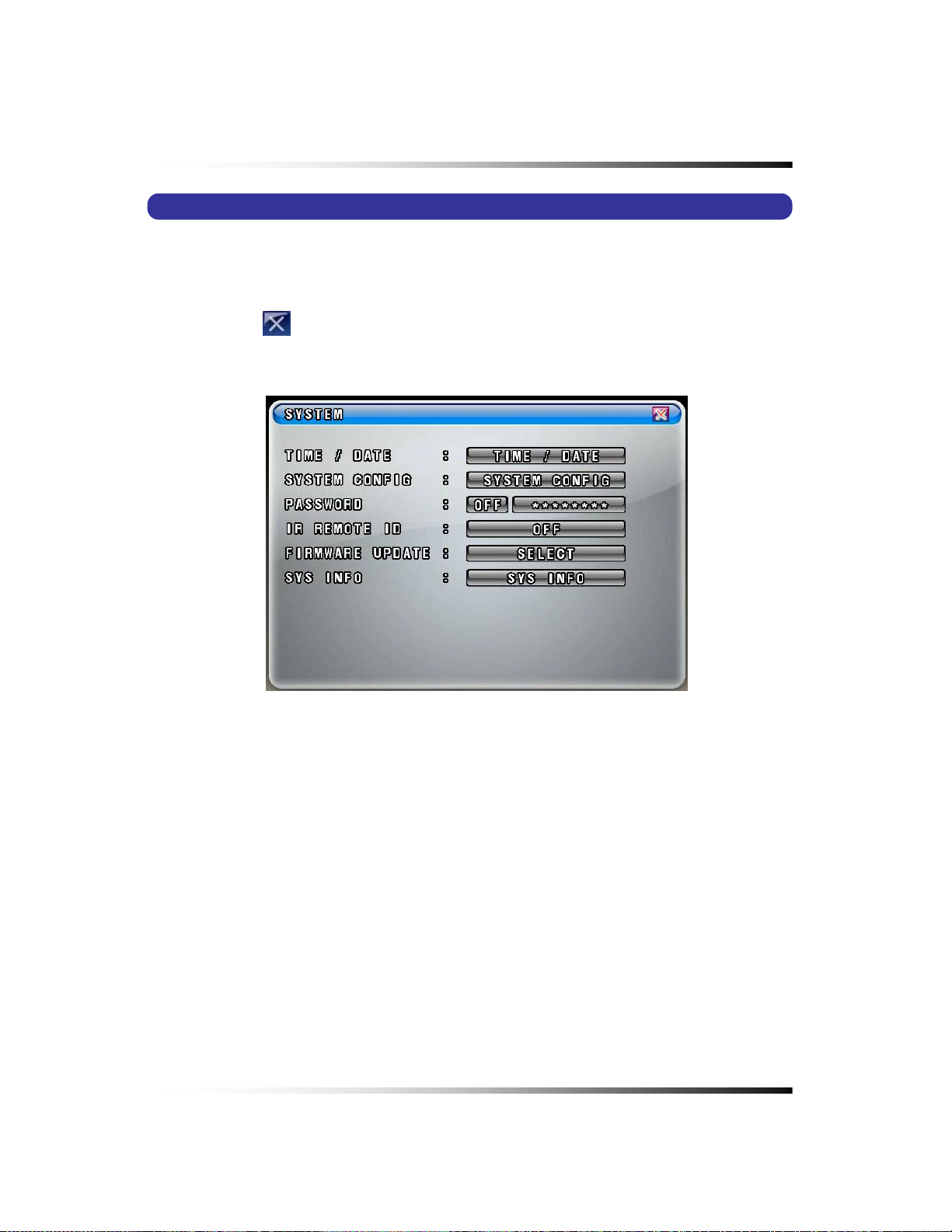

SYSTEM ........................................................................................................................... 75

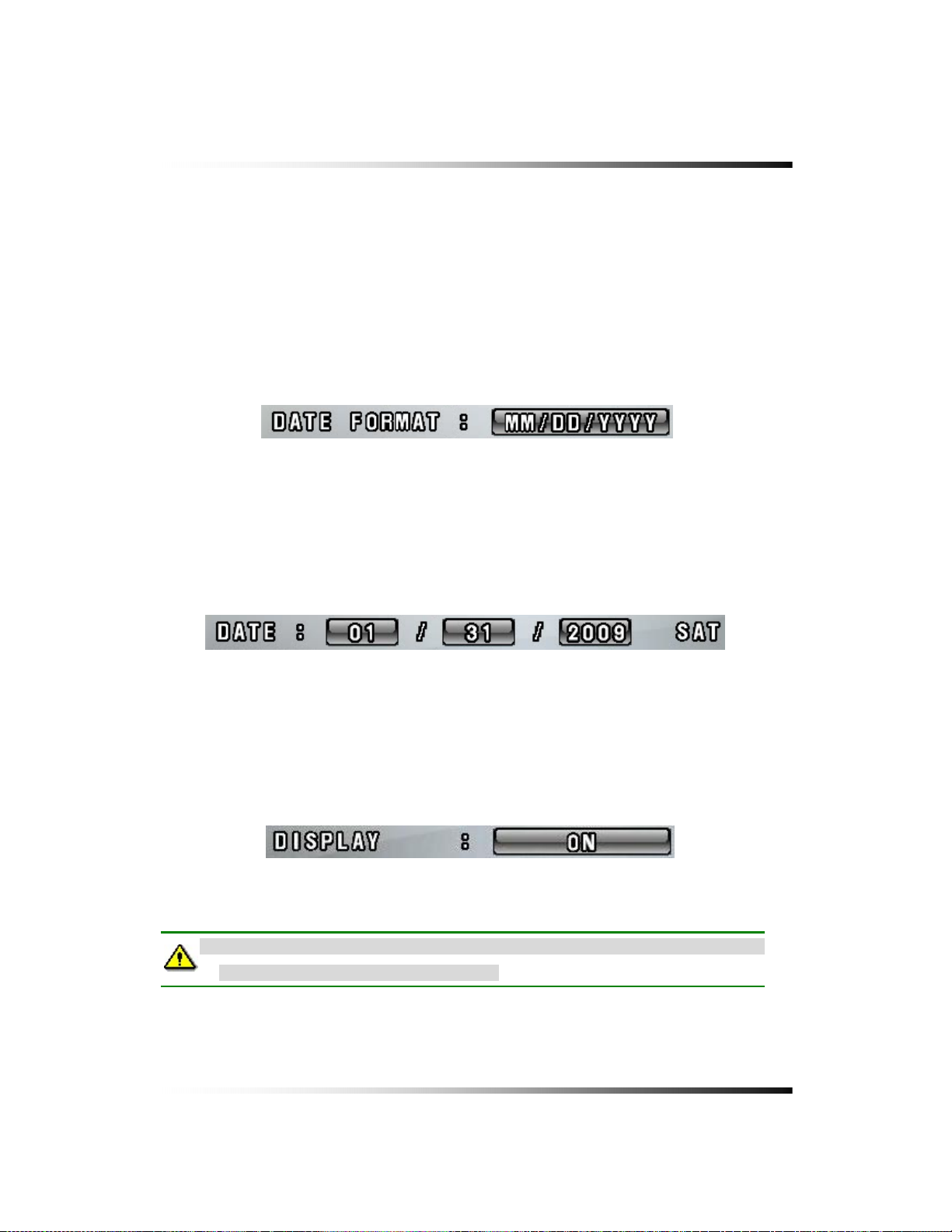

7-2.1. TIME / DATE ..................................................................................................................................76

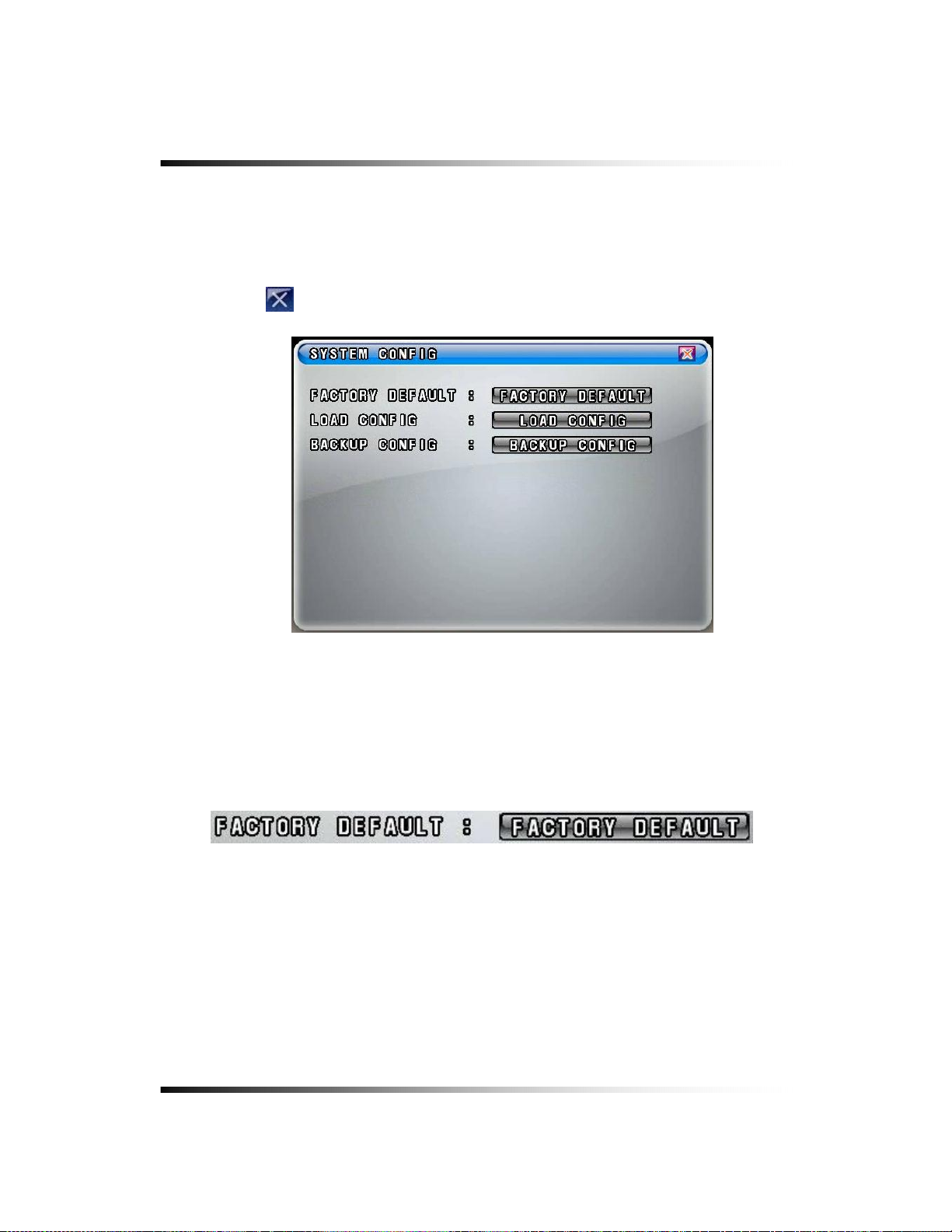

7-2.2. SYSTEM CONFIG .........................................................................................................................78

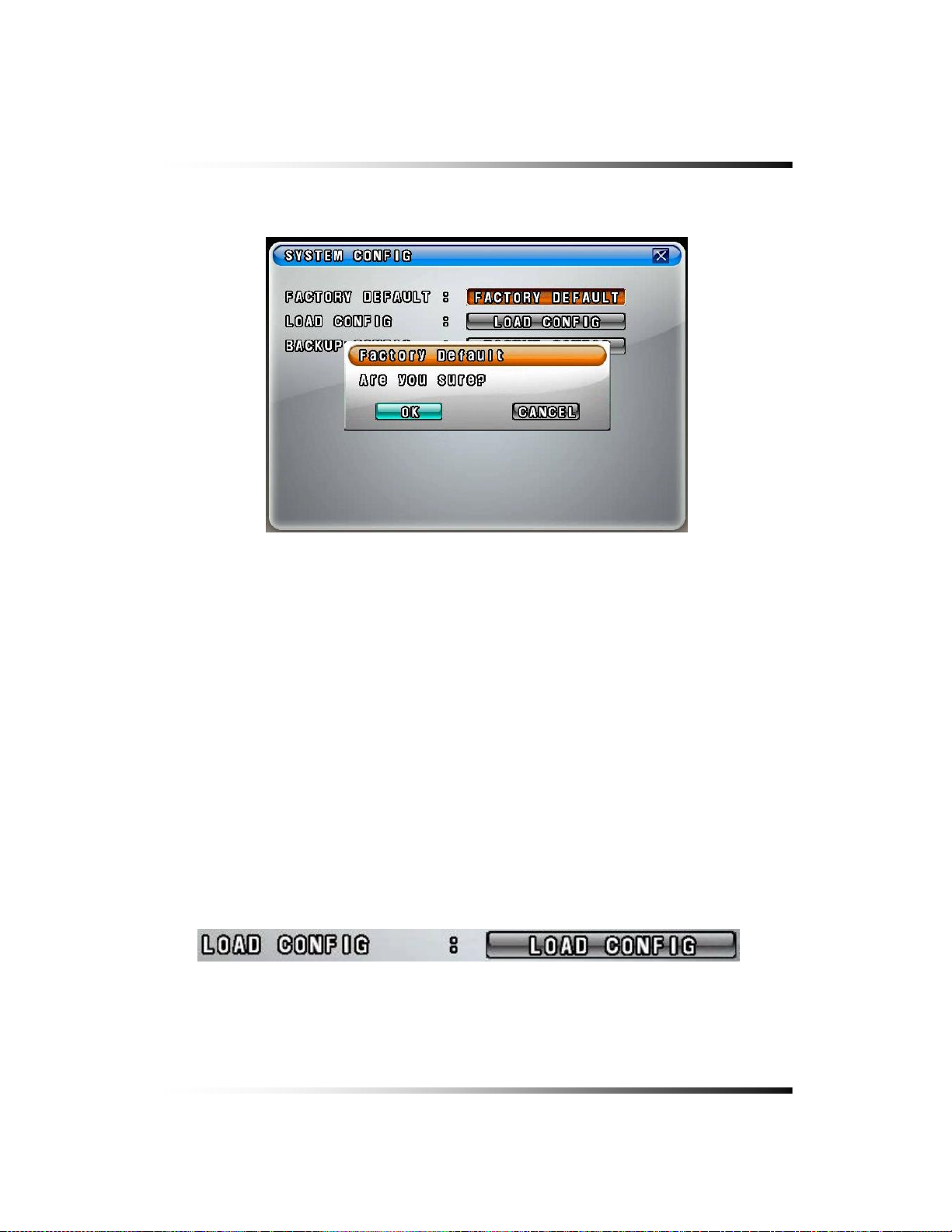

7-2.2.1. FACTORY DEFAULT ..............................................................................................................78
7-2.2.2. LOAD CONFIG / BACKUP CONFIG ......................................................................................79
7-2.3. PASSWORD...................................................................................................................................81
7-2.4. IR REMOTE ID...............................................................................................................................82
7-2.5. FIRMWARE UPDATE ....................................................................................................................83
7-2.6. SYSTEM INFO...............................................................................................................................83
7-3.
DISK MANAGER............................................................................................................... 84
7-3.1. HDD WRITE FAIL ..........................................................................................................................85
7-3.2. HDD OVERWRITE.........................................................................................................................85
7-3.3. Format ............................................................................................................................................85
7-4.
CAMERA........................................................................................................................... 87
7-4.1. Camera ON/OFF............................................................................................................................88
7-4.2. Camera Name (Camera Title)........................................................................................................88
7-4.3. Buzzer ............................................................................................................................................89
7-4.4. Relay ..............................................................................................................................................89

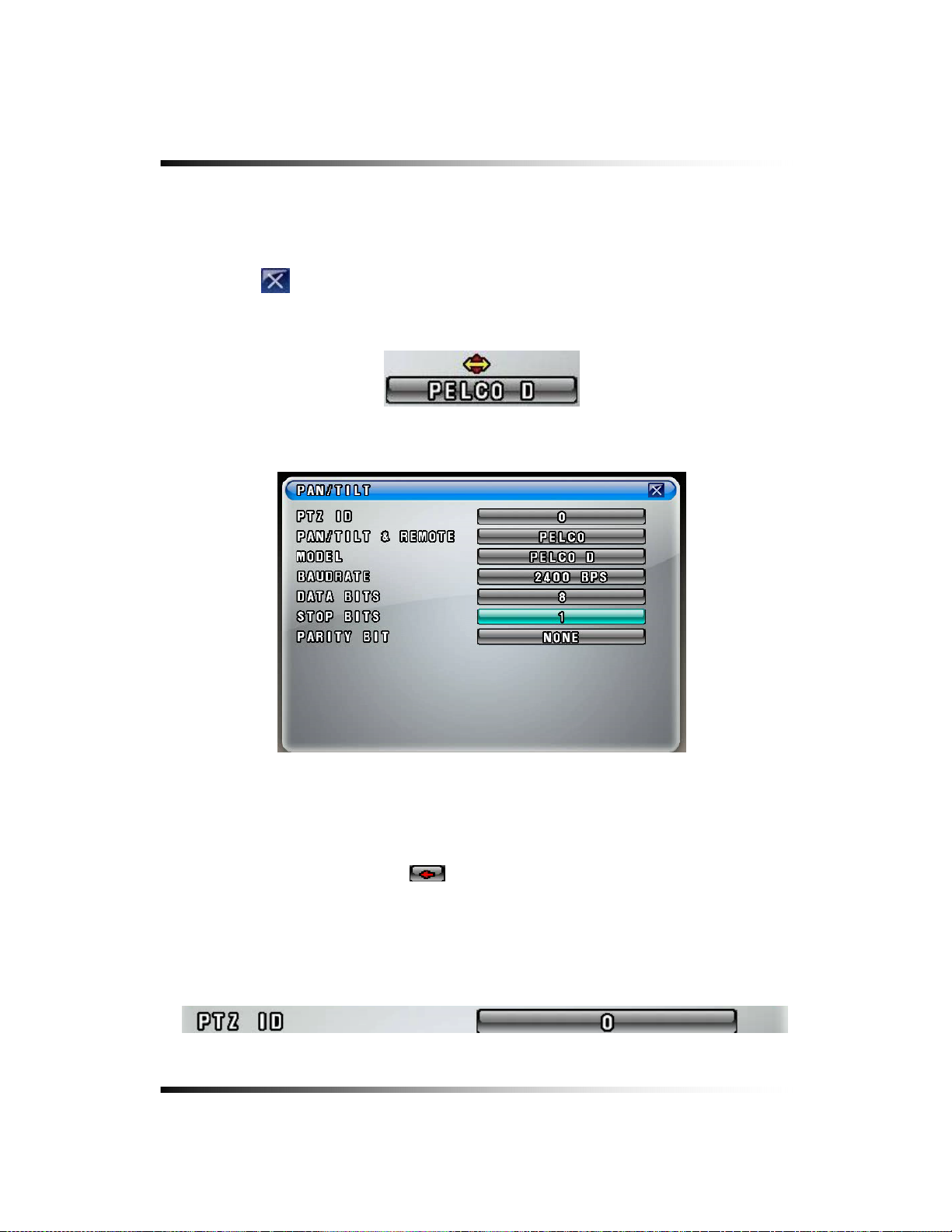

7-4.5. Pan/Tilt Settings .............................................................................................................................90

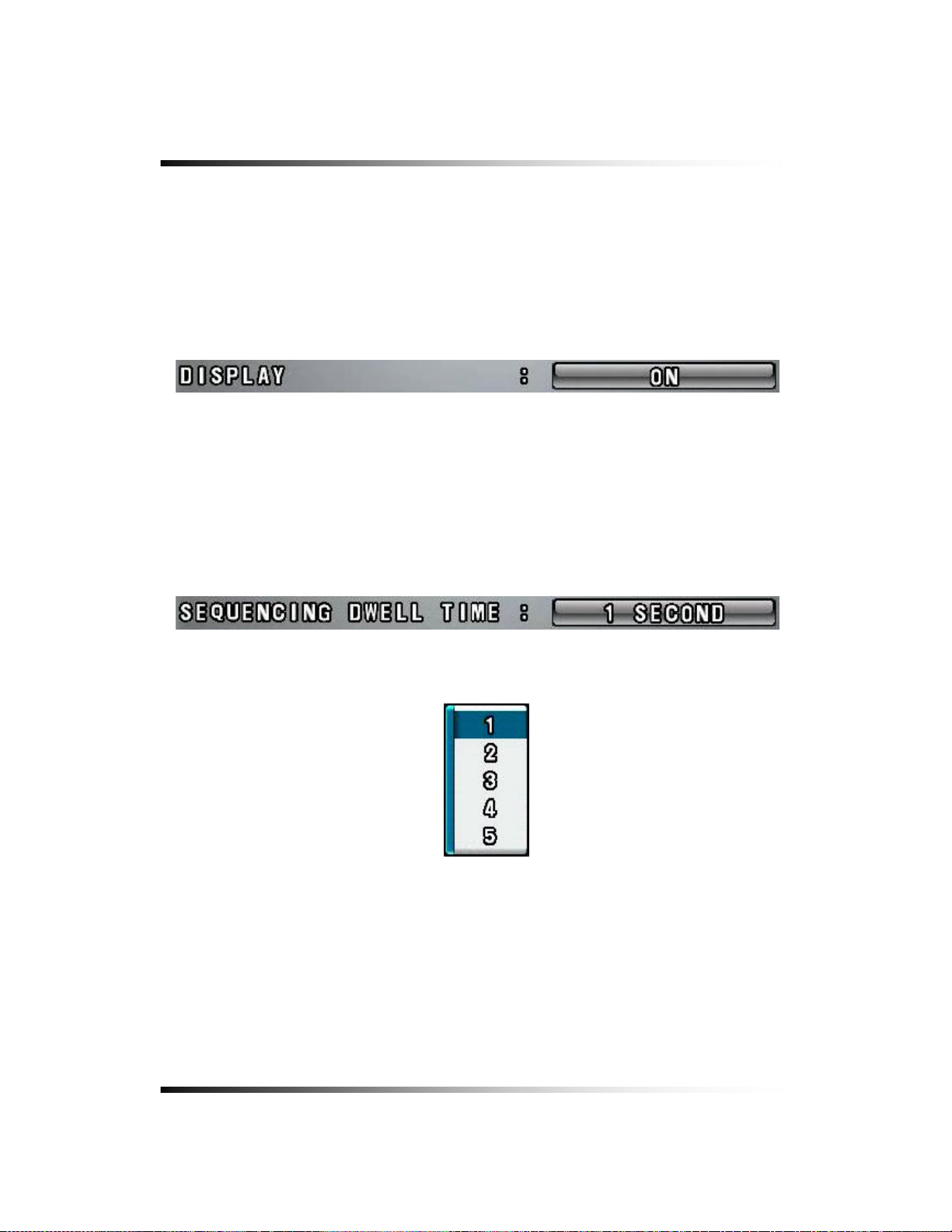

7-4.6 Display.............................................................................................................................................94
7-4.7 Sequencing dwell time ....................................................................................................................94
7-5.

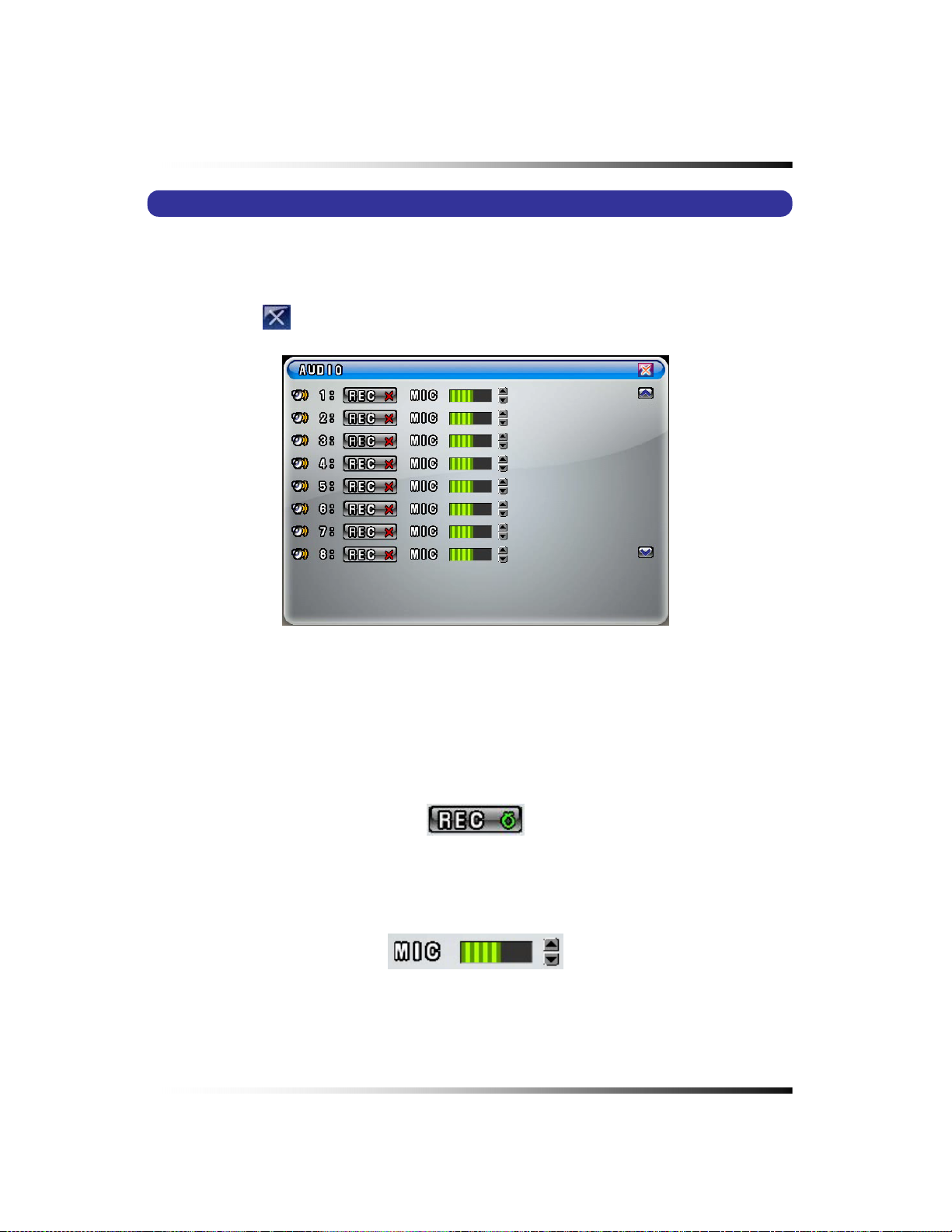

AUDIO............................................................................................................................... 95
7-5.1. Audio Recording ON/OFF..............................................................................................................95
7-5.2. Microphone Volume .......................................................................................................................95
7-6.
RECORD........................................................................................................................... 96
7-6.1. Record ICON Display.....................................................................................................................96
7-6.2. All Manual / Timer recording button ...............................................................................................97
7-6.3. All Motion ON / OFF, Sensitivity and Velocity Setting....................................................................98
7-6.4. All Sensors ON / OFF ....................................................................................................................99
7-6.5. Size (Recording Resolution) ..........................................................................................................99
5
Stand-alone DVR Instruction Manual
7-6.6. Recording Speed..........................................................................................................................100
7-6.7. Recording Quality.........................................................................................................................101
7-6.8. Recording Mode...........................................................................................................................102
7-6.8.1. Manual Recording.................................................................................................................102
7-6.8.2. Manual Event Recording ......................................................................................................102
7-6.8.3. Timer Recording (Schedule Recording) ...............................................................................102
7-6.8.4. Timer Event Recording .........................................................................................................102
7-6.9. Recording by Motion Detection....................................................................................................103
7-6.10. Recording by Sensor (PIR Sensor) ........................................................................................... 111
7-7.
NETWORK.......................................................................................................................114
7-7.1. IP Mode ........................................................................................................................................ 114
7-7.2. GATEWAY, SUBNET, IP ADDRESS............................................................................................ 115
7-7.3. Port ...............................................................................................................................................116
7-7.3.1 Port Forwarding .....................................................................................................................116
7-7.4. MAC ID......................................................................................................................................... 117
7-7.5. MNS (MAC NAME SERVER) ...................................................................................................... 117
7-7.6. DDNS (DYNAMIC DOMAIN NAME SYSTEM)............................................................................ 119
7-7.7. HOW TO SETUP AND USE THE DDNS.....................................................................................120
7-7.7.1. Router....................................................................................................................................120
7-7.7.2. Registration to the DDNS server ..........................................................................................121
7-7.8. EMAIL NOTIFICATION ................................................................................................................122
7-8.
VIDEO ENHANCE........................................................................................................... 126
7-8.1. VIDEO ENHANCEMENT ON EACH CAMERA...........................................................................127
7-8.2. VIDEO ENHANCEMENT ON VGA OUTPUT ..............................................................................128
8.REMOTE HOST PROGRAM ......................................................................................................... . 129
8-1.
REMOTE PROGRAM OVERVIEW........................................................................................... 131
8-2.
INSTALLING THE PROGRAM TO PC....................................................................................... 132
8-3.
INTERNET EXPLORER ......................................................................................................... 133
8-4.
REMOTE HOST .................................................................................................................. 135
8-4.1. Setup ............................................................................................................................................137
8-4.2. Connection ...................................................................................................................................140
8-4.3. Capture.........................................................................................................................................141
8-4.4. Status ...........................................................................................................................................142
6
Contents
8-4.5. Replay ..........................................................................................................................................143
8-4.6. COPY ...........................................................................................................................................145
8-4.7. Switch the Normal Screen to Full Screen....................................................................................147
8-4.8. Speaker / Microphone ..................................................................................................................148
8-4.9. Connection mode .........................................................................................................................149
8-4.9.1. Terminal mode.......................................................................................................................149
8-4.9.2. Multi mode.............................................................................................................................150
8-4.10. Copy in the Terminal mode ........................................................................................................151
8-4.11 E-Map..........................................................................................................................................153
8-4.11.1. Addition of map ...................................................................................................................153
8-4.11.2. Placement of cameras on the map.....................................................................................154
8-4.11.3. Usage of camera position ...................................................................................................155
8-4.11.4. Deletion of Camera position icon........................................................................................155
8-4.12 Pan / Tilt & Preset .......................................................................................................................156
8-5.
PLAYER .......................................................................................................................... 157
9.HDD INSTALLATION ............................................. ...................................................................... 164
9-1.
HDD (HARD DISK DRIVE) INSTALLATION ......................................................................... 165
APPENDIX....................................................... ................................................................................ 169
R
ECORDING TIME TABLE ............................................................................................................ 170
F
ACTORY DEFAULT SETTINGS ..................................................................................................... 171
FAQ ........................................................................................................................... ...................... 174
I
CAN NOT LOGIN....................................................................................................................... 175
LIMITED 1YEAR WARRANTY ......................................................................................................... 176
HOW TO OBTAIN FACTORY SERVICE ........................................................................................... 177
7
Stand-alone DVR Instruction Manual
8
About this manual
This is the Instruction Manual for 22” Wide TFT-LCD monitor built-in 16Ch DVR system,
Model LCD22164, LCD22168 and LCD221616.
The last digit(s) of the model numbers (e.g.: 4, 8 and 16) represent the number of cameras
included in the system.
This Manual describes how to install and operate the 22” Wide TFT-LCD monitor built-in
16Ch DVR system and provides specifications and features.
Please read this manual thoroughly and follow the installation process before using the
system (Note: Be sure to correctly follow step 3. What to do at the time of installation).
Contact our distributors or dealers when you have any queries.
9
Stand-alone DVR Instruction Manual
10
1
1.Unpacking
Care should be taken when unpacking to avoid damaging the system.
Please check that the following items are included:
22” LCD Monitor built-in 16 Ch DVR
2-Indoor camera with C-mount lens
2-Outdoor camera with mounting bracket
2-Mounting bracket for indoor cameras
4-6pin Din 60’ cables
Remote Controller
2-Batteries
AC Power Cable
Instruction Manual
Host Program (DvrMaster) on CD
Warranty registration card
Quick setup guide
2-Screws & Wall studs
USB Mouse
RJ-45 Cable
Note: Contact your dealer immediately if any components are missing.
11
Stand-alone DVR Instruction Manual
1-1. 22” Wide LCD Panel Built-in 16 Ch Digital Video Recorder
LCD22164 is the most reliable and functional embedded DVR system available today. The
system displays 16 channels of live images in Real Time speed, compresses data digitally and
records them to the Hard Disk Drive, which can be replayed and searched easily any time.
The LCD22164 supports easy back up via USB port, external Hard Disk Drive and networking in
both static & dynamic IP modes.
User can remotely view live images or search the recorded images.
Under emergency situation, the remote operator can control, turn on and turn off the field
installed alarms, such as a siren or light.
It is a very user- friendly DVR system. User can control the LCD22164 by Mouse or Buttons on
the front panel or Remote controller.
12
2
▶ 22” Wide Screen
- High resolution TFT-LCD 1,680 x 1,050, Contrast ratio 1,000:1, Response time 5 msec
▶ Multi Functional Record
- Powerful, multiple Record Modes available: Manual (Continuous), Timer, and Motion
Detection Recording.
▶ User friendly GUI
- A few simple buttons for Easy control.
▶ Automatic System Recovery
- Automatic and Complete System recovery within 10 seconds.
▶ E asy PTZ control via RS port
- No need to use PTZ controller
- PTZ control from remote PC
▶ Networking
- DHCP based automatic network set-up-Easy Network Configuration from Dynamic IP to
Dynamic IP
- Support TCP/IP and Remote Control on all DVR features
- Up to 10 users can remote access the system through DVRMaster (GUI) or Internet
Explorer simultaneously.
- DDNS support
▶ MPEG-4 Algorithm Compression
-The most advanced compression available today.
▶ High Resolution DVR 720 x 480
- Real time display 480 Frames/sec
- Recording speed 480 Frames/sec based on 360x240
- Programmable display resolution and recording speed on each channel
▶ 2 Way Audio
- Communicate between the system and cameras or between the system and client
computer through the internet
▶ Easy Data Playback in any PC
- Back Up data convertible to AVI file format.
▶ Back UP
- External HDD, Stick memory, and through network access.
▶ Desktop or Wall-mountable
2.Features
13
Stand-alone DVR Instruction Manual
14
3
The system should be installed in the following order;
1. Make sure all the required hardware is available.
2. Connect the cameras to the monitor (Refer to Fig 5-3).
4. Confirm if live video is displayed on the monitor before going to the next step.
5. Select the Setup Menu and set current date and time (Refer to Section 7-2.1).
6. Run the FACTORY DEFAULT setting in the SYSTEM menu.
7. Perform HDD formatting.
8. Escape from Setup Menu.
9. Set values for required options.
10. Network cable should be connected to the monitor before turning the power on.
3.What to do at the time of
Installation
- 22” wide TFT-LCD monitor built-in 16 Ch DVR
- Up to 16 cameras capacity (Refer to the retail box for the number of
camera included in the system).
- CCTV monitor or TV set if necessary
- Network cable if connecting to a PC
Refer to Fig 5-8 for the cable specification.
15
Stand-alone DVR Instruction Manual
16
/
4
4.Specifications
ITEM DESCRIPTIONS
VIDEO SIGNAL
VIDEO FEATURES
AUDIO FEATURES G.723 8ch Input / 1ch Output
RECORD
SEARCH
BACKUP
Recorded data lock Data protection in overwrite HDD Time range, Back up
USER INTERFACE
NETWORK Ethernet 10/100M Auto TCP/IP, DHCP, MNS server
EMAIL
NOTIFICATION
PC Program
USB USB 2.0 for external DVD R/W, CD R/W, HDD, USB memory
SERIAL RS485 16 camera Pan/Tilt, Remote control
ALARM
HDD SATA 750GB (Refer to the retail box)
POWER
CONNECTORS
MECHANICAL
ENVIRONMENT
Television System NTSC PAL
Refresh Rate 60 fields/sec 50 fields/sec
Video Resolution 720x480 720x576
Video Inputs 8- 6pin Din Cameras and 8- BNC Cameras
Video Input Signal Composite 1.0 Vp-p 75 Ohms
Video Output 1- Composite output
Video Output Signal Composite 1.0 Vp-p 75 Ohms
Live 480 Frames/sec display 400 Frames/sec display
Zoom 2 times digital
Sequence Sequence display in Full size
Display Format 1 screen(full), Quad pages split, 9 split pages, 16 split
Camera Video enhance Brightness, Contrast control on each cameras
LCD Display enhance Brightness, Contrast, saturation, 4:3 or 16;9 selectable
Recording Speed 480 Frames/sec 400 Frames/sec
Recording resolution
Codec Mpeg4
Recording Timer, Motion, Alarm, Manual individually set
Pre record 0~30 sec
Material SATA HDD(Auto overwrite)
Manual, Timer ,Motion, Alarm, Each
Camera, All Camera
External HDD, USB memory,
through Network
GUI RGB 24bit full color
Operating interface Mouse, Keypad, IR remote controller, Network
SMTP Server
Remote viewer Same as DVR monitor (Mouse or Key button)
PC Player
Alarm Inputs 8 Inputs
Alarm Outputs 1 Relay Output(1A max)
Alarm Latch up 1~30 sec
Buzzer Out On/Off
Input Voltage AC 110V/ 220V 50~60Hz (Free voltage)
Power consumption Approx. 130W
Video Inputs 8- 6pin DIN & 8 BNC
Video Output 1 RCA for slave monitor
Audio Output 1 RCA for Speaker
Alarm In/Out
RS485 2pin terminal block
Ethernet RJ45
Mouse USB mouse
Dimension(m/m)
Weight Approx. 19 Lbs
Operating Temperature 0 ~ 60°C
Humidity 10 ~ 60%
720x480,720x240,360x240 (NTSC)
720x576,720x288,360x288 (PAL)
Fast x128 , Slow, Forward, Reverse, Frame by Frame
Each Camera, ALL Cameras, Time range
Alarm, Motion, Record ON/OFF, Replay, HDD Fail, Video
loss, Power Loss...etc
External HDD, USB memory, Internal HDD (Replay,
Convert, Copy, Print)
Alarm In: 9pin terminal block, Alarm Out: 3pin terminal
block
531(W)x440(H)x79(D), 531(W)x446(H)x230(D): with
mounting bracket
17
Stand-alone DVR Instruction Manual
LCD
Display 22” TFT LCD active matrix
Pixel Pitch 0.282(H) x 0.282(V) mm
Active Display Area 473.76(H) x 296.1(V) mm
Display Colors 16.7M (Hi-FRC)
Display Mode Normally White
Pixel Arrangement RGB vertical stripe
Luminance of White 300 cd/㎡
Contrast Ratio(Center) 1000 : 1
Viewing Angle L/R/T/B 80 / 80 / 80 / 80 degrees
Operating Temperature 0℃ ~ 60℃
Storage Temperature -25℃ ~ 60℃
[Fig 4-1 Specifications]
Design and the specifications are subject to change without notice.
18
5
5.Installation
CONTENTS
5-1. CONTROLS AND CONNECTORS.....................................................................................20
5-2.
NOTE FOR INSTALLATION...............................................................................................23
5-3.
SYSTEM CONNECTION ...................................................................................................24
5-4.
INSTALLATION..................................................................................................................25
5-4.1.
CAMERA CONNECTION..................................................................................................25
5-4.2.
INSTALLATION OF THE MONITOR..................................................................................... 25
5-4.2.1.
5-4.3.
5-4.4.
5-4.5
5-4.6.
CONNECTION OF COMPOSITE MONITOR .................................................................26
SENSOR CONNECTION AND RELAY IN &OUT................................................................26
RS485 / RS232C CONNECTION ...................................................................................27
CONNECTION TO AN ETHERNET NETWORK (OPTIONAL) ....................................................27
POWER CABLE CONNECTION ................................................................................28
19
Stand-alone DVR Instruction Manual
A
5-1. Controls and Connectors
z Front
- A
8
9
10
2
3
4
[Fig. 5-1 Front View]
1
11
12
13
5
6
7
20
5. Installation
1. Stand-by Power Mode Button
- Turn the LCD Panel (Screen) On or Off
- Even though the LCD Screen is turned off by pressing this button, the system will be
continued to work.
2. REC Key
- Press this key to start to record.
- In order to stop recording, click the REC button on the MENU Bar and the following message
will be appeared. Click the OK button.
3. MENU / ENTER Key
- This key along with (+), (-), and Exit key are used for Video enhancement on VGA output
(See section 7-8.2 for more detailed information).
4. EXIT Key
See section 7-8.2 for information.
5. TALK Key
See section 6-7.4.2 for information.
6. VOLUME / DATA (+) Key
- Used to increase Audio Volume for the system.
- See section 7-8.2 for additional information.
7. VOLUME / DATA (-) Key
- Used to decrease Audio Volume for the system.
- See section 7-8.2 for additional information.
8. BACK UP LED
- The red LED will blink when the system is in the copying mode.
9. PLAY LED
- The green LED will blink when the system is in the playing mode.
10. REC LED
- The red LED will blink when the system is in the recording mode.
11. TIMER LED
- The red LED will blink when the system is in the timer recording mode.
21
Stand-alone DVR Instruction Manual
12. ALARM LE D
- The green LED will blink when an alarm is activated or video loss.
13. POWER LED
- The red LED is lit when the Power switch on the rear of the system is ON.
z Rear
USB PORT
USB 1
USB 2
CAMERA IN
EACH 12VDC. MAX 0.25A. 3W
CH 1 CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8
CH 9 CH 10 CH 11 CH 12 CH 13 CH 14 CH 1 5 CH 16
SLAVE
V / O A / O
ALARM IN
12345678G
ETHERNET
RS485
ALARM OUT
RS232
RX
N/O
N/C
GND
TX
+
GND
COM
-
[Fig 5-2 Rear View]
- A
POWER INPUT
POWER SWITCH
USB CONNECTOR
CAMERA IN (mini DIN/BNC)
CH 1 CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8
USB 1
USB 2
CH 9 CH 10 CH 11 CH 12 CH 13 CH 14 CH 15 CH 16
CAMERA IN
EACH 12VDC . M AX 0.25A. 3W
22
SLAVE
V / O A / O
ALARM IN
12345678
COMPOSITE
- VIDEO OUT
- AUDIO OUT
ETHERNET
ETHERNET
RS485
ALARM OUT
G
RS232
RX
N/O
N/C
GND
+
GND
COM
TX
-
ALARM OUT,
RS485 / RS232
ALARM INPUT
5. Installation
5-2. Note for Installation
Install the system according to the instructions described in this manual.
The 22” LCD monitor built-in 16Ch DVR and Indoor Cameras are designed for indoor
use and should not be used outdoors.
Avoid any area with high humidity or dust which can shorten lifetime of the system.
Choose a well ventilated area and keep minimum of 10” away from obstructions. Do not
place the system near heat generating devices.
Avoid any area with movement as this can interfere with the internal Hard Drive.
Use a compatible input/output signal type of cameras and monitor.
Contact your dealer if you have any problems in regards to the installation of this system.
The Warranty may be voided in case of unauthorized disassembling, abuse or modification.
23
Stand-alone DVR Instruction Manual
5-3. System Connection
[Fig 5-3 System Connection]
24
5. Installation
5-4. Installation
5-4.1. Camera Connection
▫ Connection of 6pin MINI DIN Cameras
Connect the supplied cameras to the Camera Input (6pin mini DIN jack) on the back of the
system as shown in [Fig. 5-2 Rear View].
▫ Connection of BNC Cameras
Connect the BNC cameras (not included) to the Camera Input (BNC connector) on the back
of the system as shown in [Fig. 5-2 Rear View].
5-4.2. Installation of the Monitor
[Fig. 5-4-1 Releasing the Lever] [Fig. 5-4-2 Locking the Lever]
▫ Desktop
- Pull the Lever to the left as shown in
[Fig.5-4-1] and move the panel forward or backward until
getting the proper angle of panel (screen) for viewing.
- Release the Lever and push it to the right as shown in
[Fig.5-4-2] for locking the mounting
bracket.
▫ Installation of the system on the wall
- Remove the screw cover on the top of the mounting bracket.
- Place the system on the flat surface with soft fabric and set the proper angle of panel
25
Stand-alone DVR Instruction Manual
(screen) as shown [Fig.5-4-2].
- Attach the mounting bracket to the desired location on the wall. Locate wall studs and
securely fix the mounting bracket with the supplied screws.
Note:
- Pay attention to not make scratches or dents on the surface of panel (screen)
during installation of the system.
- In case of this, the warranty will be voided.
5-4.2.1. Connection of Composite Monitor
If necessary, connect the composite Video Output (yellow RCA) and Audio Output (white
RCA) to Video IN and Audio IN on a composite monitor or TV (RCA cable: not included).
5-4.3. Sensor Connection and RELAY IN &OUT
▫ SENSOR Connection (SENSOR IN)
Connect up to 8 sensors to ALM (SENSOR) IN. The Sensors should be contactor type and
support N.O. (Normal Open).
[Fig 5-5 SENSOR IN PIN]
▫ ALARM OUT Connection
When necessary, use ALARM OUT. The ALARM OUTPUT is a relay contactor type and
supports N.O. (Normal Open) and N.C. (Normal Close). The Output capacity is 220V 1A. A
higher capacity can cause system failure.
[Fig 5-5]
[Fig 5-6 Alarm Output]
RS-485
26
5. Installation
5-4.4. RS485 / RS232C Connection
▫ Connect the cable to the “RS485 / RS232C PORT” on the rear of the system.
Specification of the RS232C connector is standard for “DSUB9”
The Maximum Length of cable is 45 ft. When you want to use a longer distance, use a
“RS232 to RS422” converter.
[Fig 5-7 RS485/RS232C Connection]
RS-485
5-4.5 Connection to an Ethernet Network (Optional)
▫ Connecting the cable to Ethernet.
Our Ethernet connector is a RJ45 type. The maximum cable length is 300 ft. When you want
to use a longer cable, we suggest using repeater.
[Fig 5-8 Straight-through & Crossover Cable]
27
Stand-alone DVR Instruction Manual
5-4.6. POWER CABLE CONNECTION
Connect the provided AC power cable to the monitor and an AC outlet. AC input voltage is AC
110V to 220V 50/60Hz.
It should not be shared with other electrical equipment on the same line.
Frequent power cuts can cause crucial failures, so if you have an unstable power source we
recommend the use of an Uninterrupted Power Supply or other backup power source.
POWER INPUT &
POWER SWITCH
CAMERA IN
EACH 12VDC. MAX 0.25A. 3W
CH 1 CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8
USB 1
USB 2
CH 9 CH 10 CH 11 CH 12 CH 13 CH 14 CH 15 CH 16
SLAVE
V / O A / O
ALARM IN
12345678G
ETHERNET
RS485
ALARM OUT
RS232
RX
N/O
N/C
GND
TX
+
GND
COM
-
[Fig.5-8 Power cable connection]
28
6
6.How to operate
CONTENTS
6-1. GENERAL INFORMATION ................................................................................................31
6-2.
OPERATING INTERFACE .................................................................................................32
6-3.
IR REMOTE CONTROLLER ..............................................................................................33
6-4.
POWER ON/OFF...............................................................................................................34
6-4.1.
POWER ON...............................................................................................................34
6-4.2.
STAND-BY POWER MODE BUTTON ........................................................................34
6-4.3
POWER OFF ..............................................................................................................34
6-4.4
APPEARANCE OR DISAPPEARANCE OF POWER BUTTON ...................................35
MENU BAR ON/OFF..........................................................................................................36
6-5.
6-6.
DISPLAY SCREEN ............................................................................................................37
6-6.1.
FULL SCREEN ..........................................................................................................37
6-6.2.
SPLIT SCREENS.......................................................................................................38
29
Stand-alone DVR Instruction Manual
CONTENTS
6-7. LIVE ...................................................................................................................................39
6-7.1.
FULL SCREEN ..........................................................................................................39
6-7.2.
SPLIT SCREEN .........................................................................................................39
6-7.3.
SEQUENCING SCREENS.........................................................................................40
6-7.4.
LIVE AUDIO ...............................................................................................................41
6-7.4.1. COMMUNICATION BETWEEN MONITOR AND CLIENT COMPUTER VIA INTERNET ........................41
COMMUNICATION BETWEEN MONITOR AND CAMERAS..................................................................41
6-7.4.2.
6-7.5. ZOOM ........................................................................................................................43
6-7.6.
OSD ON / OFF ...........................................................................................................44
6-7.7.
PAN / TILT ..................................................................................................................45
6-7.8.
SYSTEM STATUS......................................................................................................48
6-7.9.
POWER LOSS LISTS ................................................................................................49
6-7.10.
VIDEO LOSS LIST ...................................................................................................51
6-8.
RECORD ...........................................................................................................................53
6-8.1.
MANUAL (CONTINUOUS) RECORDING ............................................................................. 53
6-8.2.
MANUAL EVENT RECORDING.........................................................................................53
6-8.3.
TIMER RECORDING.......................................................................................................54
6-8.4.
TIMER EVENT RECORDING ............................................................................................55
6-8.5.
RECORDING ICONS.......................................................................................................56
6-9.
REPLAY.............................................................................................................................57
6-9.1.
QUICK REPLAY.........................................................................................................57
6-9.2.
REPLAY.....................................................................................................................57
6-9.2.1. PLAYBACK DEVICES ..................................................................................................................................58
SET THE START TIME.................................................................................................................................58
6-9.2.2.
REPLAYING ...............................................................................................................................................60
6-9.2.3.
DISAPPEARANCE OF REPLAY CONTROL BUTTONS........................................................................................62
6-9.2.4.
6-10. COPY...............................................................................................................................64
6-10.1.
COPYING DEVICES ......................................................................................................64
6-10.2.
SET THE COPY STAR T TIME (COPYING EXTENT) ............................................................65
6-10.3.
SET THE COPY END TIME (COPYING EXTENT) ............................................................... 67
6-10.4.
COPYING THE RECORDED DATA DURING REPLAYING .......................................................68
30
6. How to Operate
6-1. General Information
▫ You can operate all functions of the system by use of buttons located on the front panel,
remote controller and a mouse. Additionally, you can remotely control this unit via RS422C
or the Ethernet port located on the back of the unit.
▫ System status is indicated by either LED lights on the operator buttons or the monitor.
▫ The system is protected from any accidental pressing of any operator buttons, but care
should be taken when using the functions of HDD Formatting as this can lead to data loss.
31
Stand-alone DVR Instruction Manual
6-2. Operating Interface
There are 3 ways to operate the system by pressing the buttons on the front panel or buttons
on the remote controller and clicking the mouse. A lot of users mostly prefer to use a mouse
on these kinds of products such as DVRs, computers and computer-aided devices. Therefore
we would like to describe all the instructions in this manual based on using the mouse.
32
1 2, 3, 4, 5
6
9 1
8 20, 21, 22, 23
1
6 11, 12, 13, 14, 15
71017198
6-3. IR Remote Controller
6. How to Operate
1. POWER / STANDBY
2. REC
3. STATUS
4. ZOOM
5. FREEZE
6. No.1~16 Channel (Full Screen)
or IR ID Number
7. Display format (Split)
8. IR ID Set
9. MENU
10. ESC
11. UP
12. DOWN
13. LEFT
14. RIGHT
15. ENTER
16. SEARCH / PLAY
17. STOP
18. FF, REW
[Fig.6-1 IR Remote Controller]
19. Movement forward or backward
by 1 Field.
20. QUICK SEARCH
21. PAN / TILT
22. ZOOM / FOCUS
23. FUNC
33
Stand-alone DVR Instruction Manual
[Fig.6
]
6-4. Power On/Off
6-4.1. POWER ON
On the rear panel:
Turn on the POWER switch on the rear panel (See
when the POWER switch is ON.
By Stand-by Power Mode Button
Press this button on the front panel (See
Fig.5-1) to turn ON the system when the POWER
(MAIN) switch is turned ON and the Stand-by Power Mode Button is turned OFF.
6-4.2. STAND-BY POWER MODE BUTTON
In order to extend the lifetime of the LCD screen and the backlights inside the monitor, press
Fig.5-2). The LED on the front panel is lit
(less than 1 second) the POWER button located on the front panel (See
Fig.5-1) to turn OFF
if you don’t need to observe the system for a long time. The system will continue recording
when it is in the recording mode even though the Stand-by Power Mode Button is turned
OFF.
6-4.3 POWER OFF
By pressing the Stand-by Power Mode Button:
Press the POWER button on the front panel for 3 seconds and then the POWER OFF
message as shown in
[Fig.6-2] will be displayed on the screen.
▫ Click the OK button to turn the power OFF.
On the remote controller:
Press the POWER button on the remote controller and then the following message will be
displayed on the screen.
-2Message of POWER off
34
6. How to Operate
▫ Press the ENTER button to turn the power OFF.
By clicking the mouse:
▫ Click the POWER OFF button on the MENU bar (See
Fig.6-2) will be displayed on the screen.
Fig.6-3) and then the message (See
▫ Click the OK button to turn the power OFF.
[Fig.6-3 POWER button on MENU bar]
6-4.4 APPEARANCE OR DISAPPEARANCE OF POWER BUTTON
The Power On/Off button and the Audio buttons (See section 6-7.4) as shown in
always stay on the MENU bar when the system is not connected through the DVRMaster
(Client Host Program or Internet Explorer). But the Power On/Off button and the Audio
buttons on the MENU bar as shown in
[Fig.6-3-1] will be disappeared on the screen of the
[Fig.6-3-1] will
system and the client’s computer when the system is connected through the DVRMaster and
the mouse pointer is on the DVRMaster
[See Fig. 6-3-2].
We designed this function so that users can not turn the power On/Off or control the audio
functions on the DVR system through internet.
[Fig.6-3-1 Power & Audio buttons]
[Fig.6-3-2 No Power & Audio buttons]
To appear the buttons (See Fig.6-3-1) on the MENU bar: just move the Mousepointer on the screen of the system only, not on the DVRMaster.
35
Stand-alone DVR Instruction Manual
6-5. Menu Bar On/Off
Right-click on the screen in the LIVE or the RECORD mode. The MENU bar will be appeared
and then displayed for 15 seconds. Right-click again, then it will be disappeared.
CLICK
CLICK
[Fig.6-4 LIVE Screen]
36
E
6-6. Display Screen
6-6.1. FULL SCREEN
SEQUENCE ICON
RECORD ICON
CAMERA TITL
[Fig.6-5 FULL screen]
6. How to Operate
COPY STATUS
AUDIO
CURRENT TIME
37
Stand-alone DVR Instruction Manual
6-6.2. SPLIT SCREENS
FULL SCREEN
QUAD SCREEN
9 SPLIT SCREEN
16 SPLIT SCREEN
SEQUENCING SCREEN
4page SEQUENCING SCREEN
2page SEQUENCING SCREEN
38
6. How to Operate
6-7. LIVE
6-7.1. FULL SCREEN
▫ A Full SCREEN is available in the LIVE mode or the RECORD mode.

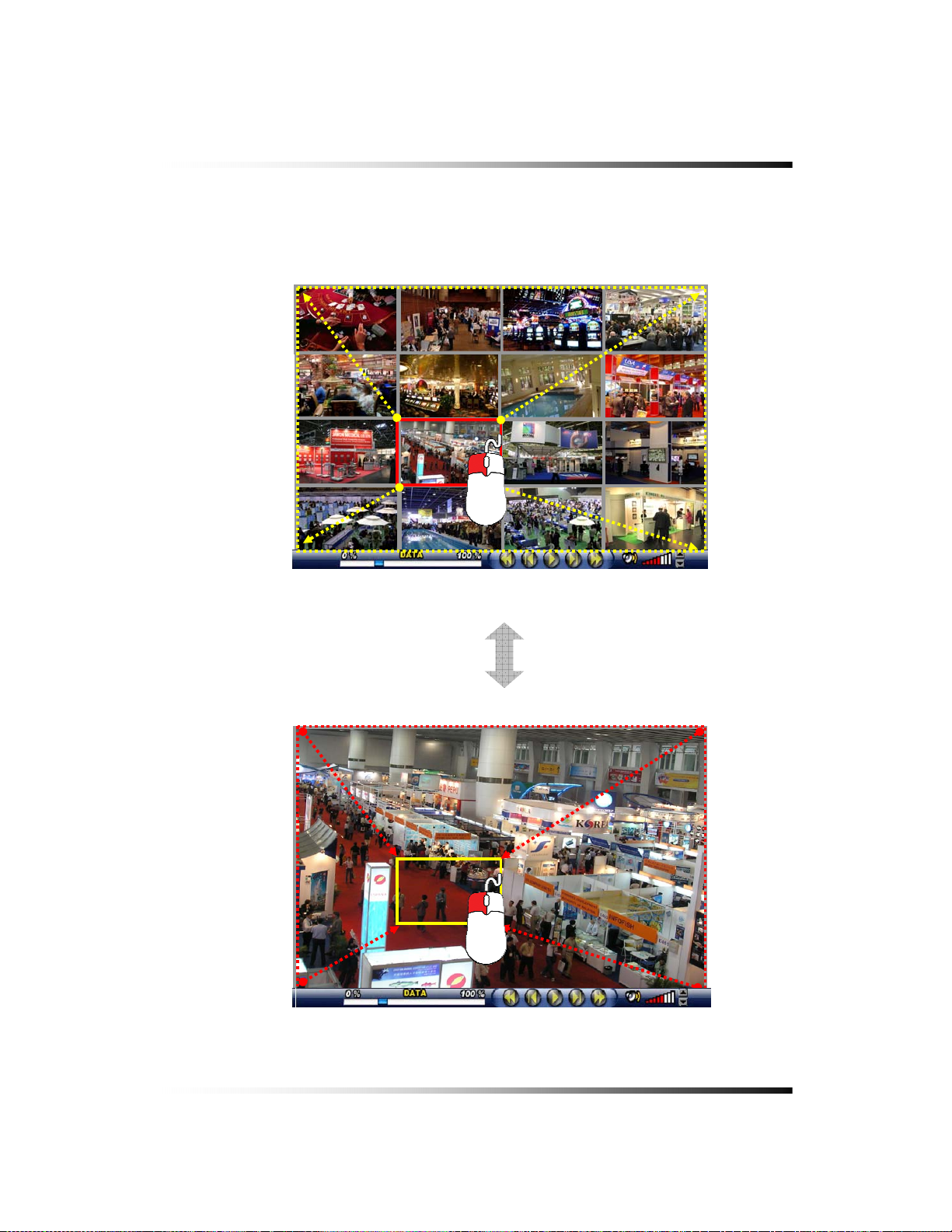

▫ Click a certain camera’s screen in the LIVE mode or in the RECORD mode and then a
FULL SCREEN will be displayed.
▫ Click the FULL screen to return to the SPLIT SCREEN.
6-7.2. SPLIT SCREEN
▫ A SPLIT SCREEN is available in the LIVE mode or the RECORD mode.
▫ Click the DISPLAY icon on the MENU bar and then the pop-up screen will be displayed
(See Fig.6-6).
▫ Click one of the SPLIT screens on the pop-up screen.
[Fig.6-6 DISPLAY pop-up screen]
39
Stand-alone DVR Instruction Manual
6-7.3. SEQUENCING SCREENS
▫ Displaying the cameras in SEQUENCE is available in the LIVE
mode or the RECORD mode.
Each of the channels will be displayed in sequence and the dwell
time can be adjusted in the camera set up menu (Refer to section
7-4.7).
▫
This ICON is displayed in the upper left hand corner of the screen while the system is in
the Sequencing Mode.
▫ Click a Full screen to return to the SPLIT screen while the system is sequencing.
: Full screen sequencing
: 4 split screen sequencing
: 9 split screen sequencing
[Fig. 6-7 LIVE Menu DISPLAY pop-up window]
[Fig. 6-8 SEQUENCING screen]
40
6. How to Operate
L
l
6-7.4. LIVE AUDIO
▫ The basic system (Model LCD22164) includes two indoor cameras built-in two way audio
and two outdoor cameras built-in one way audio and IR LEDs (Infrared) to view objects in
the darkness. Audio functions up to 8 cameras.
▫ Click the CHANNEL button you wish to listen on the MENU bar as shown below (See
Fig.6-9). The CHANNEL can be changed by clicking the mouse repeatedly.
▫ Turn the AUDIO (speaker) ON by clicking the SPEAKER icon as shown below (See Fig.6-
9). If the ICON turns in red by clicking, it represents that the AUDIO is turned OFF and if it
turns in yellow, it represents that the AUDIO is turned ON.
▫ Adjust the Audio Volume by Clicking the ▲ or the ▼ button when the AUDIO is turned ON.
[Fig. 6-9 Audio buttons]
CHANNE
AUDIO ON / OFF
VOLUME Contro
6-7.4.1. COMMUNICATION BETWEEN MONITOR AND CLIENT COMPUTER VIA INTERNET
▫ This system is normally in listening mode between the LCD monitor and your computer
through the Internet (DvrMaster or Internet Explorer). In order to communicate between
the system and your computer, connect a head phone or a microphone and a speaker to
the computer. Adjust the Speaker and the Microphone volume on the DvrMaster or
Internet Explorer by clicking the amount of volume (See section 8-4.8 Speaker /
Microphone).
▫ Don’t forget to turn the AUDIO (speaker) ON by clicking the SPEAKER icon on the MENU
bar (See section 6-7.4 for more information) on the system.
6-7.4.2. C OMMUNICATION BETWEEN MONITOR AND CAMERAS
▫ Turn the AUDIO (speaker) ON by clicking the SPEAKER icon on the MENU bar (See 6-
7.4 for more information).
▫ To communicate (two way Audio) with a camera, select one out of two Indoor cameras by
clicking the CHANNEL button on the MENU bar and press the TALK button on the bottom
of the system.
41
Stand-alone DVR Instruction Manual
▫ To listen only (one way Audio), select one out of indoor/outdoor cameras by clicking the
CHANNEL button on the MENU bar.
Note:
- It is impossible to communicate between the system and the cameras as long as
the DVRMaster (GUI) is being executed, even though the Speaker and the
Microphone are turned Off.
- Exit the DVRMaster by clicking the Exit button on the GUI in order to communicate
between the system and the cameras.
- In order to listen to the recorded audio in playback mode, select the
corresponding channel to make it a full screen.
42
6. How to Operate
6-7.5. ZOOM
The image on the screen will be zoomed up to 2 times when the ZOOM button is clicked in
the LIVE mode (This function is available on the full screen mode only).
▫ Click the ZOOM button on the MENU bar in the LIVE mode.
▫ Move the mouse on the ZOOMED screen, and then the 8-directional arrow marks will be
appeared as shown below (Fig.6-10).
▫ Click the
(EXIT) button to return to the LIVE Mode.
[Fig. 6-10 ZOOMED screen]
43
Stand-alone DVR Instruction Manual
6-7.6. OSD ON / OFF
OSD ON /OFF is possible in the LIVE mode or RECORD mode.
▫ Click the OSD button on the MENU bar to turn the OSD (On Screen Display) ON or OFF.
When the OSD is in OFF position, all the texts on the screen will be disappeared.
CAM 01 CAM 02 CAM 03 CAM 04
CAM 05 CAM 06 CAM 07 CAM 08
CAM 09 CAM 10 CAM 11 CAM 12
CAM 13 CAM 15 CAM 16 CAM 16
2007/05/25 19:30: 41
[Fig.6-11 OSD ON SCREEN]
[Fig.6-12 OSD OFF SCREEN]
44
6. How to Operate
6-7.7. PAN / TILT
▫ Click the PAN/TILT button on the MENU bar in the LIVE mode to access the PAN/TILT
cameras.
▫ Click the
(EXIT) button to return to the LIVE mode.
[Fig.6-13 PAN/TILT button]
[Fig.6-14 PAN/TILT window]
45
Stand-alone DVR Instruction Manual
PAN / TILT
EXIT PRESET
ZOOM / FOCUS
CHANNEL
RIGHTLEFT
[Fig.6-15 PAN/TILT CONTROL
▫ Channel Selection and Screen Conversion
To change a channel, press the CHANNEL button on the remote controller or click
CHANNEL button on the
[Fig.6-15 PAN /TILT CONTROL window]. It will be converted a full screen.
To return to the LIVE mode, press the SPLIT button on the remote controller or click the
(EXIT) button.
the
▫ ZOOM / FOCUS
Control the ZOOM and FOCUS of PAN/TILT camera.
Click the ZOOM/FOCUS button on the PAN/TILT CONTROL window
CONTROL window]
▫ Button of PAN/TILT Control window
or press the UP/DOWN/LEFT/RIGHT button on the remote controller.
[Fig.6-15 PAN / TILT
Move the PAN/TILT window as shown in Fig.6-15 by clicking the Left or Right button if
necessary.
▫ PAN / TILT
Control the PAN and TILT of PAN/TILT camera.
Click the PAN/TILT Button on the PAN/TILT CONTROL window
or press the UP/DOWN/LEFT/RIGHT button on the remote controller.
window]
[Fig.6-15 PAN / TILT CONTROL
46
6. How to Operate
▫ PRESET
[Fig.6-15-1 Preset Menu]
It is a function to preset the PTZ camera(s) which you wish to monitor frequently.
Preset Setup
- Select a position of camera you wish to preset and click the SET button in Fig.6-15-1.
- Click the number(s) for the current position of camera.
- Delete the numbers by using ← button.
Preset Execution
Click the number(s) which you preset and click GO button to move the camera.
* If you preset the number again, the previous setup is not available and only current
setup is available.
47
Stand-alone DVR Instruction Manual
6-7.8. SYSTEM STATUS
▫ Click the SYSTEM STATUS button on the MENU bar to see the system status as shown
below (Fig.6-16).
▫ Click the (EXIT) button to return to the LIVE mode or RECORD mode.
[Fig.6-16 SYSTEM STATUS button]
[Fig.6-17 SYSTEM STATUS window]
48
6. How to Operate
6-7.9. POWER LOSS LISTS
The list indicates the time/date when the system power was turned OFF.
▫ Click the POWER LOSS LISTS button on the SYSTEM STATUS window to view the
POWER LOSS LISTS.
▫ Each of the pages contains 10 lists. You can search the pages by clicking the UP/DOWN
button.
▫ Click the
(EXIT) button to return to the LIVE or RECORD mode.
[Fig.6-18 POWER LOSS LISTS window]
49
Stand-alone DVR Instruction Manual
▫ CLEAR LISTS button
Click the CLEAR LISTS button to clear the lists, you will be prompted to confirm changes.
When you click the OK button, the POWER LOSS LISTS will be deleted.
To cancel, click the CANCEL button
Fig.6-19 POWER LOSS LISTS Message
50
6. How to Operate
6-7.10. VIDEO LOSS LIST
The list indicates the video loss channel and the time/date when the video signal was
disconnected.
▫ Click the VIDEO LOSS LISTS button on the SYSTEM STATUS window to view the VIDEO
LOSS LISTS.
▫ Each of the pages contains 4 lists. You can search the pages by clicking the UP/DOWN
button.
▫ Click the
(EXIT) button to return to the LIVE or RECORD mode.
[Fig.6-20 VIDEO LOSS LI STS window]
[Fig.6-21 VIDEO LOSS window]
51
Stand-alone DVR Instruction Manual
▫ CLEAR LISTS button
Click the CLEAR LISTS button to clear the lists, you will be prompted to confirm changes.
When you click the OK button, the VIDEO LOSS LISTS will be deleted.
To cancel, click the CANCEL button
[Fig.6-22 VIDEO LOSS LISTS Message window]
52
6. How to Operate
6-8. Record
This system provides Watchdog function.
When power goes off during recording and then the power turns on, the system will automatically
start recording.

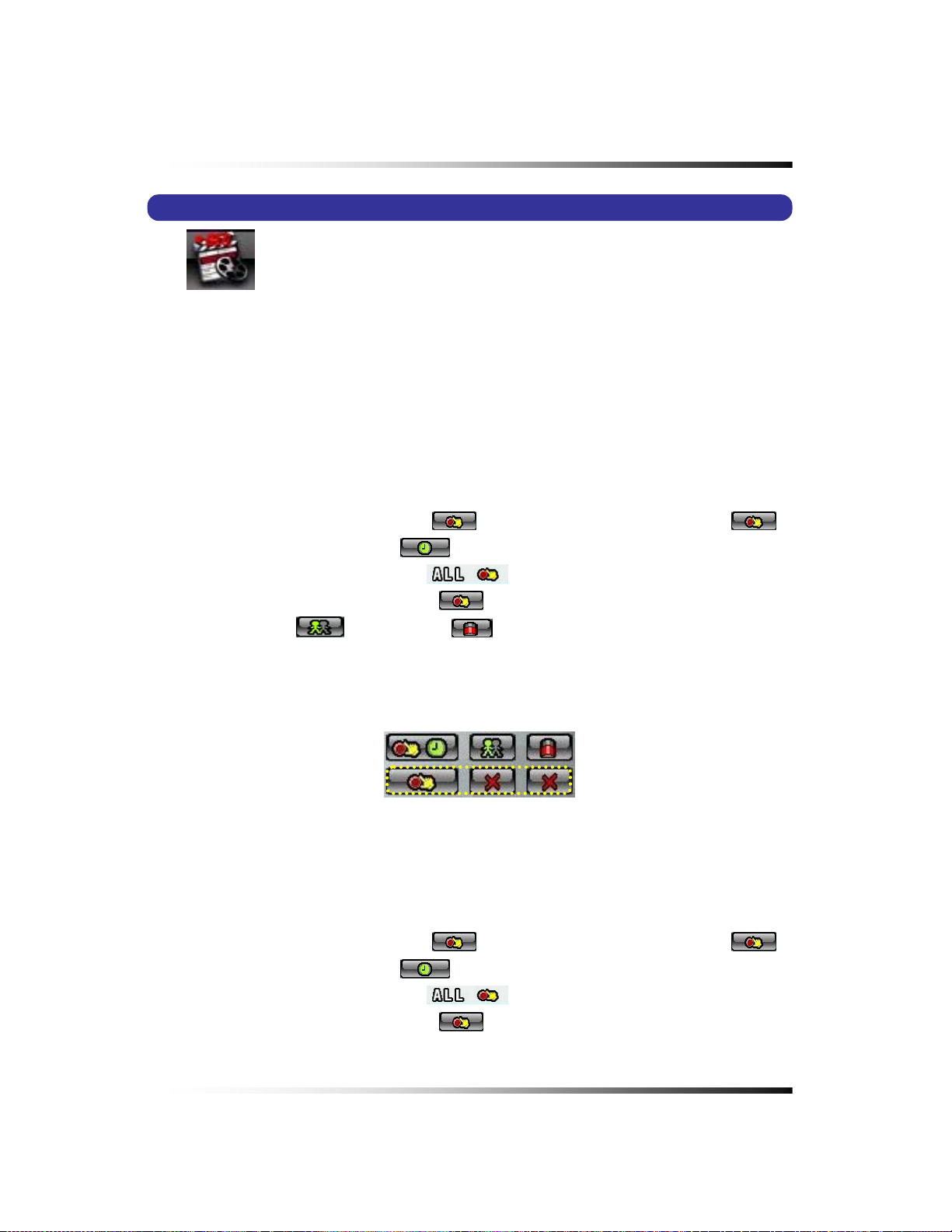

6-8.1. Manual (Continuous) recording
▫ Click the SETUP icon on the MENU bar in the LIVE mode.
▫ Click the RECORD button in the SETUP menu and then the RECORD window will be
displayed.
▫ Select the MANUAL RECORDING (
and the TIMER RECORDING (
the same time by clicking the ALL (
clicking the MANUAL RECORDING (
The MOTION (
) and SENSOR ( ) as shown in Fig.6-23 should be turned OFF
) between the MANUAL RECORDING ( )
) as shown in Fig.6-23. All channels can be set at
) or each of the channels can be set by
) on the CAM 1 through CAM 16.
in this recording mode.
▫ Press the RECORD button on the remote controller or click the RECORD icon on the
MENU bar.
[Fig.6-23. Manual Recording setup]
6-8.2. Manual Event Recording
▫ Click the SETUP icon on the MENU bar in the LIVE mode.
▫ Click the RECORD button in the SETUP menu and then the RECORD window will be
displayed.
▫ Select the MANUAL RECORDING (
and the TIMER RECORDING (
the same time by clicking the ALL (
) between the MANUAL RECORDING ( )
) as shown in Fig.6-24. All channels can be set at
) or each of the channels can be set by
clicking the MANUAL RECORDING (
) on the CAM 1 through CAM 16.
53
Stand-alone DVR Instruction Manual
The MOTION ( ) or SENSOR ( ) as shown in Fig.6-24 should be turned ON in
this recording mode.
▫ Press the RECORD button on the remote controller or click the RECORD icon on the
MENU bar.
[Fig.6-24 Manual Event Recording setup]
6-8.3. Timer Recording
▫ Click the SETUP icon on the MENU bar in the LIVE mode.
▫ Click the RECORD button in the SETUP menu and then the RECORD window will be
displayed.
▫ Select the TIMER RECORDING (
and the TIMER RECORDING (
the same time by clicking the ALL (
clicking the TIMER RECORDING (
The MOTION (
) and SENSOR ( ) as shown in Fig.6-25 should be turned OFF
) between the MANUAL RECORDING ( )
) as shown in Fig.6-25. All channels can be set at
) or each of the channels can be set by
) on the CAM 1 through CAM 16.
in this recording mode.
▫ Choose one among WEEKDAY, SATURDAY and SUNDAY in the TIMER menu by clicking
the mouse on (
by repeatedly clicking the mouse.
) that turns to ( ). You can choose the value or
▫ Select the Starting Time and Ending Time by clicking the mouse, change the values with
the mouse’s wheel and click the mouse again on the changed values to complete as
shown in Fig.6-27. The recording time can be set in military hour mode (24hour).
▫ Press the RECORD button on the remote controller or click the RECORD icon on the
MENU bar.
[Fig.6-25 Timer Recording setup]
54
6. How to Operate
6-8.4. Timer Event Recording
▫ Click the SETUP icon on the MENU bar in the LIVE mode.
▫ Click the RECORD button in the SETUP menu and then the RECORD window will be
displayed.
▫ Select the TIMER RECORDING (
and the TIMER RECORDING (
the same time by clicking the ALL (
clicking the TIMER RECORDING (
The MOTION (
) or SENSOR ( ) as shown in Fig.6-26 should be turned ON in
) between the MANUAL RECORDING ( )
) as shown in Fig.6-26. All channels can be set at
) or each of the channels can be set by
) on the CAM 1 through CAM 16.
this recording mode.
▫ Choose one among WEEKDAY, SATURDAY and SUNDAY in the TIMER menu by clicking
the mouse on (
by repeatedly clicking the mouse.
) that turns to ( ). You can choose the value or
▫ Select the Starting Time and Ending Time by clicking the mouse, change the values with
the mouse’s wheel and click the mouse again on the changed values to complete as
shown in Fig.6-27. The recording time can be set in military hour mode (24hour).
▫ Press the RECORD button on the remote controller or click the RECORD icon on the
MENU bar.
[Fig.6-26 Timer Event Recording setup]
[Fig.6-27 Example for Timer Recording]
55
Stand-alone DVR Instruction Manual
6-8.5. Recording Icons
The Recording Icons depends on recording modes are displayed in the upper left hand
corner of the screen.
▫ To turn the Recording Icon OFF, click the DISPLAY ON in the RECORD menu and then it
will be turned OFF. You can select the value ON or OFF by repeatedly clicking the mouse.
Manual (Continuous) Recording
Event Recording Ready
MOTION Event Recording
SENSOR Event Recording
[Fig.6-28 Recording Icons]
56
6. How to Operate
6-9. REPLAY
6-9.1. QUICK REPLAY
It is available only by pressing the QICK SEARCH button on the remote controller.
▫ Press the PLAY button, then the recent recorded data will be played.
6-9.2. REPLAY
▫ Click the REPLAY icon on the MENU bar, then the REPLAY window as shown in Fig.6-29
will be displayed.
▫ Click the
(EXIT) button to return to the previous mode.
[Fig.6-29 REPLAY window ]
57
Stand-alone DVR Instruction Manual

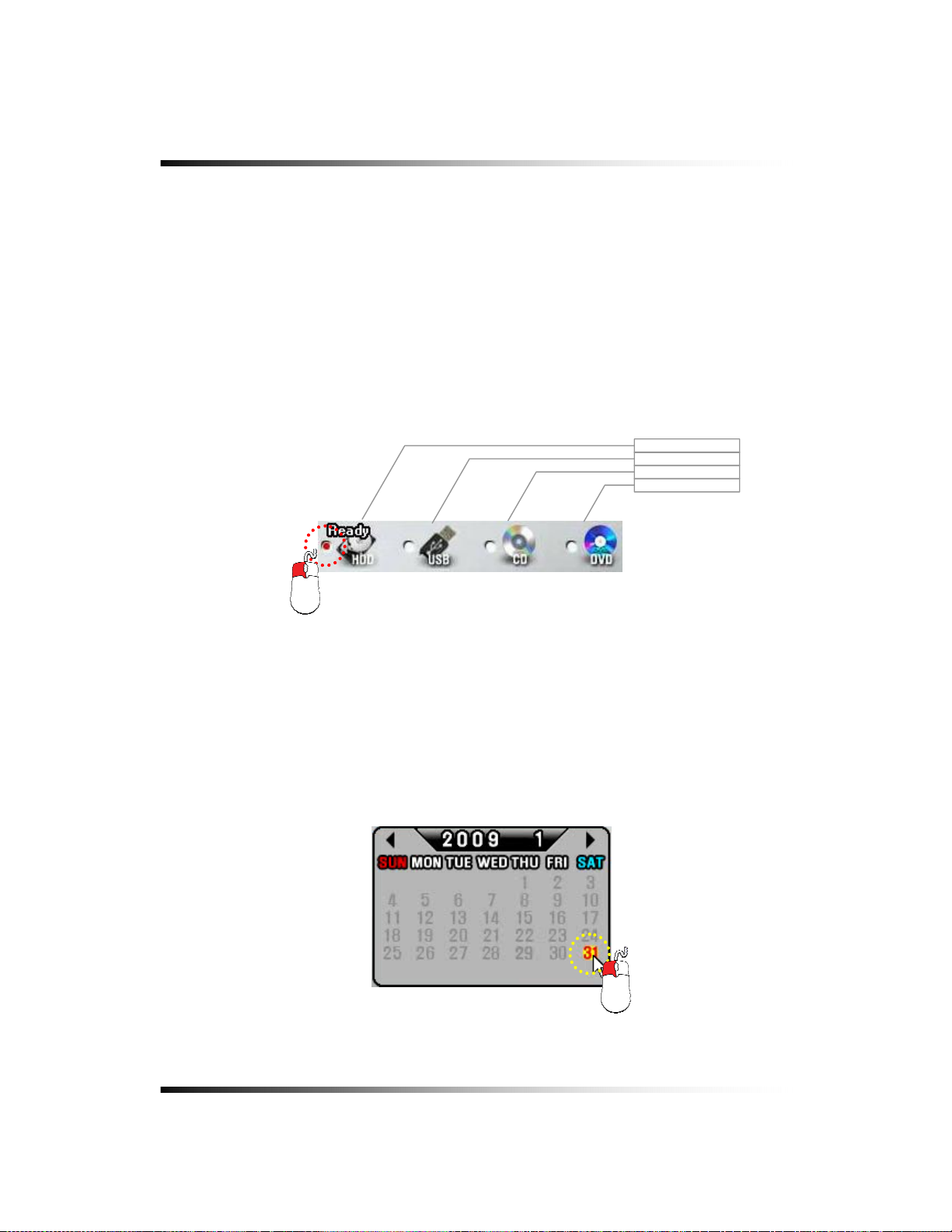

6-9.2.1. Playback Devices
In order to payback, plug the USB devices such as external USB HDD, USB memory to the
USB port or insert a recorded media (CD-R/W or DVD-R/W) into the DVD-R/W drive.
When the devices are ready to playback, the Ready on the corresponding devices will be
displayed as shown in Fig.6-30.
▫ Click the mouse on a device among HDD, USB, CD-R/W and DVD-R/W that is displaying
the Ready (See Fig.6-30). The corresponding LED will be lit in red when the device is
selected.
HDD
USB
CD-RW
DVD-RW
[Fig.6-30 REPLAY DEVICE button]
6-9.2.2. Set the Start Time
▫ Select the Date (year / month / day) on the calendar by clicking the mouse on the
highlighted character in black that turns to highlighted character in red (See Fig.6-31).
The highlighted character in black indicates the dates and times that contains recorded
data, and the highlighted character in red indicates the selected dates and times.
▫ Select the month (year) by clicking the mouse on the ◄button or ► button.
[Fig.6-31 Calendar window]
58
6. How to Operate
▫ Select the hour on the Start Time Select Window (See Fig.6-32) by clicking the mouse on
the Hour (0 – 23 hour) you wish to start to play.
The green active buttons indicate the HOUR that contains recorded data, and the red
active buttons indicate the selected Start HOUR.
[Fig.6-32 Start Time Select window]
By using the Replay Time set-up buttons:
The time and date can also be set on the Replay Time set-up button window (See Fig.6-33).
▫ Select the values (year/month/date and hour/minute/second) by clicking the mouse,
change the values with the mouse’s wheel and click the mouse again on the changed
values to complete as shown in Fig.6-33.
[Fig.6-33 Replay time set-up button]
By using the Replay Time set-up bar:
The starting time to play can also be set by clicking the slider on the bar and dragging it or
clicking the bar.
[Fig.6-34 Replay time set-up bar]
59
Stand-alone DVR Instruction Manual
6-9.2.3. Replaying
Replaying start time set-up can be possible within a recording time extent.
▫ Replay buttons (NORMAL / MOTION / SENSOR)
NORMAL PLAY: Click the button to play all the recorded data.
MOTION PLAY: Click the button to play the recorded data by MOTION only.
SENSOR PLAY: Click the button to play the recorded data by SENSOR only.
60
▫ How to control the buttons while replaying
① ③ ④ ② ④ ③ ⑤ ⑥
[Fig.6-35 Replay screen]
① Search Slider
It is possible to playback by clicking the slider on the bar or dragging it.
② PLAY / PAUSE
6. How to Operate
Click the
Click the
button to pause.
button to replay when in the pause mode.
③ REW/FF
During replaying, press the
forwarding up to 128 times.
Keep pressing the
④ PREV / NEXT
or button for fast rewinding and fast
or button to accelerate the speed up to 128 times.
61
Stand-alone DVR Instruction Manual
During replaying, press the button to view previous frame in still image and press
the
button to view the next frame in still image.
⑤ Speaker ON / OFF
Turn speaker ON or OFF.
⑥ Speaker Volume
Adjust the Audio Volume by clicking the ▲ or the ▼ button when the AUDIO is turned
ON.
6-9.2.4. Disappearance of Replay control buttons
During replaying, the replay control buttons appear on the bottom of the screen. To
disappear, drag the mouse pointer downward until the replay control buttons disappear and
to appear, drag the mouse pointer upward until the replay control buttons appear.
62

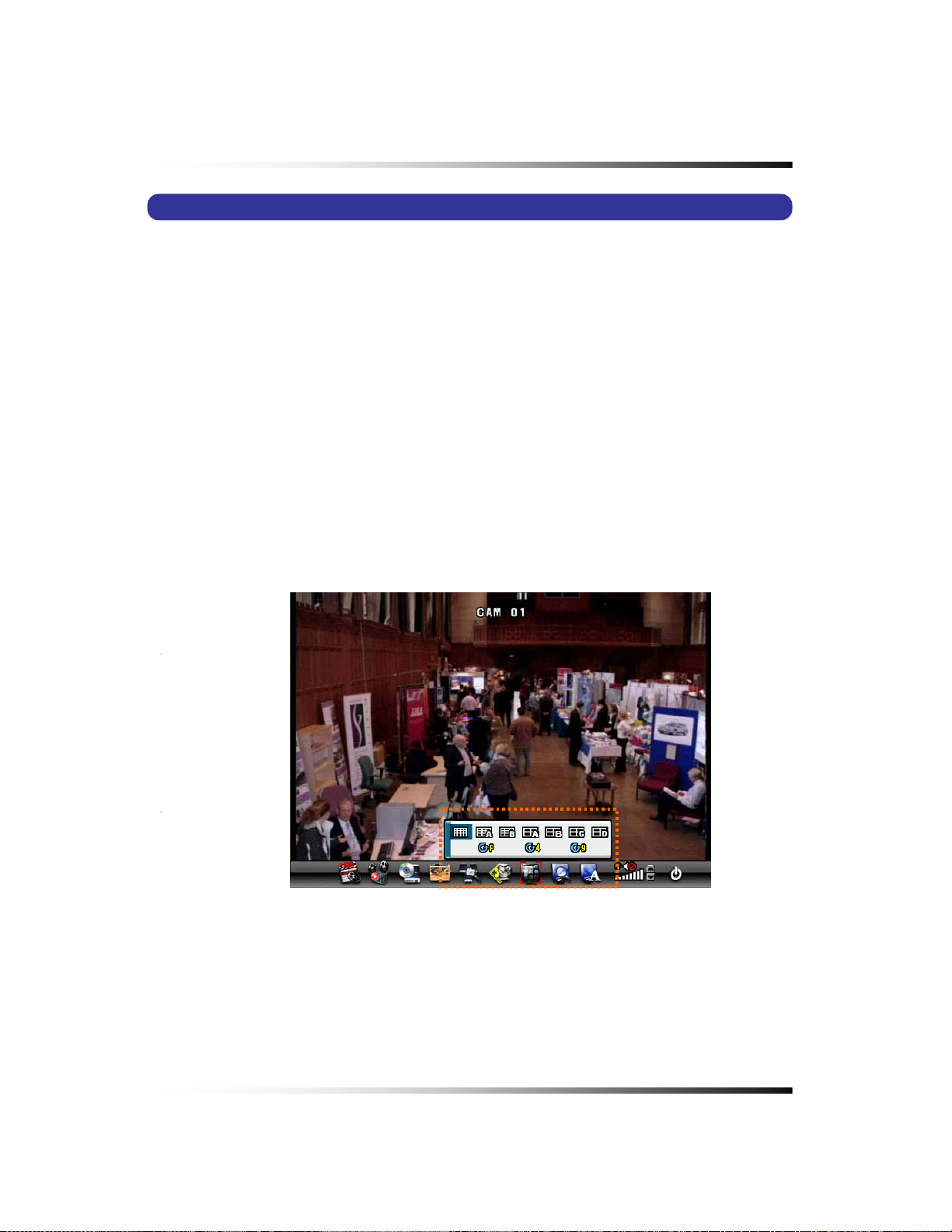

- Click the mouse on one out of channels during replaying to view a full screen.
- Click the mouse on the full screen during replaying to return to the split screen.
[Fig.6-36 SPLIT screen during replaying]
6. How to Operate
[Fig.6-37 FULL screen during replaying]
63
Stand-alone DVR Instruction Manual
6-10. COPY
▫ Click the COPY icon on the MENU bar, and then the COPY window as shown in Fig.6-38
will be displayed.
▫ Click the
(EXIT) button to return to the previous mode.
[Fig.6-38 COPY window]
6-10.1. Copying devices
In order to copy the recorded data, plug the USB devices such as external USB HDD, USB
memory to the USB port or insert a blank media (CD-R/W or DVD-R/W) into the DVD-R/W
drive.
When the device and media are ready to copy, the Ready on the corresponding device and
media will be displayed as shown in Fig.6-38.
We recommend you to format the USB devices prior to copy the recorded data as
follows, but the Medias such as CD-R/W and DVD-R/W don’t need to format.
64
6. How to Operate
▫ Connect the USB devices to the DVR
▫ Click the SETUP icon on the MENU bar, and the SETUP menu will be displayed.
▫ Click the DISK MANAGER in the SETUP menu, and the DISK MENAGER will be displayed.
▫ Click the mouse on the USB button in the DISK MANAGER, and you will be asked.
▫ Click the OK, and then the progressive bar will be showing along with FORMATTING
USB….
In regards to blank Medias (CD-R/W and DVD-R/W)
Most Medias can be used with the system, but some of them may be not compatible with.
Refer to the included instructions related to Medias or visit the website of DVD/CD DRIVE
unit manufacturer for more information.
6-10.2. Set the Copy Start Time (Copying extent)
▫ Select the Date (year / month / day) on the calendar by clicking the mouse on the
highlighted character in red that turns to highlighted character in black (See Fig.6-39).
The highlighted character in black indicates the dates and times that contains recorded
data, and the highlighted character in red indicates the selected dates and times.
▫ Select the month (year) by clicking the mouse on the ◄button or ► button.
▫ Select the hour on the Copy Start Time and Channel Selection Window (See Fig.6-40) by
clicking the mouse on the Hour (0 – 23 hour) you wish to start to copy.
The green active buttons indicate the HOUR that contains recorded data, and the red
active buttons indicate the selected Start HOUR.
[Fig.6-39 Calendar for Copying]
65
Stand-alone DVR Instruction Manual
②
①
③ channel selection button
All channels, HOUR selection button
HOUR selection button
[Fig.6-40 Copy Start time and Channel Selection window]
① All channels, HOUR selection button.
Click the arrow button on the upper left corner as shown in Fig.6-40 to set the full extent of
the recording and all the channels simultaneously.
② HOUR selection button
Select the start time to copy by clicking the mouse on HOUR (0-23: in the military hour).
Thereafter the extent of the copy will be saved on.
③ Channel selection button
Some channels can be selected by clicking the mouse on the corresponding channels.
By using the Copy Start/End set-up buttons:
The time and date can also be set on the Copy Start/End set-up buttons window (See Fig.6-41).
▫ Select the values (year/month/date and hour/minute/second) by clicking the mouse, change
the values with the mouse’s wheel and click the mouse again on the changed values to
complete as shown in Fig.6-41.
66
6. How to Operate
[Fig.6-41 Copy Start/End setup buttons]
By using the Start/End set-up bar:
The starting time to copy can also be set by clicking the slider on the bar and dragging it or just
click the bar.
[Fig.6-42 Copy Start/End setup bar]
6-10.3. Set the Copy End Time (Copying extent)
Refer to the above explanation (See section 6.10.2.).
67
Stand-alone DVR Instruction Manual
6-10.4. Copying the recorded data during replaying
The system, LCD22164 allows users to copy the recorded data during replaying.
▫ Start replaying (See section 6-9).
▫ Right-click on the replaying screen, and the COPY DATA screen will be displayed (See
Fig.6-43).
▫ To set the starting time and date to copy, select the values (year/month/date window
and hour/minute/second) on the COPY DATA window by clicking the mouse, change the
values with the mouse’s wheel and click the mouse again on the changed values to
complete.
▫ Select each of channels (1 through 16 in red) or “A” in black for all the channels on the
COPY DATA window, and then click on the SELECTED button to save.
[Fig.6-43 Start Copy Time Setup window]
▫ To set the ending time and date to copy, right-click on the replaying screen again, and
the COPY DATA window that contains end time for copying will be displayed (See Fig.6-
44). Set the ending time and date to copy as described above.
▫ To select the COPY MODE, click on the GO TO COPY button (See Fig.6-44), and then the
COPY window (See Fig.6-38) will be displayed. The time and date (starting time and
ending time) to copy can be changed on the COPY window as well (See section 6-10.2).
68
6. How to Operate
[Fig.6-44 End Copy Time Setup window]
▫ Choose one among NETWORK, USB, CD and DVD which are ready to copy (See section
6-10.1).
Select COPY Mode
Only when the device and media are ready to copy, the Ready on the corresponding
device and media will be displayed.
NETWORK COPY
Save the recorded data in PC through the DVR Master by Network.
Click the Network button on the DVR Master to start copying. It is available only on
the DVR Master (not on the DVR) and the networking should be connected to the
DVR.
USB COPY
Save the recorded data in USB Device.
Click the USB Device button to start copying.
CD-RW COPY
Save the recorded data on CD-R/W Media.
69
Stand-alone DVR Instruction Manual
Click the CD-R/W button to start copying.
DVD-RW COPY
Save the recorded data on DVD-R/W Media.
Click the DVD-R/W button to start copying.
▫ As soon as one of the above buttons is clicked , copying will start along with displaying the
icon shown in Fig.6-45.
The following icon indicates that copying is in process.
[Fig.6-45 Copying Icon]
70
7
7.SETUP
CONTENTS
7-1. SETUP...............................................................................................................................74
7-2.
SYSTEM............................................................................................................................75
7-2.1.
TIME / DATE ..............................................................................................................76
7-2.2.
SYSTEM CONFIG .....................................................................................................78
7-2.2.1.
7-2.2.2.
7-2.3.
7-2.4.
7-2.5.
7-2.6.
7-3.
DISK MANAGER................................................................................................................84
7-3.1.
7-3.2.
7-3.3.
FACTORY DEFAULT..........................................................................................78
LOAD CONFIG / BACKUP CONFIG................................................................... 79
PASSWORD ..............................................................................................................81
IR REMOTE ID...........................................................................................................82
FIRMWARE UPDATE.................................................................................................83
SYSTEM INFO...........................................................................................................83
HDD WRITE FAIL.......................................................................................................85
HDD OVERWRITE.....................................................................................................85
FORMAT ......................................................................................................................85
71
Stand-alone DVR Instruction Manual
CONTENTS
7-4. CAMERA ...........................................................................................................................87
7-4.1.
CAMERA ON/OFF ........................................................................................................88
7-4.2.
CAMERA NAME (CAMERA TITLE)....................................................................................88
7-4.3.
BUZZER.......................................................................................................................89
7-4.4.
RELAY.........................................................................................................................89
7-4.5.
PAN/TILT SETTINGS ......................................................................................................90
7-4.6
DISPLAY .......................................................................................................................94
7-4.7
SEQUENCING DWELL TIME ..............................................................................................94
7-5.
AUDIO................................................................................................................................95
7-5.1.
AUDIO RECORDING ON/OFF ........................................................................................ 95
7-5.2.
MICROPHONE VOLUME .................................................................................................95
7-6.
RECORD ...........................................................................................................................96
7-6.1.
RECORD ICON DISPLAY ...............................................................................................96
7-6.2.
ALL MANUAL / TIMER RECORDING BUTTON......................................................................97
7-6.3.
ALL MOTION ON / OFF, SENSITIVITY AND VELOCITY SETTING ..........................................98
7-6.4.
ALL SENSORS ON / OFF ..............................................................................................99
7-6.5.
SIZE (RECORDING RESOLUTION)...................................................................................99
7-6.6.
RECORDING SPEED.................................................................................................... 100
7-6.7.
RECORDING QUALITY .................................................................................................101
7-6.8.
RECORDING MODE.....................................................................................................102
7-6.8.1.
7-6.8.2.
7-6.8.3.
7-6.8.4.
7-6.9.
7-6.10.
MANUAL RECORDING..........................................................................................102
MANUAL EVENT RECORDING ...............................................................................102
TIMER RECORDING (SCHEDULE RECORDING) .......................................................102
TIMER EVENT RECORDING ..................................................................................102
RECORDING BY MOTION DETECTION............................................................................103
RECORDING BY SENSOR (PIR SENSOR)..................................................................... 111
72
CONTENTS
7-7.
NETWORK ...................................................................................................................... 114
7-7.1.
IP MODE ................................................................................................................... 114
7-7.2.
GATEWAY, SUBNET, IP ADDRESS ......................................................................... 115
7-7.3.
PORT ........................................................................................................................ 116
7-7.3.1
PORT FORWARDING............................................................................................. 116
7-7.4.
MAC ID .................................................................................................................... 117
7-7.5.
MNS (MAC NAME SERVER) ................................................................................... 117
7-7.6.
DDNS (DYNAMIC DOMAIN NAME SYSTEM).......................................................... 119
7-7.7.
HOW TO SETUP AND USE THE DDNS................................................................... 120
7-7.7.1.
7-7.7.2.
7-7.8.
7-8.
VIDEO ENHANCE ...........................................................................................................126
7-8.1.
7-8.2.
ROUTER. ........................................................................................................... 120
REGISTRATION TO THE DDNS SERVER.................................................................121
EMAIL NOTIFICATION.............................................................................................122
VIDEO ENHANCEMENT ON EACH CAMERA.........................................................127
VIDEO ENHANCEMENT ON VGA OUTPUT............................................................128
7. Setup
73
Stand-alone DVR Instruction Manual
7-1. SETUP
It is possible to set up the menus in the LIVE mode and partly in the RECORD mode.
▫ Click the “SETUP” button on the MENU bar and then the SETUP menu will be
displayed.
[Fig.7-1 Setup Icon on MENU Bar]
▫ Click the
“EXIT” button to return to the previous mode.
[Fig.7-2 SETUP menu]
74
7-2. SYSTEM
▫ Click the “SYSTEM” button in the SETUP menu, and then the SYSTEM menu shown in
Fig.7-3 will be displayed.
▫ Click the “EXIT” button to return to the SETUP menu.
.
[Fig.7-3 SYSTEM menu]
7. Setup
75
Stand-alone DVR Instruction Manual
7-2.1. TIME / DATE
▫ Click the “TIME/DATE” button in the SYSTEM menu, and then the TIME/DATE menu will
be displayed (See Fig.7-4).
▫ Click the “EXIT” button to return to the SYSTEM menu.
[Fig.7-4 TIME / DATE menu]
▫ TIME FORMAT
Click the mouse on the TIME FORMAT button to change and then select 24 HOUR or 12
HOUR by clicking the mouse.
[Fig.7-5 Time Format button]
▫ TIME Settings
Select the values (AM or PM and hour/minute/second) by clicking the mouse, change the
values with the mouse’s wheel and click the mouse again on the changed values to
complete.
[Fig.7-6 Time Setting]
76
▫ DATE FORMAT
There are three formats to display the time and date as follow.
• MM / DD / YYYY: For U.S.A.
• YYYY / MM / DD: For Asian countries.
• DD / MM / YYYY: For European countries.
Click the mouse on the DATE FORMAT button to change, and then select a DATE
FORMAT among YYYY/MM/DD, DD/MM/YYYY and MM/DD/YYYY.
[Fig. 7-7 Date Format button]
▫ DATE Settings
Select the month, date and year by clicking the mouse, change the values with the
mouse’s wheel and click the mouse again on the changed values to complete.
[Fig.7-8 Date Settings button]
▫ DISPLAY
It enables you to display the time and date on the Live screen.
Click the DISPLAY button to set display on or off.
7. Setup
[Fig. 7-9 Display button]
Note: Setting the new time will cause loss of recording data. After setting the time, HDD
should be formatted prior to start recording.
77
Stand-alone DVR Instruction Manual
7-2.2.
SYSTEM CONFIG
▫ Click the “SYSTEM CONFIG” button in the SYSTEM menu, and then the SYSTEM
CONFIG menu will be displayed (See Fig.7-10).
▫ Click the “EXIT” button to return to the SYSTEM menu.
7-2.2.1. FACTORY DEFAULT
▫ Click the “FACTORY DEFAULT” button in the SYSTEM CONFIG menu, and you will be
asked as shown in Fig.7-12.
[Fig.7-10 SYSTEM CONFIG]
[Fig.7-11 Factory Default button]
▫ Click the “OK” button in Fig.7-12 to reset to the Factory Default Values, and then the
system will save the factory default values (settings).
Click the CANCEL button to cancel.
78
[Fig.7-12 Confirmation window of Factory Default]
7-2.2.2. LOAD CONFIG / BACKUP CONFIG
You can save up to four different settings in the BACKUP CONFIG and load the files in the
LOAD CONFIG to change the settings to the system.
▫ LOAD CONFIG
This function is to load the changed settings to the system.
- Click the LOAD CONFIG button and then the LOAD CONFIG window will be displayed
(See Fig.7-14).
- Select a backup file among FILE 1, FILE 2, FILE 3 and FILE 4 by clicking the mouse and
click the LOAD button to change the settings (See Fig.7-14).
- Click the CANCEL button to cancel.
[Fig.7-13 LOAD CONFIG button]
7. Setup
79
Stand-alone DVR Instruction Manual
[Fig.7-14 LOAD CONFIG window]
▫ BACKUP CONFIG
This function is to save the current settings to load the settings to the system. Save the
current settings in the BACKUP CONFIG in order to load it to the system in the near future
whenever you need to change the settings.
- Click the BACKUP CONFIG button and then the BACKUP CONFIG window will be
displayed (See Fig.7-16).
- Select a blank file among FILE 1, FILE 2, FILE 3 and FILE 4 by clicking the mouse and
click the BACKUP button to save the current setting (See Fig.7-16).
- To delete, click the mouse on the saved file and click the DELETE button.
- Click the CANCEL button to cancel.
[Fig.7-15 BACKUP CONFIG button]
[Fig.7-16 BACKUP CONFIG window]
80
7-2.3. PASSWORD
▫ ON/OFF
Select ON or OFF by clicking the mouse.
If the ON is selected, the password has to be entered to get into the SETUP mode,
RECORD mode, COPY mode, REPLAY mode, and when trying to connect the network
through the DVR Master.
▫ PASSWORD CHANGE
Click the password “********” button and then the On Screen Keyboard will be displayed as
shown in Fig.7-17. The factory default password is “11111111”.
7. Setup
Delete the existing password with the
new password by using the On Screen Keyboard and click the OK button to save.
The password should be 8 digits.
If you executed the factory default setting, the existing password will be changed to
“11111111”.
button on the On Screen Keyboard. Enter the
[Fig.7-17 PASSWORD KEYBOARD window]
Note: Don’t forget the password.
81
Stand-alone DVR Instruction Manual
7-2.4. IR REMOTE ID
Up to 16 DVR systems can be controlled by only one remote controller we provided, but IDs
should be assigned on each of the systems. You don’t have to assign any ID on the single
unit and you can control the system with the provided remote controller without IR REMOTE
ID, which is in the OFF mode (Skip this section).
▫ Click the IR REMOTE ID button and select one among OFF, 1 through 16 to assign an ID
for the system by clicking the mouse.
[Fig.7-18 IR REMOTE ID button]
▫ When an IR Remote ID is assigned In the SYSTEM menu, press the “ID” button and the
same channel button on the remote controller as an assigned ID in the SYSTEM menu to
match the IDs between the system and the remote controller. And then press the “ID”
button one more time for setting an ID.
When the “ID” button and the channel button are pressed on the remote controller,
- if the channel button is identical to the assigned ID, the Detect IR ID as shown in Fig.7-
19 will be displayed along with the IR ID number.
- if not, the IR ID Denied as shown in Fig.7-20 will be displayed along with the denied IR ID
number.
Fig.7-19 DETECT IR ID Message
DVR IR ID
NUMBER
DVR IR ID
NUMBER
Fig.7-20 IR ID DENIED Message
82
7. Setup
7-2.5. FIRMWARE UPDATE
There are two ways to update the firmware through USB memory and the DVR Master
(GUI). We recommend users to update the firmware only in the LIVE mode.
▫ By USB memory
- Format the USB with your computer and save the firmware file on it (not including
folder).
- Plug it on the USB port on the DVR.
- Click the mouse on the SELECT button in the SYSTEM menu and the FIRMWARE
LIST will be displayed.
- Click on the list, and then you will be asked, OK or CANCEL.
- Click the OK button to update the firmware and the system will automatically start
rebooting.
- Click the CANCEL button to cancel.
▫ By DVR Master (GUI)
Refer to section 8-4.1 ⑥Firmware Update on page 138.
7-2.6. SYSTEM INFO
▫ Click the “SYSTEM INFO” button in the SYSTEM menu and then the SYSTEM INFO that
contains the system version and the last updated date will be displayed.
▫ Click the
(EXIT) button to return to the SETUP menu.
[Fig.7-21 SYSTEM INFORMATION window]
83
Stand-alone DVR Instruction Manual
7-3. DISK MANAGER
▫ Click the “DISK MANAGER” button in the SETUP menu and then the DISK MANAGER
window will be displayed (See Fig.7-22).
▫ A DVD R/W(USB) and 1 Hard Disk Drives can be installed, and all information in regards
to the drives will be automatically displayed on the DISK MANAGER window.
▫ Click the (EXIT) button to return to the SETUP menu.
[Fig. 7-22 DISK MANAGER window]
84
7-3.1. HDD WRITE FAIL
If the HDD is in full and the OVERWRITE is turned OFF in the recording mode, the system
will activate the relay output (See section 5-4.3) for a siren or other device.
▫ Click the HDD WRITE FAIL button in the DISK MANAGER window and select “RELAY
OUT” or “DISABLE”.
[Fig. 7-23 HDD Write Fail button]
7-3.2. HDD OVERWRITE
▫ Click the mouse on the OVERWRITE button to select the ON or the OFF. If the ON is
selected, the system continues recording by overwriting start from the first index of the
recorded file even though the space of HDD is in full. If the OFF is selected, the system will
stop recording when the space of HDD is in full.
7. Setup
[Fig.7-24 Overwrite button]
7-3.3. Format
When you install the new Hard Disk Drives (HDD), it should be formatted before recording.
Formatting is possible only when the system is in the LIVE mode.
▫ Click the “HDD or USB” button to format and then the HDD or USB FORMAT message box
will be displayed (See Fig.7-25).
▫ Click the “OK” button, and you can see the formatting process of the HDD.
▫ Click the “CANCEL” button to return to the Disk Manager.
85
Stand-alone DVR Instruction Manual
[Fig.7-25 HDD FORMAT window]
86
7. Setup
7-4. CAMERA
▫ Click the “CAMERA” button in the SETUP menu and then the CAMERA menu will be
displayed (See Fig.7-26). To change the settings in the CAMERA menu, stop recording by
clicking the RECORD icon on the MENU BAR. It is possible only in the LIVE mode.
▫ Click the UP/DOWN button on the right hand side of the CAMERA menu to switch the page.
▫ Click the
(EXIT) button to return to the SETUP menu.
[Fig.7-26 CAMERA menu]
87
Stand-alone DVR Instruction Manual
7-4.1. Camera ON/OFF
▫ Click on each of the channels to select the “
O” or “X” in the CAMERA menu. If the “O” is
selected, the corresponding video channels (CAM 01 through CAM 016) will be displayed
on the screen. If the “
X” is selected, the corresponding video channels (CAM 01 through
CAM 016) won’t be displayed.
[Fig.7-27 Camera ON/OFF button]
7-4.2. Camera Name (Camera Title)
▫ Click the NAME (Camera Title) button in the CAMERA menu and then the On Screen
Keyboard will be displayed as shown in Fig.7-28.
▫ Delete the existing NAME (Camera Title) with the
button on the On Screen
Keyboard.
▫ Enter the new NAME up to 8 characters by using the On Screen Keyboard and click on the
OK button to save. Click on the CANCEL button to cancel.
▫ Click the (EXIT) button to return to the SETUP menu.
[Fig.7-28 Camera Name Setting Keyboard window]
88
7-4.3. Buzzer
In order to alert users, the Buzzer will sound at that time video signal lost.
▫ Click on each of the channels you wish to turn the buzzer “ON” or “OFF”. If the “O” is
selected, the buzzer will sound when video signal lost and if the “X” is selected, the buzzer
won’t sound.
[Fig.7-29 Buzzer button]
7-4.4. Relay
The system will automatically activate a siren or other device through the Relay Output on
the rear panel when video signal lost.
▫ Click on each of the channels you wish to select the Relay Output “O” or “X”. If the “O” is
selected, the Relay Output will be turned on to activate a siren or other device when video
signal lost.
[Fig.7-30 Relay button]
[Fig.7-31 Relay button]
7. Setup
89
Stand-alone DVR Instruction Manual
7-4.5. Pan/Tilt Settings
▫ Click the PAN/TILT button on the corresponding channels in the CAMERA menu, then the
PAN/TILT window will be displayed as shown in Fig.7-33.
▫ Click the (EXIT) button to return to the CAMERA menu.
[Fig.7-32 PAN/TILT button]
[Fig.7-33 PAN/TILT window]
▫ PTZ ID
- Click the PTZ ID button in the PAN/TILT window, then On Screen Keyboard will show up.
- Delete the current ID with the button and choose a number among “0” to “255” by
using the On Screen Keyboard, and then click OK button to save it. The ID should be
identical to one PTZ camera has.
- Click the “CANCEL” button to return to the previous value.
Fig. 7-33-1 PTZ ID
90
7. Setup
▫ Pan/Tilt Vendor select
Click the “PAN/TILT & REMOTE” button in the PAN/TILT window, then the vendor lists will
show up. Select a vendor on the vendor lists by clicking the mouse.
Fig.7-34 PAN/TILT & REMOTE
[Fig.7-35 PAN/TILT Vendor lists]
▫ Model
Click the “MODEL” button in the PAN/TILT window and select the model on the pop-up lists
by clicking the mouse.
[Fig.7-36 MODEL button]
[Fig.7-37 PAN/TILT Model pop-up window]
91
Stand-alone DVR Instruction Manual
▫ Baud rate
Click the “BAUD RATE” button in the PAN/TILT window and choose a value among
1200bps, 2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 57600bps and 115200bps
on the Baud Rate pop-up window by clicking the mouse.
[Fig.7-38 BAUDRATE button]
[Fig.7-39 Baud Rate pop-up window]
▫ Data Bits
Click the “DATA BITS” button in the PAN/TILT window and choose a value among 5, 6, 7
and 8 on the Data Bits pop-up window by clicking the mouse.
[Fig.7-40 DATA BITS button]
[Fig.7-41 Data Bits pop-up window]
92

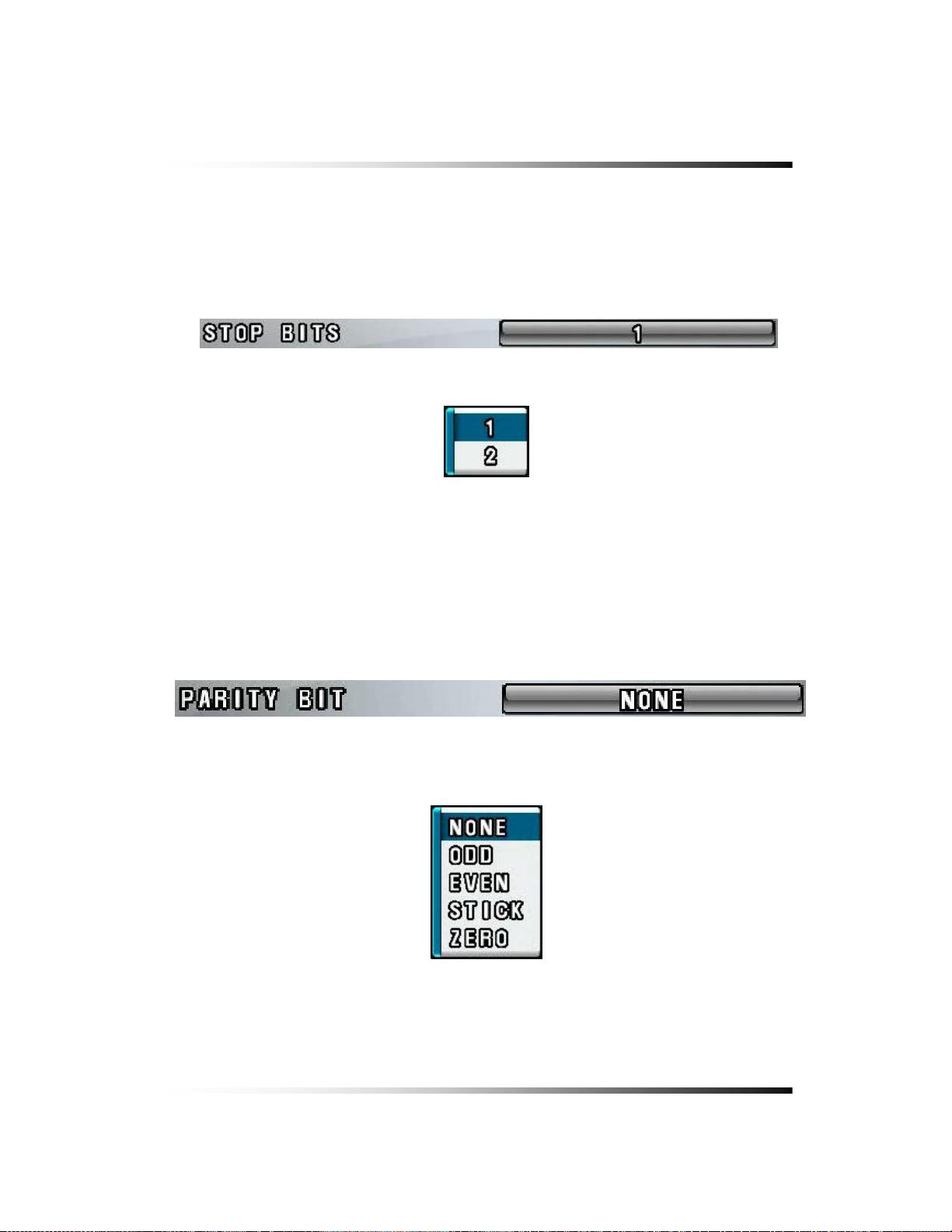

▫ Stop Bits
Click the “STOP BITS” button in the PAN/TILT window and select 1 or 2 on the Stop Bits
pop-up window by clicking the mouse.
[Fig.7-42 STOP BITS button]
[Fig.7-43 Stop Bits pop-up window]
▫ Parity Bit
Click the “PARITY BITS” button in the PAN/TILT window and choose a value among
NONE, ODD, EVEN, STICK and ZERO on the Parity Bits pop-up window by clicking the
mouse.
7. Setup
[Fig.7-44 PARITY BIT button]
[Fig.7-45 Parity Bit pop-up window]
93
Stand-alone DVR Instruction Manual
7-4.6 Display
▫ Click the DISPLAY button in the CAMERA menu and select the ON or OFF. If the “ON” is
selected, the camera name (camera title) in the LIVE mode will be displayed on the screen.
If the “OFF” is selected, the camera name (camera title) in the LIVE mode won’t be
displayed.
[Fig.7-46 Display ON/OFF button]
7-4.7 Sequencing dwell time
▫ Click the “SEQUENCING DWELL” button in the CAMERA menu and choose a value
among 1, 2, 3, 4 and 5seconds on the dwell time pop-up window by clicking the mouse.
[Fig.7-47 Sequencing Dwell Time button]
[Fig.7-48 Sequencing Dwell Time pop-up window]
94
7-5. AUDIO
▫ Click on the AUDIO button in the SETUP menu and then the AUDIO menu will be
displayed on the screen.
7. Setup
▫ Click the
(EXIT) button to return to the SETUP menu.
[Fig.7-49 AUDIO menu]
7-5.1. Audio Recording ON/OFF
▫ Click the REC (audio recording) button in the AUDIO menu and select the “O” or “X” by
clicking the mouse. If the “O” is selected, the corresponding channel’s audio will be
recording along with video signal. If the “X” is selected, the corresponding channel’s audio
won’t be recording but video signal will be recording continuously.
[Fig.7-50 Record ON/OFF button]
7-5.2. Microphone Volume
▫ Adjust audio volume by clicking the ▲ or ▼ button.
[Fig.7-51 Microphone Volume control button]
95
Stand-alone DVR Instruction Manual
7-6. RECORD
▫ Click the “RECORD” button in the SETUP menu and then the RECORD menu will be
displayed as shown in Fig.7-52.
▫ Click the UP/DOWN button on the right hand side of the RECORD menu to switch the page.
▫ Click the
(EXIT) button to return to the SETUP menu.
[Fig.7-52 RECORD menu]
7-6.1. Record ICON Display
▫ The Recording Icons depends on recording modes are displayed in the upper left corner of
the screen.
▫ To turn the Recording Icon OFF, click the DISPLAY ON in the RECORD menu and then it
will be turned OFF. You can select the value ON or OFF by repeatedly clicking the mouse.
[Fig.7-53 Record ICON Display button]
96
7. Setup
7-6.2. All Manual / Timer recording button
▫ Click the All Manual / Timer recording button in the RECORD menu, then the All Manual /
Timer recording button will be displayed as shown in Fig.7-55.
▫ Select the Manual Recording button or Timer Recording button for all the channels by
clicking the mouse in Fig.7-55.
▫ See section 6-8.1 through 6-8.5 on page 53 through 56 for more information related to
recording.
[Fig.7-54 All Manual / Timer button]
[Fig. 7-55 All Manual / Timer pop-up window]
97
Stand-alone DVR Instruction Manual
7-6.3. All Motion ON / OFF, Sensitivity Setting
▫ Click the
button in the RECORD menu, then the ALL MOTION setup pop-up
window will be displayed as shown in Fig.7-57.
▫ By clicking the mouse, select the
on the pop-up window (See
Fig.7-57) to enable the system to start recording by motion detection for all the channels.
▫ By clicking the mouse, select the
on the pop-up window (See
Fig.7-57) to disable the system to start recording by motion detection for all the channels.
▫ By clicking the mouse, select the
on the pop-up window
(See Fig.7-57) and choose one of the sensitivity among LOW, 1, 2, 3 and HIGH for all the
channels with the mouse’s wheel, and then click it to save.
▫ See section 6-8.1 through 6-8.5 on page 53 through 56 for more information related to
recording.
[Fig.7-56 All Motion Setup button]
[Fig.7-57 All Motion Setup pop-up window]
[Fig.7-58 All Motion Sensitivity setup button]
98
7-6.4. All Sensors ON / OFF
7. Setup
▫ Click the
button in the RECORD menu, then the ALL SENSOR setup pop-up
window will be displayed as shown in Fig.7-60.
▫ By clicking the mouse, select the
on the pop-up window (See Fig.7-
60) to enable the system to start recording by Sensor (Passive Infrared Sensor) for all the
channels.
▫ By clicking the mouse, select the
on the pop-up window (See
Fig.7-60) to disable the system to start recording by Sensor (Passive Infrared Sensor) for
all the channels.
[Fig.7-59 All Sensor Setup button]
[Fig.7-60 All Sensor Setup pop-up window]
7-6.5. Size (Recording Resolution)
Select the size of the screen for recording. The larger the size selected, the better display
quality is but the larger the data becomes.
▫ Click the SIZE (Recording Resolution) button on each of the channels in the RECORD
menu, then the SIZE (Recording Resolution) pop-up window will be displayed as shown in
Fig.7-62.
▫ Select one of the Resolution among D1 (720x480), HALF D1 (720x240) and CIF (360x240)
on the pop-up window by clicking the mouse.
[Fig.7-61 Record Size button]
[Fig.7-62 Record Size pop-up window]
99
Stand-alone DVR Instruction Manual
7-6.6. Recording Speed
▫ Click the F/S (Frames Per Seconds: Recording Speed) button on each of the channels in
the RECORD menu, then the Recording Speed pop-up window will be displayed as shown
in Fig.7-64.
▫ Select one of the Recording Speed among AUTO, 30, 15, 10, 7, 5, 3, 2, 1 and OFF on the
pop-up window by clicking the mouse.
▫ If the AUTO is selected on all the channels, the Recording Speed on all the channels
should be the same. If the OFF is selected, the corresponding channel won’t be recording.
[Fig.7-63 Record Speed button]
[Fig.7-64 Record Speed pop-up window]
100
