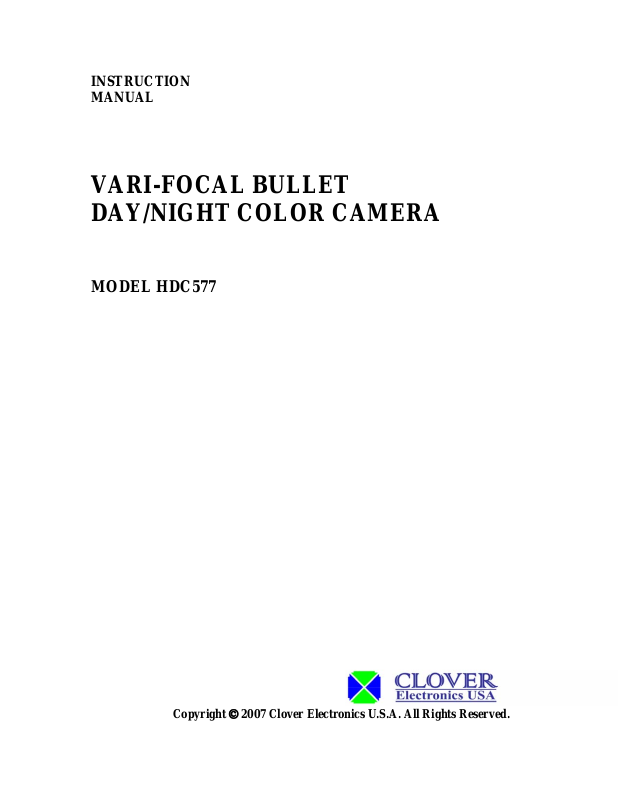

INSTRUCTION
MANUAL
VARI-FOCAL BULLET
DAY/NIGHT COLOR CAMERA
MODEL HDC577
Copyright © 2007 Clover Electronics U.S.A. All Rights Reserved.
PRECAUTIONS
• To avoid electrical shock, do not open the case of this product.
• Operate this product using only the supplied AC Power supply.
• Do not overload electrical outlets or extension cords; this can result in fire or electric
shock.
• Keep this product away from strong magnetic fields.
• Do not expose this product in direct sunlight or strong reflected rays.
• Refer servicing to qualified personnel only.
• Do not change or modify this product, the warranty will be voided.
FEATURES
• Weatherproof (IP67)
• 1/3” Sony Super HAD CCD
• High Resolution 560 TV Lines
• Rugged Steel Construction
• Total 22 Infrared LEDs with a CDS sensor
• Up to 80’ IR range (depends on scene reflection)
• DC Auto Iris Vari-focal Lens (4-9mm)
• Attached Universal Mounting Bracket and 100’ cable
• DC12V Power Source
INSTALLATION
1. Attach the mounting bracket base ring① to the wall or ceiling, wherever you want to
install the camera. Locate a wall stud or ceiling joist and secure the bracket base ring
using the supplied screws. Attach the mounting bracket② to the base ring① and
secure them using the supplied screws.
2. Lock the mounting bracket with the locking ring③.
3. Turn the pivot locking screw④ with the provided hex-head wrench counter-
clockwise to set the desired angle of camera toward objects and turn it clockwise to
secure. It can be used for wall-mount or ceiling-mount application depending on
setting this pivot locking screw.
4. Loosen the locking screw⑤ with the provided hex-head wrench and turn the camera
clockwise or counter-clockwise to upright images on the screen and turn it clockwise
to secure.
5. Connect the one end of 100’ cable (supplied) to the Din jack of 5’ cable attached to
the camera. Make sure that two arrows on the top of them should be aimed at each
other. Connect the other end (BNC or RCA) of cable to the video devices such as
DVR, monitor/TV. Plug the provided AC adapter to the DC jack (red) of the end of
100’ cable.
HOW TO ADJUST ANGLE OF VIEW
1. Vari-focal lens①
Easily changeable angle of view: 4 to 9mm
2. Unplug the power supply and remove the sun-visor.
Turn the front cover② and ③ counter-clockwise to open and adjust angle of view.
Do not stamp your fingerprint on the window, which may affect picture quality.
3. T↔W (Tele ↔ Wide)⑤
Loosen the locking knob⑤ with a (-) driver (not included) and turn this adjustment
knob⑤ clockwise or counter-clockwise to set the focal length. Secure the locking
knob⑤ after setting.
4. ∞↔N④
Loosen the locking knob④ with a (-) driver (not included) and turn this adjustment
knob④ clockwise or counter-clockwise to set the focus. Secure the locking knob④
after setting.
5. Assemble the cover ③, ② and sun-visor. They should be securely fastened so that
water can not leak into the camera.
Note:
▪ Apply the provided AC adapter only.
▪ The total length of cable must not exceed 200’ including extension
cable.
TROUBLE SHOOTING
If the camera does not function properly, check the following points before contacting the
service center.
Troubles Remedies
No video Check the AC adapter and video cable
between the camera and a monitor
The image on the screen is dark Check the brightness control on the
monitor
The image on the screen is dim Check if the lens is stained. If dirty,
clean it with soft and clean cloth
The camera is not working properly, and
the surface of the camera case is hot
The contrast on the screen is too weak Adjust the contrast feature of the
The image on the screen flickers Does the camera face to directly to the
Picture rolls and jumps, scrambled
Picture smaller than screen House current may be too low
SPECIFICATIONS
• Image sensor 1/3” Sony Super HAD CCD, 811H x 508V
• Effective pixels 768H x 494V
• Scanning system 525 lines, 2:1 interlace
• Horizontal resolution 560 TV lines
• Shutter speed Auto, Manual (1/60 to 1/120,000 sec)
• Sync. System Internal
• S/N ratio more than 50db (AGC off)
• Minimum illumination 0.01 Lux @F1.2
• Video output Composite 1.0Vp-p @75 Ω
• AGC Auto
• Digital Noise Reduction Auto
• White balance Auto
• Lens DC Auto Iris Vari-focal Lens 4mm to 9mm
• Current consumption 650mA Max @DC15V
• Power supply DC 15V, 1.5A
Check if you have connected the
provided AC adapter
monitor. If the camera is exposed under
too strong light, change the position
sunlight or fluorescent light? Change the
camera position
Improper V-hold control. Setting on your
monitor
• Operating temperature -10°C to 50°C
• Dimensions 100(W) x 120(H) x 255(D) mm
• Weight 1.8Kg
LIMITED 2 YEAR WARRANTY
This warranty gives the original purchaser specific legal rights and you may also have
other rights, which vary from state to state. If our products do not function because of any
defect in material or workmanship, we will repair free of charges for 2 years on parts and
labor from the date of original purchase. This warranty does not cover modification,
abuse, incidental or consequential damages unless the state of owner’s residence specially
prohibits limitations on incidental or consequential damages.
HOW TO OBTAIN FACTORY SERVICE
1. Original purchaser must fill out a warranty card and mail it to the factory with model
number, serial number and the date of purchase.
2. We will repair or replace, and return to the owner the system under this limited
warranty.
3. Please pack the system carefully and securely using the original packing materials,
and send it prepaid and insured to: 13073 E. 166
4. Please include a check for $25.00 to cover the cost of return postage and handling. If
the system is returned within the warranty period, please include a proof of purchase.
If the system is out of warranty, you will receive an estimate of the repair cost for
your approval before repair work will be begun.
AVAILABLE ACCESSORIES
CDR4010 Stand-alone 4 CH Digital Video Recorder (DVR).
CDR4170 Stand-alone 4 CH Digital Video Recorder (DVR).
CDR1610 Stand-alone 16 CH Digital Video Recorder (DVR).
CDR0850 Stand-alone 8 CH Digital Video Recorder (DVR).
CA100H 100’ 6pin Din Extension cable
PACKAGE INCLUDES
1-Vari-focal Bullet Day & Night Color Camera
1-100’ 6pin Din Cable
1-UL Approved AC Adapter
th
St, Cerritos, CA 90703.
1-BNC to RCA Adapter
1-Hardware Accessories Kit
1-Instruction Manual
