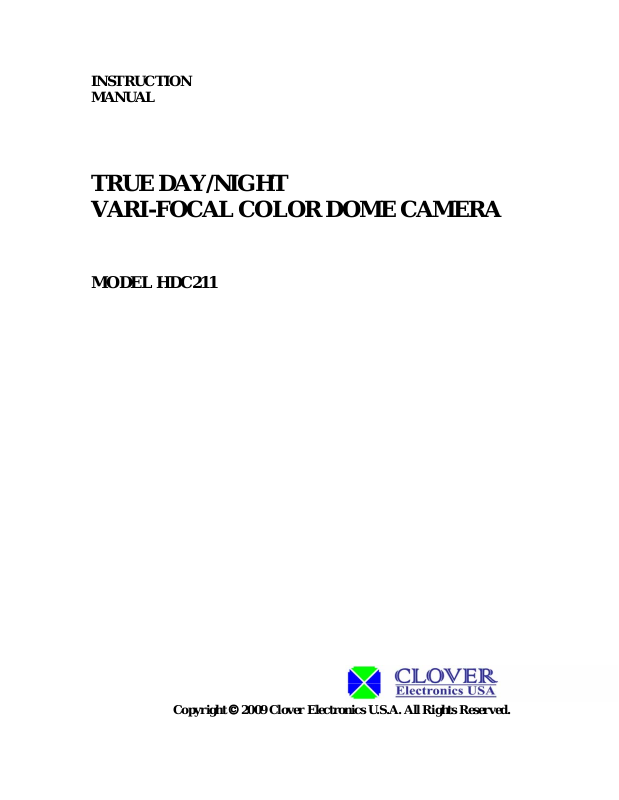

INSTRUCTION
MANUAL
TRUE DAY/NIGHT
VARI-FOCAL COLOR DOME CAMERA
MODEL HDC211
Copyright © 2009 Clover Electronics U.S.A. All Rights Reserved.
PRECAUTIONS
• To avoid electrical shock, do not open the case of this product.
• Do not stamp fingerprints on the lens.
• Operate this product using only the recommended AC Power supply.
• Do not overload electrical outlets or extension cords; this can result in fire or electric
shock.
• Keep this product away from strong magnetic fields.
• Do not expose this product in direct sunlight or strong reflected rays.
• Refer servicing to qualified personnel only.
• Do not change or modify this product, the warranty will be voided.
FEATURES
• Weatherproof (IP67)
• 1/3” Sony Super HAD CCD
• High Resolution 550 TV Lines (Color), 600 TV Lines (B/W)
• True Day/Night (Built-in ICR: IR Cut Filter Removal)
• 3D DNR (Digital Noise Reduction) with 3D filter
• D-WDR (Digital Wide Dynamic Range)
• 3-Axis Gimbals Bracket
• Total 33 Infrared LEDs with a CDS sensor
• Up to 100’ IR range (depends on scene reflection)
• DC Auto Iris Vari-focal Lens (2.8-12mm)
• Dual Voltage(AC 24V/DC 12V)
INSTALLATION
1. Loosen the locking screw① with the provided hex-head wrench and turn the locking
ring② counter-clockwise to remove the transparent dome③.
2. Attach the camera base④ to the wall or ceiling, wherever you want to install the
camera. Locate a wall stud or ceiling joist and secure the camera base④ using the
supplied screws⑤.
3. How to set angle of view:
- Loosen the screws⑥ for tilting and adjust the camera direction by moving the
camera body⑧ up or down, then fix the screws firmly.
- Turn the mounting bracket (metal part) covering the camera body⑧ left or right for
panning adjustment.
- Loosen the locking knob⑦ and turn the camera body⑧ clockwise or counter-
clockwise to upright images on the screen.
4. If necessary, change the settings to get the best images depending on your application
by using the buttons in the camera (refer to the instruction manual for OSD control).
5. Assemble the transparent dome③ by turning the locking ring② clockwise. The
locking ring② should be securely fastened so that water can not leak into the camera.
6. Connect the one end of BNC cable (not supplied) to the BNC (F) of 5’ cable attached
to the camera and the other end (BNC) of cable to the video devices such as DVR,
monitor/TV. Plug an AC power supply (not supplied) to the DC jack (red) on the
camera.
