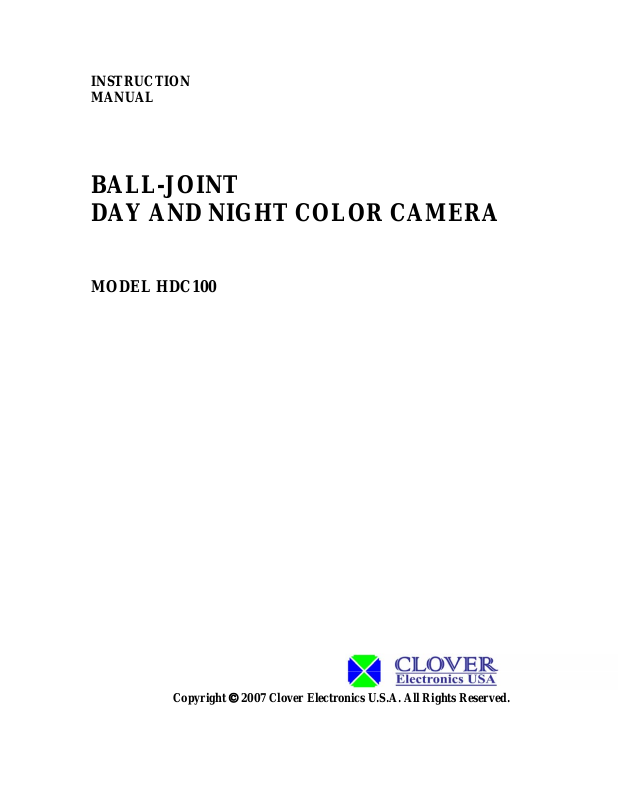

INSTRUCTION
MANUAL
BALL-JOINT
DAY AND NIGHT COLOR CAMERA
MODEL HDC100
Copyright © 2007 Clover Electronics U.S.A. All Rights Reserved.
PRECAUTIONS
• To avoid electrical shock, do not open the case of this product.
• Operate this product using only the supplied AC Power supply.
• Do not overload electrical outlets or extension cords; this can result in fire or electric
shock.
• Keep this product away from strong magnetic fields.
• Do not expose this product in direct sunlight or strong reflected rays.
• Refer servicing to qualified personnel only.
• Do not change or modify this product, the warranty will be voided.
FEATURES
• Weatherproof (IP67)
• 1/3” Sony Super HAD CCD
• 520 TV Lines of Resolution
• Rugged Steel Construction
• Total 38 Infrared LEDs with a CDS sensor
• 60’ IR range (depends on scene reflection)
• Attached Mounting Base (for ceiling & wall) and 100’ cable
• DC12V Power Source
INSTALLATION
1. Loosen the two locking screws① with provided hex-head wrench and remove the
mounting base..
2. Attach the mounting base② to the wall or ceiling, wherever you want to install the
camera. Locate a wall stud or ceiling joist and secure the mounting base using the
supplied screws③. Attach the camera④ to the mounting base ② and secure them
turning the two locking screws① with provided hex-head wrench clockwise.
3. How to set angle of view:
Loosen the two locking screws① with provided hex-head wrench and set the desired
angle of camera toward objects by moving the camera right /left and up/down.
4. Connect the one end of 100’ cable (supplied) to the Din jack of 5’ cable attached to
the camera. Make sure that two arrows on the top of them should be aimed at each
other. Connect the other end (BNC or RCA) of cable to the video devices such as
DVR, monitor/TV. Plug the provided AC adapter to the DC jack (red) of the end of
100’ cable.
g
Note:
▪ Apply the provided AC adapter only.
▪ The total len
th of cable must not exceed 200’ including extension
cable.
TROUBLE SHOOTING
If the camera does not function properly, check the following points before contacting the
rvice center.
Troubles seRemedies
No video ble Check the AC adapter and video ca
between the camera and a monitor
The image on the screen is dark brightness control on the Check the
monitor
The image on the screen is dim y, Check if the lens is stained. If dirt
clean it with soft and clean cloth
The camera is not working properly, and ected the
the surface of the camera case is hot
The contrast on the screen is too weak
Check if you have conn
provided AC adapter
Adjust the contrast feature of the
monitor. If the camera is exposed und
er
too strong light, change the position
The image on the screen flickers
Picture rolls and jumps, scrambled V-hold control. Setting on your
Picture smaller than screen House current may be too low
SPECIFICATIONS
• Image sensor 1/3” Sony Super HAD C
• Scanning system 525 lines, 2:1
• Horizontal resolu 520 TV lines
• Shutter speed Auto, Manual (1
• Sync. Syst Internal
• S/N ratio more than 46db (AGC off
• Minimum illumination 0.1 Lux with LEDs- Off
• Video output Composite 1.
• AGC Auto
• White balance Auto
• Lens 6mm fixed lens
• Current consumption 450mA Max
• Power supply DC 15V, 1.5A
• Operating tem er -10°C to 50°C
• Dimensions 140 (W) x 111 (
• Weight 2.8 Lbs
em
tion
p ature
Does the camera face to directly to the
sunlight or fluore
camera position
Improper
monitor
scent light? Change the
CD, 768H x 494V
interlace
/60 to 1/100,000 sec)
)
0Vp-p @75 Ω
H) x 140 (D) mm
LIMITED 2 YEAR WARRANTY
This warranty gives the original purchaser specific legal rights and you may also have
other rights, which vary from state to state. If our products do not function because of any
defect in material or workmanship, we will repair free of charges for 2 years on parts
labor from the date of original purchase. This warranty does not cover modification,
abuse, incidental or consequential damages unless the state of owner’s res
rohibits limitations on incidental or consequential damages.
p
HOW TO OBTAIN FACTORY SERVICE
idence specially
and
1. nd mail it to the factory with model
Original purchaser must fill out a warranty card a
number, serial number and the date of purchase.
2. We will repair or replace, and return to the owner the system under this limited
warranty.
3. Please pack the system carefully and securely using the original packing materials,
and send it prepaid and insured to: 13073 E. 166
4. Please include a check for $25.00 to cover the cost of return postage and handling. If
the system is returned within the warranty period, please include a proof of purchase.
If the system is out of warranty, you will receive an estimate of the repair cost for
your approval before repair work will be begun.
AVAILABLE ACCESSORIES
CDR4010 Stand-alone 4 CH Digital Video Recorder (DVR).
CDR4170 Stand-alone 4 CH Digital Video Recorder (DVR).
CDR1610 Stand-alone 16 CH Digital Video Recorder (DVR).
CDR0850 Stand-alone 8 CH Digital Video Recorder (DVR).
CA100H 100’ 6pin Din Extension cable.
PACKAGE INCLUDES
1-Ball-Joint Day & Night Color Camera
1-100’ 6pin Din Cable
1-UL Approved AC Adapter
1-BNC to RCA Adapter
1-Hardware Accessories Kit
1-Instruction Manual
1-Warranty Registration Card
th
St, Cerritos, CA 90703.
