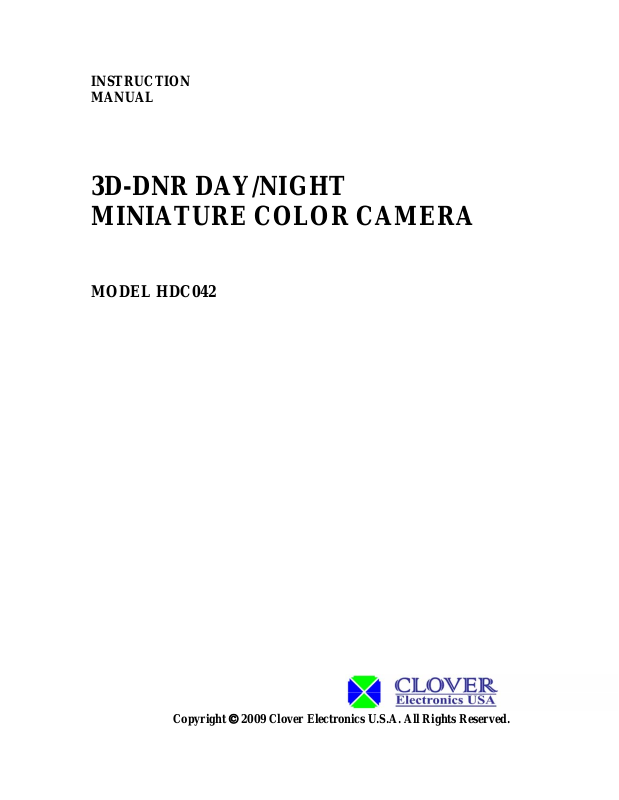

INSTRUCTION
MANUAL
3D-DNR DAY/NIGHT
MINIATURE COLOR CAMERA
MODEL HDC042
Copyright © 2009 Clover Electronics U.S.A. All Rights Reserved.
PRECAUTIONS
• To prevent fire or shock hazard, do not expose the product to rain or moisture.
• To avoid electrical shock, do not open the case of this product.
• Operate this product using only the recommended AC Power supply.
• Do not overload electrical outlets or extension cords; this can result in fire or electric
shock.
• Keep this product away from strong magnetic fields.
• Do not expose this product in direct sunlight or strong reflected rays.
• Refer servicing to qualified personnel only.
• Do not change or modify this product, the warranty will be voided.
FEATURES
• 1/3” Sony Super HAD CCD
• High Resolution 550 TV Lines (Color), 600 TV Lines (B/W)
• Day/Night Camera
• OSD (On Screen Display)
• 3D DNR (Digital Noise Reduction) with 3D filter
• D-WDR (Digital Wide Dynamic Range)
• 3.7mm Semi Cone Lens
• DC 12V Power Source
INSTALLATION
1. Attach the mounting bracket① to the wall or ceiling, wherever you want to install the
camera. Locate a wall stud or ceiling joist and secure the mounting bracket using the
supplied screws②.
2. Fix the mounting bracket① to the camera body④ with the provided screws③.
3. If necessary, change the settings to get the best images depending on your application
by using the buttons on the rear of the camera (refer to the included instruction
manual for OSD).
4. Connect the one end of BNC cable (not supplied) to the BNC (F) of 2’ cable attached
to the camera and the other end (BNC) of cable to the video devices such as DVR,
monitor/TV. Plug an AC power supply (not supplied) to the DC jack (red) on the
camera.
Note:
▪ Apply DC12V 250 mA regulated power supply (not included).
▪ To avoid fire or shock hazard, use a UL listed power supply.
TROUBLE SHOOTING
If the camera does not function properly, check the following points before contacting the
service center.
Troubles Remedies
No video Check the AC adapter and video cable
between the camera and a monitor
The image on the screen is dark Check the brightness control on the
monitor
The image on the screen is dim Check if the lens is stained. If dirty,
clean it with soft and clean cloth
The camera is not working properly, and
the surface of the camera case is hot
The contrast on the screen is too weak Adjust the contrast feature of the
The image on the screen flickers Does the camera face to directly to the
Picture rolls and jumps, scrambled
Picture smaller than screen House current may be too low
SPECIFICATIONS
• Image sensor 1/3” SONY Super HAD CCD
• Total pixels 811(H) x 508(V)
• Effective Pixels 768(H) x 494(V)
• Scanning system 2:1 Interlace
• O.S.D Available
• Backlight Off / HSBLC / BLC selectable
• Resolution 550TV Lines(color),600TV Lines(B/W)
• S/N (Y signal) 52dB (AGC Off, Weight On)
Check if you have connected the
provided AC adapter
monitor. If the camera is exposed under
too strong light, change the position
sunlight or fluorescent light? Change the
camera position
Improper V-hold control. Setting on your
monitor
• Min.illumination 0.00001Lux(sense-up x258)
• White Balance ATW / AWB / Manual / AWC→SET
• Sense-up Off / Auto / (Selectable limit x2 ~ x258)
• 3 DNR Off / On (1~50 level adjustable)
• D-WDR Indoor / Outdoor / Off
• D&N selection Color / BW / Auto
• Digital zoom On(x32) / Off
• Voltage DC12V
• Current consumption 130 mA @DC12V
• Lens
• Operating temperature/Humidity -10°C ~ +50°C. RH 95% Max.
• Storage temperature/Humidity -20°C ~ +60°C. RH 95% Max.
• Dimensions 34 (W) x 34 (H) x 30 (D) mm
• Weight 60g
3.7mm Semi Cone lens
LIMITED 2 YEAR WARRANTY
This warranty gives the original purchaser specific legal rights and you may also have
other rights, which vary from state to state. If our products do not function because of any
defect in material or workmanship, we will repair free of charges for 2 years on parts and
labor from the date of original purchase. This warranty does not cover modification,
abuse, incidental or consequential damages unless the state of owner’s residence specially
prohibits limitations on incidental or consequential damages.
HOW TO OBTAIN FACTORY SERVICE
1. Original purchaser must fill out a warranty card and mail it to the factory with model
number, serial number and the date of purchase.
2. We will repair or replace, and return to the owner the system under this limited
warranty.
3. Please pack the system carefully and securely using the original packing materials,
and send it prepaid and insured to: 13073 E. 166th St, Cerritos, CA 90703.
4. Please include a check for $15.00 to cover the cost of return postage and handling. If
the system is returned within the warranty period, please include a proof of purchase.
If the system is out of warranty, you will receive an estimate of the repair cost for
your approval before repair work will be begun.
AVAILABLE ACCESSORIES
CDR0460 Stand-alone 4 CH Digital Video Recorder (DVR)
CDR4450 Stand-alone 4 CH Digital Video Recorder (DVR)
CDR0860 Stand-alone 8 CH Digital Video Recorder (DVR)
CDR1660 Stand-alone 16 CH Digital Video Recorder (DVR)
CDR0850 Stand-alone 8 CH Digital Video Recorder (DVR)
CDR1650 Stand-alone 16 CH Digital Video Recorder (DVR)
CA100BP 100’ BNC/Power to BNC/Power Extension cable and coupler
ADT120250 AC Power Supply DC12V 250 mA Regulated
PACKAGE INCLUDES
1-Day & Night Miniature Color Camera
1-Hardware Accessories Kit
1-Instruction Manual
1-Instruction Manual for OSD Control
1-Warranty Registration Card
