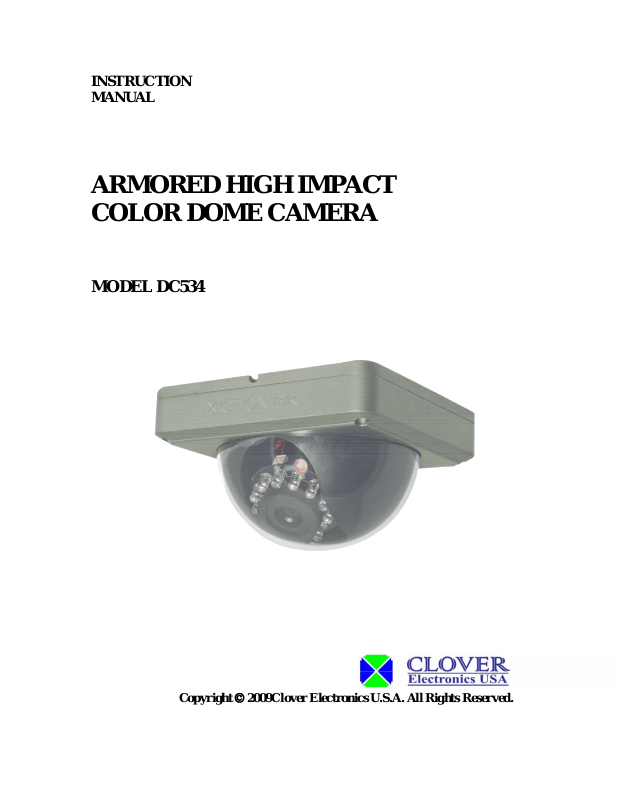

INSTRUCTION
MANUAL
ARMORED HIGH IMPACT
COLOR DOME CAMERA
MODEL DC534
Copyright © 2009Clover Electronics U.S.A. All Rights Reserved.
PRECAUTIONS
• To avoid electrical shock, do not open the case of this product.
• Operate this product using only the supplied AC Power supply.
• Do not overload electrical outlets or extension cords; this can result in fire or electric
shock.
• Keep this product away from strong magnetic fields.
• Do not expose this product in direct sunlight or strong reflected rays.
• Refer servicing to qualified personnel only.
• Do not change or modify this product, the warranty will be voided.
FEATURES
• Vandal/Weather Resistant Dome Camera
• 1/3” Sony Super HAD CCD
• 420 TV Lines of Resolution
• Rugged Steel Construction
• Total 11 Infrared LEDs with a CDS sensor
• 30’ IR range (depends on scene reflection)
• DC12V Power Source
INSTALLATION
1. Loosen the four locking screws① with provided hex-head wrench and remove the
dome④.
2. Loosen the two locking screws② with a “+”driver (not included) and then set the
desired angle of camera toward objects by moving the camera up or down.
3. Attach the mounting base to the wall or ceiling, wherever you want to install the
camera. Locate a wall stud or ceiling joist and secure the mounting base using the
supplied screws③. Attach the dome④ to the mounting base with a camera and secure
them turning the four locking screws① with provided hex-head wrench clockwise.
4. Connect the one end of 60’ cable (BNC/DC plug) to the BNC/DC jack of 3.3’
cable⑤ attached to the camera. Connect the other end (BNC/DC jack) of cable⑥ to
the video devices such as DVR, monitor/TV. Plug the provided AC adapter to the DC
jack (red: ⑦) of the end of 60’ cable.
Note:
▪ Apply the provided AC adapter only.
TROUBLE SHOOTING
If the camera does not function properly, check the following points before contacting the
service center.
Troubles Remedies
No video Check the AC adapter and video cable
between the camera and a monitor
The image on the screen is dark Check the brightness control on the
monitor
The image on the screen is dim Check if the lens is stained. If dirty,
clean it with soft and clean cloth
The camera is not working properly, and Check if you have connected the
the surface of the camera case is hot provided AC adapter
The contrast on the screen is too weak Adjust the contrast feature of the
monitor. If the camera is exposed under
too strong light, change the position
The image on the screen flickers Does the camera face to directly to the
sunlight or fluorescent light? Change the
camera position
Picture rolls and jumps, scrambled
Picture smaller than screen House current may be too low
SPECIFICATIONS
• Image pickup device 1/3” Sony Super HAD CCD, 510H x 492V
• Scanning system 525 lines, 2:1 interlace
• Horizontal resolution 520 TV lines
• Electronic Shutter speed 1/60 to 1/100,000 sec
• Sync. System Internal
• S/N ratio more than 48db (AGC off)
• Gamma characteristics 0.45
• Minimum illumination 0.1 Lux with LEDs- Off
• Video output Composite 1.0Vp-p @75 Ω
• Lens 4.3mm fixed lens
• Housing material Die cast aluminum alloy
• Dome material Polycarbonate
• Current consumption 250mA Max (LED On)
• Power supply DC 12V 500mA (Regulated)
• Operating temperature -10°C to 50°C
• Dimensions 120 (W) x 120 D) x 72 (H) mm
• Weight 1.2Lbs
Improper V-hold control. Setting on your
monitor
LIMITED 2 YEAR WARRANTY
This warranty gives the original purchaser specific legal rights and you may also have
other rights, which vary from state to state. If our products do not function because of any
defect in material or workmanship, we will repair free of charges for 2 years on parts and
labor from the date of original purchase. This warranty does not cover modification,
abuse, incidental or consequential damages unless the state of owner’s residence specially
prohibits limitations on incidental or consequential damages.
HOW TO OBTAIN FACTORY SERVICE
1. Original purchaser must fill out a warranty card and mail it to the factory with model
number, serial number and the date of purchase.
2. We will repair or replace, and return to the owner the system under this limited
warranty.
3. Please pack the system carefully and securely using the original packing materials,
and send it prepaid and insured to: 13073 E. 166th St, Cerritos, CA 90703.
4. Please include a check for $20.00 to cover the cost of return postage and handling. If
the system is returned within the warranty period, please include a proof of purchase.
If the system is out of warranty, you will receive an estimate of the repair cost for
your approval before repair work will be begun.
AVAILABLE ACCESSORIES
CDR4450 Stand-alone 4 CH Digital Video Recorder (DVR)
CDR0460 Stand-alone 4 CH Digital Video Recorder (DVR)
CDR1650 Stand-alone 16 CH Digital Video Recorder (DVR)
CDR0850 Stand-alone 8 CH Digital Video Recorder (DVR)
CA100BP 100’ BNC/DC Power Extension cable and coupler
PACKAGE INCLUDES
1-True Day & Night Color Camera
1-60’ BNC/DC Power Cable
1-UL Approved AC Adapter
1-BNC to RCA Adapter
1-Hardware Accessories Kit
1-Instruction Manual
1-Warranty Registration Card
