Clover Electronics C12E User Manual

TABLE OF CONTENTS

1. SPECIFICATION & PARTS

IDENTIFICATION .............................................................................2

2. OPERATION & FUNCTION OF

PARTS....................................................................................3, 4

A. Cooling Operation

B. Function of Parts

3. LOCATION

REQUIREMENTS.......................................................................................................4

4. INSTALLATION

PROCEDURES ..................................................................................................5

5.

STORAGE.......................................................................................................……………………..5

6.

CLEANING ..................................................................................................……………………….6

7. TROUBLESHOOTING GUIDE..............................................................................………..…....7,

8

8. WIRING

DIAGRAM………………………….........................................................………..…….......9

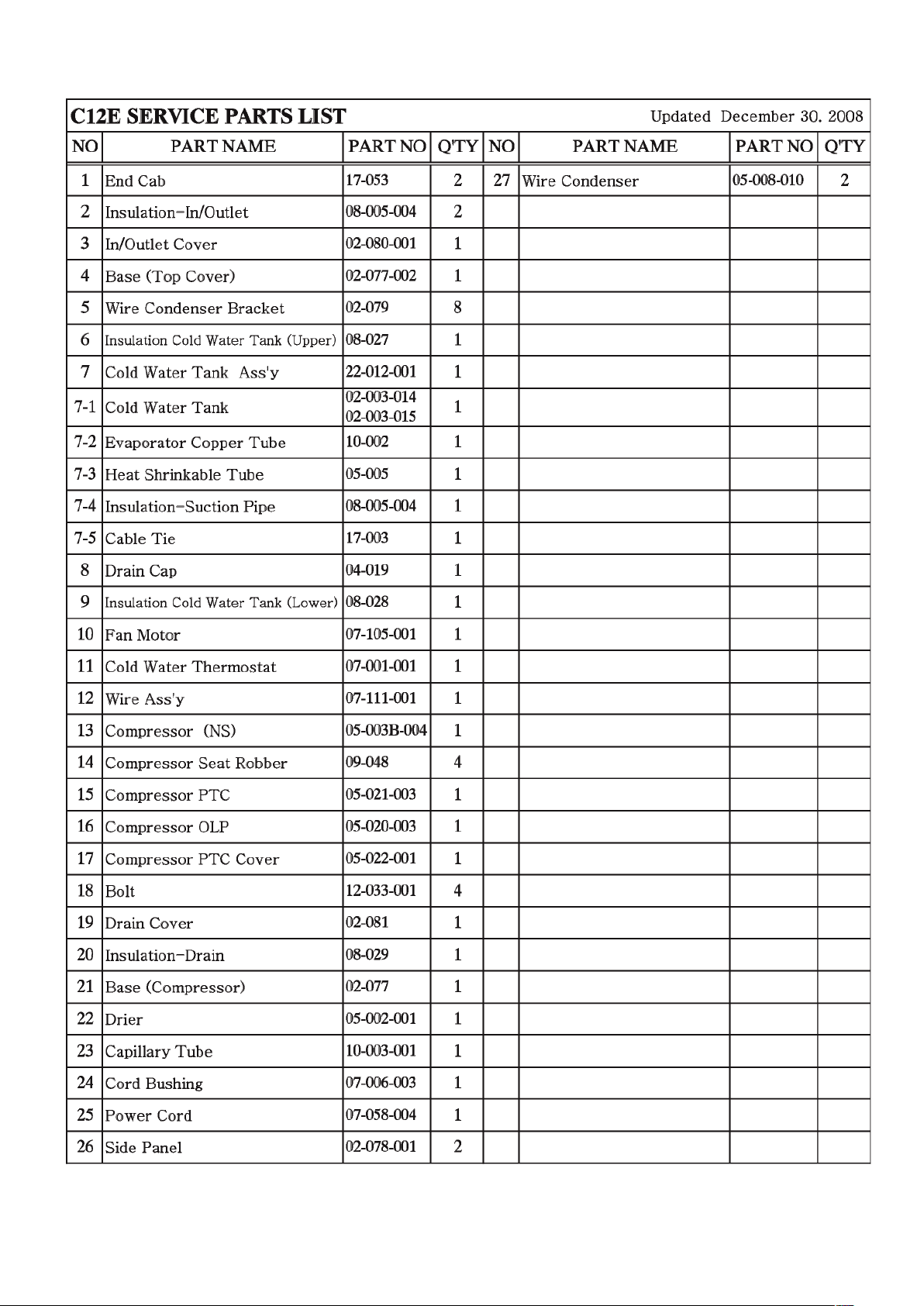

9. EXPLODED VIEW & SERVICE PARTS LIST

A. C12E..................................................................................................................................10,

11

FOR YOUR SAFETY

Please read the following safety precaution before servicing the watercooler.

1) Check if an electric leakage occurs in the appliance.

2) To prevent electric shock, unplug prior to servicing.

3) In case of testing with power on, wear rubber gloves to prevent electric shock.

4) When using an instrument or replacing a part for repairing, check it is applied to

rated voltage current and capacity.

5) Prevent water from flowing into electric elements in mechanical parts.

6) When carrying or tilting the appliance, remove all the objects on it.

7) If the cooling cycle is out of order, contact nearest authorized service center for

maintenance, repair and adjustment.

1. SPECIFICATION & PARTS IDENTIFICATION

MODEL

C12E (CHILLER)

DIMENSION

410W×210D×290H(mm)

WEIGHT

12.5kg

CONSUMPTION

120W

TEMP CONTROL

AUTO

TANK

Stainless Steel

COLD

CAPACITY

5.0 ℓ/h (10)

ELECTRICAL

220-240V, 50/60Hz. 110-127V, 50/60Hz.

Check the available power supply against the watercooler data plate to assure correct electrical service.
