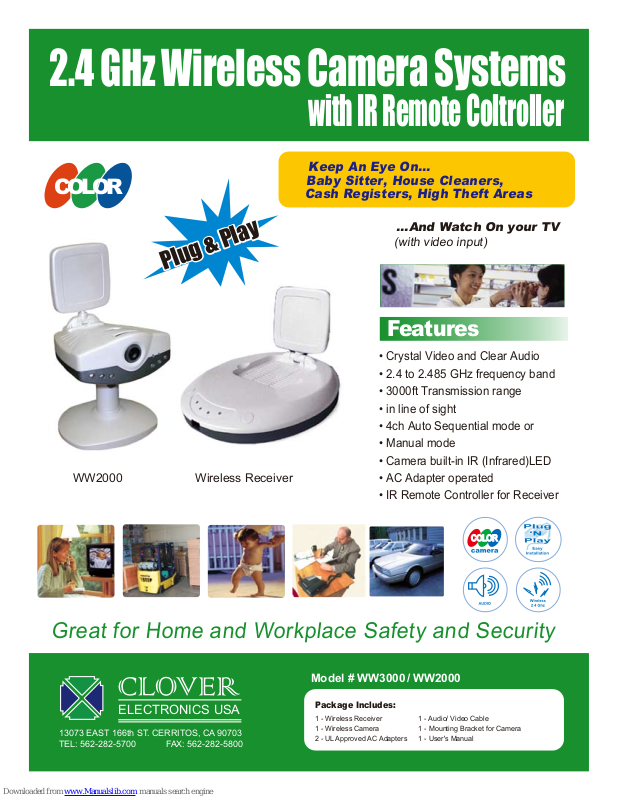

Clover WW2000, WW3000R, WW3000 Specifications
2.4 GHz Wireless Camera Systems
COLOR
ELECTRONICS USA
13073 EAST 166th ST. CERRITOS, CA 90703
TEL: 562-282-5700 FAX: 562-282-5800
with IR Remote Coltroller
Keep An Eye On...
Baby Sitter, House Cleaners,
Cash Registers, High Theft Areas
...And Watch On your TV
(with video input)
Plug & PlayPlug & Play
Features
• Crystal Video and Clear Audio
• 2.4 to 2.485 GHz frequency band
• 3000ft Transmission range
• in line of sight
• 4ch Auto Sequential mode or
• Manual mode
• Camera built-in IR (Infrared)LED
WW2000
Wireless Receiver
• AC Adapter operated
• IR Remote Controller for Receiver
Great for Home and Workplace Safety and Security
Model # WW3000 / WW2000
Package Includes:
1 - Wireless Receiver
1 - Wireless Camera
2 - UL Approved AC Adapters
1 - Audio/ Video Cable
1 - Mounting Bracket for Camera
1 - User's Manual
2.4 GHz Wireless Camera Systems
COLOR
with IR Remote Coltroller
Specifications
Output Level
Operation Frequency Band
Modulation
Video Output Level
Audio Output Level
Video Output Impedance
Audio Output Impedance
Image Device
Number of Pixels
Scanning System
Sync System
Resolution
Usable Illumination
S / N Ratio
Gamma Characteristics
Electronic Shutter Speed
Lens
Microphone
Power Supply
Weight
90db Microvolts / meter at 3 meter
2.4 to 2.485 GHz
FM (video and audio)
1V p-p
1V p-p
75 Ohm
600 Ohm/td>
1/3" Color CCD Sensor
512 lines (H) x 492(V) (NTSC)
512 lines (H) x 582(V) (PAL)
525 lines, 60 fields/sec (NTSC)
625 lines, 50 fields/sec (PAL)
Internal Sync
330(H) x 350(V) TV lines (NTSC)
330(H) x 380(V) TV lines (PAL)
1 Lux (F1.4 10 IRE)
More than 45 db
0.45
1/60-1/100,000 sec (NTSC)
1/50-1/100,000 sec (PAL)
92∑ (3.6mm) Wide Angle Lens
Condenser
12V DC, 1.4A AC adapter
2.5Kgs
Great for Home and Workplace Safety and Security
