Clover VDP1300 Setup Manual
2
3
1
4
5
6
7
8
9
10
11

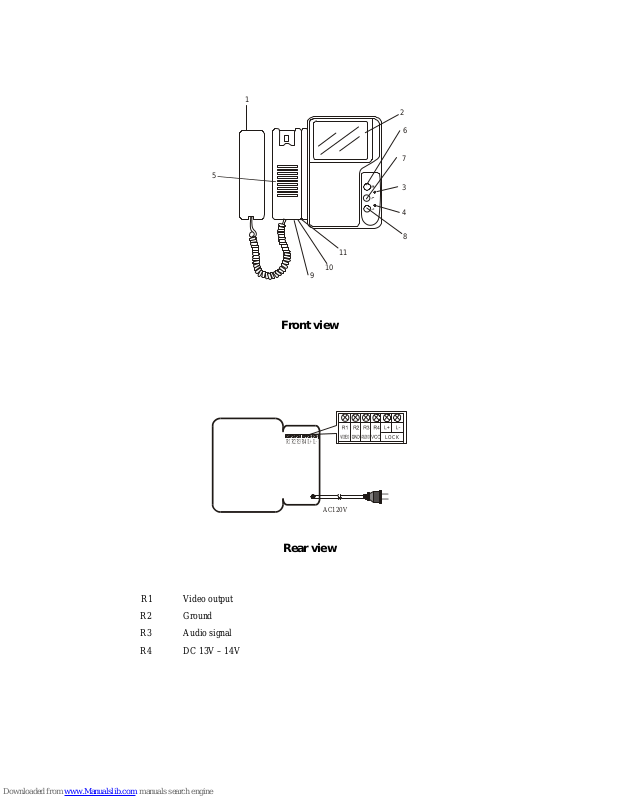

Front view
LOCK
AC120V
Rear view
R1 Video output
R2 Ground
R3 Audio signal
R4 DC 13V – 14V
1. Handset 6. Monitor Button
Lift to communicate
with your visitors.
Press this button to view the picture from
the camera
2. 4” flat CRT 7. Call Button (intercom function)
Press this button to communicate with
monitor 2 or monitor 3
3. Power Lamp
(Green)
8. Door Release Button
Indicate if the system
is on or off
Release the door to let your visitors
come in after viewing them
4. Operation Lamp
(Green)
9. Volume
Light on indicates
operating
Adjustment of the call sound volume
5. Speaker 10. Brightness
Broadcasts the voice
from the visitor
Adjustment for image brightness
11. Contrast
Adjustment for image contrast
OUTDOOR CAMERA
1
2
3
4
5
2
3
1
4
5
6
7
8
9
10
11
