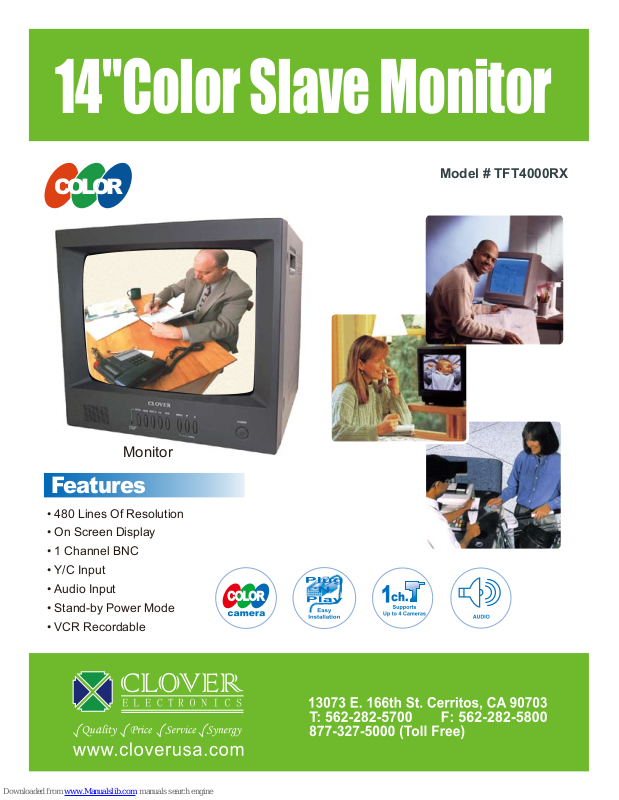

Clover TFT4000RX Specifications

14"Color Slave Monitor

COLOR

Model # TFT4000RX

Monitor

Features

• 480 Lines Of Resolution

• On Screen Display

• 1 Channel BNC

• Y/C Input

• Audio Input

• Stand-by Power Mode

• VCR Recordable

14"Color Slave Monitor

COLOR

Model # TFT4000RX

Specifications

System

Picture Tube

Video Input

Scanning system

Video Output

Input Impedance

Audio Input
Audio Output
Convergence

AC Power Source

Power Consumption

Humidity

Operating Temperature

Dimensions

Weight

NTSC: 525 lines, 60 fields/sec
PAL: 625 lines, 50 fields/sec

14" diagonal, deflection angle 90∑

composite video 1Vp-p
video signal: 0.714Vp-p,
sync signal 0.3Vp-p
EIA; 525 lines, 60 fields/sec
CCIR; 625 lines, 50 fields/sec
composite video 1Vp-p
75 ohms and high

-5dbu, high impedance

1.2W
less than 1.4mm at center
AC 100V to 230V 50/60HZ
60W max.
0 to 90%(non-condensing)

32∑ F to 104∑ F (0∑ C to 40∑ C)

14.4"(W) x 13.3"(H) x 15.1"(D)
27lbs (12kg)
