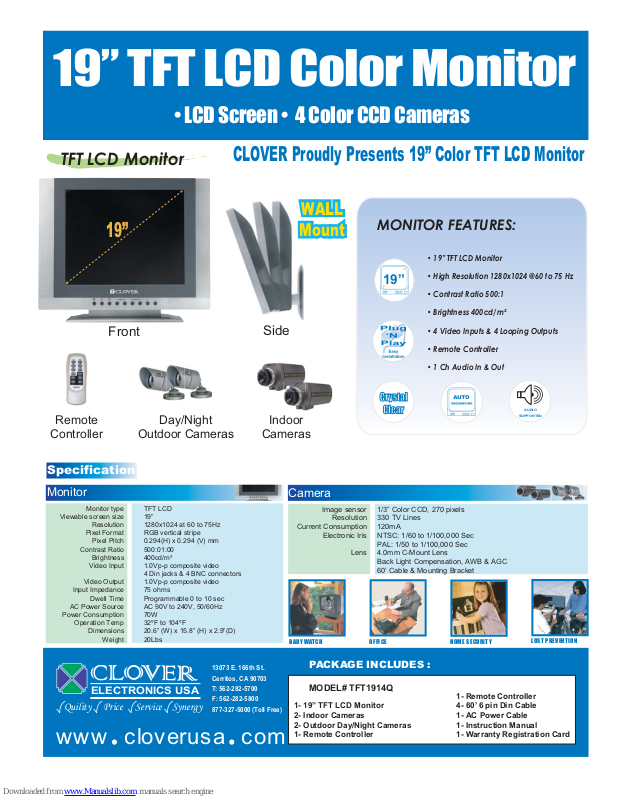

Clover TFT1914Q Specifications

19” TFT LCD Color Monitor

WALL

Mount

Crystal

Clear

• LCD Screen • 4 Color CCD Cameras

TFT LCD Monitor

19”

Front

Remote

Controller

Day/Night

Outdoor Cameras

CLOVER Proudly Presents 19” Color TFT LCD Monitor

WALL

Mount

Side

Indoor

Cameras

MONITOR FEATURES:

• 19” TFT LCD Monitor

19”

• High Resolution 1280x1024 @60 to 75 Hz

• Contrast Ratio 500:1

• Brightness 400cd/m²

• 4 Video Inputs & 4 Looping Outputs

• Remote Controller

• 1 Ch Audio In & Out

AUDIO

SUPPORTED

Specification

Monitor

Monitor type TFT LCD

Viewable screen size 19”

Resolution 1280x1024 at 60 to 75Hz

Pixel Format RGB vertical stripe

Pixel Pitch 0.294(H) x 0.294 (V) mm

Contrast Ratio 500:01:00

Brightness 400cd/m²

Video Input 1.0Vp-p composite video

4 Din jacks & 4 BNC connectors

Video Output 1.0Vp-p composite video

Input Impedance 75 ohms

Dwell Time Programmable 0 to 10 sec

AC Power Source AC 90V to 240V, 50/60Hz

Power Consumption 70W

Operation Temp 32ºF to 104ºF

Dimensions 20.6” (W) x 15.8” (H) x 2.9”(D)

Weight 20Lbs

ELECTRONICS USA

Quility Price Service Synergy

13073 E. 166th St.

Cerritos, CA 90703

T: 562-282-5700

F: 562-282-5800

877-327-5000 (Toll Free)

www cloverusa com

Camera

Image sensor 1/3” Color CCD, 270 pixels

Current Consumption 120mA

BABY WATCH

1- 19” TFT LCD Monitor
2- Indoor Cameras
2- Outdoor Day/Night Cameras
1- Remote Controller

Resolution 330 TV Lines

Electronic Iris NTSC: 1/60 to 1/100,000 Sec

PAL: 1/50 to 1/100,000 Sec

Lens 4.0mm C-Mount Lens

Back Light Compensation, AWB & AGC
60’ Cable & Mounting Bracket

OFFICE

PACKAGE INCLUDES :

MODEL# TFT1914Q

HOME SECURITY

1- Remote Controller
4- 60’ 6 pin Din Cable
1- AC Power Cable
1- Instruction Manual
1- Warranty Registration Card

LOST PREVENTION
