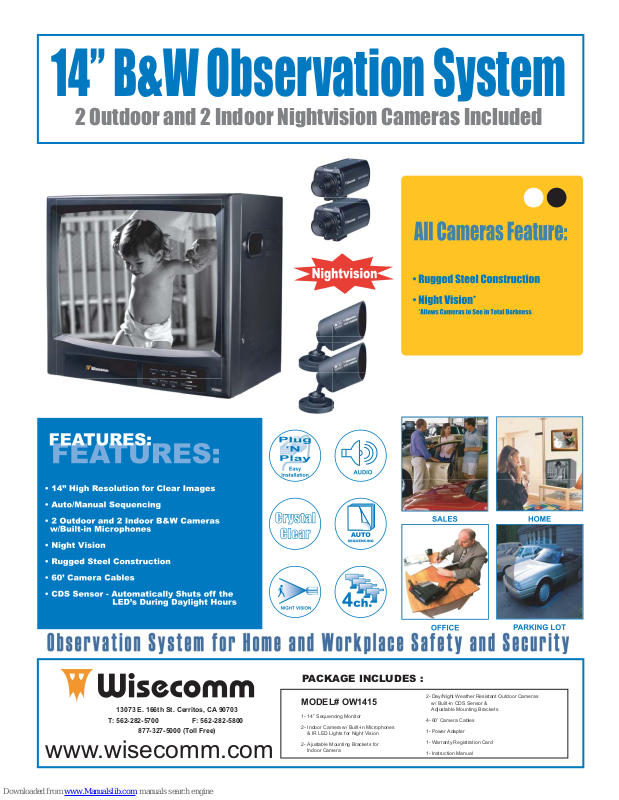

Clover OW1415 Specifications

14” B&W Observation System

2 Outdoor and 2 Indoor Nightvision Cameras Included

13073 E. 166th St. Cerritos, CA 90703

T: 562-282-5700 F: 562-282-5800

877-327-5000 (Toll Free)

www.wisecomm.com

PACKAGE INCLUDES :

MODEL# OW1415

1- 14” Sequencing Monitor

2- Indoor Camera w/ Built-in Microphones
& IR LED Lights for Night Vision

2- Ajustable Mounting Brackets for
Indoor Camera

2- Day/Night Weather Resistant Outdoor Cameras
w/ Built-in CDS Sensor &
Adjustable Mounting Brackets

4- 60’ Camera Cables

1- Power Adapter

1- Warranty Registration Card

1- Instruction Manual

14” B&W Observation System

Monitor Camera

Picture tube
System
Horizontal resolution
Video inputs

Video output

Audio input

Audio output

Dwell time
Power supply
Operating temperature
Dimensions
Weight

SPECIFICATIONS

14” diagonal, deflection angle 90º
EIA 525 lines, 60 fields/sec
450 TV lines
1Vp-p composite video signal
4 ports of 4pin Din, 1 RCA for VCR
1Vp-p composite video signal
1 RCA for VCR
1Vp-p audio signal
1 RCA for VCR
1Vp-p audio signal
1 RCA for VCR
Approx. 2 to 20 seconds
AC 120V, DC 18V 2.4A
32º F to 104º F

12.5”(W) x 13”(D) x 12”(H)
25 Lbs

Image sensor
TV system
No. of pixels

Scanning system
Sync system
Resolution
Minimum illumination
S/N ratio
Gamma characteristics
Video output
Electronic shutter speed

Audio
Lens
Current consumption
Power supply
Operational temperature

1/3” B/W CCD Sensor
EIA, CCIR
EIA: 512(H) x 492(V)
CCIR: 500(H) x 582(V)
2:1 Interlaced
Internal
380 TV lines
Indoor camera w/8 IR LEDs: 0 Lux at 20’
Outdoor camera w/12 IR LEDs: 0 Lux at 30’
More than 46db

0.45

1.0Vp-p composite, 75 ohms
EIA: 1/60 to 1/100,000sec
CCIR: 1/50 to 1/100,000sec
1 way available on Indoor camera

3.6mm
110 mA
DC 12V

-10°C to 50°C RH95% Max
