Clover OW1202 Setup Manual

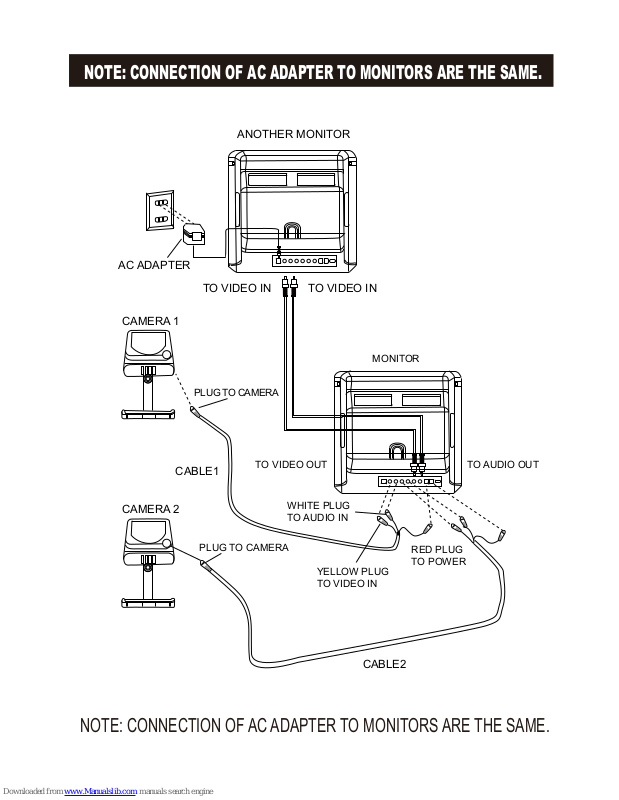

NOTE: CONNECTION OF AC ADAPTER TO MONITORS ARE THE SAME.

NOTE: CONNECTION OF AC ADAPTER TO MONITORS ARE THE SAME.

CAMERA 1

TO VIDEO IN

AC ADAPTER

TO VIDEO IN

ANOTHER MONITOR

CAMERA 2

CABLE1

CABLE2

PLUG TO CAMERA

YELLOW PLUG
TO VIDEO IN

RED PLUG
TO POWER

TO VIDEO OUT

WHITE PLUG
TO AUDIO IN

TO AUDIO OUT

MONITOR

PLUG TO CAMERA

DESCRIPTION OF CONTROLS

MONITOR UNIT

FRONT VIEW

1. Compartment door

2. Compartment open/close position

3. Channel 1 indicator

4. Channel 2 indicator

5. Auto switching indicator

6. Power on indicator

7. Power on/off button

8. Power off indicator

FRONT VIEW (AFTER OPENING THE COMPARTMENT DOOR)

1. Time selecting knob

2. V-hold control knob

3. Brightness control knob

4. Contrast control knob

5. Volume control knob

6. Channel switcher

7. Compartment open/close position

8. Channel 1 indicator

9. Channel 2 indicator

10. Auto switching indicator

11. Power on indicator

12. Power on/off button

13. Power off indicator

REAR VIEW

1. DC power input jack

2. Video in jack

3. Audio in jack

4. Video in jack

5. Audio in jack

6. Video out jack

7. Audio out jack

8. DC power input jack for camera

9. DC power input jack for camera

10. 50/60Hz switcher

11. Speaker button

FRONT VIEW

REAR VIEW

1 2 3 4 5 6 7 8 9 10

1 2 3 4 5 6 7 8 9 10 11 12 13

1 2

3 4 5

6 7 8
