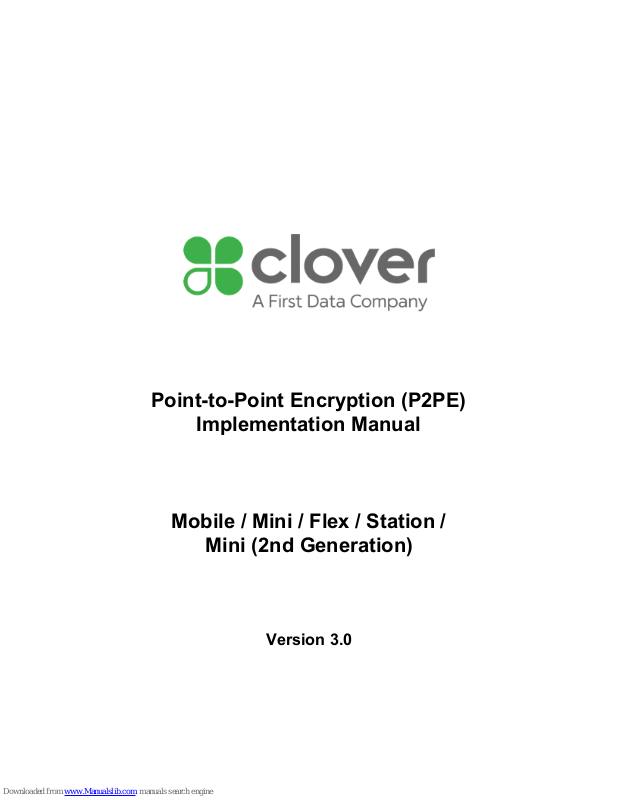

Point-to-Point Encryption (P2PE)

Implementation Manual

Mobile / Mini / Flex / Station /

Mini (2nd Generation)

Version 3.0



1. P2PE Solution Information and Solution Provider Contact Details

1.1 P2PE Solution Information

Solution name:

Clover Mobile / Mini / Flex / Station / Mini (2nd Generation)

Solution reference number per PCI SSC website:

2017-00893.001

1.2 Solution Provider Contact Information

Company name:

Clover Network, Inc.

Company address:

415 N. Mathilda Ave., Sunnyvale, CA 94085

Company URL:

www.clover.com

Contact name:

Customer Support

Contact phone number:

(855) 853-8340

Contact e-mail address:

support@clover.com

P2PE and PCI DSS

Merchants using this P2PE Solution may be required to validate PCI DSS compliance and should be aware of their applicable PCI DSS requirements. Merchants should contact their acquirer or payment brands to determine their PCI DSS validation requirements.



2. Approved POI Devices, Applications/Software, and the Merchant Inventory

2.1 POI Device Details

The following information lists the details of the PCI-approved POI devices approved for use in this P2PE solution.

Note all POI device information can be verified by visiting:

https://www.pcisecuritystandards.org/approved_companies_providers/approved_pin_transaction_security.php

POI device vendor:

Clover Network, Inc.

POI device model name and number:

● Clover Mobile

● Clover Mini

● Clover Flex

● Clover Station

● Clover Station Printer with customer facing

contactless payments

● Clover Mini (2nd Generation)

Hardware version #(s):

● 1.0

● 1.xx

● 3.xx

Firmware version #(s):

● 1.0 1.0

● 1.1 1.0

● 0 01.xx.xxxx 01.xx.xxxx (01.xxxxx)

● 0 01.xx.xxxx 01.xx.xxxx

● 0 01.xx.xxxx 01.xx.xxxx (01.xxxxx)

● 0 02.XX.XXXX 02.XX.XXXX (01.XXXXX)

PCI PTS Approval #(s):

● 4-40156

● 4-40158

● 4-40209

● 4-30298

● 4-30302

● 4-10248

2.2 POI Software/application Details

The following information lists the details of all software/applications (both P2PE applications and P2PE non-payment software) on POI devices used in this P2PE solution.



Note that all applications with access to clear-text account data must be reviewed according to Domain 2 and are included in the P2PE solution listing. These applications may also be optionally included in the PCI P2PE list of Validated P2PE Applications list at vendor or solution provider discretion.

Application

vendor,

name and

version #

POI device

vendor

POI device model

name(s) and

number:

POI Device

Hardware &

Firmware Version #

Is application

PCI listed?

(Y/N)

Does application

have access to

clear-text

account data

(Y/N)

N/A

All Clover devices are out of scope for Domain 2 since all cardholder data is encrypted at swipe,

dip, or tap (SRED). No payment card data is ever stored in any application and is only

processed by the firmware of the device.

2.3 POI Inventory & Monitoring

▪ All POI devices must be documented via inventory control and monitoring

procedures, including device status (deployed, awaiting deployment, undergoing repair or otherwise not in use, or in transit).

▪ This inventory must be performed annually, at a minimum. ▪ Any variances in inventory, including missing or substituted POI devices, must be

reported to Clover Network, Inc. via the contact information in Section 1.2 above.

▪ Sample inventory table below is for illustrative purposes only. The actual inventory

should be captured and maintained by the merchant in an external document.

Merchants can keep track of all devices using the Clover Web Management Dashboard. Using the Dashboard, all registered Clover devices will appear in their Devices tab in their

Dashboard. From here, they can regularly manage their inventory and keep track of them.



Merchants may also use an Inventory tracking spreadsheet to keep track of all their devices similar to this sample below:

Sample Inventory Table

Device vendor

Device model

name(s) and number:

Device Location

Device Status

Serial Number or

other Unique

Identifier



3. POI Device Installation Instructions

Do not connect non-approved cardholder data capture devices.

The P2PE solution is approved to include specific PCI-approved POI devices. Only these devices denoted above in table 2.1 are allowed for cardholder data capture.

If a merchant’s PCI-approved POI device is connected to a data capture mechanism that is not PCI approved, (for example, if a PCI-approved SCR was connected to a keypad that was not PCI-approved):

▪ The use of such mechanisms to collect PCI payment-card data could mean that more PCI DSS

requirements are now applicable for the merchant.

▪ Only P2PE approved capture mechanisms as designated on PCI’s list of Validated P2PE Solutions and

in the PIM can be used.

Do not change or attempt to change device configurations or settings.

Changing or attempting to change device configurations or settings will invalidate the PCI-approved P2PE solution in its entirety. Examples include, but are not limited to:

▪ Attempting to enable any device interfaces or data-capture mechanisms that were

disabled on the P2PE solution POI device

▪ Attempting to alter security configurations or authentication controls ▪ Physically opening the device ▪ Attempting to install applications onto the device

3.1 Installation and connection instructions

Activate & Connect your Clover Mobile



Set up the Hardware

Plug in the cables for your Clover Device

1. Plug in Clover Mobile’s USB outlet to a nearby wall outlet

2. Plug in Clover Mobile’s microUSB connector to the Clover Mobile port

3. Press and hold the Power button to turn on Clover Mobile. You will know Clover Mobile is on when the Clover logo appears on the front screen.



Connect Clover Mobile to a Network

Activate Device via 3G

1. Once your Clover Mobile has started, select your primary language that you would like Clover to be set up in.

2. You will then be taken to the Network connection screen. Please wait about a minute for the SIM card to wake up and for the SIM card to verify that it’s connected to the 3G network

3. Tap Next.



Activate Device via Wi-Fi

1. Once your Clover Mobile has started, select your primary language that you would like Clover to be set up in.

2. You will then be taken to the Network connection screen. Tap Wi-Fi.



3. Select your wireless network from the list of available wireless networks.

4. Enter in your wireless network password.

NOTE

If you do not see your Wi-Fi network name, you may have a WEP or open access network. Please connect your Clover Mobile to a WPA or WPA2 network for PIC compliance reasons.



Updating Clover Software during device setup

After Clover Mobile connects to the network for the first time, it will need to download and install the latest version of Clover. Your Clover Mobile will then automatically reboot. Depending on the device, you may need to install a second download.

Activate your Clover Mobile

Locate & enter your activation code

Install the Apps in the App Market

Install apps and access the App Market

1. After entering your activation code, Clover Mini may prompt you with a few questions about your business. Please answer them the most accurately, so Mini can be automatically set up with settings that are best for your business needs.

2. After answering these questions, your apps should begin installing. Please wait until the install process is complete.



Pair with Mobile Printer

Optionally pair with Clover Mobile Printer

After you complete initial setup, you have the option to pair your Clover Mobile printer and customize your device.

If you have a Clover Mobile Printer on hand, let’s pair it now:

1. Tap Next to begin

2. Load paper in your Clover Mobile printer by opening the Clover Mobile Printer and inserting the included paper roll.

NOTE

At this stage, you can also make a note of the last 4 digits of the Clover Mobile Printer’s Serial

Number.

3. Turn your Clover Mobile Printer on by pressing and holding the power button on its underside

4. After the Clover Mobile device detects nearby Clover Mobile Printers, tap Pair under Clover Mobile printer that you would like to pair with (the last 4 digits of



the Clover Mobile Printer’s Serial Number should display on the screen). The Clover Mobile should print out a pairing code.

5. Use your Clover Mobile device to scan the pairing code that is printed out from the Mobile Printer to complete the pairing process. You should see that your Mobile Printer was paired successfully.

NOTE

To scan, press and hold down on Clover Mobile’s trigger.



6. (Optional) You can Test the printer by tapping Test Printer to ensure that the Clover Mobile Printer can receive print requests from your Clover Mobile device

7. Tap Done



NOTE

If you would not like to pair your Clover Mobile with your Clover Mobile Printer at this time, tap Skip instead

Customize Your Device

Customize your device We will be customizing your device for the first time. Remember, you can always make

changes to these settings in the Setup app.

Customize your device with the following questions:

1. Do you want to require a PIN to unlock your device?

● Yes, require a PIN – We recommend for you to require a PIN to unlock your

device for added security and reporting benefits. Every employee should have a PIN

● No, don’t require a PIN – For terminal parity, we created an option for you not

to require a PIN upon entry. However, we recommend for you to require your employees to PIN into your Clover Mobile

2. Where do you want to take tips and signatures?

● On tablet screen – If you are tip enabled, you can choose to have your

customers sign on screen as necessary for transactions

● On printed receipt – If you are tip enabled, you can choose to have your

customers sign on a the printed receipt as necessary for transactions

3. Tap Continue to complete customization



Activate & Connect your Clover Mini/Clover Mini (2nd Generation)



Activate & Connect your Clover Flex



Activate & Connect your Clover Station



Note: Only PCI-approved POI devices listed in the PIM are allowed for use in the P2PE solution for account data capture.

3.1.a Guidance for Checking Mode for P2PE Validation



1. For all devices, from the main screen, tap Settings:

2. Tap, “About (device)” (Clover Station shown):

3. View version numbers:



4. After the firmware version number, it will display “SRED Enabled” in order to be P2PE

validated.

3.2 Guidance for selecting appropriate locations for deployed devices

Device Management

NOTE

The Devices section in the Setup app can only be viewed by the account owner. You must be logged into the Web Dashboard with the email assigned to the owner of this account.

Add or change your device name

You can use the Setup app to give your Clover device a name, or edit an existing name. This is helpful if you have multiple Clover devices and use them for different purposes.

The names will show up in the Reporting app , making it easier to track down orders and payments by device.

For example, a fast food restaurant might name their devices “Counter” and “Drive-Thru.”

NOTE

You can only access Setup app > Devices on Web Dashboard if you are the account owner. You must log into Web Dashboard using the email assigned to the account owner.

To change your device name:

1. Open Setup app

2. Tap Devices

3. Tap the device you want to edit

4. Enter your desired name in the Name field



5. Tap Save to finalize your changes

Set an order title prefix to easily distinguish orders from different devices

AVAILABLE ONLY ON REGISTER PLAN

This feature is only available on Register Plan. Learn about our Service Plans.

Use the Setup app to assign custom order title prefixes to your Clover devices. The custom prefix assigned to your devices help to distinguish which order came from which device.

For example, a fast food restaurant with two Clover devices for order-taking might use the prefix “L” for the device on the left side of the counter, and R for the right side; the order numbers will be R25 and L25. Or, a restaurant with a Clover device at their Bar and a second in their Patio might use prefixes “B” for Bar and “P” for Patio.

NOTE

You can only access Setup app > Devices on Web Dashboard if you are the account owner. You must log into Web Dashboard using the email assigned to the account owner.

You must have order numbers set to automatic for custom prefixes to work.

To set an order title prefix:

1. Open Setup app

2. Tap Devices

3. Select the device you want to edit



4. Enter a prefix in the Order title prefix field

5. Tap Save

3.3 Guidance for physically securing deployed devices to prevent unauthorized removal or substitution

Merchants can view all their deployed Clover devices to ensure they have kept track of their inventory through the Clover Web Dashboard. Once they log in, they can see all deployed devices. Clover devices such as the Mobile and Flex are handheld devices, however, they can be physically secured to a table or desk with the use of the optional Clover Dock.



In the event a Clover device is lost or stolen, they can remotely activate a factory reset.

For lost or stolen devices:

How do I report a stolen device?



You can report a device as stolen by calling Clover Customer Support. You can find the Clover Customer Support number by logging into your merchant dashboard. It is displayed at the top right corner of the screen. You can also send an email to support@clover.com. (For more information, see: How do I contact Clover Customer Support.)

How can I order a replacement device?

When you report a device stolen by calling Clover Customer Support, the Customer Support agent will help order a replacement device.

How soon will I get a new device?

This may vary based on specific contract plans/resellers, but replacement devices are usually received within 24-48 hours after Customer Support initiates a replacement.

Can someone else use my stolen device?

Once your device is marked as stolen in Clover’s system, no one else will be able to use your device. However, if your device is not Password protected, or someone is able to log into your device before you report your device stolen or before the device becomes marked as stolen, they could use your device.

NOTE

It is recommended that a unique Passcode be set for each employee, manager and owner to access your device(s). This also enables tracking of employee activity if needed. (see how to Create / Edit Employee Information)

Can I disable my stolen device on my own?

Unfortunately, there is no way for you to disable your stolen device on your own. When you call Customer Support, Clover will disable your stolen device.

Is my information safe?

Unique employee, owner, and manager Passcodes will help keep your information from being accessed without your permission. Once a device is marked as stolen, all information associated with the merchant account (i.e., orders, payments, reporting, settings, etc.) will be wiped from the device. Account information remains intact.

What if an employee Passcode was not required? What information will be open to the thief?

Any information or actions that the employees or the employee role has permission to view and do would be available to the thief until the device is reported stolen.



Factory reset a Clover device

There are two different ways to factory reset your Clover device:

● Use the Setup app

● Use Settings app

IMPORTANT

Do NOT factory reset a Clover device unless you are instructed to do so by Clover Customer Support. When you factory reset a Clover device, you won’t be able to use it until you get a new activation code from Clover. Your original activation code will not work.

If you factory reset your Clover device, any transactions stored on it while offline will be deleted and the associated payments will not be processed.

To factory reset a Clover device using the Setup app:

NOTE

You can only access Setup app > Devices on Web Dashboard if you are the account owner. You must log into Web Dashboard using the email assigned to the account owner.

1. Open Setup app

2. Tap Devices

3. Select the device you want to factory reset

4. Tap Factory Reset

To factory reset a Clover device using Settings:

1. Open Settings

● Alternatively, you can swipe downwards from the top right part of your Clover

device screen to select Settings



2. Tap Backup & reset

3. Tap Factory data reset

4. Tap Reset tablet to confirm factory reset



POI Device Transit

4.1 Instructions for securing POI devices intended for, and during, transit

Integrity Protections of Devices in Transit

● In addition to anti-tamper seal tape, there are additional protections while in transit.

● To ensure devices are not tampered en route from the manufacturer to the distribution facility (e.g. TASQ or Quanta), we can perform the following operation as a "tamper-evident seal".

● Before the device leaves the assembly line, it is to be put in "Manufacturing Transit Mode". The device is issued a X509 certificate and the private key is stored in SP secure memory. If the device is tampered, the private key is erased.

● At the secure room (e.g. TASQ or Quanta) in the provisioning step, we verify the manufacturing certificate and issues certificates to both the Application Processor and Secure Processor.

4.2 Instructions for ensuring POI devices originate from, and are only shipped to, trusted sites/locations

Clover is sold by our trusted partners including Clover Connect, Ignite Payments, Restaurant Depot, and Sam’s Club. You’ll also find Clover at leading US Banks, such as Bank of America, BBVA, Citi, PNC, Sun Trust and Wells Fargo. More than 3,000 other First Data partners also sell Clover solutions in the US.

Do not purchase any Clover devices online or from an untrusted source or website. Only trusted partners and ISVs can properly activate Clover device for merchants. In order to request a return (RMA), please contact Clover support at: (855) 853-8340.



5. POI Device Tamper Monitoring and Skimming Prevention

5.1 Instructions for physically inspecting POI devices and preventing skimming, including instructions and contact details for reporting any suspicious activity

Additional guidance for skimming prevention on POI terminals can be found in the document entitled Skimming Prevention: Best Practices for Merchants, available at

www.pcisecuritystandards.org.

● Visual inspection o Before using the device, the user must conduct a regular inspection to check for

evidence of tampering. The following is a partial list of procedures. Check the PCI website for the latest best practices.

▪ Exterior should show no evidence of cutting or disassembly. ▪ No evidence of unusual wires or overlays connected inside the ICC slot

nor on or near the PIN entry area.

▪ No changes to the resistance when inserting or removing a card from

the ICC slot.

5.2 Instructions for responding to evidence of POI device tampering

There are three potential screens that you may see if your Clover Mobile or Clover Mini device detects a tamper:

● In the Setup Wizard, you may be automatically directed to the Get Help screen with the

error “Device tampered, return to manufacturer”



● In the Setup Wizard, in a rare case you may also see a “Tamper Detected” screen

● If the device detects a tamper after you have activated your device, it will display the

following error in the Sale , Refund , Voice Auth , Phone Sale



, Authorization , etc. apps: “TRANSACTION FAILED: DEVICE NOT INITIALIZED, RETURN TO MANUFACTURER”

What does it mean if my device has been tampered?

PCI dictates that PIN-entry devices like Clover Mobile and Clover Mini need to detect if they have been tampered, and if so, lock the ability to take transactions. This can happen for a number of reasons, such as a credit card skimmer is applied to the device or someone has attempted to break the device open. This can also happen if the device is dropped hard enough during shipment or by the merchant or a customer. Mobile and Mini will automatically detect if they have been tampered and if so, will no longer accept payments. This is for your

protection.

What should I do if my device has been tampered?

If any of these screens appear on your Clover Mobile or Clover Mini, it is very important to replace the device as soon as possible. The device should be considered with limited functionality.

You may still be able to take the following payments:

● Credit swipe payment

● EMV chip-insert with signature payment

You will NOT be able to take the following payments:



● Debit swipe payment

● EMV chip-insert with PIN entry payment

NOTE

You should receive an email immediately on Clover detecting the tamper that you have new units being shipped to you. If you did not receive an email, please contact Customer Support immediately in order to return the affected device and receive a replacement device as soon as possible.

5.3 Instructions for confirming device and packaging were not tampered with, and for establishing secure, confirmed communications with the solution provider

Merchants should inspect their Clover Mini / Mobile / Flex to ensure the package has not been opened or tampered with. The box should be sealed and all contents should include the following:

For Clover Mini:



For Clover Mobile:

For Clover Flex:



For Clover Station:



How do I contact Clover Customer Support?

IMPORTANT

Your Clover Customer Support phone number is based on your merchant account. You can easily find your Clover Support number on your Clover device or by logging onto your Web Dashboard.



You can also send an email to support@clover.com. You can also contact support at (855) 853-8340.

On Clover Mobile, Mini, Flex and Station, you will find your Clover Customer Support toll-free phone number in the top right corner. Your Merchant ID (MID) is also there for easy reference.



5.4 Instructions to confirm the business need for, and identities of, any third-party

personnel claiming to be support or repair personnel, prior to granting those personnel access to POI devices



Clover does not contract with any third-party personnel to install, troubleshoot, or repair any Clover devices. Only Clover Customer Support is authorized to assist merchants with their Clover devices through the phone, email, and the web.

If there are any problems with your Clover device, please contact Clover Customer Support.

Your Clover Customer Support phone number is based on your merchant account. You can easily find your Clover Support number on your Clover device or by logging onto your Web Dashboard. You can also send an email to support@clover.com.

You can also contact support at (855) 853-8340.



6. Device Encryption Issues

6.1 Instructions for responding to POI device encryption failures

In the unlikely event encryption and decryption fails, the transactions will not be processed. The merchant will be unable to process the transaction and will be prompted to re-enter the transaction. The merchant should contact Support through their device, the support email at support@clover.com or contact support at (855) 853-8340.

6.2 Instructions for formally requesting of the P2PE solution provider that P2PE encryption of account data be stopped

Merchants do not have the ability to turn off encryption for Clover. All transactions require TransArmor encryption and decryption in order to be processed.



6.3 Guidance on using a tampered Clover device

In the event a Clover device is tampered, the device will be operating in a non-P2PE validated mode.

When the device is tampered, a notification will be displayed:

A tampered device can be configured to temporarily accept MSR payments using an authenticated message sent from the Clover server. The version displayed by such a device will change to indicate disablement of SRED (Clover Flex shown):



If the merchant opts to continue processing payments, they must attest to non-P2PE validated mode using the Self-Assessment P2PE-HW and Attestation of Compliance form.

It is strongly recommended that all tampered devices be shipped and returned to Clover for replacement.

7. POI Device Troubleshooting

7.1 Instructions for troubleshooting a POI device

PCI dictates that PIN-entry devices need to detect if they have been tampered, and if so, lock the ability to take PIN-entry transactions. This can happen for a number of reasons, such as having a credit card skimmer applied to the device or someone attempting to break the device open. This can also happen if the device is dropped hard enough.

What error message will I see if my device has been tampered?

There are three potential screens that you may see if your Clover Mobile or Clover Mini device detects a tamper:

1. In the Setup Wizard, you may be automatically directed to the Get Help screen with the error “Device tampered, return to manufacturer”

2. In the Setup Wizard, in a rare case you may also see a “Tamper Detected” screen

3. If the device detects a tamper after you have activated your device, it will display the following error in the Sale, Refund, Voice Auth, Phone Sale, Authorizations, and other apps: “TRANSACTION FAILED: DEVICE TAMPER DETECTED PLEASE RETURN THIS UNIT”

What does it mean if my device has been tampered?

Clover devices come with sensors that are used to detect tampering, misuse, or harm of your device. Our Clover devices will disable PIN entry acceptance for your and your customers’ security when our devices detect a tamper. You will still be able to accept transactions that do not require PIN entry and use your device for everything else you currently use to run your business.

NOTE

In unlikely cases, shaking and dropping may cause the sensors to detect a tamper.

How do I get a replacement device?

If a tamper message is displayed, you will receive an email from Clover that a tamper has been detected. If you would like to accept PIN transactions, including EBT, we will be happy to send you a replacement device. To request a new replacement device, have an admin or

manager go to Setup > Payments > PIN Entry on your current device or call Customer



Support. If the device is still in the warranty period, then the replacement device is free of charge. Shipping and handling fees may apply. When your new device ships, you’ll receive a notification email from Clover Support (app@clover.com) that will contain your activation code as well as the tracking information for your shipment. Please activate your new device as soon as it arrives and return the original in the box in which you received the replacement device. A mailing label for the return will be included in the box.

Can I turn off the tampered message?

No. The only way to remove the tampered message is to return the device for a new one.

If my device is tampered, can I still take transactions?

Yes, Once a device is tampered, any transactions requiring PIN entry are locked. You can still accept transactions that do not require a PIN.

Why is it safe to take payments when my device has been tampered?

The device is still secure and payments can be made even after a tamper occurs. The same protection mechanisms such as encryption and anti-tampers are still working to protect cardholder data when processing payments. However, the most sensitive type of transactions involving PIN-entry payments are disabled.

Can I keep my device until I receive the new device?

Yes. You can still accept transactions that do not require a PIN. You can also use your device for everything else to run your business, such as taking orders, report generation, or syncing with your other Clover devices.

How do I recognize and prevent tamper?

Inspect your Clover Device. You should also check the PCI website for best practices, but here is a partial list of things to look for:

● The exterior of the device shows evidence of cutting, disassembly, broken seals,

broken ports

● There are unusual wires or overlays connected inside the chip card slot, on or near the

PIN-entry area

● Wires are loose or connector broken

● The number of connections to the device are different

● The cables are a different color

● There are apparent changes to the resistance when inserting or removing a card from

the chip card slot (Clover Mobile/Mini only).

● Your device is in a different location

● Your device has scratches especially around the seams of the terminal window display



● Clover labels not present or show signs of peeling

If you have any questions or suspect your device has been tampered, call Clover Support and request a replacement.

For more Troubleshooting topics, visit Clover Help: https://help.clover.com/troubleshoot/

8. Additional Solution Provider Information

What should I do if I do not find the answer to my question or want to leave feedback?

Go to:

https://help.clover.com/faq/what-should-i-do-if-i-do-not-find-the-answer-to-my-question-or-want

-to-leave-feedback/

If you do not find a specific answer to your question by:

1. Looking at the Learn app and topic guides

2. Looking through the Troubleshooting section

3. Using the Search bar on the top of this website to search for your question

Or if you would like to submit feedback to us, please click on the “Feedback” on the bottom of this page or any other webpage that you see on this website. From there, let us know about your specific questions and suggestions.

Clover Mobile, Mini, Mini 2nd Generation, Flex, Station Implementation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
