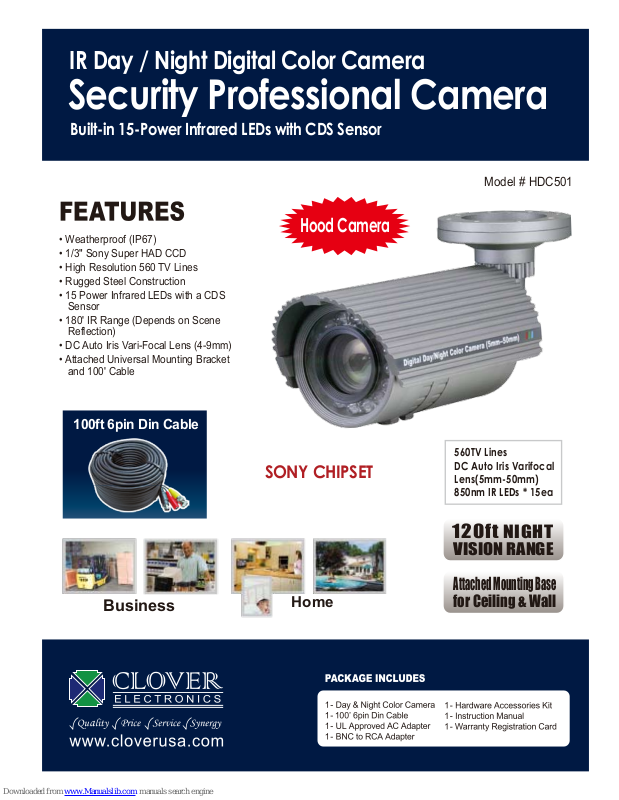

Clover HDC501 Specifications

IR Day / Night Digital Color Camera

Security Professional Camera

Built-in 15-Power Infrared LEDs with CDS Sensor

Model # HDC501

Hood Camera

• Weatherproof (IP67)

• 1/3" Sony Super HAD CCD

• High Resolution 560 TV Lines

• Rugged Steel Construction

• 15 Power Infrared LEDs with a CDS
Sensor

• 180' IR Range (Depends on Scene
Reflection)

• DC Auto Iris Vari-Focal Lens (4-9mm)

• Attached Universal Mounting Bracket
and 100' Cable

100ft 6pin Din Cable

Business

SONY CHIPSET

Home

560TV Lines
DC Auto Iris Varifocal
Lens(5mm-50mm)
850nm IR LEDs * 15ea

120ft

NIGHT

VISION RANGE

Attached Mounting Base

for Ceiling & Wall

IR Day / Night Digital Color Camera

Security Professional Camera

Built-in 15-Power Infrared LEDs with CDS Sensor

Specifications

Image Sensor

Effective Pixels

Scanning System

Horizontal Resolution

Shutter Speed

Sync. System

S/N Ratio

Minimum Illumination

Video Output

AGC

Digital Noise Reduction

White Balance

Lens

Current Consumption

Power Supply

Operating Temperature

Dimensions

Weight

1/3” Sony Super HAD CCD, 811H x 508V
768H x 494V
525 Lines, 2:1 Interlace
560 TV Lines
Auto, Manual (1/60 to 1/120,000 Sec)
Internal
More Than 50db (AGC Off)

0.0001 Lux @F1.2

Composite 1.0Vp-p @75 Ω

Auto
Auto
Auto
DC Auto Iris Vari-Focal Lens 4mm to 9mm
500mA Max @DC15V
DC 15V, 1.5A

-10°C to 50°C
88Ø x 158(L) mm

5.3 Lbs

560TV Lines
DC Auto Iris Varifocal

Hood Camera

Lens(5mm-50mm)
850nm IR LEDs * 15ea

SONY CHIPSET

Security with Reliability
