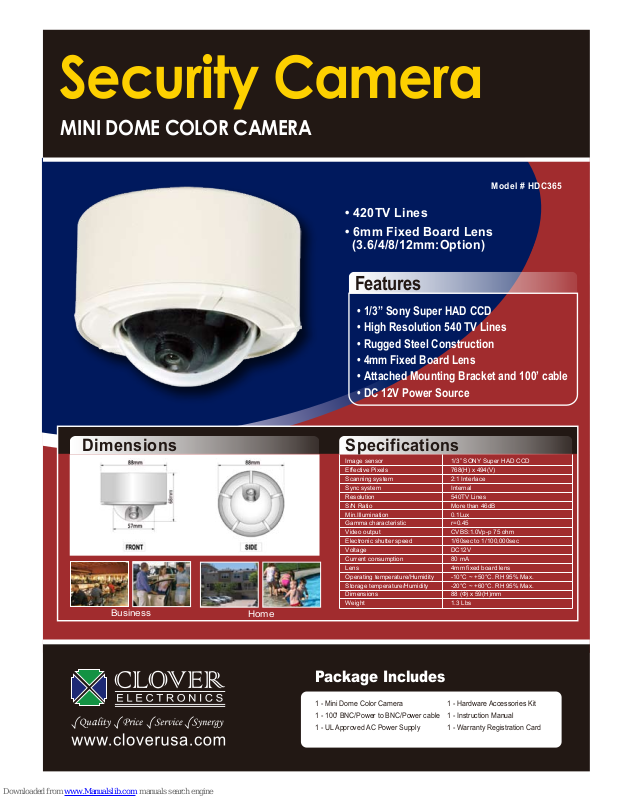

Clover HDC365 Specifications

Security Camera

MINI DOME COLOR CAMERA

• 420TV Lines

• 6mm Fixed Board Lens
(3.6/4/8/12mm:Option)

Features

• 1/3” Sony Super HAD CCD

• High Resolution 540 TV Lines

• Rugged Steel Construction

• 4mm Fixed Board Lens

• Attached Mounting Bracket and 100’ cable

• DC 12V Power Source

Model # HDC365

Dimensions

Business

Home

Specifications

Image sensor
Effective Pixels
Scanning system
Sync system
Resolution
S/N Ratio
Min.Illumination
Gamma characteristic
Video output
Electronic shutter speed
Voltage
Current consumption
Lens
Operating temperature/Humidity
Storage temperature/Humidity
Dimensions
Weight

Package Includes

1 - Mini Dome Color Camera

1 - 100' BNC/Power to BNC/Power cable

1 - UL Approved AC Power Supply

1/3” SONY Super HAD CCD
768(H) x 494(V)
2:1 Interlace
Internal
540TV Lines
More than 46dB

0.1Lux
r=0.45
CVBS:1.0Vp-p 75 ohm
1/60sec to 1/100,000sec
DC12V
80 mA
4mm fixed board lens

-10°C ~ +50°C. RH 95% Max.

-20°C ~ +60°C. RH 95% Max.

88 (Ф) x 59(H)mm

1.3 Lbs

1 - Hardware Accessories Kit

1 - Instruction Manual

1 - Warranty Registration Card
