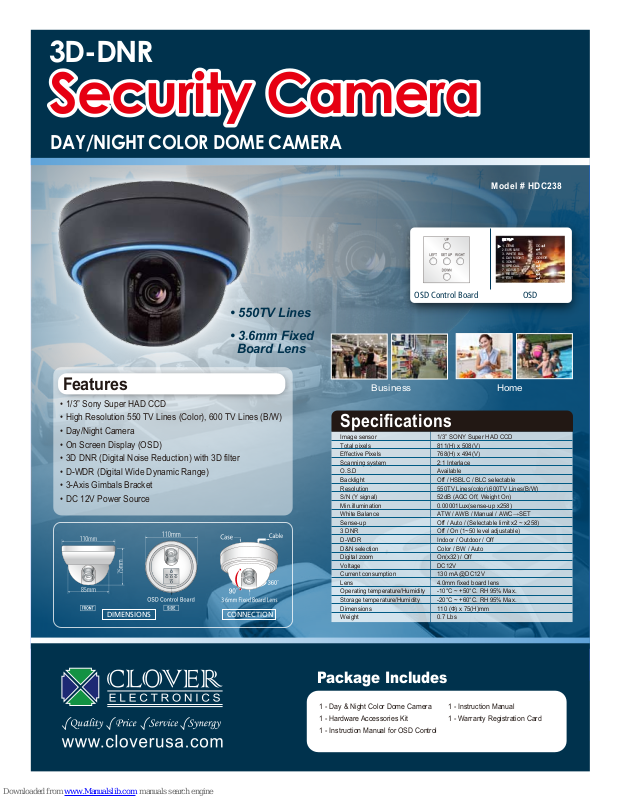

Clover HDC238 Specifications

3D-DNR

Security CameraSecurity Camera

DAY/NIGHT COLOR DOME CAMERA

Model # HDC238

SETUP

1. LENS

2. EXPOSURE

3. WHITE BAL

4. DAY NIGHT

5. 3DNR

6. SPECIAL

7. ADJUST

8. RESET

9. EXIT

DC

ATB
COLOR
OFF

• 550TV Lines

• 3.6mm Fixed
Board Lens

Features

• 1/3” Sony Super HAD CCD

• High Resolution 550 TV Lines (Color), 600 TV Lines (B/W)

• Day/Night Camera

• On Screen Display (OSD)

• 3D DNR (Digital Noise Reduction) with 3D filter

• D-WDR (Digital Wide Dynamic Range)

• 3-Axis Gimbals Bracket

• DC 12V Power Source

DIMENSIONS

CONNECTION

OSD Control Board

Business

Specifications

Image sensor
Total pixels
Effective Pixels
Scanning system
O.S.D
Backlight
Resolution
S/N (Y signal)
Min.illumination
White Balance
Sense-up
3 DNR
D-WDR
D&N selection
Digital zoom
Voltage
Current consumption
Lens
Operating temperature/Humidity
Storage temperature/Humidity
Dimensions
Weight

1/3” SONY Super HAD CCD
811(H) x 508(V)
768(H) x 494(V)
2:1 Interlace
Available
Off / HSBLC / BLC selectable
550TV Lines(color),600TV Lines(B/W)
52dB (AGC Off, Weight On)

0.00001Lux(sense-up x258)

ATW / AWB / Manual / AWC→SET

Off / Auto / (Selectable limit x2 ~ x258)
Off / On (1~50 level adjustable)
Indoor / Outdoor / Off
Color / BW / Auto
On(x32) / Off
DC12V
130 mA @DC12V

4.0mm fixed board lens

-10°C ~ +50°C. RH 95% Max.

-20°C ~ +60°C. RH 95% Max.

110 (Ф) x 75(H)mm

0.7 Lbs

OSD

Home

Package Includes

1 - Day & Night Color Dome Camera

1 - Hardware Accessories Kit

1 - Instruction Manual for OSD Control

1 - Instruction Manual

1 - Warranty Registration Card
