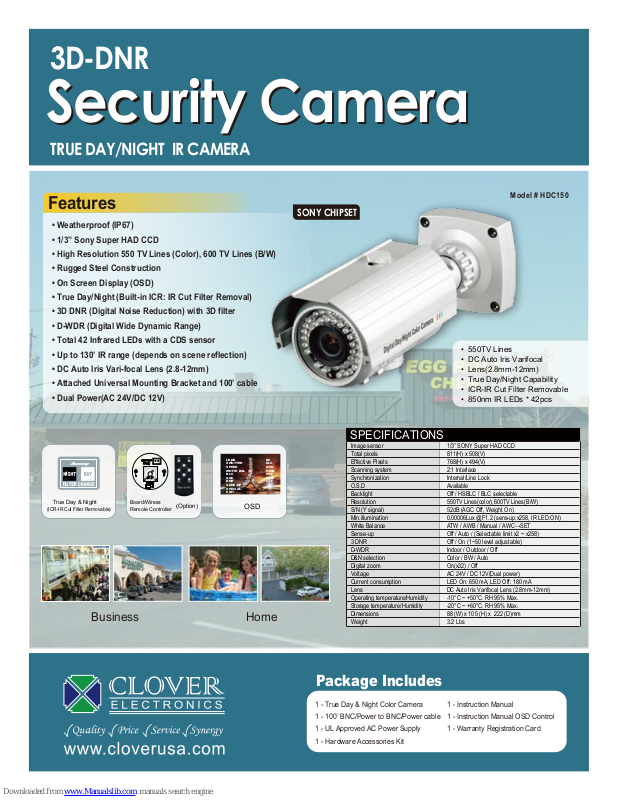

3D-DNR
Security Camera
Security Camera
TRUE DAY/NIGHT IR CAMERA
Features
• Weatherproof (IP67)
• 1/3” Sony Super HAD CCD
• High Resolution 550 TV Lines (Color), 600 TV Lines (B/W)
• Rugged Steel Construction
• On Screen Display (OSD)
• True Day/Night (Built-in ICR: IR Cut Filter Removal)
• 3D DNR (Digital Noise Reduction) with 3D filter
• D-WDR (Digital Wide Dynamic Range)
• Total 42 Infrared LEDs with a CDS sensor
• Up to 130’ IR range (depends on scene reflection)
• DC Auto Iris Vari-focal Lens (2.8-12mm)
• Attached Universal Mounting Bracket and 100’ cable
• Dual Power(AC 24V/DC 12V)
SONY CHIPSET
• 550TV Lines
• DC Auto Iris Varifocal
• Lens(2.8mm-12mm)
• True Day/Night Capability
• ICR-IR Cut Filter Removable
• 850nm IR LEDs * 42pcs
Mod el # H DC1 50
True Day & Night
(ICR-IR Cut Filter Removable)
Business
Board/Wiress
Remote Controller
(Option)
LENS
SHUTTER
SPEED
WHITE BAL
BLC
AGC
DNR
SENS-UP
SPECIAL
EXIT
DC
ELC
ATW
HIGH
OFF
LOW
OFF
OSD
Home
SPECIFICATIONS
Image sensor
Total pixels
Effective Pixels
Scanning system
Synchronization
O.S.D
Backlight
Resolution
S/N (Y signal)
Min.illumination
White Balance
Sense-up
3 DNR
D-WDR
D&N selection
Digital zoom
Voltage
Current consumption
Lens
Operating temperature/Humidity
Storage temperature/Humidity
Dimensions
Weight
Package Includes
1 - True Day & Night Color Camera
1 - 100’ BNC/Power to BNC/Power cable
1 - UL Approved AC Power Supply
1 - Hardware Accessories Kit
1/3” SONY Super HAD CCD
811(H) x 508(V)
768(H) x 494(V)
2:1 Interlace
Internal/Line Lock
Available
Off / HSBLC / BLC selectable
550TV Lines(color),600TV Lines(B/W)
52dB (AGC Off, Weight On)
0.00006Lux @F1.2 (sens-up:x258, IR LED:ON)
ATW / AWB / Manual / AWC→SET
Off / Auto / (Selectable limit x2 ~ x258)
Off / On (1~50 level adjustable)
Indoor / Outdoor / Off
Color / BW / Auto
On(x32) / Off
AC 24V / DC 12V(Dual power)
LED On: 650 mA, LED Off: 180 mA
DC Auto Iris Varifocal Lens (2.8mm-12mm)
-10°C ~ +50°C. RH 95% Max.
-20°C ~ +60°C. RH 95% Max.
88 (W) x 105 (H) x 222 (D)mm
3.2 Lbs
1 - Instruction Manual
1 - Instruction Manual OSD Control
1 - Warranty Registration Card
