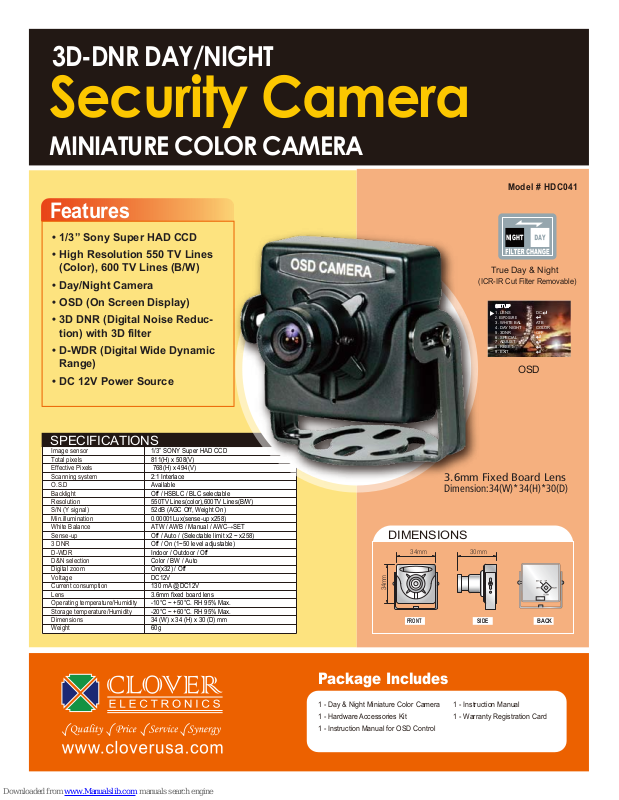

Clover HDC041 Specifications

3D-DNR DAY/NIGHT

SIDE

Security Camera

MINIATURE COLOR CAMERA

Features

• 1/3” Sony Super HAD CCD

• High Resolution 550 TV Lines
(Color), 600 TV Lines (B/W)

• Day/Night Camera

Model # HDC041

True Day & Night

(ICR-IR Cut Filter Removable)

• OSD (On Screen Display)

• 3D DNR (Digital Noise Reduc­tion) with 3D filter

• D-WDR (Digital Wide Dynamic
Range)

• DC 12V Power Source

SPECIFICATIONS

Image sensor
Total pixels
Effective Pixels
Scanning system
O.S.D
Backlight
Resolution
S/N (Y signal)
Min.illumination
White Balance
Sense-up
3 DNR
D-WDR
D&N selection
Digital zoom
Voltage
Current consumption
Lens
Operating temperature/Humidity
Storage temperature/Humidity
Dimensions
Weight

1/3” SONY Super HAD CCD
811(H) x 508(V)
768(H) x 494(V)
2:1 Interlace
Available
Off / HSBLC / BLC selectable
550TV Lines(color),600TV Lines(B/W)
52dB (AGC Off, Weight On)

0.00001Lux(sense-up x258)

ATW / AWB / Manual / AWC→SET

Off / Auto / (Selectable limit x2 ~ x258)
Off / On (1~50 level adjustable)
Indoor / Outdoor / Off
Color / BW / Auto
On(x32) / Off
DC12V
130 mA @DC12V

3.6mm fixed board lens

-10°C ~ +50°C. RH 95% Max.

-20°C ~ +60°C. RH 95% Max.
34 (W) x 34 (H) x 30 (D) mm
60g

3.6mm Fixed Board Lens

Dimension:34(W)*34(H)*30(D)

DIMENSIONS

34mm 30mm

m
4m

3

FRONT

SETUP

1. LENS

2. EXPOSURE

3. WHITE BAL

4. DAY NIGHT

5. 3DNR

6. SPECIAL

7. ADJUST

8. RESET

9. EXIT

OSD

DC

ATB
COLOR
OFF

BACK

Package Includes

1 - Day & Night Miniature Color Camera

1 - Hardware Accessories Kit

1 - Instruction Manual for OSD Control

1 - Instruction Manual

1 - Warranty Registration Card
