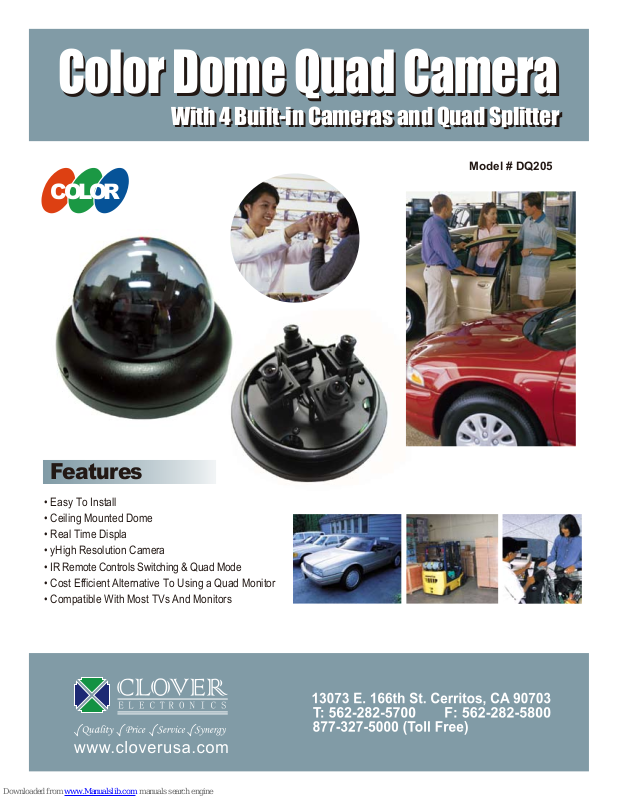

Clover DQ205 Specifications

COLOR

Color Dome Quad Camera

Color Dome Quad Camera

With 4 Built-in Cameras and Quad Splitter

With 4 Built-in Cameras and Quad Splitter

Model # DQ205

Features

• Easy To Install

• Ceiling Mounted Dome

• Real Time Displa

• yHigh Resolution Camera

• IR Remote Controls Switching & Quad Mode

• Cost Efficient Alternative To Using a Quad Monitor

• Compatible With Most TVs And Monitors

COLOR

Color Dome Quad Camera

Color Dome Quad Camera

With 4 Built-in Cameras and Quad Splitter

With 4 Built-in Cameras and Quad Splitter

Specifications

Image PickupDevice

No. of Pixels

Sync System

Usable Innumination

Gamma Characteristic

Electronic shutter speed

Dwell Time

Operation Temperature

Dimensions

TV System

Scanning

System

Resolution

S/N Ratio

Video Output

Real Time

Power Supply

Storage Temperature

Weight

1/4” Color CCD Sensor
NTSC, 512(H)*492(V)
PAL, 512(H)*582(V)
Internal Sync
3 Lux/F2.0

0.45
NTSC : 1/60 - 1/100,000 sec
PAL : 1/50 - 1/100,000 sec
1 to 5 sec

-10°C to 50°C RH95% Max
165(Ø)*105(H)mm
NTSC, PAL
NTSC : 525 lines, 60 fields/sec
PAL : 625 lines, 50 field/sec
380 TV Lines
More than 46 db
1 V p-p 75 ohms
30 frames/sec
DC 18V 2.5A for Dome Quad
DC 12V 200 230mA for IR Receiver

-20°C to 60°C RH95% Max
6Lbs
