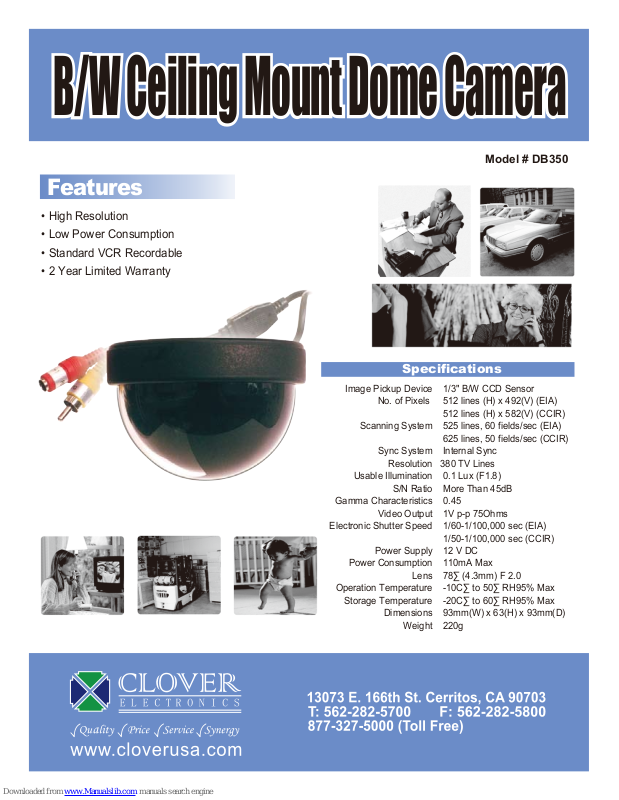

Clover DB350 Specifications

B/W Ceiling Mount Dome CameraB/W Ceiling Mount Dome Camera

Model # DB350

Features

• High Resolution

• Low Power Consumption

• Standard VCR Recordable

• 2 Year Limited Warranty

Specifications

Image Pickup Device

No. of Pixels

Scanning System

Sync System

Resolution

Usable Illumination

S/N Ratio

Gamma Characteristics

Video Output

Electronic Shutter Speed

Power Supply

Power Consumption

Lens

Operation Temperature

Storage Temperature

Dimensions

Weight

1/3" B/W CCD Sensor
512 lines (H) x 492(V) (EIA)
512 lines (H) x 582(V) (CCIR)
525 lines, 60 fields/sec (EIA)
625 lines, 50 fields/sec (CCIR)
Internal Sync
380 TV Lines

0.1 Lux (F1.8)
More Than 45dB

0.45
1V p-p 75Ohms
1/60-1/100,000 sec (EIA)
1/50-1/100,000 sec (CCIR)
12 V DC
110mA Max

78∑ (4.3mm) F 2.0

-10C∑ to 50∑ RH95% Max

-20C∑ to 60∑ RH95% Max

93mm(W) x 63(H) x 93mm(D)
220g
