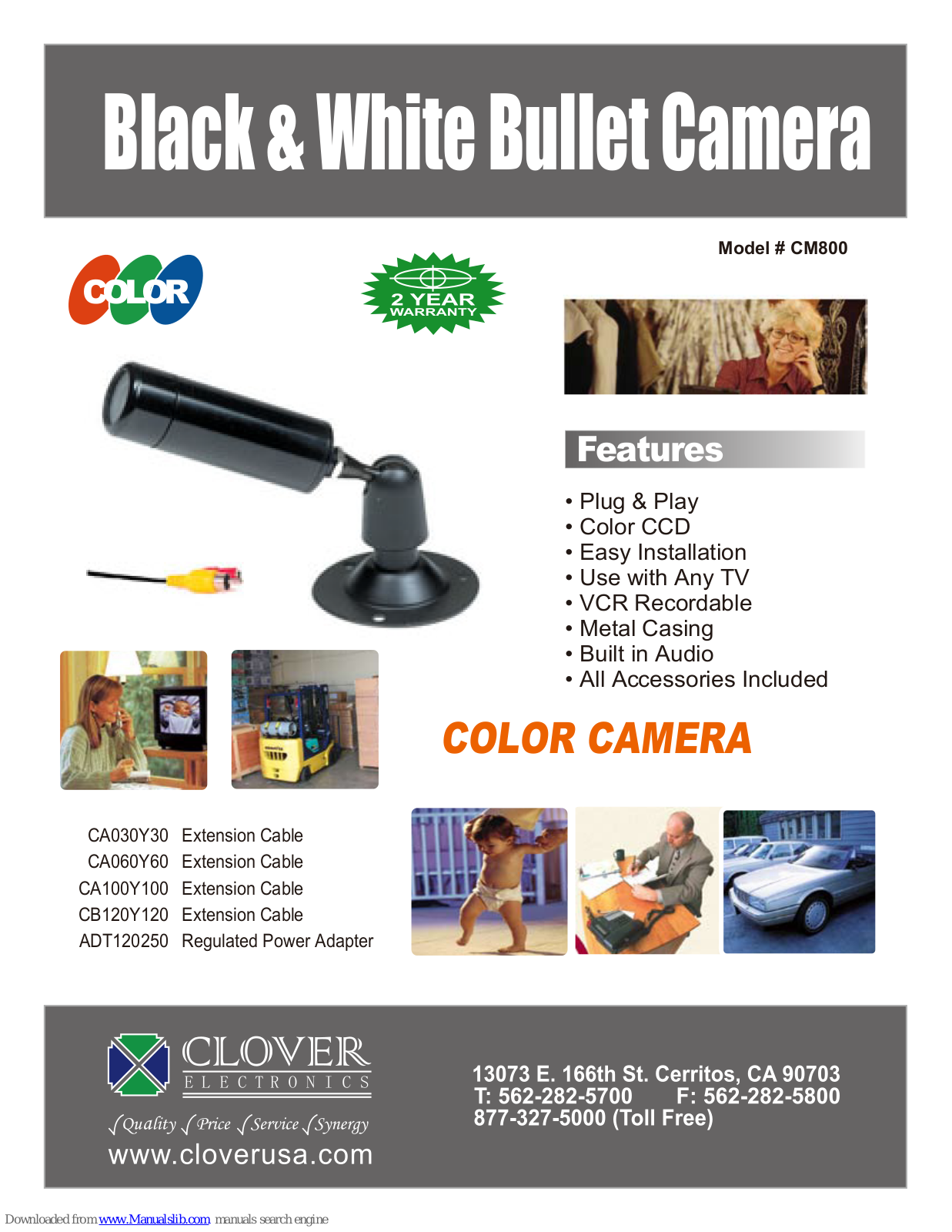

Clover CM800 Specifications

COLOR

Black & White Bullet Camera

Model # CM800

Features

• Plug & Play

• Color CCD

• Easy Installation

• Use with Any TV

• VCR Recordable

• Metal Casing

• Built in Audio

• All Accessories Included

CA030Y30

CA060Y60
CA100Y100
CB120Y120
ADT120250

COLOR CAMERA

Extension Cable
Extension Cable
Extension Cable
Extension Cable
Regulated Power Adapter

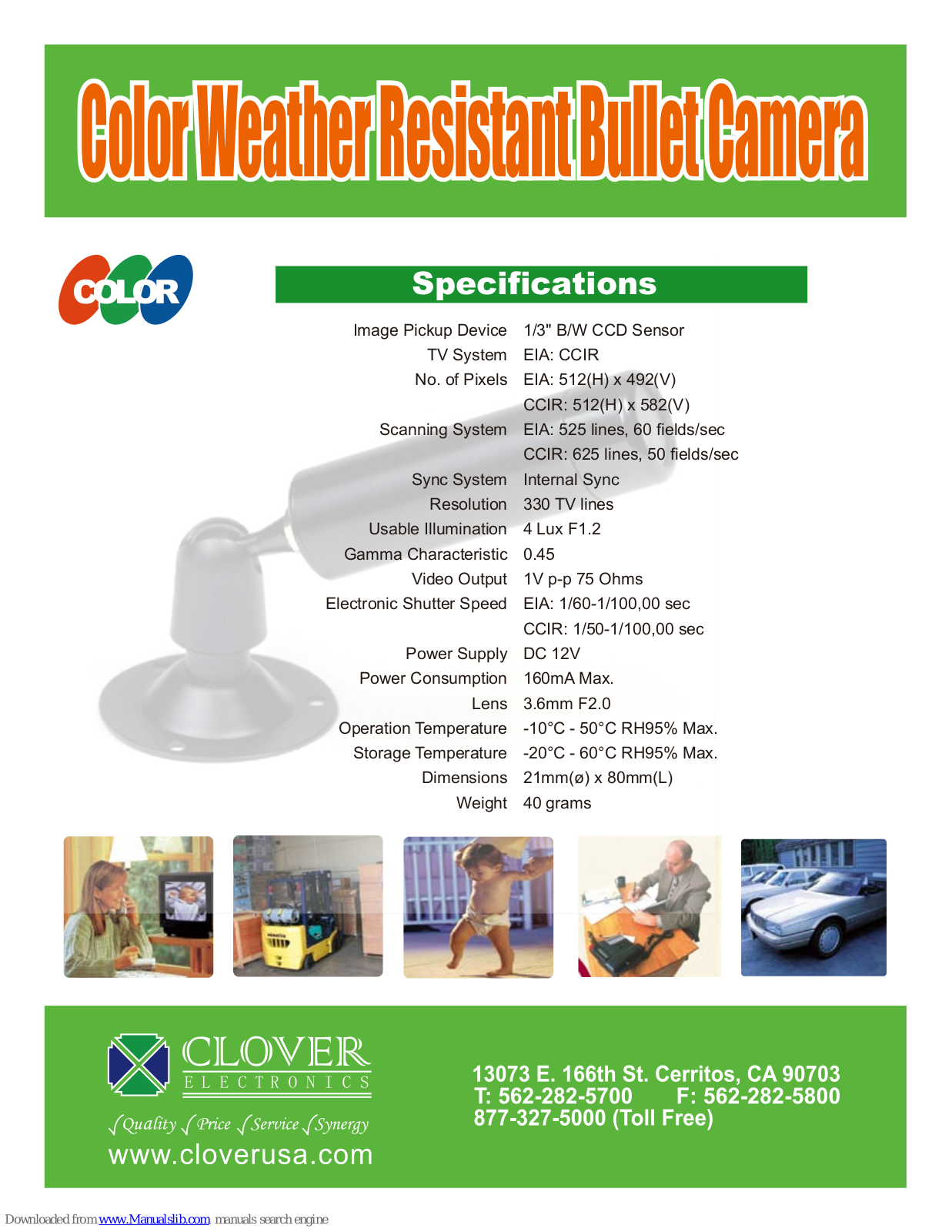

Color Weather Resistant Bullet CameraColor Weather Resistant Bullet Camera

COLOR

Specifications

Image Pickup Device

TV System

No. of Pixels

Scanning System

Sync System

Resolution

Usable Illumination

Gamma Characteristic

Video Output

Electronic Shutter Speed

Power Supply

Power Consumption

Lens

Operation Temperature

Storage Temperature

Dimensions

Weight

1/3" B/W CCD Sensor

EIA: CCIR

EIA: 512(H) x 492(V)

CCIR: 512(H) x 582(V)

EIA: 525 lines, 60 fields/sec

CCIR: 625 lines, 50 fields/sec

Internal Sync

330 TV lines

4 Lux F1.2

0.45

1V p-p 75 Ohms

EIA: 1/60-1/100,00 sec

CCIR: 1/50-1/100,00 sec

DC 12V

160mA Max.

3.6mm F2.0

-10°C - 50°C RH95% Max.

-20°C - 60°C RH95% Max.

21mm(ø) x 80mm(L)

40 grams
