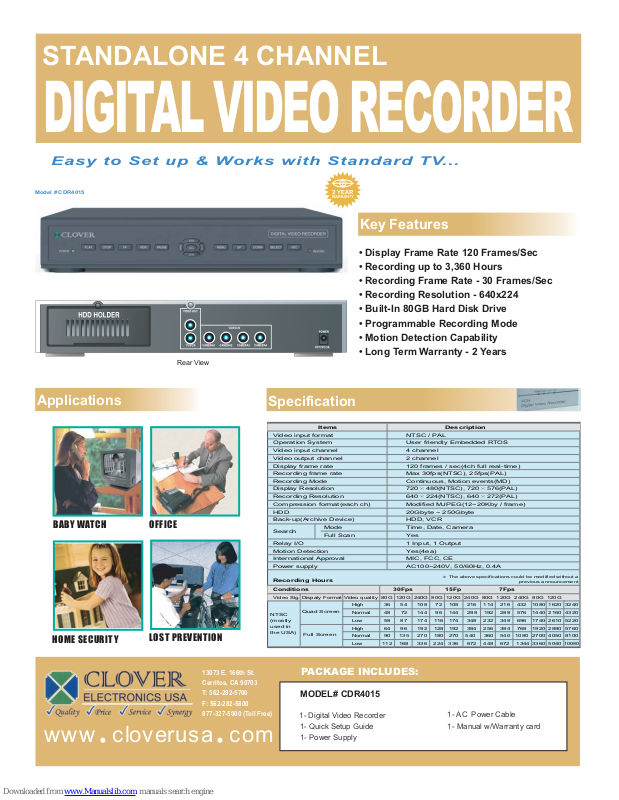

Clover CDR-4015 Specifications

STANDALONE 4 CHANNEL

DIGITAL VIDEO RECORDER

Easy to Set up & Works with Standard TV...

Model # CDR4015

Key Features

• Display Frame Rate 120 Frames/Sec

• Recording up to 3,360 Hours

• Recording Frame Rate - 30 Frames/Sec

• Recording Resolution - 640x224

• Built-In 80GB Hard Disk Drive

• Programmable Recording Mode

• Motion Detection Capability

• Long Term Warranty - 2 Years

Rear View

G

Applications

BABY WATCH

HOME SECURITY

www cloverusa com

UU

OFFICE

LOST PREVENTION

13073 E. 166th St.

Cerritos, CA 90703

T: 562-282-5700

F: 562-282-5800

877-327-5000 (Toll Free)

Specification

Video input format NTSC / PAL

Operation System User friendly Embedded RTOS

Video input channel 4 channel

Video output channel 2 channel

Display frame rate 120 frames / sec(4ch full real-time)

Recording frame rate Max 30fps(NTSC), 25fps(PAL)

Recording Mode Continuous, Motion events(MD)

Display Resolution 720

Recording Resolution 640

Compression format(each ch) Modified MJPEG(12~20Kby / frame)

HDD 20Gbyte ~ 250Gbyte

Back-up(Archive Device) HDD, VCR

Search

Relay I/O 1 Input, 1 Output

Motion Detection Yes(4ea)

International Approval MIC, FCC, CE

Power supply AC100~240V, 50/60Hz, 0.4A

Recording Hours

Conditions 30Fps 15Fp 7Fps

Video Sig. Dispaly Format Video quality 80G 120G 240G 80G 120G 240G 80G 120G 240G 80G 120G

NTSC
(mostly
used in
the USA)

Items Description

Mode Time, Date, Camera

Full Scan Yes

Quad Screen

Full Screen

High 36 54 108 72 108 216 114 216 432

Normal 48 72 144 96 144 288 192 288 576

Low 58 87 174 116 174 348 232 348 696

High 64 96 192 128 192 384 256 384 768

Normal 90 135 270 180 270 540 360 540 1080

Low 112 168 336 224 336 672 448 672 1344

PACKAGE INCLUDES:

MODEL# CDR4015

1- Digital Video Recorder
1- Quick Setup Guide

1-GPower Supply

480(NTSC), 720

224(NTSC), 640

The above specifications could be modified without a

1- AC Power Cable

1-GManual w/Warranty card

576(PAL)

272(PAL)

previous announcement

1Fps

1080 1620 3240

1440 2160 4320

1740 2610 5220

1920 2880 5760

2700 4050 8100

3360 5040

240G

10080
