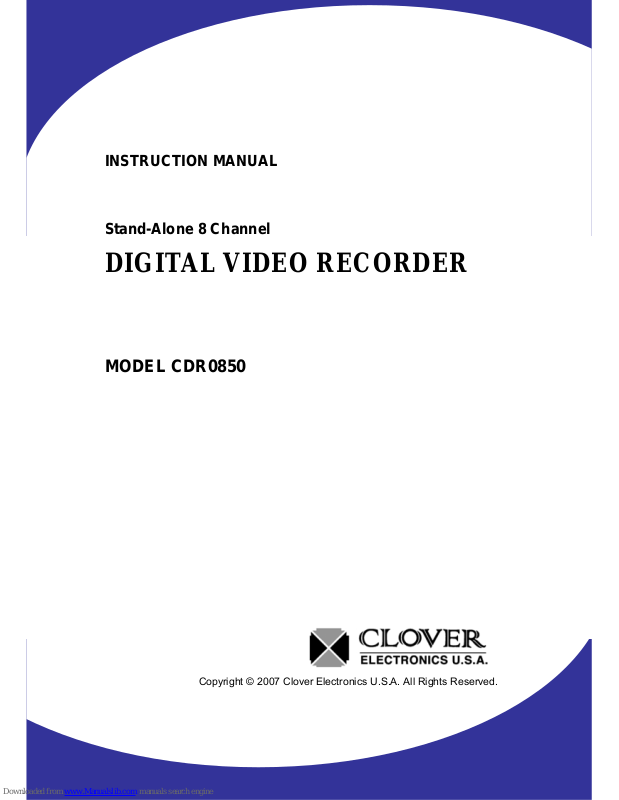

INSTRUCTION MANUAL

Stand-Alone 8 Channel

DIGITAL VIDEO RECORDER

MODEL CDR0850

Contents

CONTENTS

ABOUT THIS MANUAL ..........................................................................................................................9

UNPACKING .........................................................................................................................................11

STAN D-ALONE DVR (DIGITAL VIDEO RECORDER) UNIT...................................................................12

FEATURES............................................................... .............................................................................13

WHAT TO DO AT THE TIME OF INSTALLATION ..............................................................................15

SPECIFICATIONS..................................................................................................................................17

INSTALLATION ....................................................................................................................................19

5-1. CONTROLS AND CONNECTORS (FOR 8CH & 16CH DVR) ........................................................ 20

5-2. NOTE FOR INSTALLATION ....................................................................................................... 22

5-3. SYSTEM CONNECTION........................................................................................................... 23

5-4. INSTALLATION........................................................................................................................ 24

5-4.1. Camera Connection .................................................................................................................... 24

5-4.2. Monitor Connection..................................................................................................................... 24

5-4.3. Sensor Connection and RELAY IN &OUT...................................................................................26

5-4.4. RS232C Connection ...................................................................................................................27

5-4.5 Connection to an Ethernet (Optional) Network............................................................................. 28

5-4.6. POWER CONNECTION .............................................................................................................29

HOW TO OPERATE .............................................................................................................................3 1

6-1. GENERAL INFORMATION......................................................................................................... 33

6-2. OPERATING INTERFACE ......................................................................................................... 34

6-3. IR REMOTE CONTROLLER...................................................................................................... 35

6-4. POWER ON/OFF.................................................................................................................... 36

6-4.1. POWER ON ................................................................................................................................36

6-4.2. POWER OFF .............................................................................................................................. 36

6-4.3. APPEARANCE OR DISAPPEARANCE OF POWER BUTTON.................................................. 37

6-5. MENU BAR ON/OFF............................................................................................................... 38

6-6. DISPLAY SCREEN .................................................................................................................. 39

6-6.1. FULL SCREEN ...........................................................................................................................39

Stand-alone DVR Instruction Manual

6-6.2. SPLIT SCREENS........................................................................................................................ 40

6-7. LIVE .................................................................................................................................... 41

6-7.1. FULL SCREEN ...........................................................................................................................41

6-7.2. SPLIT SCREEN .......................................................................................................................... 41

6-7.3. SEQUENCING SCREENS.......................................................................................................... 42

6-7.4. LIVE AUDIO................................................................................................................................43

6-7.5. ZOOM ......................................................................................................................................... 44

6-7.6. OSD ON / OFF............................................................................................................................ 45

6-7.7. PAN / TILT................................................................................................................................... 46

6-7.8. SYSTEM STATUS....................................................................................................................... 48

6-7.9. POWER LOSS LISTS ................................................................................................................. 49

6-7.10. VIDEO LOSS LIST.................................................................................................................... 51

6-8. RECORD ............................................................................................................................... 53

6-8.1. Manual (Continuous) recording................................................................................................... 53

6-8.2. Manual Event Recording.............................................................................................................53

6-8.3. Timer Recording.......................................................................................................................... 54

6-8.4. Timer Event Recording................................................................................................................55

6-8.5. Recording Icons .......................................................................................................................... 56

6-9. REPLAY .............................................................................................................................. 57

6-9.1. QUICK REPLAY..........................................................................................................................57

6-9.2. REPLAY...................................................................................................................................... 57

6-9.2.1. Playback Devices................................................................................................................. 58

6-9.2.2. Set the Start Time................................................................................................................. 58

6-9.2.3. Replaying ............................................................................................................................. 60

6-9.2.4. Disappearance of Replay control buttons ............................................................................62

6-10. COPY................................................................................................................................64

6-10.1. Copying devices........................................................................................................................ 64

6-10.2. Set the Copy Start Time (Copying extent) ................................................................................. 65

6-10.3. Set the Copy End Time (Copying extent)..................................................................................67

6-10.4. Copying the recorded data during replaying ............................................................................. 68

SETUP...................................................................................................................................................71

7-1. SETUP................................................................................................................................74

7-2. SYSTEM ............................................................................................................................. 75

Contents

7-2.1. TIME / DATE ...............................................................................................................................76

7-2.2. SYSTEM CONFIG ......................................................................................................................78

7-2.2.1. FACTORY DEFAULT ...........................................................................................................78

7-2.2.2. LOAD CONFIG / BACKUP CONFIG.................................................................................... 79

7-2.3. PASSWORD ............................................................................................................................... 82

7-2.4. IR REMOTE ID ...........................................................................................................................83

7-2.5. FIRMWARE UPDATE .................................................................................................................84

7-2.6. SYSTEM INFO............................................................................................................................ 84

7-3. DISK MANAGER ................................................................................................................ 85

7-3.1. HDD WRITE FAIL ....................................................................................................................... 86

7-3.2. HDD OVERWRITE......................................................................................................................86

7-3.3. Format.........................................................................................................................................86

7-4. CAMERA............................................................................................................................. 88

7-4.1. Camera ON/OFF......................................................................................................................... 89

7-4.2. Camera Name (Camera Title)..................................................................................................... 89

7-4.3. Buzzer......................................................................................................................................... 90

7-4.4. Relay........................................................................................................................................... 90

7-4.5. Pan/Tilt Settings..........................................................................................................................91

7-4.6 Display ......................................................................................................................................... 95

7-4.7 Sequencing dwell time ................................................................................................................. 95

7-5. AUDIO................................................................................................................................. 96

7-5.1. Camera Channel......................................................................................................................... 97

7-5.2. Audio Recording ON/OFF ........................................................................................................... 97

7-5.3. Microphone Volume .................................................................................................................... 98

7-6. RECORD ............................................................................................................................ 99

7-6.1. Record ICON Display.................................................................................................................. 99

7-6.2. All Manual / Timer recording button........................................................................................... 100

7-6.3. All Motion ON / OFF, Sensitivity and Velocity Setting................................................................ 101

7-6.4. All Sensors ON / OFF................................................................................................................102

7-6.5. Size (Recording Resolution) ..................................................................................................... 102

7-6.6. Recording Speed ......................................................................................................................103

7-6.7. Recording Quality ..................................................................................................................... 104

7-6.8. Recording Mode........................................................................................................................ 105

7-6.8.1. Manual Recording .............................................................................................................. 105

Stand-alone DVR Instruction Manual

7-6.8.2. Manual Event Recording....................................................................................................105

7-6.8.3. Timer Recording (Schedule Recording) ............................................................................. 105

7-6.8.4. Timer Event Recording.......................................................................................................105

7-6.9. Recording by Motion Detection ................................................................................................. 106

7-6.10. Recording by Sensor (PIR Sensor)......................................................................................... 114

7-7. NETWORK........................................................................................................................ 117

7-7.1. IP Mode..................................................................................................................................... 117

7-7.2. GATEWAY, SUBNET, IP ADDRESS.......................................................................................... 118

7-7.3. Port ........................................................................................................................................... 119

7-7.3.1 Port Forwarding .................................................................................................................. 119

7-7.4. MAC ID .....................................................................................................................................120

7-7.5. MNS (MAC NAME SERVER).................................................................................................... 120

7-7.6. DDNS (DYNAMIC DOMAIN NAME SYSTEM).......................................................................... 122

7-7.7. HOW TO SETUP AND USE THE DDNS................................................................................... 123

7-7.7.1. Router. ...............................................................................................................................123

7-7.7.2. Registration to the DDNS server........................................................................................ 124

7-8. VIDEO ENHANCE ............................................................................................................ 125

7-8.1. VIDEO ENHANCEMENT ON EACH CAMERA......................................................................... 126

7-8.2. VIDEO ENHANCEMENT ON VGA OUTPUT............................................................................ 127

REMOTE HOST PROGRAM............................................................... ..................................................129

8-1. REMOTE PROGRAM OVERVIEW............................................................................................ 130

8-2. INSTALLING THE PROGRAM TO PC........................................................................................ 131

8-3. INTERNET EXPLORER .......................................................................................................... 132

8-4. REMOTE HOST.................................................................................................................... 134

8-4.1. Setup.........................................................................................................................................135

8-4.2. Connection................................................................................................................................137

8-4.3. Switch the Normal Screen to Full Screen.................................................................................. 138

8-4.4. Speaker / Microphone ............................................................................................................... 139

8-4.5. Copy..........................................................................................................................................140

8-5. PLAYER ............................................................................................................................ 142

INSTALLATION OF ADDITIONAL HDDS............................................................... ............................149

9-1. HDD (HARD DISK DRIVE) INSTALLATION.......................................................................... 150

Contents

9-2. INSTALLATION OF AN ADDITIONAL HDD.................................................................................. 151

APPENDIX...........................................................................................................................................153

RECORDING TIME TABLE ............................................................................................................. 154

FACTORY DEFAULT SETTINGS ...................................................................................................... 155

FAQ .....................................................................................................................................................159

I CANNOT LOGIN ......................................................................................................................... 160

LIMITED 2YEAR WARRANTY ............................................................................................................161

HOW TO OBTAIN FACTORY SERVICE............................................................... ...............................162

Stand-alone DVR Instruction Manual

About this manual

This is the Instruction Manual for Stand-alone type DVR model CDR0850.

This Manual describes how to install and operate the Stand-Alone DVR and provides

specifications and features.

Please read this manual thoroughly and follow the installation process before using Stand-

alone DVR (Note: Be sure to correctly follow step 3. What to do at the time of installation).

Contact our dealers when you have any queries.

Stand-alone DVR Instruction Manual

Unpacking

Care should be taken when unpacking to avoid damaging the unit.

Please check that the following items are included:

▶ Stand-alone DVR unit

▶ All Accessories : Bracket, Power Cable, Screws

▶ Remote Controller & Battery

▶ PS2 Mouse

▶ DSUB 26p Connector (Sensor Input, Relay Output Selection)

▶ Instruction Manual

▶ Host Program (SmViewer) on CD

▶ RJ-45 Cable

Note: Contact your dealer immediately if any components are missing.

Stand-alone DVR Instruction Manual

Stand-alone DVR (Digital Video Recorder) Unit

CDR0850 is the most reliable and functional embedded DVR system available today. The system

displays 8 channels of live images in Real Time speed, compresses data digitally and records

them to the Hard Disk Drive, which can be replayed and searched easily any time. The CDR0850 supports easy back up via USB port, DVD R/W, CD R/W and networking in both

static & dynamic IP modes.

User can remotely view live images or search the recorded images.

Under emergency situation, the remote operator can control, turn on and turn off the field

installed alarms, such as a siren or light. It is a very user- friendly DVR system. User can control the CDR0850 by Mouse or Buttons on

the front panel or Remote controller.

Features

▶ Multi Functional Record

-Powerful, multiple Record Modes available: Manual (Continuous), Timer, and Motion

Detection Recording.

▶ User friendly GUI

-A few simple buttons for Easy control.

▶ Automatic System Recovery

-Automatic and Complete System recovery within 10 seconds.

▶Easy PTZ control via RS port

-No need to use PTZ controller

-PTZ control from remote PC

▶ Simple Network Configuration -DHCP based automatic network set-up-Easy Network

Configuration from Dynamic IP to Dynamic IP

▶ MPEG-4 Algorithm Compression

-The most advanced compression available today.

▶ Multiple Video Display

-Support CCTV monitor or TV and High resolution video display by VGA monitor-Important

Image automatic display by spot monitor.

▶ Flexible Networking -Support TCP/IP and Remote Control on all DVR features-Up to 10

users can remote access simultaneously.

▶ Internet Explorer

-Up to 10 users can remote access simultaneously.

▶ Easy Data Playback in any PC

-Back Up data convertible to AVI file format.

▶ Back UP

-DVD R/W, CD R/W, External HDD, Stick memory, and through network access.

▶ Jog/Shuttle

-Frame by frame playback/playback / Control the playback speed for both forward and

reverse by turning the shuttle to left or right.

Stand-alone DVR Instruction Manual

What to do at the time of Installation

Stand-alone DVR should be installed in the following order;

1. Make sure all the required hardware is available.

- Stand-alone DVR unit (including HDD)

- Up to 8 cameras (including power source)

- CCTV or VGA monitor (or TV set)

- Network cable if connecting to a PC

2. Connect the cameras, the DVR unit and monitor (Refer to [Fig 5-3]).

4. Confirm live video is displayed on the monitor before going to the next step.

5. Select the Setup Menu and set current date and time (Refer to Section 7-2.1).

6. Run the FACTORY DEFAULT setting in the SYSTEM menu.

7. Perform HDD formatting.

8. Escape from Setup Menu.

9. Set values for required options.

10. Network cable should be connected to the DVR unit before turning the power on.

Refer to [Fig 5-11] for the cable specification.

Stand-alone DVR Instruction Manual

Specifications

ITEM

Television System NTSC PAL Refresh Rate 60 fields/sec 50 fields/sec Video Resolution 720x480 720x576 Video Inputs Video Input Signal Video Outputs Video Output Signal Live 240 Frames/sec display 200 Frames/sec display Zoom Sequence Display Format Video enhance VGA enhance

AUDIO FEATURES

G.723 Recording Speed 240 Frames/sec 200 Frames/sec Recording resolution Codec Recording Pre record Material

Manual, Timer ,Motion, Alarm, Each Camera

All Camera

BACKUP

DVD R/W, CD R/W, HDD, Stick memory, through Network

Recorded data rock

Data protect in overwrite HDD

GUI Operating interface Operating Help

NETWORK

Ethernet 10/100M Auto Remote viewer PC Player

USB

USB 2.0

SERIAL

RS232 / RS422 / RS485 Alarm Inputs Alarm Outputs Alarm latch up Buzzer Out

HDD

IDE(ATA) Input Voltage Power consumption Video Inputs Video Outputs Main, Aux monitor Output VGA monitor Output Alarm In/Out RS485 /RS422 Ethernet Mouse(PS2) Dimension(m/m) Weight Operating Temperature Humidity

DESCRIPTIONS

8 Cameras

Composite 1.0 Vp-p 75 Ohms

8 looping, Main monitor, Aux monitor, SVHS, VGA

Composite 1.0 Vp-p 75 Ohms

2 times digital

Sequence display in Full size

1 screen(full), Quad pages split, 9 split

Brightness, Contrast control each camera

Brightness, Contrast, saturation

4ch Input / 1ch Output

720x480,720x240,360x240 (NTSC) / 720x576,720x288,360x288 (PAL)

Mpeg4

Timer, Motion, Alarm, Manual individually set

0~5 sec

3 IDE HDD(Auto overwrite)

Fast x128 , Slow, Forward, Revese, Frame by Frame

(DVD R/W Installed) Each Camera, ALL Camera, Time range

Time range, Back up

RGB 24bit full color

Mouse, Keypad, IR remote controllor, Network

Instant on screen display

TCP/IP, DHCP, MNS server

Same as DVR monitor (Mouse or Key botton)

DVD, CD, HDD bay, Stick memory, Internal

for external DVD R/W, CD R/W, HDD, Stick memory

8 camera Pan/Tilt, Remote control

8 Inputs

4 Relay Output(3A max)

1 ~ 10 sec

On/Off

3 HDD (1pc of 320GB Installed)

AC 110V/ 220V(Selectable) 50~60Hz

Approx. 80W

ENVIRONMENT

2 BNC, 1 Y/C(mini DIN4P)

15pin HDSUB 26pin HDSUB

9pin DSUB

RJ45

MECHANICAL

6pin Mini DIN

POWER

10 ~ 90%

ALARM

PC Program

430(W)x375(D)x90(H)

CONNECTORS

Approx. 22 Lbs

0 ~ 60° C

8 BNC

8 BNC(Looping)

USER INTERFACE

RECORD

VIDEO FEATURES

VIDEO SIGNAL

[Fig 4-1. Specifications]

Design and the specifications are subject to change without notice.

Stand-alone DVR Instruction Manual

Installation

CONTENTS

5-1. CONTROLS AND CONNECTORS (FOR 8CH & 16CH DVR) .........................................................20

5-2. NOTE FOR INSTALLATION ........................................................................................................22

5-3. SYSTEM CONNECTION ...........................................................................................................23

5-4. INSTALLATION ........................................................................................................................24

5-4.1. Camera Connection.................................................................................................................... 24

5-4.2. Monitor Connection..................................................................................................................... 24

5-4.3. Sensor Connection and RELAY IN &OUT .................................................................................. 26

5-4.4. RS232C Connection ................................................................................................................... 27

5-4.5 Connection to an Ethernet (Optional) Network ............................................................................ 28

5-4.6. POWER CONNECTION ............................................................................................................. 29

Stand-alone DVR Instruction Manual

5-1. Controls and Connectors (For 8Ch & 16Ch DVR)

z Front

[Fig 5-1. Front View]

- A

a. 1 Channel(FULL Screen)

b. 2 Channel(FULL Screen), UP Key

c. 3 Channel(FULL Screen)

d. 4 Channel(FULL Screen)

e. 5 Channel(FULL Screen), LEFT Key

f. 6 Channel(FULL Screen), ENTER Key

g. 7 Channel(FULL Screen), RIGHT Key

h. 8 Channel(FULL Screen)

i. 9 Channel(FULL Screen)

j. 10 Channel(FULL Screen), DOWN Key

k. 11 Channel(FULL Screen)

l. 12 Channel(FULL Screen)

m. 13 Channel(FULL Screen)

n. 14 Channel(FULL Screen)

o. 15 Channel(FULL Screen)

p. 16 Channel(FULL Screen)

q. MENU

5. Installation

- B

a. Display (Full / Split)

b. Emergency Record

c. Zoom

d. Quick Replay

e. OSD On/Off

f. Audio

g. Stop (ESC)

h. PTZ

z Rear

[Fig 5-2. Rear View]

Stand-alone DVR Instruction Manual

5-2. Note for Installation

 Install the system according to the instructions described in this manual.

 This product is designed for indoor use and should not be used outdoors.

 Avoid any area with high humidity or dust which can shorten lifetime of the unit.

 Choose a well ventilated area and keep minimum of 10” away from obstructions. Do not

place the unit near heat generating devices. Do not place items on top of the unit.

 To secure the product, we suggest placing unit in a Wisecomm DVR Lockbox.

 Avoid any area with movement as this can interfere with the internal Hard Drive.

 Use a compatible input/output signal type of cameras and monitor.

 Contact your dealer if you are having any difficulty.

The Warranty may be voided in case of unauthorized disassembling, abuse or modification.

5. Installation

5-3. System Connection

[Fig 5-3. System Connection]

Stand-alone DVR Instruction Manual

5-4. Installation

5-4.1. Camera Connection

▫ Connection of Normal Cameras

Connect the cameras to the Video Input (BNC connector) on the back of the unit as shown

above [Fig. 5-3 System Connection].

▫ Connection of Loop Output

The Camera or video output is available from the Video Output (Loop Output) on the back of

the unit. (When BNC jack is connected to the Video Output, the termination resistance (75Ω)

is automatically switched to impedance status so the external device must have termination

resistance.)

5-4.2. Monitor Connection

▫ Connection of Main Monitor

Connect the composite monitor to "Main" on the upper part of BNC connector

▫ Connection of Auxiliary Monitor

Connect the auxiliary monitor to "Aux" on the lower part of BNC connector. The output of

auxiliary monitor port is the same as the main monitor.

▫ Connection of S-VHS Monitor

Connect the S-VHS monitor cable to "S-VHS" DIN jack on the rear of the unit. Output for S-

VHS monitor is the same as that of main or auxiliary and works independently

Pin configuration of S-VHS connector.

[Fig 5-4. S-VHS Connector PIN]

5. Installation

▫ VGA Monitor Connection

Connect the VGA Monitor’s connector to the “DSUB 15 Pin Connector” on the rear of the unit.

Output for VGA Monitor is the same as that of the main screen, however it outputs a better

quality signal.

Pin configuration of VGA Connector.

[Fig 5-5. VGA Connector PIN]

Number Description Number Description

1 R(75Ω, 0.7Vp-p) 9 N/C

2 G(75Ω, 0.7Vp-p) 10 GND

3 B(75Ω, 0.7Vp-p) 11 GND

4 N/C 12 N/C

5 GND 13 HSYNC

6 GND 14 VSYNC

7 GND 15 N/C

8 GND

Stand-alone DVR Instruction Manual

5-4.3. Sensor Connection and RELAY IN &OUT

▫ SENSOR Connection (SENSOR IN)

Connect the sensor to ALM (SENSOR) IN. The Sensor should be a contactor type and support

NO (Normal Open).

Refer to

[Fig. 5-6 SENSOR IN/OUT PIN] for connection.

[Fig 5-6. SENSOR IN/OUT PIN]

▫ RELAY OU T Connection

When necessary, use RELAY OUT. The Output of RELAY OUT is a relay contactor type and

supports NO (Normal Open) & NC (Normal Close). The Output capacity is 220V 1A. A higher

capacity can cause system failure.

Refer to

[Fig. 5-7] for the connection to RELAY OUT.

[Fig 5-7]

5. Installation

5-4.4. RS232C Connection

▫ Connect the cable to the “RS232C PORT” on the rear of the unit.

Specification of the RS232C connector is standard for “DSUB9”

The Maximum Length of cable is 45 ft. When you want to use a longer distance, use “RS323

to RS422” converter

Refer to

[Fig 5-8], [Fig 5-9], [Fig 5-10] for connection of Connector PIN

[Fig 5-8]

[Fig 5-9]

[Fig 5-10]

Stand-alone DVR Instruction Manual

5-4.5 Connection to an Ethernet (Optional) Network

▫ Connecting the cable to Ethernet.

Our Ethernet connector is a RJ45 type. The maximum cable length is 300 ft. When you want

to use a longer cable, we suggest using repeater.

Refer to

[Fig. 5-11] for connector pin configura tion.

[Fig 5-11]

5. Installation

5-4.6. POWER CONNECTION

Select proper voltage (see fig 5-12) and connect to a reliable power source.

It should not be shared with other electrical equipment on the same line.

Poor performance can occur if the connected voltage is more than 10% plus or minus the

required voltage.

Frequent power cuts can cause crucial failures, so if you have an unstable power source we

recommend the use of an Uninterrupted Power Supply or other backup power source.

AC Input Voltage is AC110V 50/60Hz or AC220V 50/60Hz. AC power Source vary depends on countries. Factory default setting is AC110V 50/60Hz.

[Fig 5-12 Input power selection]

Note: Before you input the AC power to the system, make sure that the selector

switch conforms to the correct input voltage.

Stand-alone DVR Instruction Manual

How to operate

CONTENTS

6-1. GENERAL INFORMATION .........................................................................................................33

6-2. OPERATING INTERFACE ..........................................................................................................34

6-3. IR REMOTE CONTROLLER ......................................................................................................35

6-4. POWER ON/OFF ....................................................................................................................36

6-4.1. POWER ON................................................................................................................................36

6-4.2. POWER OFF.............................................................................................................................. 36

6-4.3. APPEARANCE OR DISAPPEARANCE OF POWER BUTTON.................................................. 37

6-5. MENU BAR ON/OFF ...............................................................................................................38

6-6. DISPLAY SCREEN ...................................................................................................................39

6-6.1. FULL SCREEN ........................................................................................................................... 39

6-6.2. SPLIT SCREENS ....................................................................................................................... 40

Stand-alone DVR Instruction Manual

CONTENTS

6-7. LIVE.....................................................................................................................................41

6-7.1. FULL SCREEN ........................................................................................................................... 41

6-7.2. SPLIT SCREEN.......................................................................................................................... 41

6-7.3. SEQUENCING SCREENS ......................................................................................................... 42

6-7.4. LIVE AUDIO................................................................................................................................43

6-7.5. ZOOM......................................................................................................................................... 44

6-7.6. OSD ON / OFF ........................................................................................................................... 45

6-7.7. PAN / TILT .................................................................................................................................. 46

6-7.8. SYSTEM STATUS ...................................................................................................................... 48

6-7.9. POWER LOSS LISTS................................................................................................................. 49

6-7.10. VIDEO LOSS LIST ................................................................................................................... 51

6-8. RECORD................................................................................................................................53

6-8.1. Manual (Continuous) recording................................................................................................... 53

6-8.2. Manual Event Recording ............................................................................................................ 53

6-8.3. Timer Recording ......................................................................................................................... 54

6-8.4. Timer Event Recording ............................................................................................................... 55

6-8.5. Recording Icons.......................................................................................................................... 56

6-9. REPLAY...............................................................................................................................57

6-9.1. QUICK REPLAY ......................................................................................................................... 57

6-9.2. REPLAY...................................................................................................................................... 57

6-9.2.1. Playback Devices ................................................................................................................ 58

6-9.2.2. Set the Start Time ................................................................................................................ 58

6-9.2.3. Replaying............................................................................................................................. 60

6-9.2.4. Disappearance of Replay control buttons ............................................................................ 62

6-10. COPY ................................................................................................................................64

6-10.1. Copying devices ....................................................................................................................... 64

6-10.2. Set the Copy Start Time (Copying extent)................................................................................. 65

6-10.3. Set the Copy End Time (Copying extent).................................................................................. 67

6-10.4. Copying the recorded data during replaying ............................................................................. 68

6. How to Operate

6-1. General Information

▫ You can operate all functions of the system by use of the 28 buttons located on the front

panel, remote controller and a mouse. Additionally, you can remotely control this unit via

RS422C or the Ethernet port located on the back of the unit.

▫ System status is indicated by either LED lights on the operator buttons or the monitor.

▫ The system is protected from any accidental pressing of any operator buttons, but care

should be taken when using the functions of HDD Formatting as this can lead to data loss.

Stand-alone DVR Instruction Manual

6-2. Operating Interface

There are 3 ways to operate the system by pressing the buttons on the front panel or buttons

on the remote controller and clicking the mouse. A lot of users mostly prefer to use a mouse

on these kinds of products such as DVRs, computers and computer-aided devices. Therefore

we like to describe all the instructions in this manual based on using the mouse.

6. How to Operate

6-3. IR Remote Controller

1. Record

2. Power On/Off

3. Display format (Split)

4. System status

5. Pan / Tilt

6. Zoom / Focus

7. Search for replaying

8. Up

9. Quit

10. Left

11. Enter

12. Right

13. Quick Replay

14. Down

15. Menu (Setup)

16. OSD On/Off

17. Zoom

18. Freeze / IR ID Config

19. No.1~8 Channel (Full Screen)

/ No. 1 ~ 16 IR ID Config

1 2

4 6

7 9 8

10 12

13 15

16 17

[Fig.6-1 IR Remote Controller]

Stand-alone DVR Instruction Manual

6-4. Power On/Off

6-4.1. POWER ON

On the front panel or the remote controller:

Press the POWER button on the front panel for approx. 3 seconds until the LED lights are turned on or just press the POWER button on the remote controller.

6-4.2. POWER OFF

On the front panel or the remote controller:

Press the POWER button on the front panel for approx. 3 seconds until the LED lights are turned off or just press the POWER button on the remote controller and then the following

message will be displayed on the screen.

[Fig.6-

2Messageof POWERoff

]

▫ Press the ENTER (

↵) button to turn the power off.

By clicking the mouse:

▫ Click the POWER OFF button on the MENU bar (See Fig.6-3) and then the message (See

Fig.6-2) will be displayed on the screen.

▫ Click the OK button to turn the power off.

[Fig.6-3 POWER button on MENU bar]

6. How to Operate

6-4.3. APPEARANCE OR DISAPPEARANCE OF POWER BUTTON

The Power On/Off button and the Audio buttons (See 6-7.4) as shown in Fig.6-3-1 will always stay on the MENU bar when the system is not connected through the SmViewer (Client Host

Program or Internet Explorer). But the Power On/Off button and the Audio buttons on the

MENU bar as shown in Fig.6-3-1 will be disappeared on the screen of the DVR and the client’s computer when the system is connected through the SmViewer and the mouse pointer is on the SmViewer (See 6-3-2).

We designed this function so that users can not turn the power On/Off or control the audio

functions on the DVR system through internet.

[Fig.6-3-1 Power & Audio buttons]

[Fig.6-3-2 No Power & Audio buttons ]

To appear the buttons (See Fig.6-3-1) on the MENU bar: just move the Mousepointer on the screen of the DVR system only, not on the SmViewer.

Stand-alone DVR Instruction Manual

6-5. Menu Bar On/Off

Right-click on the screen in the LIVE or the RECORD mode and the MENU bar will be

appeared. Right-click again and it will be disappeared.

CLICK

[Fig.6-4 LIVE Screen]

6. How to Operate

6-6. Display Screen

6-6.1. FULL SCREEN

[Fig.6-5 FULL screen]

Stand-alone DVR Instruction Manual

6-6.2. SPLIT SCREENS

FULL SCREEN

SEQUENCING SCREEN

[4B] 2nd QUAD SCREEN

[4A]

1st QUAD SCREEN

8 SPLIT SCREEN

6. How to Operate

6-7. LIVE

6-7.1. FULL SCREEN

▫ Full SCREEN is available in the LIVE mode or the RECORD mode.

▫ Click on a certain camera’s screen in the LIVE mode or in the RECORD mode, and a FULL

SCREEN will be displayed.

▫ Click the FULL screen to return to the SPLIT SCREEN.

6-7.2. SPLIT SCREEN

▫ SPLIT SCREEN is available in the LIVE mode or the RECORD mode.

▫ Click the DISPLAY icon on the MENU bar, and the DISPLAY pop-up screen will be

displayed (See Fig.6-6).

▫ Click one of the SPLIT screens on the DISPLAY pop-up screen.

[Fig.6-6 DISPLAY pop-up screen]

Stand-alone DVR Instruction Manual

6-7.3. SEQUENCING SCREENS

▫ Displaying the cameras in SEQUENCE is available in the LIVE

mode or the RECORD mode.

Each of the channels will be displayed in sequence and the dwell

time can be adjusted in the camera set up menu (Refer to 7-4.7).

▫

This ICON is displayed on the upper left hand corner of the screen while the system is

in the Sequencing Mode.

▫ Click a Full screen to return to the SPLIT screen while the system is sequencing.

[Fig. 6-7 LIVE Menu DISPLAY pop-up window]

[Fig. 6-8 SEQUENCING screen]

6. How to Operate

6-7.4. LIVE AUDIO

▫ If cameras (up to 4 cameras) have audio function, it will sound in the live mode.

▫ Click the CHANNEL button you wish to listen on the MENU bar as shown below (See

Fig.6-9). The CHANNEL can be changed by clicking the mouse repeatedly.

▫ Turn the AUDIO (speaker) ON by clicking the SPEAKER icon as shown below (See Fig.6-

9). If the ICON turns in red by clicking, it represents that the AUDIO is turned OFF and if it

turns in yellow, it represents that the AUDIO is turned ON.

▫ Adjust the Audio Volume by Clicking the ▲ or the ▼ button when the AUDIO is turned ON.

[Fig. 6-9 Audio buttons]

Stand-alone DVR Instruction Manual

6-7.5. ZOOM

The image on the screen will be zoomed up to 2 times when the ZOOM button is clicked in

the LIVE mode (This function is available on the full screen mode only).

▫ Click the ZOOM button on the MENU bar in the LIVE mode.

▫ Move the mouse on the ZOOMED screen, and the 8-directional arrow marks will be

appeared as shown below (Fig.6-10).

▫ Click the

(EXIT) button to return to the LIVE Mode.

[Fig. 6-10 ZOOMED screen]

6. How to Operate

6-7.6. OSD ON / OFF

OSD ON /OFF is possible in the LIVE mode or RECORD mode. ▫ Click the OSD button on the MENU bar to turn the OSD (On Screen Display) ON or OFF.

When the OSD is in OFF position, all the texts on the screen will be disappeared.

CAM 01 CAM 02 CAM 03

CAM 01 CAM 02

2007/05/25 19:30: 41

[Fig.6-11 OSD ON SCREEN]

[Fig.6-12 OSD OFF SCREEN]

Stand-alone DVR Instruction Manual

6-7.7. PAN / TILT

▫ Click the PAN/TILT button on the MENU bar in the LIVE mode to access the PAN/TILT

cameras.

▫ Click the

(EXIT) button to return to the LIVE mode.

[Fig.6-13 PAN/TILT button]

[Fig.6-14 PAN/TILT window]

6. How to Operate

ZOOM / FOCUS

[Fig.6-15 PAN/TILT CONTROL window]

▫ Channel Selection and Screen Conversion

To change a channel, press the CHANNEL button on the front panel or click

the CHANNEL

button on the [Fig.6-15 PAN /TILT CONTROL window]. It will be converted a full screen.

To return to the LIVE mode, press the SPLIT button on the front panel or click the

(EXIT) button.

▫ ZOOM / FOCUS

Control the ZOOM and FOCUS of PAN/TILT camera.

Click the ZOOM/FOCUS button on the PAN/TILT CONTROL window

[Fig.6-15 PAN / TILT

CONTROL window]

or press the UP/DOWN/LEFT/RIGHT button on the front Panel.

▫ PAN / TILT

Control the PAN and TILT of PAN/TILT camera.

Click the PAN/TILT Button on the PAN/TILT CONTROL window

[Fig.6-15 PAN / TILT CONTROL

window]

or press the UP/DOWN/LEFT/RIGHT button on the front Panel.

Stand-alone DVR Instruction Manual

6-7.8. SYSTEM STATUS

▫ Click the SYSTEM STATUS button on the MENU bar to see the system status as shown

below (Fig.6-16).

▫ Click the (EXIT) button to return to the LIVE mode or RECORD mode.

[Fig.6-16 SYSTEM STATUS button]

[Fig.6-17 SYSTEM STATUS window]

6. How to Operate

6-7.9. POWER LOSS LISTS

The list indicates the time/date when the system power is turned OFF.

▫ Click the POWER LOSS LISTS button on the SYSTEM STATUS window to view the

POWER LOSS LISTS.

▫ Each of the pages contains 10 lists. You can search the pages by clicking the UP/DOWN

button.

▫ Click the

(EXIT) button to return to the LIVE or RECORD mode.

[Fig.6-18 POWER LOSS LISTS window]

Stand-alone DVR Instruction Manual

▫ CLEAR LISTS button

Click the CLEAR LISTS button to clear the lists, you will be prompted to confirm changes.

When you click the OK button, the POWER LOSS LISTS will be deleted.

To cancel, click the CANCEL button

Fig.6-19 POWER LOSS LISTS Message

6. How to Operate

6-7.10. VIDEO LOSS LIST

The list indicates the video loss channel and the time/date when the video signal is

disconnected.

▫ Click the VIDEO LOSS LISTS button on the SYSTEM STATUS window to view the VIDEO

LOSS LISTS.

▫ Each of the pages contains 4 lists. You can search the pages by clicking the UP/DOWN

button.

▫ Click the

(EXIT) button to return to the LIVE or RECORD mode.

[Fig.6-20 VIDEO LOSS LISTS window]

[Fig.6-21 VIDEO LOSS window]

Stand-alone DVR Instruction Manual

▫ CLEAR LISTS button

Click the CLEAR LISTS button to clear the lists, you will be prompted to confirm changes.

When you click the OK button, the VIDEO LOSS LISTS will be deleted.

To cancel, click the CANCEL button

[Fig.6-22 VIDEO LOSS LISTS Message window]

6. How to Operate

6-8. Record

This system provides Watchdog function.

When power goes off during recording and the power turns on, the system will automatically start

to record.

6-8.1. Manual (Continuous) recording

▫ Click the SETUP icon on the MENU bar in the LIVE mode.

▫ Click the RECORD button in the SETUP menu and the RECORD window will be displayed.

▫ Select the MANUAL RECORDING (

) between the MANUAL RECORDING ( )

and the TIMER RECORDING (

) as shown in Fig.6-23. All channels can be set at

the same time by clicking the ALL (

) or each of the channels can be set by

clicking the MANUAL RECORDING (

) on the CAM 1 through CAM 8.

The MOTION (

) and SENSOR ( ) as shown in Fig.6-23 should be turned OFF

in this recording mode.

▫ Press the RECORD button on the front panel or click the RECORD icon on the MENU bar.

[Fig.6-23. Manual Recording setup]

6-8.2. Manual Event Recording

▫ Click the SETUP icon on the MENU bar in the LIVE mode.

▫ Click the RECORD button in the SETUP menu and the RECORD window will be displayed.

▫ Select the MANUAL RECORDING (

) between the MANUAL RECORDING ( )

and the TIMER RECORDING (

) as shown in Fig.6-24. All channels can be set at

the same time by clicking the ALL (

) or each of the channels can be set by

clicking the MANUAL RECORDING (

) on the CAM 1 through CAM 8.

Stand-alone DVR Instruction Manual

The MOTION ( ) and SENSOR ( ) as shown in Fig.6-24 should be turned ON

in this recording mode.

▫ Press the RECORD button on the front panel or click the RECORD icon on the MENU bar.

[Fig.6-24 Manual Event Recording setup]

6-8.3. Timer Recording

▫ Click the SETUP icon on the MENU bar in the LIVE mode.

▫ Click the RECORD button in the SETUP menu and the RECORD window will be displayed.

▫ Select the TIMER RECORDING (

) between the MANUAL RECORDING ( )

and the TIMER RECORDING (

) as shown in Fig.6-25. All channels can be set at

the same time by clicking the ALL (

) or each of the channels can be set by

clicking the TIMER RECORDING (

) on the CAM 1 through CAM 8.

The MOTION (

) and SENSOR ( ) as shown in Fig.6-25 should be turned OFF

in this recording mode.

▫ Choose one among WEEKDAY, SATURDAY and SUNDAY in the TIMER menu by clicking

the mouse on (

) that turns to ( ). You can choose the value or

by repeatedly clicking the mouse.

▫ Select the Starting Time and Ending Time by clicking the mouse, change the values with

the mouse’s wheel and click the mouse again on the changed values to complete as

shown in Fig.6-27. The recording time can be set in military hour mode (24hour).

▫ Press the RECORD button on the front panel or click the RECORD icon on the MENU bar.

[Fig.6-25 Timer Recording setup]

6. How to Operate

6-8.4. Timer Event Recording

▫ Click the SETUP icon on the MENU bar in the LIVE mode.

▫ Click the RECORD button in the SETUP menu and the RECORD window will be displayed.

▫ Select the TIMER RECORDING (

) between the MANUAL RECORDING ( )

and the TIMER RECORDING (

) as shown in Fig.6-26. All channels can be set at

the same time by clicking the ALL (

) or each of the channels can be set by

clicking the TIMER RECORDING (

) on the CAM 1 through CAM 8.

The MOTION (

) and SENSOR ( ) as shown in Fig.6-26 should be turned ON

in this recording mode.

▫ Choose one among WEEKDAY, SATURDAY and SUNDAY in the TIMER menu by clicking

the mouse on (

) that turns to ( ). You can choose the value or

by repeatedly clicking the mouse.

▫ Select the Starting Time and Ending Time by clicking the mouse, change the values with

the mouse’s wheel and click the mouse again on the changed values to complete as

shown in Fig.6-27. The recording time can be set in military hour mode (24hour).

▫ Press the RECORD button on the front panel or click the RECORD icon on the MENU bar.

[Fig.6-26 Timer Event Recording setup]

[Fig.6-27 Example for Timer Recording]

Stand-alone DVR Instruction Manual

6-8.5. Recording Icons

The Recording Icons depends on recording modes are displayed on the upper left hand

corner of the screen.

▫ To turn the Recording Icon OFF, click the DISPLAY ON in the RECORD menu and then it

will be turned OFF. You can select the value ON or OFF by repeatedly clicking the mouse.

Manual (Continuous) Recording

Event Recording Ready

MOTION Event Recording

SENSOR Event Recording

[Fig.6-28 Recording Icons]

6. How to Operate

6-9. REPLAY

6-9.1. QUICK REPLAY

It is available only by pressing the PLAY button on the front panel or the QICK SEARCH

button on the remote controller.

▫ Press the PLAY button, and the recent recorded list will be played.

6-9.2. REPLAY

▫ Click the REPLAY icon on the MENU bar, and the REPLAY window as shown in Fig.6-29

will be displayed.

▫ Click the

(EXIT) button to return to the previous mode.

[Fig.6-29 REPLAY window]

Stand-alone DVR Instruction Manual

6-9.2.1. Playback Devices

In order to payback, plug the USB devices such as external USB HDD, USB memory to the

USB port or insert a recorded media (CD-R/W or DVD-R/W) into the DVD-R/W drive. When the devices are ready to playback, the Ready on the corresponding devices will be

displayed in shown in Fig.6-30.

▫ Click the mouse on a device among HDD, USB, CD-R/W and DVD-R/W that is displaying

the Ready (See Fig.6-30). The corresponding LED will be lit in red when the device is

selected.

[Fig.6-30 REPLAY DEVICE button]

6-9.2.2. Set the Start Time

▫ Select the Date (year / month / day) on the calendar by clicking the mouse on the

highlighted character in black that turns to highlighted character in red (See Fig.6-31).

The highlighted character in black indicates the dates and times that recorded data exists,

and the highlighted character in red indicates the selected dates and times.

▫ Select the month (year) by clicking the mouse on the ◄button or ► button.

[Fig.6-31 Calendar window]

6. How to Operate

▫ Select the hour on the Start Time Select Window (See Fig.6-32) by clicking the mouse on

the Hour (0 – 23 hour) you wish to start to play.

The green active buttons indicate the HOUR that recorded data exists, and the red active

buttons indicate the selected Start HOUR.

[Fig.6-32 Start Time Select window]

By using the Replay Time set-up buttons:

The time and date can also set on the Replay Time set-up button window (See Fig.6-33).

▫ Select the values (year/month/date and hour/minute/second) by clicking the mouse,

change the values with the mouse’s wheel and click the mouse again on the changed

values to complete as shown in Fig.6-33.

[Fig.6-33 Replay time set-up button]

By using the Replay Time set-up bar:

The starting time to play can also be set by clicking the slider on the bar and dragging it or

clicking the bar.

[Fig.6-34 Replay time set-up bar]

Stand-alone DVR Instruction Manual

6-9.2.3. Replaying

Replaying start time set-up can be possible within a recording time extent.

▫ Replay buttons (NORMAL / MOTION / SENSOR)

NORMAL PLAY: Click the button to play all the recorded data.

MOTION PLAY: Click the button to play the recorded data by MOTION only.

SENSOR PLAY: Click the button to play the recorded data by SENSOR only.

6. How to Operate

▫ How to control while replaying

③ ④ ② ④ ③ ⑤ ⑥ ①

[Fig.6-35 Replay screen]

① Search Slider

It is possible to playback by clicking the slider on the bar and dragging it.

② PLAY / PAUSE

Click the

button to pause.

Click the

button to replay when in the pause mode.

③ REW/FF

During replaying, press the

or button, or turn the shuttle ring on the

front panel for fast rewinding and fast forwarding up to 128 times.

Keep pressing the

or button to accelerate the speed up to 128 times.

(Same as shuttle ring)

④ PREV / NEXT

During replaying, press the

button to view previous frame in still image and press

Stand-alone DVR Instruction Manual

the button to view the next frame in still image.

⑤ Speaker ON / OFF

Turn speaker ON or OFF.

⑥ Speaker Volume

Adjust the Audio Volume by clicking the ▲ or the ▼ button when the AUDIO is turned

ON.

6-9.2.4. Disappearance of Replay control buttons

During replaying, the replay control buttons appear on the bottom of the screen. To

disappear, drag the mouse pointer downward until the replay control buttons disappear and

to appear, drag the mouse pointer upward until the replay control buttons appear.

6. How to Operate

- Click the mouse on one out of channels during replaying to view a full screen.

- Click the mouse on the full screen during replaying to return to the split screen.

[Fig.6-36 SPLIT screen during replaying]

[Fig.6-37 FULL screen during replaying]

Stand-alone DVR Instruction Manual

6-10. COPY

▫ Click the COPY icon on the MENU bar, and the COPY window as shown in Fig.6-38 will be

displayed.

▫ Click the

(EXIT) button to return to the previous mode.

[Fig.6-38 COPY window]

6-10.1. Copying devices

In order to copy the recorded data, plug the USB devices such as external USB HDD, USB

memory to the USB port or insert a blank media (CD-R/W or DVD-R/W) into the DVD-R/W

drive. When the devices and Medias are ready to copy, the Ready on the corresponding devices

and Medias will be displayed in shown in Fig.6-38.

We recommend you to format the USB devices prior to copy the recorded data as follows, but the Medias such as CD-R/W and DVD-R/W don’t need to format.

6. How to Operate

▫ Connect the USB devices to the DVR

▫ Click the SETUP icon on the MENU bar, and the SETUP menu will be displayed.

▫ Click the DISK MANAGER in the SETUP menu, and the DISK MENAGER will be displayed.

▫ Click the mouse on the USB button in the DISK MANAGER, and you will be asked.

▫ Click the OK, and then the progressive bar will be shown along with FORMATTING USB….

In regards to blank Medias (CD-R/W and DVD-R/W)

Most Medias can be used with the system, but some of them may be not compatible with.

Refer to the included instructions related to Medias or visit the website of DVD/CD DRIVE

unit manufacturer for more information.

6-10.2. Set the Copy Start Time (Copying extent)

▫ Select the Date (year / month / day) on the calendar by clicking the mouse on the

highlighted character in red that turns to highlighted character in black (See Fig.6-39).

The highlighted character in black indicates the dates and times that recorded data exists,

and the highlighted character in red indicates the selected dates and times.

▫ Select the month (year) by clicking the mouse on the ◄button or ► button.

▫ Select the hour on the Copy Start Time and Channel Selection Window (See Fig.6-40) by

clicking the mouse on the Hour (0 – 23 hour) you wish to start to copy.

The green active buttons indicate the HOUR that recorded data exists, and the red active

buttons indicate the selected Start HOUR.

[Fig.6-39 Calendar for Copying]

Stand-alone DVR Instruction Manual

[Fig.6-40 Copy Start time and Channel Selection window]

① All channels, HOUR selection button.

Click the arrow button on the upper left corner as shown in Fig.6-40 to set the full extent of

the recording and all the channels simultaneously.

② HOUR selection button

Select the start time to copy by clicking the mouse on HOUR (0-23: in the military hour).

Thereafter the extent of the recording will be saved on.

③ Channel selection button

Some channels can be selected by clicking the mouse on the corresponding channels.

By using the Copy Start/End set-up b uttons:

The time and date can also set on the Copy Start/End set-up buttons window (See Fig.6-41).

▫ Select the values (year/month/date and hour/minute/second) by clicking the mouse, change

the values with the mouse’s wheel and click the mouse again on the changed values to

complete as shown in Fig.6-41.

6. How to Operate

[Fig.6-41 Copy Start/End setup buttons]

By using the Start/End set-up bar:

The starting time to copy can also be set by clicking the slider on the bar and dragging it or just

click the bar.

[Fig.6-42 Copy Start/End setup bar]

6-10.3. Set the Copy End Time (Copying extent)

Refer to the above explanation (See section 6.10.2.).

Stand-alone DVR Instruction Manual

6-10.4. Copying the recorded data during replaying

The system, CDR0850 allows users to copy the recorded data during replaying.

▫ Start replaying (See section 6-9).

▫ Right-click on the replaying screen, and the COPY DATA screen will be displayed (See

Fig.6-43).

▫ To set the starting time and date to copy, select the values (year/month/date window

and hour/minute/second) on the COPY DATA window by clicking the mouse, change the

values with the mouse’s wheel and click the mouse again on the changed values to

complete.

▫ Select each of channels (1 through 8 in red) or “A” in black for all the channels on the

COPY DATA window, and click on the SELECTED button to save.

[Fig.6-43 Start Copy Time Setup window]

▫ To set the ending time and date to copy, right-click on the replaying screen again, and

the COPY DATA window that contains end time for copying will be displayed (See Fig.6-

44). Set the ending time and date to copy as described above.

▫ To select the COPY MODE, click on the GO TO COPY button (See Fig.6-44), and the

COPY window (See Fig.6-38) will be displayed. The time and date (starting time and ending time) to copy can be changed on the COPY window as well (See section 6-10.2).

6. How to Operate

[Fig.6-44 End Copy Time Setup window]

▫ Choose one among NETWORK, USB, CD and DVD which are ready to copy (See section

6-10.1). Select COPY Mode Only when the devices and medias are ready to copy, the Ready on the corresponding

devices and medias will be displayed.

NETWORK COPY

Save the recorded data in PC through the SmViewer by Network. Click the Network button on the SmViewer to start copy. It is available only on the SmViewer (not on the DVR) and the networking should be connected to the DVR.

USB COPY

Save the recorded data in USB Device. Click the USB Device button to start copy.

CD-RW COPY

Save the recorded data on CD-R/W Medias. Click the CD-R/W button to start copy.

Stand-alone DVR Instruction Manual

DVD-RW COPY

Save the recorded data on DVD-R/W Medias. Click the DVD-R/W button to start copy.

▫ As soon as one of the above button is clicked , copying will start along with displaying the

icon shown in Fig.6-45.

The following icon indicates that copying is in process.

[Fig.6-45 Copying Icon]

SETUP

CONTENTS

7-1. SETUP.................................................................................................................................74

7-2. SYSTEM..............................................................................................................................75

7-2.1. TIME / DATE............................................................................................................................... 76

7-2.2. SYSTEM CONFIG ...................................................................................................................... 78

7-2.2.1. FACTORY DEFAULT ........................................................................................................... 78

7-2.2.2. LOAD CONFIG / BACKUP CONFIG.................................................................................... 79

7-2.3. PASSWORD............................................................................................................................... 82

7-2.4. IR REMOTE ID ........................................................................................................................... 83

7-2.5. FIRMWARE UPDATE ................................................................................................................. 84

7-2.6. SYSTEM INFO ........................................................................................................................... 84

7-3. DISK MANAGER .................................................................................................................85

7-3.1. HDD WRITE FAIL....................................................................................................................... 86
