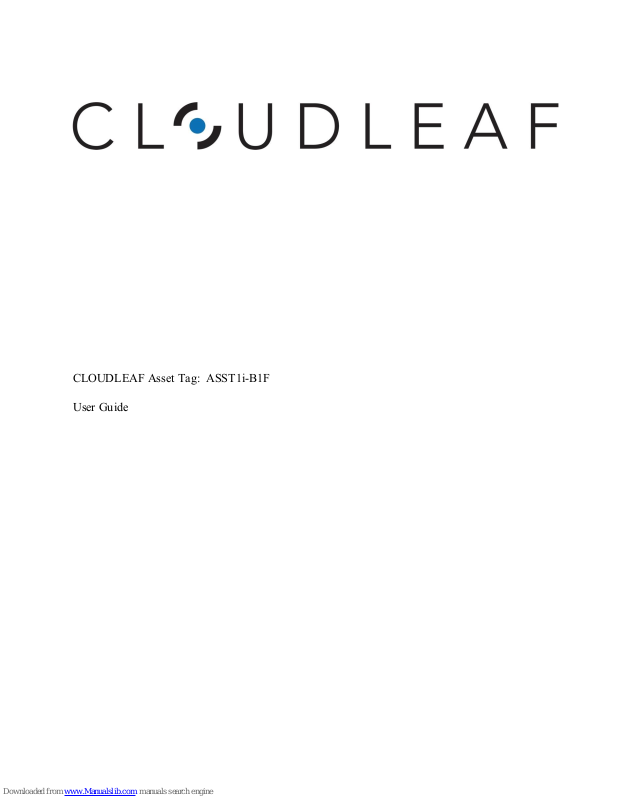

CLOUDLEAF Asset Tag: ASST1i-B1F
User Guide
2
Disclaimer
The information and know-how included in this document are the exclusive property of
Cloudleaf Inc. and are intended for the use of the addressee or the user alone. The addressees
shall not forward to another their right of using the information, know-how or document
forwarded herewith, in whole or in part in all matters relating or stemming from or involved
therein, whether for consideration or without consideration, and shall not permit any third party
to utilize the information, know-how or the documents forwarded herewith or copies or
duplicates thereof, unless at the company’s consent in advance and in writing. Any distribution,
advertisement, copying or duplication in any form whatsoever is absolutely prohibited. The
Company reserves the right to sue the addressee, user and/or any one on their behalves, as well
as third parties, in respect to breaching its rights pertaining to the intellectual rights in particular
and its rights of whatever kind or type in the information, know- how or the documents
forwarded by them herewith in general, whether by act or by omission.
This document is confidential and proprietary to Cloudleaf Inc. and is not to be distributed to any
persons other than licensed Cloudleaf System users or other persons appointed in writing by
Cloudleaf Inc.
Trademark Acknowledgements
Cloud leaf TM is a trademark of Cloudleaf, Inc. Other brand products and service names are
trademarks or registered trademarks of their respective holders. Below is a partial listing of other
trademarks or registered trademarks referenced herein.
Copyright 2017 Cloudleaf Inc. All rights reserved
3
Table of Contents
Introduction...............................................................................................................................4
ASST1i-B1F Features ...............................................................................................................5
Motion Sensing .................................................................................................................................. 5
Telemetry Functionality .................................................................................................................... 5
Long Battery Life .............................................................................................................................. 5
Rugged Performance ......................................................................................................................... 5
Compatibility and Non-interference ................................................................................................. 5
Tag Management.......................................................................................................................6
Cleaning the Tag .......................................................................................................................6
Specifications .............................................................................................................................7
Performance ...................................................................................................................................... 7
Environmental Specifications ........................................................................................................... 7
Electrical ............................................................................................................................................ 7
Radio .................................................................................................................................................. 7
Safety ................................................................................................................................................. 7
Certification Radio ............................................................................................................................ 7
Safety and Warnings .................................................................................................................8
FCC STATEMENT ........................................................................................................................... 8
FCC Warning .................................................................................................................................... 8
4
Introduction
The ASST1i-B1F Tag is a key component of the CloudLeaf System. The ASST1i-B1F is a small
BLE (Bluetooth Low Energy) that enables the wireless network infrastructure to locate assets not
connected to a wireless network. The tag can be attached to people and to a variety of equipment,
such as containers, manufacturing equipment and vehicles. This enables tagged items to be
accurately located in real-time and in any environment – from tight indoor locations such as
Manufacturing floors to open outdoor spaces such as parking lots.
ASST1i-B1FTag
5
ASST1i-B1F Features
Motion Sensing
ASST1i-B1F Tags contain on-board motion sensors. The motion sensor can be configured to
trigger alerts. It also enables different transmission intervals for tags when they are stationary or
in motion – which reduces unnecessary network traffic and conserves battery life.
Telemetry Functionality
The ASST1i-B1F Tags include a serial interface that enables customized connectivity to host
units for data retrieval. The tags can be configured to retrieve data from the host periodically and
to send the data together with location messages. Applications for this function may include
reading temperature from shipping containers.
Long Battery Life
A powerful battery provides power for a period of up to 2 years. Based on CR 2032 Coin cell.
The Tag periodically provides a report on the battery level so that when the battery level runs
low, it can be replaced efficiently with minimum down time. The Tag can also be easily
modulated in order to conserve battery power.
Rugged Performance
Cloudleaf Tags are designed to function in harsh work environments and weather conditions.
The tag enclosure is water-resistant, including immersion (IP-67) and designed to withstand
significant physical shocks.
Compatibility and Non-interference
Cloudleaf Tags are based Bluetooth Low Energy based and IEEE 802.15.1. The tag’s clear
channel sensing techniques avoid interference with any IEEE 802. xx networks. The use of the
unlicensed 2.4GHz frequency band at low power levels ensures no interference with other
wireless equipment, making CloudLeaf tags safe for use with such sensitive equipment.
6
Tag Management
The CloudLeaf Tag can be configured, programmed and activated via a wireless interface. This
is done with the help of the Cloudleaf Tag Provisioning application. Which can be done via
Cloud Dashboard, or Mobile App designated to user.
In addition, Tag Provisioning is used to activate and deactivate tags and to program stored
messages on the tags.
Cleaning the Tag
Cleaning the external surface of the Tag’s housings can be done using Alcohol or Chloride based
wipers only.
7
Specifications
Performance
Outdoor range: Up to 90m
Indoor range: Up to 60m
Environmental Specifications
• Temperature: -20°C to +60°C
• Humidity: 0 to 100%, condensing
• The housing is water and dust resistant.
• IP-67
Electrical
• 3.0V CR 2032 battery (Sealed)
• Battery life: up to 2 years
Radio
• Bluetooth Low Energy 4.2 & IEEE 802.15.1 Compliant 2.4GHz Radio.
• Transmission Power up to: 0.4315 mW
Safety
• CE
Certification Radio
• FCC Part 15, sub-part C class B, sub-part B
8
Safety and Warnings
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
a) Reorient or relocate the receiving antenna.b) Increase the separation between the equipment
and receiver.c) Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.d) Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:a) This device may not cause harmful
interferenceb) This device must accept any interference received, including interference that
may cause undesired operation.
FCC Warning
Modifications not expressly approved by the manufacturer could void the user authority to
operate the equipment under FCC Rules.
“FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF
exposure guidelines, place the product at least 20cm from nearby persons.”
