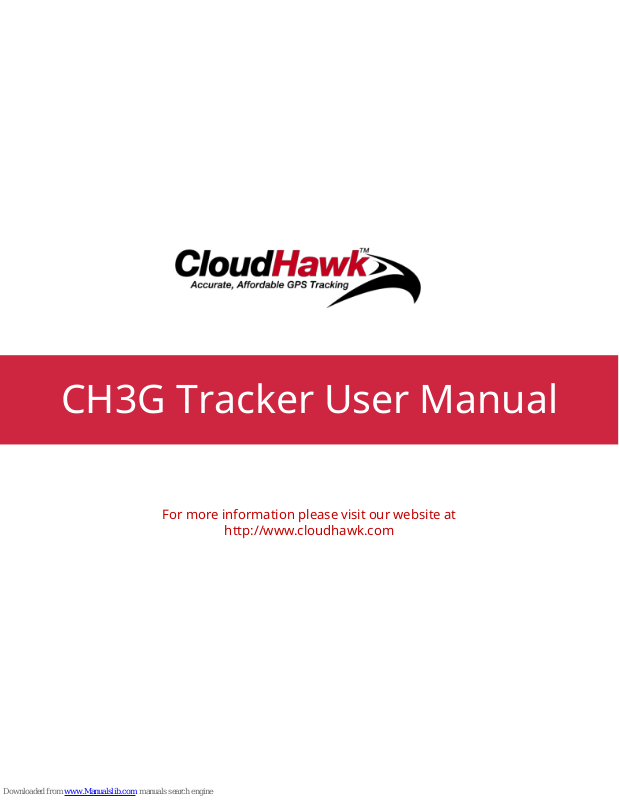

CH3G Tracker User Manual
For more information please visit our website at
http://www.cloudhawk.com
1.FCC compliance statement: Your CloudHawk device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation. Changes or modifications to the CloudHawk device not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment. The CloudHawk device has been tested and found to
comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. The device generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the manufacturer’s instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If the device does cause
harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to
try to correct the interference by one or more of the following measures: (1) reorient or relocate the receiving antenna; (2) increase the
separation between the device and receiver; (3) connect the device into an outlet on a circuit different from that to which the receiver is
connected; and (4) consult the dealer or an experienced radio/TV technician for help.
2.Canadian compliance statement: Your CloudHawk device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any inte rference,
including interference that may cause undesired operation of the device. This Class B digital apparatus complies with Canadian ICES-003.
Changes or modifications to the CloudHawk device not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
Important: It is the user’s responsibility to ensure that the use of CloudHawk services complies with the applicable laws in the country of
usage. Spark Technology Labs Inc. is not responsible the user’s violation of any of the respective laws or regulations.
For more information: Visit the CloudHawk website (www.cloudhawk.com) for the latest updates and additional information on any of the
CloudHawk family of products. Our Terms of Service are made available and maintained on the website regularly.
© 2016 Spark Technology Labs Inc. CloudHawk® is a trademark of Spark Technology Labs Inc.
Notice
Mounting screw holes (4x)
(for mounting on a flat surface)
Sealing gland *
8-core connection cable
CH3G Waterproof Tracker *
Tie-strap mounting feature
* WARNING: Please do not open the tracker or tamper the gland as this may compromise the
waterproofing capability of the device and will void the warranty
Hardware Overview
Wire Connection
NOTICE: The CH3G tracker comes as a fully functional tracking device and only needs a
connection to a 12~24V DC power for battery charging. If you are interested in connecting to
external sensors, such as temperature sensor, door sensor, etc., please contact an authorized
installer for installation service. Please contact CloudHawk customer service at 1-888-472-3255
to find an authorized installer close to you.
Wire Color Connect to
White Positive of a 12~24V DC source
Black Negative of a 12~24V DC source
Brown
(optional) Ignition wire of your vehicle or
equipment to detect ignition status
Red
(optional) Door sensor to detect the door
open/close of your vehicle or trailer
Green
(optional) Your choice of temperature
sensor, humidity sensor or cargo sensor
and more
Blue
Yellow
Grey (optional) Sensor ground
Specification
Dimensions
96.3 mm × 94.2 mm × 33 mm
Weight 290 g
Battery 5200 mAh Lithium-Ion
Power supply 7~40V DC
Cellular
technology
Quad-band GPRS
WCDMA/HSDPA/HSUPA Band II/IV/V
Connectivity Bluetooth Smart
Positioning A-GPS
GPS sensitivity -161dBm (radiated, tracking)
GPS accuracy 3m (in good GPS signal condition)
RF Exposure Information and Statement
This equipment complies with FCC/ IC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE: Any changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
IC WARNING
This device complies with Industry Canada's licence-exempt RSSs. Operation is subject to the following two
conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the
device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible
d'en compromettre le fonctionnement.
Designed by SparkTechLabs in Canada
