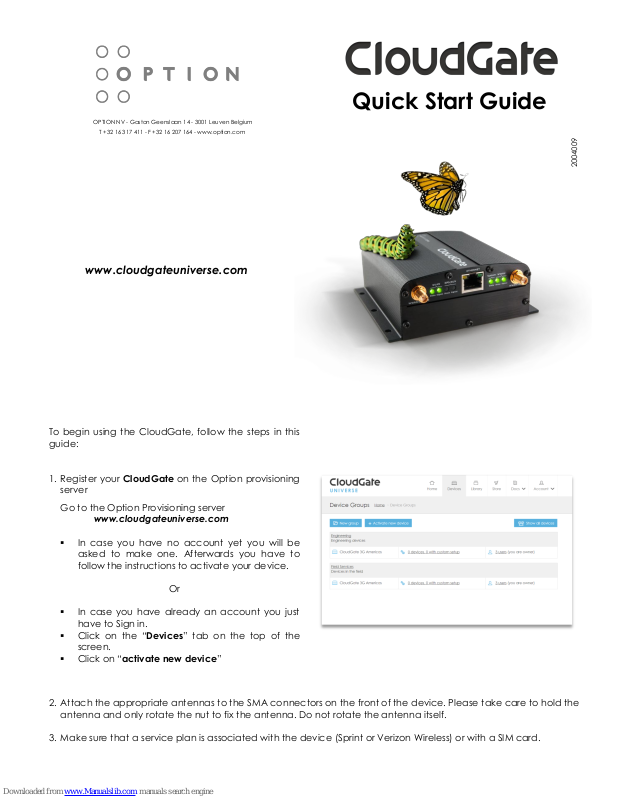

CloudGate CG0198 Quick Start Manual

www.cloudgateuniverse.com

To begin using the CloudGate, follow the steps in this
guide:

1. Register your CloudGate on the Option provisioning

server

Go to the Option Provisioning server

www.cloudgateuniverse.com

 In case you have no account yet you will be

asked to make one. Afterwards you have to
follow the instructions to activate your device.

Or

 In case you have already an account you just

have to Sign in.

 Click on the “Devices” tab on the top of the

screen.

 Click on “activate new device”

2. Attach the appropriate antennas to the SMA connectors on the front of the device. Please take care to hold the

antenna and only rotate the nut to fix the antenna. Do not rotate the antenna itself.

3. Make sure that a service plan is associated with the device (Sprint or Verizon Wireless) or with a SIM card.

OPTION NV - Gaston Geenslaan 14 - 3001 Leuven Belgium

T [phone] - F [phone] - www.option.com

4. In case you have to install a SIM card:
 Remove the four Torx T10 screws from the top

cover plate on the back of the unit and remove
the plate.

 Insert the SIM into the SIM slot as shown in the

picture on the right.

 Replace the top cover plate and its four Torx

T10 screws.

5. Power up the CloudGate by plugging in

the appropriate power supply cable (9­33VDC) into the connector on the back
of the device.

6. Connect an Ethernet cable to the

CloudGate’s Ethernet port on one end

and a computer on the other end.

7. Open a web browser on the computer

and enter the address 192.168.1.1 into the
address bar. Enter the default username
(admin) and password (admin). The
window as seen on the left should
appear.

8. Click on the “Interfaces” tab on the top menu bar

and select 3G connection.

9. Select the correct network provider in the “Radio

firmware selection”.

10. Click “Save changes”.

11. The network settings will populate automatically for

many SIM cards. Check the settings of the APN,
Username, and Password. Update if appropriate.

12. Click “Save changes”. When not using the standard

settings.

13. For both Verizon Wireless and Sprint services the

activation will occur automatically.

For more information, please visit:

www.cloudgateuniverse.com
