DCM1
User Manual
79 pgs5.58 Mb0

Cloud Electronics DCM1 User Manual

Download
DCM1 & DCM1e
Digitally Controlled Zone Mixers
Installation and User Guide
DCM1 & DCM1e Installation and User Guide v1.0
Contents
Safety Information ......................................................................................................................... 4
Safety Notes regarding Installation ............................................................................................................................ 4
Conformities ................................................................................................................................................................... 4
Safety Considerations and Information .................................................................................................................... 4
Welcome ......................................................................................................................................... 5
Section 1: Overview ....................................................................................................................... 6
Introduction .................................................................................................................................................................... 6
List of Main Features ..................................................................................................................................................... 6
System Components ..................................................................................................................................................... 7
Optional components ................................................................................................................................................... 7
ME-1 Series .................................................................................................................................................................. 8
PM Series Paging Microphones ................................................................................................................................ 8
Cloud DCM1 Utility Tool ............................................................................................................................................. 8
System Capabilities ........................................................................................................................................................ 9
Paging mic facilities ..................................................................................................................................................... 9
Zone Outputs ............................................................................................................................................................. 9
Misc .............................................................................................................................................................................. 10
Applications and Examples ........................................................................................................................................11
Section 2: Installation ................................................................................................................... 14
Description of front panel ........................................................................................................................................ 14
Description of rear panel ...........................................................................................................................................15
Hardware considerations ...........................................................................................................................................17
System Connections ................................................................................................................................................... 17
Zone Outputs ........................................................................................................................................................... 18
Mic and Line Input Modules ................................................................................................................................... 22
Connecting Paging systems ........................................................................................................................................23
Cloud PM Paging Microphones..............................................................................................................................23
Music Mute ....................................................................................................................................................................26
Section 3: Conguration .............................................................................................................. 27
User Mode .................................................................................................................................................................... 28
Music menu ................................................................................................................................................................ 28
DCM1 & DCM1e Installation and User Guide v1.02
Installer Mode ............................................................................................................................................................... 30
Music Menu ................................................................................................................................................................30
Routing Menu ............................................................................................................................................................32
System Menu ............................................................................................................................................................. 35
Priorities Menu ..........................................................................................................................................................40
Groups Menu .............................................................................................................................................................46
Other DCM1 adjustments .........................................................................................................................................46
Zone Paging Levels ................................................................................................................................................... 47
Setting up levels for best performance ................................................................................................................ 47
CDR-1 Series Remote Control Plates .................................................................................................................... 47
User Operation .........................................................................................................................................................47
Section 4: Software control ......................................................................................................... 51
Controlling the DCM1e from the browser interface .......................................................................................... 51
Initial Login – User Mode .......................................................................................................................................52
Login – Installer Mode ............................................................................................................................................. 53
Conguring the DCM1 with the DCM1 Utility Tool ........................................................................................... 58
Connecting to the DCM1.......................................................................................................................................58
Using the Utility Tool ...............................................................................................................................................59
Section 5: Appendix ...................................................................................................................... 62
Larger systems – cascading DCM1s ........................................................................................................................ 62
Serial Control ............................................................................................................................................................... 66
Conguring the Paging Access Connector as a GPIO port ............................................................................... 67
PSU capability ............................................................................................................................................................... 69
RJ45 pinout .................................................................................................................................................................... 69
Fitting loudspeaker EQ cards .................................................................................................................................... 70
Firmware updates ........................................................................................................................................................ 70
Factory default settings – menu options ................................................................................................................71
Factory default settings – network settings ...........................................................................................................71
Cloud DCM1 Conguration Notes – to be left with User ...............................................................................72
To Change the Music Source in a Zone ..............................................................................................................72
Cloud DCM1 Installer conguration notes ........................................................................................................73
EMC considerations .................................................................................................................................................... 75
Specications ................................................................................................................................................................ 75
DCM1 & DCM1e Installation and User Guide v1.0 3
Safety Information
Safety Notes regarding Installation
• Do not expose the unit to water or moisture.
• Do not expose the unit to naked ames.
• Do not block or restrict any air vent.
• Do not operate the unit in ambient temperatures above
35°C.
• Do not perform any internal adjustments unless you
are qualied to do so and fully understand the hazards
associated with mains-operated equipment.
• The unit has no user-serviceable parts. Refer servicing
to qualied service personnel.
• If the moulded plug is cut off the mains lead for any
reason, the discarded plug is a potential hazard and
should be disposed of in a responsible manner.
Conformities
This product conforms to the following European EMC Standards:
BS EN 55103-1:2009 BS EN 55103-2:2009
Safety Considerations and Information
The DCM1 and DCM1e are powered by separate Power Supply Units (PSUs), which must be earthed. Ensure that the mains power supply provides an effective earth connection using a three-wire termination.
Mains Fuse
The PSU is a sealed unit and contains no user-replaceable fuses. Mains over-current protection is provided by the fuse in the 13 A plug, which should be rated at 5 A.
Caution – Servicing
The unit contains no user-serviceable parts. Refer servicing to
qualied personnel. Do not perform servicing unless you are qualied to do so. Disconnect the power supply from the unit before removing the top panel and do not make any internal
adjustments with the unit switched on. Only reassemble the unit using bolts/screws identical to the original parts.
This product has been tested for use in commercial and light industrial environments. If the unit is used in controlled EMC environments, the urban outdoors, heavy industrial environments or close to railways, transmitters, overhead power lines, etc., the performance of the unit may be degraded.
The product conforms to the following European electrical safety standard:
BS EN 60065:2002 (+A2:2010)
DCM1 & DCM1e Installation and User Guide v1.04
Welcome
Thank you for purchasing this Cloud DCM1/DCM1e, which
combines the traditional simplicity of Cloud products with
far greater functionality. We are condent that you will be pleased with its performance, features, exibility and reliability.
The DCM1 is Cloud’s digitally controlled zone mixer. It
combines traditional “installer-friendly” analogue I/O and
signal path, with the exibility and adaptability of digital control.
The Ethernet-enabled DCM1e version allows the control and
conguration of the unit to be performed remotely, using a
standard Internet browser.
Scope of this manual:
This manual provides a comprehensive guide to the features and functionality of the Cloud DCM1 and DCM1e Digitally Controlled Zone Mixers. Please read through it to become
fully acquainted with the many conguration and control
functions it offers.
DCM1 and DCM1e variants:
This Installation and User Guide covers two DCM1 variants – the DCM1 and the DCM1e.
Note that the DCM1e has various additional features not available in the DCM1; however, all DCM1 functionality is provided by the DCM1e.
Certain sections of the Guide cover topics that are only relevant to the DCM1e; these are clearly indicated by this all text references to “DCM1”, and all information and
instructions may be taken as being applicable to either version, unless specically stated otherwise.
logo. Otherwise, throughout the Guide,
It is recognised that the tasks of design/set-up, physical
installation and day-to-day operation of an audio system based on the DCM1 may be performed by as many as three
different people. You will nd, therefore, that this manual is
divided into sections:
 Overview – introduction to the DCM1 and its
options. Everyone should read this.
 Installation – wiring the DCM1 in a practical
situation. This should be read by the engineer
performing the installation and wiring.
 Conguration – setting the system up. This
should be read by the systems designer/engineer
who will congure the system to suit the user’s
particular requirements.
 Software control. Read this section if you want to
use the Utility Tool to congure the DCM1, or use
the Ethernet browser interface of the DCM1e to control the unit from an external computer, tablet or other device.
 Appendix – additional technical information.
Includes notes about controlling the DCM1 remotely via RS-232, and using multiple DCM1s to create larger systems.
 User Templates – User’s operating
instructions. A set of blank templates which can
be completed and left with the user when the
installation is nished, “personalising” the DCM1’s
menu system to the particular installation.
The manual includes details of the optional CDR-1 remote control plates and the various optional remote input modules. This information is also supplied with each item when they are purchased separately.
Thank you again for placing your condence in Cloud products.
What’s in the box
Unpack the DCM1 and its accessories with care. It is always a good idea to store all packaging (if practical), in case you ever
need to return the unit to your Cloud dealer for any reason.
As well as this manual, the shipping carton should contain the items listed below. Please contact your Cloud dealer immediately if any of them are missing or damaged.
• Cloud DCM1 Digitally Controlled Zone Mixer
• Universal DC Power Supply Unit (100-240 V), with DC
cable
• IEC mains lead (AC cord)
• Set of mating plugs for all rear panel multi-pin screw
terminal connectors
DCM1 & DCM1e Installation and User Guide v1.0 5
Section 1: Overview
Introduction
The Cloud DCM1 is an analogue audio Multi-Zone Mixer. A digital control system, using a front-panel LCD display and a simple, minimal set of controls replace the relatively large number of switch and rotary controls found on conventional
units, yet provide far greater exibility of conguration than
would be possible with such units. It provides a wide range of input and output connectivity possibilities to suit most
practical situations. It also offers simple and exible remote
control in addition to front-panel operation.
The DCM1 has been designed to provide a simple, reliable and elegant method of providing audio in a number of
different zones, typically the various areas of shops, bars, hotels, schools, conference centres, ofces, factories and even private residences. Local (per-zone) remote control of music
source and level can be simply provided in as many of the
zones as necessary. The DCM1 has been designed to allow
easy integration with mic and line external inputs, paging
microphones and re alarm systems. Once set up, the DCM1 allows zones to be combined (and separated) simply, as space
utilisation of the building demands.
An important aspect of the DCM1’s design is that it is completely self-contained, and can if wished, be completely
congured and controlled without a computer interface of any kind. If a computer interface is preferred, the DCM1
Utility Tool software application may be downloaded free of charge from www.cloud.co.uk. The DCM1e variant includes
the additional capability of being congured and controlled
from an Internet browser running on any compatible device via an Ethernet connection.
The DCM1 allows connection of up to eight line-level sources
such as CD players, audio jukeboxes, PC sound cards, radio or
TV tuners, etc. In addition, both Cloud paging microphones (PM or CDPM Series) and third-party paging systems may be directly connected. Each of the eight outputs is intended
to supply audio to a separate zone. Two of the zone outputs
are available in stereo. Any one source can be routed to
any zone, and the music level in each zone can be adjusted
independently.
List of Main Features
• 8 stereo line inputs (1 balanced)
• 8 balanced line outputs (2 stereo + 6 mono)
• 4 dedicated ports for optional remote line input
modules
• 4 dedicated ports for optional remote mic input
modules
• Mic paging to all zones with fully programmable override
logic
• Separate analogue paging mic input with zone selection
by contact closure
• Paging access port may be recongured as 8-way GPIO
port
• Separate RJ45 interface for PM or CDPM Series digital
paging microphones
• Supports multiple CDR-1 Remote Control Plates
(optional) in any wiring conguration
• CDR-1 provides local control of source, level, EQ and
group enable
• 2 x 16 character LCD dot-matrix display (both DCM1
and CDR-1)
• 4 denable zone groups
• Any line input may have priority in any zone; operation
also congurable per-zone
• Key-protected “Installer” mode (both DCM1 and
CDR-1) prevents user access to conguration menus
• Inputs, zones and groups can be named
• Ethernet port for remote control from standard
Internet browser (DCM1e only)
• RS-232 interface for control by third-party control
systems
• Transmission of RS-232 serial data for control of
external equipment (DCM1e only)
• Front-panel LEDs conrm remote access
• Accepts per-channel loudspeaker EQ cards
• PC-free control/conguration if preferred
• Multiple DCM1s may be cascaded for larger systems
• External Music Mute input for interfacing with
emergency systems
• Any input (mic or line) may be assigned as Emergency
Input, overriding Music Mute
• 2U 19” rack-mounting unit
The capabilities of the DCM1 and DCM1e are explained in greater detail in System Capabilities on page 9.
DCM1 & DCM1e Installation and User Guide v1.06
System Components
DCM1/DCM1e
The DCM1 (or DCM1e) is the system “core” and all the
primary audio input sources, zone amplier inputs, paging
mics/control and all remote controls are connected directly
to it. The DCM1 mainframe should ideally be rack-mounted along with the audio sources and zone ampliers, in a central
equipment area.
A practical multi-zone audio system is perfectly realisable with a DCM1 alone, but system exibility and ease of operation
will be greatly enhanced by the addition of optional Cloud remote controls and/or local input modules.
Installing a DCM1e will add the considerable advantage of external control from a laptop, tablet or other compatible device using a standard browser application.
Optional components
CDR-1 Series
The CDR-1 provides the user with local source selection and
level control for the zone in which it is tted. It additionally allows selection of any zone groups to which the zone has
been assigned, which gives simple and complete control over audio in multiple areas which may be split or joined in different ways at different times.
Once enabled on the DCM1 and a local key code entered, zone EQ is also adjustable from the CDR-1, allowing audio optimisation from within the zone itself. An Installer Mode permits zone assignment and adjustment of other installation
parameters.
CDR-1 variants:
Throughout this manual, all references to “CDR-1” apply equally to the CDR-1 and the CDR-1F.
LE-1 Series
The CDR-1 Series is a range of remote control plates
specically designed for use with the DCM1. They are
available in formats suitable for surface mounting (CDR-1)
or ush mounting (CDR-1F), and also in various nishes. They may be tted into standard electrical back boxes in whatever location is convenient in each zone. Any zone may have one
CDR-1, more than one, or none at all. The DCM1 can support up to 100 CDR-1s. CDR-1s are interconnected with just one standard Cat 5 UTP cable; units may be daisy-chained at will
and/or connected individually back to the DCM1’s four CDR
ports using almost any wiring topology convenient for the installation.
The DCM1’s own PSU has the capacity to power up to 8 CDR-1s directly, via the Cat 5 connections. However, please note that the actual number that can be powered directly is also dependent on cable length. Full details are provided with each CDR-1; also see “Cable length and DC power considerations” on page 21.
LE-1 version illustrated
The LE-1 Series is a range of input connector modules which can be installed wherever required. Versions are available to
t standard UK (LE-1) or US (LE-1A) dual-gang electrical back boxes, or in a “Media” format (LE-1M), which ts a Euro-
style 100 x 50 mm mounting frame. All versions are available
in either black or white. They allow connection of a stereo
unbalanced line-level audio source, such as a portable music player, laptop, radio mic receiver or similar, and connect to one of the DCM1’s Extension Ports with a single screened Cat 5 cable.
Multiple LE-1s may be “daisy-chained” together to provide
input points at different locations in the same zone. Signals
applied to modules wired in this way will be summed together. An internal gating circuit on each module automatically “disconnects” any chained modules which are not in use, to minimise noise contribution.
The LE-1’s inputs are electronically buffered to minimise noise
and interference pickup, and input gain is locally adjustable
with a preset control. Two types of input connector are
provided for user convenience: dual phono sockets and a
3.5 mm stereo jack socket; ±12 dB of gain trim adjustment is
available on the faceplate.
Any audio connected to an LE-1 is treated as any other source
and can be routed to any zone in the same manner.
DCM1 & DCM1e Installation and User Guide v1.0 7
BE-1 Series
BE-1 version illustrated
The BE-1 Series is a range of input connector modules of similar type to the LE-1. They provide a stereo balanced line­level input, permitting professional audio equipment with balanced outputs such as mixing consoles or DI boxes to be
connected. Like LE-1s, they connect to one of the DCM1’s
Extension Ports with a single screened Cat 5 cable.
BE-1s may be daisy-chained in the same way as LE-1s, and the two types of module may be intermixed.
Two industry-standard latching 3-pin female XLR connectors
are tted.
Any audio connected to the BE-1 is treated as any other
source and can be routed to any zone in the same manner.
ME-1 Series
PM Series Paging Microphones
The Cloud PM Series of paging microphones integrate directly with the DCM1 and provide a simple and convenient method
of adding multi-zone paging facilities to the audio system.
Multiple PMs can be easily daisy-chained if more than one paging location is needed.
PM paging microphones are available in 4, 8, 12 and 16-zone versions, The 4- and 8-zone versions are also available as ‘SA’
versions, with internal digital sound stores for pre-recorded
announcements. The PM1 single-zone mic is also compatible
with the DCM1.
Note that the earlier Cloud CDPM range of paging microphones is also directly compatible with DCM1 mixers.
ME-1 version illustrated
The ME-1 Series of input connector modules provide one (ME-1M) or two (ME-1, ME-1A) balanced microphone inputs, and are useful in multi-purpose areas where mics are sometimes needed. ME-1 modules have adjustable mic level and EQ per input, and connect to one of the DCM1’s four dedicated Mic Inputs with a single screened Cat 5 cable. On the two-input versions of ME-1, the inputs are mixed together at the module, and the summed mic signal applied to the DCM1.
Any of the DCM1’s mic inputs can be routed to any zone
without restriction.
Inputs on the ME-1 are via latching 3-pin female XLR connectors. 12 V phantom power is available on either input if required (set via a jumper accessible from the rear of the module).
Full installation and operation instructions are supplied separately with each paging microphone.
Cloud DCM1 Utility Tool
This is a simple software application which allows the DCM1
to be congured using serial data commands, either via its
RS-232 port or Ethernet port* from an external computer or other compatible device. Most of the unit’s menu functions are available in the Utility Tool, and it provides a convenient
method of pre-conguring a DCM1 off-site, and then loading
all the settings into the unit at a later time.
The Utility Tool is freeware, and can be downloaded from the Cloud website, www.cloud.co.uk.
A description of each DCM1 menu function can be found in
the “Conguration” section of this manual: all corresponding
Utility Tool functions are denoted here by the symbol.
A full description of the Utility Tool can be found on page 58.
* An updated version of the Utility Tool additionally allowing serial-via-TCP/IP over an Ethernet connection will be available during 2014.
UTILITY
DCM1 & DCM1e Installation and User Guide V1.08
System Capabilities
EXTENSION PORTS
ONLYRIGHT STEREO SIGNAL SHOWN FOR CLARITY.
LINE 3
LINE 4
LINE 5
LINE 6
LINE 7
LINE 8
R
L
LINE 8
3
+
BALANCED
2
R
1
3
+
2
L
1
LINE 2
LINE 1
LINE 2
LINE 1
LINE 3
LINE 4
LINE PRIORITY
LOGIC
+12V
SOURCE SELECT LOGIC
PAGINGACCESS
Z5
Z6Z7Z8 0V
Z2Z1Z3Z4
CDPM THRU
CDPM IN
PAGING
MICROPHONE
INPUT
GAINISAPPLIED
ACCORDING TO
SOURCE SELECTED
ZONES 3...8.SIGNALS ARE SUMMED TO MONO BEFORE SOURCE SELECT.
The simplied block diagram above illustrates the basic signal
architecture of the DCM1. Only the routing and logic for one
zone output is shown.
The main system and interfacing capabilities of the DCM1 are listed below:
CDR-1 PORTS
PORT
A
PORT
A
EQ CONTROL BY CDR-1IS ONLY AVAILABLEIN ENGINEER MODE
GAIN
PAGING ACCESS
+
+
3 2 1
LOGIC
+
PORT
B
PORT
B
ATTENUATOR
MICROPHONE INPUTS
MIC1
MIC2
EQ
EQ
Zone Outputs
• Eight balanced line level zone outputs
• Zones 1 & 2 are stereo, 3 to 8 are mono
Zone Groups
MIC PRIORITY
VCA
MIC3
ZONES 1 AND 2 ARE STEREO ZONES 3...8 ARE MONO
MIC4
SPE
+
3 2 1
Music sources and routing
• Provision for eight music sources. Inputs are stereo, line-
level and unbalanced
• Input 8 also available as a balanced input
• Inputs 1 to 4 may be fed from LE-1 or BE-1 input
modules (see above), which have a balanced connection
via dedicated input sockets
• Any music source may be routed to any zone
• Inputs available for selection may be dened, per-zone
Microphone inputs
• Provision for four ME-1 mic input modules, each of
which can accept two microphones (except the single-
input ME-1M).
• Each mic input assignable to any zone in any
combination
Paging mic facilities
• RJ45 digital interface for PM/CDPM Series paging
microphones
• Additional balanced input for third-party paging mic
• Per-zone contact closure routing for third-party mic
• Both PM and third-party systems may be used together;
independent gain controls.
• HF/LF EQ adjustment of paging signal
• Paging level independently adjustable per-zone
• Zones may be assigned in any combination to four Groups
• Groups can be enabled/disabled by user as required
• Groups have same source selection functions as zones
Priority and Logic
• Any music source may be assigned as priority line input,
per-zone/group. If enabled, a signal at the priority input overrides the source selection in the zone/group
• Priority music source may be a source normally
unavailable to a zone
• One or more priority mic inputs may be similarly
dened; an active mic signal causes the music level to reduce (“ducking”)
• During Paging, music ducking may be triggered by the
paging signal or zone selection; it can also be disabled; these options are selectable per-zone/group
• Independently adjustable hold and release times for all
priority types, plus music attenuation (ducking) level for
mic and paging priorities
Remote Control
• Optional CDR-1 dedicated remote control for DCM1
available separately
• Up to 100 CDR-1s may be connected to the four
CDR-1 Ports, using standard Cat 5 UTP cable
• CDR-1s can be daisy-chained and/or wired directly to
the CDR-1 Ports as cabling convenience dictates
• Multiple CDR-1s per-zone permitted
• CDR-1 provides local (in-zone) user control of source
selection and level control and key-protected EQ
adjustment
DCM1 & DCM1e Installation and User Guide V1.0 9
• RS-232 serial remote control interface for integration
with third-party control systems (Crestron, AMX, etc.)
• Software Utility Tool (free download) allows control and
conguration of most unit functions from PC via RS-232
port
• Internal Web server provides control and conguration,
plus additional functions, from a compatible Internet
browser via network connection (DCM1e only)
Misc
• Programmable external Music Mute input for re alarm
interface, etc.
• Paging access port can be recongured as 8-way GPIO
port
• One input (mic or line) can be installer-congured to
be protected from Music Mute (e.g., for evac message, emergency mic, etc.)
• Optional loudspeaker speaker EQ cards (per-zone)
DCM1 & DCM1e Installation and User Guide V1.010
Applications and Examples
The DCM1 will nd applications in many types of premises,
including shops, bars, hotels, schools, conference centres,
ofces, etc. The congurational exibility of the DCM1 means
that it can be set up by the system designer to provide precisely the facilities the user needs.
A few simple examples are given below to illustrate typical installations.
System 1
CD PLAYER
TV
RECEIVER
COMPUTER
MP3 PLAYER
INPUT 1 INPUT 2 INPUT 3 INPUT 4 INPUT 5 INPUT 6 INPUT 7 INPUT 8
MIC 1 MIC 2 MIC 3 MIC 4 PAGING MIC
PAGING ACCESS
CDPM/PM
1 2 3
CDR-1 PORTS
4
ZONE 1 ZONE 2 ZONE 3 ZONE 4 ZONE 5 ZONE 6 ZONE 7 ZONE 8
OTHER AREAS
POWER
AMPLIFIERS
CDR-1
CDR-1
CDR-1
AREA 1
AREA 2
AREA 3
PM PAGING
MICROPHONE
This depicts a simple system where four possible audio sources are made available to three or more zones (areas). Only three
are shown for clarity. Points to note:
• Each of the three areas shown is equipped with a
CDR-1 remote control. Note that Area 3’s remote is
wired directly back to the DCM1, while those in Areas 1 and 2 are daisy-chained together and wired back
be used to originate voice messages to any of the other areas. The paging level to Area 3 (if required) would be adjusted on installation to be at a level that does not
cause feedback.
to the DCM1 separately. This is possible because the DCM1/CDR-1 permit almost any wiring topology that is convenient for the building layout.
• Area 3 has a Cloud PM paging microphone, which would
DCM1 & DCM1e Installation and User Guide V1.0 11
System 2
CD
JUKEBOX
MUSIC
SERVER
OFF-AIR
RECEIVER
MP3 PLAYER
DOCK
INPUT 1 INPUT 2 INPUT 3 INPUT 4 INPUT 5 INPUT 6 INPUT 7 INPUT 8
MIC 1 MIC 2 MIC 3 MIC 4 PAGING MIC
PAGING ACCESS CDPM/PM
1 2 3
CDR-1PORTS
4
ZONE 1 ZONE 2 ZONE 3 ZONE 4 ZONE 5 ZONE 6 ZONE 7 ZONE 8
OTHER AREAS
POWER
AMPLIFIERS
AREAS 1 & 2
CDR-1
PARTITION
CDR-1
AREA 3
CDR-1
ME-1
ME-1
AREA 4
CDR-1
This shows a more complex system, which illustrates some additional DCM1 installation possibilities. Points to note:
• The large area has two CDR-1 remote controls in the
same zone; typically, these might be adjacent to doors at
opposite ends of the room.
• Two of the areas are separated by a folding partition
which may be removed to create one large space. By
assigning these two zones to a Group within the DCM1,
the two zones can be treated as one for audio purposes
• Each half of the partitioned area also has an ME-1 mic
input module. Because these have been wired back to
the DCM1 independently, each can be made available to their respective room halves as and when required. Alternatively, it may be that they are only required
when the partition is folded back; in this case they are
activated for the Group instead.
when the partition is removed and return to two
separate zones when it is reinstated.
DCM1 & DCM1e Installation and User Guide v1.012
System 3
COMPUTER
RADIO
TUNER
TV
AREA 1
CDR-1
LE-1
AREA 2
CDR-1
AREA 3
PM PAGING
CDR-1 CDR-1
MIC
MP3
PLAYER
EXTENSION 1 EXTENSION 2 EXTENSION 3 EXTENSION 4 INPUT 5 INPUT 6 INPUT 7 INPUT 8
MIC 1 MIC 2 MIC 3 MIC 4
PAGING MIC PAGING ACCESS CDPM/PM
1 2 3
CDR-1 PORTS
4
ZONE 1 ZONE 2 ZONE 3 ZONE 4 ZONE 5 ZONE 6 ZONE 7 ZONE 8
AREA 4
LE-1
AREA 5
AREA 6
CDR-1
CDR-1
SECURITY
3RD. PARTY
PAGING SYSTEM
MIC
CONTROL
System 3 shows a system interfaced to two paging stations, a
PM (which might be located at the building’s reception desk)
and a separate third-party system, which might typically be in
a security ofce. Other points to note:
• The CDR-1 remote control panels in each zone are
wired in two chains, to suit the building layout.
• Two of the line inputs are from LE-1 remote line input
modules in two different zones. Other music sources
have, in this case, been connected to Inputs 5 to 8.
DCM1 & DCM1e Installation and User Guide v1.0 13
Section 2: Installation
Description of front panel
24 3
1 15 5 14 13
1. POWER button: applies DC power to the DCM1 (note external PSU).
2. LCD display: 2 x 16-character backlit blue LCD display
used in all control and menu functions.
3. Rotary control: for adjusting unit parameters via the display. The control also has a “press” action, which is required for some front panel operations.
4. Next Function button: used to scroll through the various functions of each menu.
5. Numeric buttons 1 - 8: the operation of these buttons varies with the selected menu function. In many of them they represent Zones 1 to 8, each button selecting a
zone that the menu function will apply to. In others, they
may represent Inputs 1 to 8, for example. Each button has an associated blue LED to indicate the current status
of that zone or input for the function.
12 11
6 7 8 9
10
9. PRIORITIES: allows assignment of priority inputs (including paging inputs) and adjustment of the DCM1’s operation when priorities are active.
10. GROUPS: the Group menu allows assignment of
Zones to Groups, and dened Groups to be enabled.
11. Paging Access: eight LEDs (one per zone) which
illuminate when a zone is selected for paging from an
external paging microphone.
12. Extension Ports: four LEDs corresponding to the Extension Ports of Line Inputs 1 to 4. These LEDs illuminate when a LE-1 or BE-1 remote input module is connected, and the input to which it is connected is
enabled for the currently selected zone.
13. Mic Inputs: four LEDs corresponding to Mic Inputs
1 to 4. These LEDs illuminate when an ME-1 remote input module is connected, and the input to which it is
connected is enabled for the currently selected zone.
The menu system is divided into ve groups, each of which is
6
selected by one of the menu buttons
to 10. An associated
blue LED indicates selection.
6. MUSIC: gives access to per-zone source selection,
level control, EQ, maximum and minimum levels, and input gain per-input.
7. ROUTING: Allows per-zone mic enabling and input masking, plus other installation-specic functions.
8. SYSTEM: system menu includes enabling of
CDR-1 installer mode per-zone, mono/stereo selection for Zones 1 & 2, RS-232 port set-up, zone and input naming, security key set-up, etc.
DCM1 & DCM1e Installation and User Guide V1.014
14. Install button: activates Installer Mode. Allows access to the menu functions which are intended to be unavailable
to the user. A key needs to be entered on the numeric
buttons for Installer Mode to be active.
15. Music Mute LED: illuminates when an external Mute is
applied at the Music Mute connector (normally linked to
Fire Alarm or other emergency system).
Description of rear panel
5
8 9
76
10 10 10 10 10 10 10 10
1 1 4 11 12 13 15 1632
1. Line 1 to 4: inputs for music sources 1 to 4, on phono
sockets (unbalanced).
2. Extension Ports 1 to 4: These are alternative input connectors for Line Inputs 1 to 4. If Cloud remote line input modules (LE-1 or BE-1) are being used, they should be connected here via screened Cat 5 cable and shielded RJ45 connectors. These ports each provide a stereo pair of electronically-balanced inputs, together with DC power for the active circuitry in the remote module.
Do not connect a music source to the phono sockets
1
above) of a Line Input when its Extension Port is
( connected to a remote input module.
3. Line 5 to 7: inputs for music sources 5 to 7, on phonos only.
4. Line 8: Input 8 is available both as unbalanced on phonos and electronically-balanced on 2 x 3-pin 3.5 mm-pitch screw-terminal connectors. The balanced input allows connection of professional audio equipment such as
mixing consoles, DJ desks, etc.
5. Microphone Inputs 1 to 4: four shielded RJ45 sockets
for the connection of Cloud ME-1 microphone remote input modules. Connection should be via screened Cat 5 cable. These inputs are balanced, and the connectors additionally provide DC power for the active circuitry in the input modules.
6. Paging microphone input: balanced input for the connection of an external paging microphone. This input
7
is enabled via the access connector
. Adjacent to the 3-pin 3.5 mm-pitch screw-terminal connector are preset controls for mic gain and HF/LF EQ. Phantom power is available at this input (enabled by internal jumper).
7. Paging Access connector: 10-pin 5 mm-pitch screw­terminal connector providing several functions. If the DCM1 is being used with a third-party paging system, this connector provides contact-closure selection of the
zone(s) to be paged. If a Cloud PM Series is the only
type of paging system being used, the connector can be
used as an output port, the 8 pins becoming per-zone
open-collector outputs which can be used (typically)
14
for external level restoration. If the connector is not
required for paging access, it can be congured as a GPIO
port (with any combination of inputs and outputs), and used in conjunction with the RS-232 port to respond to serial commands (GPO) or report input status (GPI). 0 V and +12 V are also available on the connector. See page 33 for more information.
8. Zone Outputs 1 and 2: electronically-balanced outputs on 3-pin 3.5 mm-pitch screw-terminal connectors. Zone Outputs 1 & 2 are stereo; separate L and R connectors are provided. Stereo music sources routed to Zones 1 and 2 will remain in stereo. Either Zone Output can be
recongured as mono via the menu system.
9. Zone Outputs 3 to 8: as Zones 1 and 2, but mono only,
with a single connector. These zones will receive a mono
L+R sum of stereo inputs routed to them.
10. Paging level controls: each Zone output has an adjacent preset control which sets the volume of the paging mic (either from PM or third-party systems) in
that zone.
11. CDPM/PM ports: two RJ45 sockets, IN and THRU.
IN is for the connection of Cloud PM Series (or CDPM Series) paging microphones; THRU is used when a system
employs multiple DCM1s. DC power, zone selection data
and the paging microphone signal are all catered for on
the IN socket. The adjacent preset control adjusts the
PM microphone level.
12. CDR-1 Ports: four RJ45 ports for connection of CDR-1 (or CDR-1F) remote control plates. Plates may be daisy-chained, and the installer may use one or more of the four ports for individual or daisy-chained plates as the building layout dictates.
13. RS232 serial interface: a 9-pin female Dsub connector providing a bi-directional RS-232 interface. This has several functions: it permits control of the DCM1’s primary functions from an external system and can be used in conjunction with the Paging Access connector in GPIO mode.
On the DCM1e only, it can transmit serial
DCM1 & DCM1e Installation and User Guide V1.0 1515
commands to third-party equipment in response to Ethernet commands generated elsewhere (future
rmware release).
14.
ETHERNET INTERFACE: standard
RJ45 network connector allowing the DCM1e to be controlled and congured from an Internet browser. In a future rmware release, it will also accept control
commands using RS-232 syntax, and be used as an Ethernet-to-serial bridge to pass TCP/IP commands from third-party control systems to the RS-232 connector
13
*.
15. Music Mute input: 2-pin 5 mm-pitch screw terminal
connector for interfacing the DCM1 to a re alarm or other emergency system. The input is congurable for
use with either Normally Open (N/O) or Normally Closed (N/C) contacts; shorting (or removing a short)
will mute music in all zones (see “Congure Music Mute”
on page 45). One input source may be protected from this mute if wished, permitting the input to be used for automatic or manual evacuation messages (see “Select Emergency Source” on page 44).
16. POWER: Locking 4-pin power mini-DIN type for
connection of the DCM1’s external DC PSU.
* Ethernet-to-serial bridge functionality will be available in a future rmware release. Please check www.cloud.co.uk for additional product features.
DCM1 & DCM1e Installation and User Guide v1.016
Hardware considerations
The DCM1 is built in a 2U-high 19” rackmount enclosure. It is strongly recommended that the DCM1 is installed
in a 19” rack wherever possible. The DCM1 is approx.
160 mm deep, but 250 mm of rack depth should be available
to allow for rear connectors and cabling.
The DCM1 has low power consumption and there are no thermal considerations other than ensuring that the ventilation grilles (one on each side, one on the bottom panel) are not obstructed once installed. Other equipment may be installed above or below the DCM1 within this constraint.
The choice of location will be dictated by the specics of the
system and building layout. It is recommended that wherever
possible, the DCM1 should be mounted in an equipment rack
along with as many of the music sources (CD players, music
servers, TV receiver boxes, etc.) and audio power ampliers (driving the zone loudspeakers) as practical.
When deciding the DCM1’s location, bear in mind that access
to it may be required, as there are some conguration settings
that may need to be changed - occasionally or frequently ­depending on the daily requirements of the building. This is
more likely to be the case with a DCM1 than a DCM1e, as
the latter allows many setting to be adjusted remotely from an external device.
Power Supply
The DCM1 requires ±12 V DC, which is supplied by the external DC Power Supply Unit (PSU) included with the unit. This has a 1 m captive cable with a moulded 4-pin plug for connection to the DCM1. The PSU is of the “Universal” type, and will operate on any AC supply voltage from 100 to 240 V. Wherever possible, mount the PSU in a safe location within
the equipment rack, securing both the DC cable and the IEC
mains lead with cable ties to avoid inadvertent disconnection.
System Connections
Music Sources
Connect the system’s various music sources to LINE 1 to 8. When allocating sources to inputs, bear in mind that if Cloud LE-1 or BE-1 remote modules also form part of the system, these can be connected to LINE 1 to 4 only.
Standard connection:
All eight line inputs offer unbalanced connection for stereo
sources on a pair of standard phono sockets (RCA jacks).
The sensitivity range available should allow most standard items of audio equipment such as CD players, PC-based music servers, TV tuners, etc., to operate at a satisfactory level. Such equipment will generally have stereo unbalanced outputs, and as long as the source equipment is adjacent to the DCM1, normal phono-phono leads can be used.
Mono sources:
If connecting a source with only a single mono output to
the DCM1, connect it to both the L and R sockets, using a
Y-splitter lead or similar.
Balanced sources:
LINE 8 is additionally provided with electronically-balanced
inputs, which may be used to connect source equipment with balanced outputs. Balanced connection is always preferable to unbalanced for situations involving long cable runs, and should be used if one of the music sources is remote from the DCM1 (a DJ mixing system is a common example).
When connecting balanced sources to LINE 8’s balanced input connector, wire as shown below. Note that the cables’ screens are not connected at the source end.
3
12
LEFT
3
12
RIGHT
Balanced outputs (XLRs):
pin1ground pin2hot pin3cold
-
+
-
+
DCM1Balanced inputs
pin1ground pin2cold pin3hot
RIGHT
LEFT
123123
SCN
­+
SCN
-
+
Do not connect music sources to both the balanced and
unbalanced connectors of LINE 8.
Additional balanced sources:
If it is necessary to connect more than one balanced source to the DCM1, one of the unbalanced inputs 1 to 7 may be used, but the advantages of balanced connection will be lost unless a balancing transformer is connected between the source and the unbalanced input. Suitable audio transformers, which should have a ratio of 1:1, are readily available from major audio component suppliers. The transformer(s) should be mounted as close to the DCM1 as practical, and housed in a screened enclosure if they are not individually screened. The preferred connection method is shown below.
Balanced outputs (XLRs):
pin 1 ground pin 2 hot pin 3 cold
LEFT
3
12
RIGHT
3
12
-
+
SCN
-
+
SCN
Audio balancing transformers
-
+
SCN
-
+
SCN
SCN
SCN
LEFT
Unbalanced
inputs
RIGHT
Unbalanced
inputs
DCM1 & DCM1e Installation and User Guide v1.0 17
If transformers are not available, a balanced source may feed
an unbalanced input directly as long as care is taken over how
the connections are made. A variety of design techniques are in use to implement balanced outputs in audio equipment, and some designs require different wiring protocols to others.
Installers are advised to check the manuals with each item
for guidance on how the outputs should be connected to an unbalanced input.
However, the wiring methods shown below will work in a
large number of cases. If hum or other distortion is found to
result, try disconnecting the ‘cold’ leg of the balanced output
(pin 3 on XLRs).
When using single-core cable,
join ‘cold’ to screen at the
3
1
LEFT
3
1
RIGHT
Balanced outputs (XLRs):
pin 1 ground pin 2 hot pin 3 cold
+
2
SCN
+
2
SCN
source
Unbalanced
LEFT RIGHT
SCN
+
inputs
SCN
+
Zone Outputs
Connect the inputs of the power ampliers feeding the
loudspeakers for each zone to ZONE 1 to 8. Note that zone
outputs 1 and 2 are stereo; if only one set of speakers are being used in these zones, they may be connected to either
connector.
Standard connection:
All eight outputs provide balanced connection for wiring to
professional/industrial power ampliers with balanced inputs
(typically on XLRs). In this case, wire as the diagram below. Note that the cables’ screens are not connected at the source end.
DCM1 Balanced output:
pin1ground pin2cold pin3hot
123
-
+
Unbalanced inputs:
If audio ampliers with only unbalanced inputs are being used (e.g., hi- ampliers), the following wiring should be adopted:
SCN
-
+
Balanced input (e.g. XLR):
pin1ground pin2hot pin3cold
12
3
3
1
LEFT
3
1
RIGHT
Balanced outputs (XLRs):
pin1ground pin2hot pin3cold
-
+
2
SCN
-
+
2
SCN
When using twin-and-screen cable, join ‘cold’to screen at
LEFT RIGHT
SCN
-
+
DCM1end
Unbalanced
inputs
SCN
-
+
Always avoid using pre-made leads of an unnecessary length.
An alternative method of providing additional balanced sources is to use BE-1 remote input modules connected to EXTENSION PORTS 1 to 4; these could be installed adjacent to the DCM1 in such a situation.
DCM 1Balanced output:
pin1ground pin2cold pin3hot
123
+
SCN
DCM1Balanced output:
pin1ground pin2cold pin3hot
123
+
-
SCN
When using single-core cable, join'cold'to screen at the DCM1
When using twin-and-screen cable, join 'cold'to screen at the amplifier end
SCN
+
Unbalanced input
(e.g. phono)
Unbalanced input
(e.g. phono)
SCN
­+
Always avoid using pre-made leads of an unnecessary length.
DCM1 & DCM1e Installation and User Guide V1.018
CDR-1 Remote Control Plates
Multiple CDR-1 or CDR-1F remote control plates may be connected to the DCM1 either by wiring them directly and individually, or by “daisy-chaining” them together. In most
installations, a combination of these methods is likely to
be the most convenient solution from the point of view of practical cabling. The diagrams below illustrate the types of wiring schemes that may be employed; almost any variation on these is permissible.
PortAtermination ON
DCM1
IN
OUT
IN
OUT
IN
Termination ON
CDR-1 PORTS
PORT PORT
A A
PORT
PORT
B
B
All other terminations are OFF
Termination ON
Network Diagram 1
PortBtermination ON
IN
OUT
IN
OUT
IN
Termination ON
IN
IN
Termination ON Termination ON
DCM1
IN
PORT PORT
A A
CDR-1 PORTS
PORT
PORT
B
B
Termination ON
IN
All other terminations are OFF
Network Diagram 2
DCM1 & DCM1e Installation and User Guide 19
Termination ON
IN
OUT
DCM1
IN
OUT
IN
OUT
IN
Network Diagram 3
Note that in the above diagrams there is deliberately no
indication as to which zones any of the CDR-1s are in; this is
because the system imposes no restriction on their physical location. Interconnection may be made purely on the basis of wiring convenience.
Connections
CDR-1s are connected to the DCM1’s CDR-1 PORTS using standard unscreened Cat 5 cable and RJ45 connectors. It may be possible to use pre-made Cat 5 “patch cables” to connect any CDR-1s installed close to the DCM1; otherwise Cat 5 cable and crimp RJ45 plugs should be used. NOTE: All Cat 5 cabling should be wired “pin-to-pin”; “crossed” or
“null” cables will not work.
Wire the RJ45 connectors according to the pinout diagram on page 69.
Note that the single Cat 5 interconnection provides DC power as well as data. A full pin allocation of the CDR-1 ports can be found in the Appendix at the end of this manual.
Any of the four CDR-1 PORTS may be used. Two of these are labelled PORT A and the other two PORT B, but the four are electrically identical. However, use of Port A or Port B has relevance to how terminations are set (“Network Terminations” on page 21).
CDR-1 PORTS
PORT PORT
A A
PORT
PORT
B
B
Port A termination ON
All other terminations are OFF
CO-AXIAL SOCKET
FOR EXTERNAL PSU
J2 J1
ON
MID
OFF
END
TO NEXT
CDR-1
FROM DCM-1
POWER
OUT
POWER
RJ45 SOCKETS FOR INTERCONNECTION
EXT POWER
IN
DATA
Data and external power connections on the CDR-1
The CDR-1 and CDR-1F are equipped with two RJ45 connectors, labelled POWER IN and POWER OUT.
The “rst” CDR-1 in a daisy-chain wiring system should be
connected to the DCM1 using its POWER IN connector. The POWER OUT connector on this CDR-1 should be connected to the POWER IN of the next CDR-1 in the chain, and so on until the last CDR-1 in the chain. Note that the locations of the RJ45 connectors differ on the two CDR-1 versions:
DCM1 & DCM1e Installation and User Guide V1.020
TO NEXT CDR
FROM DCM-1
RJ45 SOCKETS FOR
DATA
INTERCONNECTION
2-PIN EXTERNAL POWER SOCKET
Data and external power connections on the CDR-1F
Network Terminations
Cable length and DC power considerations
The Cat 5 wiring connecting the DCM1 and CDR-1s is
essentially a data network, and as such, must be correctly
terminated. Both the DCM1 and CDR-1 are provided with
means of setting their network terminations ON or OFF.
The rule governing terminations is:
• Devices (DCM1 or CDR-1) at the ends of a cable run
must have their terminations set ON.
• All intermediate devices must have their terminations
set OFF.
• If both connectors on the same DCM1 CDR-1 PORT
(either PORT A or PORT B) are being used, the DCM1 may be considered as an intermediate device, and its termination should be set to OFF.
The correct termination setting is indicated for each device in the three network examples illustrated on page 19 and page 20. Note that in Example 1, the DCM1’s Ports A and B are both in use, but only one connector is used on each. The ports are thus at the ends of the chains, and their terminations must therefore be set ON. In Example 2, all four ports are in use, so the DCM1 is “mid-chain” with respect to both ports, so both terminations should be set OFF.
There are two network terminations in the DCM1, one for
each port. These are set by internal jumpers J6 (Port A) and J13 (Port B). See page 65 for details of jumper locations.
The port termination is ON when the jumper is in place. Remove the jumper carefully, with a pair of long-nosed pliers, to set the port termination OFF. (We suggest the jumper is left on one of the two pins in case it is required in the future.)
On the CDR-1 and CDR-1F, the network termination is set by jumper J2. This has two possible positions, marked MID
(termination OFF) and END (termination ON).
As far as correct data communications are concerned, the maximum recommended cable length of the
CDR-1 network is 1 km. This gure applies either to
the total cable run between the “farthest” CDR-1 and the DCM1 if a single daisy-chain of CDR-1s has been employed (see Network Diagram 1, page 19), or to the total run between the most remote CDR-1s if the DCM1 is in the “middle” of the chain (i.e., multiple daisy-chains of
CDR-1s, see Network Diagram 2, page 19). Cable runs longer than this may work satisfactorily, but this cannot be
guaranteed. The probability of correct operation is a function of cable length, the number of CDR-1s daisy-chained, and how many of them are at a distance from the DCM1 close to the maximum cable length.
IMPORTANT: The 1 km limit referred to above ONLY
applies to the digital data carried by the Cat 5 cable; a DCM1 will NOT successfully supply DC power over this cable length. Systems with long cable runs and/ or several CDR-1s on the same run will need external power supplies, whose location and system connection will depend on the topology and cable lengths involved.
The DCM1 has sufcient capacity to power eight CDR-1s and/or CDR-1Fs (i.e., nominally one plate per zone) via the
Cat 5 connections. However, in addition to the limitation above, one or more external PSUs will be required if any of the following apply:
• If the system requires more than eight CDR-1s in total;
• If the “rst” CDR-1 on a daisy-chain is more than 250 m
cable run from the DCM1;
• If several CDR-1s are in a “cluster” (i.e., close together
in cable run terms) on a single daisy-chain.
J2 J1
ON
MID
OFF
END
Diagrams showing CDR-1 jumper settings for :
a) termination OFF (MID), b) termination ON (END).
Note Jumper J1 not shown.
MIDEND OFF
Diagrams showing CDR-1F jumper settings for :
a) termination OFF (MID), b) termination ON (END).
ON
Note Jumper J1 not shown.
J2 J1
ON
MID
OFF
END
MIDEND OFF
ON
The DCM1’s power supply capability can be maximised by using as many CDR-1 PORT sockets as possible when wiring CDR-1s.
As with data communication, the probability of satisfactory operation is a function of DCM1-to-CDR-1 cable run, the number of CDR-1s on each daisy-chain and the number of
CDR-1 PORT sockets used. If any CDR-1s in a system are found to operate unreliably, it is likely that some will need
to be powered independently; as outlined above, this will probably be the case with longer cable runs and/or several CDR-1s on the same daisy-chain. The Cloud CPM-PSU is a suitable external power supply, and should be connected to the EXT POWER socket in the rear of the CDR-1. Note that any further CDR-1s connected to the POWER OUT connector will be powered by the external PSU.
If a third-party external PSU is to be used, it should be rated at either 12 – 24 V DC or 9 – 17 V AC. Each CDR-1/
CDR-1F takes 50 mA at 12 V, so the current capability of any PSU should also be checked. See page 69 for details of PSU
and current ratings.
DCM1 & DCM1e Installation and User Guide V1.0 21
Mic and Line Input Modules
OUT
OUT
Remote input modules from the Cloud ME-1, LE-1 and BE-1 ranges may be connected to the DCM1 in a similar manner to that described for the CDR-1 remote controls, except that screened Cat 5 cable should be used.
Remote modules may be “daisy-chained” for wiring convenience, providing that the following guidelines are observed:
• ME-1 mic input modules cannot co-exist on the same
“daisy-chain” as LE-1 line input modules or BE-1 balanced input modules.
• LE-1 and BE-1 modules can co-exist on the same “daisy-
chain”.
• If more than one module is used for remote inputs
simultaneously, a mixed sum of all sources will be presented to the DCM1 input.
MIC1
10
OFF
LEVEL
+
LF HF
+ +
LF HF
MICROPHONEINPUT
MIC2
10
OFF
LEVEL
+
Note that the two mic inputs on the ME-1 and ME-1A remote modules are summed together and passed to the DCM1 as a mono signal. The ME-1M has a single mic input.
The two inputs on all versions of the LE-1 and BE-1 are intended for stereo use, and these modules’ connections to the DCM1 maintain the stereo image of the source.
The diagram below illustrates some of the connection possibilities. Three ME-1, two LE-1 and one BE-1 modules are shown. MICROPHONE INPUTS 1 & 3 and EXTENSION PORTS 3 & 4 are chosen for reasons of drawing clarity; any could be used in practice.
R
LINE
HEADPHONE
LEVEL
L
TRIM
LEVEL
PEAK
-12+12 dB
INPUTS
MUSICINPUT
ME-1
ME-1
MIC1
LEVEL
ME-1
MIC1
LEVEL
LE-1
MICROPHONE INPUTS
1
3 4
2
EXTENSIONPORTS
1
3
2
4
DCM1
LE-1
MIC2
10
OFF
+
LF HF
+ +
LF HF
MICROPHONEINPUT
OFF
LEVEL
+
OUT
10
LINK IN
OUT
LINK IN
R
LINE
LEVEL
L
TRIM
HEADPHONE
LEVEL
PEAK
-12+12 dB
INPUTS
MUSICINPUT
BE-1
LEFT
RIGH T
INPUT
MIC2
10
OFF
+
LF HF
+ +
LF HF
MICROPHONEINPUT
OFF
LEVEL
+
OUT
10
OUT
INPUT
BALANCED MUSICINPUT
DCM1 & DCM1e Installation and User Guide V1.022
Connections and wiring
Cat 5 cables used to interconnect remote input modules carry low-level audio. To minimise noise and interference from outside sources, only screened Cat 5 should be used. Only use shielded RJ45 plugs when wiring this part of the system, bonding the foil screen of the cable to the metal screening can of the plug.
ME-1 mic input modules should be connected to the RJ45
connectors labelled MICROPHONE INPUTS on the DCM1.
LE-1 line input modules and BE-1 balanced line input modules should be connected to the RJ45 connectors labelled
EXTENSION PORTS on the DCM1. Do not connect any
music sources to the phono sockets corresponding to the
Extension Ports being used.
The remote modules all have two RJ45 sockets, labelled
OUTPUT and LINK. The “rst” module in a daisy-chain
wiring system should be connected to the DCM1 using its
OUTPUT socket. The LINK socket on this module should be
connected to the OUTPUT of the next module in the chain,
and so on until the last module in the chain.
BE-1
Connecting Paging systems
Cloud PM Paging Microphones
The DCM1 fully supports the Cloud Paging Interface Buss implemented across the Cloud PM range. (The Cloud Paging Interface Buss is also used by the earlier Cloud CDPM paging microphone range.)
Connections and wiring
The DCM1 is equipped with two RJ45 sockets for connection of Cloud PM Series paging microphones. The sockets, marked CDPM/PM, are labelled IN and THRU. PM paging microphones are similarly equipped with two RJ45 sockets,
labelled IN and OUT.
If the system being installed includes one microphone, its
OUT socket should be connected to the IN socket on the
DCM1.
If the system requires more than one microphone, the additional microphones should be “daisy-chained” together. For example, two microphones would be wired by connecting the OUT socket of one to the IN socket on the DCM1 as above, and then connecting the OUT socket of the next microphone to the IN socket of the rst.
LINK
OUTPUT
ME-1
LINK
OUTPUT
LE-1
LINK
Refer to Installation Guide for the Module
OUTPUT
The diagram below illustrates the various methods of connection. Note that the third example illustrates the method of interfacing a PM16 to two DCM1s. In this case, the CDPM/PM THRU connector on the rst DCM1 is connected to the IN on the second, and the PM Zone Offset of the second would be set to +8. This would allow it to correctly interpret commands from paging buttons 9-16 on the PM16. See page 34 for full details of how to set PM
Zone Offset.
NOTE: The CDPM/PM THRU connector is only intended
for connection of additional DCM1 units, not for additional PM paging microphones.
Note that the single Cat 5 interconnection provides DC power as well as audio. A full pin allocation of the Microphone Inputs and Extension Ports can be found in the Appendix at the end of this Guide.
The DC power consumption of the active circuitry is quite low, and no PSU capacity problems should be experienced in the vast majority of installations. Refer to page 69 for PSU and current ratings.
DCM1 & DCM1e Installation and User Guide v1.0 23
OUT
Termination ON
Example 1
Mixer
Termination ON
Refer to the PM Setup and Installation Guide (supplied with each PM paging mic) for information on setting the buss termination in the microphones.
The DCM1’s PM buss termination is set by internal jumper J2. The termination is set ON when the jumper is in place. Remove it to set the termination OFF. (We suggest the jumper is left on one of the two pins in case it is required in the future.) See also page 65.
Mixer
Termination
ON
Termination
ON
INOUT
DCM1 #2
DCM1 #1
OUT
OUT
Example 2
Example 3
Termination ON
Termination OFF
Termination ON
CDPM
IN
THRU
CDPM
IN
THRU
Termination OFF
PM paging microphones can be connected to the DCM1 and each other using standard Cat 5 cable. If crimping RJ45 plugs to install cabling, use the pinout in page 69. A full pinout of the PM Paging Interface Buss can be found in the appendix at the end of this manual.
PM DC power
The DCM1 can supply DC to power one PM paging microphone. Powering of a microphone in this way is enabled with the internal jumper J14, which is set ON as the factory
default. If the microphone connected to the DCM1’s CDPM/ PM IN port is self-powered, or powered from elsewhere in
a PM network, this jumper should be removed. (We suggest
the jumper is left on one of the two pins in case it is required in the future.) See page 69. for details of PSU and current ratings.
Adjusting paging levels
Separate controls are available at the rear panel for setting PM microphone sensitivity and the paging level sent to each Zone. Full details on adjusting these can be found at page 46.
Zone paging outputs
If a PM paging microphone system is the only one being used with a DCM1, the DCM1’s PAGING ACCESS connector
may be used to provide per-zone paging control outputs.
These can be used, for example, to activate level restoration
in 100 V line systems where local speaker volume controls are installed. When a zone is paged from the PM system, the control output for that zone activates (pulls down to 0 V).
PM Terminations
The rules that apply to terminating a network of CDR-1
remote control panels also applies to multiple PM paging microphones. The DCM1 and a set of microphones should be considered as a “daisy-chain”, and buss terminations should be set ON in the two devices at the “ends” of the chain, and OFF in all others. The interconnection diagram above indicates how these rules are applied in the various possible wiring schemes.
• In the simplest implementation of just one paging
microphone, the terminations should be set ON at both the DCM1 and the microphone.
• If two or more microphones are daisy-chained to the
DCM1’s IN socket, terminations must be ON at the
DCM1 and the “end” microphone only.
• If two DCM1s are daisy-chained using the IN and
THRU connectors, terminations at the “ends” of the
chain should be ON. In Example 3 above, this will be at the paging microphone and DCM1 #2. The termination in DCM1 #1 should be set to OFF (as it is in the “middle” of the chain).
The PAGING ACCESS connector’s default conguration
is as a zone input connector for use with third-party paging
systems. Re-assignment as an output connector is made via the menu system. See “Congure Access Connector” on page 33 for details.
The connector is a 10-way screw-terminal type. The pinout is given in the table below:
PIN FUNCTION
1 0 V
2 Zone 1 active
3 Zone 2 active
4 Zone 3 active
5 Zone 4 active
6 Zone 5 active
7 Zone 6 active
8 Zone 7 active
9 Zone 8 active
10 +12 V
DCM1 & DCM1e Installation and User Guide v1.024
For many systems, the DCM1’s internal PSU will provide
27
27
sufcient current to activate an external relay in each zone.
Relays used in this way should have a coil voltage of 12 V DC and draw less than 60 mA. The “Zone active” pins (2 - 9) should be wired to one side of the level restoration relay
coils in the relevant zones. The other side of the relays should
be commoned together and connected to the +12 V pin (10). The diagram below illustrates this.
EXT
PSU
++ +
+
-
---
External
relays
(3 shown)
++ +
---
External relays
(3 shown)
3
4
PAGINGACCESS CONNECTOR
If the level restoration relay coils draw more than 60 mA per
zone, additional intermediate relays and an external PSU must
be installed. The basic wiring scheme shown above is used, but now the “External relays” will be the intermediate relays instead of the restoration relays themselves. The restoration relays are then wired via the intermediate relays’ contacts to the external PSU, providing full electrical isolation between the DCM1 and the external level restoration system. This is shown in diagram a) below:
865
+12v10v
3
4
PAGINGACCESS CONNECTOR
Level Restoration relay wiring: b) using external PSU for
relays with a higher coil voltage than 12 v.
865
+12v10v
With all wiring schemes, attention must be paid to relay polarity when wiring such a system, as the external relays will almost certainly have a diode in parallel with the relay coil to
limit voltage spikes when the relay releases. Ensure that the
positive (+ve, or red) terminal of the relay coil is commoned to the +12 V pin (pin 10) of the PAGING ACCESS connector, or the positive terminal of an external PSU. The negative (-ve,
or black) terminal of the relay coil should always be wired to
the “Zone active” pin (2 - 9).
See page 69 for details of the DCM1’s PSU capabilities.
Third-party paging systems
The DCM1 may be integrated with any paging system which
is able to provide a microphone feed and zone selection by
contact closure.
EXT
PSU
Intermediate relays
(3 shown)
0v
1 2 3 4 5 6 7 8
+12v
PAGINGACCESS CONNECTOR
Level Restoration relay wiring: a) using intermediate relays
---
for isolation
+
-
+
+++
-
+
-
+
-
Restoration
relays
An external PSU should also be used in systems using relays with a coil voltage higher than 12 V. The “Zone active” pins are rated up to 24 V, so relays of up to 24 V may be switched directly as long as the current drawn remains below 60 mA. If either the maximum current rating of 60 mA or the maximum voltage rating of 24 V is exceeded, intermediate relays must be installed as shown in diagram b).
Paging microphone input
A 3-pin screw terminal connector provides an electronically­balanced input for an external paging microphone. This should be connected to the external microphone using good quality low-noise microphone cable, using the wiring shown below:
1
3
2
Balanced mic:
pin1ground pin2hot pin3cold
-
+
12 V phantom power is available at the input for microphones requiring it (e.g., electret mics). Phantom power is enabled by the internal jumper J24. The default setting for this jumper is with phantom power OFF; move the jumper to the other position to set phantom power ON. See page 65 for details of jumper locations.
DCM1Paging Microphone input:
pin1ground pin2cold pin3hot
123
SCN
­+
DCM1 & DCM1e Installation and User Guide v1.0 25
Adjusting paging levels
Separate controls are available at the rear panel for setting microphone sensitivity and the paging level sent to each Zone. Full details on adjusting these can be found at page 46.
Paging Access Connector
The PAGING ACCESS connector is used to activate the
paging microphone and to select the zone(s) to which it is to
be routed. It performs this function by default, though it can
be re-dened in the menu system to provide per-zone control
outputs when used with Cloud PM paging microphones (see page 24). (Should a system require the use of both PM and third-party paging systems, control outputs will not be available if the connector is to be used in its “input” mode.)
Zone activation occurs when one of the “zone active” pins
(2 - 9) is shorted to 0 V (available on pin 1). Third-party paging
systems providing per-zone contact-closure on zone selection
can thus be easily interfaced by wiring the external unit to the PAGING ACCESS connector as shown below:
3RD-PARTY
PAGINGSYSTEM
PAGEZONE 1 PAGEZONE 2 PAGEZONE 3 PAGEZONE 4 PAGEZONE 5 PAGEZONE 6 PAGEZONE 7 PAGEZONE 8
3RD-PARTY
PAGING SYSTEM
5
10v
PAGINGACCESS CONNECTOR
43
2
12v
7
86
+
Some third-party paging systems have a single “page-all”
command output, which activates all zones in use. In this case,
use the wiring scheme shown above.
Visual indication that paging is taking place is given by the
Paging Access LEDs on the front panel. The LED(s) illuminate
to conrm the Zones being paged.
Music Mute
External muting of music is available at the MUSIC MUTE connector. National or Local Authority regulations governing such systems may require that normal programme material (i.e., music) should be muted in an emergency, to ensure that any emergency messages are clearly audible.
The MUSIC MUTE input is on a 2-pin screw terminal connector. It should be connected to the appropriate alarm output on whichever building management system registers the alarm (typically the Fire System). The alarm output must be volt-free; if no such output is available, an intermediate relay or other isolation device must be installed between the alarm output and the Music Mute input.
3
4
27
PAGINGACCESS CONNECTOR
865
+12v10v
The pinout is the same as that given in page 24. Multicore control cable should be used for the interconnection.
The Mute input can be programmed to operate on either normally open (N/O) or normally closed (N/C) contacts via the menu system (see page 45). The factory default setting is N/O, thus requiring a short-circuit to be applied across the two pins of the connector for muting to occur.
Visual indication of muting being activated is given by the MUSIC MUTE LED on the front panel.
If the audio system itself is to be used to provide voice alarm and/or evacuation messages, the DCM1 can be programmed to not mute one particular line input when Music Mute is made active. This input can be permanently connected to a sound store or emergency evacuation microphone, so that when activated, all inputs will be muted except the emergency
source. If this facility is being used, care should be taken to
ensure the emergency source is not made available to any
zones in normal operation.
DCM1 & DCM1e Installation and User Guide v1.026
Section 3: Conguration
The DCM1 can be congured in a variety of ways to suit all installed situations. Most conguration functions are accessed
through the menu system.
For convenience, the DCM1’s basic block diagram is repeated
here:
EXTENSION PORTS
ONLYRIGHT STEREO SIGNAL SHOWN FOR CLARITY.
LINE 3
LINE 4
LINE 5
LINE 6
LINE 7
LINE 8
R
L
LINE 8
3
+
BALANCED
2
R
1
3
+
2
L
1
LINE 2
LINE 1
LINE 2
LINE 1
LINE 3
LINE 4
LINE PRIORITY
LOGIC
+12V
SOURCE SELECT LOGIC
PAGINGACCESS
Z5
Z2Z1Z3Z4
CDPM THRU
CDPM IN
PAGING
MICROPHONE
INPUT
GAINISAPPLIED
ACCORDING TO
SOURCE SELECTED
ZONES 3...8.SIGNALS ARE SUMMED TO MONO BEFORE SOURCE SELECT.
Z6Z7Z8 0V
The menu system has two modes: User Mode and Installer Mode.
User Mode:
User Mode is the default menu system mode which is available at all times. It provides the user with the system control functions needed on an everyday basis: music source selection
and level control for each zone, and group activation.
Installer Mode:
Access to Installer Mode is key-protected. The user should
ensure that only authorised staff who have been trained in the
DCM1’s conguration functions know the key. Installer Mode allows adjustment of zone EQ, maximum and minimum levels,
microphone assignments, paging and priority parameters, group membership and all other system setup parameters.
CDR-1 PORTS
PORT
A
PORT
A
EQ CONTROL BY CDR-1IS ONLY AVAILABLEIN ENGINEER MODE
GAIN
PAGING ACCESS
+
+
3 2 1
LOGIC
+
PORT
B
PORT
B
ATTENUATOR
MIC1
MIC2
EQ
EQ
MICROPHONE INPUTS
MIC PRIORITY
VCA
MIC3
ZONES 1 AND 2 ARE STEREO ZONES 3...8 ARE MONO
MIC4
SPE
Navigating the menu system
The menu structure is divided into ve submenus:
• Music
• Routing
• System
• Priorities
• Groups
Each submenu is entered by pressing its dedicated button;
selection is conrmed by its adjacent LED.
The Routing, System and Priorities submenus are only available in Installer Mode, as are most of the functions in the Music and Groups submenus.
+
3 2 1
Installer Mode is selected by pressing the INSTALL button,
and entering the key code via the numeric buttons below
the display in response to the prompt Enter Key. The
key is always a 4-digit number; only digits 1 to 8 are allowed. The factory default key can be found in the Appendix; users are strongly urged to change the key as soon as the system is commissioned. A time-out applies to Installer Mode; if no keys
are pressed within 45 seconds, Installer Mode will cancel and the unit returns to User Mode.
Navigation within all the submenus is performed with the NEXT FUNCTION button, the rotary control and the eight numeric buttons. In general, NEXT FUNCTION button steps through the selected submenu one function at a
DCM1 & DCM1e Installation and User Guide V1.0 27

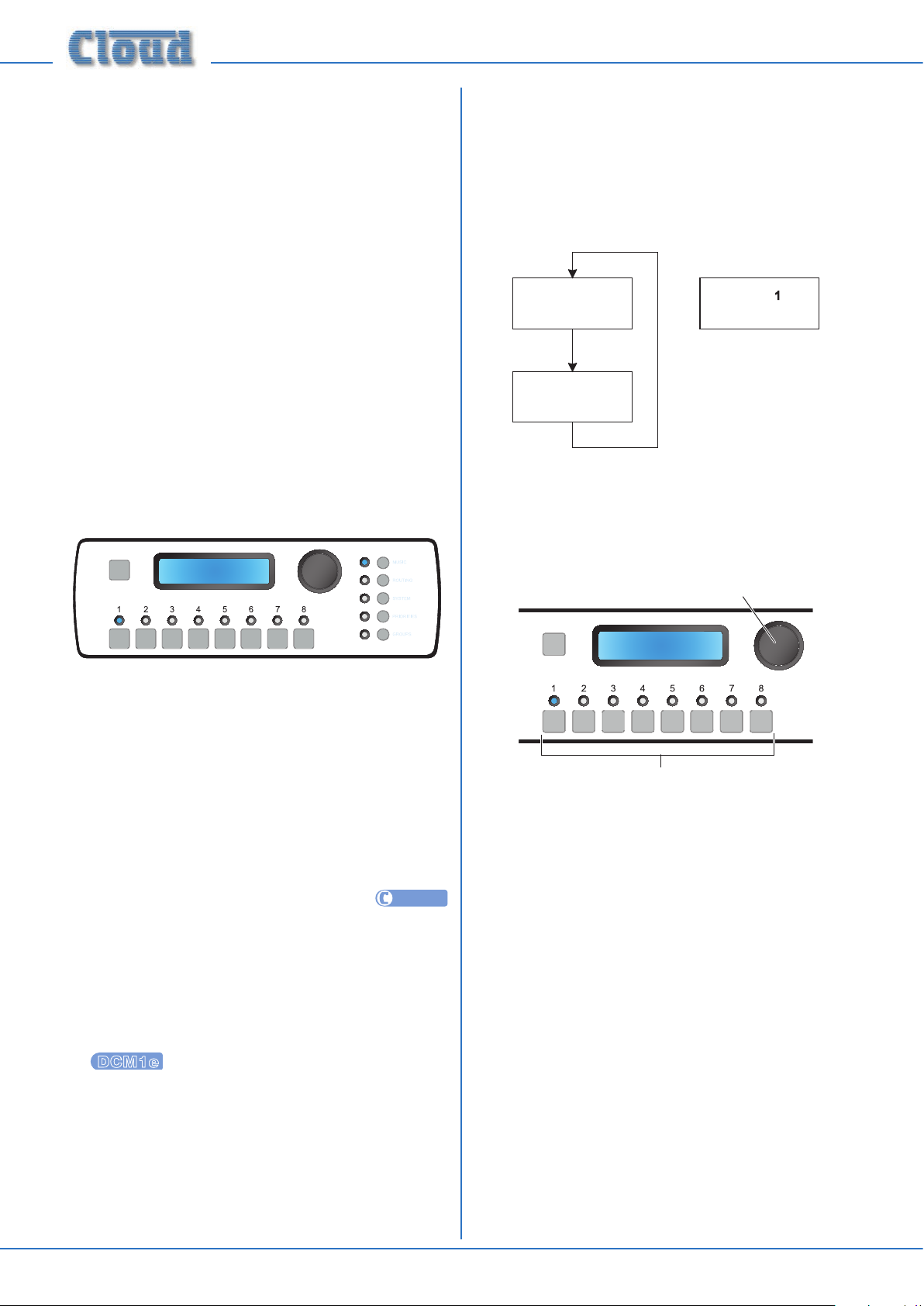

time and the rotary control changes the value of the function’s
parameter. Some submenu functions also make use of the
“press” action of the rotary control. Entry to each submenu
is always at the submenu’s rst function, and each submenu “loops round” its set of functions, with the rst reappearing
after the last.
The eight numeric buttons are used in various ways, and
may refer to the eight zones, the eight music inputs, the
four microphone inputs and so on, depending on the menu function currently selected. With most functions, the numeric
buttons’ adjacent LEDs conrm current status.
User Mode
Only three menu functions are available to the User – two in the Music menu and one in the Groups menu. The required menu is selected by pressing the MUSIC or GROUPS buttons. The two functions in the Music menu are accessed by pressing the NEXT FUNCTION button adjacent to the display.
Select Input
Source Name
Group 1
Enable X
Context-sensitive Help messages
The DCM1’s menu system is equipped with simple Help text for user guidance. If no adjustment is made within 10 seconds of selecting a menu function, text appears on the display advising the operation of the rotary control and numeric buttons for the particular function. This text is maintained for 5 s, after which time the display reverts to the selected menu function.
An example is shown below:
Rotary Sets val Buttons Set zone
Timeout
The menu system has a time-out period. If no adjustment is made within 45 s, the menu system reverts to User Mode, Music Menu, Select Input.
Accessing the menu system via the Utility Tool
If a menu function is also available from the Cloud DCM1 Utility Tool (see page 58), this is indicated by the logo.
UTILITY
GROUPS MENU
Level
|||||||||
MUSIC MENU
Music menu
Select Input
SELECT INPUT
Numeric buttons select Zone
The Select Input function is where the user selects which music input source is to be routed to each Zone.
The eight numeric buttons correspond to the eight Zones; select the one to have an input assigned. If a Group is enabled, selecting any Zone that is a member of that Group selects all the Zones in the Group (see page 29); this is indicated by multiple LEDs being illuminated.
Rotary Control selects input
Select Input
Input 1
Accessing the menu system via a browser (DCM1e only)
Where a menu function is also available on one of the DCM1e’s browser pages (see page 51), this is indicated by the logo.
DCM1 & DCM1e Installation and User Guide v1.028
The rotary control scrolls through the available inputs; these
will be displayed as Input n unless the inputs have been
renamed, in which case the names will be displayed (see page 36 for details of renaming inputs). Selection is restricted
to those inputs which have been enabled for the zone (the
default is for all inputs to be enabled. See page 33).
Assignment of the music source takes effect as soon as the
input name is displayed; no additional “presses” are required for the routing to change.
Note that this menu function is the default, and that all other menu functions time out after approx. 45 seconds of no activity. The menu system then reverts to Music Menu, Select Input.
UTILITY
Select Input may be congured by clicking the
OUTPUTS tab, selecting the Zone in the left-hand drop­down list, and then choosing the music source in the Select Input drop-down list. Click Send Output to transmit the new setting.
Select Input may be congured by selecting Music, followed by the Zone name (or number), and then choosing the music source in the Line Input select box.
Level
SELECT INPUT
Rotary Control sets Zone Level
Level
Level may be set by selecting Music, followed by the Zone name (or number), and then setting the music
volume, range 0 (mute) to 25 (max.) in the Level select box.
Groups menu
Group Enable
Rotary Control selects Group,
SELECT INPUT
Press to enable/disable Group
Group 1
Enable
LEDs confirm Group membership
Numeric buttons select Zone
The Level function sets the volume of music in each Zone.
The eight numeric buttons correspond to the eight Zones; select the one to have its level adjusted. If a Group is enabled, selecting any Zone that is a member of that Group selects all the Zones in the Group (see below).
The rotary control adjusts the audio level in the selected Zone (or Group). An indication of relative level is given on the lower row of the display in the form of a bargraph.
UTILITY
Level may be set by clicking the OUTPUTS tab, selecting
the Zone in the left-hand drop-down list, and then setting the music volume (in dBs) from the Level drop-down list. Click Send Output to transmit the new setting.
The Group Enable menu function allows Groups of Zones to be enabled or disabled. The Groups must have been previously dened – see page 46).
The rotary control selects the Group (1 to 4) to be enabled/
disabled. These will be displayed as Group n unless they
have been renamed, in which case the names will be displayed (see page 37 for details of renaming Groups).
Press the rotary control to enable or disable the Group. The
lower row of the display will show either a cross (X) or a
tick (ü) to conrm that the Group is disabled or enabled
respectively.
The LEDs above the numeric buttons illuminate in this menu
function to conrm Zone membership of the selected Group.
The buttons themselves are not used.
UTILITY
Group Enable may be congured by clicking the
OUTPUTS tab, selecting the Group in the left-hand
drop-down list (below Zone 8), and then clicking in the Enabled checkbox in the Group Members area. Click Send Output to transmit the new setting.
Group Enable may be congured by selecting
Grouping, followed by the Group name (or number),
and then clicking on the symbol adjacent to the On/Off select box (ü = enabled; X = disabled).
DCM1 & DCM1e Installation and User Guide v1.0 29
Installer Mode
The remainder of the DCM1’s menu system is only available in Installer Mode; this is accessed by pressing the INSTALL
button and entering the key in response to the display prompt.
Installer Mode self-cancels after 45 seconds if no further adjustments are made.
Music Menu
This adjusts the music high-frequency EQ in each Zone. The
equaliser is a 6 dB/octave shelving lter with a 3 dB point at 10 kHz.
The eight numeric buttons correspond to the eight Zones; select the one to have its EQ adjusted.
The rotary control adjusts the HF EQ in the selected Zone. The range of adjustment available is ±14 dB in 2 dB steps.
UTILITY
Select Input
Input 1
Level
|||||||||
Treble
0dB
Mid 0dB
Bass
0dB
Sig || Gain +2dB
Maximum Level
0dB
Minimum Level
-oodB
Treble may be adjusted by clicking the OUTPUTS tab,
selecting the Zone in the left-hand drop-down list, and then setting the HF EQ (±14 dB) from the Treble drop-down list in the EQ area. Click Send Output to transmit the new setting.
Treble may be adjusted by selecting Music, followed by the Zone name (or number), and then setting the HF EQ (±14 dB) in the Treble select box.
Mid
SELECT INPUT
Rotary Control adjusts MF EQ
Mid 0dB
Select Input
This function is described above, in User Mode.
Level
This function is described above, in User Mode.
Treble
SELECT INPUT
Rotary Control adjusts HF EQ
Treble
0dB
Numeric buttons select Zone
DCM1 & DCM1e Installation and User Guide v1.030

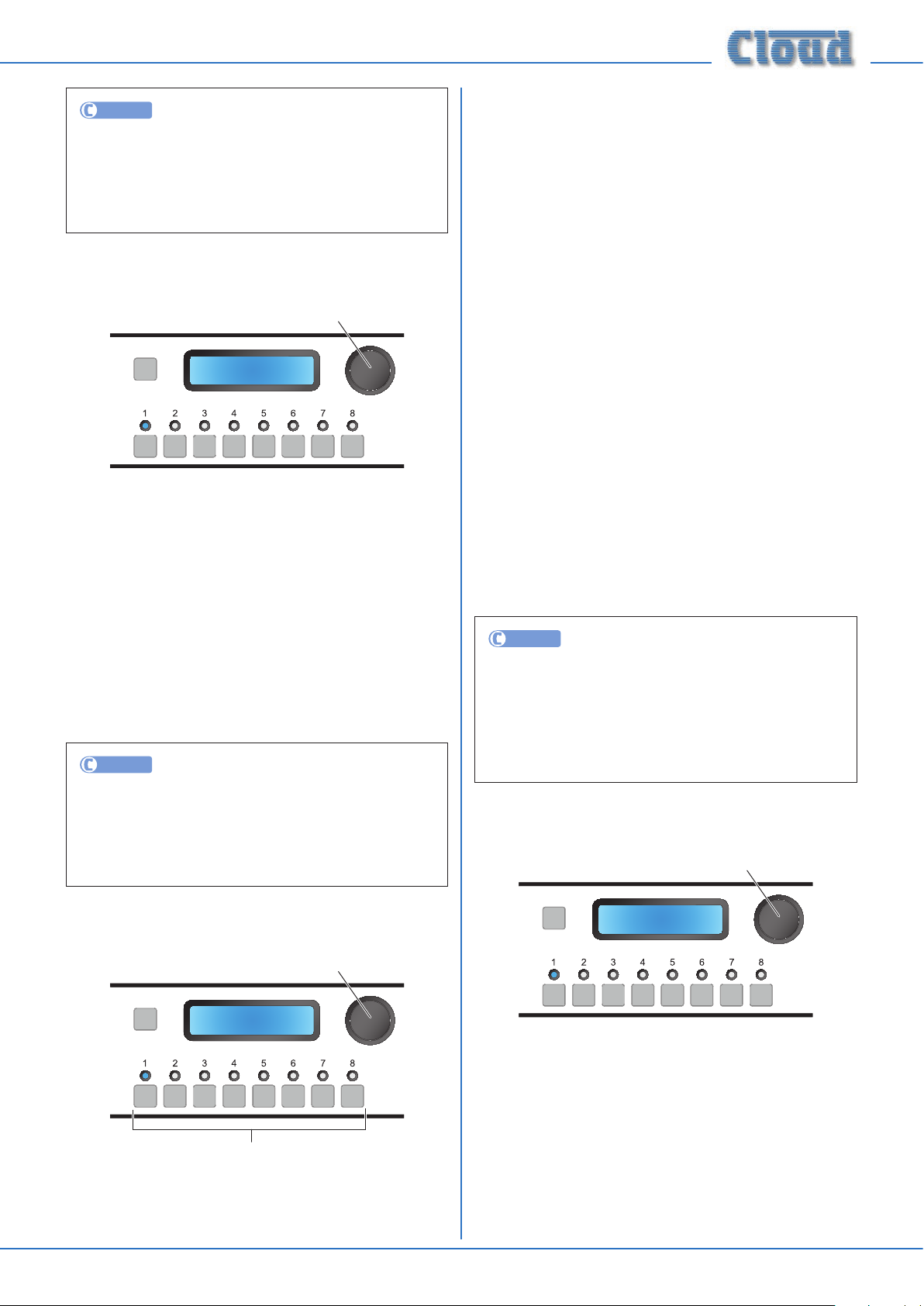

Numeric buttons select Zone
This adjusts the music mid-frequency EQ in each Zone.
The equaliser is a simple bell lter with a centre frequency of 1.2 kHz.
The eight numeric buttons correspond to the eight Zones; select the one to have its EQ adjusted.
The rotary control adjusts the MF EQ in the selected Zone. The range of adjustment available is ±14 dB in 2 dB steps.
UTILITY
Mid may be adjusted by clicking the OUTPUTS tab,
selecting the Zone in the left-hand drop-down list, and then setting the MF EQ (±14 dB) from the Mid drop­down list in the EQ area. Click Send Output to transmit the new setting.
Mid may be adjusted by selecting Music, followed by the Zone name (or number), and then setting the MF EQ (±14 dB) in the Mid select box.
Bass
SELECT INPUT
Rotary Control adjusts LF EQ
Bass
0dB
The Input Gain function allows adjustment of the level of each music input, so that sources with different output levels can be matched in volume. This adjustment will affect the audio level of the selected source in all Zones.
The gain control range is deliberately restricted to ±12 dB, but it should permit input levels to be adjusted to suit most sources. Should it prove inadequate, the output level of the source should be adjusted instead.
Adjustment of input gain is not available for sources connected via LE-1 and BE-1 remote input modules. The presence of these modules at the Extension Ports is detected, and the
gain on inputs in use is then xed at -6 dB. In the case of the
LE-1, input gain should be adjusted with the controls provided on the input module itself; on the BE-1, which is normalised for 0 dBu operation, the signal level will need to be adjusted at the source.
The eight numeric buttons correspond to the eight line inputs; select that to be adjusted.
Numeric buttons select Zone
This adjusts the music low-frequency EQ in each Zone. The
equaliser is a bell lter with a centre frequency of 50 Hz.
The eight numeric buttons correspond to the eight Zones; select the one to have its EQ adjusted.
The rotary control adjusts the LF EQ in the selected Zone. The range of adjustment available is ±14 dB in 2 dB steps.
UTILITY
Bass may be adjusted by clicking the OUTPUTS tab,
selecting the Zone in the left-hand drop-down list, and then setting the LF EQ (±14 dB) from the Bass drop­down list in the EQ area. Click Send Output to transmit the new setting.
Bass may be adjusted by selecting Music, followed by the Zone name (or number), and then setting the LF EQ (±14 dB) in the Bass select box.
The rotary control adjusts the input gain. The range of adjustment available is ±12 dB in 1 dB steps.
A bargraph meter is displayed on the top row of the LCD. It indicates input signal level; the gain should be adjusted so that
the deection reaches the “target area” at the right-hand end, indicated by horizontal lines.
Input Gain may be set by clicking the INPUTS tab,
selecting the Input in the LINE INPUT drop-down list, and then setting the gain (±12 dB) from the Input Gain drop-down list. Click Send Input to transmit the new setting.
Maximum Music Level
SELECT INPUT
Maximum Level
Rotary Control sets level
0dB
Input Gain
SELECT INPUT
Sig Gain +6dB
Numeric buttons select Input
Rotary Control adjusts Gain
Numeric buttons select Zone
This menu function allows a maximum music level to be set
for each Zone. This is useful when audio ampliers of similar
ratings are being used for each Zone, but different music volumes are required in the various Zones. Once set, users will not be able to raise the volume for a Zone above the preset maximum either from a CDR-1 remote control in the Zone or from the DCM1 itself.
The eight numeric buttons correspond to the eight Zones; select that to be adjusted. The Maximum Level setting is per-Zone only; the function is disabled if a Zone which is
DCM1 & DCM1e Installation and User Guide v1.0 31
a member of a currently-enabled Group is selected. If the
Maximum Level setting cannot be altered, check the settings
in the Group Enable function (in the Music menu).
The rotary control sets the maximum output level for the selected Zone. The range of adjustment is from 0 dB (the default) to -62 dB in 1 dB steps, where 0 dB means that no restriction on maximum level is applied.
Note that it is not possible to set the Maximum Level equal to or lower than any Minimum Level which has been set (see below). Thus if the Minimum Level for a Zone has been set to -30 dB, the Maximum Level must be in the range 0 dB to
-29 dB.
UTILITY
Maximum Music Level may be adjusted by clicking
the OUTPUTS tab, selecting the Zone in the left-hand drop-down list, and then setting the maximum level from the Max Level drop-down. Click Send Output to transmit the new setting.
UTILITY
Minimum Music Level may be adjusted by clicking
the OUTPUTS tab, selecting the Zone in the left-hand drop-down list, and then setting the minimum level from the Min Level drop-down. Click Send Output to transmit the new setting.
Routing Menu
Zone 1
Mic Inputs
Zone 1
Input Enable
Access Connector
PAGE Input
PM Zone Offset
0
Minimum Music Level
SELECT INPUT
Minimum Level
Numeric buttons select Zone
Rotary Control sets level
- dB
This menu function allows a minimum music level to be set for each Zone. This prevents users from lowering the music volume in a Zone below a preset minimum (or turning it down completely) either from a CDR-1 remote control in the Zone or from the DCM1 itself.
The eight numeric buttons correspond to the eight Zones; select that to be adjusted. As with Maximum Level, this function is disabled for Zones belonging to enabled Groups.
The rotary control sets the minimum output level for the selected Zone. The range of adjustment is from -∞ dB (the default) to -1 dB in 1dB steps, where -∞ dB means that no restriction on minimum level is applied, and that the volume
in the selected Zone can be reduced to zero.
Note that it is not possible to set the Minimum Level equal to or higher than the Maximum Level which has been set (see above). Thus if the Maximum Level for a Zone has been set to -10 dB, the Minimum Level must be in the range -∞ dB to
-11 dB.
CDR Zone Offset
0
Mic Gate Enable
Enable Mic Inputs
SELECT INPUT
Rotary Control selects Zone/Group
Zone 1
Mic Inputs
Numeric buttons enable/disable mic inputs
If ME-1 remote mic input modules form part of the system,
it is likely that they will not be used all the time, and that any
mics connected to them will not necessarily need to be heard in the same Zone(s) on every occasion. The Enable Mic Inputs menu function allows the operator to activate each of the DCM1’s microphone inputs as required, and to determine which Zone(s) each is routed to.
The DCM1 imposes no restrictions on mic routing, and it is important to note that any of the four Mic Inputs may be routed to any Zone, regardless of the physical location within the installation of the ME-1 modules connected to a particular input.
DCM1 & DCM1e Installation and User Guide v1.032
In practice, many installations will only ever require a microphone input to route to the Zone where that microphone is physically connected. The rotary control
selects the Zone; these will be displayed as Zone n unless
the Zones have been renamed, in which case the names will be shown (see page 37 for details of renaming Zones).
Note that rotating the control “beyond” Zone 8 allows Groups 1 to 4 to be selected as well. This permits use of microphones to be enabled in some areas only when a Group is in use.
The rst four numeric buttons correspond to Mic Inputs 1 to
4. Default assignment is for all Mic Inputs to be OFF. Pressing
a key enables that Mic Input for the selected Zone or Group; a second press disables it. Note that the key LEDs indicate
current Mic Input-to-Zone/Group assignment at all times.
Because ME-1 remote mic input modules can be “daisy­chained”, enabling one of the DCM1’s Mic Inputs will enable all ME-1 modules connected to that input.
No separate mic level control is available on either the DCM1 or CDR-1. Adjustment of microphone volume should be made from the controls on the ME-1 modules themselves.
UTILITY
Enable Mic Inputs may be congured by clicking
the OUTPUTS tab, selecting the Zone in the left-hand
drop-down list, and then clicking in the appropriate
Mic checkbox in the Mic Inputs area. Click Send Output to transmit the new setting.
Enable Mic Inputs may be congured by selecting
Inputs, followed by the Zone or Group name (or
number), and then clicking on the symbol adjacent to the
Mic n select box (ü = enabled; X = disabled).
in each Zone. The default setting is for all Music Inputs to be available in every Zone. If some inputs are disabled for a particular Zone, they will no longer appear on-display to the user in the Select Input function of the Music menu in either Installer or User modes for that Zone. It will also be removed from the display on any CDR-1 remote controls assigned to that Zone.
The rotary control selects the Zone in which music inputs are to be enabled or disabled. Note that rotating the control “beyond” Zone 8 allows Groups 1 to 4 to be selected as well to permit source to be enabled for Groups independently from Zones.
The eight numeric buttons correspond to the eight Music Inputs. Default assignment is for all inputs to be enabled for all
eight Zones and all four Groups. Pressing a key disables that
Music Input from selection in the currently-displayed Zone
or Group; a second press enables it. Note that the key LEDs
indicate the current per-Zone availability of inputs at all times.
UTILITY
Input Enable may be congured by clicking the
OUTPUTS tab, selecting the Zone in the left-hand drop-
down list, and then clicking in the appropriate Line checkbox(es) in the Input Enable area. Click Send
Output to transmit the new setting.
Input Enable may be congured by selecting Inputs, followed by the Zone or Group name (or number), and then clicking on the symbol adjacent to the Input select box(es) (ü = enabled; X = disabled). Note that if the inputs have been renamed, the names are displayed instead of Input n.
Input Enable
SELECT INPUT
Rotary Control selects Zone/Group
Zone 1
Input Enable
Numeric buttons enable/disable music inputs
In some installations, it may be desirable to restrict the range
of music inputs which can be selected in one or more zones.
The Input Enable menu function allows the operator to determine which Music Inputs are available for selection
Congure Access Connector
SELECT INPUT
Rotary Control selects Input,
Output or GPIO mode
Access Connector
PAGE Input
This menu function congures how the rear panel PAGING ACCESS Connector (see page 15, 6) is to be used. There
are three options: it can operate as an input or an output in conjunction with the DCM1’s paging facilities, or as an 8-way GPIO port. Use the rotary control to change the setting.
DCM1 & DCM1e Installation and User Guide v1.0 33

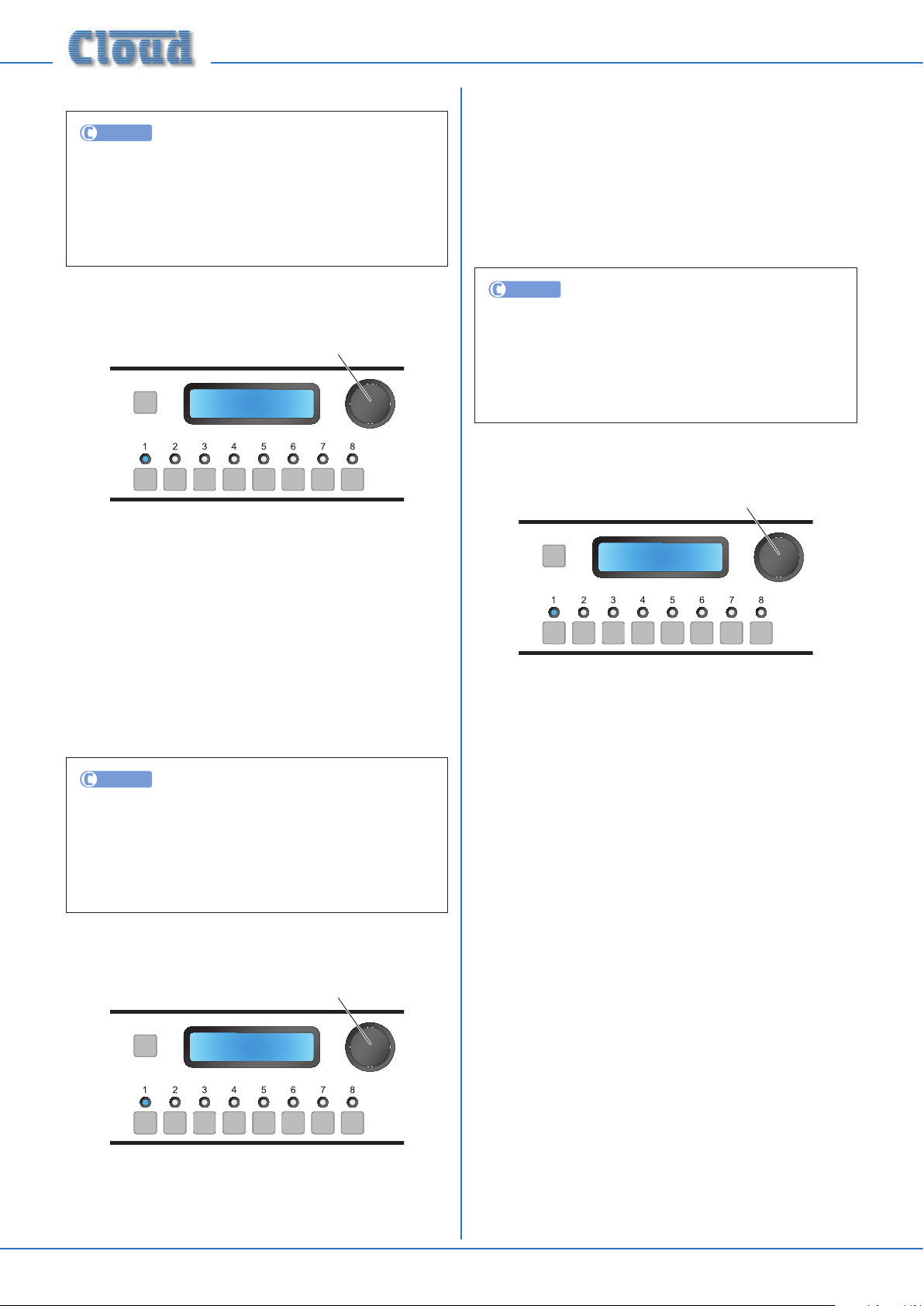

The default setting is PAGE Input. This congures the connector to be used for Zone selection with a third-party paging system. The next option, PAGE Output, should be used when the DCM1 is connected to a Cloud PM or CDPM
paging microphone(s), and per-zone contact closures are
required as tallies, normally for volume restoration purposes. See page 23 for full details of how to wire the PAGING ACCESS connector when used for these purposes.
The third option congures the PAGING ACCESS connector as a GPIO (General-purpose Input-Output) port. In this mode, it cannot be used in conjunction with paging
microphones for either zone selection or zone tally outputs.
When set as a GPIO port, serial data received at the RS232 INTERFACE (and/or ETHERNET INTERFACE in the
case of the DCM1e) can set individual channels logic-high or logic-low (outputs), or the status of channels can be interrogated and reported using RS-232 serial data (inputs).
The default allocation is with all eight channels of the port as outputs, denoted on the lower row of the display as GP OOOOOOOO. Turning the rotary control further
clockwise re-assigns each channel in turn as an input, e.g.,
GP IOOOOOOO, GP IIOOOOOO, and so on. Note that
channels set as inputs must always form a consecutive block numbered ‘up’ from pin 1; likewise channels set as outputs must always form a consecutive block numbered ‘down’
from pin 8. See page 67 for more details of how to use the PAGING ACCESS connector as a GPIO port.
should be set in the “second” DCM1 (and left at the default
value of 0 in the “rst”). With the rst DCM1 feeding audio
to Paging Zones 1 to 8 and the second to Paging Zones 9 to 16, correct paging of the higher-numbered Zones will result.
The rotary control is used to adjust the offset value in the range 0 (the default) to 15. Values other than 0 or 8 will only be applicable to hybrid systems composed of a DCM1
and mixers of some other type, or when a “zone overlap”
is required for operational reasons. The numeric buttons are not used in this function.
UTILITY
PM Zone Offset may be accessed by clicking the
SYSTEM tab, and selecting the required offset value in the CDPM Offset drop-down list in the Paging Mic area. Click Send System to transmit the new setting.
CDR Zone Offset
SELECT INPUT
CDR Zone Offset
Rotary Control sets offset
0
The numeric buttons are not used in this function.
UTILITY
Congure Access Connector may be accessed by
clicking the SYSTEM tab, and setting Access Contacts to either Input or Output* in the Paging Mic
area. Click Send System to transmit the new setting.
* An updated version of the Utility Tool including GPIO conguration of the
Access Connector will be available during 2014.
PM Zone Offset
SELECT INPUT
PM Zone Offset
Rotary Control sets offset
0
DCM1s may be linked together via the CDR-1 buss to allow systems with more than eight zones to be congured. To maintain the freedom of CDR-1 network wiring, a CDR Zone
Offset is applied to the second (and subsequent) DCM1s, in order that the CDR-1s are able to recognise that the system
comprises 16 (or more) zones.
Use the rotary control to set the CDR Zone Offset on the second (and subsequent) DCM1s. The offset is in multiples of 8.
For a 16-zone system using two DCM1s, an offset of +8 is
applied to the “second” DCM1, whose outputs feed Zones
9 to 16. The “rst” DCM1, whose outputs feed Zones 1 to 8 is left with an offset of zero. With the CDR-1 network connected to both DCM1s, all 16 zones will now be available
to each CDR-1 for assignment.
CDR Zone Offset need not be altered from zero if each
DCM1 in a multiple system has its own independent “daisy-
chains” of CDR-1s, and there is no CDR link between the
units.
The purpose of the PM Zone Offset menu function is to permit Cloud PM and CDPM paging microphones to address
more than 8 zones.
Cloud PM and CDPM systems can address up to 16 Zones (model-dependent). To permit paging of Zones 9 and higher
in a system utilising two DCM1s, a xed numeric offset of 8
DCM1 & DCM1e Installation and User Guide v1.034
UTILITY
CDR Zone Offset may be accessed by clicking the
SYSTEM tab, and selecting the required offset value in the CDR Offset drop-down list. Click Send System to transmit the new setting.
Mic Gate Enable
SELECT INPUT
SELECT INPUT
Mic Gate Enable
System Menu
CDR Zone Setup
Zone 1
Stereo X
Numeric buttons enable/disable gates
The ME-1 remote input module incorporates a noise gate
to reject unwanted background noise when the microphone
connected at the module is not in use. The Mic Gate Enable menu function allows the noise gate to be switched on or
off. The rst four numeric buttons correspond to the four
MICROPHONE INPUTS on the rear panel; the default setting is for the noise gates to be active, and this is indicated by the LEDs being illuminated.
The rotary control is not used in this function.
UTILITY
Mic Gate Enable may be congured by clicking the SYSTEM tab, and then clicking in the appropriate Mic checkbox(es) in the Mic Gates area. Click Send
System to transmit the new setting.
Edit Input Label
Input 1
Edit Zone Label
Zone 1
Edit Group Label
Group 1
Set Key
1234
RS232 Baud Rate
9600
RS232 Flow
No Flow
Power Up Mode
Factory
Save Defaults
X
Update Firmware
X
Reset Mixer
CDR Zone Setup
CDR Zone Setup
Numeric buttons select Zone
The CDR Zone Setup menu function lets the operator put
the CDR-1s in a system into Engineer Mode. In this mode,
per-Zone output EQ can be adjusted locally, in the zone itself.
This permits much faster and easier optimisation of the sound as the adjustment is made from the CDR-1(s) rather than from the DCM1.
The eight numeric buttons correspond to the eight Zones; select the Zone(s) where EQ is to be adjusted by pressing
the appropriate key(s). The default is for EQ Setup Mode to
DCM1 & DCM1e Installation and User Guide v1.0 35
be OFF for all Zones. A second press exits the mode. Note
that the keys’ illumination indicates current Zone status at all
times.
The rotary control is not used in this function.
Once a Zone has been enabled, pressing the ZONE button
twice on the CDR-1(s) in the Zone will bring up the Enter Key request (see note below).
Enter Key
UTILITY
Stereo/Mono Zone Selection may be made by
clicking the OUTPUTS tab, selecting Zone 1 or Zone 2 from the drop-down list on the left-hand side, and selecting Stereo or Mono in the Output Type window. Click Send Output to transmit the new setting.
Rename Inputs
Rotary Control selects character
SELECT INPUT
Press moves to next character
When the CDR-1 key has been entered, the rst EQ
adjustment screen (Treble) opens. Adjustment of HF EQ
can be made with the + and – buttons. The available range is
±14 dB, in 2 dB steps.
Treble
0dB
Further presses of the Zone button allow the MF (Mid) and LF (Bass) EQs to be adjusted similarly. Pressing the Zone
button from the Bass screen returns the display to the level adjustment screen. EQ Setup Mode times out after a short
period, after which time the key will need to be re-entered.
Stereo/Mono Zone selection
SELECT INPUT
Rotary Control selects Zone
Press to change mode
Zone 1
Stereo
Edit Input Label Input 1
Numeric buttons select Input
By default, the eight music inputs appear in the display as Input 1 to Input 8. This menu function allows the
operator to rename them (typically to conrm the source, e.g., MP3 dock, DAB, Jukebox, Server, TV, etc.)
The eight numeric buttons correspond to the eight Music Inputs; select that to be renamed.
The current name of the selected Input is shown on the lower
row of the display, with the rst character ashing. Rotating the rotary control changes the character. Clockwise rotation advances through the alphabet, anticlockwise reverses. When the required character is ashing, press the rotary control to
select it and advance to the next character.
As well as upper- and lower-case letters of the alphabet, many non-alphabetical characters are also available. The full set, in the order in which they are presented, is shown below.
This menu function congures Zone outputs 1 and 2 as either
stereo or mono. (Note that Zone outputs 3 to 8 are always mono.)
The rotary control selects Zone 1 or Zone 2 (by name if they have been renamed). Pressing the control inwards sets the
Zone output to stereo (✓) or mono (X). The numeric buttons
are not used in this function.
Stereo music sources will be reproduced in stereo in Zones
1 and 2 if they are congured for stereo. Stereo is the default
setting for both Zones 1 and 2.
DCM1 & DCM1e Installation and User Guide v1.036
(sp)
! ” # $ % & ’ ( ) * + , - . / 0 1 2 3 4 5 6 7 8 9 : ; < = > ? @ A B C D E F G H I J K L M
N O P Q R S T U V W X Y Z [ ¥ ] ^ _ ` a b c d e f g h I j k l m n o p q r s t u v w x y z { | }
Note the rst character (obtained by rotating the control fully anticlockwise) is the space character. The software
automatically interprets two adjacent space characters to mean the end of the text string; this saves overwriting part of a long name with multiple spaces when replacing it with a shorter one.
UTILITY
r
Inputs may be renamed from the Utility Tool by clicking
the INPUTS tab, selecting an input from the Line Input list and changing the default name for the input
(Input n) in the Name eld. Click Send Input to transmit the new setting.
Inputs may be named from the browser by selecting Cong, then Labelling; select the text eld containing the current name of the required input (the default name will be Input n), and enter the new name.
Click the Upload button to conrm the change; click
the Refresh button to download the DCM1e’s current labels into the browser interface.
Rename Zones
Rotary Control selects characte
SELECT INPUT
Press moves to next character
Zones may be named from the browser by selecting
Cong, then Labelling; select the text eld containing the current name of the required zone (the
default name will be (Zone n), and enter the new name.
Click the Upload button to conrm the change; click
the Refresh button to download the DCM1e’s current labels into the browser interface.
Rename Groups
Rotary Control selects character
SELECT INPUT
Edit Group Label Group 1
Numeric buttons select Group
Press moves to next character
Edit Zone Label
Zone 1
Numeric buttons select Zone
By default, the eight output Zones appear in the display as Zone 1 to Zone 8. This menu function allows
the operator to rename them (to conrm the area being
controlled, e.g., Bar, Restaurant, Reception, etc.)
The eight numeric buttons correspond to the eight Zones; select the one to be renamed.
The procedure used to rename the Zones is otherwise identical to that described above for Music Inputs.
UTILITY
Zones may be renamed from the Utility Tool by clicking the OUTPUTS tab, selecting a zone from the drop-down
list on the left-hand side and changing the default name
for the zone (Zone n) in the Zone Name eld. Click Send Output to transmit the new setting.
By default, the four Zone Groups appear in the display as Group 1 to Group 4. This menu function allows the operator to rename them (i.e., to distinguish them more readily from their component Zones).
The rst four numeric buttons correspond to the four
Groups; select the one to be renamed.
The procedure used to rename the Groups is otherwise identical to that described above for Music Inputs.
UTILITY
Groups may be renamed from the Utility Tool by clicking
the OUTPUTS tab, selecting a Group from the drop­down list on the left-hand side (Groups follow Zone 8) and changing the default name for the Group (Group n) in the Zone Name eld. Click Send Output to transmit the new setting.
Groups may be named from the browser by selecting Cong, then Labelling; select the text eld containing the current name of the required group (the default name will be Group n), and enter the new name.
Click the Upload button to conrm the change; Click
the Refresh button to download the DCM1e’s current labels into the browser interface.
DCM1 & DCM1e Installation and User Guide v1.0 37
Set Key
SELECT INPUT
Set Key
1234
Numeric buttons enter key
This menu function enables the DCM1 Installer Mode key to
be changed from the factory default setting of 1234. Changing
the key from the default to one “less obvious” is strongly
recommended.
The key may be any 4-digit number, but comprised of digits 1
to 8 only.
Enter the new 4-digit key using the eight numeric buttons. No additional actions are required for the new key to become
active.
UTILITY
The Installer Mode key may be changed from the INSTALLER KEY tab. Enter the current key in the Old
Key eld, then enter the new key in both the New Key and Repeat New Key elds. Click Send Key to transmit the new setting.
RS232 Baud Rate
SELECT INPUT
Rotary Control sets Baud Rate
RS232 Baud Rate
9600
This menu function sets the data rate (baud rate) of the DCM1’s RS-232 Control Port. If no external control system or other equipment is connected to the RS-232 port, the setting can be ignored.
Most control systems and other equipment using RS-232 are able to operate with a wide range of baud rates. It may be simpler to set the baud rate at the controller and leave the DCM1’s setting at the default.
The default setting is 9600 baud (displayed as 9600). Use the rotary control to change the setting. Alternative baud rates are 300, 1200, 2400, 4800 and 19200. The baud rate applies to both data transmit and receive.
The numeric buttons are not used in this function.
RS232 Flow
The Installer or Power Keys may be changed from the browser window by selecting Cong, then Change
PIN. Enter the current key in the Enter your current PIN eld, then enter the new key in both the Add a new PIN and Conrm your new PIN
elds. Click the Reset button to conrm the change. The key changed will be that corresponding to the original
PIN entered.
NOTE: There may be occasions where it is necessary to
access Installer Mode to change the Installer key, without knowing the current Installer key. This typically happens
some time after a system has been installed, when the original installer is no longer available.
In this situation, turn the DCM1 off, remove the top cover and move jumper J8 to its alternative position. (See page 65 for details of jumper locations.) This forces the Installer Key to the original factory default. Power the
DCM1 on, and enter Installer Mode, using the default key. Set a new key in the Set Key menu function. Then go to
the Save Defaults menu function (see page 39) and press the rotary control to save the current settings. Turn
the DCM1 off, replace J8 to its original position and ret the top cover. On re-powering the DCM1, the new key
will be required to access Installer Mode.
SELECT INPUT
Rotary Control sets RS232 flow option
RS232 Flow
No Flow
Some external equipment requires the RS-232 ports of devices
to which they are connected to be congured in a certain way, particularly in regard to the way data ow between the
transmitting and receiving device is managed. The two most
common methods of data ow control are Xon/Xoff and RTS/CTS, alternatively referred to as software control and
hardware control respectively.
The rotary control selects which of these control methods is
applied to the port. A third option, the default, is for no ow
control to be applied.
The numeric buttons are not used in this function.
Note that hardware ow control requires additional pins on
the RS-232 port to be connected. See page 66 for more details.
DCM1 & DCM1e Installation and User Guide v1.038
Power Up Mode
Save Defaults
SELECT INPUT
Rotary Control selects Power Up option
Power Up Mode
Factory
It will often be desirable for the DCM1’s settings, such as input selections, levels, etc., to be automatically restored to
a known state when it is re-powered after being off for a
period (intentionally or otherwise). The Power Up Mode
function determines the state the DCM1 “wakes up” in when
it is powered-up.
The rotary control selects the active Power Up option from the three available: Factory, Default and Last Known.
With Factory set, the DCM1 will always return to its original factory settings on power-up; a list of the factory settings can be found at page 71 If Power Up Mode is set to Default, the settings which have been saved by the user in the Default memory (see below) are restored.
The third option, Last Known, will restore the DCM1 to the settings they were in when the unit was last powered off. This is the option that Power Up Mode is set to has when
the unit is rst shipped from the factory, but the unit’s actual
settings at this time will be the factory default set. Until some changes are made, both Last Known and Factory will result in the factory default settings being restored.
SELECT INPUT
Press to store current settings
Save Defaults
X
When the rotary control is pressed in, all the unit’s current settings are stored in power-safe memory. The contents of this memory are then re-loaded on power-up, if Default or Last Known is set as the option in the Power Up Mode function (see above).
The numeric buttons are not used in this function.
UTILITY
Clicking the Set Defaults button in the lower pane of the Utility Tool window corresponds to the Save
Defaults function described above.
Update Firmware
SELECT INPUT
Press 3 times to enable firmware update
Update Firmware
X
The numeric buttons are not used in this function.
UTILITY
The Power Up Mode function can be selected from the SYSTEM tab of the Utility Tool. Select the required setting from the drop down list at Power Up Mode.
Click Send System to transmit the new setting.
This menu function is used when a rmware update is installed. See page 70 for full details of rmware Updates.
Pressing the control knob three times in quick succession
prepares the DCM1 for the rmware update. The X in the
display changes to a ✓. At this point a further press cancels the procedure. Otherwise, the DCM1 will expect to install the new rmware next time it is reset (see Reset Mixer below), or re-powered.
Neither rotation of the control knob nor the numeric buttons
are used in this function.
The Update Firmware menu function also lets you check
the versions of rmware and software versions currently
installed in the DCM1. If no controls are touched, the Help text will appear after approximately 10 seconds, after which
the rmware and software versions will be displayed for a few
seconds.
DCM1 & DCM1e Installation and User Guide v1.0 39
First download the DCM1e rmware update from
www.cloud.co.uk; check the update notes to conrm that
the update is applicable to your device. Connect to the DCM1e using a web browser. Click Menu, then Login. Enter the Installer PIN to log in as installer.
Priorities Menu
Zone 1
Line PriSel
Click Menu, then Cong then Device Info. Click Upload. Enter the Installer PIN again.
The DCM1e will now enter bootloader mode.
Run the Firmware Update application on a Windows®
PC connected to the same network. Click Discover. Click the IP Address listed in BOLD
font. Check and conrm which settings you would like to overwrite on the Update interface. Click Update.
Wait for the Firmware updated successfully dialogue
Click OK, then close the Updater.
Reset Mixer
SELECT INPUT
Reset Mixer
Press to reset
Line PriHold
3s
Line PriRel
1s
Zone 1
MicPri Sel
MicPri Hold
3s
MicPri Release
1s
MicPri Att
-30dB
Page PriSel
Off
Page PriHold
3s
Page PriRel
1s
Page PriAtt
-30dB
This menu function can be used to perform a hardware reset.
This is equivalent to powering the DCM1 off and back on
again.
Press the rotary control to perform the reset. The unit exits Installer Mode and the display returns to the User Mode default. No other front panel controls are used in this function.
UTILITY
Clicking the Reset DCM1 button in the lower pane of the Utility Tool window corresponds to the Reset Mixer function described above.
Emergency Source
Off
Emergency Level ||||||||||||||||
Mute Contacts
Normally Open
Select Priority Line Input
SELECT INPUT
Rotary Control selects Zone/Group
Zone 1
Line Pri Sel
Numeric buttons select Input
Any of the zones can be assigned a Priority Line Input; this assignment can be made independently for each zone. The
presence of an audio signal on this input activates the priority
DCM1 & DCM1e Installation and User Guide v1.040
routing for the zone, changing its input selection to the Priority
SELECT INPUT
SELECT INPUT
Line Input. This forced priority continues for as long as the audio signal remains. When the signal is removed, the original Music input returns, after an adjustable time period (see following menu functions). This feature can be used to allow
a jukebox to override TV sound in some areas, for example;
it is also useful for playout of timed-interval messages from a sound store.
The threshold for priority activation is -24 dB below the input’s nominal level.
The rotary control selects the Zone in which the priority is to be set (displayed by name if they have been renamed). Note that rotating the control “beyond” Zone 8 allows Groups 1 to 4 to be selected as well to permit assignment of a priority source for each Group as well as each Zone.
The eight numeric buttons correspond to the eight Music Inputs. The default assignment is for no priority input to
be assigned for any Zone or Group. Pressing a key assigns
that Music Input as the Priority Line Input for the currently­displayed Zone or Group; a second press de-assigns it.
The choice of Priority Line Input for a Zone/Group can be made from any of the eight Music sources, including any which have been deliberately disabled for that Zone/Group in the Input Enable function of the Routing menu (see page 33).
Only one Music Input may be assigned as Priority Line Input for each Zone or Group. However, any one Music Input may be assigned to every Zone and/or Group, if wished.
The rotary control sets the Hold value in the range from 1 s to 12 s, in 1 s increments. The default value is 3 s. It may be necessary to increase this value if the Line Priority feature is being used with a conventional music source such as a
CD player or CD jukebox, to prevent the source selection
temporarily reverting to the original selection between
tracks, for example.
Note that the Line Priority Hold Time is global – it applies to all Zones/Groups and Music Inputs.
The numeric buttons are not used in this function.
UTILITY
The Priority Line Hold Time can be set from the SYSTEM tab of the Utility Tool; select the required value from the Hold drop-down list in the Line Priority area. Click Send System to transmit the new setting.
Line Priority Release Time
Rotary Control sets value
Line Pri Rel
1s
NOTE: When a Priority Line Input overrides an existing source selection, visual indication of the changed source is
given on both the DCM1 (if it is displaying the zone where the override is occurring) and any CDR-1s in the zone.
UTILITY
The Priority Line Input can be selected from the OUTPUTS tab of the Utility Tool. Select the relevant
zone from the drop down list on the left-hand side, and then select the input to have priority in that zone from
the Priority Input drop-down list. Click Send Output to transmit the new setting.
Line Priority Hold Time
Rotary Control sets value
Line Pri Hold
3s
At the end of the Line Priority Hold Time (see above), it would be disconcerting if the audio level of the original programme (the currently selected Music source) were to immediately
resume its previous level. Instead it ramps back up to its previous level from zero over the Release Time period.
The rotary control sets the Release value in the range from 1 s to 12 s, in 1s increments. The default value is 1 s.
Note that the Line Priority Release Time is global – it applies to all Zones/Groups and Music Inputs.
The numeric buttons are not used in this function.
UTILITY
The Priority Line Release Time can be set from the SYSTEM tab of the Utility Tool; select the required value from the Release drop-down list in the Line Priority area. Click Send System to transmit the new setting.
The Line Pri Hold parameter sets the time for which the Line Priority Input (enabled in the Line Pri Sel menu function above) remains the source after the audio signal has been removed.
DCM1 & DCM1e Installation and User Guide v1.0 41
Select Mic Priority Input
SELECT INPUT
Rotary Control selects Zone/Group
Mic Priority Hold Time
SELECT INPUT
Rotary Control sets value
Zone 1
Mic Pri Sel
Numeric buttons select Mic Input
When a microphone is in use in a Zone (or Group) as well as a music source, it may be desirable for the music (the line input) to be reduced in volume, to allow the microphone signal to be more readily heard; this process is often called
“ducking”. The Mic Pri Sel menu function congures the
DCM1 to do this.
The rotary control selects the Zone in which Microphone Priority is to be set (displayed by name if they have been renamed). Note that rotating the control “beyond” Zone 8 allows Groups 1 to 4 to be selected as well to permit assignment of a priority microphone for each Group as well as each Zone.
The rst four numeric buttons correspond to the four
Microphone Inputs. If multiple ME-1 remote input modules are daisy-chained to a Microphone Input, selecting that Input effectively selects all the modules connected to it, and any or all mics plugged into them will activate the Priority.
Mic Pri Hold
3s
The Mic Pri Hold function operates in the same way as Line Pri Hold (see above), except that it applies to the
Priority Microphone instead of the Priority Music Input. It determines how long the music will remain reduced in volume
(or “ducked”) once the priority mic signal has stopped.
The rotary control sets the Hold value in the range from 1 s to 12 s, in 1 s increments. The default value is 3 s.
Note that the Mic Priority Hold Time is global – it applies to all Zones/Groups and Mic Inputs.
The numeric buttons are not used in this function.
UTILITY
The Mic Priority Hold Time can be set from the SYSTEM tab of the Utility Tool; select the required value from the Hold drop-down list in the Mic Priority area. Click Send System to transmit the new setting.
The default assignment is for no priority mic to be assigned for any Zone or Group. Pressing a button assigns that Microphone Input as a priority mic for the currently-displayed Zone or Group; a second press de-assigns it.
A mic must be enabled for the Zone or Group for it to be available as a Mic Priority Input (see page 32 for details).
Note that more than one Mic Input may be assigned as the Priority Mic Input for each Zone or Group, if wished.
UTILITY
The Select Mic Priority Input function may be
congured by clicking the OUTPUTS tab, selecting the Zone in the left-hand drop-down list, and then clicking in the appropriate Mic checkbox in the Mic Priority area. Click Send Output to transmit the new setting.
Mic Priority Release Time
SELECT INPUT
Mic Pri Release
Rotary Control sets value
1s
At the end of the Mic Priority Hold Time (see above), the level
of the music programme ramps back up from its attenuated
level to its previous level over the Release Time period.
The rotary control sets the Release value in the range from 1 s to 12 s, in 1 s increments. The default value is 1 s.
Note that the Mic Priority Release Time is global – it applies to all Zones/Groups and Mic Inputs.
The numeric buttons are not used in this function.
DCM1 & DCM1e Installation and User Guide v1.042
UTILITY
SELECT INPUT
The Mic Priority Release Time can be set from the SYSTEM tab of the Utility Tool; select the required value from the Release drop-down list in the Mic Priority area. Click Send System to transmit the new setting.
Mic Priority Attenuation
SELECT INPUT
Mic Pri Att
Rotary Control sets value
-30dB
Mic Pri Att sets the amount of volume reduction to be applied to the music programme when the priority mic
becomes active – i.e., the degree of “ducking”.
The default setting is -30 dB, which should be satisfactory for most situations. The rotary control can be used to set any attenuation from -46 dB (the quietest) to 0 dB (no reduction at all), in 1 dB steps.
Note that the Mic Priority Attenuation is global – it applies to all Zones/Groups and Mic Inputs.
The numeric buttons are not used in this function.
UTILITY
received by the DCM1 will be routed to its intended zone(s) with the music programme in that zone(s) being temporarily attenuated (“ducked”).
The Page Pri Sel function determines how a paging microphone controls the paging access to the selected Zone. The three possible settings are Off, Vox and Access. Each of the eight Zones can have its own setting.
• Off – the paging microphone is routed to the
zone(s), but the music programme does not attenuate.
The announcement message is mixed with the music programme at full level.
• Vox – the paging microphone has priority access to the
zone(s) as soon as an audio signal from the microphone itself is received. Pressing zone selection buttons on the
paging microphone before the announcement is made will thus not cause the music programme to attenuate immediately.
• Access – priority access to the zone(s) is made
as soon as a zone routing button on the paging
microphone is pressed. With this setting, the music programme will attenuate immediately.
The numeric buttons select the Zone in which the setting is to be applied.
The rotary control selects the function to be applied to the selected Zone. The default setting for all Zones is Off.
UTILITY
The Page Priority Select function can be set from the
OUTPUTS tab of the Utility Tool; select the relevant zone
from the drop-down list on the left-hand side, and then select the paging mode from the Paging Priority
Select drop-down list (Off, Vox or Access). Click Send Outputs to transmit the new setting.
Mic Priority Attenuation can be set from the SYSTEM tab of the Utility Tool; select the required value from the Attenuation drop-down list in the Mic Priority area. Click Send System to transmit the new setting.
Page Priority Select
Rotary Control selects paging method
Page Pri Sel
Off
Numeric buttons select Zone
This function (and the following three) are concerned with how the DCM1 handles paging from an external PM Series or other paging microphone system. In principle, any page
Page Priority Hold Time
SELECT INPUT
Page Pri Hold
Rotary Control sets value
3s
The Page Pri Hold parameter determines how long the
music will remain reduced in volume (or “ducked”) once the
paging priority has been removed.
The rotary control sets the Hold value in the range from 1 s
to 12 s, in 1 s increments. The default value is 3 s.
Note that the Page Priority Hold Time is global – it applies to all Zones. The setting has no relevance to Zones that have Page Pri Sel set to Off.
The numeric buttons are not used in this function.
DCM1 & DCM1e Installation and User Guide v1.0 43
UTILITY
The Page Priority Hold Time can be set from the SYSTEM tab of the Utility Tool; select the required value from the Hold drop-down list in the Paging Mic/ Priority area. Click Send System to transmit the new setting.
The default setting is -30 dB. The rotary control can be used to set any attenuation from -46 dB (the quietest) to 0 dB (no reduction at all), in 1 dB steps.
Note that Page Priority Attenuation is global – it applies to all Zones. The setting has no relevance to Zones that have Page Pri Sel set to Off.
The numeric buttons are not used in this function.
UTILITY
Page Priority Release Time
SELECT INPUT
Page Pri Rel
Rotary Control sets value
1s
At the end of the Page Priority Hold Time (see above), the level
of the music programme ramps back up from its attenuated
level to its previous level over the Release Time period.
The rotary control sets the Release value in the range from 1 s to 12 s, in 1 s increments. The default value is 1 s.
Note that the Page Priority Release Time is global – it applies to all Zones. The setting has no relevance to Zones that have Page Pri Sel set to Off.
The numeric buttons are not used in this function.
UTILITY
The Page Priority Release Time can be set from the SYSTEM tab of the Utility Tool; select the required value from the Release drop-down list in the Paging Mic/Priority area. Click Send System to transmit the new setting.
Page Priority Attenuation can be set from the SYSTEM tab of the Utility Tool; select the required value from the Attenuation drop-down list in the Paging Mic/Priority area. Click Send System to transmit the new setting.
Select Emergency Source
SELECT INPUT
Rotary Control selects Input (Mic or Line)
Emergency Source
Off
An external emergency mute applied at the Music Mute rear connector will normally mute all eight Music Inputs and all four Microphone Inputs. Paging remains operative. Some installations may require that one input is reserved as an emergency audio input, for a Fireman’s Mic or Emergency Evacuation message. The Emergency Source menu function determines which input this will be.
Any input may be nominated as the emergency source. Either
a Line or Mic Input may be chosen, making it possible to
interface either microphones directly or line-level devices such as sound stores.
Page Priority Attenuation
SELECT INPUT
Page Pri Att
Rotary Control sets value
-30dB
Page Pri Att sets the amount of volume reduction to be applied to the music programme when paging priority
becomes active – i.e., the degree of “ducking”.
DCM1 & DCM1e Installation and User Guide v1.044
The rotary control selects the input to be used for emergency
access. Turning the control clockwise scans through Line 1 to Line 8, then Mic 1 to Mic 4. If the Music Inputs
have been renamed, the names are displayed. The default setting is Off. The menu function can be exited when the required input is displayed; no additional button presses are necessary.
Once an input is selected, that input will remain live when Music Mute is active. With the default setting of Off, all inputs will be muted when Music Mute is active.
The numeric buttons are not used in this function.
UTILITY
The Emergency Source can be set from the SYSTEM tab of the Utility Tool; select the input to be used from the Source drop-down list in the Emergency area. Click Send System to transmit the new setting.
Emergency Level
SELECT INPUT
Emergency Level
Rotary Control sets level
Any emergency messages routed through the system using the Music Mute/Emergency Source outlined above should be at a higher volume than normal music programme material.
(This is likely to be a requirement of Statutory Regulations.)
Congure Music Mute
SELECT INPUT
Rotary Control selects NC or NO
Mute Contacts Normally Open
The Music Mute input’s trigger mode may be congured as
a pair of normally-open (N/O) or normally-closed (N/C) contacts.
The rotary control selects either Normally Open (the default setting) or Normally Closed.
Set the function required by the emergency system being interfaced to. Select Normally Closed if the external equipment maintains a short-circuit in place at the Music Mute connector pins, removing it only when an emergency condition arises. Select Normally Open if the external equipment signals an emergency condition with a contact closure.
This menu function allows adjustment of the audio level of the Emergency Source (see previous menu function) when Music Mute is active. It applies only when a Line Input is assigned as the Emergency Source. If a Mic Input has been selected as the Emergency Source, the mic level should be set on the ME-1 module to which the Emergency microphone is connected.
The default setting is maximum, but if this level causes problems with system overloading and inadequate intelligibility, it can be reduced with the Emergency Level menu function.
Turn the rotary control anticlockwise to reduce the level. The
relative level is shown on the display as a bargraph.
The numeric buttons are not used in this function.
UTILITY
The Emergency Level can be set from the SYSTEM tab of the Utility Tool; select the required value from the Mute Level (dB) drop-down list in the Emergency area. Click Send System to transmit the new setting.
UTILITY
The choice of Music Mute N/O or N/C operation can
be set from the SYSTEM tab of the Utility Tool; click
the appropriate Mute Contacts checkbox in the Emergency area. Click Send System to transmit
the new setting.
DCM1 & DCM1e Installation and User Guide v1.0 45
Groups Menu
Group 1
Enable X
Group 1
Group Member
Group membership may be dened from the browser
by selecting Grouping followed by the Group to be
dened and then clicking on the symbol adjacent to the
Zone select box(es) (✓ = enabled; X = disabled). Note
that if the zones have been renamed, the names are
displayed instead of Zone n.
Group Enable
This function has already been described, as it is available in User Mode. See page 29.
Dene Groups
SELECT INPUT
Rotary Control selects Group
Group 1
Group Member
Numeric buttons select Zones
The Group Member menu function allows the operator
to dene which Zones should be combined to form Groups. Four Groups can be dened, with no restriction on Zone
membership. A Zone may be a member of more than one Group, but if so, only one Group which includes that Zone may be enabled at a time. Once set up, a Group may be enabled or disabled at will by the user, via the Group Enable function of the Groups Menu.
The rotary control selects the Group to have Zones assigned. The Groups will be displayed as Group 1 to Group 4 unless they have been renamed, in which case the names will be displayed.
The eight numeric buttons correspond to the eight Zones; they select Zone membership of the currently-selected Group. Press the numeric buttons to select or deselect Zones
from the Group. Conrmation of Group membership is given
by the LEDs above the numeric buttons.
Other DCM1 adjustments
In addition to the settings and adjustments made via the menu system, the DCM1 has a number of adjustments which are made elsewhere. Most are concerned with paging and are located on the rear panel; they are intended to be set at the time of installation and not subsequently altered by the user. All the controls are recessed trimpot types, and should be turned carefully with a trimming tool. Attempting to adjust
them with an oversize screwdriver will cause damage.
Paging mic gain
This control sets the sensitivity of the Paging Mic Input, for third-party paging systems. The gain range is 10 dB to 50 dB;
installers should check the mic signal level available from the
paging system, and initially set this control accordingly.
Its setting will affect the paging mic level in all zones being
paged.
PM Series paging microphone gain
It should be noted that if a system uses multiple DCM1s, Groups can only comprise Zones within each DCM1; Zones from different DCM1s cannot be combined.
UTILITY
Group Member may be dened from the Utility Tool by clicking the OUTPUTS tab, selecting the Group in
the left-hand drop-down list (below Zone 8), and then clicking the checkboxes for the relevant Zones in the Group Members area. Click Send Output to transmit the new setting.
DCM1 & DCM1e Installation and User Guide v1.046
This control sets the mic level for a PM Series (or CDPM)
paging system interfaced to the DCM1. Like the Paging mic level (above), its setting affects all zones being paged, and its
adjustment is made in the same way. The gain range is ±10 dB.
Paging mic EQ
HF and LF EQ controls for paging mics are provided. These may be adjusted to reduce any extraneous noise in the vicinity of the paging mic, or to compensate for any undesirable colouration of the mic itself. The controls are adjacent to
the (third-party) Paging Mic Input, but they affect both microphones connected to the Paging Mic Input and mic
signals from a PM Series paging mic (or CDPM) connected to the CDPM/PM ports.
The HF control provides up to 10 dB cut or boost above
5 kHz, and the LF control 10 dB cut or boost below 100 Hz.
Again, these controls should be adjusted using a test message,
ideally to the zone where the DCM1 is installed so that the effect of the adjustment can be heard by the person making it.
As the controls affect both the CDPM/PM ports and third­party paging mic inputs, a degree of compromise may be necessary if a system requires both inputs to be used.
10
Paging Level control
to achieve a sensible level in the
Zone. The message should be clear and undistorted.
5. If necessary, adjust the PAGING MICROPHONE
6
GAIN control
as well. If at all possible, the test
message should be made by the person who will normally
use the microphone, as some people speak much louder
than others.
6. Repeat Steps 2 to 5 for the other Zones.
7. Repeat Step 1 for the other music sources.
Display Contrast adjustment
The display should be easily readable in most normal situations. If it is necessary to alter the display contrast to improve readability under extreme ambient lighting conditions, remove the top cover (8 screws) and locate the trimpot at the left­hand end of the PCB mounted directly behind the front panel. This can be adjusted as required. Replace the cover using the same screws.
CDR-1 Series Remote Control Plates
Most audio systems based around the DCM1 will include one or more CDR-1 Series remote control plates to permit in-
zone selection of music source and level.
Zone Paging Levels
Each zone output connector has an adjacent preset control
which sets the volume for paging in that Zone. The PAGING LEVEL adjustment for a Zone is completely independent of
the music level adjustment for that Zone, the latter being set by the user.
Setting up levels for best performance
To optimise signal levels through the DCM1 and obtain the best signal-to-noise performance, we recommend the following procedure is followed for adjusting music and paging levels. (Numbers in squares refer to the rear panel diagram on page 15.)
1. Choose a suitable music source, and set the Input Gain of its input to 0 dB, via the Music menu in Installer mode.
2. Route this music source to a convenient Zone, and adjust the Level in this Zone to 0 dB (i.e., maximum), again via the Music Menu.
An overview of the CDR-1 can be found on page 7 and notes on installation and wiring at page 19.
User Operation
The backlight in the CDR-1’s display automatically times-out
after a few seconds (the actual time is programmable) to
minimise power consumption. The display is “woken up” by
pressing the ZONE button, and the unit conrms the Zone it has been assigned to, either as Zone n, or by name if the
zones have been renamed (see diag i) below).
Press Zone button to "wake up" display
Current Zone
Reception
CDR-1 User Mode: i) wake-up display
keys select line input (music source)
ih
Media Server
|||||||||||||||
Level
3. Adjust the gain of the power ampliers feeding the loudspeakers in that Zone so that the sound level in the Zone is as loud as is likely to be required.
4. While making a paging call, adjust the rear panel Zone
and
keys adjustmusic level
CDR-1 User Mode: ii) adjustment display
DCM1 & DCM1e Installation and User Guide v1.0 47
The CDR-1 will change to the adjustment display shown at ii) above after approx. 10 seconds, or immediately if either the + or – buttons are pressed. The i and h buttons can now be
used to scroll through the inputs available to the zone. Only
those inputs which have been enabled in the DCM1 menu system at ROUTING > Input Enable will be displayed. The + and – buttons adjust the volume.
This sequence is modied if the Zone has been dened as a
member of a Group. If so, the next press of ZONE after the
panel “wakes-up” displays the Engineer Mode Enter Key screen. This gives the user the option of entering the key, after
which the display will show the Group Select screen.
Enter Key
To activate Installer Mode:
If the CDR-1 has already been installed, remove it from its back
box and disconnect the power supply, either by unplugging the POWER IN RJ45 connector if the CDR-1 is being powered from elsewhere in the system, or by unplugging the local PSU if it is being powered locally. Move the jumper J1 as shown below.
J2 J1
ON
MID
OFF
END
Normal Mode Installer Mode
J2 J1
MID
END
ON
OFF
Reconnect the CDR-1 to its power supply, and the display
will change to the rst of the four menu functions available in
Installer Mode. Pressing ZONE steps through each function in turn (in the same manner as the NEXT FUNCTION button in the DCM1’s menu system). The two User Mode screens are also presented before the menu loops around.
The i, h , + and – buttons are used to adjust the parameters in each function.
Group Select
Group 1
and
keys to select Zone or Group(s)
The + and – keys may now be used to change enable or disable any Groups of which the Zone has been dened as
a member. If the Zone is only a member of one Group, the lower row of the display will toggle between Zone n and Group m where n and m are the Zone and Group numbers respectively. If the Zone belongs to more than one Group, the additional Groups will be displayed in turn; pressing ZONE when a Group is displayed will enable that Group; pressing ZONE when the Zone is displayed will disable a Group and return to normal operation.
Engineer Mode
The CDR-1 may be placed in Engineer Mode to allow EQ
adjustment to be performed from within the zone itself.
Engineer Mode is fully described on page 35.
Note that the display time-out is disabled in Installer Mode.
Remember to remove the power from the CDR-1 and put J1
back to its “normal” setting after conguration is complete.
Installer Mode
Installation of a CDR-1 necessitates the activation of a further mode, Installer Mode, to allow some additional parameters
to be set, including zone assignment. (NOTE: CDR-1 Installer
Mode, described here, is not to be confused with DCM1 Installer Mode.)
DCM1 & DCM1e Installation and User Guide V1.048
INSTALLER
MODE
FUNCTIONS
Backlight Adjust
Contrast Adjust
Inactivity Time
5s
Assign Zone
Zone 1
Set Key
<<>>
Input 4
Level
USER
FUNCTIONS
ENGINEER
MODE
FUNCTIONS
ENGINEER
MODE
ENABLED
Group
Member ?
NO
Current Zone
Zone 2
Enter Key
Treble
0dB
Mid
0dB
YES
SELECT ZONE OR GROUP(S)
Group Select
Group 3
KEY NEEDS TO BE
ENTERED ONCE ONLY
Bass
0dB
DCM1 & DCM1e Installation and User Guide V1.0 49
Display adjustments
Set Key
The rst menu function allows adjustment of the display contrast and backlight to suit different ambient lighting
conditions. The i and h buttons adjust the backlight level and the + and – buttons adjust the contrast.
Inactivity Time
This function sets the display time-out. Use the + and – buttons
to set a value of between zero and 30 s the default is 10 s. The display backlight will turn off after this delay, following the last CDR-1 button press. If the delay is set to zero, or jumper J1 is left in the Installer Mode position, the backlight remains
on at all times.
Assign Zone
This assigns the CDR-1 to a particular Zone. The + and – buttons scroll through the eight Zones; note in this function they are displayed as Zone n even if they have been renamed. The default setting is Zone 1.
Once a CDR-1 has been assigned to a Zone with the Assign Zone function, all operations on that CDR-1 will affect all the
speakers being driven from that Zone Output.
This lets the installer set the 4-character key code used
to access CDR-1 Engineer Mode, once the CDR-1(s) in a particular Zone have been enabled in the DCM1 System Menu (with the CDR Zone Setup function).
The bottom row of the LCD rst displays the current key;
the factory default is <<>>. Any permutation of the four characters <, >, + and – may be used (except four identical characters); as soon as any of the four buttons is pressed, the
existing key is erased. The key must have 4 characters.
If a key consisting of four identical characters is entered, the
bottom line of the display will show None. This overrides the
requirement for a key to be entered to use Engineer Mode,
and the EQ adjustment and Group Selects screens will be available to the User as soon as the Zone is enabled in CDR Zone Enable.
Combining Engineer and Installer Modes
It may be convenient to enable CDR-1 Engineer Mode as each CDR-1 is being installed, as this will allow the Zone EQ to be set at the same time. When Engineer Mode is enabled, the three EQ adjustment functions are presented in sequence
after the User functions, as shown in the owchart on the
previous page.
It is possible for more than one CDR-1 to be assigned to the same Zone in a system. This will be useful in some situations, such as in large rooms. All CDR-1s assigned to the same Zone will be able to control operation in that Zone.
DCM1 & DCM1e Installation and User Guide v1.050
Section 4: Software control
Controlling the DCM1e from the browser interface
The DCM1e has a server function, which makes control pages
available to a browser running on a device connected to the DCM1e’s Ethernet port. This permits simple and elegant real-time control from any convenient device on the same
network.
Conguring the network
NOTE: This section of the manual is intended for those
with a working understanding of basic computer network conguration and the terminology involved.
The Ethernet connection to the DCM1e can be simplied
by the use of the Cloud Ethernet Discovery Tool. This can be downloaded from www.cloud.co.uk; navigate to ‘Products’
and select ‘DCM1e Ethernet Digital Control Mixer’; the Tool is available for download in the ‘Technical Notes’ panel. The Discovery Tool is in the form of an executable JAR le, and
will run on Linux, Windows® or Mac® systems within a Java Runtime Environment (available from www.java.com). Save it in any convenient location.
Connect an Ethernet cable between the socket marked
ETHERNET INTERFACE on the DCM1e rear panel and a
spare port on your network switch. Connect your device to the same network.
Run the Discovery Tool, this will open the window shown below, which should contain an entry with the host name DCM1-ANON.
Click the menu icon
Cloud banner and now select Cong, followed by Network.
We recommend that the DCM1e should be set with a static IP address (i.e., DHCP disabled) or uses a reserved address
on your routing hardware. It will then have a xed IP address on the network for other devices to browse to. Ensure that a suitable IP address is reserved on the network to which you
intend to connect the device. If the DCM1e changes IP address, client security settings will not be preserved. (Installers may need to consult the IT Manager of the installation premises for guidance.)
at the right hand end of the blue
Security
Each new client using the network needs the Installer PIN to allow access and conguration of the interface. Each client’s
security settings - except for the PINs - are stored on the client device itself. Clearing browser history will cause the device to be reset, and will become a “new” client. The installer
PIN is then required to recongure the device correctly.
Security PINs for Installer and Power privileges are the same for all clients. The Installer PIN is the same PIN that is used to
access additional conguration functions from the DCM1e’s
front panel. Installer and Power PINs can be changed using the web interface.
Single-click on the DCM1-ANON entry. This should open your default browser and make the DCM1e’s server pages visible. The rst page to be displayed on initial connection will be
the PIN entry page; enter the Installer PIN to authorise the device. When this has been done, you will see the Security Settings page for the device. (This sequence only occurs on initial connection of a new device or browser.)
The factory default PINS are:
• Installer = 1234
• Power = 5678
If the DCM1e changes its IP address, all clients will be treated as new clients.
DCM1 & DCM1e Installation and User Guide v1.0 51
Browser compatibility
The DCM1e server pages use HTML5 and CSS3, which are only implemented by recent browser versions. The HTML features used by the DCM1e are listed below:
• Storage
• Localstorage
• Sessionstorage
• Forms
• Input type=number
• Elements
• Section elements
• Hidden attribute
The easiest way of checking your browser’s compatibility is
to go to html5test.com, and carry out the test available there.
the Internet Explorer Help options.
• I can’t swipe/drag the level controls
These controls are button activated. There is no drag or swipe feature.
• I have congured my network settings, but it still
continues to use DHCP
Check the Power On Mode from the front panel of the DCM1e. If this is set to “Factory”, user congured
settings will be ignored.
• I can’t remember the settings for my DCM1e!!
How do I connect now?
Adjust the Power On Mode to Factory from the front
panel of the DCM1e. This will then revert the network
settings to their defaults until this setting is changed or
new network settings are applied.
Further FAQs are available at www.cloud.co.uk.
Quick Troubleshoot
• I can’t download or run the Discovery application.
Download an IP scanning application (such as ezNetScan
or Fing) on to your device. Run the scanning application. DCM1e hardware will show with a Microchip Technology Inc. MAC address registration and a MAC address starting
with 00:04:A3... or 00:1E:C0.... Enter the corresponding
IP address in to your browser address bar.
• I want to connect to the DCM1e directly from a
PC or Mac.
The DCM1e should rst be connected to a DHCP serving router to then congure a static IP address for
direct communication.
• I can’t browse to the DCM1e on my network.
Check all settings on the client device to ensure that you are on the same network.
Run the Discovery Tool. The DCM1e may change IP address if DHCP is enabled.
If the entry in your Discovery Tool declares the unit with a - Bootload sufx, the unit is expecting a rmware update. You can exit this mode in two ways:
Initial Login – User Mode
Once the client has been authorised, the rst page to be
displayed will be that shown below. Note that the default login will always be as User; this means the DCM1e is in User Mode and only User Mode menu functions will be available.
Level and Line Input controls for Zone 1 are displayed.
Use the ‘-‘ and ‘+’ controls to alter the settings. Any renamed inputs will be correctly displayed in the Line Input eld.
To control music level and source in different Zone or Group, select the Menu icon will change the display to that below:
from the blue Cloud banner, which
Apply a rmware update to the unit. Utilities and
details of how to do this are on the Cloud website
www.cloud.co.uk.
Turn the DCM1e off, and then hold the front panel
“Next Function” down while turning the DCM1e
back on. Enter Installer mode, go to the System menu
and select the Update Firmware menu option. Push Enter (the rotary encoder) and ensure that the
display shows an ‘X’.
• Web pages don’t display correctly or run slowly
See the browser compatibility notes above for details of
how to check that the client is suitable for use with the
DCM1e web pages.
If using Internet Explorer®, make sure that “Compatibility
mode” is turned off. Details of how to do this will be in
DCM1 & DCM1e Installation and User Guide v1.052
Select Music….
…and then select the Zone to be controlled. If any Groups
have been dened and enabled, the Zones comprising a Group
will not be listed individually, but the enabled Group will be added to the list.
Logging in as Installer always displays the extended control set for the current page. The extended version of the Music Menu is shown here:
The User Mode functions above correspond directly to the Select Input and Level menu functions; see page 28 & 29.
Login – Installer Mode
To access the much wider range of controls available in Installer Mode, select Login from the “top” page:
Enter the Installer Mode PIN (the factory default PIN is 1234) and select Login.
On this page, Zone EQ may also be adjusted. The EQ controls directly correspond to the Treble, Mid and Bass menu functions; see page 30 & 31.
Note – As on the DCM1e itself, Installer Mode on the browser interface will “time-out” and return to User Mode after a period (approx. one minute) if no buttons are pressed
Selecting the Menu icon now shows that three further options are available: Grouping, Inputs and Cong.
NOTE: The following descriptions of Installer Mode options assume that the default factory access settings on the Security Page have not been changed. As explained below (see Cong menu, Security), access to other unit
congurations and settings can be dened by an Installer on
a three-level basis – User, Power and Installer. The factory default settings allow a User to control music source and level only, and an Installer to have access to all other functions.
Grouping
This menu allows Groups to be dened and enabled/disabled.
Select Grouping and then select the Group to be congured (Group 1 to Group 4). The display changes to the Group n Page:
DCM1 & DCM1e Installation and User Guide v1.0 53
The default state is for all Groups to be unassigned and
disabled. To assign a Zone to the selected Group, tap/click on the red cross; it will turn into a green tick. Similarly, to enable the Group, tap/click on the red cross against the Group name.
The functions on this page correspond to the menu functions Group Enable and Dene Groups respectively. See page 29 and page 46 for full details.
Cong
This menu has eight options, allowing access to various
DCM1e System and other conguration functions.
Inputs
This menu allows denition of which Line Inputs are available
to each Zone and/or Group, and enabling/disabling of Mic Inputs.
Select Inputs and then the Zone to be congured (Zone 1 to Zone 8). If any Groups have been dened and enabled, the Zones comprising a Group will not be listed individually, but the enabled Group will be added to the list. The display changes to the Zone n (or Group n) Page:
Security Page:
Tap/click Security to open the Security Settings Page.
This function is specic to the browser and gives the installer much greater control over how the DCM1e is congured in
terms of who has access to which controls than is possible from the DCM1e itself. As described elsewhere in this manual, the standard hardware security settings provide two Modes: User and Installer.
To make a Line Input unavailable to the selected Zone/Group, tap/click the green tick against its name; it will turn into a red
cross. The default state is for all Line Inputs to be available to every Zone and Group. This function corresponds to the menu function Input Enable; see page 33 for full details.
To activate a Mic Input for the selected Zone/Group, tap/
click the red cross against its name. The default state is for all
Mic Inputs to be Off in all Zones and Groups. This function corresponds to the menu function Enable Mic Inputs; see page 32 for full details.
DCM1 & DCM1e Installation and User Guide v1.054
• User Mode allows immediate control of music level,
music source selection and enabling/disabling of any
Groups which have been dened.
• Installer Mode allows access to all other menu functions.
The DCM1e browser interface allows for a third, “intermediate” level of operator – “Power”. The DCM1e’s functions are presented as a set of categories, and the installer can assign an access level – User, Power or Installer – independently to each category. This gives the facility in which the DCM1e is installed improved control over which staff members can access which audio and system functions.
For example, in a typical bar or hotel installation, bar staff might only have control over music source and level, but the Duty Manager, with Power privileges, would additionally be
able to congure Groups and Mic Inputs. Remaining system congurations would remain with the installer. A user with
Power privileges has a 4-digit PIN; this should not be the same PIN that is used to access Installer Mode. The factory default Power PIN is 5678.
Tap/click on the arrowheads to alter the access privileges for
any of the categories. Using the example above, if a Power
User needs to be able to congure Groups and enable Mic
inputs, set Group Members and Mic Input Enable to Power.
The table below summarises the functions an operator is able
to congure if he/she has the appropriate privileges:
This function is specic to browser control; it allows some
Zones or Groups to be removed from other control pages. For example, it may be desirable to restrict control of facilities
in some Zones, making control only available through the
DCM1e front panel or any installed CDR-1 plates.
The default setting for full access; to disallow control of a
Zone or Group via the browser interface, tap/click the green tick to turn it into a red cross. The Zone or Group will now
not appear in the lists of Zones available for control.
Labelling:
The Labelling page allows Inputs, Zones and Groups to be renamed.
CATEGORY DEFAULT
Music Level User Control of music level
Line Input Selection
Music EQ Installer Adjustment of Zone EQ
Group On/Off Installer
Group Members Installer
Line Input Enable Installer
Mic Input Enable Installer Enabling of mic inputs per Zone
Group Label Installer Groups to be renamed
Zone Label Installer Zones to be renamed
Input Label Installer Music sources to be renamed
Ext Plate Detection
Paging Installer Paging settings to be monitored
PMSA Messages Installer
User Selection of music source
Installer
ACCESS PRIVILEGES
ALLOWS:
Dened Groups to be enabled/
disabled
Denition of Group
Membership
Barring use of some line inputs per Zone
Monitors external plate detection
Message selection within PM-SA paging mics
Zone Access:
Tap/click Zone Access to open the Zone Access Page.
Tap/click in any eld and enter the new name. Tab will advance data entry to the next eld. When all the required changes have been made, tap/click the Upload button to transfer the
new names to the DCM1e. The new names will be visible on the DCM1e as soon as a front panel control is touched.
The Refresh button downloads the Input, Zone and Group names currently resident in the DCM1e onto the browser page.
The functions on the Labelling Page correspond to the menu functions Rename Inputs, Rename Zones and Rename Groups. See page 36 and page 37 for full details.
Note that only those items (Inputs, Zones, Groups) to which the current operator has been granted access by the Security Settings will be displayed.
DCM1 & DCM1e Installation and User Guide v1.0 55
Input Status:
Network:
Tap/click Input Status to open a browser Page where the status of the Mic Inputs and Extension Ports can be viewed.
This page is a status display only, and has no active controls. It
conrms the connection of any LE-1 or BE-1 remote modules
to the EXTENSION PORTS, or ME-1 modules to the MICROPHONE INPUTS of the DCM1e. A tick against
the input indicates that a remote module has been detected.
12
and 13 on page 14.
See
Paging:
Tap/click Paging to open the Paging control Page.
Tap/click Network to open the Communications Page.
This page displays the current network settings for the network. IP Address, DHCP Status, Subnet Mask,
Gateway address and Server Name are given, and may be changed.
Tap/click the Reset button to reset the page to the previous state if any changes have been made but not uploaded. Tap/ click the Upload button to transfer any changes to the DCM1e.
HTTP Port and CDI Port: in the vast majority of
installations, these network parameters will not need adjustment. However, they are likely to become relevant if
the DCM1e system is connected to an existing building IT
network. The correct settings for these items will vary from
one installation to another, and we recommend that the
network administrator is consulted as to the appropriate
values.
This page is partly a status display; only the PMSA Message buttons are active controls. The page is divided into three areas:
• Paging – indicates to which Zones an announcement
is currently being made.
• Access Contact – this is a mimic of the PAGING
11
ACCESS LEDs on the DCM1e’s front panel. See page 14.
at
• PMSA Messages – these buttons will trigger the
messaging groups stored in a PMSA paging microphone, if one is connected.
Device Info:
Tap/click the Device Info button to open the Device Information Page.
This is an “Engineering” page which gives details of the
versions of the various rmware elements within the DCM1e. This page is also used to update the unit’s rmware. See page 70 for details of DCM1e rmware update procedure.
DCM1 & DCM1e Installation and User Guide v1.056
Change PIN:
Tap/click the Change PIN button to open the Reset your PIN Page.
This page lets you change the Installer PIN or Power PIN if you are currently logged in as an Installer. In either case, you
will need to conrm the current PIN in the Enter your
current PIN eld before proceeding to enter a new one in both the Add a new PIN and the Conrm your new PIN elds, and tap/click the Reset button.
The Installer Key aspect of this function corresponds to the Set Key menu function; see page 38 for full details.
DCM1 & DCM1e Installation and User Guide v1.0 57
UTILITY
Conguring the DCM1 with the
DCM1 Utility Tool
Almost all DCM1 congurations and settings may be made
remotely using serial commands through the rear panel
RS232 INTERFACE connector*. A simple software
application, the DCM1 Utility Tool, uses this feature to permit
the DCM1 to be congured remotely on a laptop, tablet or
other Windows-compatible device. This allows an installation
engineer to pre-congure a DCM1 off-site, and then upload the unit’s core conguration and settings from the device with a single mouse click. Further adjustments to individual
settings may be made in a similar manner.
*A version of the Utility Tool which can use an
Ethernet connection between the device running the Tool and
a DCM1e as well as an RS-232 serial link will be available
during 2014. This will allow devices without either serial
or USB ports to use the Tool, provided they have network capability. Please check www.cloud.co.uk for details.
from the options list on the right; download the two Utility
Tool les – the application itself is a .zip le, the other is a .pdf ReadMe le. Save the les to a suitable location.
The ReadMe le gives information about DCM1 OS compatibility; see page 39 for details of how to check which rmware version is installed.
Navigate to the .zip le, and unpack it. The zip contains a single .exe le, DCM1Utility Tool Vn_m.exe (where
n.m is the version number). Save this le to any convenient
location.
Connecting to the DCM1
Serial communication between the Utility Tool and a DCM1 uses one of the device’s Comms ports. If the device does not have a 9-pin serial port, obtain a USB to RS-232 convertor and connect to a USB port. Use a standard, male-to-female, 9-pin serial cable to between either the native serial port or the USB convertor and the DCM1’s RS232 INTERFACE connector. See page 66 for further information regarding the interface and cable.
Installing the Utility Tool
The DCM1 Utility Tool may be used with either the DCM1 or DCM1e. At the time of publication, the application has been tested with Windows XP (+SP3), Windows Vista, Windows
7 and Windows 8; please check www.cloud.co.uk for any
updates to this list. Note that there is no Mac version.
The Utility Tool may be downloaded free of charge from the Cloud website, www.cloud.co.uk. From the Home page, select Products, then the DCM1 or DCM1e. Select Technical Notes
the DCM1, please check your device’s port settings.
ETHERNET INTERFACE (DCM1e only) SERIAL INTERFACE
ETHERNET INTERFACE (DCM1e only) SERIAL INTERFACE
The Utility Tool operates at 9600 baud, which is the default baud rate of the DCM1’s serial port. If the baud rate has been altered, it will be necessary to reset it to 9600 baud. See page 38 for details on how to do this.
Launch the Utility Tool by clicking on its .exe le icon.
The Tool defaults to the Comms port in use last time the
application was run; at the rst launch, this will be Com 1. If the
serial (or USB) port being used is different, it can be chosen by selecting Port in the Menu bar and choosing the correct one. If you have a problem establishing communication with
9-pin SERIAL CABLE
OR
NETWORK
PORT
LAPTOP,TABLET, OR OTHER
COMPUTER DEVICE
NETWORK
PORT
USBPORT
USBPORT
COMMS PORT
(iffitted)
COMMS PORT
(iffitted)
USBTO RS-
9-pinSERIALCABLE
ETHERNET INTERFACE (DCM1e only)
NETWORKCABLE
SERIAL INTERFACE
232
ADAPTOR
For use with updated version of Utility Tool; available during 2014
USBCABLE
LAPTOP,TABLET, OR OTHER
COMPUTER DEVICE
NETWORK
PORT
USBPORT
(iffitted)
COMMS PORT
(iffitted)
DCM1 & DCM1e Installation and User Guide V1.058
Using the Utility Tool
The Utility Tool window is arranged in four tabs – INPUTS, OUTPUTS, INSTALLER KEY and SYSTEM. Additional functions are available from the Menu bar options and from
the ve buttons in the lower pane, which remain visible
whichever tab is active.
The various controls on the four tabs replicate most of the DCM1’s internal menu functions; this manual section cross­references each control to a menu function, please see the
manual section on Conguration for full details of each
function. Tool tip text is provided when the cursor is hovered over each control.
When a control or setting has been altered, the change must be transmitted to the DCM1 by selecting a Send button. The INPUTS and OUTPUTS tabs have two Send buttons; Send Input (or Send Output), which transmits the settings for the currently selected input (or output), and Send All Inputs (or Send All Outputs), which transmits the settings for all inputs (or outputs).
Inputs Tab
This page lets you rename line inputs and set the input gain of each.
• LINE INPUT – select a line input from the drop-down
list.
• NAME – enter a name for the selected input; this
corresponds to the Rename Inputs function in Installer Mode, System menu; see page 36.
• Input Gain (dB) – adjust the input gain for the
selected input; this corresponds to the Input Gain function in Installer Mode, Music menu; see page 31.
• Send Input – transmits all INPUTS tab settings for
the currently selected line input.
• Send All Inputs – transmits all INPUTS tab
settings for all eight line inputs.
Outputs Tab
• Zone/Group drop-down list – select a Zone or a Group
from the drop-down list (scroll down for Groups).
• Zone Name – enter a name for the selected Zone or
Group; this corresponds to the Rename Zones and Rename Groups functions in Installer Mode, System menu; see page 37.
• Level (dB) – set the volume in the selected Zone/
Group; this corresponds to the Level function in User Mode, Music menu; see page 29.
• Select Input – select the music source to be
routed to the selected Zone/Group; this corresponds to the Select Input function in User Mode, Music menu; see page 28.
• Priority Input – assign a line input as the priority
input for the selected Zone/Group; this corresponds to the Select Priority Line Input function in Installer Mode, Priorities menu; see page 40.
• Output Type – Zones 1 and 2 may operate in mono
or stereo modes; this corresponds to the Stereo/ Mono Zone selection function in Installer Mode, System menu; see page 36. If any of Zones 3 to 8, or a
Group is selected, this eld is greyed-out.
• Max Level (dB) – sets the maximum level for the
volume in the selected Zone or Group; this corresponds to the Maximum Music Level function in Installer Mode, Music menu; see page 31.
• Min Level (dB) – sets the minimum level for the
volume in the selected Zone or Group; this corresponds to the Minimum Music Level function in Installer Mode, Music menu; see page 32.
• Page Priority Select – sets the method of
selection for paging for the selected Zone or Group – Access or Vox (default is Off); this corresponds to the Page Priority Select function in Installer Mode, Priorities menu; see page 43.
• Mic Inputs – enables any or all of the four
MICROPHONE INPUTS for the currently-selected Zone or Group; this corresponds to the Enable Mic Inputs function in Installer Mode, Routing menu; see page 32.
DCM1 & DCM1e Installation and User Guide V1.0 59
• Mic Priority – enables mic-over-music priority
(music “ducking”) for the selected Zone or Group. The priority mic must rst be enabled for the Zone or
Group in Mic Inputs above for Mic Priority to have effect. This corresponds to the Select Mic Priority Input function in Installer Mode, Priorities menu; see page 42.
• Input Enable – this allows the installer to dene
which line inputs are available to the selected Zone or Group as music sources; the default is for all eight to be enabled. This corresponds to the Input Enable function in Installer Mode, Routing menu; see page 33.
• EQ – three (Bass/Mid/Treble) drop-down lists allowing
EQ adjustment in the selected Zone or Group; these correspond to the Treble, Mid and Bass functions in Installer Mode, Music menu; see page 30 & 31.
• Send Output – transmits all OUTPUTS tab settings
for the currently selected Zone or Group.
• Send All Outputs – transmits all OUTPUTS tab
settings for all eight zones and all four Groups.
Installer Key Tab
This tab is solely concerned with resetting the four-digit key
allowing access to Installer Mode.
To change the Installer Mode Key, enter the existing key into
the Old Key eld, and then enter the new key into both the New Key and Repeat New Key elds. The change will
take effect when the Send Key button is pressed.
This procedure corresponds to the Set Key menu function, in Installer Mode, System Menu; see page 38.
System Tab
• Paging Mic: CDPM Offset – allows PM and
CDPM paging microphones to access more than
eight zones when using multiple DCM1s. This setting
corresponds to the PM Zone Offset menu function, in Installer Mode, Routing Menu; see page 34.
• Paging Mic: Priority Hold (s), Release
(s) and Attenuation (dB) – these three related
controls determine how the ducking operates during
paging. They correspond to the Page Priority Hold
Time, Page Priority Release Time and Page Priority Attenuation menu functions respectively;
see page 43 & 44.
• Paging Mic: Access Contacts – radio buttons
selecting whether the PAGING ACCESS connector will
operate as an input port (for zone access during paging) or an output port (to provide zone tallies)*. This corresponds
to the menu function Congure Access Connector in Installer Mode, Routing Menu; see page 33.
• Mic Gates – enables noise gates on ME-1 remote
input modules; this control corresponds to the menu function Mic Gate Enable in Installer Mode, Routing Menu; see page 35.
• Mic Priority: Hold (s), Release(s) and
Attenuation (dB) - these three related controls
determine how music ducking operates when the
priority microphone is in use. They correspond to the
Mic Priority Hold Time, Mic Priority Release Time and Mic Priority Attenuation menu functions
respectively; see page 42 & 43.
• Line Priority: Hold (s) and Release (s)
- these two related controls determine how music fades during operation of the Priority Line Input. They correspond to the Line Priority Hold Time and Line Priority Release Time menu functions respectively; see page 41.
• Emergency: Mute Contacts – set whether the
MUSIC MUTE input responds to external N/C or N/O contacts. This corresponds to the menu function Congure Music Mute in Installer Mode, Priorities Menu; see page 45.
DCM1 & DCM1e Installation and User Guide v1.060
• Emergency: Source – selects the line or mic input that
will remain active during Music Mute. This corresponds to the menu function Select Emergency Source, in Installer Mode, Priorities Menu; see page 44.
• Emergency: Mute Level (dB) – sets the level
of the Emergency Source, when one is enabled (above). This corresponds to the menu function Emergency Level in Installer Mode, Priorities Menu; see page 45.
• CDR Zone Offset – allows the CDR-1 network to
encompass more than eight zones with multiple DCM1s.
This corresponds to the menu function CDR Zone Offset in Installer Mode, Routing Menu; see page 34.
• Power Up Mode - determines how the DCM1 resets
itself after power cycling. This corresponds to the menu function Power Up Mode, in Installer Mode, System Mode; see page 39.
• Send System – transmits all SYSTEM tab settings.
* An update to the Utility Tool due for release in 2014 will add the GPIO port
option to the Congure Access Connector menu function.
Global controls
Menu bar options
File Menu:
Standard Windows New, Open, Save, Save As and Exit commands are available from the File menu. Selecting New
resets the Conguration Tool to its default settings. The native le format is *.dcf (DCM1 Cong File), and DCM1 congurations may be saved in the standard manner for
subsequent recall (Open) and uploading.
• Export Text – selecting this option lets you save the
Utility Tool’s current DCM1 settings as a text (*txt)
le. A standard File Save dialogue box provides opens for lename entry and navigation (but see below). The le
saved consists of the RS-232 strings that would be sent by the Send All button, in ASCII format. Refer to the Appendix section “RS-232 Serial Interface”, and also the RS-232 serial protocol available from the Cloud website
www.cloud.co.uk for more details.
• Export Text As – once the settings have been
saved as a text le, subsequent Export Text commands will overwrite the initial le. To save as a different text le, use Export Text As, which allows you to enter an alternative lename.
Five further buttons are always visible in the lower pane:
• Get Version – clicking this button will display the
unit’s Version information adjacent to the button.
• Send All – clicking this button transmits the settings
of all controls on all the tabs of the Utility Tool to the DCM1.
• Read DCM1 – this button sends a request to the
DCM1 for its current settings to be downloaded to
the Utility Tool. The download takes a few seconds, but
when it is complete, the Utility Tool will display all the unit’s current settings.
• Set Defaults – clicking this button loads the
DCM1’s the current settings into the Default memory. This memory may be set as the option in the Power Up Mode menu function; then when the unit is power-
cycled, previously-dened settings are restored.
• Reset DCM1 – this button performs a hard reset,
and corresponds to the Reset Mixer menu function, in Installer Mode, System Menu; see page 40.
View menu:
• Log Window – this command opens a
Communication Log window which displays the serial strings that the Utility Tool transmits each time a Send button is pressed, in ASCII format. Refer to the Appendix section “RS-232 Serial Interface”, and also the RS-232 serial protocol available from the Cloud website
www.cloud.co.uk for more details.
• Log Window On Top – this command has the same
effect as Log Window, except that the Log Window will be permanently on top of the Utility Tool window. Note that in either case, the Log Window must be closed by de-selecting the command in the Utility Tool Edit View menu.
• Show Skin – the Utility Tool and Log Window may
be displayed either in normal Windows style, or with a
contemporary “skin”. Skin “on” is the default.
Port Menu
This menu will display a list of the device’s available Comms ports. If you have a problem in communicating with the
DCM1, you should check which Comms port you have used
to connect to the DCM1 (either directly, if your device has a 9-pin serial port, or via an external USB-to-RS-232 convertor).
Help Menu
The standard Windows Help and About commands are
available. The Help le gives advice on how to reset the
DCM1 serial port’s baud rate.
DCM1 & DCM1e Installation and User Guide v1.0 61
Section 5: Appendix
Larger systems – cascading DCM1s
If an installation requires more than eight Zones, multiple DCM1s may be interconnected to provide a system with a larger number of outputs. For example, two DCM1s will
provide 16 zones, three DCM1s 24 zones, and so on.
MUSIC SOURCES
1TO8
REMOTE LINE
INPUTS IN ZONES
1TO8
REMOTE MIC
INPUTS IN ZONES
1TO8
FROM THIRD
PARTYPAGING
SYSTEM
FROM CDPM
CDR-1 NETWORKA
CDR-1 NETWORK B
See note in text
RS232 A
SPLITTER
System Interconnections
In order to provide a transparent system which can be operated with the same ease as one with a single DCM1, interconnections between multiple DCM1s must follow a few rules. The range of possibilities afforded by using multiple DCM1s is extremely large, and each installation will be guided by the user’s requirements and the building layout.
The example given is for a simple 16-zone system comprising 2 DCM1s, with a CDR-1 in each of the 16 zones. The block
diagram below shows how the various inputs are – or are not – interconnected. All possible connections have been depicted, though it is recognised that most systems will not use all of a DCM1’s connectivity simultaneously.
INPUT 1 INPUT 2 INPUT 3 INPUT 4 INPUT 5 INPUT 6 INPUT 7 INPUT 8
EXT 1 EXT 2 EXT 3 EXT 4
MIC1 MIC2 MIC3 MIC4
PAGINGMIC
PAGINGACCESS
CDPM
IN THRU
PORT APORTB
CDR-1PORTS
1 2 1 2
MUSICMUTE RS232
ZONE 1 ZONE 2 ZONE 3 ZONE 4 ZONE 5 ZONE 6 ZONE 7 ZONE 8
DCM1 #1
ZONE 1 ZONE 2 ZONE 3 ZONE 4 ZONE 5 ZONE 6 ZONE 7 ZONE 8
INPUT 1 INPUT 2
REMOTE LINE
INPUTS IN ZONES
9TO16
REMOTE MIC
INPUTS IN ZONES
9TO16
RS232 B
INPUT 3 INPUT 4 INPUT 5 INPUT 6 INPUT 7 INPUT 8
EXT 1 EXT 2 EXT 3 EXT 4
MIC1 MIC2 MIC3 MIC4
PAGINGMIC PAGINGACCESS
CDPM
IN THRU
PORT APORTB
CDR-1PORTS
1 2 1 2
MUSICMUTE RS232
ZONE 1 ZONE 2 ZONE 3 ZONE 4 ZONE 5 ZONE 6 ZONE 7 ZONE 8
DCM1 #2
ZONE 9 ZONE 10 ZONE 11 ZONE 12 ZONE 13 ZONE 14 ZONE 15 ZONE 16
Two DCM1 Units forming a 16 Zone system
DCM1 & DCM1e Installation and User Guide V1.062
Line Inputs
It will generally be possible to directly parallel the outputs of music sources to the Line Inputs of several DCM1s using suitable adaptors, splitter cables or junction boxes. Installers should satisfy themselves that the output of each music source is not reduced in level or frequency response by such
a multiple connection; for most equipment, ve is the upper
limit of unbalanced inputs which can be paralleled in this way.
A more satisfactory solution is to use a stereo audio
distribution amplier (DA) for each source, with as many
outputs as the number of DCM1s being fed. Connect the
amplier input to the source and the outputs to the same-
numbered input of each DCM1.
Extension Ports
The Extension Ports cannot be paralleled, but this is unlikely
to be a system requirement as the use of remote line input modules (LE-1s and BE-1s) will be limited to the Zones in which they are located. They will thus be wired to the Extension Ports on the DCM1 feeding those Zones, and not to any other.
Mic Inputs
ME-1 remote mic input modules cannot be paralleled to multiple DCM1s, but their use will also be limited to the Zones where they are installed. Any ME-1s in a system should be connected to the Mic Inputs of the DCM1 feeding the Zones where they are located.
Zone Outputs
Each DCM1’s Zone outputs will feed a separate set of power
ampliers for those Zones. Thus in the example shown, DCM1 #1’s outputs will feed the ampliers driving the loudspeakers
located in Zones 1 to 8, while DCM1 #2’s outputs will feed
the ampliers driving the loudspeakers located in Zones 9 to
16.
in DCM1 #1 and ON in DCM1 #2. The PORT B termination would be set ON in DCM1 #1, and the corresponding jumper setting in DCM1 #2 is unimportant. It is important to recognise that the CDR-1s on each of the two chains in this example can be anywhere in the building, in any Zones.
So that any CDR-1 in this system is assignable to any of the 16 Zones, the CDR Zone Offset function must be set to +8 on DCM1 #2. This is set in the menu system; see page 34 for full details. With this setting made and the two DCM1s interconnected as shown, all CDR-1s in the system will offer all 16 Zones in their Assign Zone function when CDR-1 Installer Mode is activated (see page 48).
The restriction placed on CDR-1 network wiring by multiple
DCM1s results from the necessity of using one CDR-1 Port
on DCM1 #1 to route the network through to DCM1 #2. In the example shown, the building network wiring would be
limited to six chains, three on each DCM1.
It should be recognised that neither a CDR-1 network
interconnection between multiple DCM1s, nor the use of
CDR Offsets may be necessary at all, if a network topology
can be installed which limits the CDR-1s on any one chain to Zones which are being controlled by a single DCM1. Thus in the example, if the CDR-1s in Zones 1 to 8 were on a single
chain, and those in Zones 9 to 16 on another, the rst could
be connected only to DCM1 #1 and the second to DCM1 #2, providing a simpler wiring system.
When planning the CDR-1 network, the DC power supply capability of each DCM1 must also be taken into account. As each DCM1 can only supply sufcient current to operate 8
CDR-1s, it may be that an external PSU(s) will be required at some position(s) in the chain(s) when multiple DCM1s are being used. Although interconnecting two DCM1s as shown
in the example permits full access to all zones in operation,
it does not mean that 16 CDR-1s can be powered by using two DCM1s. If the system in the example was connected to a single chain of 16 CDR-1s (with Port B being ignored), an external PSU would need to be added to the chain at the CDR-1 #9, to power the “farthest” 8 CDR-1s.
PM Series paging mics
CDR-1s
Using more than one DCM1 in a system does not greatly
compromise the exibility of CDR-1 network wiring. The
Installation section of this manual gives examples of the various wiring topologies which may be adopted (see xxx); that used in any particular installation will be dictated by building layout and wiring convenience.
The example above shows two chains of CDR-1s – called
‘network A’ and ‘network B’ for reference, connected to
two of the CDR-1 Ports on DCM1 #1, one to PORT A, the other PORT B. Only one CDR-1 interconnection is needed between multiple DCM1s. Either of DCM1 #1’s two
remaining ports may be used to connect the CDR network
to DCM1 #2, and any of DCM1 #2’s four ports may be used. In the diagram, the second PORT A socket on DCM1 #1 is connected to one of the PORT A sockets on DCM1 #2. In this case, the PORT A CDR-1 termination would be set OFF
In order for a PM (or CDPM) system to access all 16 Zones, the two DCM1s should be interconnected as shown, with the CDPM THRU connector of DCM1 #1 connected to the CDPM IN of #2. The CDPM termination in DCM-1 #1 should be set OFF, and that in DCM1 #2 should be set ON. See also page 23.
Third-party paging system
The microphone of a third-party paging system will need to address all Zones, so it must be connected to the PAGING MICROPHONE INPUT of both DCM1s. Paralleling a microphone signal is not recommended, and a microphone splitter, of either active or passive type, should be used as shown.
Interfacing a third-party paging system to a 16-zone system
will require separate connections to the PAGING ACCESS
DCM1 & DCM1e Installation and User Guide V1.0 63
connectors of the two DCM1s. The paging commands for Zones 1 to 8 should be wired to the PAGING ACCESS connector of DCM1 #1, and those for Zones 9 to 16 to that of DCM1 #2. The general wiring procedures described at page 26 should be followed.
Music Mute Input
The MUSIC MUTE inputs on the two DCM1s can be paralleled together, though this is not ideal. A preferred solution, if available, is to use a separate set of emergency
system contacts for each DCM1 making up the system.
RS-232 Control
If the DCM1s are to be controlled via RS-232 by an external control system, the two DCM1s should be treated independently. Connect each DCM1’s RS232 INTERFACE to a separate RS2-32 port on the system controller. The controller should be programmed to address each unit independently.
Ethernet interface
Two DCM1e’s should each have their ETHERNET INTERFACE port connected to two separate ports on
the network switch. Ensure that the units have different IP
addresses. Each unit can then be controlled via the browser interface independently.
DCM1 & DCM1e Installation and User Guide V1.064
PCB jumper locations and settings.
The DCM1 has various internal jumpers, the setting of which may require alteration during installation. The table below lists each jumper and its purpose, together with the factory default setting.
JUMPER NAME PURPOSE DEFAULT
The diagram below the table shows the locations of the internal jumpers (not to scale). In the case of the jumpers having two
possible positions, the black square in the symbol indicates
the default setting. If any jumpers need to be changed, undo the eight screws securing the top cover of the DCM1, and remove it. Use a pair of snipe-nosed pliers to gently remove
the jumpers, and to reposition them if necessary. Rex the
top cover using the original screws.
J2 PM/CDPM bus termination
J6 CDR-1 Port A bus termination
J7 CDPM ground link
J8 Reset Installer PIN
J9 Force Factory Defaults
J10 Bootloader baud rate: select 1
J11 Bootloader baud rate: select 2 Off
J13 CDR-1 Port B bus termination
ABSENT = PM/CDPM termination OFF PRESENT = PM/CDPM termination ON
ABSENT = CDR-1 Port A termination OFF PRESENT = CDR-1 Port A termination ON
ABSENT = PM/CDPM signal ground “lifted” PRESENT = PM/CDPM signal ground connected
Reinstates original factory key for enabling Installer
Mode. Replace after use.
Reinstates original factory settings except Input/ Zone/Group names. Replace after use.
Changes baud rate for rmware updates. See table
page 70.
OFF = CDR-1 Port B termination OFF ON = CDR-1 Port B termination ON
Present
Present
Present
Off
Off
Off
Present
OFF = PM/CDPM power off
J14 PM/CDPM power link
ON = DC power for PM/CDPM is available at
Present
CDPM/PM IN connector.
J24 Paging mic phantom power
OFF: paging mic phantom power OFF ON: paging mic phantom power ON
Off
J25 EQ Module: Zone 1 R
J26 EQ Module: Zone 2 R
J27 EQ Module: Zone 3
J28 EQ Module: Zone 5
J29 EQ Module: Zone 6
J30 EQ Module: Zone 7
Must be present if no EQ module is tted Present
J31 EQ Module: Zone 4
J32 EQ Module: Zone 8
J33 EQ Module: Zone 1 L
J34 EQ Module: Zone 2 L
NOTE: J15, J16, J17 and J18 are reserved.
J
32
J2
J
J
6
J
13
14
J
J
30
29
J
J8J9J10J
7
J15J16J17J
J
28
18
J
J
31
11
J26J
27
34
J
J
33
25
(UPPERPCB)
Jumper with one position (i.e., present or not) Jumper with two possible positions; black
square indicates factory default setting.
J
24
(LOWER PCB)
KEY:
DCM1 & DCM1e Installation and User Guide V1.0 65
Serial Control
The DCM1 is equipped with a bi-directional RS-232 serial interface.
As a receiver, the interface permits external control of almost every DCM1 function, parameter and setting. The DCM1 appears as a DCE (Data Communications Equipment) device to controlling equipment.
The DCM1e is additionally able to receive the same serial commands in the form of TCP/IP data via the ETHERNET INTERFACE connector.
Tx
RTS
CONTROLLER
Port parameters
Connect if hardware flow control is required
DCM1
1
RxRx
2
Tx
3 4 5 6
RTS
7
CTSCTS
8 9
NOTE: A future rmware release for the DCM1e
will permit the RS-232 interface to be programmed to transmit serial data to external equipment, thus additionally acting as an Ethernet to RS-232 bridge for equipment which does not have Ethernet capability.
The full RS-232 protocol is beyond the scope of this manual, but can be downloaded from www.cloud.co.uk.
This section provides only details of the port parameters and an abridged serial command list, which comprises the normal User controls.
Pinout
The rear panel RS232 INTERFACE connector is a D9F. The pinout is shown in the table:
PIN FUNCTION
1 n/u 2 Data receive 3 Data transmit 4 DTR 5 0v 6 DSR 7 RTS 8 CTS 9 n/u
PARAMETER VALUE/SETTING
Data type: RS-232C serial
Data speed
Word length 8 bits
Parity None
Stop bits One
300/1200/2400/4800/9600/19200 baud, software-selectable
Abridged command set
The commands listed in the table below are the equivalent of the operating controls available in User Mode. For all other commands, data requests and responses, please refer to the DCM1’s full RS-232 protocol document.
GENERAL FORMAT
FUNCTION
Route Input x to Zone y
Set audio level in Zone y to -m dB
Reduce audio level in Zone y by p dB
Increase audio level in Zone y by q dB
COMMAND
(ASCII)
<Zy.MU,Sx/>
<Zy.MU,Lm/>
<Zy.MU,LDp/>
<Zy.MU,LUq/>
Not all control systems interpret “Tx” and “Rx” the same
way, and the installer should check whether pins 2 and 3 (and
7 and 8 if used) should be “crossed” within the cable. The
installer should also check whether the control system being used requires RS-232 ow control to be implemented, and
if so, whether hardware control or software control is used.
Hardware ow control (sometimes called RTS/CTS) requires
pins 7 and 8 (at the DCM1 end) to be connected.
DCM1 & DCM1e Installation and User Guide v1.066
Enable Group z
Disable Group z
Enable paging to Zone y (see Example 4)
Release paging
<Gz,E/>
<Gz,D/>
<PM,PAy/>
<PM,PR/>
Examples:
1. Input Selection:
The values of x and y in the general format are the Input No. (1 to 8) and the Zone No. (1 to 8) respectively.
EXAMPLE COMMAND
Select Input 3 in Zone 6
ASCII
HEX 3C 5A 36 2E 4D 55 2C 53 33 2F 3E
2. Zone Levels:
Levels can either be set to an absolute value (in dBs), or
increased/decreased by a specied number of dBs.
For absolute levels, the number of dBs corresponds to attenuation rather than gain, thus 0 dB is maximum level and
at -62 dB the zone is muted. The values of y and m in the
general format are the Zone No. (1 to 8) and the attenuation level in dBs (0 to 62) respectively.
To alter the Zone level by a specied amount, the additional ASCII characters ‘U’ (up) or ‘D’ (down) are added to the
string. The values of y, p and q in the general format are the Zone No. (1 to 8), the level increase in dBs (0 to 62), or the level decrease in dBs (0 to 62) respectively. A command to increment the level by a number of dBs greater than the current attenuation will set the level to maximum. Similarly, a command to decrement the level by a number of dBs greater than (62 minus the current attenuation) will mute the Zone output.
EXAMPLE COMMAND
Set level in Zone 2 to
-12 dB
Reduce level in Zone 1 by 10 dB
Increase level in Zone 5 by 6 dB
ASCII
HEX 3C 5A 32 2E 4D 55 2C 4C 31 32 2F 3E
ASCII
HEX 3C 5A 31 2E 4D 55 2C 4C 44 31 30 2F 3E
ASCII
HEX 3C 5A 35 2E 4D 55 2C 4C 55 36 2F 3E
3 . Enable/Disable Groups
Zone membership of Groups must rst be dened in the
menu system (at Groups > Group Member).
The value of z in the general format is the Group No. (1 to 4).
EXAMPLE COMMAND
Enable Group 3
Disable Group 1
<Z6.MU,S3/>
<Z2.MU,L12/>
<Z1.MU,LD10/>
<Z5.MU,LU6/>
ASCII
HEX 3C 47 33 2C 45 2F 3E
ASCII
HEX 3C 47 31 2C 44 2F 3E
<G3,E/>
<G1,D/>
4 . Enable/Release Paging
RS-232 control of paging applies only to third-party paging systems connected to the Paging Mic Input.
This command differs from the others in that the value of y
in the general format is in the form of an 8-character mask
of ASCII “X’s” (select) and “O’s” (don’t select), with the
character position in the mask denoting the Zone number.
EXAMPLE COMMAND
Enable paging to Zone 2 Enable paging to Zones 4 to 7
Cancel paging
ASCII
HEX 3C 50 4D 2C 50 41 4F 58 (4F 4F 4F 4F 4F 4F) 2F 3E
ASCII
HEX 3C 50 4D 2C 50 41 4F 4F 4F 58 58 58 58 (4F) 2F 3E
ASCII
HEX 3C 50 4D 2C 50 52 2F 3E
<PM,PAOXOOOOOO/>
<PM,PAOOOXXXXO/>
<PM,PR/>
Note that it is not strictly necessary to transmit the “O” character (4Fh) for channel numbers above the highest being paged. Thus <PM,PAOX/> (ASCII) would sufce in the rst example above, and <PM,PAOOOXXXX/> in the second. However, the full eight characters are shown in the table for
completeness, with the extra characters in brackets in the
hex version.
Conguring the Paging Access
Connector as a GPIO port
By default, the rear panel PAGING ACCESS connector
is congured to select the zones to which paging will be
routed when the DCM1 is used with a paging system other than a Cloud PM (which use the digital PM paging interface). If this functionality is not required, the connector may be recongured to provide per-zone output tallies; see page 33 and page 23 for full details.
A third option is to use the PAGING ACCESS connector as an 8-way GPIO (General Purpose Input/Output) port. In
this mode, any of the eight “zone” pins may be congured
as a logic input or output, and they will no longer have any direct relevance to the DCM1’s paging functions. The main use of this mode is in conjunction with an external control system (e.g., Crestron, AMX, etc.). The control system can be programmed to interrogate the DCM1 to evaluate the logic status of input pins, or to set the logic status of output pins. The commands will be via RS-232 strings sent to the RS232 INTERFACE, or in the case of the DCM1e, via TCP/IP serial commands to the ETHERNET INTERFACE.
DCM1 & DCM1e Installation and User Guide v1.0 67
The Congure Access Connector menu function permits
a slightly restricted set of I/O congurations of the eight pins: inputs and outputs must be in consecutive “blocks”, e.g., pins
1 to 4 may be inputs with pins 5 to 8 as outputs. However, using serial commands allows any combination of inputs and outputs (up to a total of eight) to be set up. Examples are given below.
Inputs:
In Input mode, the logic level present at a pin will be evaluated as “high” (>2.55 V) or “low” (<0.75 V), and logic “active” = “low”. The most common use of the GPIO port in Input mode is to connect a pin to an external SPST push-button or other type of N/O switch, with 0 V being applied to the other contact. In Input mode, the pins are pulled-up internally to +12 V, so an external switch closure will register as a low level on interrogation, and this is interpreted as “active”.
Outputs:
In Output mode, the pins may be assigned to be “high” (nominally +12 V) or low (nominally 0 V). External equipment requiring a logic input may be connected to output pins, provided the inputs are rated at not more than 24 V and do not draw more than 60 mA.
Using Serial commands with the GPIO port:
2. Congure as GPIO port
The value of x in the general format command <SY.AC,Dxm/> is again either ASCII “I” or “O”, with m
dening a number of pins on the connector to be GPI(s) or GPO(s) respectively (where 1 ≤ m ≤ 8). In this mode, note that pins set as inputs will always form a consecutive block numbered ‘up’ from pin 1; likewise pins set as outputs will always form a consecutive block numbered ‘down’ from pin
8. Thus in the third example below, pins 1 to 3 will be set as GPIs, while pins 4 to 8 will remain as GPOs. A command setting a pin to the same I/O state as its current state will have no effect.
3. Set GPOs active
Once pins have been dened as outputs in GPIO mode, each
may be set “active” or reset “inactive” at will, using the general format command <SY.AC,BSy/>. Here, y is an 8-bit string consisting of either ASCII “X”s or “O”s. An “X” will set an output “active”, and its in-string position refers to the the pin number, as shown in fourth example below.
EXAMPLE COMMAND
Congure
Access Connector for
paging zone
selection
ASCII
HEX 3C 50 4D 2C 4F 2F 3E
<PM,O/>
RS-232 serial commands via either the RS232 INTERFACE (DCM1 or DCM1e) or ETHERNET INTERFACE
(DCM1e only) may be used to set the conguration of the
PAGING ACCESS connector.
GENERAL FORMAT
FUNCTION COMMAND (ASCII)
Congure Connector for paging
Congure Connector as GPIO port
Set GPO(s) active
Clear all GPOs
<PM,x/> <SY.AC,Dxm/> <SY.AC,BSy/> <SY.AC,BPy/>
The results of these commands broadly correspond to the options provided by the Congure Access Connector menu function: the connector can be set for use with a paging system, either as an input (Paging Zone Select) or output
(zone tallies), or as a GPIO port.
1. Congure for use with Paging mics
The value of x in the general format command <PM,x/> is
either ASCII “I” or “O”, conguring the connector for paging zone selection or as a set of eight zone tallies respectively.
Congure
Access Connector as
zone tallies
Congure
Access Connector as GPIO port with 3 inputs
Congure
Access Connector as GPIO port with 3 outputs
Set GPO 3 (pin 3) as active
Clear all outputs
ASCII
HEX 3C 50 4D 2C 49 2F 3E
ASCII
HEX 3C 53 59 2E 41 43 2C 44 49 33 2F 3E
ASCII
HEX 3C 53 59 2E 41 43 2C 44 4F 33 2F 3E
ASCII
HEX
ASCII
HEX
<PM,I/>
<SY.AC,DI3/>
<SY.AC,DO3/>
<SY.AC,BSOOXOOOOO/>
3C 53 59 2E 41 43 2C 41 53 51 51 58 51 51 51 51 51 2F 3E
<SY.AC,BPXXXXXXXX/>
3C 53 59 2E 41 43 2C 41 50 58 58 58 58 58 58 58 58 2F 3E
DCM1 & DCM1e Installation and User Guide v1.068
PSU capability
RJ45 pinout
In addition to supplying the DCM1’s internal circuitry, the PSU has the capacity to power some additional items which may form part of a complete system. These include CDR-1 remote control panels, remote mic and line input modules, PM Series paging microphones and any level restoration relays which may be connected at the Paging Access Connector in Output mode.
The maximum current capacity of the PSU available for powering external items is 470 mA on each of the +12 V
and -12 V rails. This should be used as the guide gure when
calculating whether any external PSUs will be required in a system.
Current consumption of the various items is listed in the table below.
ITEM
CDR-1 Series remote control panel* 50 mA nil 8
PM-4 paging microphone 72 mA nil 1
PM-8 paging microphone 83 mA nil 1
PM-12 paging microphone 95 mA nil 1
PM-16 paging microphone 107 mA nil 1
PM-4SA paging microphone + message store
CURRENT
@ +12 V
220 mA* nil 1
CURRENT
@ -12 V
MAX.
NO.
The standard RJ45 wiring convention is as shown below:
PIN CAT5 CORE
1 White + Orange
2 Orange
3 White + Green
4 Blue
5 White + Blue
6 Green
7 White + Brown
8 Brown
1
8
8
8
1
1
The table below lists the pin allocation of the various
RJ45 sockets on the DCM1’s rear panel (The DCM1e’s
ETHERNET INTERFACE pinout is not included here; this is wired to the normal Ethernet standard).
PM-8SA paging microphone + message store
BE-1 Series remote line input modules (bal.)
LE-1 Series remote line input modules
ME-1 Series (except ME-1M) remote mic input modules
ME-1M remote mic input modules 30 mA 30 mA
Restoration relays (see below) nil
250 mA* nil 1
24 mA 24 mA
22 mA 22 mA
43 mA 43 mA
*Please also see page 21 regarding power distribution via the CDR
network.
*Max current consumption during message recall
The installer should ensure that the total current drawn by all the external items in a system does not exceed 470 mA. If the PAGING ACCESS connector is being used as an output to operate level restoration relays (either directly or indirectly – see page 23), the current taken by the relay coils must
also be taken into account. The open-collector outputs at this connector are limited to 60 mA per zone.
If the total current required by external items does exceed 470 mA on either rail, additional PSUs will need to be added to the system. The Cloud CPM-PSU is suitable for powering CDR-1 remote control panels and PM Series microphones
and can be readily interfaced with the respective networks.
CDPM/PMCDR-1
PIN
1 Mic (hot) Left (cold) Mic sum (cold)
2 Mic (cold) Left (hot) Mic sum (hot)
3 Sense Sense
4 DC +ve DC +ve DC +ve DC +ve
5 0v 0v 0v 0v
6 DC –ve DC –ve
7 Data H Data H Right (hot)
8 Data L Data L Right (cold)
PORTS
EXTENSION
PORTS
MICROPHONE
INPUTS
PSU performance will be degraded at ambient temperatures in excess of 35°C.
DCM1 & DCM1e Installation and User Guide v1.0 69
Fitting loudspeaker EQ cards
Each output channel of a DCM1 may be optimised for use with
certain makes and models of installed sound loudspeakers; a single-channel equalisation module may be tted to as many
Zone outputs as necessary.
To install equalisation modules, rst remove the top cover
from the DCM1 (8 screws). The modules plug into the white 12-pin connectors on the upper PCB. Note the header connectors on the PCB have two notches on one side only; these engage with lugs on the equalisation module’s mating connector to ensure correct orientation.
details of recovery procedure (should bootloader be entered accidentally) and how to change the baud rate.
The new rmware can now be transferred. Should the
transfer fail, turn the DCM1 off, and hold the NEXT button
down while powering it back on again. Go immediately to the
Firmware Update menu function, and turn the bootloader off.
Full instructions on how to perform an update will be
provided with the update le, including details of the PC software application for handling the le transfer.
After tting equalisation modules to any channel(s), the
corresponding module bypass jumper(s) must be removed in order for the module to function. These are J25 to J34; see the Appendix section “PCB jumper locations and settings” page 65 for full details. Replace the top cover with the original
screws after tting.
Firmware updates
This section describes the process for upgrading the DCM1’s
rmware.
As a responsible manufacturer, Cloud Electronics adopt a policy of continuous product development. As with all software-based products, it may be desirable from time to
time to update the rmware in the DCM1 with a more recent version. Update les are available as downloads from the
Cloud website www.cloud.co.uk. Alternatively, please contact your Cloud dealer or distributor.
DCM1 only:
The new rmware is transferred from a PC to the DCM1 via
the latter’s RS-232 port. The PC used for the transfer should either have a 9-pin COM port or a USB-to-COM convertor should be used. A straight-through, fully-populated D9 cable should be used. The default baud rate for transfer is 115200 baud, but this can be altered by changing the positions of jumpers J10 & J11 (see page 65 for jumper locations). The table below gives the alternative baud rates available:
DCM1e only:
See also page 53 for information about
updating DCM1e rmware using the browser interface.
1. Download the DCM1e rmware update from
www.cloud.co.uk.
2. Read the update notes to check that the update is applicable to your unit.
3. Establish the Ethernet connection between the
DCM1e and your network switch. Launch your
usual web browser and connect to the DCM1e in the usual way.
4. Click Menu >Login.
5. Enter the Installer PIN to log in as Installer.
6. Click Menu > Cong > Device Info.
7. Click Upload.
8. Enter the Installer PIN again.
9. DCM1e will now enter bootloader mode.
10. Run the Firmware Update application on a
Windows® PC connected to the same network.
11. Click Discover.
12. Click the IP Address listed in BOLD font.
13. Check and conrm which settings you would like to overwrite on the Update interface.
14. Click Update.
J10 J11 BAUD RATE
OFF OFF 115200
OFF ON 57600
ON OFF 19200
ON ON 9600
Firmware update is initiated by selecting the Firmware Update function in the System menu (see page 39). The
DCM1 should then be powered off and back on again, or reset
with the Reset Mixer function. At this point, a bootloader routine will be entered, indicated by the front panel LEDs 1
to 8 ashing in an odd/even sequence. The display will indicate
DCM1 & DCM1e Installation and User Guide v1.070
15. Wait for the “Firmware updated successfully” message.
16. Click OK, then close the Firmware Update application.
Factory default settings – menu options
The table below lists the default factory settings for all DCM1 menu options. These are the settings which the unit will assume on power-up if Power Up Mode is set to Factory.
Note that restoring the factory default settings (either by setting Power Up Mode to Factory, or by moving jumper J9) does not overwrite any Input, Zone or Group names that have been assigned.
The factory default key for enabling Installer Mode is included
in the list at System Mode > Set Key.
MUSIC MENU:
Select Input
Level All Zones at minimum (muted)
Treble 0 dB
Mid 0 dB
Bass 0 dB
Input Gain All Inputs 0 dB
Maximum Music Level All Zones 0 dB (max.)
Minimum Music Level All Zones -62 dB (muted, min.)
Enable Mic Inputs No Mics assigned to any Zone
Input Enable All Inputs available in all Zones
Congure Access Connector Input
CDPM Zone Offset 0
CDR Zone Offset 0
CDR Zone Setup All Zones OFF
Stereo/Mono Zone Selection Zones 1 and 2 stereo
Rename Inputs Input 1 to Input 8
Rename Zones Zone 1 to 8
Rename Groups Groups 1 to 4
Set Key 1234
RS232 Baud Rate 9600
RS232 Flow Control OFF
Power Up Mode Factory
Save Defaults n/a
Update Firmware OFF
Reset Mixer n/a
Select Priority Line Input No Input assigned to any Zone
Line Priority Hold Time 3 sec.
Line Priority Release Time 1 sec.
Set Mic Priority Input No Input assigned to any Zone.
Mic Priority Hold Time 3 sec.
Mic Priority Release Time 1 sec.
Mic Priority Attenuation 30 dB
Page Priority Select Off
Page Priority Hold Time 3 secs.
Page Priority Release Time 1 sec.
Page Priority Attenuation 30 dB
Select Emergency Source No Input assigned
Emergency Level Maximum
Congure Music Mute Normally Open (N/O)
Group Enable No Groups enabled
Group Member No Groups dened
Input 1 routed to all Zones; no other assignments
ROUTING MENU:
SYSTEM MENU:
PRIORITIES MENU:
GROUPS MENU:
Factory default settings – network
settings
The following network settings are applicable to the DCM1e
only:
Network Item Setting
IP Address DHCP enabled
NETBIOS Name DCM1-ANON
MAC Address
00:04:A3:xx:xx:xx 00:1E:C0:xx:xx:xx
DCM1 & DCM1e Installation and User Guide v1.0 71
Cloud DCM1 Conguration Notes – to be left with User
Complete this form when installation is complete and leave with User.
MUSIC SOURCES - NAMES
INPUT SOURCE
1
2
3
4
5
6
7
8
ZONES - NAMES
ZONE LOCATION
1
2
3
4
5
6
7
8
GROUP SETUP
GROUP LOCATION & FUNCTION
1
2
3
4
To Change the Music Source in a Zone
 If top line of display does not show Select
Input, press MUSIC button.
 Press the button (1 to 8) which corresponds to the
Zone.
 Turn the knob until the bottom line of the display
shows the music source required.
To alter the Music Volume in a Zone
 If top line of display does not show Select
Input, press MUSIC button.
CONNECTS ZONES (tick)
1 2 3 4 5 6 7 8
 Press the button (1 to 8) which corresponds to the
Zone.
 Adjust the volume in the Zone with the knob.
To Enable/Disable a Group of Zones
 Press the GROUPS button
 Turn the knob until the required Zone Group is
displayed on the top line
 Press the knob in to enable (or disable) the Group.
 Press the NEXT FUNCTION button so that the top
line of the display shows “Level”
DCM1 & DCM1e Installation and User Guide V1.072
Cloud DCM1 Installer conguration
notes
These tables should be lled in when the installation is complete to provide a record of the DCM1’s conguration.
Table: see Installer_template.xls
Enter Name of Zone
ZONE 1 2 3 4 5 6 7 8
MENU NAME
MUSIC
Treble Record settings
Mid
Bass
Maximum Level
Input 2
Input 3
Input 4
ROUTING
Minimum Level
Input Enable Input 1 Tick enabled Inputs in each Zone
Input 5
Input 6
Input 7
Input 8
Group 2
PRIORITIES
Zones 1/2 Stereo? Tick if stereo
Priority Line Input Enter Priority Line Input No. for each Zone
Hold Time Record settings
Release Time
Priority Mic Input Enter Priority Mic Input No. for each Zone
Hold Time Record settings
Release Time
Attenuation
Page Priority Select Enter Paging method set: OFF/VOX/ACCESS
Hold Time Record settings
GROUPS
Release Time
Attenuation
Group Membership Group 1 Tick Zones assigned to each Group
DCM1 & DCM1e Installation and User Guide V1.0 73
Group 3
Group 4
Enter Name of Zone
Extension Port
Extension Port
Mic Input
Enter Name of Input
DCM1 & DCM1e Installation and User Guide V1.074
ZONE 1 2 3 4 5 6 7 8
MENU NAME
REMOTE IN-
Extension Port 2
Extension Port 3
Extension Port 4
Extension Port 2
Extension Port 3
Extension Port 4
PUT PLATES
LE-1 Extension Port 1 Tick Zones with LE-1 Plates connected to each
BE-1 Extension Port 1 Tick Zones with BE-1 Plates connected to each
ME-1 Mic Input 1 Tick Zones with ME-1 Plates connected to each
Mic Input 2
Mic Input 3
Mic Input 4
NAME
TINGS
INPUT SET-
Input Gain Record settings
MUSIC
Access Connector Input or Output
CDPM Zone Offset Record value (if used)
CDR Zone Offset
RS232 Baud Rate Record settings
ROUTING MENU
GLOBAL SETTINGS SETTINGS
SYSTEM MENU
RS232 Flow Control
Power Up Mode Factory/Defaults/Last
Emergency Source Record Input assigned
Emergency Level Estimate % level
Music Mute Input NO or NC
PRIORITIES MENU
EMC considerations
Cloud DCM1 fully conforms to the relevant electromagnetic compatibility (EMC) standards and is technically well behaved; you should experience no operational problems, and under
normal circumstances, no special precautions need to be taken.
If the unit is to be installed in close proximity to potential sources of RF disturbance such as high power transmitting stations, radar facilities, etc., the performance of the mixer may be reduced; we suggest that particular attention is paid to screening of audio cables – especially microphone cables,
and that all cables are kept as short as possible.
Specications
Line inputs
Frequency Response 20 Hz – 20 kHz ±0.5 dB
Distortion <0.05%, 20 Hz – 20 kHz
Sensitivity 195 mV (-12 dBu) to 3.1 V (+12 dBu)
Input Gain Control 24 dB range
Input Impedance 47 kohms
Headroom >+10 dB
Noise -90 dB A weighted (0 dB gain)
Equalisation
Frequency Response 100 Hz / -3 dB (lter) 20 kHz ±0.5 dB
Distortion <0.05% 20 Hz – 20 kHz
Gain Range 10 dB – 50 dB
Input Impedance >2 kohms (balanced)
Phantom power +12 V (PCB jumper for on/off)
Headroom >20 dB
Noise -120 dB EIN 22 Hz – 22 kHz (150 ohms)
Equalisation
Balanced Zone Outputs 775 mV (0 dBu)
Minimum load impedance 600 ohms
Maximum output level +10 dBu (2.6 V)
External Supply Input 100 V-240 V AC; 47-63 Hz; 1.35 A
Power supply +12 V, 3 A; -12 V 1 A
Dimensions (w x h x d)
Net weight 3.12 kg (7 lb)
HF: ±14 dB @ 10 kHz MID: ±14 dB @ 1200 Hz LF: ±14 dB @ 50 Hz
Paging Microphone Input
HF: ±10 dB @ 5 kHz LF: ±10 dB @ 100 Hz
Outputs
External Power Supply
Physical
2U 19” rackmounting unit: 482.6 x 88 x 170 mm (19 x 3.46 x 6.69 in.) Dimensions do not allow for
rear connectors/cabling.
DCM1 & DCM1e Installation and User Guide V1.0 75
DCM1 & DCM1e Installation and User Guide v1.076
DCM1 & DCM1e Installation and User Guide v1.0 77
DCM1 & DCM1e Installation and User Guide v1.078
Cloud Electronics Limited
140 Staniforth Road
Shefeld S9 3HF
England
Tel: +44 (0)114 244 7051
Fax: +44 (0)114 242 5462
E-mail: info@cloud.co.uk
Web: www.cloud.co.uk
Cloud Electronics USA
2065 Sidewinder Drive
Suite 200, Park City
Utah 84060
United States of America
Toll Free: 0855 810 0161
E-mail: sales@cloudusa.pro
Web: www.cloudusa.pro
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
