CXV-225 & CXV-425
AMPLIFIERS
Installation and User Guide
Contents
Safety Information ........................................ 4
Safety Notes Regarding Installation .......................4
Conformities ...............................................................4
Safety Considerations and Information ................4
General Description ...................................... 5
Applicable Models ...................................................... 5
Schematic Diagram ...................................... 5
Front Panel Description ............................... 6
Rear Panel Description ................................. 7
Installation ..................................................... 8
Mechanical ................................................................... 8
Ventilation .................................................................... 8
Connections and Adjustments ................................8
Inputs ............................................................................ 8
Sensitivity and Gain Control ................................8
Input Routing ...........................................................8
Remote Control of Level ......................................9
Outputs ........................................................................9
Protection...............................................................10
High Pass Filters ....................................................10
VCA Cards (optional) .............................................10
Installation .............................................................10
BOSE® Equalisation Modules (Optional) ...........11
Installation ..............................................................11
General Notes ............................................. 11
EMC Considerations ...............................................11
Earthing ......................................................................11
Technical Specications .............................. 12
General Specications ................................ 12
Location of Internal Jumpers and
Connectors. .................................................. 13
CXV-225 connector and jumper details .............13
CXV-425 connector and jumper details .............14
CXV-225 & CXV-425 User Manual v1.0 3
CXV-225 & CXV-425 User Manual v1.04
Safety Information
Safety Notes Regarding Installation
Do not expose the unit to water or moisture. •
Do not expose the unit to naked ames. •
Do not block or restrict any air vent. •
Do not operate the unit in ambient temperatures above •
35 °C.
Do not touch any part or terminal carrying the •
hazardous live symbol ( ) while power is supplied to
the unit.
Do not perform any internal adjustments unless you •
are qualied to do so and fully understand the hazards
associated with mains-operated equipment.
The unit has no user-serviceable parts. Refer servicing •
to qualied service personnel.
Safety Considerations and Information
The unit must be earthed. Ensure that the mains power
supply provides an effective earth connection using a threewire termination.
When the mains switch is in the off ‘O’ position the live
and neutral conductors of the mains transformer are
disconnected.
Caution - High Voltages
Do not touch any part or terminal carrying the hazardous
live symbol ( ) while power is supplied to the unit.
Terminals to which the hazardous live symbol refers require
installation by a qualied person.
Caution - Mains Fuse
Replace the mains fuse only with the same type and rating as
marked on the rear panel.
The fuse body size is 20 mm x 5 mm.
If the moulded plug is cut off the AC power lead for •
any reason, the discarded plug is a potential hazard and
should be disposed of in a responsible manner.
Conformities
This product conforms to the following European EMC
Standards:
BS EN 55103-1:1997
BS EN 55103-2:1997
This product has been tested for use in commercial and
light industrial environments. If the unit is used in controlled
EMC environments, the urban outdoors, heavy industrial
environments or close to railways, transmitters, overhead
power lines, etc., the performance of the unit may be
degraded.
The product conforms to the following European electrical
safety standard:
BS EN 60065:2002
Caution - Servicing
The unit contains no user-serviceable parts. Refer servicing
to qualied service personnel. Do not perform servicing
unless you are qualied to do so.
Disconnect the power cable from the unit before removing
the top panel and do not make any internal adjustments with
the unit switched on.
Only reassemble the unit using bolts/screws identical to the
original parts.
The CXV Series was developed and manufactured with high
quality materials and components, which can be recycled
and/or reused.
CXV-225 & CXV-425 User Manual v1.0 5
General Description
1
1
1
1
1
2
2
2
2
2
+
+
+
+
-
-
-
-
3
3
3
3
3
4
5
6
7
8
LEVEL
LEVEL
LEVEL
LEVEL
FREQ
FREQ
FREQ
FREQ
VCA
VCA
VCA
VCA
SPEAKER
EQ
SPEAKER
EQ
SPEAKER
EQ
SPEAKER
EQ
CLIP
LIMITER
CLIP
LIMITER
CLIP
LIMITER
CLIP
LIMITER
PROTECT
PROTECT
PROTECT
PROTECT
OUTPUTS
J4
J3
J2
J1
CHANNEL.
POWER
AMPLIFIER
POWER
AMPLIFIER
POWER
AMPLIFIER
POWER
AMPLIFIER
CXV-225
CXV-425
fig.1: CXV Series schematic diagram
The Cloud CXV-225 and CXV-425 are high power
(250 W/ch), multi-channel audio ampliers intended for use
with high quality PA and background music systems in ofces,
hotels, factories, leisure facilities and other commercial and
industrial premises.
They are designed to drive 100 V line speaker systems
directly, and have no low-impedance outputs. Low impedance
loudspeakers can only be connected to these ampliers
with the use of an intermediate 100 V line transformer.
Loudspeakers designed for such ‘installed-sound’ applications
will normally include an integral transformer, typically with
selectable output power taps. If you have any doubt about
the suitability of this amplier for the speaker system it is to
be connected to, please verify that the speakers are of the
100 V line type with the manufacturer.
Unlike traditional 100 V line amplier designs, the CXV-225
and CXV-425 do not employ an output transformer. This
produces a considerable saving in weight and a signicant
improvement in audio quality.
Applicable Models
This manual describes the installation and operation of the
following models:
Cloud CXV-225 2-channel amplier – •
2 x 250 W, 2U 19” rack unit
Cloud CXV-425 4-channel amplier – •
4 x 250 W, 3U 19” rack unit
Apart from the number of channels and the units’ physical
dimensions and power consumption gures, the two
models are otherwise identical for the practical purposes of
installation and operation.
Schematic Diagram
CXV-225 & CXV-425 User Manual v1.06
Front Panel Description
1
2
3
4
5
6
1
2
3
4
5
6

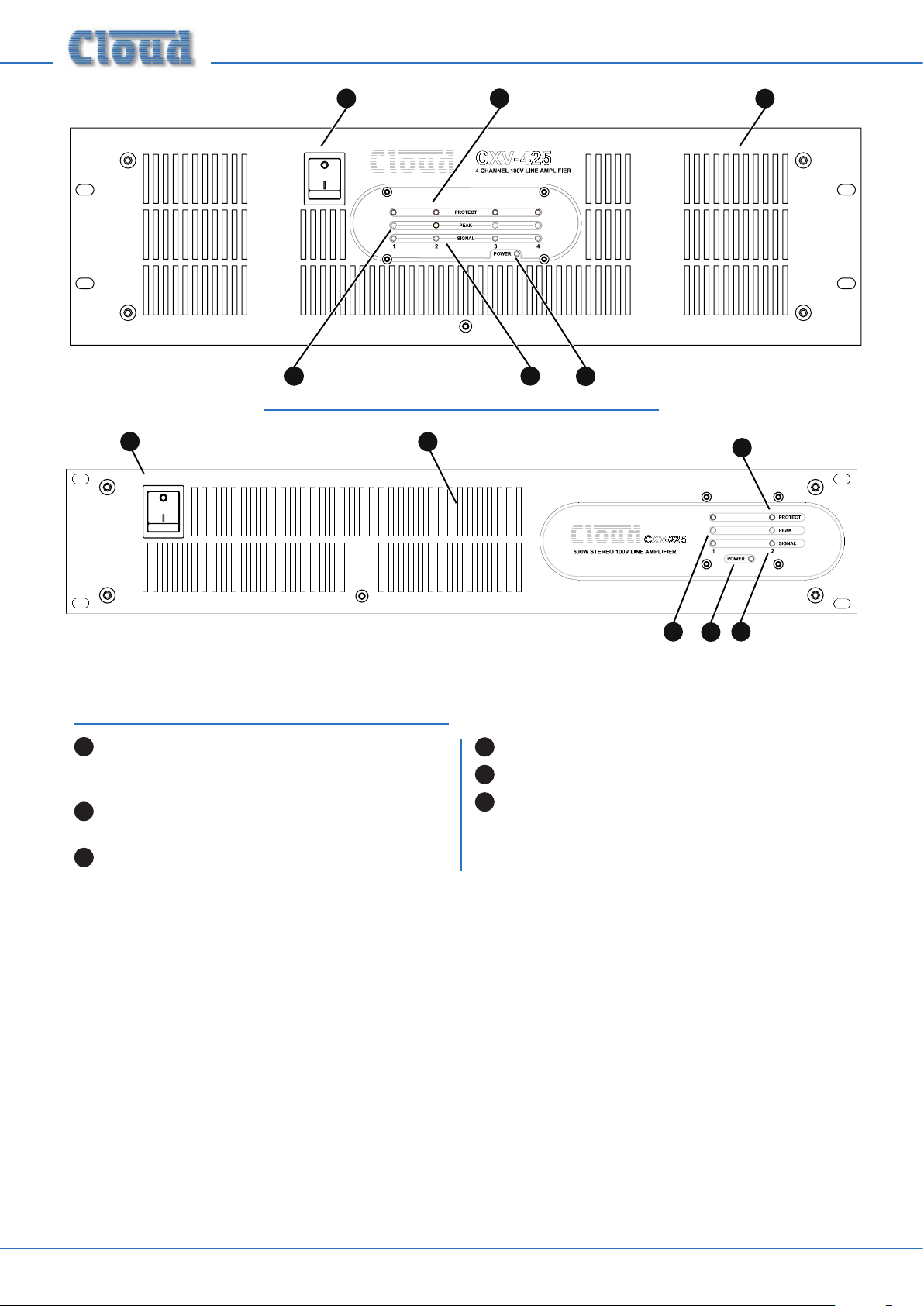

fig.2: CXV-425 Front panel
fig.3: CXV-225 Front panel
1
2
3
4
5
6
SIGNAL LEDs (one per channel) – illuminate
when the output voltage exceeds approx. 12.5 Vrms
(18 dB below maximum output)
PEAK LEDs (one per channel) – illuminate if
maximum output voltage is reached (100 Vrms)
PROTECT LEDs (one per channel) – indicate
fault conditions
AC POWER SWITCH
POWER LED
AIR INTAKE GRILLES
Rear Panel Description
1
2
3
4
5
6
7
8
9
10
11
1
2
3
4
5
6
8
9
10
11 11

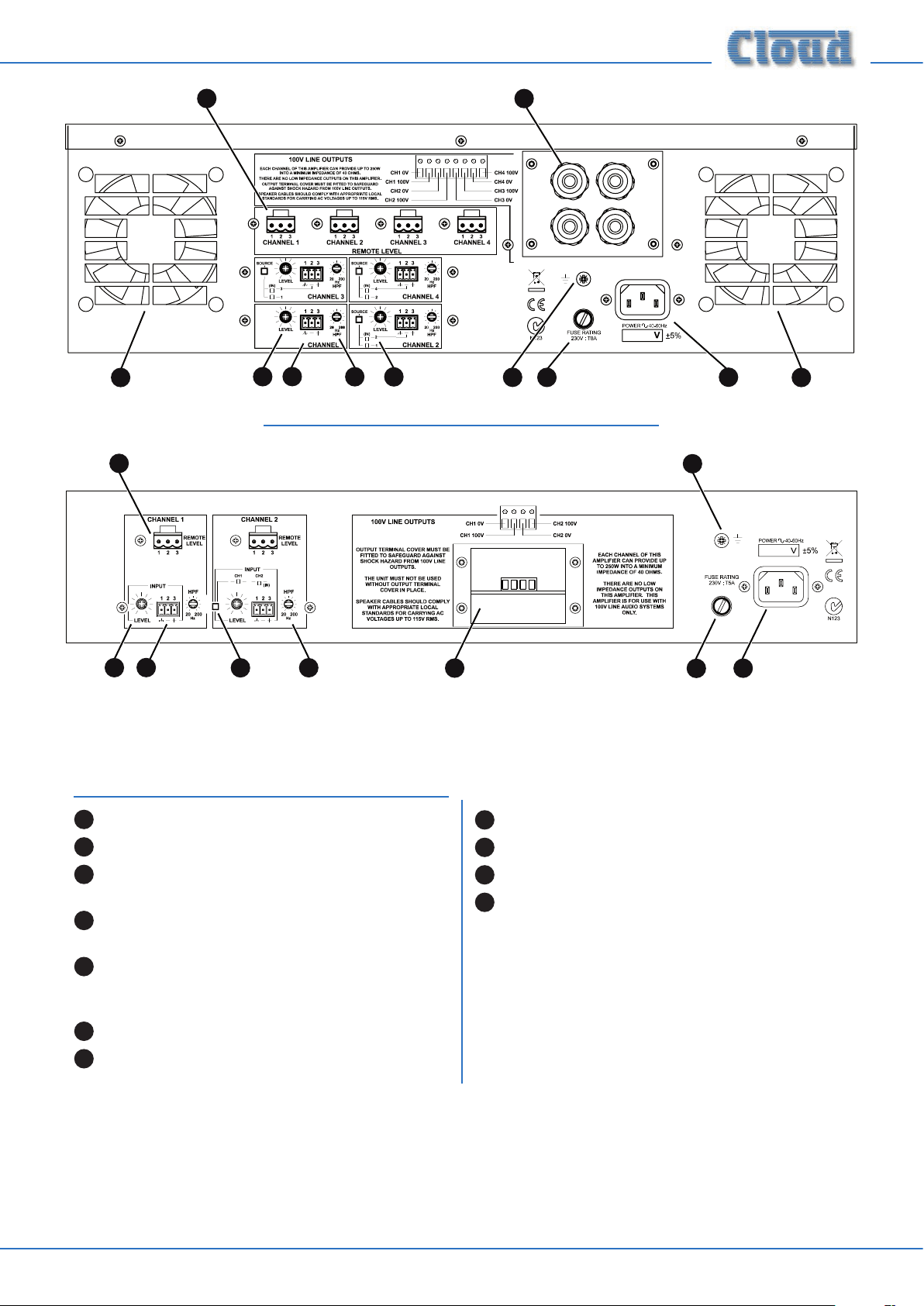

fig.4: CXV-425 Rear panel showing output terminal cover
fig.5: CXV-225 Rear panel showing output terminals
1
2
3
4
5
7
8
9
10
INPUT CONNECTORS (one per channel)
INPUT LEVEL CONTROLS (one per channel)
HIGH PASS FILTER CONTROLS
(one per channel)
INPUT ROUTING SWITCHES –
1 for CXV-225, 3 for CXV-425
REMOTE VOLUME CONTROL CONNECTORS
– when remote control option is tted (one per
channel)
OUTPUT TERMINAL COVER
OUTPUT TERMINALS
AC MAINS CONNECTOR
EARTH SAFETY TAG
MAINS FUSE
COOLING FANS AND AIR EXHAUST –
CXV-425 only
CXV-225 & CXV-425 User Manual v1.0 7
Installation
1
2
3
Balanced output
(typically XLR):
pin 1: ground
pin 2: hot
pin 3: cold
Amplifier input
123
+
-
+
-
pin 1: n/c
pin 3: hot
pin 2: cold
BALANCED CONNECTION
Amplifier input
123
+
-
pin 1: n/c
pin 3: hot
pin 2: cold
Unbalanced outputs
(e.g. phonos):
screen: ground
pin: hot
UNBALANCED CONNECTION
Mechanical
The ampliers are designed to be mounted in a standard
19” equipment rack. The front panel is tted with rackmount
ears for this purpose. The CXV-225 requires 2U of vertical
rack space, the CXV-425 requires 3U. See notes below
regarding spacing and ventilation.
Due to the units’ weight, the use of additional side supports
is recommended.
Ventilation
The CXV-425 is force cooled by two thermostaticallycontrolled fans mounted on the rear panel. The fan is
operative at all times, remaining at low speed at internal
temperatures below 50 °C, then increasing in speed above
this temperature to a maximum speed at 70 °C.
The CXV-225 has a single fan mounted internally to keep
noise to a minimum.
Always allow adequate space around the amplier(s) to
allow a free ow of air through the unit(s). Ensure that cable
bundles or other items do not obstruct any grilles.
In 19” rack applications we recommend leaving 1U of rack
space above and below each unit. Plain 1U blank panels,
not slotted ventilation panels should be used, as the latter
reduce the effect of forced-air cooling. The direction of
airow is from front-to-rear (CXV-425) and front-to-sides
(CXV-225); it is recommended not to mix these ampliers
with other equipment employing forced-air cooling which
acts in the opposite direction within the same rack.
Connections and Adjustments
Inputs
Each amplier channel has an electronically-balanced input
on a 3-pin 3.5 mm-pitch screw terminal connector. Twincore screened cable should be used when driving the
amplier inputs from a device with a balanced output. Single-
core screened cable can be used when connecting to an
unbalanced source.
g.6: Input wiring
CXV-225 & CXV-425 User Manual v1.08
Sensitivity and Gain Control
Control of input level is provided by a preset rotary
control adjacent to each input connector. The control
should be adjusted using a trim tool or small screwdriver.
Full attenuation of the input signal – i.e., zero output – is
obtained with the control fully anti-clockwise. Maximum
sensitivity is with the control fully clockwise; at this setting
the maximum output level of 100 Vrms will be produced for
an input signal level of 0.775 Vrms (0 dBu).
We recommend that the level for each channel should
be adjusted after installation is complete to ensure that
adequate, but not excessive sound levels are achieved with
the programme material that will be used in practice.
Input Routing
To facilitate the use of the ampliers in multi-zone
applications, input selection switches are provided on all
channels except Ch1. This gives the installer an easy method
of paralleling channels from a single input.
The options are summarised in the table below:
CHANNEL
SOURCE
CXV-225 CXV-425
Button position Out In Out In
Channel 2 Input 1 Input 2 Input 1 Input 2
Channel 3 Input 1 Input 3
Channel 4 Input 2* Input 4
* post Ch 2 switch
Refer also to the block diagram on page 5.
CXV-225 only: The CXV-225’s single switch allows
Channel 2 to be operated in parallel with Channel 1, with
Input 1 acting as the common input connector.
CXV-425 only: The three switches on the CXV-425 allow
a total of 8 routing possibilities, including 4-channel, dual
stereo and mono operation with 4 channels paralleled. The
table below claries the options:
BUTTON
POSITION
Ch 1 Ch 2 Ch 3 Input 1 Input 2 Input 3 Input 4
In In In
Out In In
In Out In
Out Out In
In In Out
Out In Out
In Out Out
Out Out Out
INPUT ROUTING: CHANNELS
FED BY EACH INPUT
Ch 1 Ch 2 Ch 3 Ch 4
Chs 1 & 2 Ch 3 Ch 4
Chs 1 & 3 Ch 2 Ch 4
Chs 1, 2 & 3 Ch 4
Ch 1 Chs 2 & 4 Ch 3
Chs 1, 2 & 4 Ch 3
Chs 1 & 3 Chs 2 & 4
Chs 1, 2, 3 & 4
Remote Control of Level
123
REMOTE LEVEL
CONNECTOR
123
RL-1
USE TWO-CORE SCREENED CABLE
-+ -+
CH 1CH 2
-+
CH 1CH 2
-+ -+ -+ -+
CH 3 CH 4
CXV-425
CXV-225
1234
1234
6785
The CXV-225 and CXV-425 ampliers are compatible with
standard Cloud remote control plates type RL-1, allowing
control of level from a remote position. In order to use
the ampliers with the RL-1, VCA cards must rst be tted
in the channels to be controlled remotely. See page 10 for
details of VCA cards and tting. Once VCA cards have been
tted, RL-1s may be connected at the rear 3-pin 5 mm-pitch
screw terminal connectors (Remote Level), using the wiring
shown below.
g.7: Remote level control wiring
Use two-core screened cable to connect the remote level
plate (maximum length 100 metres).
Outputs
The 100 V line speaker output terminals are behind the
removable output terminal cover (see page 7). The covers
are tted with a cable gland (one per channel); to use these,
slacken the rear nut by a few turns and feed the cable
through. The plug-in connectors are suitable for cable cores
up to 2.5 mm2.
Connect as shown below:
g.8: Output wiring
After making the connections, replace the cover and tighten
the gland nuts. They only need to be rmly nger-tight; take
care not to over tighten, use only enough torque to give
reasonable cable retention. Do not use a spanner.
Caution: The amplier should never be operated without
the output terminal cover installed. Apart from exposing
the high voltage terminals, leaving the cover off also
compromises the amplier’s forced-air cooling.
The amplier’s transformerless output stage is designed
to drive up to 100 Vrms into an impedance of at least
40 ohms (each channel). Check the input impedance of the
loudspeaker type in use and divide this gure by the number
of loudspeakers* to ensure that the total impedance is
greater than 40 ohms. Alternatively, add the wattages of all
the loudspeakers being driven by each channel (taking power
tappings into account); the total must be less than 250 W.
* Assumes all loudspeakers in the system are of the same type and have the
same tap setting.
CXV-225 & CXV-425 User Manual v1.0 9
Protection
The ampliers include comprehensive protection circuitry
to prevent damage to loudspeakers, the output devices and
other components in the event of a fault condition.
Thermal Protection
The output device heatsink temperatures are monitored and
the protection circuitry activated if any should exceed 90°C.
The red front panel PROTECT LED for the appropriate
channel illuminates to indicate the fault condition.
DC Protection
Crowbar protection is provided to safeguard the
loudspeakers in the event of DC being present at the output
terminals. This is an emergency protection feature that
will only operate in the event of the amplier developing a
fault. Its action is liable to blow internal DC rail fuses. The
amplier must be serviced before any attempt is made to
use it further.
Short-circuit protection
voices contain any useful signal below 200 Hz, so in many
cases the lter can be set to 200 Hz without any real loss
of quality. Often a setting this high will actually enhance the
clarity of the speech, reduce microphone handling noise and
reduce breath blasts.
For music systems
The optimum lter setting will depend on the speakers and
their transformers. It should be recognised that
many 100 V line speakers have inferior LF performance
compared to low impedance speakers. If the manufacturer
recommends a minimum frequency of operation, set the
lter to this. Otherwise, settings between 70 Hz and 100 Hz
should be appropriate.
Test the system at full volume with a variety of music
containing high level, low bass notes and listen for any
distortion. If the transformers saturate, distortion will be
clearly audible. In this case, turn the control clockwise until
it disappears.
VI limiting is implemented in the ampliers to protect the
output stages from excessive dissipation caused by abnormal
loads; for example, a short-circuit.
Switch-on protection
The protection circuitry is also activated immediately after
the amplier is switched on. This is to prevent any voltage
spikes due to start-up conditions from damaging the
loudspeakers. The protection circuitry automatically times
out after approx. 5 seconds. All PROTECT LEDs illuminate at
switch-on for the duration of the time-out period.
High Pass Filters
Most transformers tted to 100 V line speakers exhibit
core saturation when fed with high-level signals at low
frequencies. Transformer saturation creates unpleasant
distortion and stresses the system. To counteract this, a
correctly congured high pass lter is an essential part of
any 100 V line system. The CXV-225 and CXV-425 have
variable frequency high pass lters in each channel, accessible
at the rear panel (see page 7). These should be adjusted to
reject low frequencies, to suit both the speakers and the
application. When adjusting, bear in mind that the higher
the frequency setting, the less likely it is that the system will
suffer from saturation problems.
The minimum (20 Hz) setting should only be used when
the system has some other form of lter or protection
from high-level low frequency signals (e.g., a dedicated
speaker processor) or when the speaker manufacturer
explicitly states that they will operate correctly at such low
frequencies.
For speech-only
Settings somewhere between 100 Hz (12 o’clock) and 200
Hz are appropriate. Start with the lter set to 100 Hz and
turn the control clockwise whilst listening to speech through
the system until you can hear a loss of bass in the voice. Few
VCA Cards (optional)
Cloud VCA-5 modules must be tted to the CXV-225
and CXV-425 ampliers if remote control of audio level is
required. One VCA-5 module is required for each channel,
and as many as necessary may be tted. The VCA modules
use the industry-standard That’s 2181 VCA device, which
provides very low distortion and up to 90 dB attenuation at
cut-off.
The VCA module can also be used to provide muting by
using an auxiliary relay connected to a re alarm control
panel. Please contact our technical department for further
details.
Installation
With the power turned off and the mains cable •
removed, remove the top panel.
Refer to the pcb layout diagrams on • page 13. Locate the
VCA connector for the rst channel being tted, and
remove the jumper joining one pair of pins.
Unscrew the blanking plate from the rear panel. •
Remove and retain the M3 xing screw adjacent to the •
connector, and t the 35mm M3 hex spacer supplied
with the VCA-5 in its place.
Push the 10-way VCA plug onto the PCB connector, •
aligned so the cable enters it from the rear of the
chassis. Check there is contact with all 10 pins.
Locate the VCA module’s 3-pin socket in the rear panel •
cut-out and secure using the M3 screw provided.
Replace the top panel. •
Once the VCA-5 modules have been installed, RL-1 remote
level control plate(s) may be connected to the REMOTE
LEVEL connector(s) on the rear panel.
CXV-225 & CXV-425 User Manual v1.010
BOSE® Equalisation Modules (Optional)
The CXV-225 and CXV-425 are compatible with Bose®
Series II loudspeakers; a single-channel Bose® equalisation
module may be tted to as many channels as necessary.
Equalisation modules for the following Bose® models are
available:
Panaray® MA12 •
Panaray® 402-II, 502B and 502BEX •
Panaray® LT Series: Models 3302, 4402, 9402 and 9702 •
Freespace® DS 16 range •
Freespace® Model 16 •
Freespace® Model 32 range •
General Notes
EMC Considerations
CXV Series ampliers fully conform to the relevant
electromagnetic compatibility (EMC) standards and are
technically well behaved. You should experience no problems
interfacing units to other items of equipment and under
normal circumstances, no special precautions need to
be taken. If the unit is to be used in close proximity to
potential sources of HF disturbance such as high power
communication transmitters, radar stations and the like, it is
suggested that input signal leads be kept as short as possible.
Always use balanced interconnections wherever possible.
Other modules are available; please enquire.
Installation
With the power turned off and the mains cable •
removed, remove the top panel.
Refer to the pcb layout diagrams on • page 13. The
modules plug into the white 12-pin connectors on the
PCB. Note the header connectors on the PCB have two
notches on one side only; these engage with lugs on
the equalisation module’s mating connector to ensure
correct orientation.
After tting equalisation modules to any channel(s), •
the corresponding module bypass jumper(s) must be
removed in order for the module to function. Refer to
the pcb layout diagrams for jumper locations.
Replace the top cover with the original screws after •
tting
Earthing
When several mains powered units are connected together
via their signal cables, there is a risk of one or more earth
loops which may cause an audible hum on the system even
with the gain controls set to minimum.
The 0 V rail of a CXV Series amplier is directly coupled to
the chassis ground. No interconnection problems should be
encountered, but if there is any hum or other extraneous
noise when source equipment is connected, the situation can
generally be remedied by observing the following guidelines:
Always connect sources using balanced connections •
wherever possible, with the cable screen only connected
at the receiving end (amplier input).
Use audio isolating transformers (readily available from •
trade suppliers) at the inputs if necessary. These will
ensure that the amplier is electrically isolated from the
source equipment.
The signal source units should be located as close as •
possible to the ampliers and the metal housing of
the various units should not be electrically connected
together through the equipment rack. If this is a
problem, rack isolating kits are available from specialist
hardware suppliers. If the problem persists, try to
connect all interconnected units, including power
ampliers, to a common power source to ensure a
common ground is provided.
CXV-225 & CXV-425 User Manual v1.0 11
Technical Specications
CXV-225 & CXV-425
Outputs 100 Vrms; 250 W into 40 Ω min. load (per channel)
Frequency Response 20 kHz -0.6 dB; LF response dependent on lter setting
High Pass Filter -3 dB @ 20 Hz – 200 Hz variable
Distortion <0.04% @ 1 kHz & 1 dB below limiting, 40 Ω load
Crosstalk -80 dB @ 10 kHz
Sensitivity 0.775 Vrms (0 dBu)
Input Impedance 10 kΩ balanced, 5 kΩ unbalanced
Noise (rms) -96 dB, 22Hz - 22kHz, relative to 100 Vrms
Power Input 230 V ±5%
Fuse Rating 230 V, 5 A
Fuse Type T5A, 20 mm x 5 mm 250V
General Specications
CXV-225 CXV-425
Inputs Electronically balanced; 3-pin 2.5 mm-pitch plug-in screw terminal connectors
Outputs 2-pin 5 mm-pitch plug-in screw terminal connectors
Protection Clip Limiting, VI Limiting, DC Offset, Thermal & switch-on delay
Status Indicators LED indicators on each channel for Signal, Peak & Protect
Cooling Force cooled; internal variable speed
DC fan
Dimensions
(mm, W x H x D)
Weight 8.8 kg net 21 kg net
482.6 x 88 (2U) x 300 (+ connectors) 482.6 x 132.5 (3U) x 332
Force cooled; two rear-mounted
variable speed DC fans
(+ connectors)
CXV-225 & CXV-425 User Manual v1.012
FAN ASSY.
REAR OF AMPLIFIER
CON3 CON1
VCA CARD
SOCKETS
CON10
CON9
J1J2
BOSE
®
EQ CARD
SOCKETS
OUTPUT
TERMINALS
NOT TO SCALE
CXV-225: MAIN PCB LAYOUT.
TOP VIEW. ONLY PRIMARY
COMPONENTS SHOWN.
BOSE®EQ CARD
BYPASS JUMPERS
Location of Internal Jumpers and Connectors.
CXV-225 connector and jumper details
g.9: Internal jumpers - CXV-225
MODEL PCB REF Function Default Setting
CXV-225
CON1 CH1 VCA CARD SET
CON3 CH2 VCA CARD SET
CON9
CON10
CH1 BOSE® EQ CARD
CH2 BOSE® EQ CARD
J1 CH 1 EQ CARD BYPASS SET
J2 CH 2 EQ CARD BYASS SET
CXV-225 & CXV-425 User Manual v1.0 13
CXV-425 connector and jumper details
REAR OF AMPLIFIER
CON25CON12CON13CON24
(INPUTS 3 & 4 SUB BOARD)(OUTPUT SUB BOARD)
CON6
CON5
CON17
CON15
J1
J2
J3
J4
VCA CARD
SOCKETS
OUTPUT
TERMINALS
CXV-425: MAIN PCB LAYOUT.
TOP VIEW. ONLY PRIMARY
COMPONENTS SHOWN.
BOSE®EQ CARD
SOCKETS
BOSE®EQ CARD
BYPASS JUMPERS
NOT TO SCALE
g.10: Internal jumpers - CXV-425
MODEL PCB REF Function Default Setting
CXV-425
CON12 CH1 VCA CARD SET
CON13 CH2 VCA CARD SET
CON24 CH3 VCA CARD SET
CON25 CH4 VCA CARD SET
CON5
CON6
CON15
CON17
J1
J2
J3
J4
CH1 BOSE® EQ CARD
CH2 BOSE® EQ CARD
CH3 BOSE® EQ CARD
CH4 BOSE® EQ CARD
CH 1 EQ CARD BYPASS SET
CH 2 EQ CARD BYPASS SET
CH 3 EQ CARD BYPASS SET
CH 4 EQ CARD BYPASS SET
CXV-225 & CXV-425 User Manual v1.014
Bose® is a registered trademark of The Bose Corporation.
In the interest of continuing improvements Cloud Electronics Limited reserves
the right to alter specications without prior notice.
CXV-225 & CXV-425 User Manual v1.0 15
Cloud Electronics Limited
140 Staniforth Road
Shefeld S9 3HF
England
Tel: +44 (0)114 244 7051
Fax: +44 (0)114 242 5462
email: info@cloud.co.uk
web: www.cloud.co.uk
Loading...
